Q(Lock):Press the lock button to lock all the doors. If
enabled through the Driver Information Center (DIC), the
remote lock feedback can be programmed to have the
horn chirp and/or the parking lamps ash when the
remote keyless entry transmitter is used to lock the
vehicle’s doors. See “LOCK HORN” and “LIGHT FLASH”
underDIC Vehicle Personalization on page 3-43for more
information.
Pressing the lock button may arm the content
theft-deterrent system. SeeContent Theft-Deterrent on
page 2-14.
"(Unlock):Press the unlock button one time to unlock
the driver’s door. Press the unlock button again within
ve seconds to unlock the other doors. The interior
lamps will come on and stay on for 20 seconds or until
the ignition is turned on. If enabled through the DIC,
the remote unlock feedback can be programmed to have
the horn chirp and/or the turn signal lamps ash when
the remote keyless entry transmitter is used to
unlock the vehicle’s doors. See “UNLOCK HORN” and
“LIGHT FLASH” underDIC Vehicle Personalization
on page 3-43for more information.If enabled through the DIC, and it is dark enough
outside, the vehicle’s high-beam headlamps and parking
lamps will come on each time the unlock button on
the transmitter is pressed. These exterior lamps will stay
on for 20 seconds, or until a door is opened. See
“EXT (Exterior) LIGHTS” underDIC Vehicle
Personalization on page 3-43.
Pressing the unlock button on the remote keyless entry
transmitter will disarm the content-theft deterrent
system. SeeContent Theft-Deterrent on page 2-14for
more details.V(Remote Trunk Release):The trunk will open
when this button on the transmitter is pressed and held
for approximately one second. You can open the
trunk with the transmitter when the vehicle is stationary.
L(Vehicle Locator/Panic Alarm):Press and
release this button to help locate your vehicle. The horn
will sound three times and the hazard lamps will ash
three times. Press and hold the button for three seconds
to sound the panic alarm. The horn will sound and the
hazard lamps will ash for 30 seconds. The ignition must
be off for the vehicle locator/remote alarm to work.
Press the vehicle locator/panic alarm button again or
turn the ignition to ACC (Accessory) or RUN to turn off
the alarm.
2-5

Matching Transmitter(s) to
Your Vehicle
Each remote keyless entry transmitter is uniquely coded
to prevent another transmitter from unlocking the
vehicle. If a transmitter is lost or stolen, a replacement
can be purchased through your GM dealer. Remember
to bring any additional transmitters with you when
you go to your dealer. The vehicle can have a maximum
of four transmitters matched to it.
Battery Replacement
Under normal use, the battery in the remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter will not
work, at the normal range, in any location. If you
have to get close to your vehicle before the transmitter
works, it is probably time to change the battery. The
KEY FOB BATT LOW message in the vehicle’s DIC will
display, if the remote keyless entry transmitter battery
is low.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.To replace the battery do the following:
1. Insert a at object with a thin edge into the notch,
located below the Vehicle Locator/Panic Alarm
button, and pry the front and back apart.
2. Remove the old battery, but do not use a metal
object to do this.
3. Slide the new battery into the transmitter with the
positive side of the battery facing up. Use a type
CR2032 battery, or equivalent type.
4. Snap the front and the back of the transmitter
together.
5. Test the operation of the transmitter with the
vehicle.
2-6

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle will not open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors are not locked. So,
wear safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.
There are several ways to lock and unlock your vehicle.
To lock the driver’s door from the outside, turn the
key clockwise. To unlock the door, turn the key
counterclockwise.
You can also use the remote keyless entry transmitter,
if equipped, to lock and unlock the doors.
From the inside, use the manual lock knobs on each
door or the power door lock switch to lock and unlock
all doors.
2-7

Power Door Locks
Your vehicle may have
power door locks. If so,
they are located on
the driver’s and front
passenger’s door armrest.
Press the side of the switch with the lock symbol to lock
the doors. This is the right side for the driver’s switch
and the left side for the front passenger’s switch.
Press the side of the switch with the unlock symbol to
unlock the doors. This is the left side for the driver’s
switch and the right side for the front passenger’s switch.
Delayed Locking
If your vehicle has power locks, it will have the delayed
locking feature.
This feature will delay the actual locking of the doors for
up to ve seconds when the power door lock switch
or remote keyless entry transmitter is used to lock the
vehicle.
If any door is open when locking the vehicle, three
chimes will sound signaling that the delayed locking
feature is active. Five seconds after the last door
is closed, all of the doors will lock and the turn signal
lamps will ash. To cancel the delay and lock the doors
immediately, press the lock button a second time.
This feature will not lock the doors if the key is in the
ignition.
You can disable this function through the Driver
Information Center (DIC). SeeDIC Vehicle
Personalization on page 3-43. Driver’s Switch shown,
Front Passenger’s
Switch similar
2-8

Automatic Door Lock
If your vehicle has power door locks, the doors will
automatically lock when the shift lever is moved out of
PARK (P) for a vehicle with an automatic transmission.
For a vehicle with a manual transmission, the speed
must be greater than 5 mph (8 km/h).
The automatic door locking feature cannot be disabled.
Programmable Automatic
Door Unlock
If your vehicle has power locks, it has a programmable
automatic door unlock feature.
The doors can be programmed through the Driver
Information Center (DIC) to automatically unlock several
ways. SeeDIC Vehicle Personalization on page 3-43
for more information.
Rear Door Security Locks
Your vehicle has rear door security locks. These
prevent passengers from opening the rear doors from
the inside.
The rear door security
locks are located on the
inside edge of each
rear door. You must open
the rear doors to access
them. The label depicting
lock and unlock positions
is located near the lock.
To set the locks, do the following:
1. Insert the key into the security lock slot and
turn it so the slot is in the horizontal position.
2. Close the door.Security Lock Label
shown
2-9

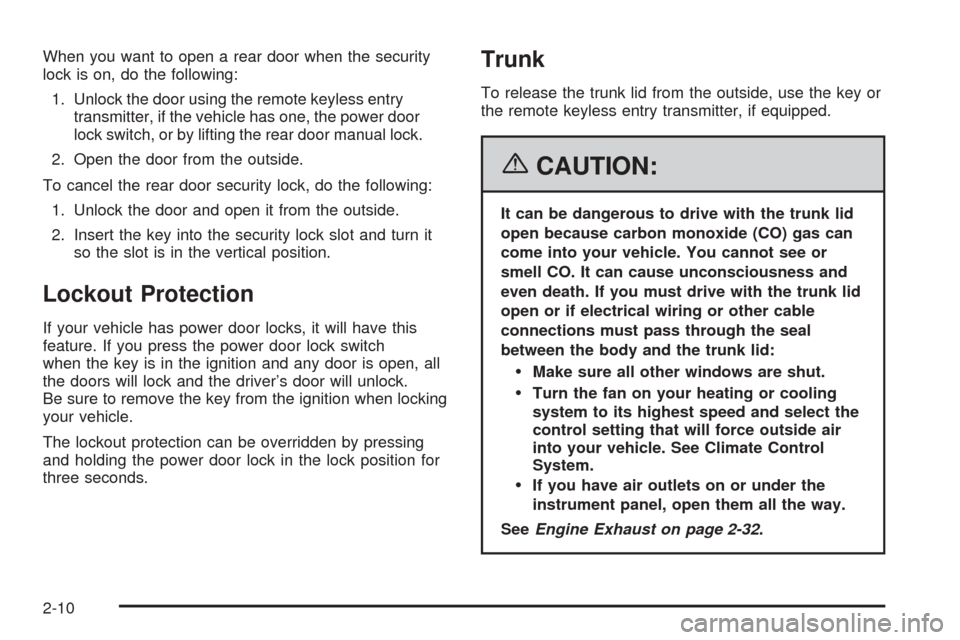

When you want to open a rear door when the security
lock is on, do the following:
1. Unlock the door using the remote keyless entry
transmitter, if the vehicle has one, the power door
lock switch, or by lifting the rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot and turn it
so the slot is in the vertical position.
Lockout Protection
If your vehicle has power door locks, it will have this
feature. If you press the power door lock switch
when the key is in the ignition and any door is open, all
the doors will lock and the driver’s door will unlock.
Be sure to remove the key from the ignition when locking
your vehicle.
The lockout protection can be overridden by pressing
and holding the power door lock in the lock position for
three seconds.
Trunk
To release the trunk lid from the outside, use the key or
the remote keyless entry transmitter, if equipped.
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk lid
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-32.
2-10

Remote Trunk Release
To open the trunk from
inside the vehicle, press
the remote trunk release
button located inside
the driver’s storage
compartment located on
the lower left side of
the instrument panel.
SeeInstrument Panel Overview on page 3-4orDriver’s
Storage Compartment on page 2-37.
The remote trunk release works when the ignition is
either off or in ACC, or the vehicle speed is less
than 2 mph (3 km/h).
Emergency Trunk Release Handle
Notice:Do not use the emergency trunk release
handle as a tie-down or anchor point when securing
items in the trunk as it could damage the handle.
The emergency trunk release handle is only
intended to aid a person trapped in a latched trunk,
enabling them to open the trunk from the inside.
There is a glow-in-the-dark emergency trunk release
handle located on the inside of the trunk lid of your
vehicle. This handle will glow following exposure to light.
Pull the release handle and push the trunk lid open
from the inside to open the trunk.
2-11

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
2-12

Manual Windows
If your vehicle has manual windows, use the window
crank to open and close each window.
Power Windows
If your vehicle has power windows, the switches on the
driver’s door armrest control each of the windows.
In addition, each passenger’s door has a window switch
that controls that door’s window. Press the front of
the switch to open the window. Pull the front of
the switch up to close it.
Express-Down Window
The driver’s window switch has an express-down
feature which allows the window to be lowered fully
without continuously pressing the switch. This switch is
labeled AUTO. Press the front of the switch to the
rst position, and the driver’s window will open a small
amount. Press the switch down fully and the window
will go all the way down.
To stop the window while it is lowering, pull the front of
the switch up.
Window Lockout
o
(Window Lockout):The driver’s window controls
also include a lockout switch. Press the right side of the
switch to prevent the rear passengers from using
their window switches. The driver can still control all the
windows with the lockout on. Press the switch to the
left to return to normal window operation. A red bar on
the right side of the switch indicates that the lockout
feature is off.
Sun Visors
To block out glare, swing down the visor(s). The visors
can also be detached from the center mount and
swung to the side to cover the windows. Sedan Shown, Coupe
Similar
2-13

Visor Vanity Mirror
Your vehicle may have a driver’s side vanity mirror.
Swing down the sun visor and lift the cover to expose
the mirror.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Content Theft-Deterrent
Your vehicle may have a
content theft-deterrent
alarm system.
Arming the System
With the ignition off, you can arm the system by doing
any one of the following:
Press the remote keyless entry transmitter lock
button.
Press the power door lock switch while the driver’s
door is open.
The system will arm after either of these things occur:
Thirty seconds after all the doors are closed.
Sixty seconds with any door open.
If you press the lock button on the transmitter a second
time while all the doors are closed, the system will
arm immediately. The system will still arm in 60 seconds
if a door is open. When the open door is closed, it will
also become armed.
The security light, located on the instrument panel
cluster, will turn on to indicate that arming has been
initiated. Once the system is armed, the security light will
ash once every three seconds.
If the security light is ashing twice per second, this
means that a door is open.
If you do not want to arm the system, you may lock the
car with the manual lock knobs on the doors.
2-14
