Matching Transmitter(s) to
Your Vehicle
Each remote keyless entry transmitter is uniquely coded
to prevent another transmitter from unlocking the
vehicle. If a transmitter is lost or stolen, a replacement
can be purchased through your GM dealer. Remember
to bring any additional transmitters with you when
you go to your dealer. The vehicle can have a maximum
of four transmitters matched to it.
Battery Replacement
Under normal use, the battery in the remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter will not
work, at the normal range, in any location. If you
have to get close to your vehicle before the transmitter
works, it is probably time to change the battery. The
KEY FOB BATT LOW message in the vehicle’s DIC will
display, if the remote keyless entry transmitter battery
is low.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.To replace the battery do the following:
1. Insert a at object with a thin edge into the notch,
located below the Vehicle Locator/Panic Alarm
button, and pry the front and back apart.
2. Remove the old battery, but do not use a metal
object to do this.
3. Slide the new battery into the transmitter with the
positive side of the battery facing up. Use a type
CR2032 battery, or equivalent type.
4. Snap the front and the back of the transmitter
together.
5. Test the operation of the transmitter with the
vehicle.
2-6

R(RUN):This is the position the switch returns to after
you start your engine and release the switch. The
switch stays in the RUN position when the engine is
running. But even when the ignition is not running, you
can use RUN to operate your electrical accessories
and to display some warning and indicator lights.
/(START):This position starts the engine. When the
engine starts, release the key. The ignition switch
will return to RUN for normal driving.
A warning tone will sound if you open the driver’s door
while in LOCK or ACC, when the key has not been
removed from the ignition.
Column Lock Release
The following procedure allows the ignition to be turned
to LOCK and for ignition key removal in case of a
dead battery or low voltage battery.
1. Make sure the shift lever is in PARK (P).
2. Using a tool, pry off the cover from the bottom of
the steering column.
2-19

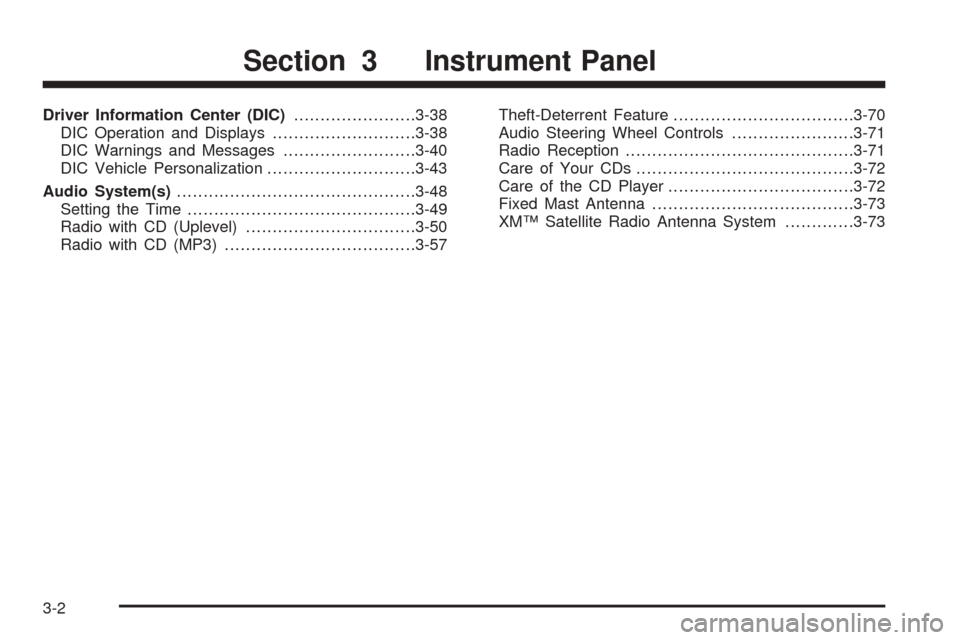

Driver Information Center (DIC).......................3-38
DIC Operation and Displays...........................3-38
DIC Warnings and Messages.........................3-40
DIC Vehicle Personalization............................3-43
Audio System(s).............................................3-48
Setting the Time...........................................3-49
Radio with CD (Uplevel)................................3-50
Radio with CD (MP3)....................................3-57Theft-Deterrent Feature..................................3-70
Audio Steering Wheel Controls.......................3-71
Radio Reception...........................................3-71
Care of Your CDs.........................................3-72
Care of the CD Player...................................3-72
Fixed Mast Antenna......................................3-73
XM™ Satellite Radio Antenna System.............3-73
Section 3 Instrument Panel
3-2

Speedometer and Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your vehicle’s odometer works together with the
driver information center. You can set a Trip A and
Trip B odometer. See “Trip Information” underDIC
Operation and Displays on page 3-38.
The odometer mileage can be checked without the
vehicle running. Simply open the driver’s door and the
mileage will be displayed briey.
If your vehicle ever needs a new odometer installed, the
new one will be set to the correct mileage total of the
old odometer.
Tachometer
The tachometer displays the engine speed in revolutions
per minute (rpm).
Notice:If you operate the engine with the
tachometer in the shaded warning area, your vehicle
could be damaged, and the damages would not
be covered by your warranty. Do not operate
the engine with the tachometer in the shaded
warning area.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
sound for several seconds to remind you and your
passengers to buckle your safety belts. The driver safety
belt light will also come on and stay on for several
seconds, then it will ash for several more. You should
buckle your seat belt.
This chime and light will
be repeated if the driver
remains unbuckled and
the vehicle is in motion.
If the driver’s belt is buckled, neither the chime nor the
light will come on.
3-24

Here are four things that some owners ask about.
None of these show a problem with your fuel gage:
At the service station, the gas pump shuts off before
the gage reads full.
It takes a little more or less fuel to ll up than the
gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took
a little more or less than half the tank’s capacity
to ll the tank.
The gage moves a little when you turn a corner or
speed up.
The gage doesn’t go back to empty when you turn
off the ignition.
For your fuel tank capacity, seeCapacities and
Specications on page 5-107.
Boost Gage
If equipped, this gage is located near the driver’s side of
the instrument panel cluster.
This gage indicates vacuum during light to moderate
throttle and boost under heavier throttle.
This gage displays the air pressure level in the intake
manifold before it enters the engine’s combustion
chamber.
This gage is automatically centered at zero every time
the ignition is turned to RUN. Actual vacuum or boost
is displayed from this zero point. Changes in ambient
pressure, such as driving in mountains and changing
weather, will slightly change the zero reading.United States
Canada
3-37

Driver Information Center (DIC)
The Driver Information Center (DIC) display gives you the
status of many of your vehicle’s systems. The DIC is also
used to display driver personalization menu modes and
warning/status messages. All messages will appear in
the DIC display, located at the bottom of the tachometer
on the instrument panel cluster.
The DIC buttons are
located to the right of the
steering wheel on the
instrument panel.
4(Information):Press this button to scroll through the
vehicle information mode displays.
r(Reset):Press this button to reset some vehicle
information mode displays, select a personalization
menu mode setting, or acknowledge a warning
message.
Press and hold the information and reset buttons at the
same time for one second, then release to enter the
personalization menu. SeeDIC Vehicle Personalization
on page 3-43for more information.
DIC Operation and Displays
The DIC comes on when the ignition is on. The DIC has
different modes which can be accessed by pressing the
DIC buttons. The button functions are detailed in the
following.
Information Modes
4
(Information):Press this button to scroll through the
following vehicle information modes:
Outside Air Temperature and Odometer
Press the information button until the outside air
temperature and the odometer are displayed. This mode
shows the temperature outside of the vehicle in either
degrees Fahrenheit (°F) or degrees Celsius (°C) and the
total distance the vehicle has been driven in either miles
(mi) or kilometers (km). The outside air temperature will
appear on the left side of the DIC display and the
odometer will appear on the right side of the display.
To change the DIC display to English or metric units,
see “UNITS” underDIC Vehicle Personalization on
page 3-43.
3-38

TRIP A or TRIP B
Press the information button until TRIP A or TRIP B is
displayed. These modes show the current distance
traveled since the last reset for each trip odometer in
either miles (mi) or kilometers (km). Both odometers can
be used at the same time.
Each trip odometer can be reset to zero separately by
pressing and holding the reset button for a few seconds
while the desired trip odometer is displayed.
FUEL RANGE
Press the information button until FUEL RANGE is
displayed. This mode shows the remaining distance
you can drive without refueling in either miles (mi)
or kilometers (km). It is based on fuel economy and the
fuel remaining in the tank.
The fuel economy data used to determine fuel range is an
average of recent driving conditions. As your driving
conditions change, this data is gradually updated. The
FUEL RANGE mode cannot be reset.
ECON (Economy)
Press the information button until ECON is displayed.
This mode shows how many miles per gallon (mpg)
or liters per 100 kilometers (L/100 km) your vehicle is
getting based on current and past driving conditions.
Press and hold the reset button while ECON is displayed
to reset the average fuel economy. Average fuel
economy will then be calculated starting from that point.
If the average fuel economy is not reset, it will be
continually updated each time you drive.
AV (Average) SPEED
Press the information button until AV SPEED is
displayed. This mode shows the vehicle’s average speed
in miles per hour (mph) or kilometers per hour (km/h).
Press and hold the reset button while AV SPEED is
displayed to reset the average vehicle speed.
3-39

OIL LIFE
Press the information button until OIL LIFE is displayed.
The engine oil life system shows an estimate of the
oil’s remaining useful life. It will show 100% when the
system is reset after an oil change. It will alert you
to change your oil on a schedule consistent with your
driving conditions.
In addition to the engine oil life system monitoring the
oil life, additional maintenance is recommended in
the Maintenance Schedule in this manual. SeeEngine
Oil on page 5-15andScheduled Maintenance on
page 6-4.
Always reset the engine oil life system after an oil
change. See “How to Reset the Engine Oil Life System”
underEngine Oil Life System on page 5-20and
“OIL–LIFE RESET” underDIC Vehicle Personalization
on page 3-43.
COOLANT
Press the information button until COOLANT is
displayed. This mode shows the temperature of the
engine coolant in either degrees Fahrenheit (°F)
or degrees Celsius (°C).
DIC Warnings and Messages
These messages will appear if there is a problem
detected in one of your vehicle’s systems.
Any message will clear when the vehicle’s condition is
no longer present. The warning message will come back
on the next time the vehicle is turned off and back on
if the condition is still present. With most messages,
a warning chime will sound when the message is
displayed. You can also acknowledge and clear some
warning messages from the DIC display by pressing
either the reset or information buttons. Your vehicle may
have other warning messages.
AUTO (Automatic) LIGHTS OFF
This message is displayed if the automatic headlamp
system is disabled with the headlamp switch.
AUTO (Automatic) LIGHTS ON
This message is displayed if the automatic headlamp
system is enabled with the headlamp switch.
BRAKE FLUID
This message will display if the ignition is on to inform
the driver that the brake uid level is low. Have the
brake system serviced by your GM dealer as soon as
possible.
3-40

CHANGE OIL SOON
This message is displayed when the life of the engine
oil has expired and it should be changed.
When you acknowledge the CHANGE OIL SOON
message by clearing it from the display, you still must
reset the engine oil life system separately. See
“OIL-LIFE RESET” underDIC Vehicle Personalization
on page 3-43,Engine Oil Life System on page 5-20,
andScheduled Maintenance on page 6-4for more
information.
CHECK GAS CAP
This message is displayed if the gas cap has not been
fully tightened. You should recheck your gas cap to
ensure that it is on properly. A few driving trips with
the cap properly installed should turn the display off.
CRUISE ENGAGED
This message is displayed when the cruise control
system is active. SeeCruise Control on page 3-10
for more information.
DOOR AJAR
This message is displayed if one or more of the
vehicle’s doors are not closed properly. When this
message appears, you should make sure that the
door is closed completely.
ENGINE DISABLED
This message is displayed if the starting of the engine is
disabled. Have your vehicle serviced by your GM dealer
immediately.
ENG (Engine) PWR (Power) REDUCED
This message informs you that the vehicle has reduced
engine power to avoid damaging the engine. Reduced
engine power can affect the vehicle’s ability to accelerate.
If this message is on, but there is no reduction in
performance, proceed to your destination. The
performance may be reduced the next time the vehicle is
driven. The vehicle may be driven at a reduced speed
while this message is on, but acceleration and speed may
be reduced. Anytime this message stays on, the vehicle
should be taken to your GM dealer for service as soon as
possible.
ICE POSSIBLE
This message appears when the outside air temperature
is cold enough to create icy road conditions.
KEY FOB BATT (Battery) LOW
This message is displayed if the remote keyless entry
transmitter battery is low. See “Battery Replacement”
underRemote Keyless Entry System Operation on
page 2-4.
3-41

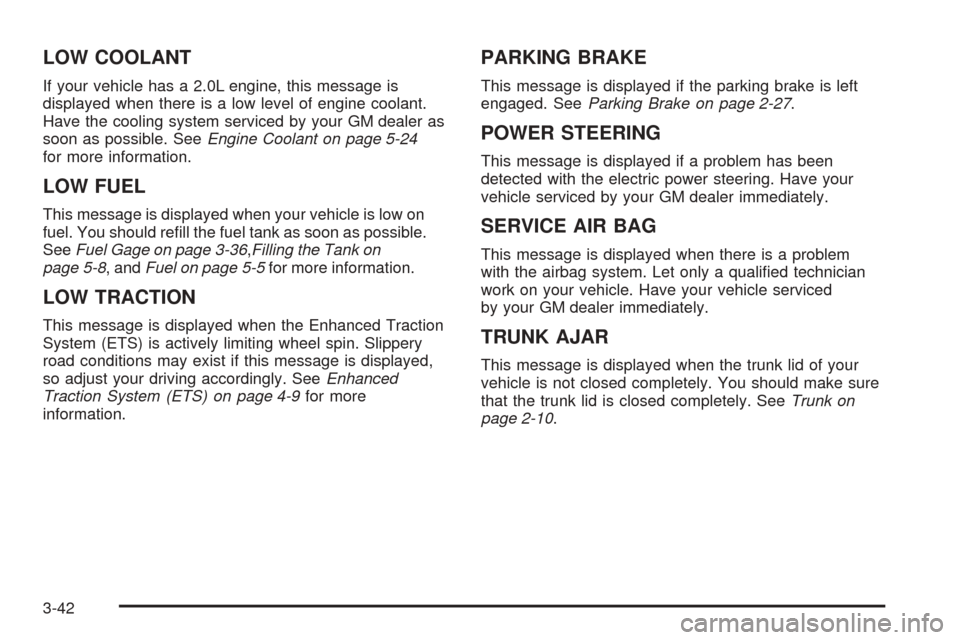

LOW COOLANT
If your vehicle has a 2.0L engine, this message is
displayed when there is a low level of engine coolant.
Have the cooling system serviced by your GM dealer as
soon as possible. SeeEngine Coolant on page 5-24
for more information.
LOW FUEL
This message is displayed when your vehicle is low on
fuel. You should rell the fuel tank as soon as possible.
SeeFuel Gage on page 3-36,Filling the Tank on
page 5-8, andFuel on page 5-5for more information.
LOW TRACTION
This message is displayed when the Enhanced Traction
System (ETS) is actively limiting wheel spin. Slippery
road conditions may exist if this message is displayed,
so adjust your driving accordingly. SeeEnhanced
Traction System (ETS) on page 4-9for more
information.
PARKING BRAKE
This message is displayed if the parking brake is left
engaged. SeeParking Brake on page 2-27.
POWER STEERING
This message is displayed if a problem has been
detected with the electric power steering. Have your
vehicle serviced by your GM dealer immediately.
SERVICE AIR BAG
This message is displayed when there is a problem
with the airbag system. Let only a qualied technician
work on your vehicle. Have your vehicle serviced
by your GM dealer immediately.
TRUNK AJAR
This message is displayed when the trunk lid of your
vehicle is not closed completely. You should make sure
that the trunk lid is closed completely. SeeTrunk on
page 2-10.
3-42
