CHEVROLET COBALT 2007 1.G User Guide

Heated Seats
Your vehicle may have heated front seats.
The switches are located on the instrument panel
above the climate control system.
Press the side of the
switch with the double
indicator lights to turn on
the heated seat at the
highest setting.Both indicator lights will be lit to indicate that the
setting is on high. Press the side of the switch with
the single indicator light to go to the low setting.
The indicator light will be lit to indicate that
the setting is on low. Return the switch to the
center to turn off the heated seat.
If your vehicle has been turned off, the last heated
seat setting will be retained when the vehicle is
started again.
Driver’s Switch Shown,
Passenger’s Switch
Similar
11

Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you
try to adjust a manual driver’s seat while
the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
Your seats have manual reclining seatbacks.
The lever used to operate them is located on the
outboard side of the seats.
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position,
then release the lever to lock the seatback
in place.
3. Push and pull on the seatback to make sure
it is locked.
12

To return the seatback to an upright position,
do the following:
1. Lift the lever fully without applying pressure to
the seatback and the seatback will return to
the upright position.
2. Push and pull on the seatback to make sure
it is locked.
{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are reclined
like this.
The shoulder belt cannot do its job because
it will not be against your body. Instead, it
will be in front of you. In a crash, you could
go into it, receiving neck or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Do not have a seatback reclined if your vehicle
is moving.
13

Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint
up to raise it. To lower
the head restraint,
press the button,
located on the top of the
seatback, and push
the restraint down.
14

Easy Entry Seat (Coupe)
{CAUTION:
If the easy entry right front seat is not
locked, it can move. In a sudden stop or
crash, the person sitting there could be
injured. After you have used it, be sure to
push rearward on an easy entry seat to be
sure it is locked.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
The front passenger seat can be used to easily
get in and out of the rear seat.To use the easy entry seat, do the following:
1. Push down the easy entry seat handle located
on the rear of the seatback on the outboard
side to release the seatback.
2. Tilt the seatback forward completely while
pushing the seat forward.
3. Move the seatback to its original position
after someone gets into the rear seat area.
Make sure the seatback is locked.
4.
Move the seat rearward until it locks into place.
15

Rear Seats
Split Folding Rear Seat
You can fold either side of the rear seatback down
for more cargo space.
To lower the rear seatback, follow these steps:
1. Open the trunk and pull one or both of the
small handles located in the center of the
trunk.Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
2. Once the handle is pulled, the seatback can
be pushed open through the trunk, or pulled
down from the inside of the vehicle.
16

To raise the rear seatback, lift it up and push
rearward until you hear a click. Push and pull on
the seatback to be sure it is locked into place.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always pull forward on the
top of the seatback at the area of the latch
to be sure it is locked.
{CAUTION:
A safety belt that is improperly routed,
not properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After raising the rear
seatback, always check to be sure that the
safety belts are properly routed and
attached, and are not twisted.
17

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use
safety belts properly. It also tells you some things
you should not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she
cannot wear a safety belt properly. If you
are in a crash and you are not wearing a
safety belt, your injuries can be much
worse. You can hit things inside the
vehicle or be ejected from it. You can be
seriously injured or killed. In the same
crash, you might not be, if you are
buckled up. Always fasten your safety
belt, and check that your passengers’
belts are fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed. Do not allow people to ride in any
area of your vehicle that is not equipped
with seats and safety belts. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.
Your vehicle has indicators to remind you and
your passengers to buckle your safety belts.
SeeSafety Belt Reminder Light on page 166
andPassenger Safety Belt Reminder Light
on page 167.
18

In most states and in all Canadian provinces, the
law says to wear safety belts. Here is why:
They work.
You never know if you will be in a crash. If you
do have a crash, you do not know if it will be a
bad one.
A few crashes are mild, and some crashes can be
so serious that even buckled up, a person
would not survive. But most crashes are in
between. In many of them, people who buckle up
can survive and sometimes walk away. Without
belts they could have been badly hurt or killed.
After more than 40 years of safety belts in
vehicles, the facts are clear. In most crashes
buckling up does matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast
as it goes.
Take the simplest vehicle. Suppose it is just a
seat on wheels.
19

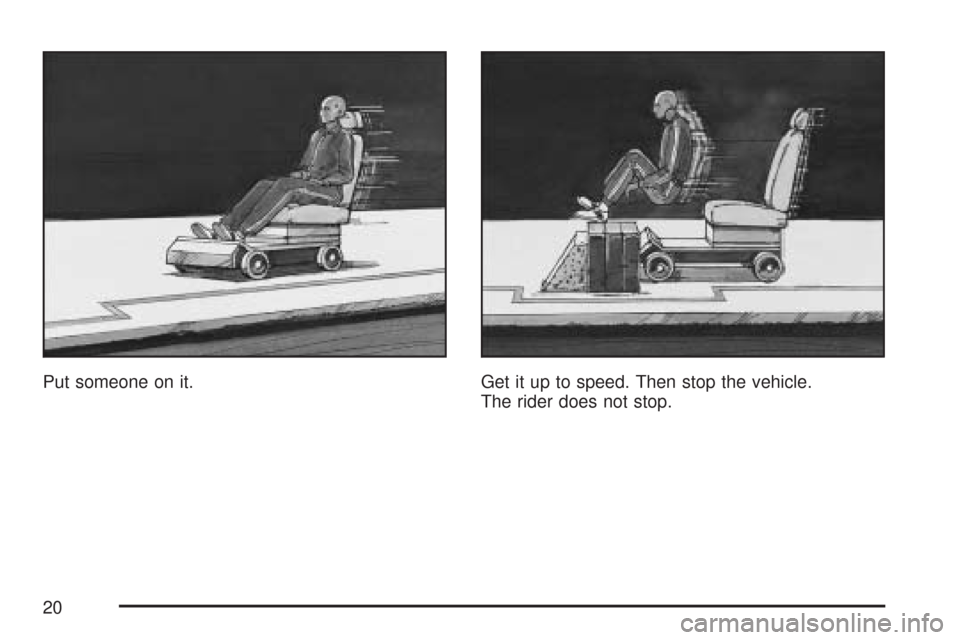

Put someone on it. Get it up to speed. Then stop the vehicle.
The rider does not stop.
