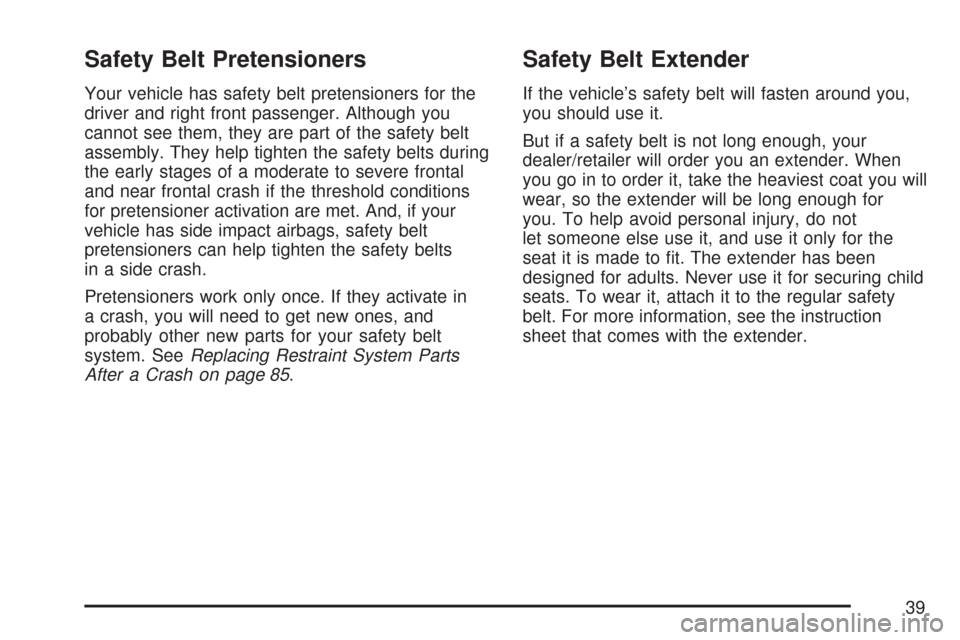

Page 39 of 450
Safety Belt Pretensioners
Your vehicle has safety belt pretensioners for the
driver and right front passenger. Although you
cannot see them, they are part of the safety belt
assembly. They help tighten the safety belts during
the early stages of a moderate to severe frontal
and near frontal crash if the threshold conditions
for pretensioner activation are met. And, if your
vehicle has side impact airbags, safety belt
pretensioners can help tighten the safety belts
in a side crash.
Pretensioners work only once. If they activate in
a crash, you will need to get new ones, and
probably other new parts for your safety belt
system. SeeReplacing Restraint System Parts
After a Crash on page 85.
Safety Belt Extender
If the vehicle’s safety belt will fasten around you,
you should use it.
But if a safety belt is not long enough, your
dealer/retailer will order you an extender. When
you go in to order it, take the heaviest coat you will
wear, so the extender will be long enough for
you. To help avoid personal injury, do not
let someone else use it, and use it only for the
seat it is made to t. The extender has been
designed for adults. Never use it for securing child
seats. To wear it, attach it to the regular safety
belt. For more information, see the instruction
sheet that comes with the extender.
39

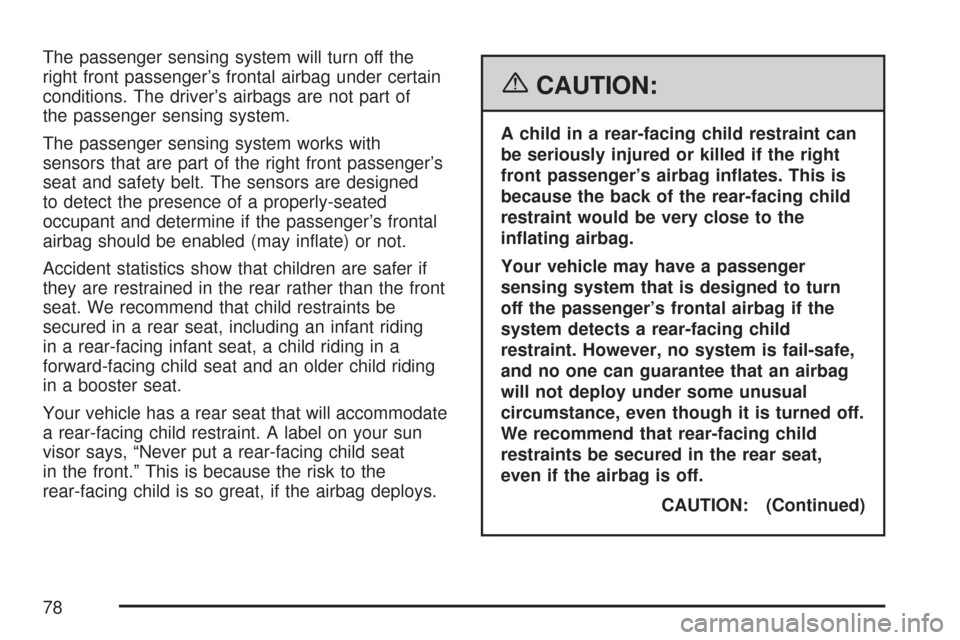

Page 78 of 450
The passenger sensing system will turn off the
right front passenger’s frontal airbag under certain
conditions. The driver’s airbags are not part of
the passenger sensing system.
The passenger sensing system works with
sensors that are part of the right front passenger’s
seat and safety belt. The sensors are designed
to detect the presence of a properly-seated
occupant and determine if the passenger’s frontal
airbag should be enabled (may in ate) or not.
Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. We recommend that child restraints be
secured in a rear seat, including an infant riding
in a rear-facing infant seat, a child riding in a
forward-facing child seat and an older child riding
in a booster seat.
Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag.
Your vehicle may have a passenger
sensing system that is designed to turn
off the passenger’s frontal airbag if the
system detects a rear-facing child
restraint. However, no system is fail-safe,
and no one can guarantee that an airbag
will not deploy under some unusual
circumstance, even though it is turned off.
We recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
CAUTION: (Continued)
78

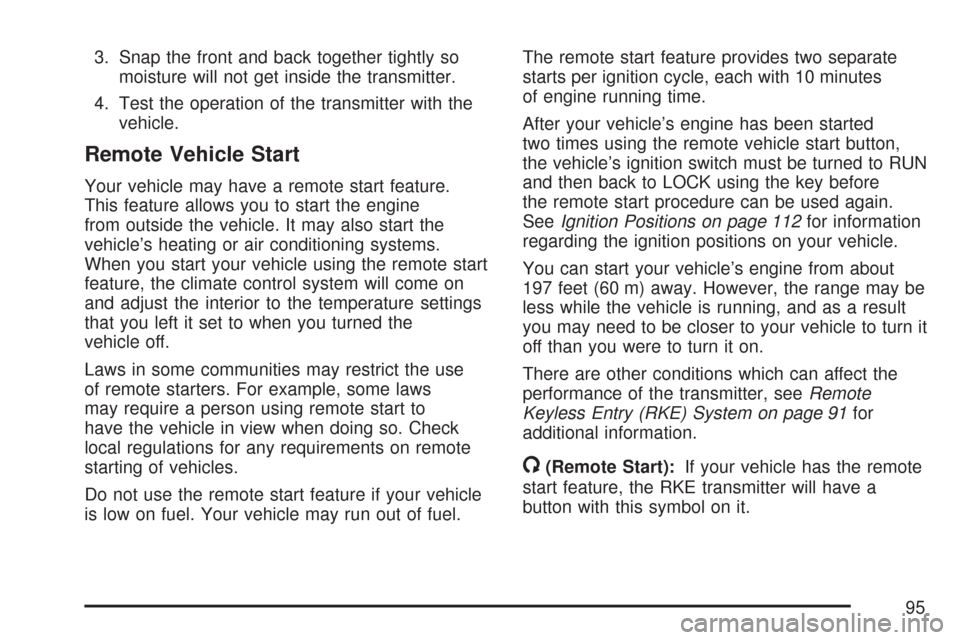

Page 95 of 450
3. Snap the front and back together tightly so
moisture will not get inside the transmitter.
4. Test the operation of the transmitter with the
vehicle.
Remote Vehicle Start
Your vehicle may have a remote start feature.
This feature allows you to start the engine
from outside the vehicle. It may also start the
vehicle’s heating or air conditioning systems.
When you start your vehicle using the remote start
feature, the climate control system will come on
and adjust the interior to the temperature settings
that you left it set to when you turned the
vehicle off.
Laws in some communities may restrict the use
of remote starters. For example, some laws
may require a person using remote start to
have the vehicle in view when doing so. Check
local regulations for any requirements on remote
starting of vehicles.
Do not use the remote start feature if your vehicle
is low on fuel. Your vehicle may run out of fuel.The remote start feature provides two separate
starts per ignition cycle, each with 10 minutes
of engine running time.
After your vehicle’s engine has been started
two times using the remote vehicle start button,
the vehicle’s ignition switch must be turned to RUN
and then back to LOCK using the key before
the remote start procedure can be used again.
SeeIgnition Positions on page 112for information
regarding the ignition positions on your vehicle.
You can start your vehicle’s engine from about
197 feet (60 m) away. However, the range may be
less while the vehicle is running, and as a result
you may need to be closer to your vehicle to turn it
off than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeRemote
Keyless Entry (RKE) System on page 91for
additional information.
/(Remote Start):If your vehicle has the remote
start feature, the RKE transmitter will have a
button with this symbol on it.
95
Page 132 of 450
OnStar®System
OnStar®uses several innovative technologies and
live advisors to provide you with a wide range of
safety, security, information, and convenience
services. If your airbags deploy, the system is
designed to make an automatic call to OnStar
®
Emergency advisors who can request emergency
services be sent to your location. If you lock
your keys in the vehicle, call OnStar
®at
1-888-4-ONSTAR and they can send a signal
to unlock your doors. If you need roadside
assistance, press the OnStar
®button and
they can contact Roadside Service for you.
OnStar
®service is provided to you subject to the
OnStar®Terms and Conditions. You may cancel
your OnStar®service at any time by contacting
OnStar®as provided below. A complete OnStar®
Owners Guide and the OnStar®Terms andConditions are included in the vehicle’s OnStar
®
Subscriber glove box literature. For more
information, visit onstar.com or onstar.ca, contact
OnStar
®at 1-888-4-ONSTAR (1-888-466-7827) or
TTY 1-877-248-2080, or press the OnStar®button
to speak with an OnStar®advisor 24 hours a day,
7 days a week.
Not all OnStar
®features are available on all
vehicles. To check if your vehicle is equipped to
provide the services described below, or for a
full description of OnStar
®services and system
limitations, see the OnStar®Owner’s Guide in your
glove box or visit onstar.com.
OnStar®Services
For new vehicles with OnStar®, the Safe & Sound
Plan, or the Directions & Connections®Plan is
included for one year from the date of purchase.
You can extend this plan beyond the rst year,
or upgrade to the Directions & Connections
®Plan.
For more information, press the OnStar®button
to speak with an advisor. Some OnStar®services
(such as Remote Door Unlock or Stolen Vehicle
Location Assistance) may not be available
until you register with OnStar
®.
132
Page 158 of 450
Climate Controls
Climate Control System
With this system you can control the heating,
cooling, and ventilation for the vehicle.
Operation
To change the current mode, select one of the
following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs about half of
the air to the instrument panel outlets, and
then directs the remaining air to the oor outlets.
Cooler air is directed to the upper outlets and
warmer air to the oor outlets.
6(Floor):This mode directs most of the air to
the oor outlets with some air directed to the
windshield and side windows.
The left knob can also be used to select defog or
defrost mode. Information on defogging and
defrosting can be found later in this section.
9(Fan):Turn the center knob clockwise or
counterclockwise to increase or decrease the
fan speed. In any setting other than off, the fan
will run continuously with the ignition on. The fan
must be turned on to run the air conditioning
compressor.
9(Off):To turn the fan off, turn the knob all the
way counterclockwise to the off position.
Temperature Control:Turn the right knob
clockwise or counterclockwise to increase or
decrease the temperature inside the vehicle.
Vehicles with Air Conditioning shown,
without Air Conditioning similar
158

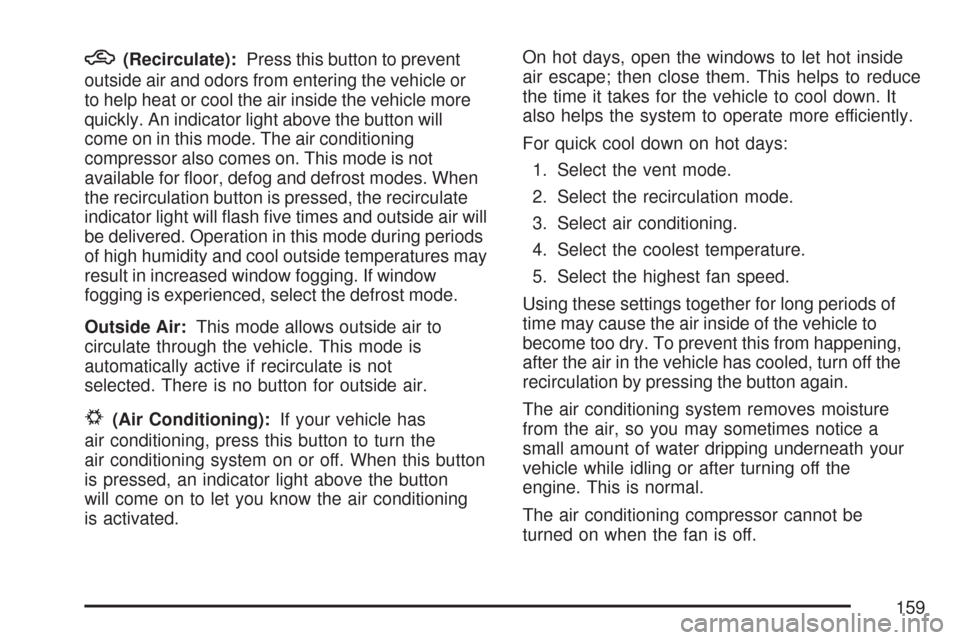

Page 159 of 450
h(Recirculate):Press this button to prevent
outside air and odors from entering the vehicle or
to help heat or cool the air inside the vehicle more
quickly. An indicator light above the button will
come on in this mode. The air conditioning
compressor also comes on. This mode is not
available for oor, defog and defrost modes. When
the recirculation button is pressed, the recirculate
indicator light will ash ve times and outside air will
be delivered. Operation in this mode during periods
of high humidity and cool outside temperatures may
result in increased window fogging. If window
fogging is experienced, select the defrost mode.
Outside Air:This mode allows outside air to
circulate through the vehicle. This mode is
automatically active if recirculate is not
selected. There is no button for outside air.
#(Air Conditioning):If your vehicle has
air conditioning, press this button to turn the
air conditioning system on or off. When this button
is pressed, an indicator light above the button
will come on to let you know the air conditioning
is activated.On hot days, open the windows to let hot inside
air escape; then close them. This helps to reduce
the time it takes for the vehicle to cool down. It
also helps the system to operate more efficiently.
For quick cool down on hot days:
1. Select the vent mode.
2. Select the recirculation mode.
3. Select air conditioning.
4. Select the coolest temperature.
5. Select the highest fan speed.
Using these settings together for long periods of
time may cause the air inside of the vehicle to
become too dry. To prevent this from happening,
after the air in the vehicle has cooled, turn off the
recirculation by pressing the button again.
The air conditioning system removes moisture
from the air, so you may sometimes notice a
small amount of water dripping underneath your
vehicle while idling or after turning off the
engine. This is normal.
The air conditioning compressor cannot be
turned on when the fan is off.
159

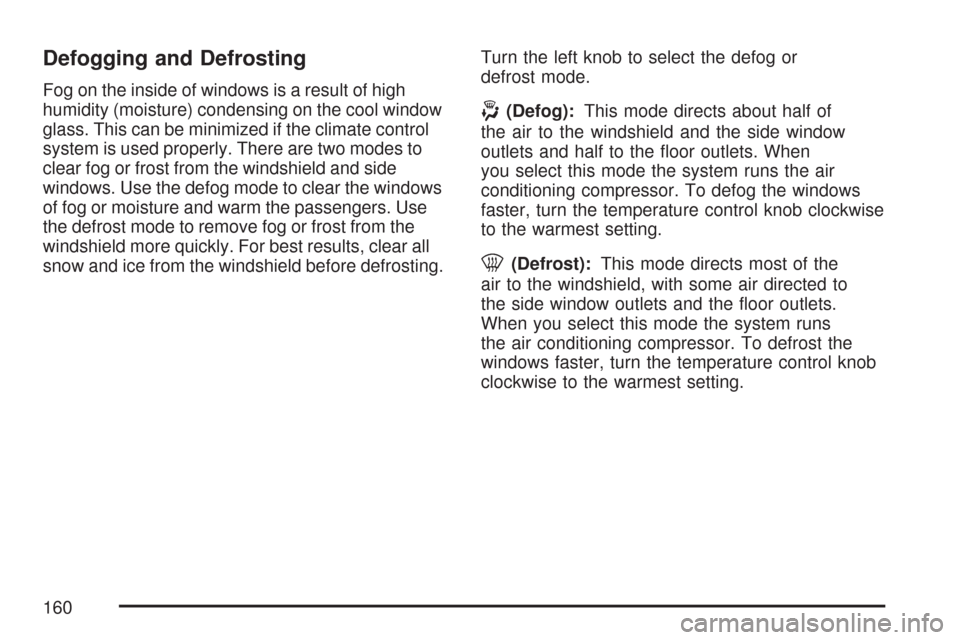

Page 160 of 450
Defogging and Defrosting
Fog on the inside of windows is a result of high
humidity (moisture) condensing on the cool window
glass. This can be minimized if the climate control
system is used properly. There are two modes to
clear fog or frost from the windshield and side
windows. Use the defog mode to clear the windows
of fog or moisture and warm the passengers. Use
the defrost mode to remove fog or frost from the
windshield more quickly. For best results, clear all
snow and ice from the windshield before defrosting.Turn the left knob to select the defog or
defrost mode.
-(Defog):This mode directs about half of
the air to the windshield and the side window
outlets and half to the oor outlets. When
you select this mode the system runs the air
conditioning compressor. To defog the windows
faster, turn the temperature control knob clockwise
to the warmest setting.
0(Defrost):This mode directs most of the
air to the windshield, with some air directed to
the side window outlets and the oor outlets.
When you select this mode the system runs
the air conditioning compressor. To defrost the
windows faster, turn the temperature control knob
clockwise to the warmest setting.
160
Page 170 of 450
If, after several seconds, all status indicator lights
remain on, or if there are no lights at all, there
may be a problem with the lights or the passenger
sensing system. See your dealer for service.
{CAUTION:
If the off indicator and the airbag
readiness light ever come on together,
it means that something may be wrong
with the airbag system. If this ever
happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger seat
may not have the protection of the frontal
airbag. SeeAirbag Readiness Light on
page 167.
Charging System Light
The charging system
light will come on brie y
when you turn on the
ignition, and the engine
is not running, as a
check to show you
it is working.
Then it should go out when the engine is started.
If it stays on, or comes on while you are driving,
you may have a problem with the electrical
charging system. Have it checked by your
dealer/retailer. Driving while this light is on
could drain your battery.
If you must drive a short distance with the light on,
be certain to turn off all your accessories, such
as the radio and air conditioner.
170
Page 175 of 450

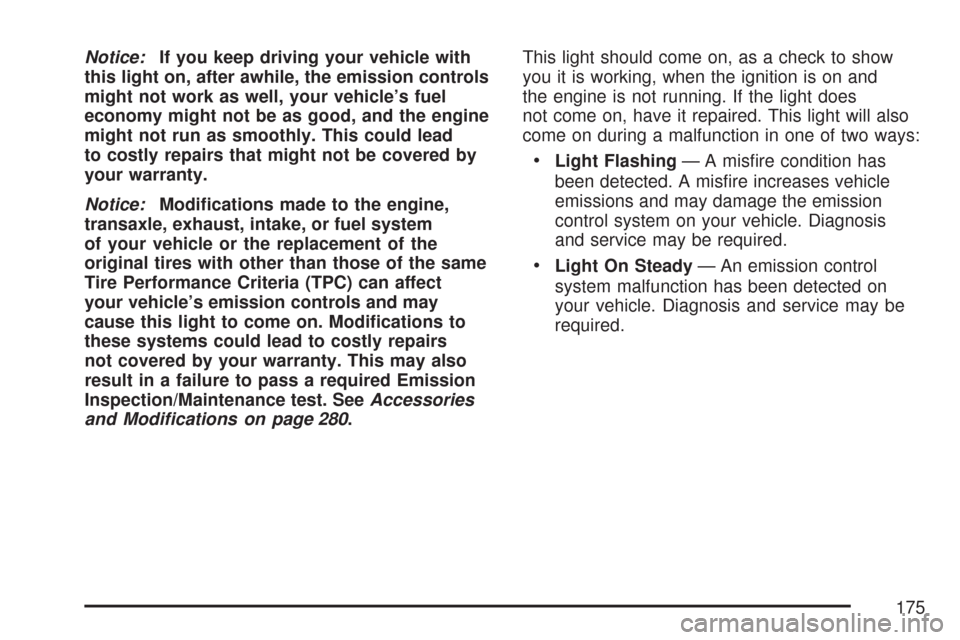

Notice:If you keep driving your vehicle with
this light on, after awhile, the emission controls
might not work as well, your vehicle’s fuel
economy might not be as good, and the engine
might not run as smoothly. This could lead
to costly repairs that might not be covered by
your warranty.
Notice:Modi cations made to the engine,
transaxle, exhaust, intake, or fuel system
of your vehicle or the replacement of the
original tires with other than those of the same
Tire Performance Criteria (TPC) can affect
your vehicle’s emission controls and may
cause this light to come on. Modi cations to
these systems could lead to costly repairs
not covered by your warranty. This may also
result in a failure to pass a required Emission
Inspection/Maintenance test. SeeAccessories
and Modifications on page 280.This light should come on, as a check to show
you it is working, when the ignition is on and
the engine is not running. If the light does
not come on, have it repaired. This light will also
come on during a malfunction in one of two ways:
Light Flashing— A mis re condition has
been detected. A mis re increases vehicle
emissions and may damage the emission
control system on your vehicle. Diagnosis
and service may be required.
Light On Steady— An emission control
system malfunction has been detected on
your vehicle. Diagnosis and service may be
required.
175
Page 182 of 450
Information Modes
q
(Information):Press this button to scroll
through the following vehicle information modes:
Outside Air Temperature and Odometer
Press the information button until the outside
air temperature and the odometer are displayed.
This mode shows the temperature outside of
the vehicle in either degrees Fahrenheit (°F)
or degrees Celsius (°C) and the total distance the
vehicle has been driven in either miles (mi) or
kilometers (km). The outside air temperature will
appear on the left side of the DIC display and
the odometer will appear on the right side of the
display.
To change the DIC display to English or
metric units, see “UNITS” underDIC Vehicle
Personalization on page 186.
TRIP A or TRIP B
Press the information button until TRIP A or
TRIP B is displayed. These modes show the
current distance traveled since the last reset
for each trip odometer in either miles (mi)
or kilometers (km). Both odometers can be
used at the same time.
Each trip odometer can be reset to zero separately
by pressing and holding the reset button for a
few seconds while the desired trip odometer
is displayed.
FUEL RANGE
Press the information button until FUEL RANGE is
displayed. This mode shows the remaining distance
you can drive without refueling in either miles (mi)
or kilometers (km). It is based on fuel economy and
the fuel remaining in the tank.
When the fuel level is low, FUEL RANGE LOW
will display.
The fuel economy data used to determine fuel
range is an average of recent driving conditions.
As your driving conditions change, this data is
gradually updated. The FUEL RANGE mode
cannot be reset.
182
