Climate Controls
Climate Control System
With this system you can control the heating,
cooling, and ventilation for the vehicle.
Operation
To change the current mode, select one of the
following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs about half of
the air to the instrument panel outlets, and
then directs the remaining air to the oor outlets.
Cooler air is directed to the upper outlets and
warmer air to the oor outlets.
6(Floor):This mode directs most of the air to
the oor outlets with some air directed to the
windshield and side windows.
The left knob can also be used to select defog or
defrost mode. Information on defogging and
defrosting can be found later in this section.
9(Fan):Turn the center knob clockwise or
counterclockwise to increase or decrease the
fan speed. In any setting other than off, the fan
will run continuously with the ignition on. The fan
must be turned on to run the air conditioning
compressor.
9(Off):To turn the fan off, turn the knob all the
way counterclockwise to the off position.
Temperature Control:Turn the right knob
clockwise or counterclockwise to increase or
decrease the temperature inside the vehicle.
Vehicles with Air Conditioning shown,
without Air Conditioning similar
158

Defogging and Defrosting
Fog on the inside of windows is a result of high
humidity (moisture) condensing on the cool window
glass. This can be minimized if the climate control
system is used properly. There are two modes to
clear fog or frost from the windshield and side
windows. Use the defog mode to clear the windows
of fog or moisture and warm the passengers. Use
the defrost mode to remove fog or frost from the
windshield more quickly. For best results, clear all
snow and ice from the windshield before defrosting.Turn the left knob to select the defog or
defrost mode.
-(Defog):This mode directs about half of
the air to the windshield and the side window
outlets and half to the oor outlets. When
you select this mode the system runs the air
conditioning compressor. To defog the windows
faster, turn the temperature control knob clockwise
to the warmest setting.
0(Defrost):This mode directs most of the
air to the windshield, with some air directed to
the side window outlets and the oor outlets.
When you select this mode the system runs
the air conditioning compressor. To defrost the
windows faster, turn the temperature control knob
clockwise to the warmest setting.
160

Setting the Time
Without Date Display
AM/FM Base Radio with a Single
CD Player
This type of radio has aH(clock) button for
setting the time. You can set the time by
following these steps:
1. Turn the ignition key to ACC (accessory) or
RUN. Press the
O(power) knob, located in
the center of the radio, to turn the radio on.
2. Press the
Hbutton until the hour numbers
begin ashing on the display. Press
the
Hbutton a second time and the minute
numbers begin ashing on the display.3. While either the hour or the minute numbers
are ashing, turn the
f(tune) knob, located
on the upper right side of the radio, clockwise
or counterclockwise to increase or decrease
the time.
4. Press the
Hbutton again until the clock
display stops ashing to set the currently
displayed time; otherwise, the ashing stops
after ve seconds and the current time
displayed is automatically set.
To change the time default setting from
12 hour to 24 hour, press the
Hbutton and
then the pushbutton located under the forward
arrow label. Once the time 12H and 24H are
displayed, press the pushbutton located under
the desired option to select the default. Press
the
Hbutton again to apply the selected default,
or let the screen time out.
194

Six-Disc CD (MP3) Player
This type of radio has a MENU button instead of
the
Hbutton to set the time and date.
To set the time and date, follow these instructions:
1. Turn the ignition key to ACC (accessory) or
RUN. Press the
Oknob, located in the
center of the radio, to turn the radio on.
2. Press the MENU button. Once the clock
option is displayed.
3. Press the pushbutton located under that label.
The HR, MIN, MM, DD, YYYY displays.
4. Press the pushbutton located under any one
of the labels that you want to change. Every
time the pushbutton is pressed again, the time
or the date if selected, increases by one.
Another way to increase the time or date,
is to press the right
¨SEEK arrow
or
\FWD button.
To decrease the time or date, press the
left
©SEEK arrow orsREV button,
or turn the
fknob, located on the upper
right side of the radio.The date does not automatically display. To see the
date press the MENU button and then the
Hbutton
while the radio is on. The date with display times
out after a few seconds and goes back to the
normal radio and time display.
To change the time default setting from 12 hour
to 24 hour or to change the date default setting
from month/day/year to day/month/year, follow
these instructions:
1. Press the
Hbutton and then the pushbutton
located under the forward arrow label.
Once the time 12H and 24H, and the date
MM/DD/YYYY (month, day, and year)
and DD/MM/YYYY (day, month, and year)
displays.
2. Press the pushbutton located under the
desired option.
3. Press the
Hor MENU button again to apply the
selected default, or let the screen time out.
196

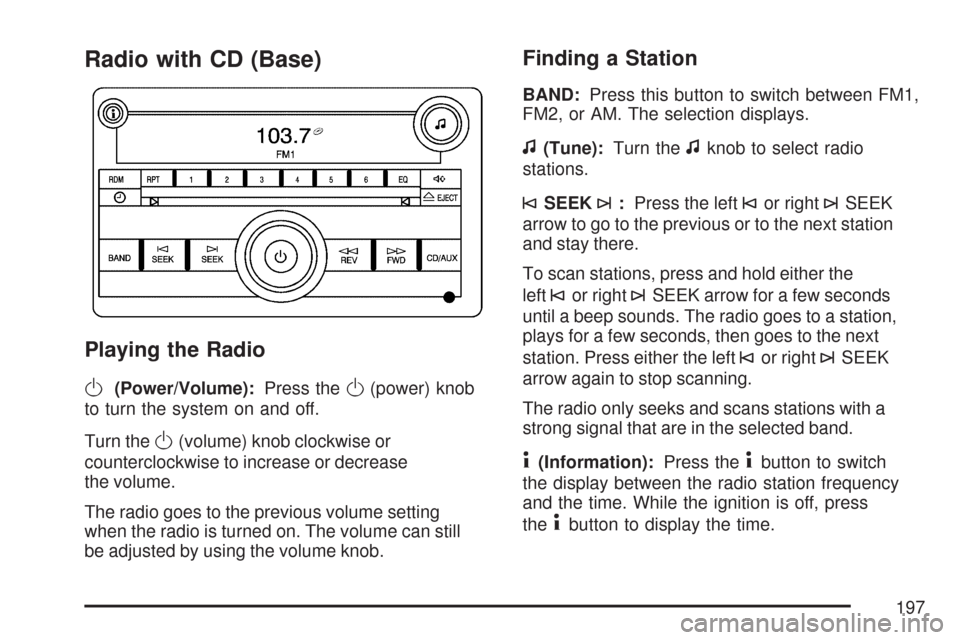

Radio with CD (Base)
Playing the Radio
O
(Power/Volume):Press theO(power) knob
to turn the system on and off.
Turn the
O(volume) knob clockwise or
counterclockwise to increase or decrease
the volume.
The radio goes to the previous volume setting
when the radio is turned on. The volume can still
be adjusted by using the volume knob.
Finding a Station
BAND:Press this button to switch between FM1,
FM2, or AM. The selection displays.
f(Tune):Turn thefknob to select radio
stations.
©SEEK¨:Press the left©or right¨SEEK
arrow to go to the previous or to the next station
and stay there.
To scan stations, press and hold either the
left
©or right¨SEEK arrow for a few seconds
until a beep sounds. The radio goes to a station,
plays for a few seconds, then goes to the next
station. Press either the left
©or right¨SEEK
arrow again to stop scanning.
The radio only seeks and scans stations with a
strong signal that are in the selected band.
4(Information):Press the4button to switch
the display between the radio station frequency
and the time. While the ignition is off, press
the
4button to display the time.
197

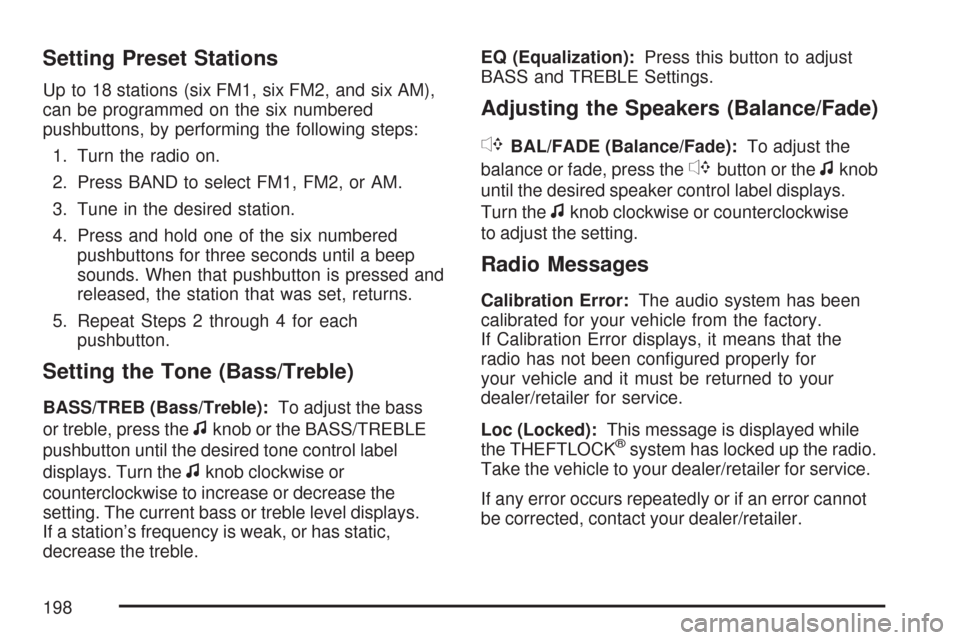

Setting Preset Stations
Up to 18 stations (six FM1, six FM2, and six AM),
can be programmed on the six numbered
pushbuttons, by performing the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, or AM.
3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons for three seconds until a beep
sounds. When that pushbutton is pressed and
released, the station that was set, returns.
5. Repeat Steps 2 through 4 for each
pushbutton.
Setting the Tone (Bass/Treble)
BASS/TREB (Bass/Treble):To adjust the bass
or treble, press the
fknob or the BASS/TREBLE
pushbutton until the desired tone control label
displays. Turn the
fknob clockwise or
counterclockwise to increase or decrease the
setting. The current bass or treble level displays.
If a station’s frequency is weak, or has static,
decrease the treble.EQ (Equalization):Press this button to adjust
BASS and TREBLE Settings.
Adjusting the Speakers (Balance/Fade)
`
BAL/FADE (Balance/Fade):To adjust the
balance or fade, press the
`button or thefknob
until the desired speaker control label displays.
Turn the
fknob clockwise or counterclockwise
to adjust the setting.
Radio Messages
Calibration Error:The audio system has been
calibrated for your vehicle from the factory.
If Calibration Error displays, it means that the
radio has not been congured properly for
your vehicle and it must be returned to your
dealer/retailer for service.
Loc (Locked):This message is displayed while
the THEFTLOCK
®system has locked up the radio.
Take the vehicle to your dealer/retailer for service.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer/retailer.
198

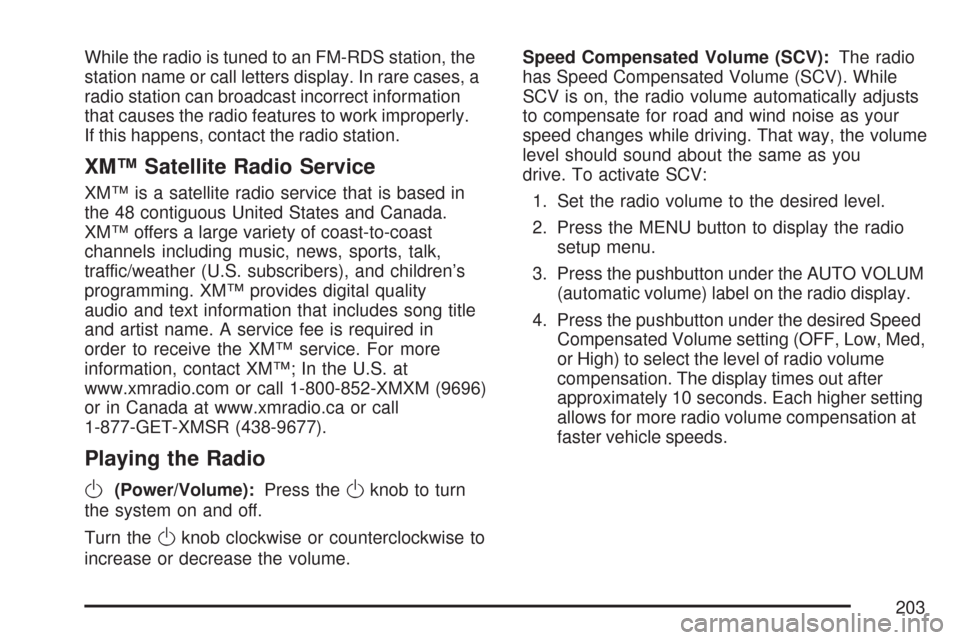

While the radio is tuned to an FM-RDS station, the
station name or call letters display. In rare cases, a
radio station can broadcast incorrect information
that causes the radio features to work improperly.
If this happens, contact the radio station.
XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in
the 48 contiguous United States and Canada.
XM™ offers a large variety of coast-to-coast
channels including music, news, sports, talk,
traffic/weather (U.S. subscribers), and children’s
programming. XM™ provides digital quality
audio and text information that includes song title
and artist name. A service fee is required in
order to receive the XM™ service. For more
information, contact XM™; In the U.S. at
www.xmradio.com or call 1-800-852-XMXM (9696)
or in Canada at www.xmradio.ca or call
1-877-GET-XMSR (438-9677).
Playing the Radio
O
(Power/Volume):Press theOknob to turn
the system on and off.
Turn the
Oknob clockwise or counterclockwise to
increase or decrease the volume.Speed Compensated Volume (SCV):The radio
has Speed Compensated Volume (SCV). While
SCV is on, the radio volume automatically adjusts
to compensate for road and wind noise as your
speed changes while driving. That way, the volume
level should sound about the same as you
drive. To activate SCV:
1. Set the radio volume to the desired level.
2. Press the MENU button to display the radio
setup menu.
3. Press the pushbutton under the AUTO VOLUM
(automatic volume) label on the radio display.
4. Press the pushbutton under the desired Speed
Compensated Volume setting (OFF, Low, Med,
or High) to select the level of radio volume
compensation. The display times out after
approximately 10 seconds. Each higher setting
allows for more radio volume compensation at
faster vehicle speeds.
203

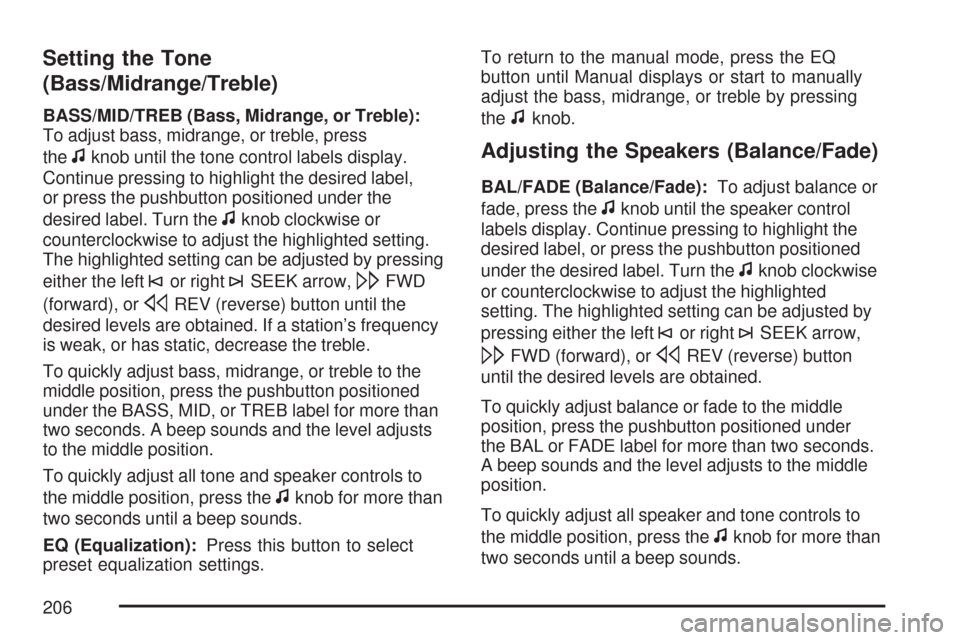

Setting the Tone
(Bass/Midrange/Treble)
BASS/MID/TREB (Bass, Midrange, or Treble):
To adjust bass, midrange, or treble, press
the
fknob until the tone control labels display.
Continue pressing to highlight the desired label,
or press the pushbutton positioned under the
desired label. Turn the
fknob clockwise or
counterclockwise to adjust the highlighted setting.
The highlighted setting can be adjusted by pressing
either the left
©or right¨SEEK arrow,\FWD
(forward), or
sREV (reverse) button until the
desired levels are obtained. If a station’s frequency
is weak, or has static, decrease the treble.
To quickly adjust bass, midrange, or treble to the
middle position, press the pushbutton positioned
under the BASS, MID, or TREB label for more than
two seconds. A beep sounds and the level adjusts
to the middle position.
To quickly adjust all tone and speaker controls to
the middle position, press the
fknob for more than
two seconds until a beep sounds.
EQ (Equalization):Press this button to select
preset equalization settings.To return to the manual mode, press the EQ
button until Manual displays or start to manually
adjust the bass, midrange, or treble by pressing
the
fknob.
Adjusting the Speakers (Balance/Fade)
BAL/FADE (Balance/Fade):To adjust balance or
fade, press the
fknob until the speaker control
labels display. Continue pressing to highlight the
desired label, or press the pushbutton positioned
under the desired label. Turn the
fknob clockwise
or counterclockwise to adjust the highlighted
setting. The highlighted setting can be adjusted by
pressing either the left
©or right¨SEEK arrow,
\FWD (forward), orsREV (reverse) button
until the desired levels are obtained.
To quickly adjust balance or fade to the middle
position, press the pushbutton positioned under
the BAL or FADE label for more than two seconds.
A beep sounds and the level adjusts to the middle
position.
To quickly adjust all speaker and tone controls to
the middle position, press the
fknob for more than
two seconds until a beep sounds.
206
