key CHEVROLET COBALT 2007 1.G Owners Manual

Seats and Restraint Systems
........................ 7
Front Seats
.............................................. 9
Rear Seats
............................................. 16
Safety Belts
............................................ 18
Child Restraints
...................................... 40
Airbag System
........................................ 68
Restraint System Check
......................... 84
Features and Controls
................................. 87
Keys
....................................................... 89
Doors and Locks
.................................... 98
Windows
............................................... 104
Theft-Deterrent Systems
....................... 107
Starting and Operating Your Vehicle
..... 111
Mirrors
.................................................. 130
OnStar
®System
................................... 132
Storage Areas
...................................... 136
Sunroof
................................................ 137Instrument Panel
........................................ 139
Instrument Panel Overview
................... 142
Climate Controls
................................... 158
Warning Lights, Gages, and Indicators
... 164
Driver Information Center (DIC)
............ 181
Audio System(s)
................................... 192
Driving Your Vehicle
.................................. 225
Your Driving, the Road, and
Your Vehicle
..................................... 226
Towing
................................................. 264
Service and Appearance Care
................... 277
Service
................................................. 280
Fuel
...................................................... 282
Checking Things Under the Hood
......... 288
Headlamp Aiming
................................. 328
Bulb Replacement
................................ 331
Windshield Wiper Blade Replacement
... 337
2007 Chevrolet Cobalt Owner ManualM
1

Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely
to be seriously injured if they do not wear
safety belts.
A pregnant woman should wear a lap-shoulder
belt, and the lap portion should be worn as low
as possible, below the rounding, throughout
the pregnancy.The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly,
it is more likely that the fetus will not be hurt in a
crash. For pregnant women, as for anyone,
the key to making safety belts effective is wearing
them properly.
Right Front Passenger Position
To learn how to wear the right front passenger’s
safety belt properly, seeDriver Position on
page 24.
The right front passenger’s safety belt works the
same way as the driver’s safety belt — except
for one thing. If you ever pull the shoulder portion
of the belt out all the way, you will engage the
child restraint locking feature which may turn off
the passenger’s frontal airbag. If this happens, just
let the belt go back all the way and start again.
32

6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.8. If your vehicle has a passenger sensing
system and the airbag is off, the off indicator
on the instrument panel will be lit and stay
lit when the key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the
child restraint from the vehicle and reinstall
the child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in
the child restraint in a rear seat position in
the vehicle and check with your dealer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be ready
to work for an adult or larger child passenger.
67

In many crashes severe enough to inate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur
from the right front passenger airbag.
Airbags are designed to inate only once.
After an airbag inates, you will need some new
parts for the airbag system. If you do not get
them, the airbag system will not be there to help
protect you in another crash. A new system will
include airbag modules and possibly other
parts. The service manual for your vehicle
covers the need to replace other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Recording and
Privacy on page 432andEvent Data
Recorders on page 433.
Let only qualied technicians work on the
airbag system. Improper service can mean
that your airbag system will not work properly.
See your dealer/retailer for service.
Passenger Sensing System
If your vehicle has one of the indicators pictured in
the following illustrations, then your vehicle has
a passenger sensing system for the right front
passenger’s position. A passenger airbag status
indicator on the instrument panel will be visible
when you turn your ignition key to START or RUN.
The words ON and OFF, or the symbol for
ON and OFF, will be visible on the instrument
panel during the system check. When the system
check is complete, either the word ON or the
word OFF, or the symbol for ON or the symbol
for OFF will be visible. SeePassenger Airbag
Status Indicator on page 168.
United StatesCanada
77

Keys.............................................................. 89
Remote Keyless Entry (RKE) System.......... 91
Remote Keyless Entry (RKE)
System Operation.................................... 92
Doors and Locks.......................................... 98
Door Locks................................................. 98
Power Door Locks....................................... 99
Delayed Locking.......................................... 99
Automatic Door Lock................................. 100
Programmable Automatic Door Unlock....... 100
Rear Door Security Locks (Sedan)............ 100
Lockout Protection..................................... 101
Trunk........................................................ 102
Windows...................................................... 104
Manual Windows....................................... 104
Power Windows........................................ 105
Sun Visors................................................ 106Theft-Deterrent Systems............................. 107
Content Theft-Deterrent............................. 107
PASS-Key
®III+......................................... 109
PASS-Key®III+ Operation......................... 109
Starting and Operating Your Vehicle......... 111
New Vehicle Break-In................................ 111
Ignition Positions....................................... 112
Retained Accessory Power (RAP)............. 115
Starting the Engine.................................... 115
Engine Coolant Heater.............................. 117
Automatic Transaxle Operation.................. 118
Manual Transaxle Operation...................... 121
Parking Brake........................................... 123
Shifting Into Park (P)
(Automatic Transaxle)............................ 124
Shifting Out of Park (P)
(Automatic Transaxle)............................ 126
Section 2 Features and Controls
87

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The windows
will function with the keys in the ignition
and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave the keys in a vehicle
with children.
89

One key is used for the
ignition, the doors and
all other locks.
When a new vehicle is delivered, the dealer
removes the key tag from the key and gives it to
the rst owner.Each tag has a code on it that tells your dealer or
a qualied locksmith how to make extra keys.
Keep the tag in a safe place. If you lose your key,
you will be able to have a new one made easily
using the tag.
If you need a new key, contact your dealer who can
obtain the correct key code. SeeRoadside
Assistance Program on page 420for more
information.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.
90

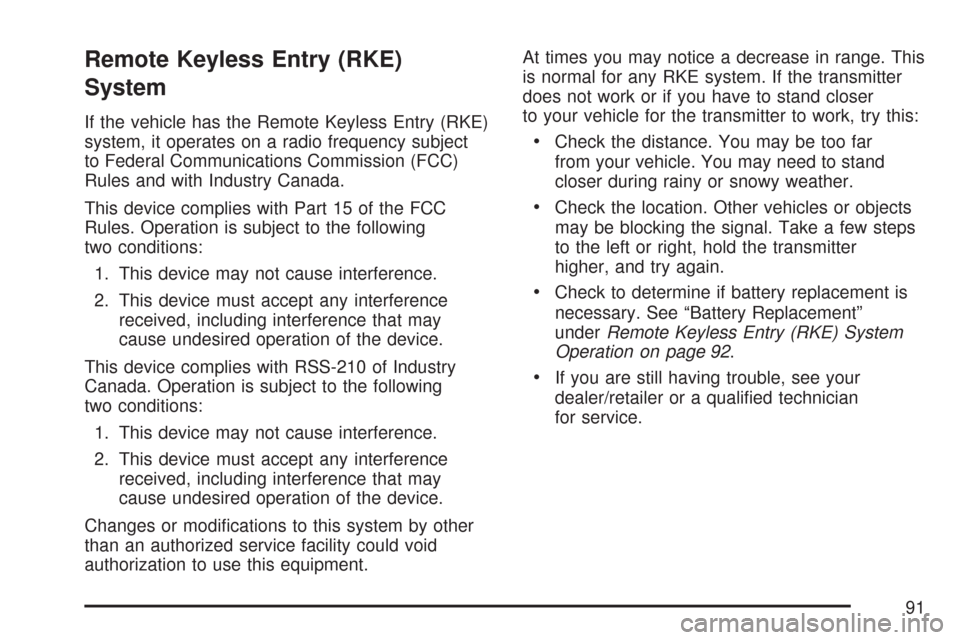

Remote Keyless Entry (RKE)
System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.At times you may notice a decrease in range. This
is normal for any RKE system. If the transmitter
does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far
from your vehicle. You may need to stand
closer during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 92.
If you are still having trouble, see your
dealer/retailer or a qualied technician
for service.
91

Remote Keyless Entry (RKE)
System Operation
The vehicle’s doors may be locked and
unlocked, and the trunk can be opened from
about 3 feet (1 m) up to 197 feet (60 m) away with
the remote keyless entry transmitter. If your vehicle
has the remote vehicle start feature, you can also
start the vehicle’s engine with the Remote Keyless
Entry (RKE) transmitter.The following functions may be available if your
vehicle has the RKE system./(Remote Vehicle Start):If your vehicle has
this feature, the engine may be started from
outside the vehicle using the RKE transmitter.
See “Remote Vehicle Start” later in this section
for more detailed information.
Q(Lock):Press the lock button to lock all the
doors. The interior lamps will turn off after all of the
doors are closed. If enabled through the Driver
Information Center (DIC), the remote lock feedback
can be programmed to have the horn chirp
and/or the turn signals ash when the RKE
transmitter is used to lock the vehicle’s doors.
See “LOCK HORN” and “LIGHT FLASH” under
DIC Vehicle Personalization on page 186for more
information.
Pressing the lock button may also arm the
content theft-deterrent system. SeeContent
Theft-Deterrent on page 107.
Remote Keyless Entry
with Remote StartRemote Keyless Entry
without Remote Start
92

Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring
any additional transmitters so they can also be
re-coded to match the new transmitter. Once your
dealer has coded the new transmitter, the lost
transmitter will not unlock your vehicle. Each
vehicle can have a maximum of four transmitters
matched to it.
Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about four years.
The battery is weak if the transmitter will not work at
the normal range in any location. If you have to get
close to your vehicle before the transmitter works, it
is probably time to change the battery.
The KEY FOB BATT LOW message in the vehicle’s
DIC will display if the RKE transmitter battery is low.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static from
your body transferred to these surfaces may
damage the transmitter.To replace the battery in the RKE transmitter do
the following:
1. Insert a at object, with a thin edge, into the
notch located below the vehicle locator/panic
alarm button, and separate the bottom
half from the top half of the transmitter.
2. Remove the battery and replace it with the
new one. Make sure the positive (+) side of
the battery faces up. Use one three-volt,
CR2032, or equivalent, type battery.
94
