CHEVROLET COBALT 2010 1.G Owners Manual

Replacement Bulbs
Exterior LampsBulb Number

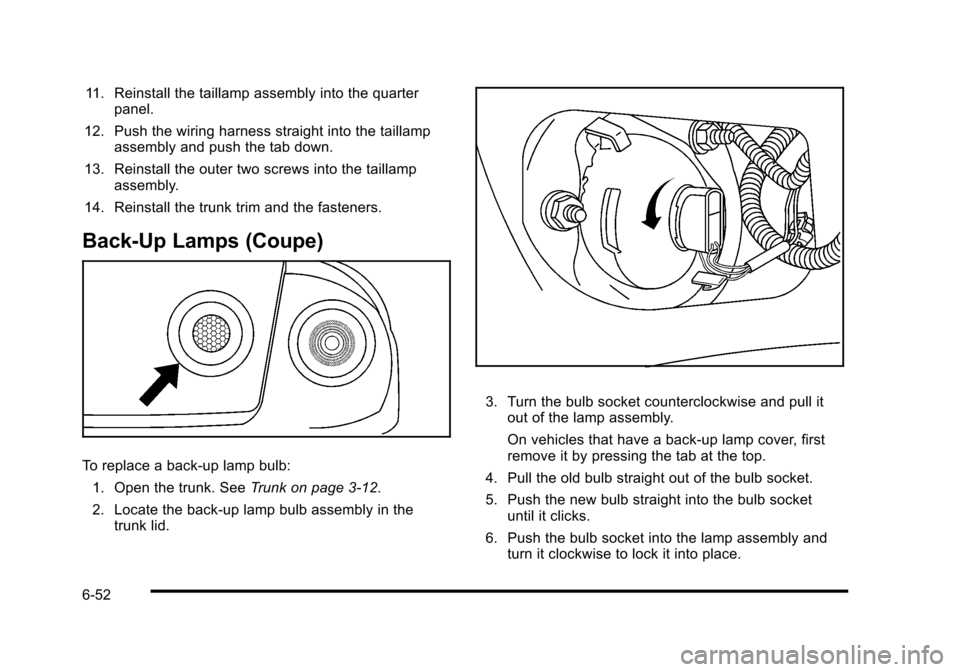

Back-Up Lamps921

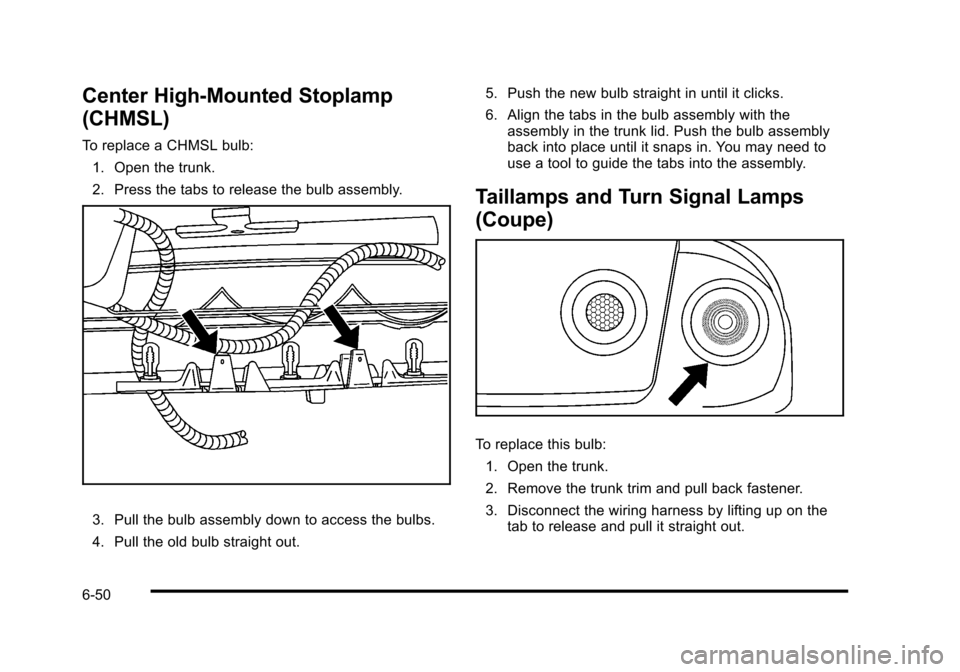

Center High-Mounted Stoplamp (CHMSL) 912
Front Parking/Turn Signal Lamps3157KX
Halogen Headlamps, High/Low-Beam 9007 LL

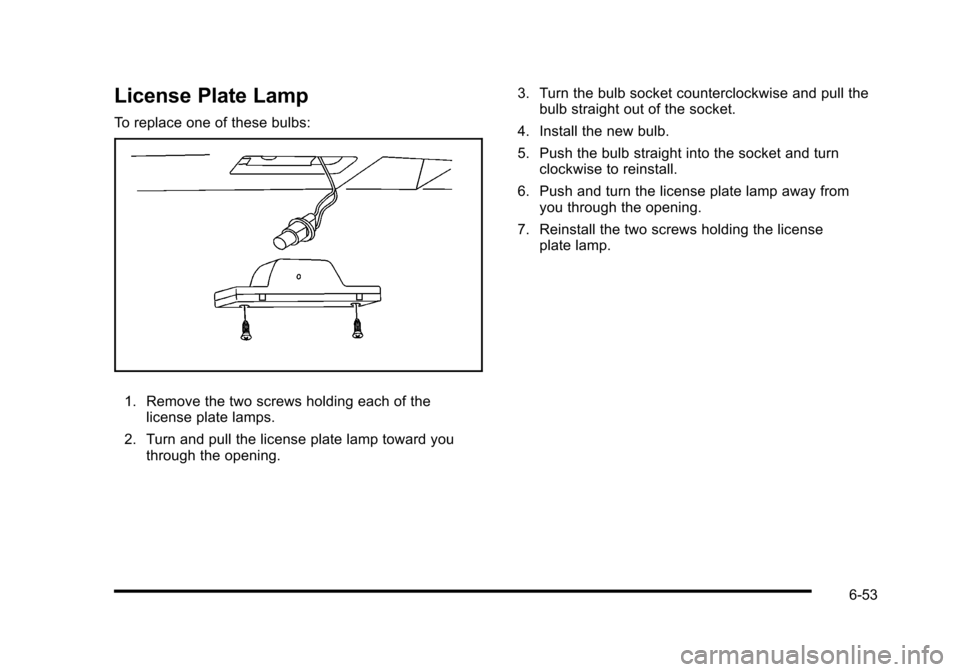

License Plate Lamp and Sidemarker 194

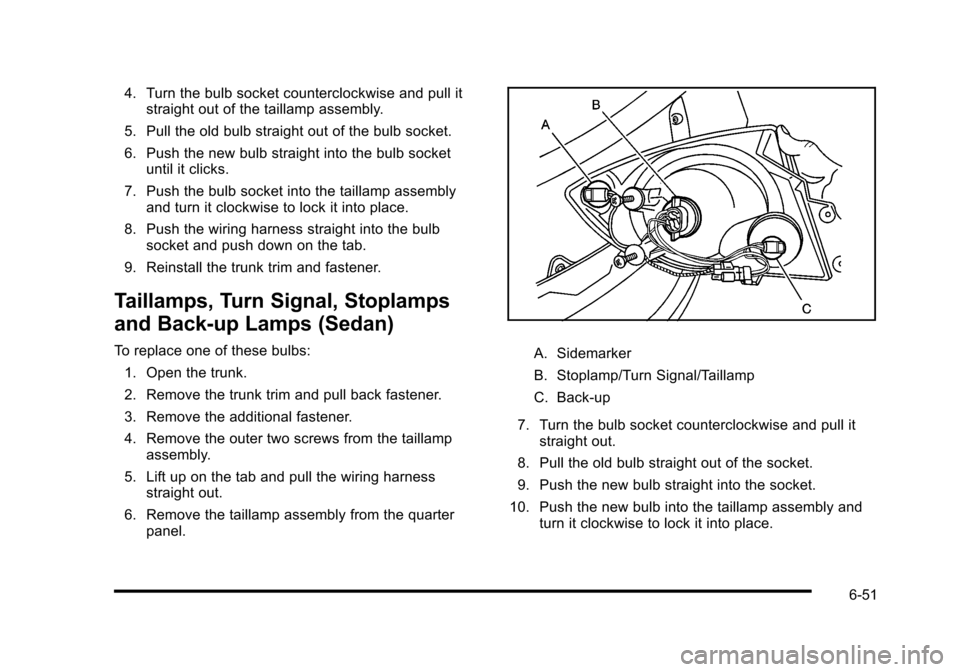

Stoplamp, Taillamp and Turn Signal Lamps 3057KX
For replacement bulbs not listed here, contact your dealer/retailer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear or cracking. See Scheduled Maintenanceon page 7‑3for more information on wiper blade inspection.
Replacement blades come in different types and are removed in different ways. For proper type and length, see Maintenance Replacement Partson page 7‑13. Here is how to remove the wiper blades:
1. Pull the windshield wiper arm away from the windshield.
2. Push the release lever and slide the wiper assembly toward the driver side of the vehicle.
3. Install a new blade by reversing Steps 1 and 2.
6-54
