Page 81 of 438

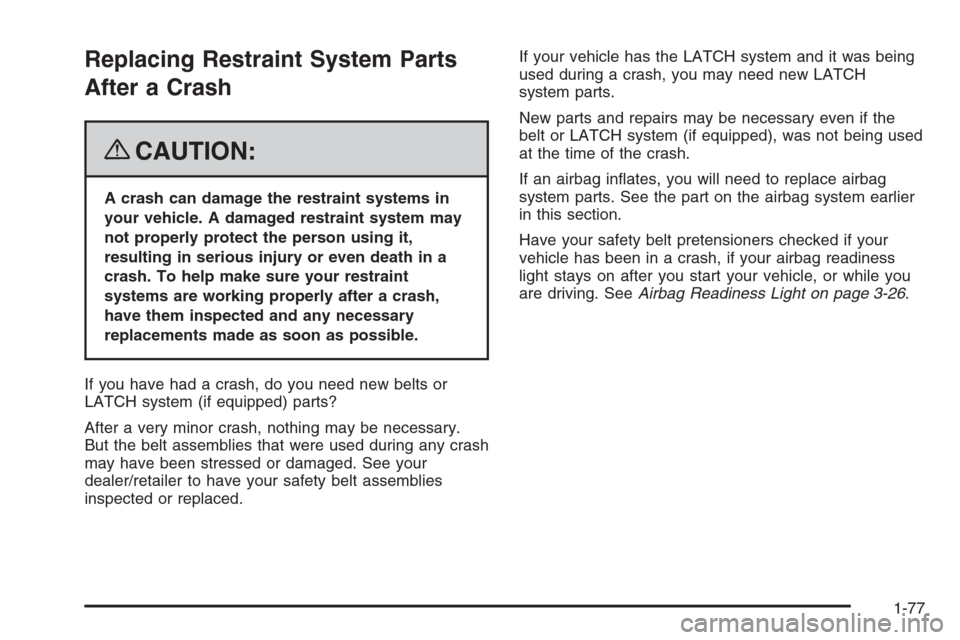

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in
your vehicle. A damaged restraint system may
not properly protect the person using it,
resulting in serious injury or even death in a
crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system (if equipped) parts?
After a very minor crash, nothing may be necessary.
But the belt assemblies that were used during any crash
may have been stressed or damaged. See your
dealer/retailer to have your safety belt assemblies
inspected or replaced.If your vehicle has the LATCH system and it was being
used during a crash, you may need new LATCH
system parts.
New parts and repairs may be necessary even if the
belt or LATCH system (if equipped), was not being used
at the time of the crash.
If an airbag in ates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
Have your safety belt pretensioners checked if your
vehicle has been in a crash, if your airbag readiness
light stays on after you start your vehicle, or while you
are driving. SeeAirbag Readiness Light on page 3-26.
1-77
Page 82 of 438
✍NOTES
1-78
Page 83 of 438

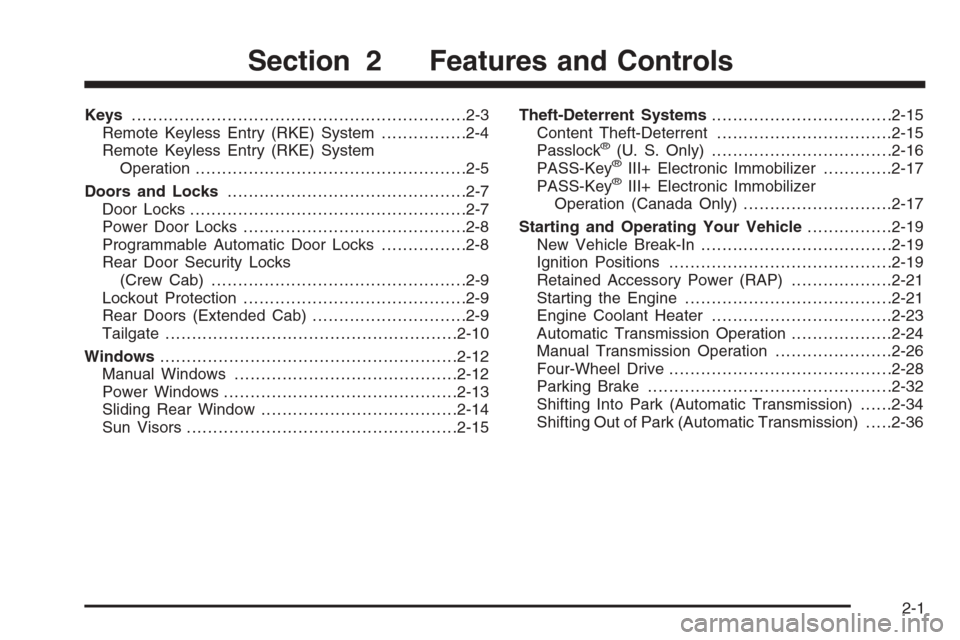

Keys...............................................................2-3
Remote Keyless Entry (RKE) System................2-4
Remote Keyless Entry (RKE) System
Operation...................................................2-5
Doors and Locks.............................................2-7
Door Locks....................................................2-7
Power Door Locks..........................................2-8
Programmable Automatic Door Locks................2-8
Rear Door Security Locks
(Crew Cab) ................................................2-9
Lockout Protection..........................................2-9
Rear Doors (Extended Cab).............................2-9
Tailgate.......................................................2-10
Windows........................................................2-12
Manual Windows..........................................2-12
Power Windows............................................2-13
Sliding Rear Window.....................................2-14
Sun Visors...................................................2-15Theft-Deterrent Systems..................................2-15
Content Theft-Deterrent.................................2-15
Passlock
®(U. S. Only)..................................2-16
PASS-Key®III+ Electronic Immobilizer.............2-17
PASS-Key®III+ Electronic Immobilizer
Operation (Canada Only)............................2-17
Starting and Operating Your Vehicle................2-19
New Vehicle Break-In....................................2-19
Ignition Positions..........................................2-19
Retained Accessory Power (RAP)...................2-21
Starting the Engine.......................................2-21
Engine Coolant Heater..................................2-23
Automatic Transmission Operation...................2-24
Manual Transmission Operation......................2-26
Four-Wheel Drive..........................................2-28
Parking Brake..............................................2-32
Shifting Into Park (Automatic Transmission)......2-34
Shifting Out of Park (Automatic Transmission).....2-36
Section 2 Features and Controls
2-1
Page 84 of 438

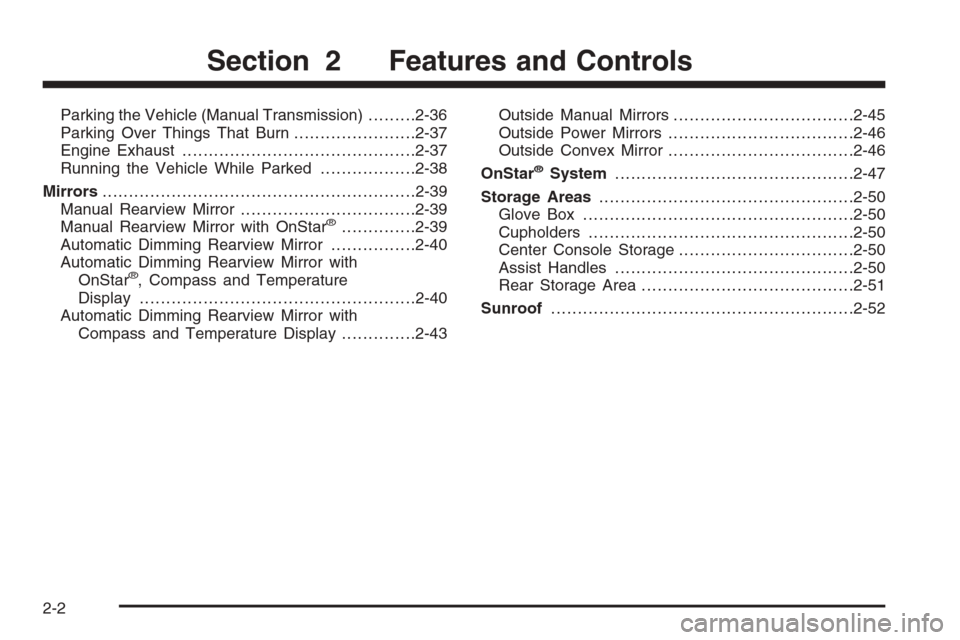

Parking the Vehicle (Manual Transmission).........2-36
Parking Over Things That Burn.......................2-37
Engine Exhaust............................................2-37
Running the Vehicle While Parked..................2-38
Mirrors...........................................................2-39
Manual Rearview Mirror.................................2-39
Manual Rearview Mirror with OnStar
®..............2-39
Automatic Dimming Rearview Mirror................2-40
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display....................................................2-40
Automatic Dimming Rearview Mirror with
Compass and Temperature Display..............2-43Outside Manual Mirrors..................................2-45
Outside Power Mirrors...................................2-46
Outside Convex Mirror...................................2-46
OnStar
®System.............................................2-47
Storage Areas................................................2-50
Glove Box...................................................2-50
Cupholders..................................................2-50
Center Console Storage.................................2-50
Assist Handles.............................................2-50
Rear Storage Area........................................2-51
Sunroof.........................................................2-52
Section 2 Features and Controls
2-2
Page 85 of 438
Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons, children or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. The
windows will function with the keys in the
ignition and they could be seriously injured or
killed if caught in the path of a closing window.
Do not leave the keys in a vehicle with children.
The key can be used for the ignition, all door locks, and
the tailgate.
The key has a bar-coded key tag that the dealer/retailer
or quali ed locksmith can use to make new keys. Store
this information in a safe place, not in your vehicle.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in. Be
sure you have spare keys.
If you are locked out of your vehicle, call the Roadside
Assistance Center. SeeRoadside Assistance Program
on page 7-8.
2-3
Page 86 of 438

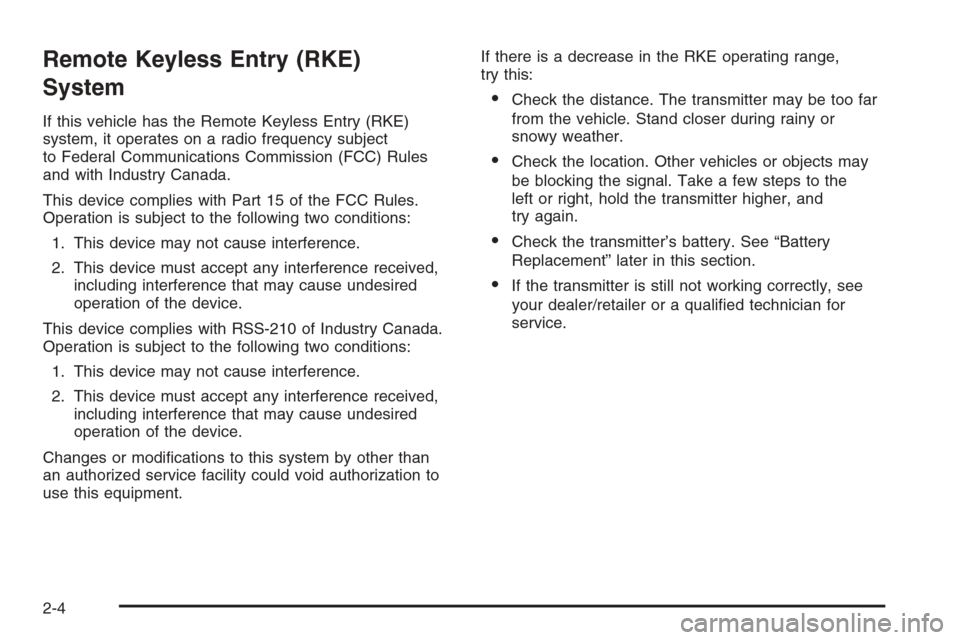

Remote Keyless Entry (RKE)
System
If this vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules
and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modi cations to this system by other than
an authorized service facility could void authorization to
use this equipment.If there is a decrease in the RKE operating range,
try this:
Check the distance. The transmitter may be too far
from the vehicle. Stand closer during rainy or
snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check the transmitter’s battery. See “Battery
Replacement” later in this section.
If the transmitter is still not working correctly, see
your dealer/retailer or a quali ed technician for
service.
2-4
Page 87 of 438
Remote Keyless Entry (RKE)
System Operation
If equipped, the Remote Keyless Entry (RKE) transmitter
functions will work up to 30 feet (9 m) away.
There are other conditions which can affect the
performance of the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-4.
UNLOCK:Press to unlock
the driver’s door and turn
on the interior lamps.
The parking lamps may
also ash, and the horn
may chirp, when this button
is pressed.
Press the unlock button again within three seconds and
all of the doors will unlock.
LOCK:Press to lock all the doors. The parking lamps
may also ash and the horn may chirp when this
button is pressed.If a door is open or ajar when the lock button is pressed,
the horn will chirp several times to let you know the doors
did not lock and the content theft-deterrent system is
not armed. Pressing the lock button again while the
horn is chirping or within three seconds after the horn
stops sounding, the doors will lock but the content
theft-deterrent system will not arm until the opened door
is closed.
Different feedback modes can be programmed through
the Driver Information Center (DIC). See “Remote
Keyless Entry Feedback” underDIC Operation and
Displays on page 3-37.
L(Panic):Press to make the horn sound and the
headlamps and taillamps ash for up to 30 seconds.
To turn them off again, do one of these three things: wait
for 30 seconds; press
Lagain; or start the vehicle.
2-5
Page 88 of 438
Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter is
lost or stolen, a replacement can be purchased through
your dealer/retailer. All transmitters need to be re-coded
to match the new transmitter. The lost transmitter will no
longer work after the new transmitters are re-coded. Each
vehicle can have a maximum of four transmitters
matched to it.
Battery Replacement
The battery is weak if the transmitter will not work at the
normal range in any location. If you have to get close
to your vehicle before the transmitter works, change the
battery.
Notice:When replacing the battery, do not touch
any of the circuitry on the transmitter. Static
from your body could damage the transmitter.To replace the battery:
1. Separate the halves of the transmitter with a at,
thin object inserted in the slot between the covers
of the transmitter housing.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery. Replace with a CR2032
or equivalent battery.
4. Put the transmitter back together tightly.
2-6
Page 89 of 438
Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can easily
open the doors and fall out of a moving
vehicle. When a door is locked, the handle
will not open it. You increase the chance
of being thrown out of the vehicle in a
crash if the doors are not locked. So, wear
safety belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock your vehicle.
To lock or unlock the door from the outside, use the
key in the driver’s or front passenger’s door or press the
lock or unlock button on the remote keyless entry
(RKE) transmitter.
To lock a door from the inside, push the manual lever
on the door forward. To unlock a door from the
inside, push the lever on the door rearward.
You will see a colored area on the lever when the door
is unlocked.
2-7
Page 90 of 438
Power Door Locks
If your vehicle has power
door locks, the switches
are located on the driver’s
and the front passenger’s
armrests.
Press L (lock) to lock all the doors at once. To unlock
all the doors, press U (unlock).
On crew cab models, use the manual door lock lever on
each rear door to lock or unlock the doors from the
rear seating areas.
Programmable Automatic Door
Locks
If your vehicle has power door locks and the remote
keyless entry system, it has an automatic lock/unlock
feature.
If your vehicle has an automatic transmission, it is
programmed from the factory to lock all doors
automatically when the shift lever is moved out of
PARK (P). All the doors will unlock when the shift lever
is moved back into PARK (P).
If your vehicle has a manual transmission, it is
programmed from the factory to lock all the doors when
the vehicle speed is greater than 15 mph (24 km/h). The
doors will unlock when the key is removed from the
ignition.
To change the automatic door lock and unlock settings,
see “Automatic Door Locks” underDIC Operation
and Displays on page 3-37. Driver’s Switch Shown,
Front Passenger’s
Switch Similar
2-8
