Page 11 of 420
{CAUTION:
Sitting in a reclined position when the vehicle is in
motion can be dangerous. Even if when buckled
up, the safety belts cannot do their job when
reclined like this.
The shoulder belt cannot do its job because it will
not be against your body. Instead, it will be in front
of you. In a crash, you could go into it, receiving
neck or other injuries.
The lap belt cannot do its job either. In a crash,
the belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear the safety belt properly.Do not have a seatback reclined if the vehicle is
moving.
1-7
Page 12 of 420
Head Restraints
The front seats may have adjustable head restraints.
If the vehicle has rear seats, they may have adjustable
head restraints.
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.Pull up on the head
restraint to raise it.
To lower the head
restraint, press the button
located on top of the
seatback and push down
on the head restraint.
1-8
Page 13 of 420
Seatback Latches
The vehicle may have front seatbacks that fold forward
for easy access to the rear seats or the storage area
behind the seats.
To fold the seatback
forward, push the lever
on the side of the seat
rearward and pull the
seatback forward.{CAUTION:
If the seatback is not locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always push and pull on
the seatback to be sure it is locked.
To return the seatback to the upright position, push the
seatback all the way back until it latches.
If the seatback was reclined before being folded
forward, it will return to the reclined position.
1-9
Page 14 of 420
Rear Seats
Rear Seat Operation (Extended Cab)
If the vehicle has an
extended cab, there may
be forward folding seats in
the rear area.
To fold the rear seat cushion(s) from the stored position
to the sitting position, pull the front of the seat cushion
down completely.
The rear seat storage compartments must be closed
before folding the seat down. SeeRear Storage Area on
page 2-47.To store the seat:
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1. Secure the safety belt buckle to the inboard side of
the seat with the hook and loop fastener (A), so that
it does not move when not in use.
2. Push the entire seat up until it is ush with the
trim panel.
1-10
Page 15 of 420
Rear Seat Operation (Crew Cab)
The rear seatback(s) in the crew cab can be folded
forward.
Notice:Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the safety
belts. Always unbuckle the safety belts and return
them to their normal stowed position before folding a
rear seat.
To fold the rear seatback(s) forward:
1. Disconnect the rear center safety belt latch from the
mini buckle by inserting the tip of the safety belt
tongue into the slot on the buckle. Let the belt retract.2. Pull the loop, located
on the outboard side of
the seatback, forward
until you hear a click.
3. Fold the seatback(s) forward.
1-11
Page 16 of 420

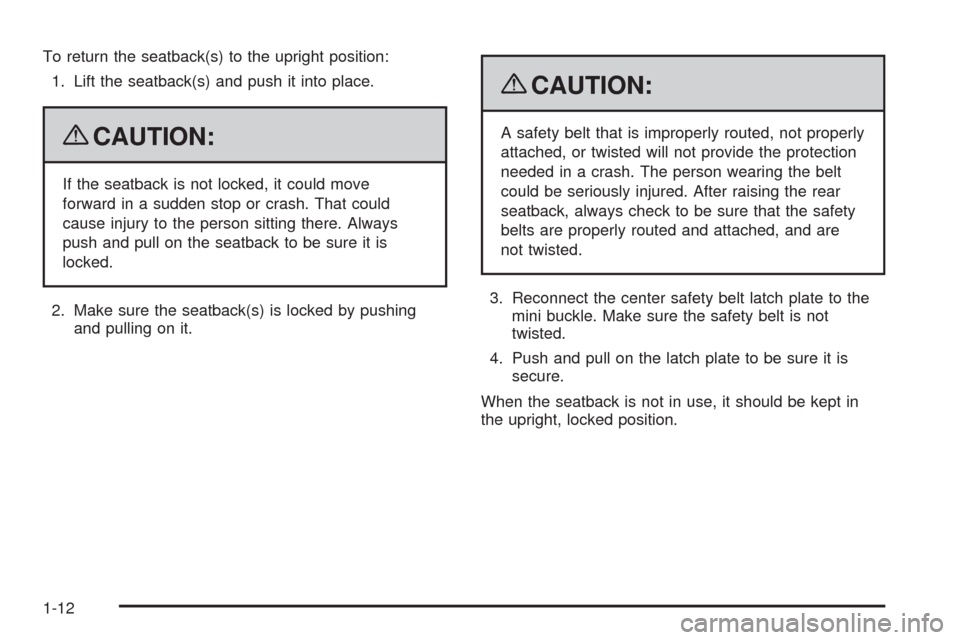

To return the seatback(s) to the upright position:
1. Lift the seatback(s) and push it into place.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
2. Make sure the seatback(s) is locked by pushing
and pulling on it.
{CAUTION:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
seatback, always check to be sure that the safety
belts are properly routed and attached, and are
not twisted.
3. Reconnect the center safety belt latch plate to the
mini buckle. Make sure the safety belt is not
twisted.
4. Push and pull on the latch plate to be sure it is
secure.
When the seatback is not in use, it should be kept in
the upright, locked position.
1-12
Page 17 of 420

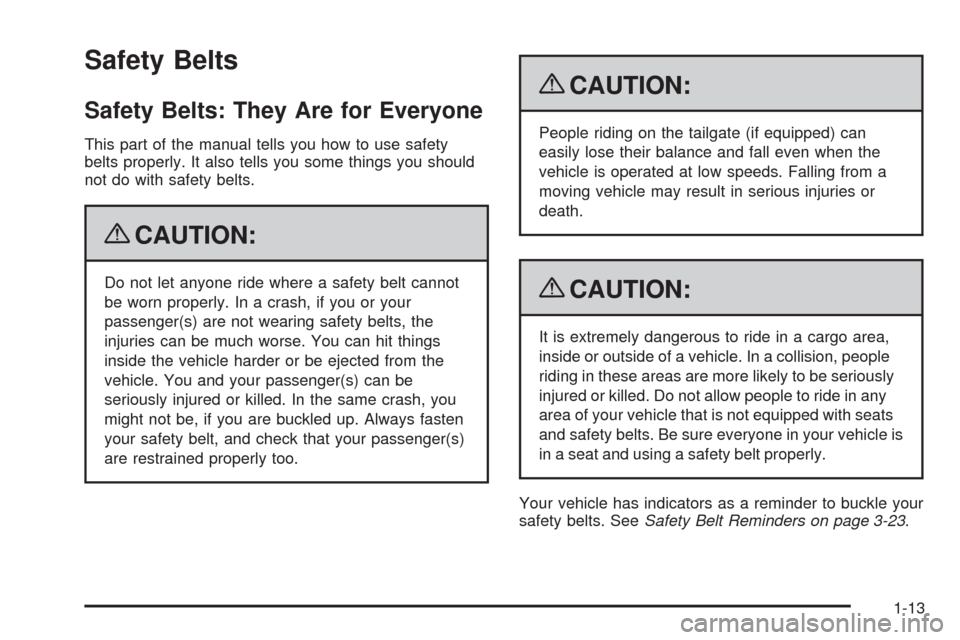

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where a safety belt cannot
be worn properly. In a crash, if you or your
passenger(s) are not wearing safety belts, the
injuries can be much worse. You can hit things
inside the vehicle harder or be ejected from the
vehicle. You and your passenger(s) can be
seriously injured or killed. In the same crash, you
might not be, if you are buckled up. Always fasten
your safety belt, and check that your passenger(s)
are restrained properly too.
{CAUTION:
People riding on the tailgate (if equipped) can
easily lose their balance and fall even when the
vehicle is operated at low speeds. Falling from a
moving vehicle may result in serious injuries or
death.
{CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed. Do not allow people to ride in any
area of your vehicle that is not equipped with seats
and safety belts. Be sure everyone in your vehicle is
in a seat and using a safety belt properly.
Your vehicle has indicators as a reminder to buckle your
safety belts. SeeSafety Belt Reminders on page 3-23.
1-13
Page 18 of 420

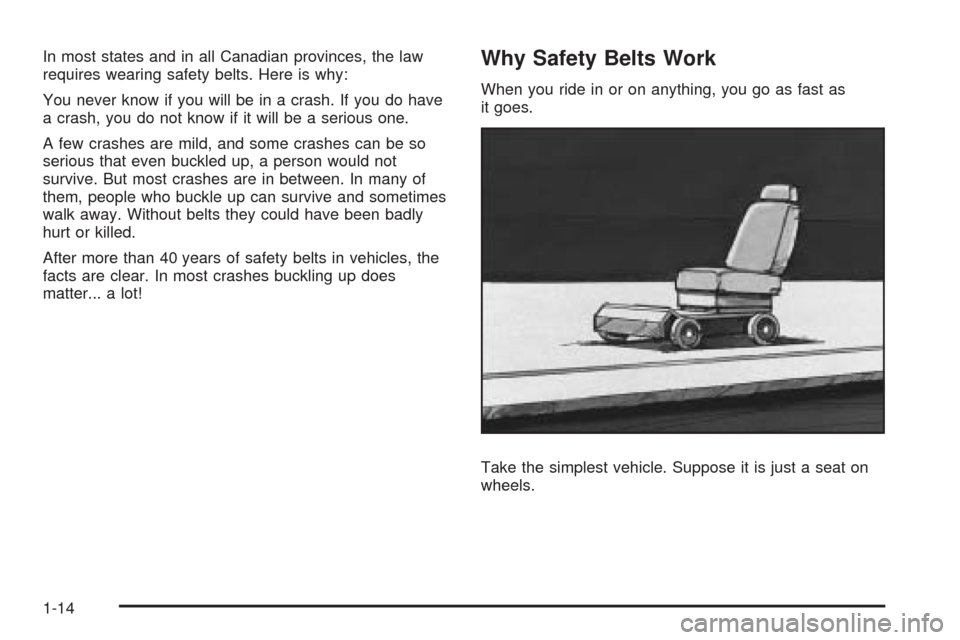

In most states and in all Canadian provinces, the law
requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 40 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.
1-14
Page 19 of 420

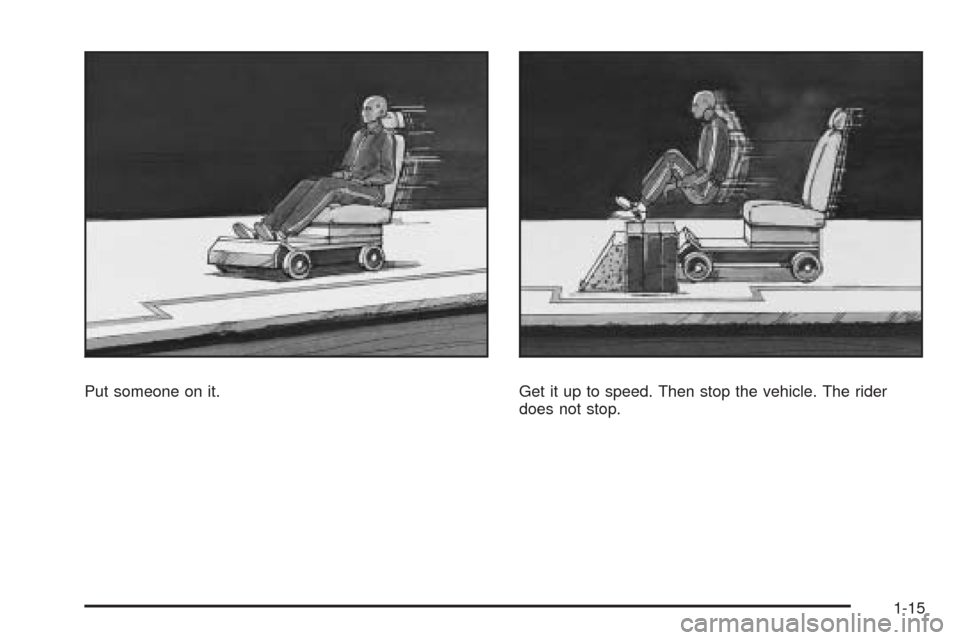

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
does not stop.
1-15
Page 20 of 420

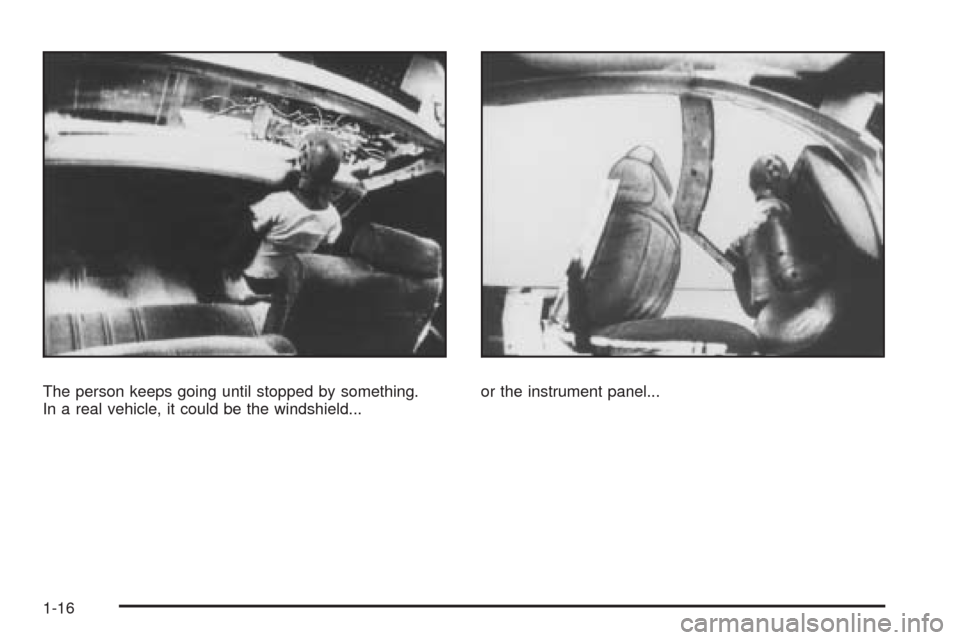

The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...or the instrument panel...
1-16
