fuse box CHEVROLET COLORADO 2019 Owner's Manual

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460274) - 2019 - CRC - 10/1/18

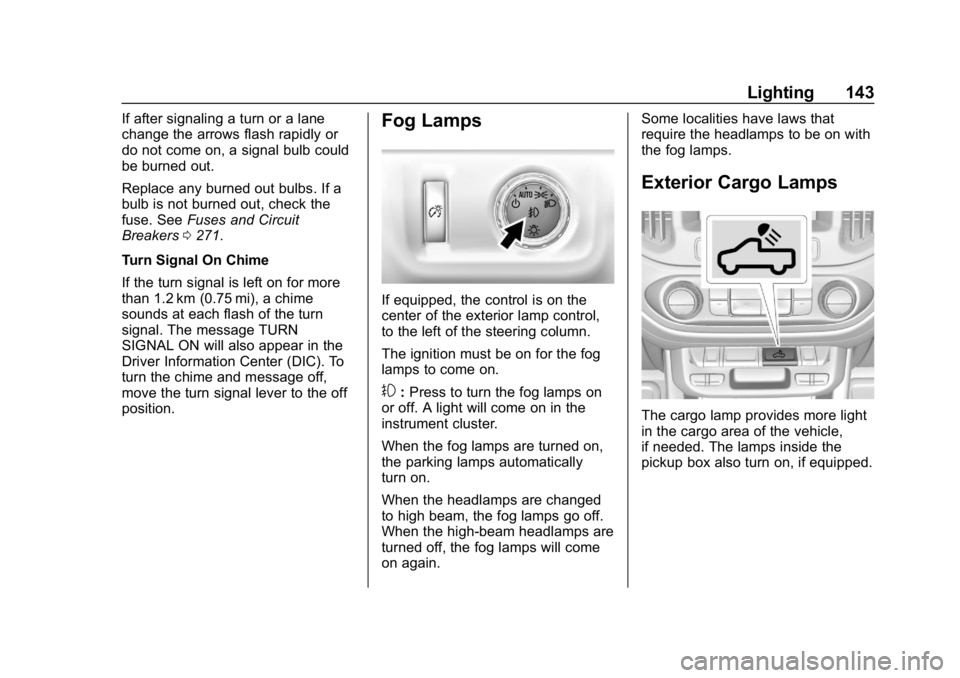

Lighting 143
If after signaling a turn or a lane
change the arrows flash rapidly or
do not come on, a signal bulb could
be burned out.
Replace any burned out bulbs. If a
bulb is not burned out, check the
fuse. SeeFuses and Circuit
Breakers 0271.
Turn Signal On Chime
If the turn signal is left on for more
than 1.2 km (0.75 mi), a chime
sounds at each flash of the turn
signal. The message TURN
SIGNAL ON will also appear in the
Driver Information Center (DIC). To
turn the chime and message off,
move the turn signal lever to the off
position.Fog Lamps
If equipped, the control is on the
center of the exterior lamp control,
to the left of the steering column.
The ignition must be on for the fog
lamps to come on.
#: Press to turn the fog lamps on
or off. A light will come on in the
instrument cluster.
When the fog lamps are turned on,
the parking lamps automatically
turn on.
When the headlamps are changed
to high beam, the fog lamps go off.
When the high-beam headlamps are
turned off, the fog lamps will come
on again. Some localities have laws that
require the headlamps to be on with
the fog lamps.
Exterior Cargo Lamps
The cargo lamp provides more light
in the cargo area of the vehicle,
if needed. The lamps inside the
pickup box also turn on, if equipped.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460274) - 2019 - CRC - 10/1/18
Index 379
Fuel (cont'd)Low Fuel Warning Light . . . . . . . 127
Prohibited Fuels . . . . . . . . . . . . . . 216
Recommended . . . . . . . . . . . . . . . 216
Top Tier . . . . . . . . . . . . . . . . . . . . . . 216
Full-Size Spare Tire . . . . . . . . . . . . 311
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 272
Fuses and Circuit Breakers . . . 271
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 276
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 266
GaugesEngine CoolantTemperature . . . . . . . . . . . . . . . . .117
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Odometer . . . . . . . . . . . . . . . . . . . . . .116
Speedometer . . . . . . . . . . . . . . . . . .116
Tachometer . . . . . . . . . . . . . . . . . . . .116
Trip Odometer . . . . . . . . . . . . . . . . .116
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . . 111
General Information Service and Maintenance . . . . . 329
Towing . . . . . . . . . . . . . . . . . . . . . . . . 219 General Information (cont'd)
Vehicle Care . . . . . . . . . . . . . . . . . . 240
Glove Box . . . . . . . . . . . . . . . . . . . . . . 103
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 353
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 267
Hazard Warning Flashers . . . . . . . 142
Head Restraints . . . . . . . . . . . . . . . . . 44
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 267
Automatic . . . . . . . . . . . . . . . . . . . . . 141
Bulb Replacement . . . . . . . . . . . . 267
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 141
Flash-to-Pass . . . . . . . . . . . . . . . . . 140
Headlamps, Front Turn Signal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 268
High-Beam On Light . . . . . . . . . . 127
High/Low Beam Changer . . . . . 140
Lamps On Reminder . . . . . . . . . 128
Heated
Steering Wheel . . . . . . . . . . . . . . . 106
Heated Front Seats . . . . . . . . . . . . . . 48
Heated Mirrors . . . . . . . . . . . . . . . . . . . 37 Heater
Engine . . . . . . . . . . . . . . . . . . . . . . . . 177
Heating . . . . . . . . . . . . . . . . . . . . 148, 150
High-Beam On Light . . . . . . . . . . . . 127
Hill and Mountain Roads . . . . . . . . 165
Hill Descent Control (HDC) . . . . . 202
Hill Descent Control Light . . . . . . . 124
Hill Start Assist (HSA) . . . . . . . . . . 199
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
How to Wear Seat Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 53
HVAC . . . . . . . . . . . . . . . . . . . . . . 148, 150
Hydraulic Clutch . . . . . . . . . . . . . . . . 250
I
Ignition Positions . . . . . . . . . . . . . . . 174
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 264
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 35
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . 124
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 74
Information Publication Ordering . . . . . . . . . . 358
Infotainment . . . . . . . . . . . . . . . . . . . . 147
Infotainment System . . . . . . . . . . . . 362
