Features & Controls

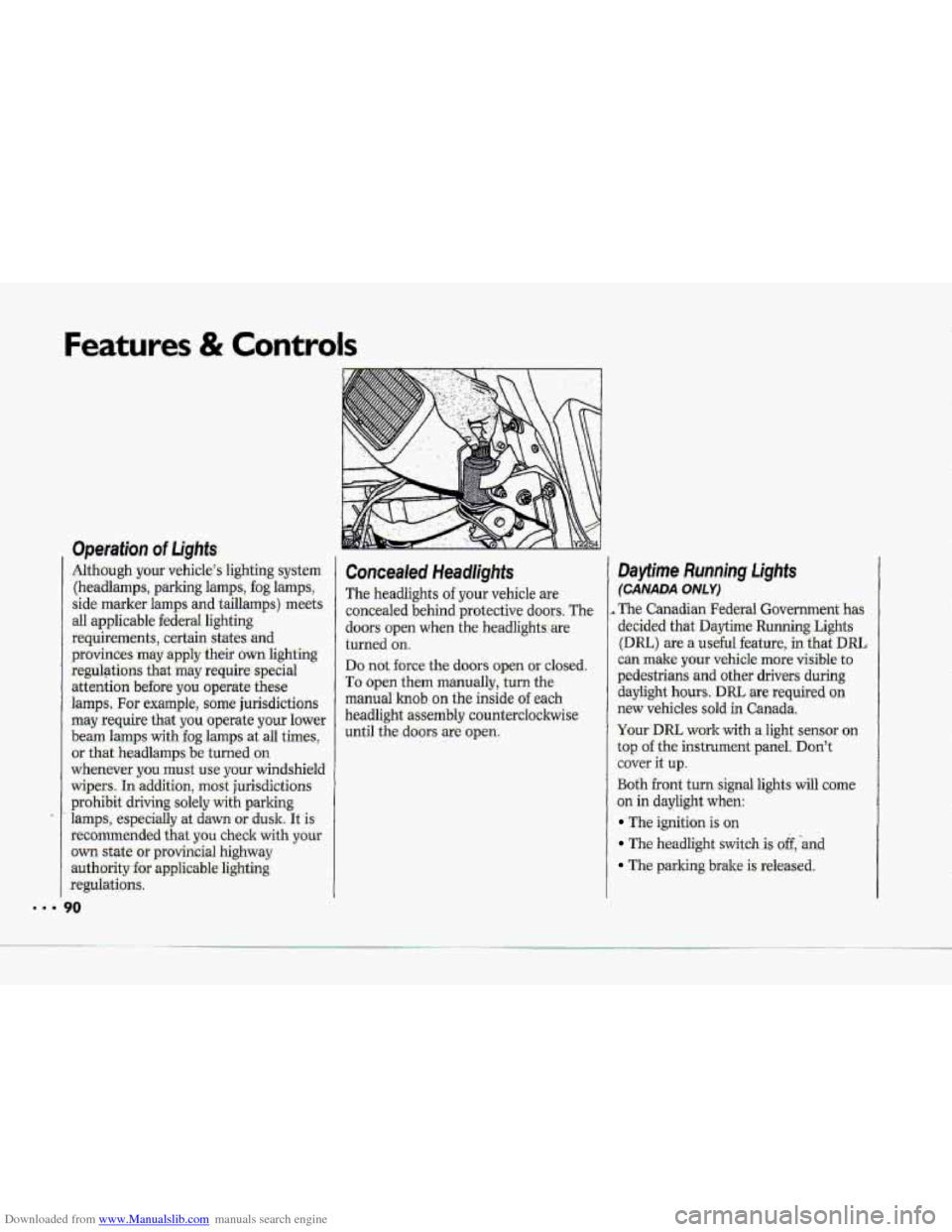

Operation of Lights
Although your vehicle’s lighting system
(headlamps, parking lamps,
fog lamps,
side marker lamps and taillamps) meets
all applicable federal lighting
requirements, certain states
and
provinces may apply their own lighting
regulations that may require special
attention before
you operate these
lamps. For exampk, some jurisdictions
may require
that you operate your lower
beam lamps with fog lamps at all times,
or that headlamps be turned on
whenever
you must use your windshield
wipers. In addition, most jurisdictions
prohibit driving solely
with parking
lamps, especially at dawn or dusk It is
recommended that you check with your
own state or provincial highway
authority
for applicable lighting
regulations.
?O
Concealed Headlights
The headlights of your vehicle are
concealed behind protective doors. The
doors open when the headlights are
turned
on.
Do not force the doors open or closed.
To open them manually, turn the
manual hob
on the inside of each
headlight assembly countercloclnvise
until the doors are open.
Daytime Running Lights
(CANADA ONLY)
, The Canadian Federal Government has
decided that Daytime Running Lights
(Dm) are a useful feature, in that DRL
can make your vehicle more visible to
pedestrians and other drivers during
daylight hours.
DRL are required on
new vehicles sold in Canada,
Your
DRL work with a light sensor on
tap of the instrument panel. Don’t
1 come
cover
it
up.
Both front turn. signal lightswil
on in daylight when:
The ignition is on
The headlight switch.is &,-and
The parking brake is released.

Downloaded from www.Manualslib.com manuals search engine P
I
P

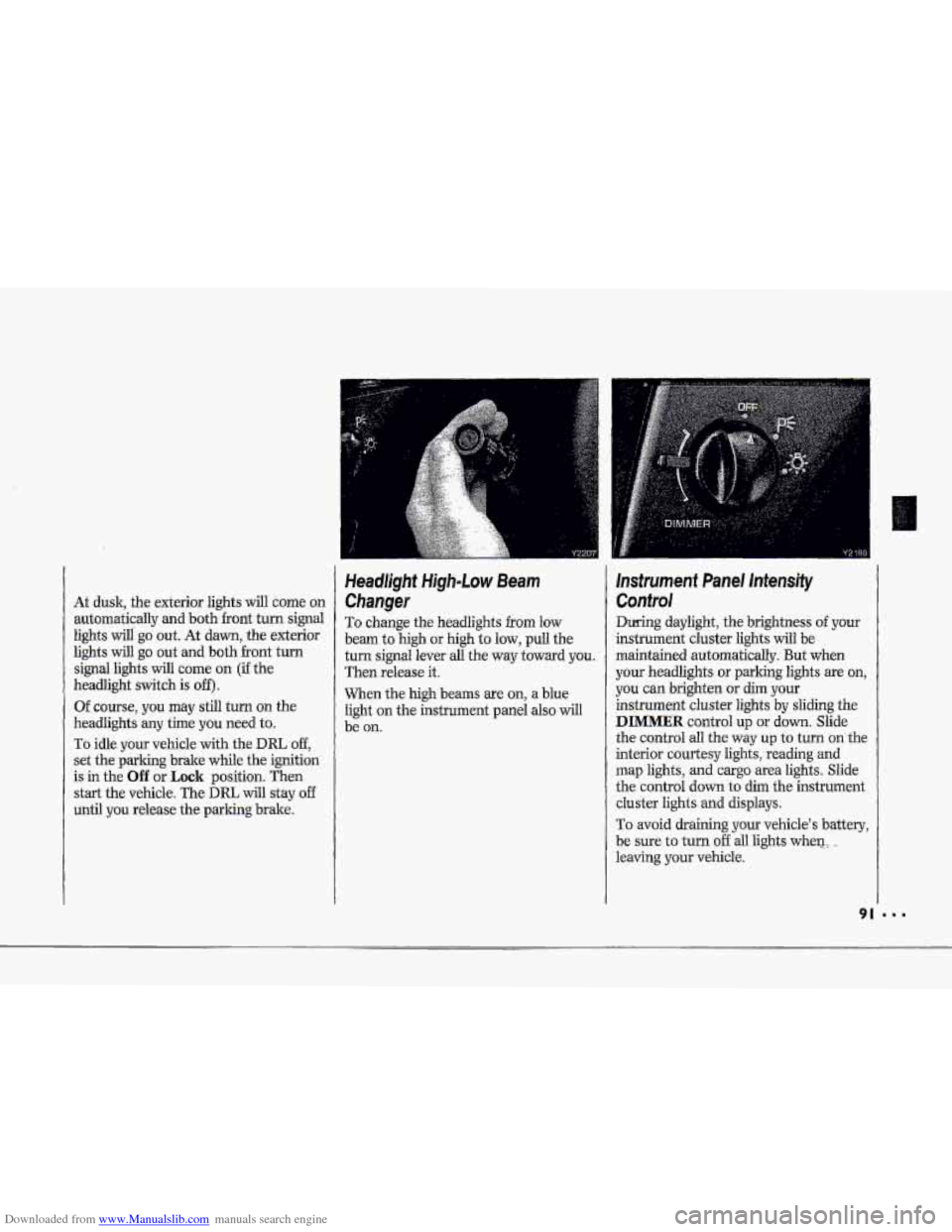

At dusk, the exterior lights will come on
automatically and both front turn 9ignal
lights
will go out. At dawn, the exterior
lights will
go out and both front turn
signal lights
will come on (if the
headlight switch is
off).
Of course, you may still turn on the
headlights any time you need to.
To idle your vehicle with the DRL off,
set the parking brake while the ignition
is in the Off or Lock position. Then
start the vehicle. The DRL will stay off
until you release the parking brake.
Changer
To change the headlights from low
beam to
high or high to low, pull the
turn signal lever all the
way toward you.
Then release it.
When the
high beams are on, a blue
light
on the instrument panel also will
be
on.
Instrument Panel Intensity
Confro!
During daylight, the brightness of your
instrument cluster lights will be
maintained automatically. But when
your headlights or parking lights are on,
you can brighten or dim your
instrument cluster lights by
sliding the
DIMMER control up or down. Slide
the control all
the way up to turn on the
interim courtesy lights,
reading and
map lights, and cargo area lights. Slide
the control
down to dim the instrument
cluster lights and displays.
To avoid draining.your vehicle's battery,
be sure to turn off all lights when.:. -
leaving your vehicleA

Downloaded from www.Manualslib.com manuals search engine Features & Controls

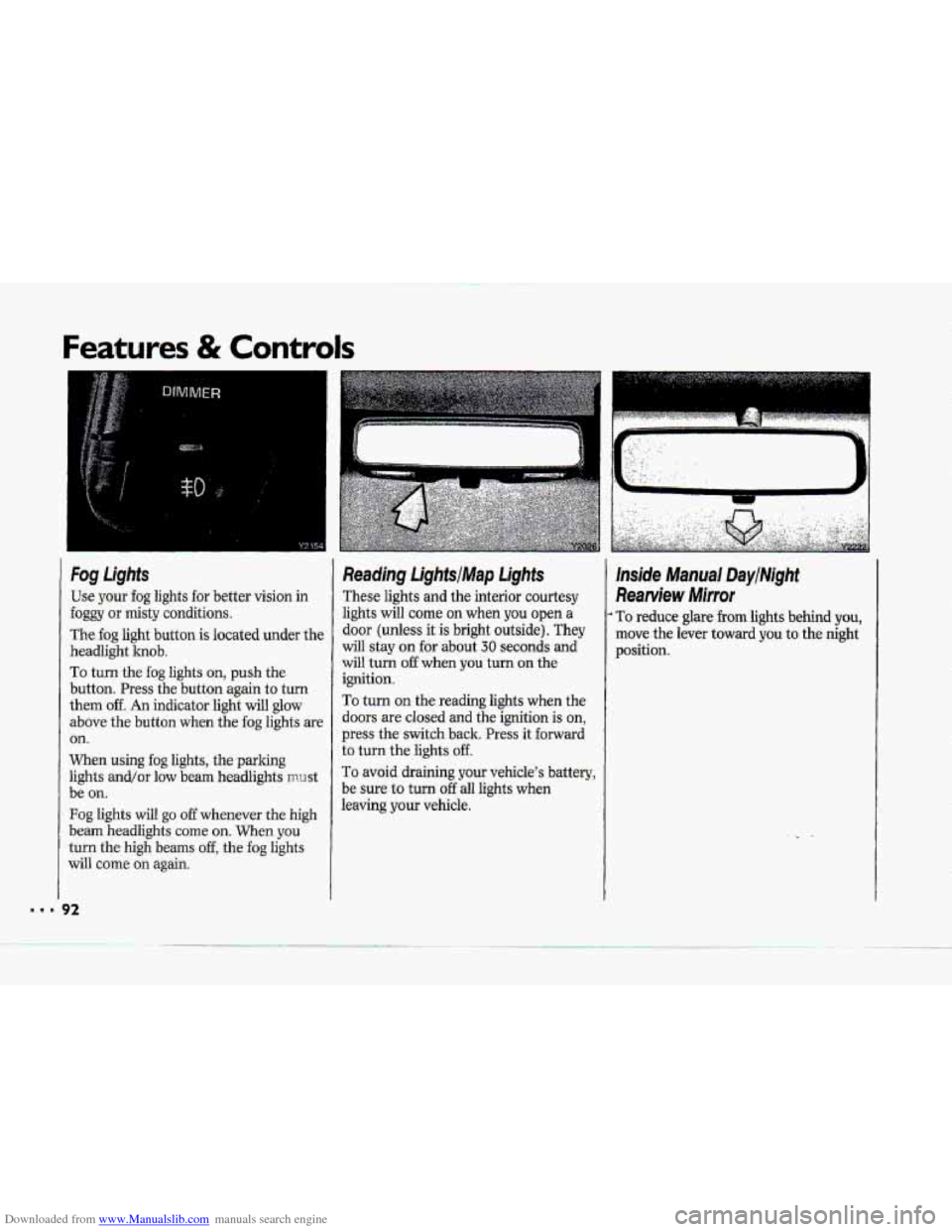

Fog Lights
Use your fog lights for better vision in
foggy or misty conditions.
The fog light button is located under the
headlight knob.
To turn the fog lights on, push the
button. Press the button again
to turn
them off. An indicator light will glow
above the button when the fog lights are
on.
When using fog lights, the parlung
lights and/or low beam headlights mrrst
be
on.
Fog lights will go off whenever the high
beam headlights
come on. When you
turn the high beams off, the fog lights
will come
on again.
Reading LightsIMap Lights
These lights and the interior courtesy
lights will corne
on when you open a
door (unless it is bright outside). They
will stay on for about 30 seconds and
will turn
off when you turn on the
ignition.
To turn on the reading lights when the
doors
are closed and the ignition is on,
press the switch back. Press it forward
to turn the lights off.
To avoid draining your vehicle's battery,
be sure to turn
off all lights when
leaving
your vehicle.
lnside Manual DaytMght
Rearview Mirror
To reduce glare from lights behind you,
move the lever toward you to the night
position.

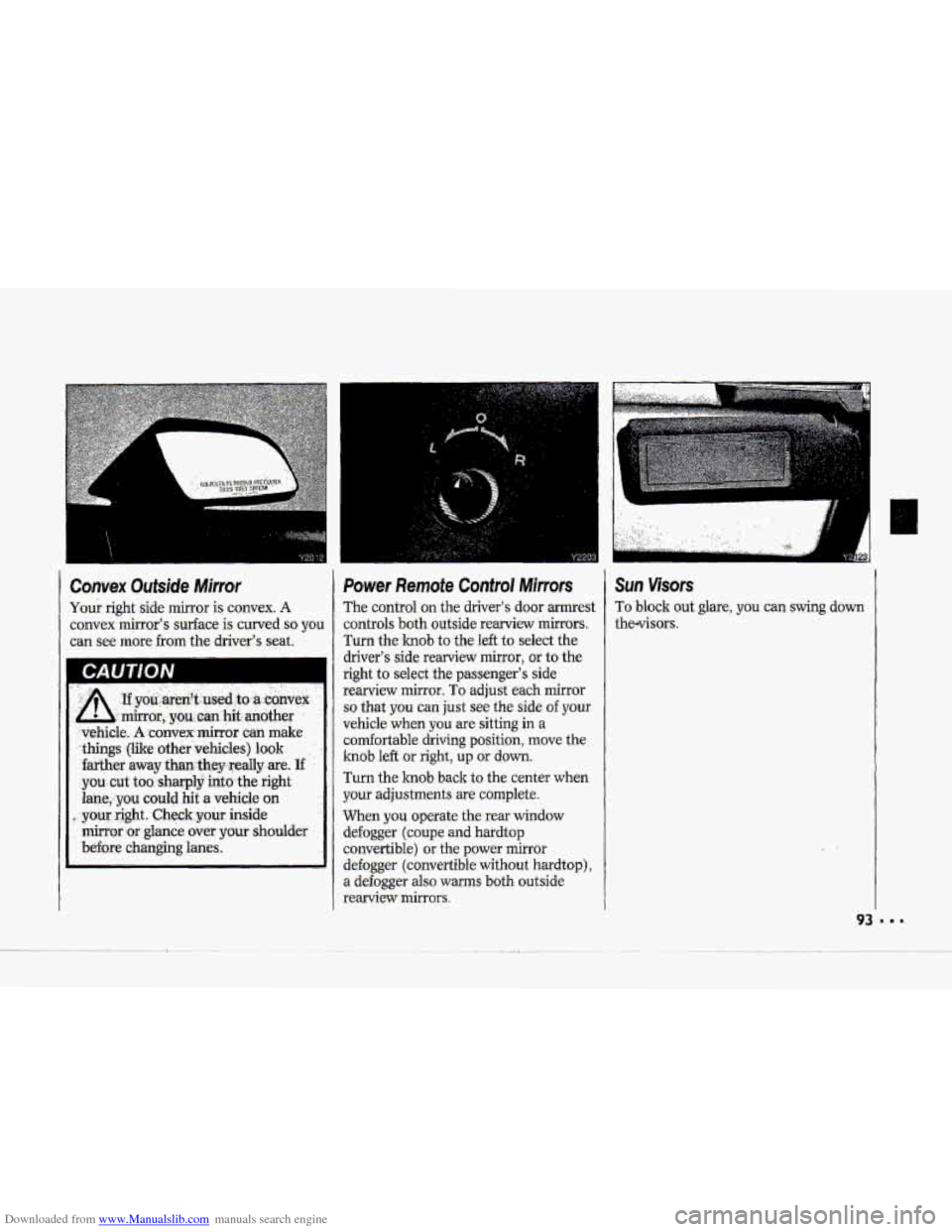

Downloaded from www.Manualslib.com manuals search engine Co-nvex Outside Mirror
Your right side mirror is convex. A
convex mirror's surface is curved so you
can see more frcmthe driver's seat.
Power Remote Control Mhors
The control-on the driver's door arrnrest
controls
both outside rearview mirrors.
Turn the knob to the left tu select the
driver's
side rearview mirror, .or to the
right
to select the passenger's side
marview mirror. To adjust each mirror
so that you can just see the side of your
vehicle when you are. sitting .in a
comfortable driving position, move the
hob left or right, up or down.
Turn- the. knob back to the center when
your adjustments are complete.
When you operate the rear window
defogger-
(c0up.e and hardtop
convertible) or the power mirror
defogger (convertible without hardtop),
a defogger-also warms both outside
rearview mirrors.
Sun Visors
To block out glare, you can swing down
the-visors.

Downloaded from www.Manualslib.com manuals search engine Features & Controls
I

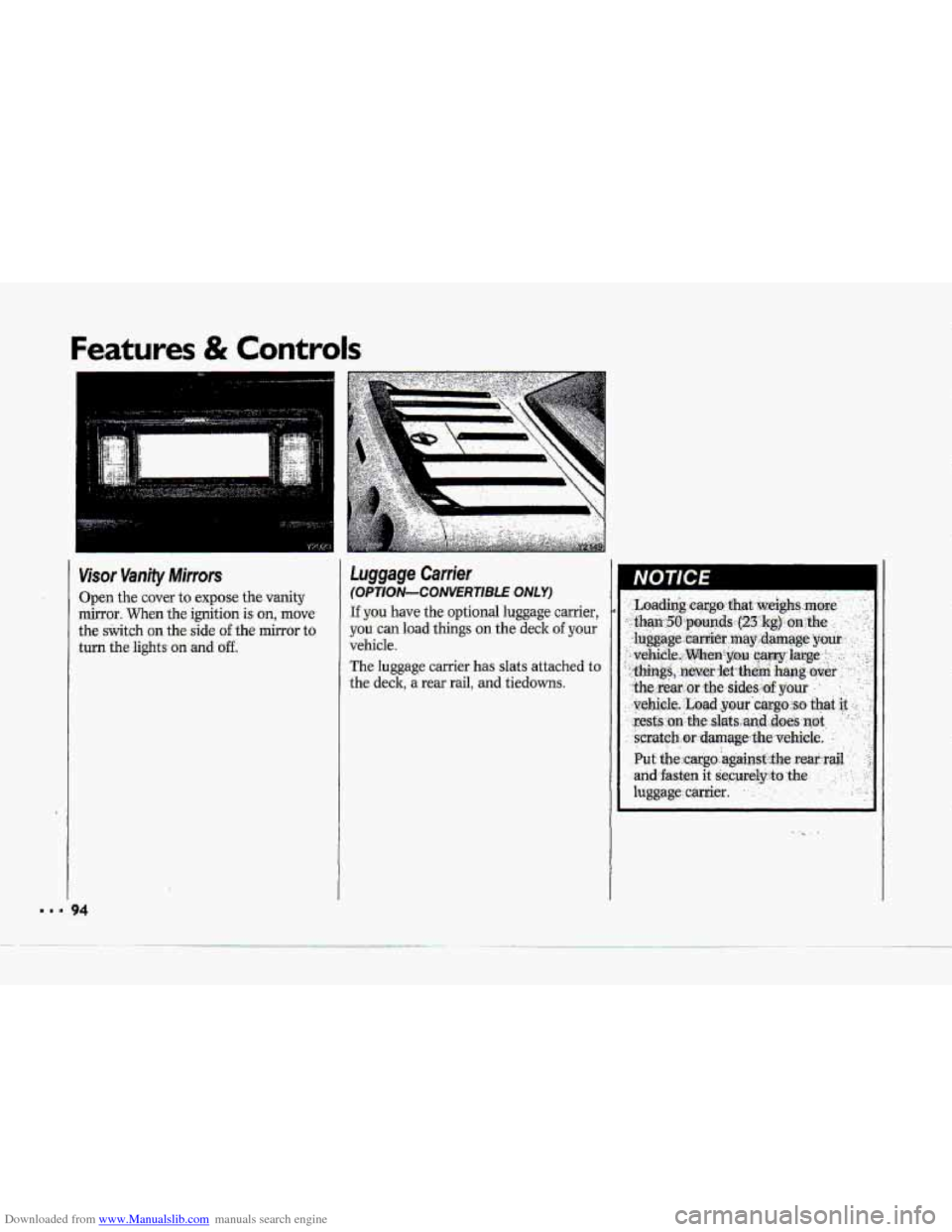

Visor Vanity Mirrors
Open the cover to expose the vanity
mirror. When the ignition is on, move
the srIvitch on the. side of the mirror to
turn the lights
on and off.
, , .... .,. _. . -
luggage Carrier
(OPT/ON-CONVERTlBl.E ONLY)
If you have the optional luggage carrier,
y-ou'can load things on the deck oflyour
vehicle.
The luggage carrier has slats attached to
the deck, a rear rail, and tiedowns.

Downloaded from www.Manualslib.com manuals search engine ,.-
Don't exceed the maximum vehicle
capacity
when loading your Corvette.
For more information on vehicle
capacity and loading, .see the Index
under Loadhtg Your Vehicle.
To prevent damage-or loss of cargo as
you're driving, check now and then to.
make sue the'luggage-Carrie? and cargo
are still securely fasteried.

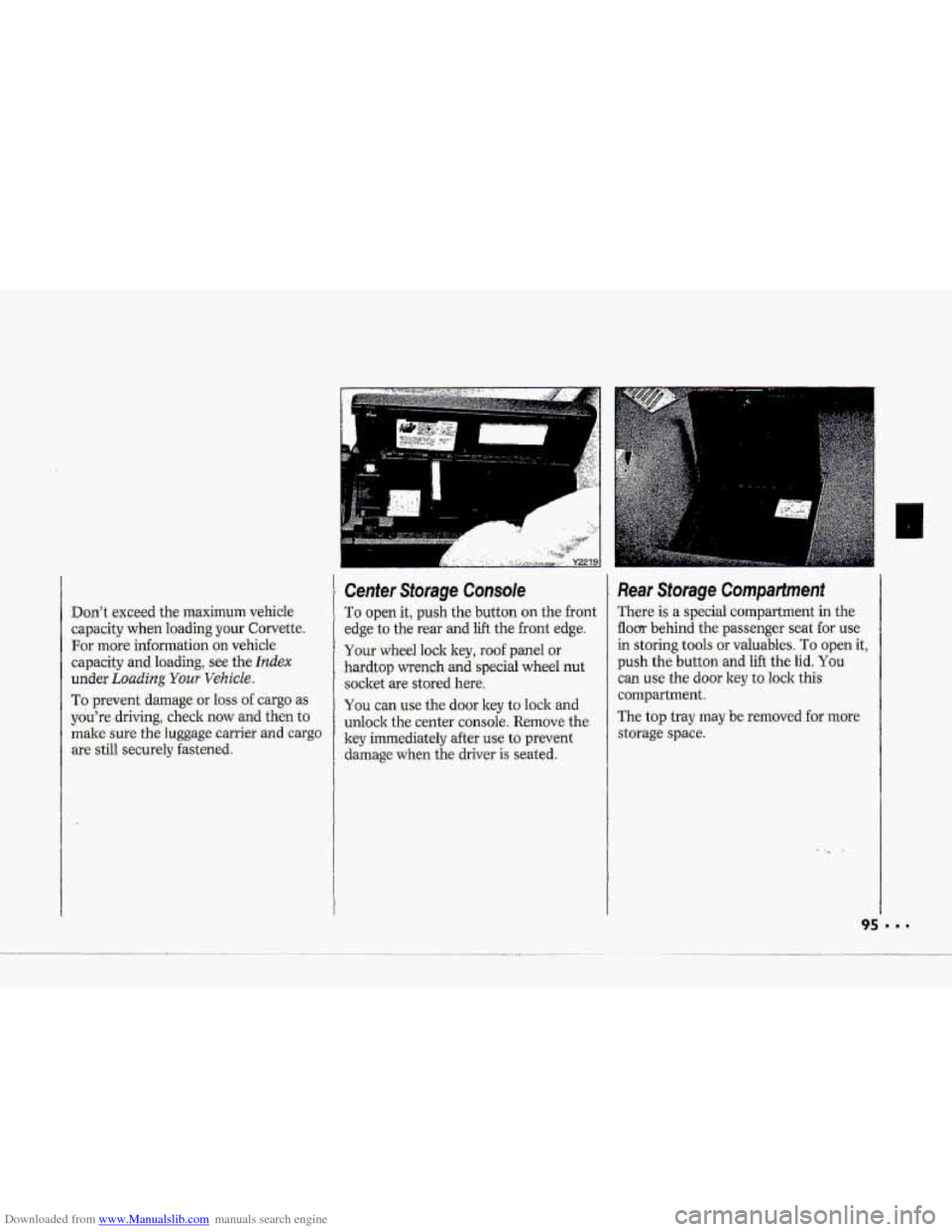

Cenfer Storage Console
To. open it, push the button on the front
edge to the
rear and lift the.front edge.
Your whed lock key, roof panel or
hardtop wrench
and special wheel nut
socket -are stored here.
You can use the door key to lock and
unlock thecenter console. Remove the
ley immediately after
use to prevent
damage.when the driver-is seated.
Re.ar Storage Compartment
There is a special compartment in the-
flom behind the pa-ssenger seat for use
in-storing tools or valuables. 'To open it,
push the. button -and lift the lid. You
can use the dour key t.0 lo-ck this
compartment.
The
top tray may.be removed for more
storage spa-ce.

Downloaded from www.Manualslib.com manuals search engine Also, to xeduce.the potential for
radi.0 receiver interference, do not
connect or placemy p other
-dectronic modules to or near-the
power s,o.urce in this compartment.

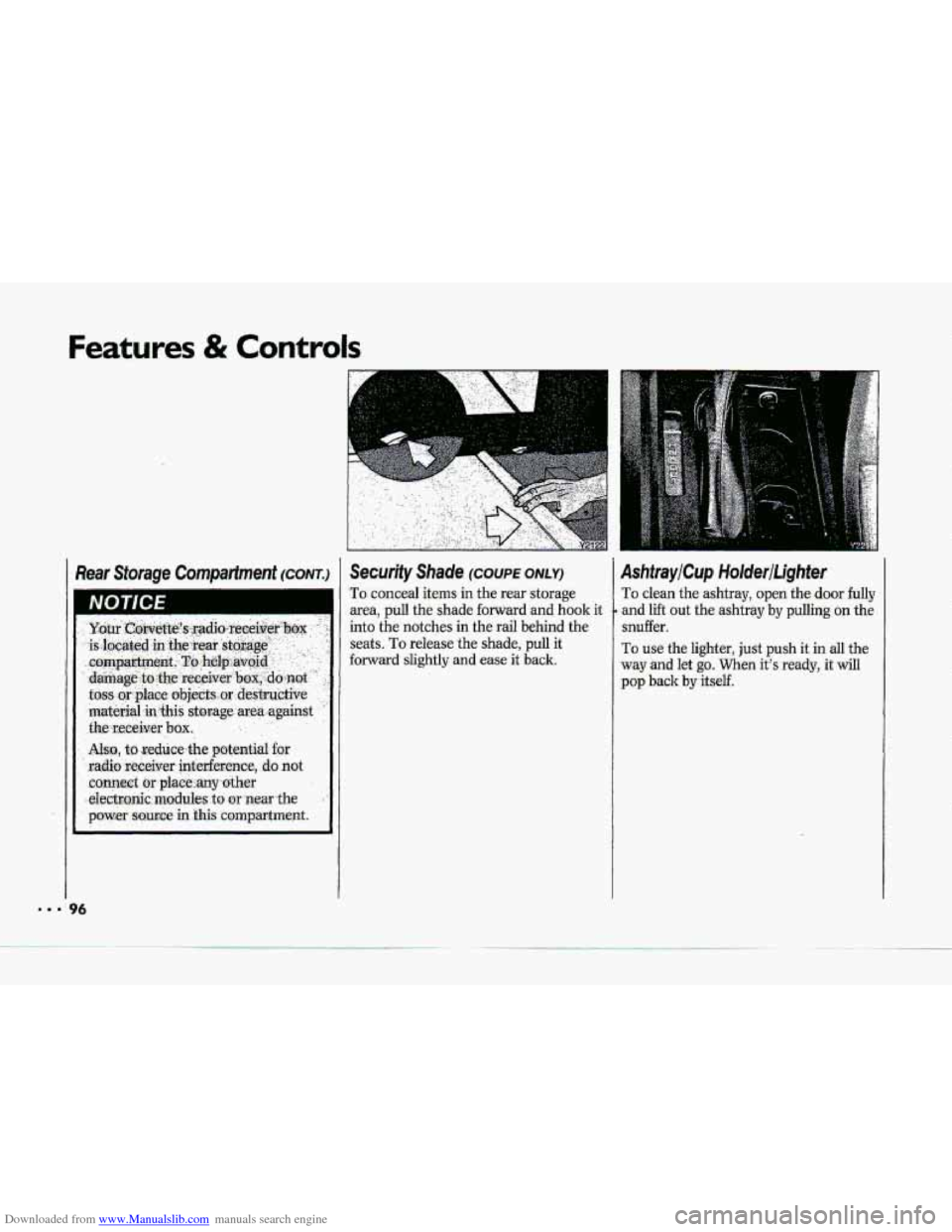

Security Shade (cow ONLY)
To conceal items in the rear storage
area,
pull the shade forward and hook it
into the notches in the rail behind the
seats.
To release the shade, pull it
forward
slightly and ease it back.
AshtrayiCup HolderiLighter
To clean the ashtray, open the door fully
and
lift out the ashtray by pulling on the
snuffer.
To use the lighter, just push it in all the
way and let
go. When it's ready, it will
pop back by itself.

Downloaded from www.Manualslib.com manuals search engine P i i
P
i r
p“

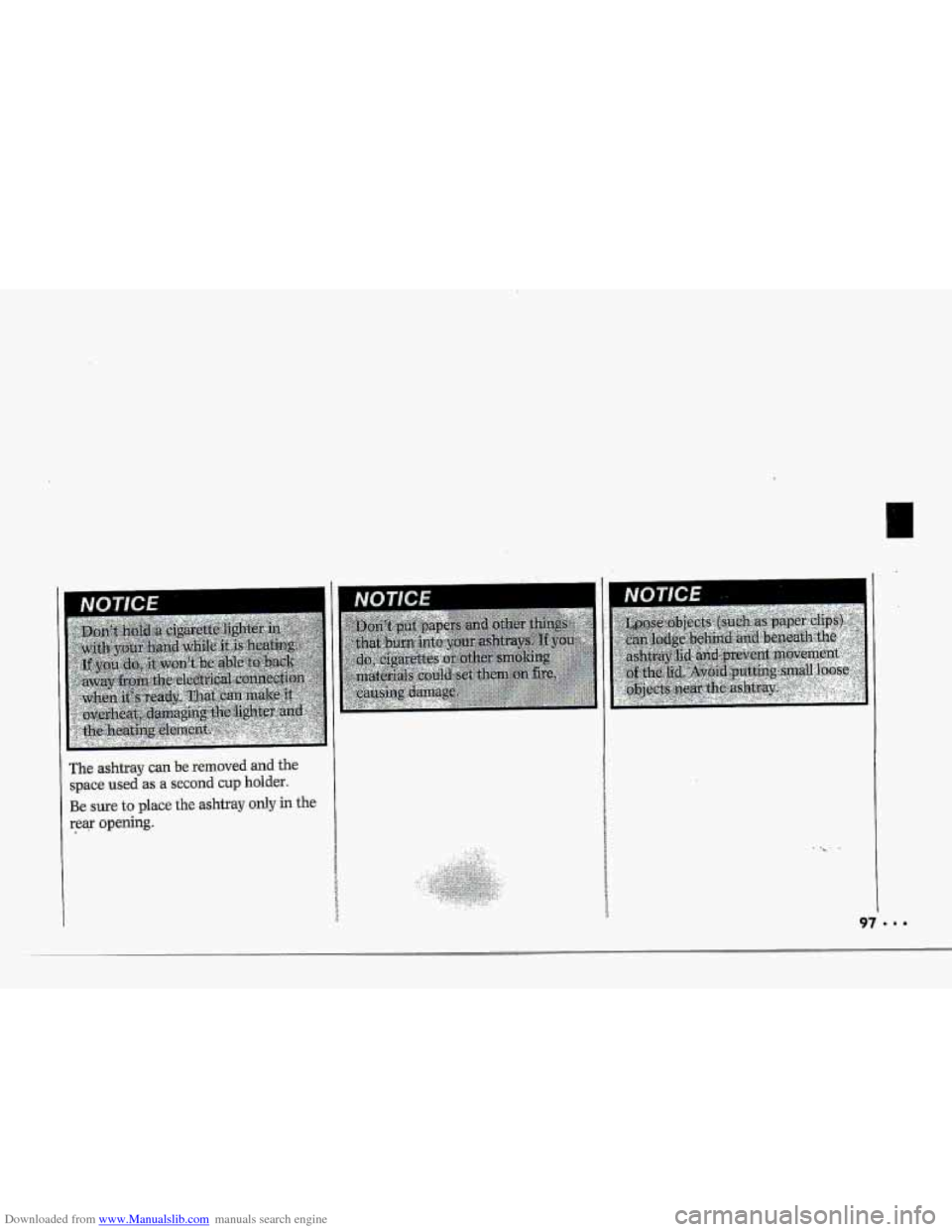

The ashtray can be removed and the
space used
as a second cup holder.
Be sure
to place the ashtray only in the
reg opening.
.. . ._ . . -. ,

Downloaded from www.Manualslib.com manuals search engine Features & Controls

Downloaded from www.Manualslib.com manuals search engine i
P
r
F"
i I

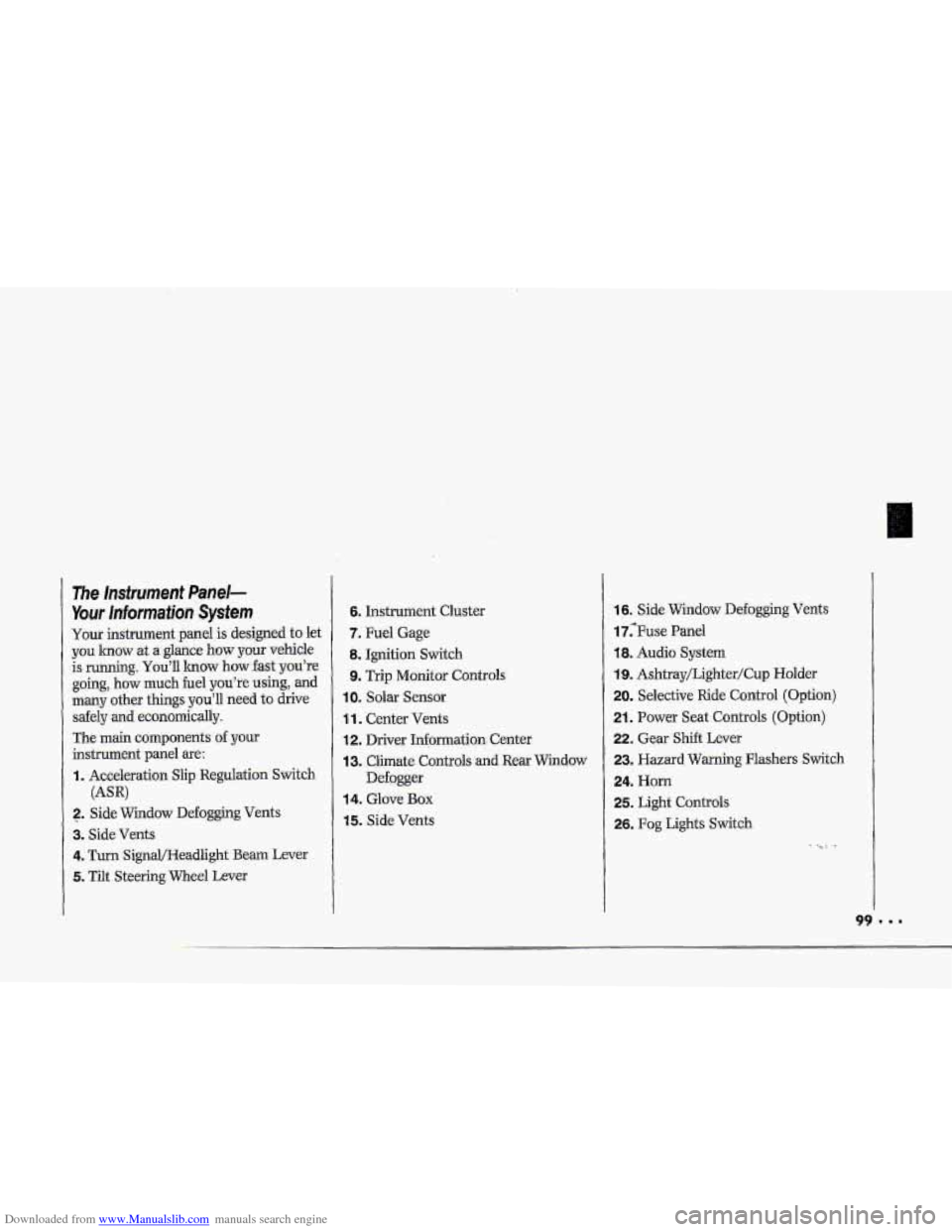

The Insfrument Panel-
Your lnformaiion System
Your instrument panel is designed to let
you lmow at a glance how your vehicle
is running.
You'll lrnow how fast you're
going, how much fuel
you're using, and
many other things you'll need to drive
safely
and economically.

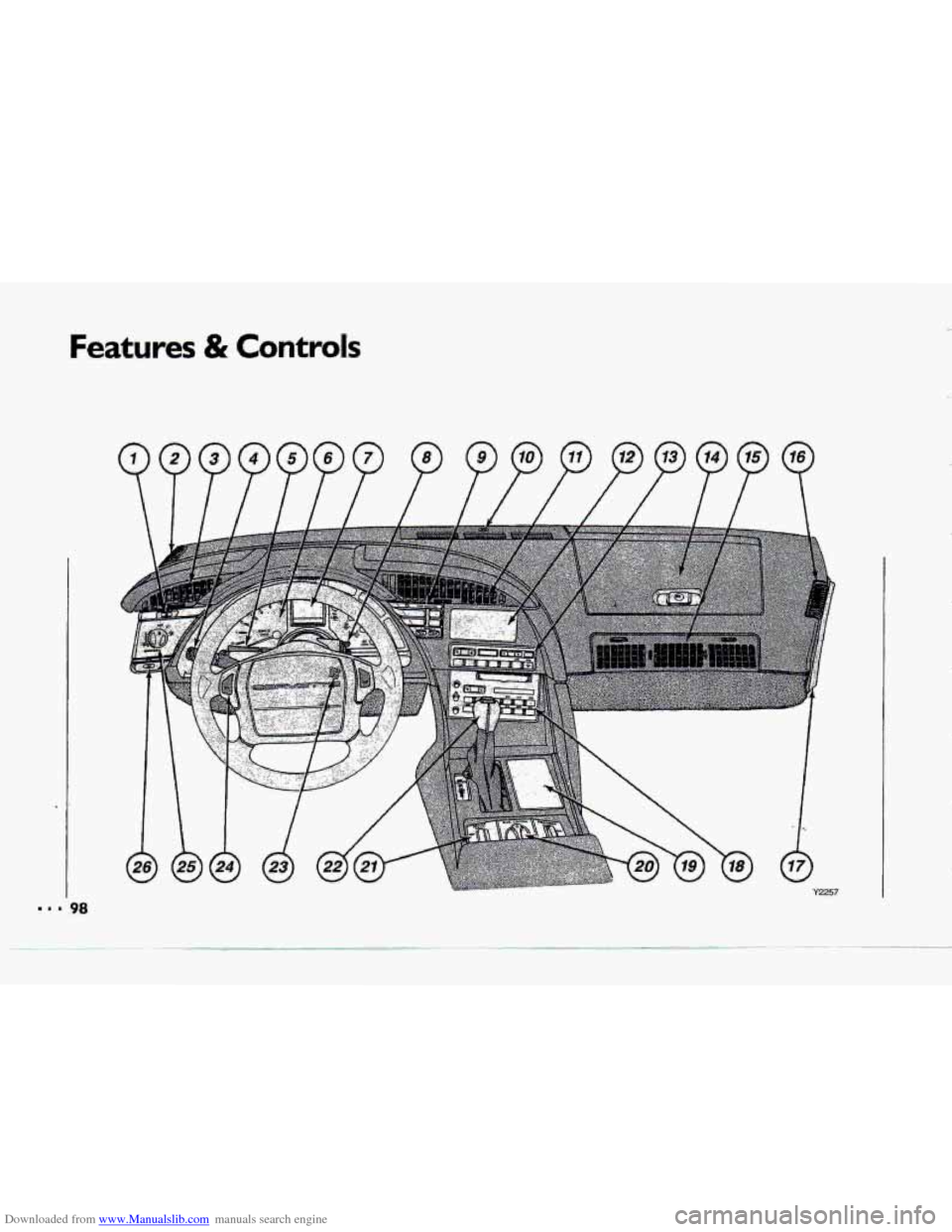

The main components
of your
instrument panel are:
I. Acceleration Slip Regulation Switch
2. ,Side Widow Defogging Vents
3. Side Vents
4. Turn SignQHeadlight Beam Lever
5. Tilt Steering Wheel Lever
(AW
6. Instrument Cluster
7. Fuel Gage
8. Ignition Switch
9. Trip Monitor Controls
IOm Solar Sensor
1 1. Center Vents
12. Driver Information. Center
13. Climate Controls and Rear Window
Defogger
14. Glove Box
15. Side Vents
16. Side Window Defogging Vents
17;Fuse Panel
18. Audio System
19. Ashtray/Lighter/Cup Holder
20. Selective Ride Control (Option)
21. Power Seat Controls (Option)
22. Gear Shift Lever
23. Hazard Warning Flashers Switch
24. Horn
25. Light Controls
26. Fog Lights Switch
-. .
