Downloaded from www.Manualslib.com manuals search engine Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory
to give you the longest tire life
and best overall performance.
In most cases, you will not need to have your wheels
aligned again. However,
if you notice unusual tire wear
or your vehicle pulling one way or the other, the
alignment may need to be reset.
If you notice your
vehicle vibrating when driving
on a smooth road, your
wheels may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts, and wheel nuts should be replaced.
If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
Chevrolet dealer
if any of these conditions exist.
Your dealer will know the lund of wheel you need.
Each new wheel should have the same load carrying capacity, diameter, width, offset, and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts,
or wheel nuts, replace them only with new
GM original equipment parts.
This way, you will be sure to have the
right wheel, wheel bolts, and wheel nuts for your
Corvette model.
I NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling,
speedometer/odometer calibration, headlamp aim, bumper height, vehicle ground clearance,
and tire clearance to the body and chassis.
6-54

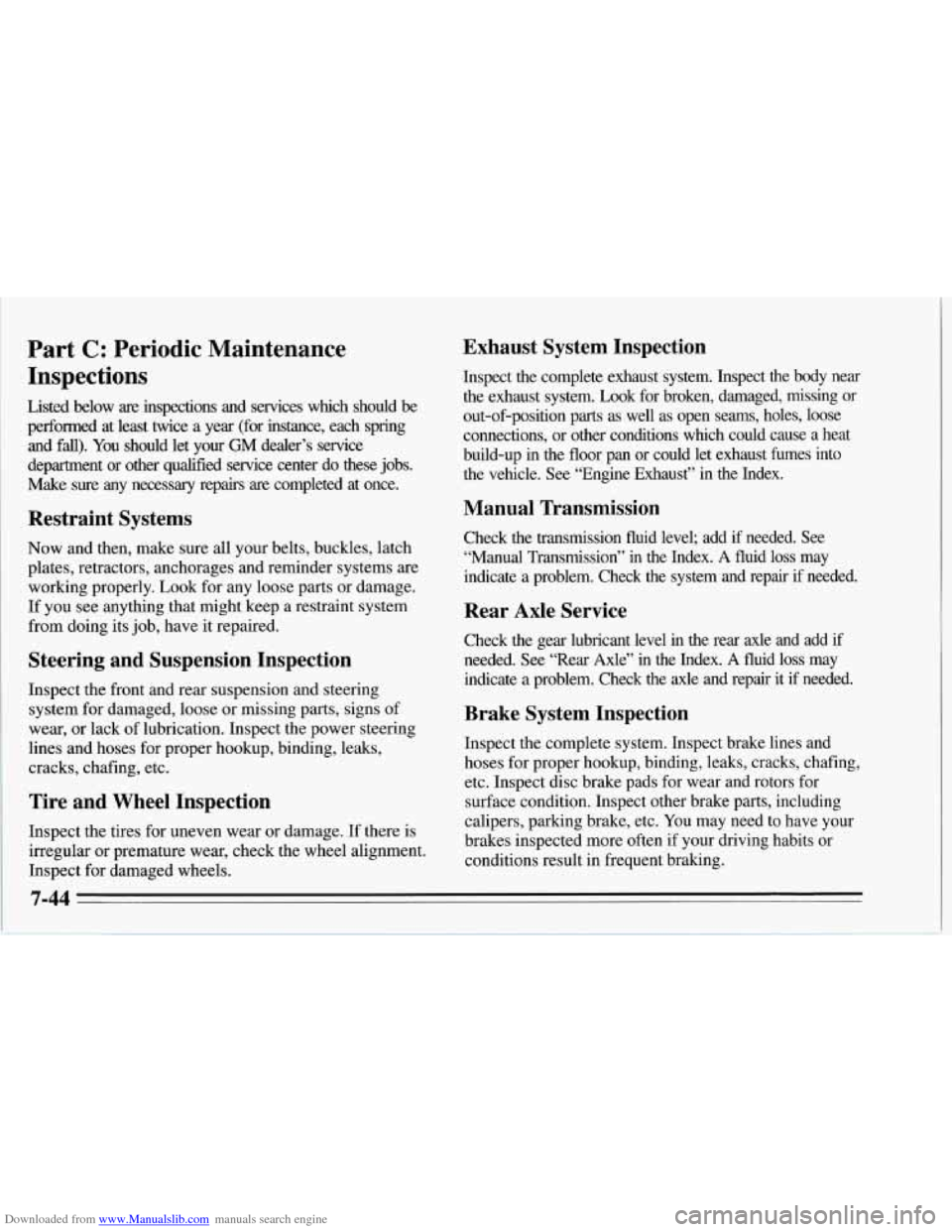

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should be
performed at least twice a year (for instance, each spring
and fall). You should let your GM dealer’s service
department or other qualified service center do these jobs.
Make sure any necessary repairs
are completed at once.
Restraint Systems
Now and then, make sure all your belts, buckles, latch
plates, retractors, anchorages and reminder systems are
working properly. Look for any loose parts or damage.
If you see anything that might keep a restraint system
from doing its job, have it repaired.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear,
or lack of lubrication. Inspect the power steering
lines and hoses for proper hookup, binding, leaks,
cracks, chafing, etc.
Tire and Wheel Inspection
Inspect the tires for uneven wear or damage. If there is
irregular or premature wear, check the wheel alignment.
Inspect for damaged wheels.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body near
the exhaust system. Look for broken, damaged, missing or
out-of-position parts as well as open seams, holes, loose
connections, or other conditions which could cause a heat
build-up in the floor pan or could let exhaust fumes into
the vehicle. See “Engine Exhaust” in the Index.
Manual Transmission
Check the transmission fluid level; add if needed. See
“Manual Transmission” in the Index.
A fluid loss may
indicate a problem. Check the system and repair
if needed.
Rear Axle Service
Check the gear lubricant level in the rear axle and add if
needed. See “Rear Axle” in the Index. A fluid loss may
indicate a problem. Check the axle and repair it if needed.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hookup, binding, leaks, cracks, chafing,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Inspect other brake parts, including
calipers, parking brake, etc.
You may need to have your
brakes inspected more often if your driving habits or
conditions result in frequent braking.
7-44

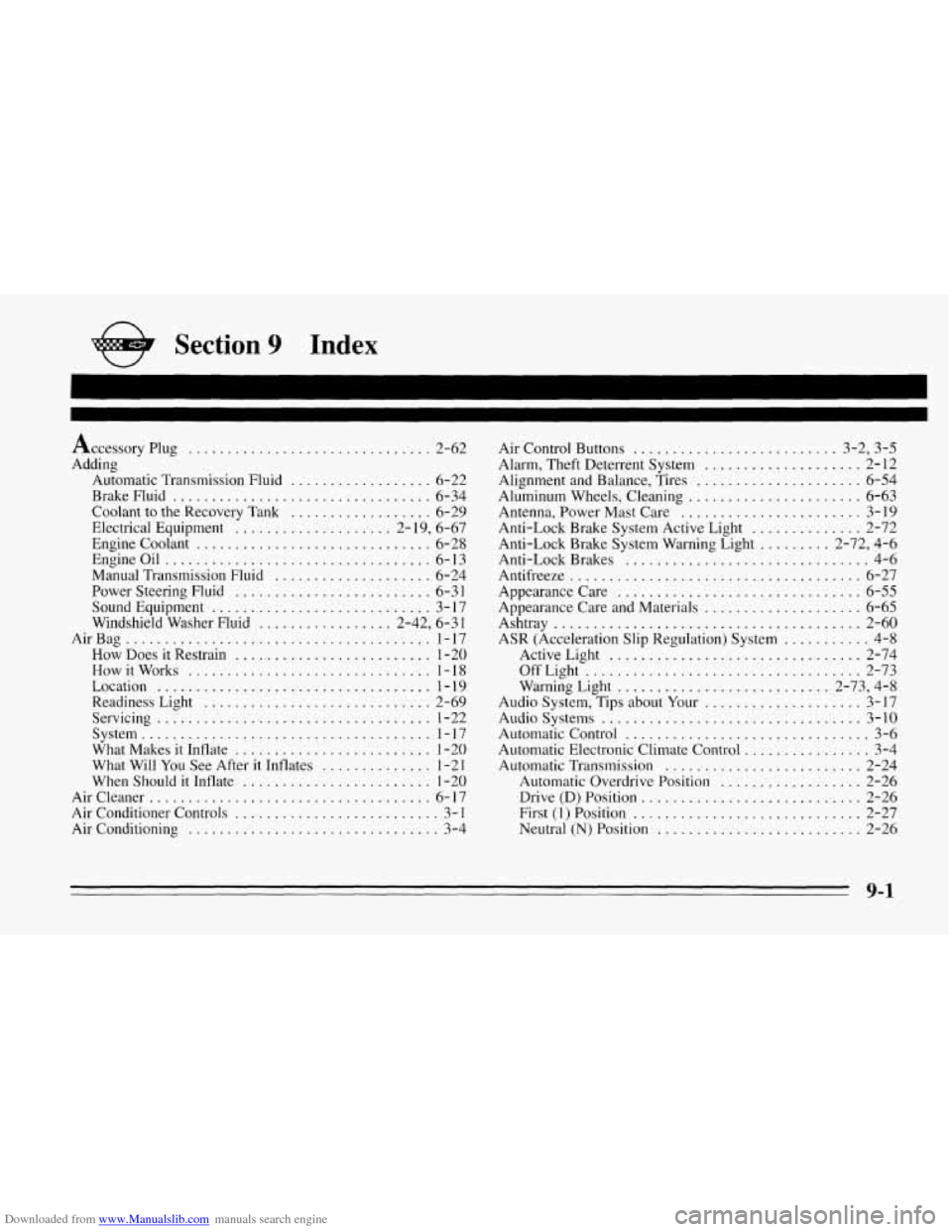

Downloaded from www.Manualslib.com manuals search engine Index
Accessory Plug ............. ............. 2-62
Adding Automatic Transmission Fluid
................ 6-22
Brake Fluid
...................... ...... 6-34
Coolant to the Recovery Tank
....... ........ 6-29
Electrical Equipment .................... 2- 19. 6-67
Engine Coolant
.............................. 6-28
Engineoil
.................................. 6-13
Manual Transmission Fluid
.................... 6-24
Power Steering Fluid
......................... 6-3 1
SoundEquipment ............................ 3-17
Windshield Washer Fluid
................. 2-42. 6-3 1
AirBag ....................................... 1-17
How Does it Restrain ......................... 1-20
How it Works ............................... 1 - I8
Location
................................... 1-19
Readiness Light
............................. 2-69
Servicing ................................... 1-22
System
..................................... 1-17
What Makes
it Inflate ......................... 1-20
What Will
You See After it Inflates .............. 1-2 1
When Should it Inflate ........................ 1-20
Air Cleaner
.................................... 6- 17
Air Conditioner Controls .......................... 3- 1
Air Conditioning ................................ 3-4 Air Control
Buttons
.......................... 3.2. 3.5
Alignment and Balance. Tires ..................... 6-54
Antenna. Power Mast Care
....................... 3-19
Anti-Lock Brake System Active Light
.............. 2-72
Anti-Lock Brake System Warning Light
......... 2.72. 4.6
Anti-Lock Brakes
............................... 4-6
Antifreeze ..................................... 6-27
Appearance Care
............................... 6-55
Appearance Care and Materials
.................... 6-65
Ashtray
....................................... 2-60
ASR (Acceleration Slip Regulation) System
........... 4-8
Active Light
................................ 2-74
OffLight
................................... 2-73
Warning Light
........................... 2.73. 4.8
Audio System. Tips about Your .................... 3-17
Audio Systems
................................. 3- IO
Automatic Control ............................... 3-6
Automatic Electronic Climate Control ................ 3-4
Automatic Transmission
......................... 2-24
Automatic Overdrive Position
.................. 2-26
Drive
(D) Position ............................ 2-26
First
(1) Position ............................. 2-27
Neutral
(N) Position .......................... 2-26
Alarm. Theft Deterrent
System
.................... 2-12
Aluminum Wheels. Cleaning
...................... 6-63
9-1

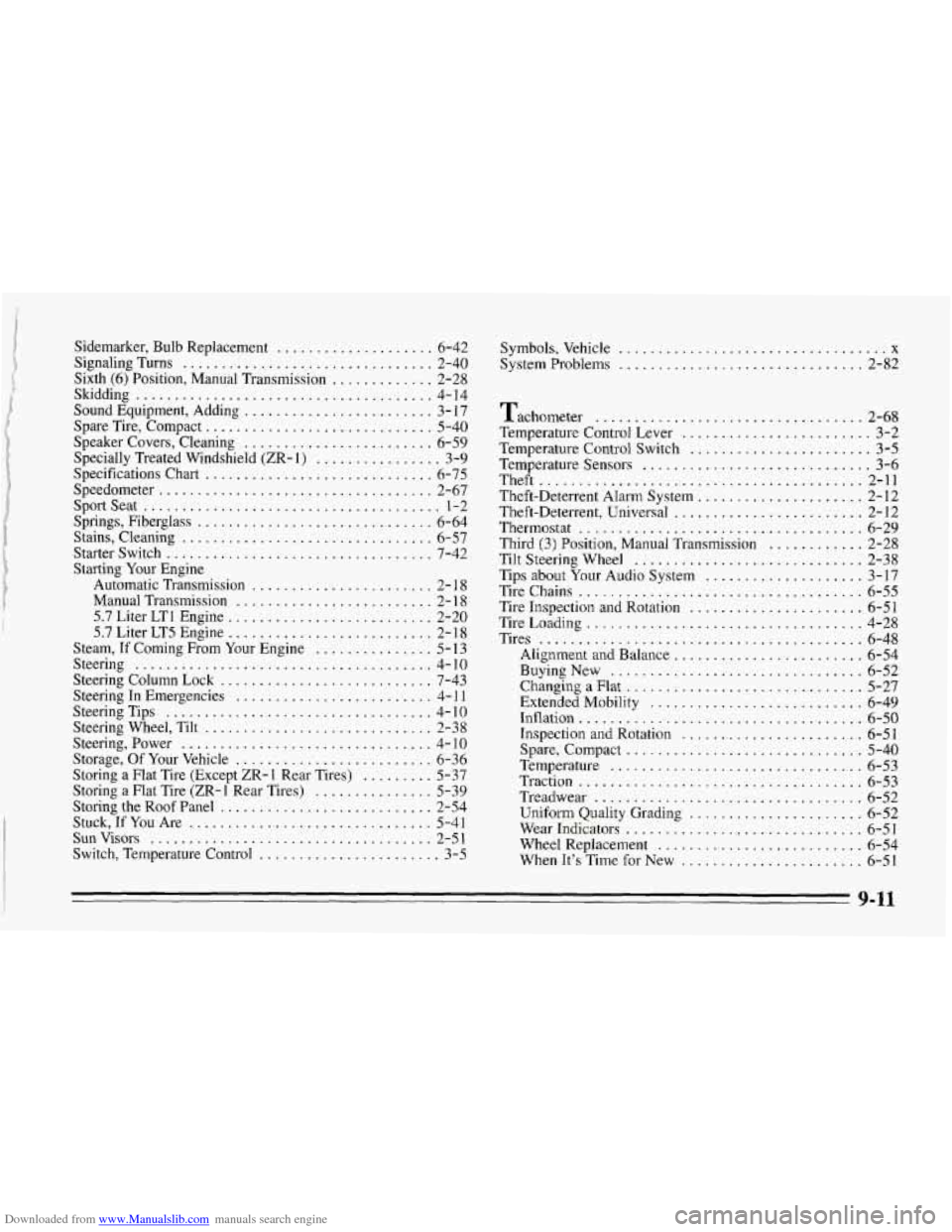

Downloaded from www.Manualslib.com manuals search engine Sidemarker. Bulb Replacement .................... 6-42
Signaling Turns ................................ 2-40
Sixth (6) Position. Manual Transmission ............. 2-28
Sound Equipment, Adding ........................ 3-17
Spare Tire, Compact ............................. 5-40
Speaker Covers, Cleaning ........................ 6-59
Specially Treated Windshield (ZR- 1) ................ 3-9
Specifications Chart ............................. 6-75
Speedometer ................................... 2-67
Sportseat ...................................... 1-2
Springs, Fiberglass .............................. 6-64
Stains, Cleaning ................................ 6-57
Starter Switch .................................. 7-42
Starting Your Engine
Automatic Transmission
....................... 2- 18
Manual Transmission ......................... 2- 18
5.7 Liter LT1 Engine .......................... 2-20
5.7 Liter LT5 Engine .......................... 2- 18
Steam, If Coming From Your Engine
............... 5- 13
Steering Column Lock ........................... 7-43
Steering In Emergencies ......................... 4- 11
Steering Tips .................................. 4- 10
Steering Wheel, Tilt ............................. 2-38
Steering, Power ................................ 4-10
Storage, Of Your Vehicle ......................... 6-36
Storing a Flat Tire (Except ZR- 1 Rear Tires) ......... 5-37
Storing a Flat Tire (ZR-1 Rear Tires) ............... 5-39
Storing the Roof Panel ........................... 2-54
Stuck, If You Are ............................... 5-41
Sunvisors .................................... 2-51
Switch, Temperature Control ....................... 3-5
Skidding ...................................... 4-14
Steering ...................................... 4-10
Symbols. Vehicle .................................. x
System Problems
............................... 2-82
Tachometer ................................ 2-68
Temperature Control Lever ........................ 3-2
Temperature Control Switch ....................... 3-5
Temperature Sensors ............................. 3-6
Theft ......................................... 2-11
Theft-Deterrent Alarm System ..................... 2-12
Theft.Deterrent. Universal ........................ 2-12
Thermostat .................................... 6-29
Third (3) Position. Manual Transmission ............ 2-28
Tilt Steering Wheel ............................. 2-38
Tips about Your Audio System .................... 3-17
Tire Chains .................................... 6-55
Tire Inspection and Rotation ...................... 6-51
Alignment and Balance ........................ 6-54
ChangingaFlat .............................. 5-27
Extended Mobility ........................... 6-49
Inflation .................................... 6-50
Inspection and Rotation ....................... 6-51
Spare, Compact .............................. 5-40
Temperature ................................ 6-53
Traction .................................... 6-53
Treadwear .................................. 6-52
Uniform Quality Grading ...................... 6-52
Wear Indicators .............................. 6-51
Wheel Replacement .......................... 6-54
When It’s Time for New ....................... 6-51
TireLoading ................................... 4-28
Tires ......................................... 6-48
BuyingNew ................................ 6-52
9-11
