CHEVROLET CORVETTE 1999 5.G Workshop Manual
Manufacturer: CHEVROLET, Model Year: 1999, Model line: CORVETTE, Model: CHEVROLET CORVETTE 1999 5.GPages: 376, PDF Size: 2.64 MB
Page 51 of 376

yellowblue
1-39
Safety Belt Extender
If the vehicle's safety belt will fasten around you, you
should use it.
But if a safety belt isn't long enough to fasten, your
dealer will order you an extender. It's free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don't let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Page 52 of 376

yellowblue
1-40
Replacing Restraint System Parts
After a Crash
If you've had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new belts.
If you ever see a label on the driver's or passenger's
safety belt that says to replace the belt, be sure to do so.
Then the new belt will be there to help protect you in a
collision. You would see this label on the belt near the
latch plate.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn't being used at
the time of the collision.
If an air bag inflates, you'll need to replace air bag
system parts. See the part on the air bag system earlier in
this section.
Page 53 of 376

2-
yellowblue
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-4 Door Locks
2
-6 Memory (Option)
2
-7 Remote Function Actuation System
2
-14 Remote Hatch/Trunk Lid Release
2
-17 Universal Theft-Deterrent (Option)
2
-19 PASS-Key
2-20 New Vehicle ªBreak-Inº
2
-21 Ignition Positions
2
-23 Starting Your Engine
2
-25 Engine Coolant Heater (If Equipped)
2
-27 Automatic Transmission Operation
2
-30 Manual Transmission Operation
2
-34 Parking Brake
2
-35 Shifting Into PARK (P)
(Automatic Transmission Only)
2
-37 Shifting Out of PARK (P)
(Automatic Transmission)
2
-37 Parking Your Vehicle (Manual Transmission)2
-38 Parking Over Things That Burn
2
-38 Engine Exhaust
2
-39 Running Your Engine While You're Parked
(Automatic Transmission)
2
-39 Limited-Slip Rear Axle
2
-40 Selective Real Time Damping (SRTD) (Option)
2
-41 Windows
2
-43 Turn Signal/Multifunction Lever
2
-51 Exterior Lamps
2
-53 Interior Lamps
2
-54 Mirrors
2
-56 Storage Compartments
2
-61 Roof Panel (Option)
2
-68 Convertible Top (Option)
2
-74 The Instrument Panel -- Your
Information System
2
-77 Warning Lights, Gages and Messages
2
-92 Driver Information Center (DIC)
Page 54 of 376

yellowblue
2-2

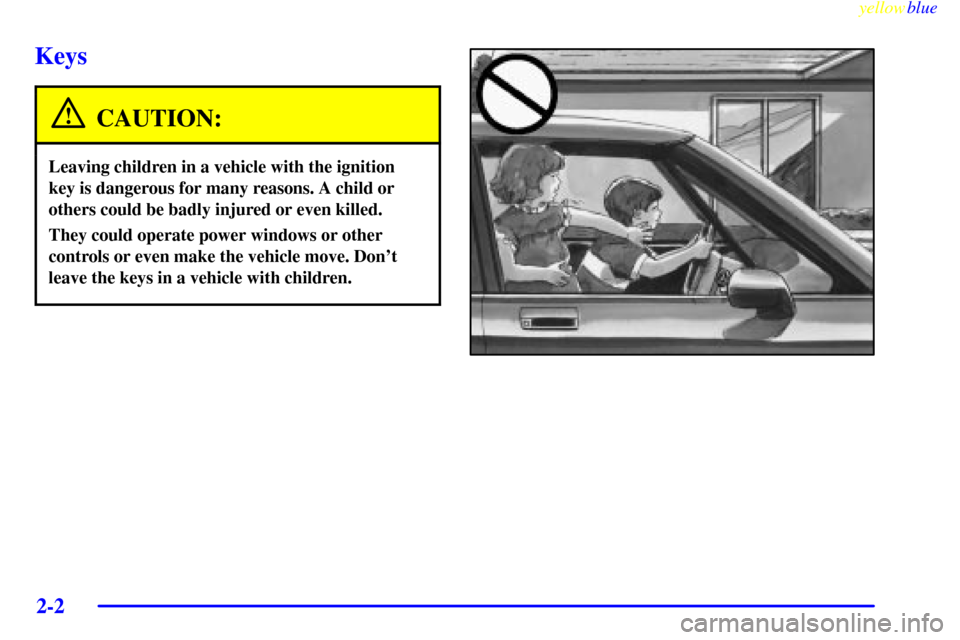

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate power windows or other
controls or even make the vehicle move. Don't
leave the keys in a vehicle with children.
Page 55 of 376

yellowblue
2-3
One key is used for the
ignition, the doors and all
other locks.
When a new vehicle is delivered, the dealer gives the
first owner a key and a bar coded tag. Both the key and
the tag are attached to a key ring.
The heavy paper tag has a code on it that tells your
dealer or a qualified locksmith how to make an extra
key. Keep the bar
-coded tag in a safe place. If you lose
your key, you'll be able to have a new one made easily
using this tag. If your key doesn't have a tag and you
need a new ignition key, go to your Chevrolet dealer for
the correct key code.If you ever do get locked out of your vehicle,
call the Chevrolet Roadside Assistance Center at
1
-800-CHEV-USA (1-800-243-8872).
(In Canada, call 1
-800-268-6800.)
NOTICE:
Your vehicle has a number of features that can
help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever lock
your key inside. You may even have to damage
your vehicle to get in. So be sure you have an
extra key.
Page 56 of 376

yellowblue
2-4
Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key or the key
fob transmitter.If your theft
-deterrent system (if equipped) is armed,
unlock the doors only with the key or the key fob
transmitter to avoid setting off the alarm. See ªUniversal
Theft
-Deterrentº in the Index.

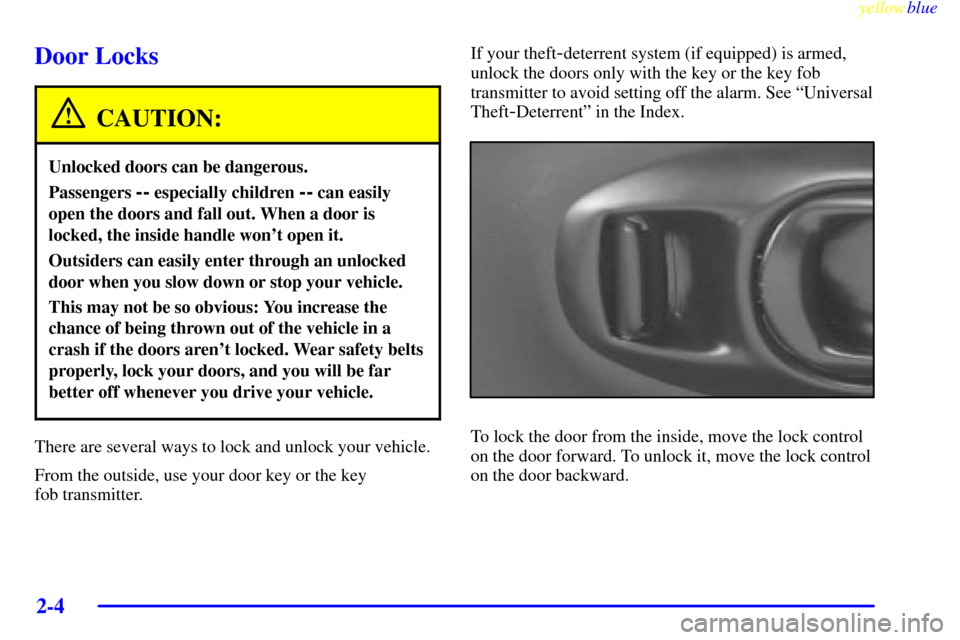

To lock the door from the inside, move the lock control
on the door forward. To unlock it, move the lock control
on the door backward.
Page 57 of 376

yellowblue

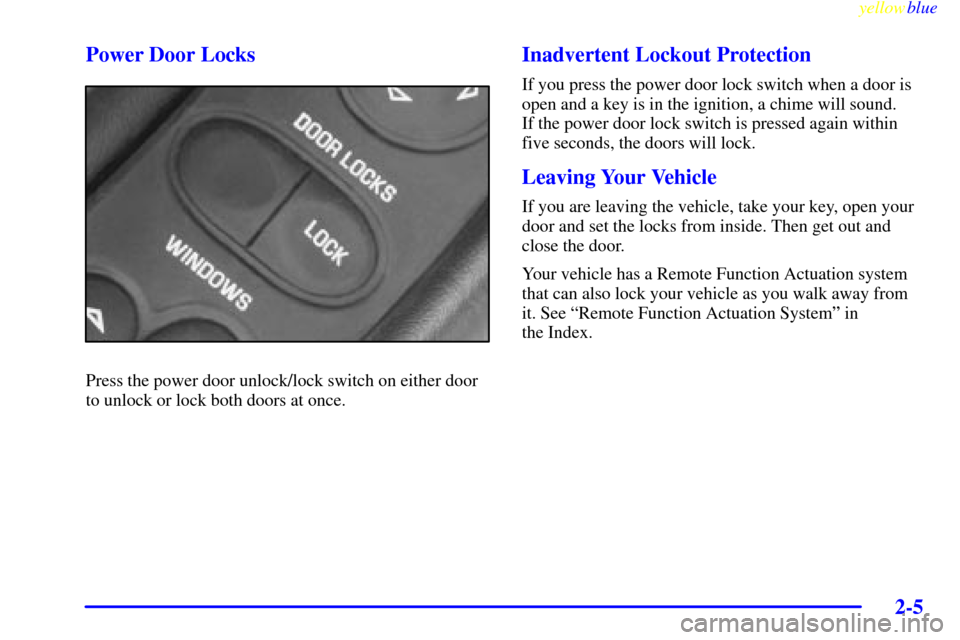

2-5 Power Door Locks
Press the power door unlock/lock switch on either door
to unlock or lock both doors at once.
Inadvertent Lockout Protection
If you press the power door lock switch when a door is
open and a key is in the ignition, a chime will sound.
If the power door lock switch is pressed again within
five seconds, the doors will lock.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door and set the locks from inside. Then get out and
close the door.
Your vehicle has a Remote Function Actuation system
that can also lock your vehicle as you walk away from
it. See ªRemote Function Actuation Systemº in
the Index.
Page 58 of 376

yellowblue
2-6
Memory (Option)
MEMORY can store and recall the settings for the
driver's seat position, the outside rearview mirror
positions, comfort control temperature, fan speed and
mode settings, telescopic steering wheel (if equipped),
radio presets, tone, volume, playback mode
(AM/FM, tape or CD), last displayed station,
compact disc position and tape direction.

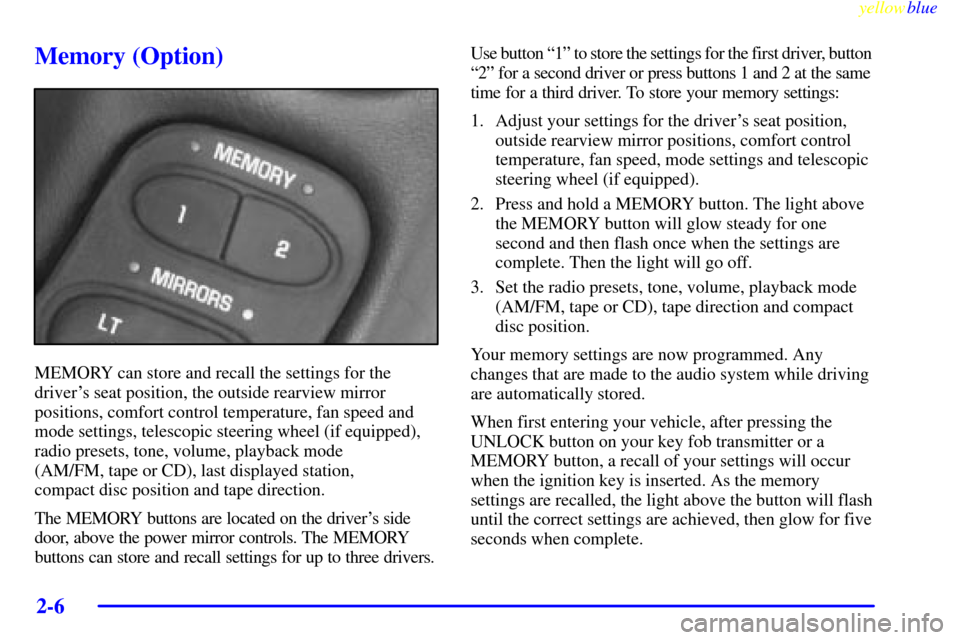

The MEMORY buttons are located on the driver's side
door, above the power mirror controls. The MEMORY
buttons can store and recall settings for up to three drivers.Use button ª1º to store the settings for the first driver, button
ª2º for a second driver or press buttons 1 and 2 at the same
time for a third driver. To store your memory settings:
1. Adjust your settings for the driver's seat position,
outside rearview mirror positions, comfort control
temperature, fan speed, mode settings and telescopic
steering wheel (if equipped).
2. Press and hold a MEMORY button. The light above
the MEMORY button will glow steady for one
second and then flash once when the settings are
complete. Then the light will go off.
3. Set the radio presets, tone, volume, playback mode
(AM/FM, tape or CD), tape direction and compact
disc position.
Your memory settings are now programmed. Any
changes that are made to the audio system while driving
are automatically stored.
When first entering your vehicle, after pressing the
UNLOCK button on your key fob transmitter or a
MEMORY button, a recall of your settings will occur
when the ignition key is inserted. As the memory
settings are recalled, the light above the button will flash
until the correct settings are achieved, then glow for five
seconds when complete.
Page 59 of 376

yellowblue
2-7
A memory recall can be stopped by pressing any memory
seat, mirror or steering column position button.
Drivers 1, 2 and 3 correspond to the order in which your
key fob transmitters were programmed. (See ªFob
Trainingº in the Index.)
Memory recall will not work if the vehicle is moving,
the key is removed from the ignition, the driver's door is
open, a power seat, mirror or memory switch is being
used. Memory recall will be temporarily interrupted
during engine crank.
Remote Function Actuation System

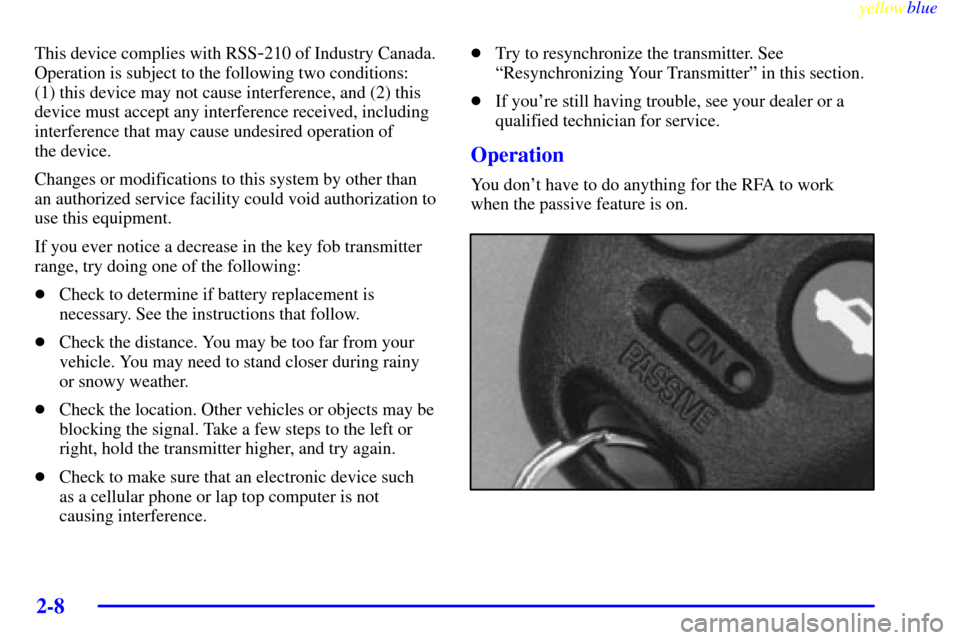

Your vehicle has a passive/active Remote Function
Actuation (RFA) system that allows you to lock and
unlock your doors, unlock your hatch/trunk lid, turn
the panic alarm on and off and disarm or arm your
theft
-deterrent system. When using one of the key fob
transmitters supplied with your vehicle, the passive
range distance is as much as 30 feet (9 m) away from the
vehicle on the driver's side and 20 feet (6 m) away on
the passenger's side. The active range distance is as
much as 100 feet (30 m) away.

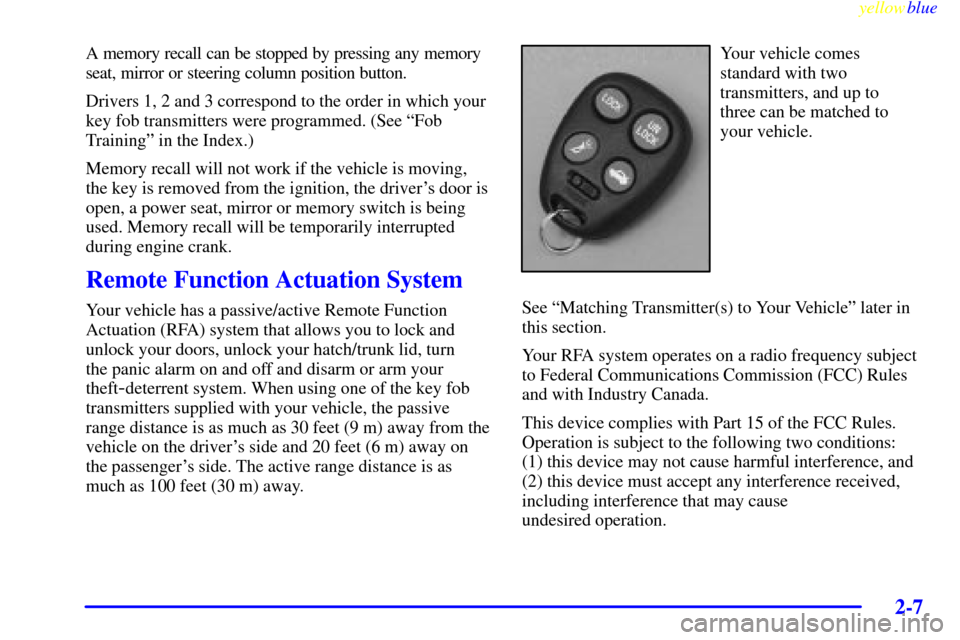

Your vehicle comes
standard with two
transmitters, and up to
three can be matched to
your vehicle.
See ªMatching Transmitter(s) to Your Vehicleº later in
this section.
Your RFA system operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules
and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause
undesired operation.
Page 60 of 376

yellowblue
2-8
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
If you ever notice a decrease in the key fob transmitter
range, try doing one of the following:
Check to determine if battery replacement is
necessary. See the instructions that follow.
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.
Check to make sure that an electronic device such
as a cellular phone or lap top computer is not
causing interference.Try to resynchronize the transmitter. See
ªResynchronizing Your Transmitterº in this section.
If you're still having trouble, see your dealer or a
qualified technician for service.
Operation
You don't have to do anything for the RFA to work
when the passive feature is on.
