2-103
REDUCE ENGINE RPM: You will hear four chimes
when this message is displayed. To acknowledge the
warning, press the RESET button. After you press the
RESET button, a message will be displayed and you
will hear a chime every minute until this condition
changes. If you do not press RESET, the message will
remain on the digital display until the condition changes.
If the engine oil temperature exceeds 320
F (160
C),
this message is displayed. You should check the engine
coolant temperature and engine oil level. If your engine
is too hot, see ªEngine Overheatingº in the Index.
Your vehicle may need service, so see your dealer.
You can monitor the oil temperature with the GAGES
button on the DIC.
HIGH TRANS TEMP (Automatic Transmission
Only): You will hear four chimes when this message is
displayed. To acknowledge this warning, press the
RESET button. After you press the RESET button,
the message will be displayed every 10 minutes until
the condition changes. If you do not press RESET,
the message remains on the display until the
condition changes.If the transmission fluid temperature rises above
270
F (132
C) or rises rapidly, this message is
displayed. The transmission may shift gears or apply the
torque converter clutch to reduce the fluid temperature.
Driving aggressively or driving on long hills can cause
the transmission fluid temperature to be higher than
normal. If this message appears, you may continue to
drive at a slower speed. You should also monitor the
transmission fluid temperature and allow it to cool to at
least 230
F (110
C). The transmission fluid temperature
can be monitored with the GAGES button on the DIC.
See ªAutomatic Transmission Fluidº in the Index.
You should also check the engine coolant temperature.
If it is also hot, see ªEngine Overheatingº in the Index.
If the HIGH TRANS TEMP message is displayed
during normal vehicle operation on flat roads, your
vehicle may need service. See your dealer for
an inspection.
SERVICE ACTIVE HANDLG: If the SERVICE
ACTIVE HNDLG message is displayed, there is a
problem with your Active Handling System and your
vehicle needs service. The instrument cluster light will
also be on and a chime will sound. When this message is
displayed, the system is not working. Adjust your
driving accordingly.

2-104
ACTIVE HANDLING: Your vehicle is equipped with
an optional computer controlled system to assist the
driver in controlling the vehicle in difficult driving
conditions. You may feel or hear the system working
and see the ACTIVE HANDLING message displayed in
the DIC. This is normal when the system is operating.
Also see ªAnti
-Lock Brakesº in the Index.
LOW TIRE PRESSURE: You will hear two chimes
when this message is displayed. To acknowledge the
warning, press RESET. After you press RESET,
a message will reappear every 10 minutes until this
condition changes. This message indicates that the
pressure in one of your tires is less than 25 psi
(172 kPa). Next to the LOW TIRE PRESSURE
message, you can see either LF (left front), LR
(left rear), RF (right front) or RR (right rear) to indicate
to you which tire is low on pressure. You can receive
more than one tire pressure message at a time. To read
other messages that may have been sent at the same
time, press RESET. If a tire pressure message appears
on the DIC, stop as soon as you can. Have the tire
pressures checked and set to those shown on your
Tire Loading Information Label. See ªExtended
Mobility Tiresº in the Index.

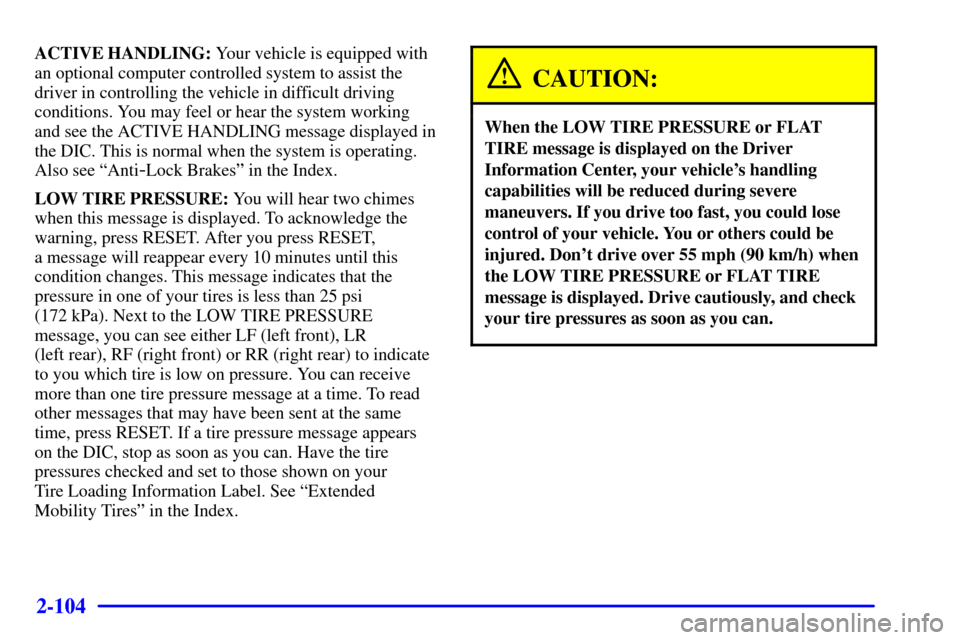

CAUTION:
When the LOW TIRE PRESSURE or FLAT
TIRE message is displayed on the Driver
Information Center, your vehicle's handling
capabilities will be reduced during severe
maneuvers. If you drive too fast, you could lose
control of your vehicle. You or others could be
injured. Don't drive over 55 mph (90 km/h) when
the LOW TIRE PRESSURE or FLAT TIRE
message is displayed. Drive cautiously, and check
your tire pressures as soon as you can.

2-105
FLAT TIRE: You will hear two chimes when this
message is displayed followed by the message MAX
SPEED 55 MPH (90 km/h). If this message appears,
do not drive your vehicle above these limits. The next
message to appear is REDUCED HANDLING.
Adjust your driving accordingly. To acknowledge these
warnings, press RESET. After you press RESET,
a message will reappear every 10 minutes until this
condition changes. This message indicates that the
pressure in one of your tires is lower than 5 psi (34 kPa).
Next to the FLAT TIRE message, you can see either
LF (left front), LR (left rear), RF (right front) or
RR (right rear) to indicate to you which tire is flat.
You can receive more than one tire pressure message at
a time. To read other messages that may have been sent
at the same time, press RESET. If a tire pressure
message appears on the DIC, stop as soon as you can.
Have the tire pressures checked and set to those shown
on your Tire Loading Information Label. See ªExtended
Mobility Tiresº and ªTire Inflationº in the Index.

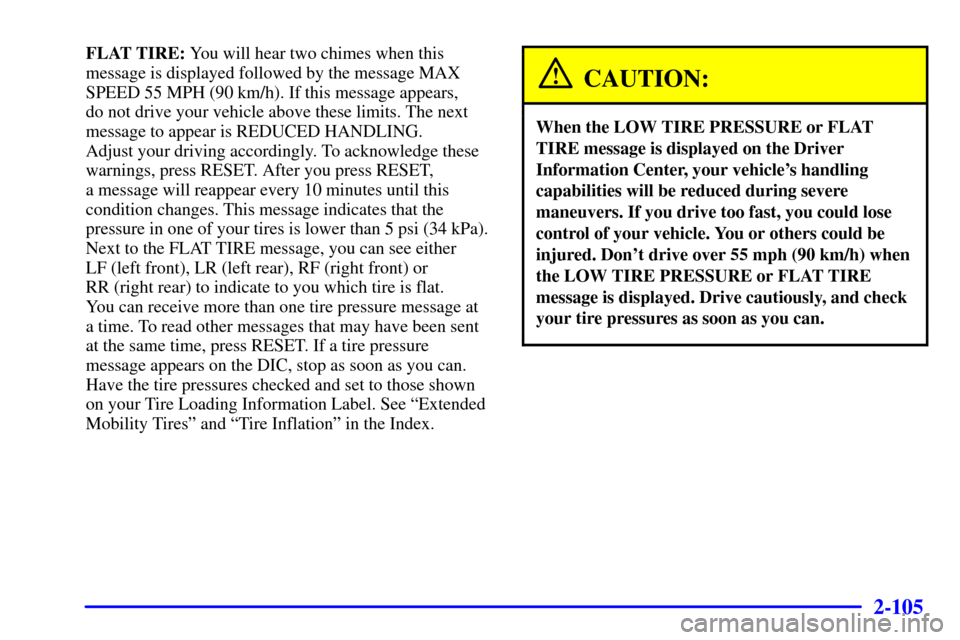

CAUTION:
When the LOW TIRE PRESSURE or FLAT
TIRE message is displayed on the Driver
Information Center, your vehicle's handling
capabilities will be reduced during severe
maneuvers. If you drive too fast, you could lose
control of your vehicle. You or others could be
injured. Don't drive over 55 mph (90 km/h) when
the LOW TIRE PRESSURE or FLAT TIRE
message is displayed. Drive cautiously, and check
your tire pressures as soon as you can.

2-106
HIGH TIRE PRESSURE - (LF, LR, RF, RR): Yo u
will hear two chimes when this message is displayed. To
acknowledge the warning, press RESET. After you press
RESET, a message will reappear every 10 minutes until
this condition changes. This message indicates that the
pressure in one of your tires is higher than 42 psi
(290 kPa). Next to the HIGH TIRE PRESSURE
message, you can see either LF (left front), LR (left
rear), RF (right front) or RR (right rear) to indicate to
you which tire is higher than 42 psi (290 kPa). You can
receive more than one tire pressure message at a time.
To read other messages that may have been sent at the
same time, press RESET. If a tire pressure message
appears on the DIC, stop as soon as you can. Have the
tire pressures checked and set to those shown on your
Tire Loading Information Label. See ªExtended
Mobility Tiresº and ªTire Inflationº in the Index.SERVICE TIRE MON SYS: If this message
comes on, a part on the Tire Pressure Monitor (TPM)
is not working properly. If you drive your vehicle while
any of the four sensors are missing or inoperable, the
warning will come on in approximately 10 minutes.
If all four sensors are missing, the warning will come
on in approximately 15 to 20 minutes. (All the sensors
would be missing, for example, if you put different
wheels on your vehicle without transferring the sensors.)
If the warning comes on and stays on, there may be a
problem with the TPM. See your dealer.

2-107 Other Messages
Here are more messages that you can receive on your
Driver Information Center (DIC). To acknowledge a
message and read another message that may have come
on at the same time, press the RESET button.

BRAKE BEFORE SHIFT (Automatic
Transmissions Only)

CHANGE OIL NOW (See ªGM Oil Life Systemº
in the Index.)

CHANGE OIL SOON (See ªGM Oil Life Systemº
in the Index.)

CRUISE DISENGAGED (See ªCruise Controlº in
the Index.)

CRUISE SET __ MPH (__ km/h) (See ªCruise
Controlº in the Index.)

DOOR AJAR
ENGINE PROTECTION REDUCE ENGINE RPM

HATCH AJAR (Coupe)

TONNEAU AJAR

HIGH VOLTAGE (See ªVoltmeterº in the Index.)

LOW BRAKE FLUID (See ªBrake Fluidº in
the Index.)

LOW FUEL (See ªFuel Gageº in the Index.)

LOW VOLTAGE (See ªVoltmeterº in the Index.)

LOW WASHER FLUID (See ªWindshield Washer
Fluidº in the Index.)

RESERVE FUEL (See ªFuel Gageº in the Index.)

TRUNK AJAR (Convertible/Hardtop)

UPSHIFT NOW (See ªManual Transmissionº in
the Index.)

2-108
-NOTES

3-
3-1
Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your vehicle.
Be sure to read about the particular systems supplied with your vehicle.
3
-2 Comfort Controls
3
-2 Manual Comfort Controls
3
-4 Automatic Electronic Dual Climate Control
System (If Equipped)
3
-9 Sensors
3
-10 Air Conditioning
3
-11 Heating
3
-11 Defogging and Defrosting
3
-11 Rear Window Defogger
3
-12 Audio Systems
3
-13 Setting the Clock
3
-13 AM-FM Stereo with Cassette Tape Player and
Automatic Tone Control3
-18 AM-FM Stereo with Compact Disc Player and
Automatic Tone Control (If Equipped)
3
-22 Trunk-Mounted CD Changer (If Equipped)
3
-26 Theft-Deterrent Feature
3
-28 Understanding Radio Reception
3
-28 Tips About Your Audio System
3
-29 Care of Your Cassette Tape Player
3
-30 Care of Your Compact Discs
3
-30 Care of Your Compact Disc Player
3
-30 Fixed Mast Antenna
3
-30 Power Antenna Mast Care (If Equipped)
3
-31 Integrated Windshield and Rear Window
Antennas (If Equipped)

3-2
Comfort Controls
This section tells you how to make your air system work
for you.
With these systems, you can control the heating, cooling
and ventilation in your vehicle. Your vehicle also has a
flow
-through ventilation system described later in
this section.
Manual Comfort Controls
Fan Knob
The left knob controls the force of air you want.
Turn the knob clockwise to increase fan speed or
counterclockwise to decrease fan speed. The fan must be
turned on for the air conditioning compressor to operate.Temperature Knob
The center knob controls the temperature of the air
coming through the system. Turn it counterclockwise
(toward the blue area) for cooler air. Turn it clockwise
(toward the red area) for warmer air.
Mode Knob
The right knob selects the location of where the air will
enter the vehicle.
UPPER: This setting directs most of the air
through the instrument panel outlets with a very small
amount of air directed to the lower outlets.
BI-LEVEL: This setting directs air into the
vehicle in two ways. Cooler air is directed toward your
upper body through the instrument panel outlets, while
warmer air is directed through the lower outlets.
LOWER: This setting directs most of the air
through the lower ducts to the floor area of the vehicle
with some of the air also directed toward the windshield
and side window vents.

3-3
DEFOG: This setting divides the air between the
windshield and lower outlets with a small amount of air
directed toward the side window vents. This is useful
when fog appears on the windshield or side glass due to
rain or snowy conditions.
DEFROST: Use this setting to quickly remove fog
or frost from the windshield. This setting directs most of
the airflow to the windshield with a small amount of air
directed toward the lower and side window outlets.
Mode Buttons
These buttons control the air intake, the air conditioning
and the rear window defogger operation.
FRESH AIR: Press this button and it will bring
outside air into the vehicle. The light on the button will
come on when operating. Use this setting while trying to
defrost or defog windows to help clear moisture.
RECIRCULATE: Press this button to limit the
amount of fresh air entering the vehicle by recirculating
most of the air inside the vehicle. The light on the button
will come on when operating. This setting is helpful
when you are trying to cool the air quickly or to limit
odors entering the vehicle. Recirculate cannot be used
while in the DEFROST or DEFOG modes.Operating the system in the recirculation mode may
cause fogging of the vehicle's windows when the
weather is cold and damp. To clear the fog, switch the
system to either the DEFOG or DEFROST mode and
increase the fan speed. To avoid re
-fogging of the
windows, operate the system in the OUTSIDE
AIR mode.
A/C: This button turns the air conditioning
compressor off or on under most conditions. The light
on the A/C button comes on when the compressor is
operating. The air conditioning does not operate at
temperatures below approximately 35
F to 40
F
(2
C to 4
C). The air conditioning cools and
dehumidifies the air coming into the vehicle. The air
conditioning cannot be turned off in DEFROST, as it
helps to remove moisture from the vehicle. It also helps
to keep the windows clear.
The air conditioning may be forced off at high engine
speeds or high engine oil or coolant temperatures.
See ªRear Window Defoggerº later in this section for
more information.

3-4 Automatic Electronic Dual Climate Control
System (If Equipped)
Your vehicle may be equipped with an automatic
electronic dual climate control system. This system can
automatically adjust and control temperature output, fan
speed, air delivery mode, air conditioning operation and
air intake. You can use the AUTO (automatic) setting or
override the automatic operation with manual control
settings. The set temperature will be remembered each
time you turn the ignition off and restart in the same
settings. You can use the memory option to recall your
settings. (See ªMemoryº in the Index.)Digital Display
The digital display shows readings in Fahrenheit or Celsius
by pressing the E/M button (English/metric) on the Driver
Information Center (DIC). When you start the vehicle,
the display will show the current fan speed, air delivery
mode and the driver
-set temperature for approximately
five seconds and then show the outside temperature.
When the system is fully in the automatic mode, the
word AUTO will also appear on the display. If you have
selected a manual fan speed, then the fan symbol will
appear on the display. If a manual air delivery mode has
been selected, the delivery mode symbol will appear on
the display.
Driver Set Temperature Knob
The DRIVER knob changes the temperature on the
driver's and passenger's side of the vehicle. Turn the
knob clockwise to increase the temperature and
counterclockwise to decrease the temperature.
Whenever you turn this knob, the temperature will be
displayed for approximately five seconds along with the
current fan speed and air delivery mode.
