CHEVROLET CORVETTE 2007 6.G Owners Manual

Fuses Usage
SPARE Spare Fuse
SPARE Spare Fuse
SPARE Spare Fuse
SPARE Spare Fuse
TPA Tonneau Pulldown Actuator
ONSTAR OnStar
®
DRIV DR
SWTCHDriver Door Switch
TELE SWTCH/
MSMTelescope Switch,
Memory Seat Module
IGN SWTCH/
INTR SNSRIgnition Switch, Intrusion Sensor
BCK/UP LAMP Reverse Lamps
REVERSE
LAMPSReverse Lamps
Blank Not Used
STOP LAMP Stop Lamp
BTSI SOL/
STR WHL LCKBrake Transmission Shift Interlock,
Steering Wheel Column Lock
BLANK Not Used
Fuses Usage
RDO/S-BAND/
VICSRadio, S-Band, VICS
REAR FOG/
ALDL/TOP
SWTCHRear Fog Lamp, Assembly Line
Diagnostic Link Connector,
Convertible Top Switch
GM LAN
RUN/CRNKGM LAN Devices
ISRVM/ HVACElectric Inside Rearview Mirror,
Heating Ventilation, Air Conditioning
CRUISE
SWTCHCruise Control Switch
TONNEAU
RELSETonneau Release
RUN CRNK Run/Crank Relay
HTD SEAT/
WPR RLYHeated Seat, Wiper Relays
ECM Engine Control Module
SDM/AOS
SWTCH
AIRBAGSensing and Diagnostic Module,
Automatic Occupant Sensing
Module, Airbag
CLSTR/HUD Cluster, Heads-Up Display
HVAC/
PWR SNDHeating, Ventilation/Air Conditioning,
Power Sounder
421

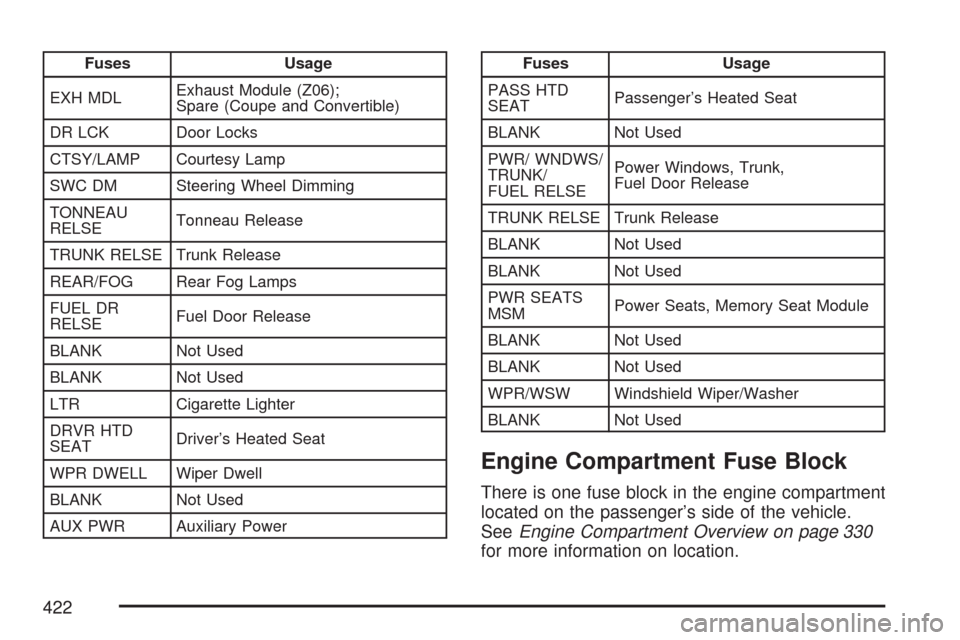

Fuses Usage
EXH MDLExhaust Module (Z06);
Spare (Coupe and Convertible)
DR LCK Door Locks
CTSY/LAMP Courtesy Lamp
SWC DM Steering Wheel Dimming
TONNEAU
RELSETonneau Release
TRUNK RELSE Trunk Release
REAR/FOG Rear Fog Lamps
FUEL DR
RELSEFuel Door Release
BLANK Not Used
BLANK Not Used
LTR Cigarette Lighter
DRVR HTD
SEATDriver’s Heated Seat
WPR DWELL Wiper Dwell
BLANK Not Used
AUX PWR Auxiliary PowerFuses Usage
PASS HTD
SEATPassenger’s Heated Seat
BLANK Not Used
PWR/ WNDWS/
TRUNK/
FUEL RELSEPower Windows, Trunk,
Fuel Door Release
TRUNK RELSE Trunk Release
BLANK Not Used
BLANK Not Used
PWR SEATS
MSMPower Seats, Memory Seat Module
BLANK Not Used
BLANK Not Used
WPR/WSW Windshield Wiper/Washer
BLANK Not Used
Engine Compartment Fuse Block
There is one fuse block in the engine compartment
located on the passenger’s side of the vehicle.
SeeEngine Compartment Overview on page 330
for more information on location.
422

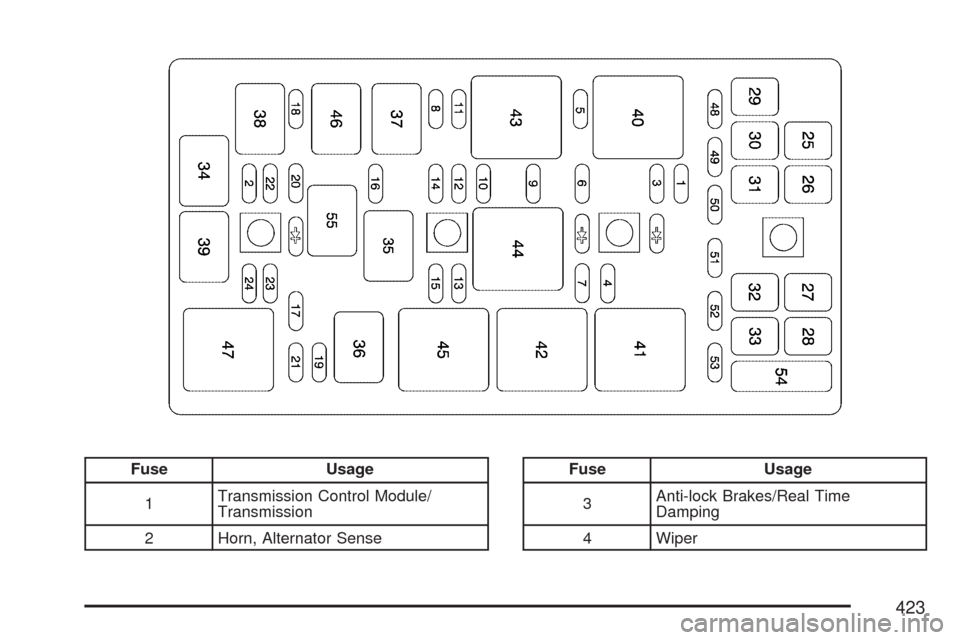

Fuse Usage
1Transmission Control Module/
Transmission
2 Horn, Alternator SenseFuse Usage
3Anti-lock Brakes/Real Time
Damping
4 Wiper
423

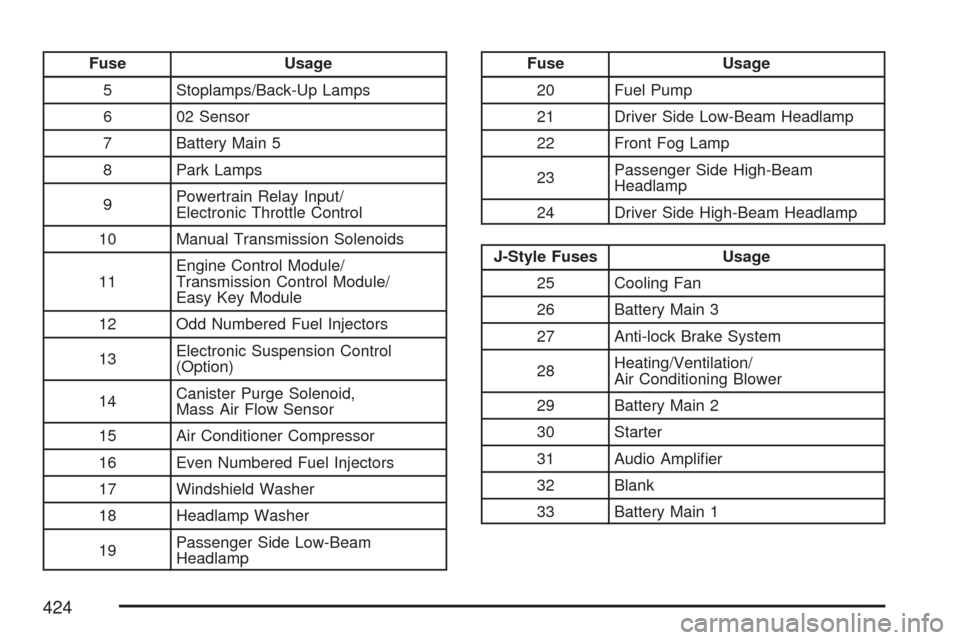

Fuse Usage
5 Stoplamps/Back-Up Lamps
6 02 Sensor
7 Battery Main 5
8 Park Lamps
9Powertrain Relay Input/
Electronic Throttle Control
10 Manual Transmission Solenoids
11Engine Control Module/
Transmission Control Module/
Easy Key Module
12 Odd Numbered Fuel Injectors
13Electronic Suspension Control
(Option)
14Canister Purge Solenoid,
Mass Air Flow Sensor
15 Air Conditioner Compressor
16 Even Numbered Fuel Injectors
17 Windshield Washer
18 Headlamp Washer
19Passenger Side Low-Beam
HeadlampFuse Usage
20 Fuel Pump
21 Driver Side Low-Beam Headlamp
22 Front Fog Lamp
23Passenger Side High-Beam
Headlamp
24 Driver Side High-Beam Headlamp
J-Style Fuses Usage
25 Cooling Fan
26 Battery Main 3
27 Anti-lock Brake System
28Heating/Ventilation/
Air Conditioning Blower
29 Battery Main 2
30 Starter
31 Audio Amplier
32 Blank
33 Battery Main 1
424

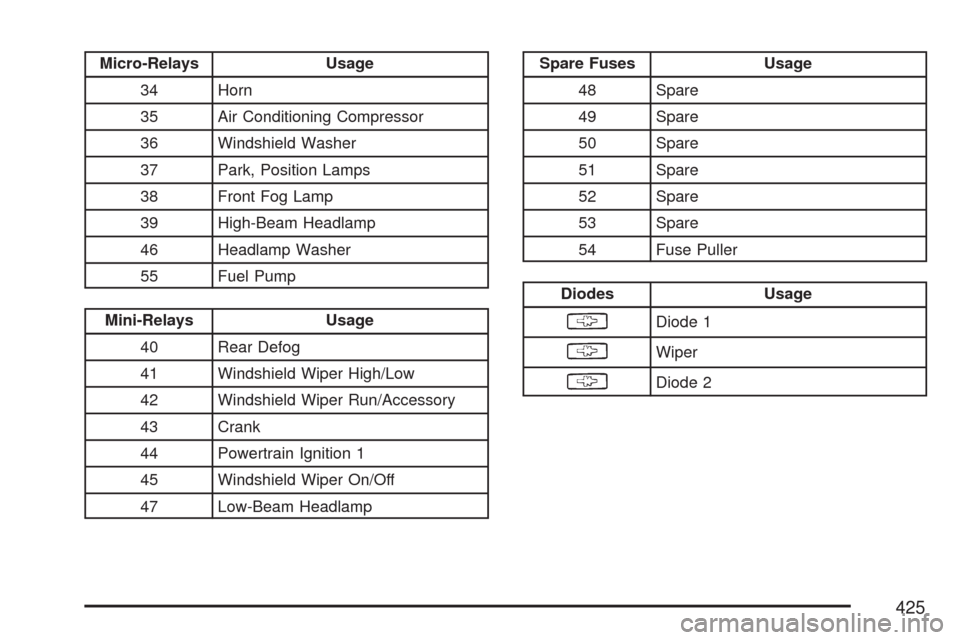

Micro-Relays Usage
34 Horn
35 Air Conditioning Compressor
36 Windshield Washer
37 Park, Position Lamps
38 Front Fog Lamp
39 High-Beam Headlamp
46 Headlamp Washer
55 Fuel Pump
Mini-Relays Usage
40 Rear Defog
41 Windshield Wiper High/Low
42 Windshield Wiper Run/Accessory
43 Crank
44 Powertrain Ignition 1
45 Windshield Wiper On/Off
47 Low-Beam Headlamp
Spare Fuses Usage
48 Spare
49 Spare
50 Spare
51 Spare
52 Spare
53 Spare
54 Fuse Puller
Diodes Usage
§Diode 1
§Wiper
§Diode 2
425

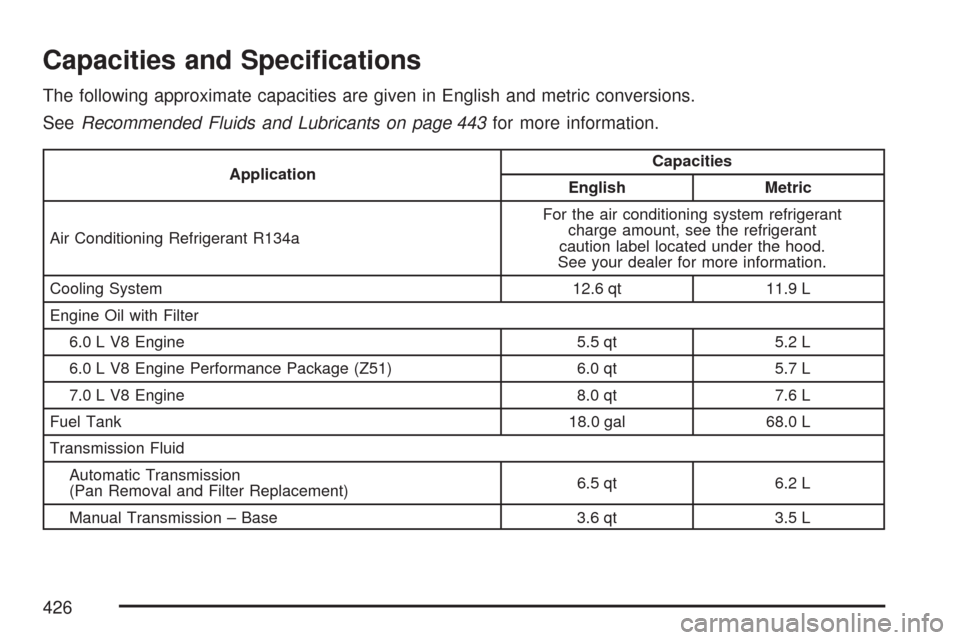

Capacities and Specications
The following approximate capacities are given in English and metric conversions.
SeeRecommended Fluids and Lubricants on page 443for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant
charge amount, see the refrigerant
caution label located under the hood.
See your dealer for more information.
Cooling System 12.6 qt 11.9 L
Engine Oil with Filter
6.0 L V8 Engine 5.5 qt 5.2 L
6.0 L V8 Engine Performance Package (Z51) 6.0 qt 5.7 L
7.0 L V8 Engine 8.0 qt 7.6 L
Fuel Tank 18.0 gal 68.0 L
Transmission Fluid
Automatic Transmission
(Pan Removal and Filter Replacement)6.5 qt 6.2 L
Manual Transmission – Base 3.6 qt 3.5 L
426

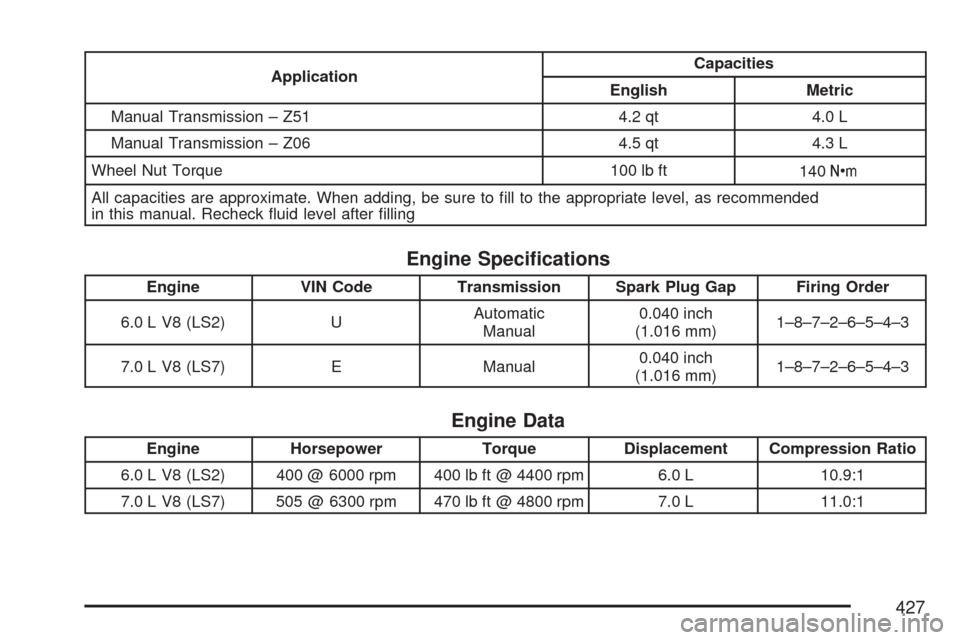

ApplicationCapacities
English Metric
Manual Transmission – Z51 4.2 qt 4.0 L
Manual Transmission – Z06 4.5 qt 4.3 L
Wheel Nut Torque 100 lb ft
140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended
in this manual. Recheck uid level after lling
Engine Specications
Engine VIN Code Transmission Spark Plug Gap Firing Order
6.0 L V8 (LS2) UAutomatic
Manual0.040 inch
(1.016 mm)1–8–7–2–6–5–4–3
7.0 L V8 (LS7) E Manual0.040 inch
(1.016 mm)1–8–7–2–6–5–4–3
Engine Data
Engine Horsepower Torque Displacement Compression Ratio
6.0 L V8 (LS2) 400 @ 6000 rpm 400 lb ft @ 4400 rpm 6.0 L 10.9:1
7.0 L V8 (LS7) 505 @ 6300 rpm 470 lb ft @ 4800 rpm 7.0 L 11.0:1
427

✍NOTES
428

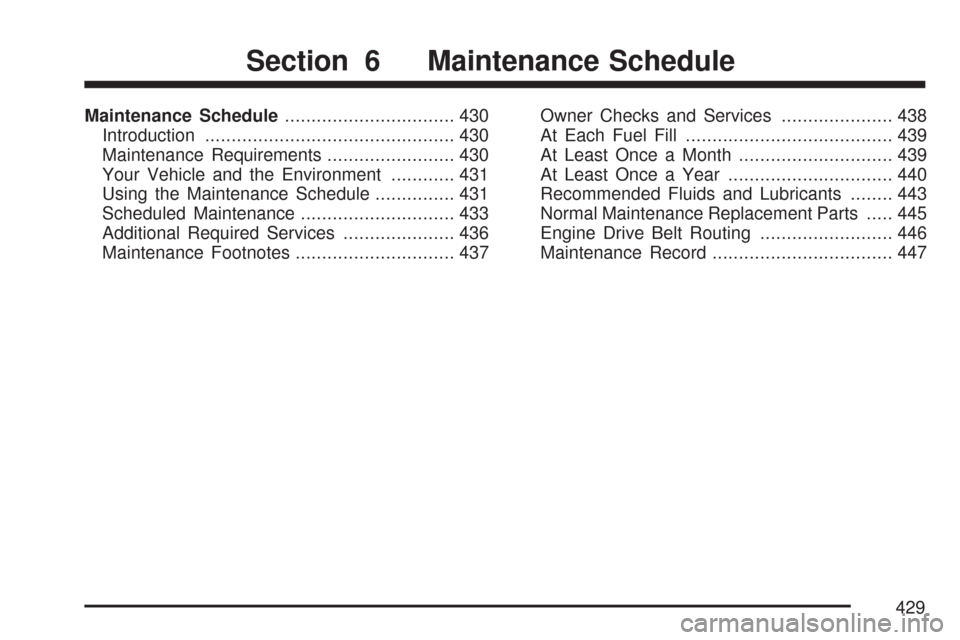

Maintenance Schedule................................ 430
Introduction............................................... 430
Maintenance Requirements........................ 430
Your Vehicle and the Environment............ 431
Using the Maintenance Schedule............... 431
Scheduled Maintenance............................. 433
Additional Required Services..................... 436
Maintenance Footnotes.............................. 437Owner Checks and Services..................... 438
At Each Fuel Fill....................................... 439
At Least Once a Month............................. 439
At Least Once a Year............................... 440
Recommended Fluids and Lubricants........ 443
Normal Maintenance Replacement Parts..... 445
Engine Drive Belt Routing......................... 446
Maintenance Record.................................. 447
Section 6 Maintenance Schedule
429

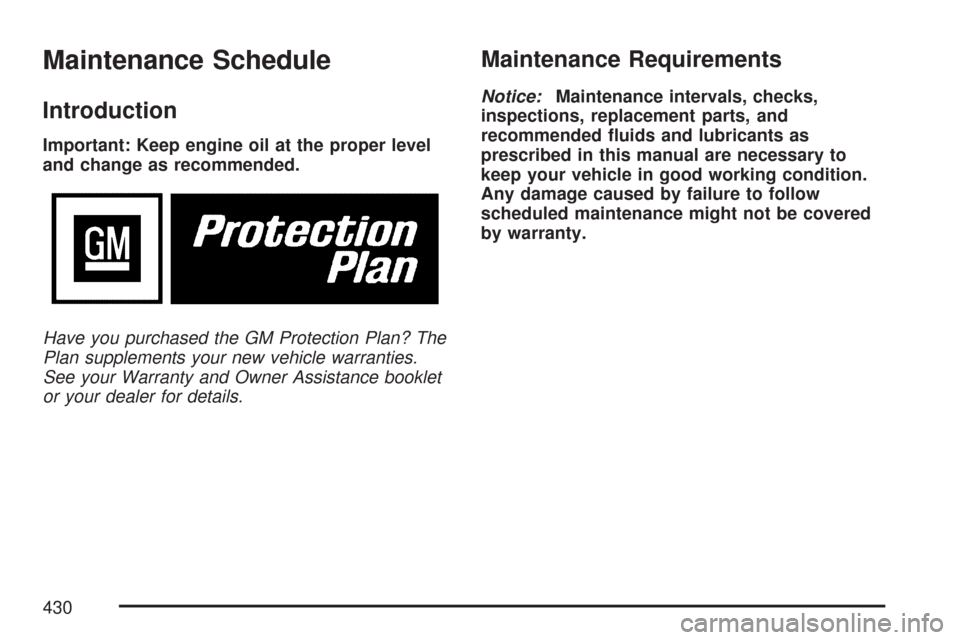

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance might not be covered
by warranty.
