Page 381 of 428

Black plate (3,1)Chevrolet Corvette Owner Manual - 2011
Service and Maintenance 11-3
Your dealer has trained service
technicians who will perform this
work and reset the system. If the
engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 miles since
the last service. Reset the oil life
system whenever the oil is changed.
SeeEngine Oil Life System on
page 10‑22.
Every Engine Oil Change
.Change engine oil and
filter. Reset oil life system.
See Engine Oil on page 10‑15
and Engine Oil Life System on
page 10‑22. An Emission
Control Service.
.Engine coolant level check.
See Engine Coolant on
page 10‑29.
.Engine cooling system
inspection. Visual inspection
of hoses, pipes, fittings, and
clamps and replacement,
if needed.
.Windshield washer fluid level
check. See Washer Fluid on
page 10‑37.
.Windshield wiper blade
inspection for wear, cracking,
or contamination and windshield
and wiper blade cleaning,
if contaminated. See Exterior
Care on page 10‑86. Worn
or damaged wiper blade
replacement. See Wiper Blade
Replacement on page 10‑46.
.Tire inflation pressures
check. See Tire Pressure on
page 10‑66.
.Tire wear inspection. See Tire
Inspection on page 10‑72.
.Fluids visual leak check
(or every 12 months, whichever
occurs first). A leak in any
system must be repaired and
the fluid level checked.
.Engine air cleaner filter
inspection. See Engine Air
Cleaner/Filter on page 10‑24.
.Brake system inspection
(or every 12 months, whichever
occurs first).
.Steering and suspension
inspection. Visual inspection
for damaged, loose, or missing
parts or signs of wear.
.Body hinges and latches,
key lock cylinders, any
folding seat hardware, and
rear compartment, hood,
and console door hinges
and latches lubrication.
See Recommended Fluids
and Lubricants on page 11‑6.
More frequent lubrication may
be required when the vehicle
is exposed to a corrosive
environment. Applying silicone
grease on weatherstrips with a
clean cloth makes them last
longer, seal better, and not stick
or squeak.
.Restraint system component
check. See Safety System
Check on page 3‑21.
Page 382 of 428

Black plate (4,1)Chevrolet Corvette Owner Manual - 2011
11-4 Service and Maintenance
.Fuel system inspection for
damage or leaks.
.Exhaust system and nearby heat
shields inspection for loose or
damaged components.
Additional Required Services
At Each Fuel Stop
.Engine oil level check.
SeeEngine Oil on page 10‑15.
.Engine coolant level check.
SeeEngine Coolant on
page 10‑29.
.Windshield washer fluid level
check. See Washer Fluid on
page 10‑37.
Once a Month
.Tire inflation check. See Tire
Pressure on page 10‑66.
.Tire wear inspection. See Tire
Inspection on page 10‑72 and
Tire Rotation on page 10‑72. Once a Year
.See
Starter Switch Check on
page 10‑44.
.See Automatic Transmission
Shift Lock Control Function
Check on page 10‑45.
.See Park Brake and P (Park)
Mechanism Check on
page 10‑45.
.Accelerator pedal check for
damage, high effort, or binding.
Replace if needed.
.Underbody flushing service.
Once Every Two Years
.Clutch hydraulic system drain,
flush, and refill. Service at a
regular service interval every
two years. This service can
be complex; have your dealer
perform this service. See
Hydraulic Clutch on page 10‑24. First Engine Oil Change After
Every 40 000 km/25,000 Miles
.Passenger compartment
air filter replacement (or every
24 months, whichever occurs
first). More frequent replacement
may be needed if you drive
in areas with heavy traffic,
areas with poor air quality,
or areas with high dust levels.
Replacement may also be
needed if you notice reduced
air flow, windows fogging up,
or odors. Your dealer can help
you determine when it is the
right time to replace the filter.
.ZR1 Only: Engine air cleaner
filter replacement. See
Engine
Air Cleaner/Filter on page 10‑24.
Page 383 of 428

Black plate (5,1)Chevrolet Corvette Owner Manual - 2011
Service and Maintenance 11-5
First Engine Oil Change After
Every 80 000 km/50,000 Miles
.Engine air cleaner filter
replacement. SeeEngine Air
Cleaner/Filter on page 10‑24.
.Automatic transmission fluid
change (severe service)
for vehicles mainly driven
in heavy city traffic in hot
weather, in hilly or mountainous
terrain, when frequently towing
a trailer, or used for taxi,
police, or delivery service.
See Automatic Transmission
Fluid on page 10‑23.
.Evaporative control system
inspection. Check all fuel and
vapor lines and hoses for proper
hook‐up, routing, and condition.
Check that the purge valve,
if the vehicle has one, works
properly. Replace as needed.
An Emission Control Service. The U.S. Environmental
Protection Agency or the
California Air Resources Board
has determined that the failure
to perform this maintenance
item will not nullify the emission
warranty or limit recall liability
prior to the completion of
the vehicle's useful life.
We, however, urge that all
recommended maintenance
services be performed at the
indicated intervals and the
maintenance be recorded.
First Engine Oil Change After
Every 160 000 km/100,000 Miles.Automatic transmission fluid
change (normal service).
See Automatic Transmission
Fluid on page 10‑23.
.Spark plug replacement and
spark plug wires inspection.
An Emission Control Service. First Engine Oil Change After
Every 240 000 km/150,000 Miles
.Engine cooling system drain,
flush, and refill (or every five
years, whichever occurs first).
See
Engine Coolant on
page 10‑29. An Emission
Control Service.
.ZR1 Only: Intercooler system
drain, flush, and refill (or every
five years, whichever occurs
first). See Engine Coolant on
page 10‑29.
.Engine drive belts inspection
for fraying, excessive cracks,
or obvious damage (or every
10 years, whichever occurs
first). Replace, if needed.
Page 384 of 428

Black plate (6,1)Chevrolet Corvette Owner Manual - 2011
11-6 Service and Maintenance

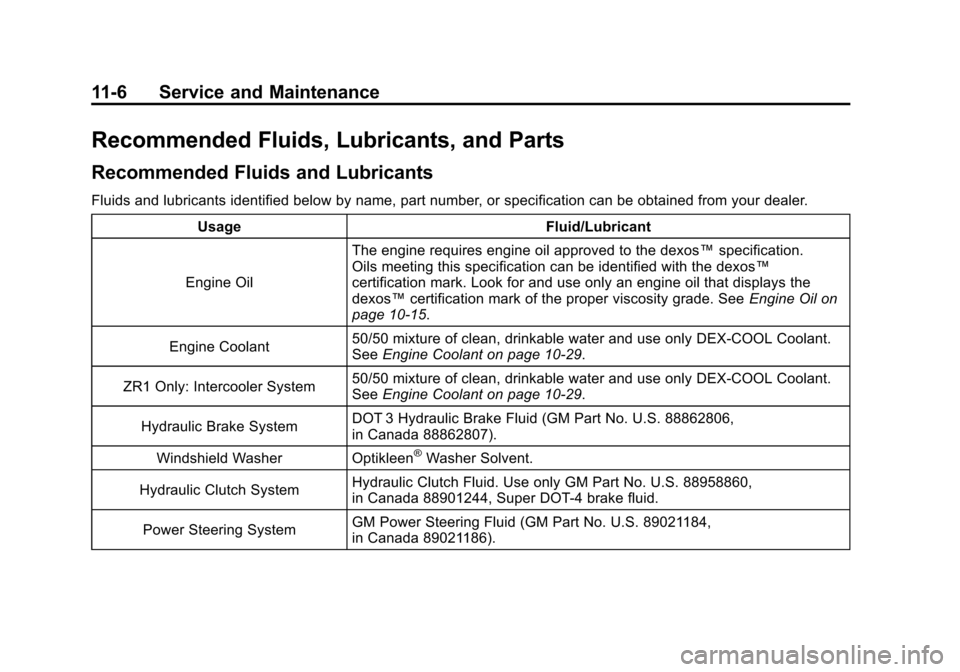

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.Usage Fluid/Lubricant
Engine Oil The engine requires engine oil approved to the dexos™
specification.
Oils meeting this specification can be identified with the dexos™
certification mark. Look for and use only an engine oil that displays the
dexos™ certification mark of the proper viscosity grade. See Engine Oil on
page 10‑15.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
See
Engine Coolant on page 10‑29.
ZR1 Only: Intercooler System 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
See
Engine Coolant on page 10‑29.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. U.S. 88862806,
in Canada 88862807).
Windshield Washer Optikleen
®Washer Solvent.
Hydraulic Clutch System Hydraulic Clutch Fluid. Use only GM Part No. U.S. 88958860,
in Canada 88901244, Super DOT-4 brake fluid.
Power Steering System GM Power Steering Fluid (GM Part No. U.S. 89021184,
in Canada 89021186).
Page 385 of 428

Black plate (7,1)Chevrolet Corvette Owner Manual - 2011
Service and Maintenance 11-7

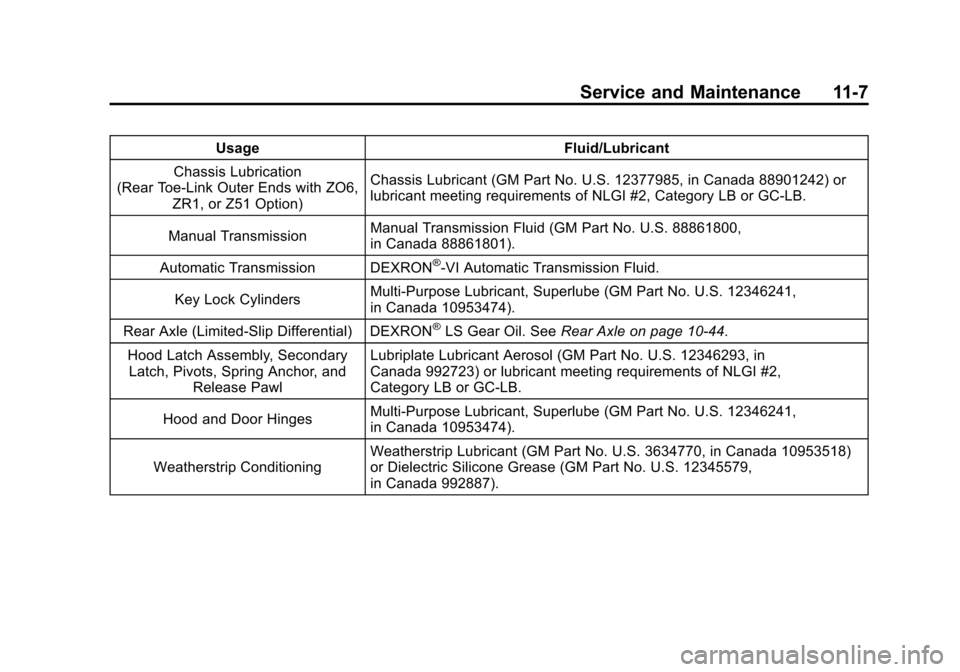

UsageFluid/Lubricant
Chassis Lubrication
(Rear Toe‐Link Outer Ends with ZO6,
ZR1, or Z51 Option) Chassis Lubricant (GM Part No. U.S. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Manual Transmission Manual Transmission Fluid (GM Part No. U.S. 88861800,
in Canada 88861801).
Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Rear Axle (Limited-Slip Differential) DEXRON
®LS Gear Oil. See Rear Axle on page 10‑44.
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293, in
Canada 992723) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease (GM Part No. U.S. 12345579,
in Canada 992887).
Page 386 of 428

Black plate (8,1)Chevrolet Corvette Owner Manual - 2011
11-8 Service and Maintenance

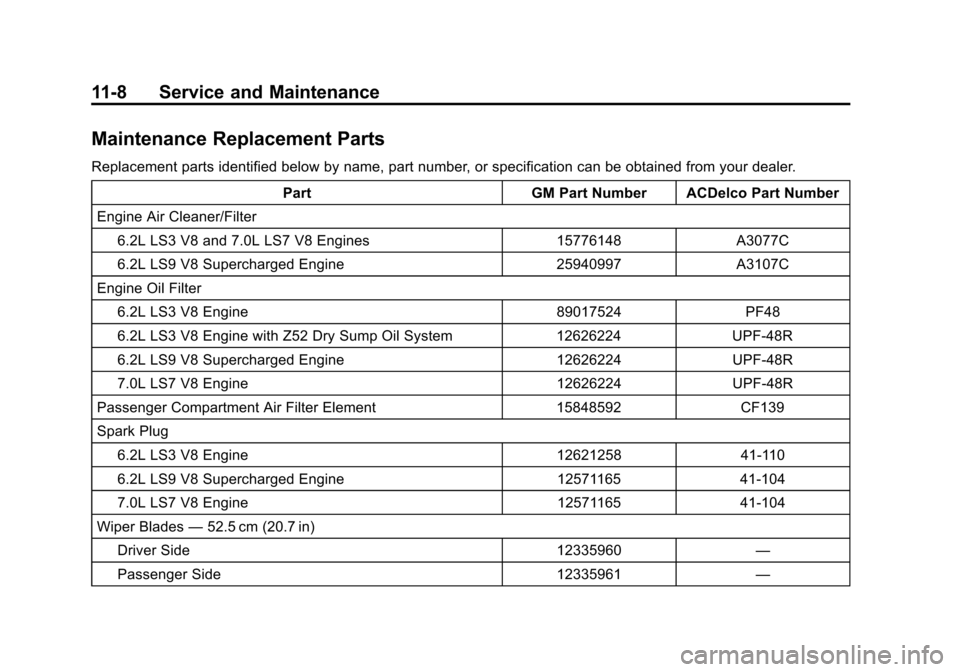

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter
6.2L LS3 V8 and 7.0L LS7 V8 Engines 15776148 A3077C
6.2L LS9 V8 Supercharged Engine 25940997 A3107C
Engine Oil Filter 6.2L LS3 V8 Engine 89017524 PF48
6.2L LS3 V8 Engine with Z52 Dry Sump Oil System 12626224 UPF-48R
6.2L LS9 V8 Supercharged Engine 12626224 UPF-48R
7.0L LS7 V8 Engine 12626224 UPF-48R
Passenger Compartment Air Filter Element 15848592 CF139
Spark Plug
6.2L LS3 V8 Engine 12621258 41-110
6.2L LS9 V8 Supercharged Engine 12571165 41-104
7.0L LS7 V8 Engine 12571165 41-104
Wiper Blades —52.5 cm (20.7 in)
Driver Side 12335960 —
Passenger Side 12335961 —
Page 387 of 428

Black plate (9,1)Chevrolet Corvette Owner Manual - 2011
Service and Maintenance 11-9

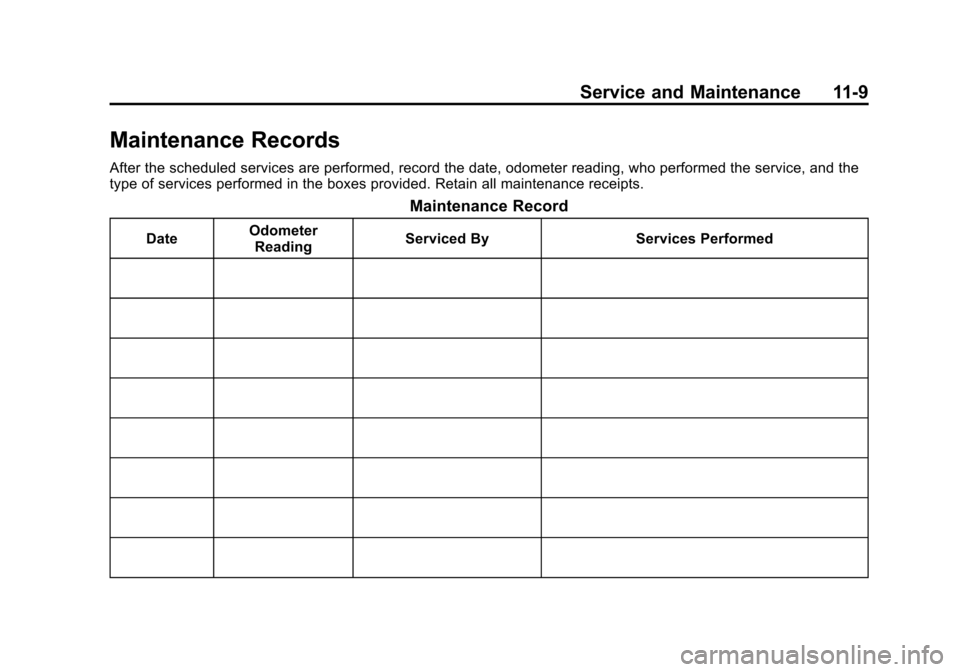

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Services Performed
Page 388 of 428

Black plate (10,1)Chevrolet Corvette Owner Manual - 2011
11-10 Service and Maintenance

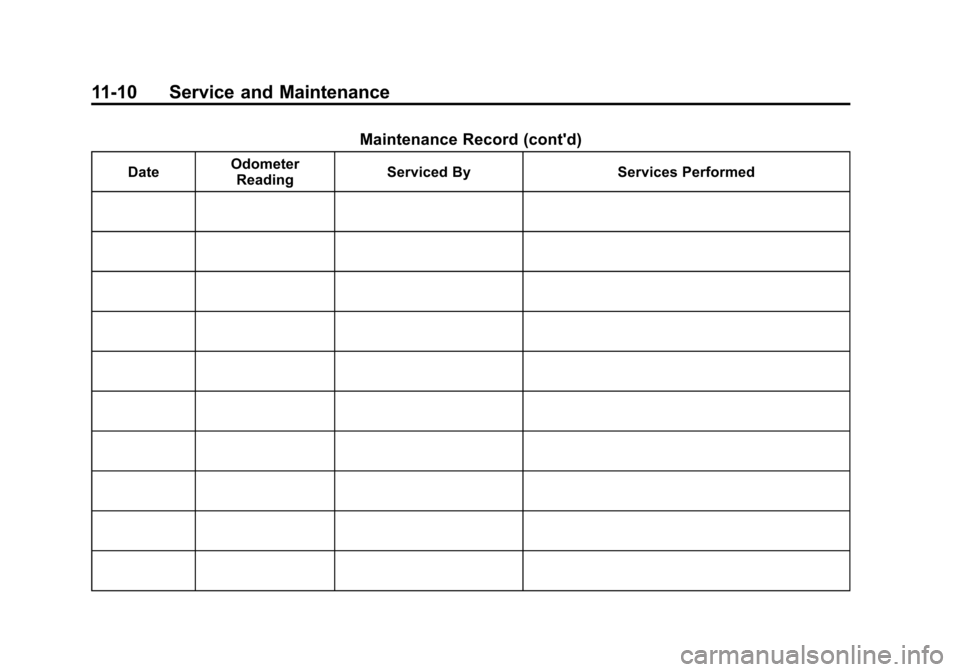

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed
Page 389 of 428

Black plate (11,1)Chevrolet Corvette Owner Manual - 2011
Service and Maintenance 11-11

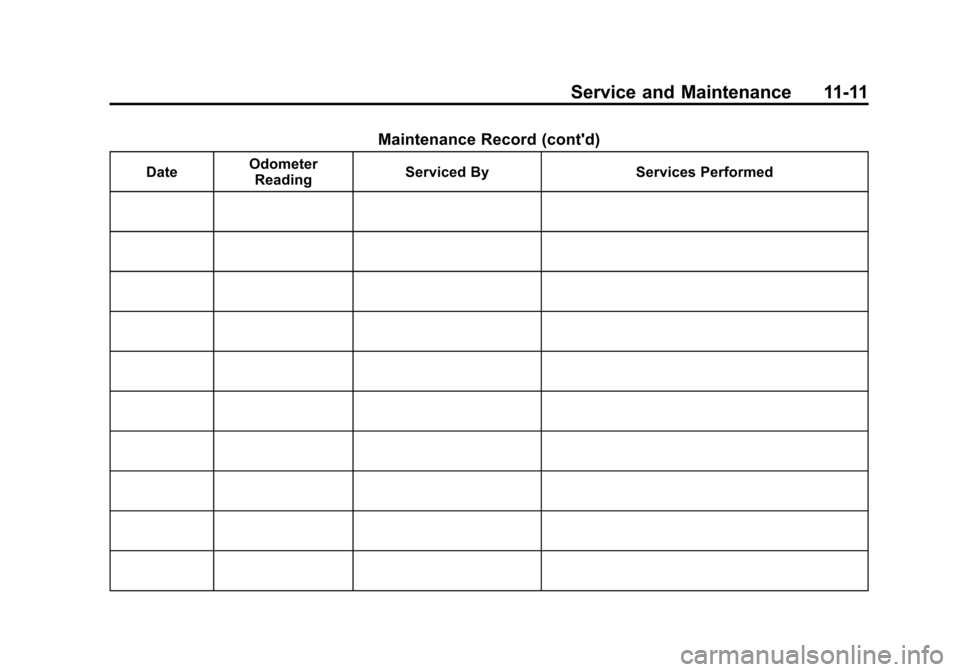

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed
Page 390 of 428

Black plate (12,1)Chevrolet Corvette Owner Manual - 2011
11-12 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed
