display CHEVROLET CORVETTE 2020 Owner's Manual

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
6 Introduction
1.Air Vents 0143.
2. Turn Signal Lever. See Turn
and Lane-Change Signals
0 128.
Exterior Lamp Controls 0125.
3. Manual Shift Paddles. See Manual Mode 0174.
4. Instrument Cluster 094.
5. Windshield Wiper/Washer 087.
6. Near Field Communication Antenna (NFC). See “Pairing a
Phone” in the infotainment
manual.
7. Volume Control Knob. See the infotainment manual.
Infotainment Home Button. See
the infotainment manual.
8. Infotainment 0132.
9. Alarm System Indicator Light. See Vehicle Alarm System
0 26.
Light Sensor. See Automatic
Headlamp System 0127.
10. Dual Automatic Climate Control
System 0139. Driver and Passenger Heated
and Ventilated Seat Controls (If
Equipped). See
Heated and
Ventilated Front Seats 053.
11. Traction Control/Electronic
Stability Control 0182.
Curb View Camera (If
Equipped). See Assistance
Systems for Parking or Backing
0 200.
Front Lift System Control (If
Equipped). See Front Lift
System 0191.
12. Driver Mode Control 0184.
13. Shift Switches. See Dual
Clutch Transmission 0171.
14. Keyless Ignition. See Ignition
Positions 0165.
15. Driver Information Center (DIC) Controls. See Driver
Information Center (DIC) 0108.
16. Heated Steering Wheel 087 (If
Equipped).
17. Bluetooth Controls. See “Steering Wheel Controls” in
the infotainment manual. Voice Recognition Controls.
See
“Steering Wheel Controls”
in the infotainment manual.
18. Volume Control Buttons. See “Steering Wheel Controls” in
the infotainment manual.
19. Horn 087.
20. Favorites Select Buttons. See “Steering Wheel Controls” in
the infotainment manual.
21. Z-Mode Control. See Driver
Mode Control 0184.
22. Cruise Control 0196.
23. Electric Parking Brake 0179.
24. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp (Check Engine
Light) 0102.
25. Instrument Panel Illumination
Control 0129.
26. Head-Up Display Controls (If Equipped). See Head-Up
Display (HUD) 0110.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
12 Keys, Doors, and Windows
see“Remote Left in Vehicle Alert”
under Vehicle Personalization
0 116.
Remote No Longer in Vehicle Alert
If the vehicle is on, with a door
open, and then all doors are closed,
the vehicle will check for remote
keys inside. If a remote key is not
detected, the Driver Information
Center (DIC) will display NO KEY
FOUND and the horn will chirp three
times. This occurs only once each
time the vehicle is driven. To turn on
or off, see Vehicle Personalization
0 116. Keyless Trunk Opening
Press the hatch/trunk release
touchpad to open the trunk if the
remote key is within 1 m (3 ft).
Programming Remote Keys to
the Vehicle
Only remote keys programmed to
this vehicle will work. If a remote
key is lost or stolen, a replacement
can be purchased and programmed
through your dealer. When the
replacement remote key is
programmed to this vehicle, all
remaining remote keys must also be
reprogrammed. Any lost or stolen remote keys will no longer work
once the new remote key is
programmed.
Programming with Recognized
Remote Keys
A new key can be programmed to
the vehicle when there are two
recognized keys.
To program, the vehicle must be in
run and all remote keys, both
currently recognized and new, must
be with you.
1. Place the two recognized remote keys on the
passenger seat.
2. Scroll to the DIC menu to "Remote Key Learn" menu and
select.
The DIC displays READY FOR
REMOTE #3, 4, 5, ETC.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Keys, Doors, and Windows 13
3. Place the new remote key intothe backup pocket location.
4. Press ENGINE START/STOP. When the remote key is
learned, the DIC display will
show that it is ready to program
the next remote key.
5. Remove the remote key from the backup location and press
KorQon the remote key.
To program additional remote
keys, repeat Steps 3–5.
When all additional remote
keys are programmed, press
and hold ENGINE START/ STOP for approximately
12 seconds to exit
programming mode.
Programming without Recognized
Remote Keys
If two currently recognized remote
keys are not available, see your
dealer to program new remote keys.
Starting the Vehicle with a Low
Remote Key Battery
For improved vehicle security, the
remote key is equipped with a
motion sensor. When starting the
vehicle, if the remote key has been
idle for a while, the DIC may display
KEY IN SLEEP MODE, MOVE KEY,
THEN START. Move the remote key
slightly and try starting the vehicle.
If the remote key battery is weak or
if there is interference with the
signal, the DIC may display NO
REMOTE DETECTED or NO
REMOTE KEY WAS DETECTED
PLACE KEY IN KEY POCKET,
THEN START YOUR VEHICLE.
If this occurs, follow these steps:
1. Place the remote key in the cupholder with the mechanical
key end facing up.
2. With the vehicle in P (Park) or N (Neutral), press the brake
pedal and ENGINE
START/STOP.
Replace the remote key battery
as soon as possible.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
14 Keys, Doors, and Windows
Battery Replacement
{Warning
Never allow children to play with
the remote key. The remote key
contains a small battery, which
can be a choking hazard.
If swallowed, internal burns can
occur, resulting in severe injury or
death. Seek medical attention
immediately if a battery is
swallowed.
{Warning
To avoid personal injury, do not
touch metal surfaces on the
remote key when it has been
exposed to extreme heat. These
surfaces can be hot to the touch
at temperatures above 59 °C (138
°F).
Caution
When replacing the battery, do
not touch any of the circuitry on
the remote key. Static from your
body could damage the
remote key.
Caution
Always replace the battery with
the correct type. Replacing the
battery with an incorrect type
could potentially create a risk of
battery explosion. Dispose of
used batteries according to
instructions and local laws. Do
not attempt to burn, crush, or cut
the used battery, and avoid
exposing the battery to
environments with extremely low
air pressures or high
temperatures.
Replace the battery if the DIC
displays REPLACE BATTERY IN
REMOTE KEY.1. Press the button on the side of the remote key and pull the
mechanical key out. Never pull
the mechanical key out without
pressing the button.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Keys, Doors, and Windows 21
Doors
Hood
Hood Release
{Warning
Do not drive the vehicle if the
hood is not latched completely.
The hood could open fully, block
your vision, and cause a crash.
You or others could be injured.
Always close the hood completely
before driving.
The hood compartment can be
accessed in several ways.
Ensure the hood is clear of any
objects before opening.
{Warning
Turn the vehicle off before
opening the hood. If the engine is
running with the hood open, you
or others could be injured. Driver Door Hood Latch Release
Button
1. With the transmission in
P (Park), press
Eon the
bottom of the driver door to
release the hood.
2. From the front of the vehicle, lift the hood slightly until the
gas strut system automatically
raises and holds it in the fully
open position.
3. The hood light and Open Hood message will display in the
Driver Information Center (DIC)
when the hood is open. Using the Remote Key
1. Press
Etwice on the
remote key to release
the hood.
2. From the front of the vehicle, lift the hood slightly until the
gas strut system automatically
raises and holds it in the fully
open position.
3. The hood light and Open Hood message will display in the
Driver Information Center (DIC)
when the hood is open.
Front Fascia TouchPad

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
22 Keys, Doors, and Windows
1. Locate the touchpad in the grillopening near the driver side
headlamp.
2. Press the touchpad once to release the hood. The remote
key must be within 1 m (3 ft) of
the hood.
3. From the front of the vehicle, lift the hood slightly until the
gas strut system automatically
raises and holds it in the fully
open position.
4. The hood light and Open Hood message will display in the
Driver Information Center (DIC)
when the hood is open.
Opening The Hood When There Is
No Electrical Power
The manual release cable should
only be used for service and/or
emergency use, such as a loss of
vehicle electrical power.
To enter the vehicle in the event
electrical power has been lost, see
“Loss of Vehicle Electrical Power”
under Door Locks 017.
1. Locate the manual release
cable loop to the left of the
brake pedal.
2. Pull the manual release cable twice to release the hood.
3. From the front of the vehicle, lift the hood slightly until the
gas strut system automatically
raises and holds it in the fully
open position. Emergency Hood Release Button
The underhood compartment is
equipped with a glow-in-the-dark
emergency hood release button.
This button will glow following
exposure to light. Press the button
to open the hood from inside the
underhood compartment.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
28 Keys, Doors, and Windows
Inclination Sensor and
Intrusion Sensor
In addition to the standard
theft-deterrent system features, this
system may also have an inclination
sensor and intrusion sensor.
The inclination sensor can activate
the alarm if it senses movement of
the vehicle, such as a change in
vehicle orientation.
The intrusion sensor monitors the
vehicle interior, and can activate the
alarm if it senses unauthorized entry
into the vehicle’s interior. Do not
allow passengers or pets to remain
in the vehicle when the intrusion
sensor is activated.
Before arming the theft-deterrent
system and activating the intrusion
sensor:
.Make sure both doors and
windows are completely closed.
. Secure any loose items such as
sunshades.
. Make sure there are no
obstructions blocking the
sensors.
Intrusion and Inclination
Sensors Disable Switch
It is recommended that the intrusion
and inclination sensors be
deactivated if pets are left in the
vehicle or if the vehicle is being
transported.
When the roof panel is off, or the
convertible top is down, the
intrusion system is turned off.
With the vehicle turned off, press
o
on the overhead console, next to
OnStar. The indicator light will
display momentarily, indicating that
these sensors have been disabled
until the next time the alarm system
is armed.
Immobilizer
See Radio Frequency Statement
0 312.
Immobilizer Operation
The vehicle has a passive
theft-deterrent system.
The security light comes on in the
instrument cluster if there is a
problem with arming or disarming
the theft-deterrent system. This light
also comes on briefly when the
engine is started.
The system is automatically armed
when the ignition is turned off.
The immobilization system is
disarmed when the ignition is turned
on or placed in ACC/ACCESSORY
and a valid remote key is found in
the vehicle.
You do not have to manually arm or
disarm the system.
The system has one or more remote
keys that are matched to an
immobilizer control unit in the
vehicle. Only a correctly matched
remote key starts the vehicle. The
vehicle may not start if the remote
key is damaged.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
32 Keys, Doors, and Windows

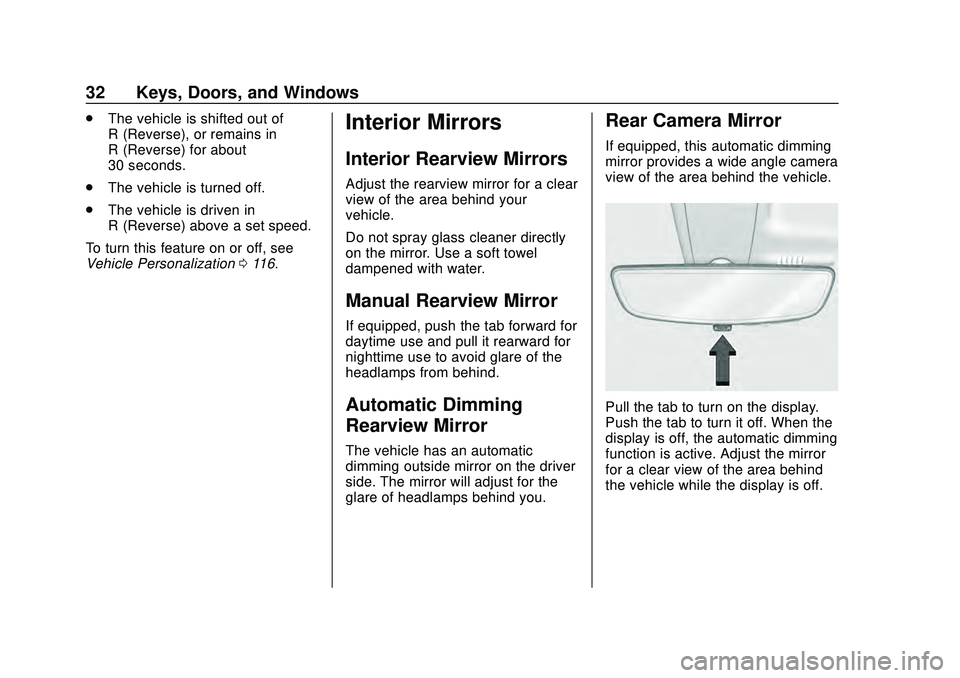

.The vehicle is shifted out of
R (Reverse), or remains in
R (Reverse) for about
30 seconds.
. The vehicle is turned off.
. The vehicle is driven in
R (Reverse) above a set speed.
To turn this feature on or off, see
Vehicle Personalization 0116.Interior Mirrors
Interior Rearview Mirrors
Adjust the rearview mirror for a clear
view of the area behind your
vehicle.
Do not spray glass cleaner directly
on the mirror. Use a soft towel
dampened with water.
Manual Rearview Mirror
If equipped, push the tab forward for
daytime use and pull it rearward for
nighttime use to avoid glare of the
headlamps from behind.
Automatic Dimming
Rearview Mirror
The vehicle has an automatic
dimming outside mirror on the driver
side. The mirror will adjust for the
glare of headlamps behind you.
Rear Camera Mirror
If equipped, this automatic dimming
mirror provides a wide angle camera
view of the area behind the vehicle.
Pull the tab to turn on the display.
Push the tab to turn it off. When the
display is off, the automatic dimming
function is active. Adjust the mirror
for a clear view of the area behind
the vehicle while the display is off.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
34 Keys, Doors, and Windows
{Warning
The Rear Camera Mirror (RCM)
has a limited view. Portions of the
road, vehicles, and other objects
may not be seen. Do not drive or
park the vehicle using only this
camera. Objects may appear
closer than they are. Check the
outside mirrors or glance over
your shoulder when making lane
changes or merging. Failure to
use proper care may result in
injury, death, or vehicle damage.Troubleshooting
See your dealer for service if a blue
screen and
3are displayed in the
mirror, and the display shuts off.
Also, push the tab as indicated to
return to the automatic
dimming mode.
The Rear Camera Mirror may not
work properly or display a clear
image if:
. There is glare from the sun or
headlamps. This may obstruct
objects from view. If needed,
push the tab to turn off the
display. .
Dirt, snow, or other debris blocks
the camera lens. Clean the lens
with a soft damp cloth.Coupe Shown, Convertible Similar
. The camera’s mounting on the
vehicle has been damaged, and/
or the position or the mounting
angle of the camera has
changed.
The Rear Camera Mirror will not
work on the convertible with the top
down. Use the tab to switch to
standard mirror display.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Keys, Doors, and Windows 43
5. Press and holdM. The
windows will automatically
lower.
6. After the convertible top is completely open, a chime
sounds and a Driver
Information Center (DIC)
message displays. Release the
switch.
If the radio is on, the sound may be
muted for a brief time to
automatically adjust the audio after
the top is opened. Opening the Convertible Top
—
Remote Key
1. Make sure the vehicle is in P (Park).
2. The trunk must be closed.
3. Keep visual contact with the vehicle. Press and release
K
on the remote key and then
quickly press and hold
M.
4. Hold
Muntil the top is
completely opened and the
exterior lamps flash. A chime
will sound.
If the top stops before it has
completely opened, press
Kand
then press
Magain.
If the top still stops before it is
completely open:
. Move closer to the vehicle.
. Hold
Muntil the operation is
complete.
. Press
Kand thenMagain.
Interference from other remote
keys or devices may interrupt
the operation. If the top still does not open, use the
convertible top switch in the vehicle.
The convertible top cannot be
closed using the remote key.
See
Remote Keyless Entry (RKE)
System Operation 09.
Closing the Convertible Top 1. Make sure the sun visor mirror covers are closed and the sun
visors are stored in the center
mount position.
2. Ensure the roof and tonneau cover are clear of any objects.
3. The trunk must be closed.
4. Start the vehicle or place it in ACC/ACCESSORY.
5. When possible, operate the convertible top when the
vehicle is stopped. The top can
be operated while driving
below 50 km/h (31 mph) and
will stop if that speed is
exceeded. The top operation
will take approximately
17 seconds. Make sure the top
operation can be completed
before that speed is reached.
