Page 61 of 2438

CHEVROLET DYNASTY 1993 Repair Manual Fig. 2 Front Suspension Components
Ä SUSPENSION AND DRIVESHAFTS 2 - 3

Page 62 of 2438

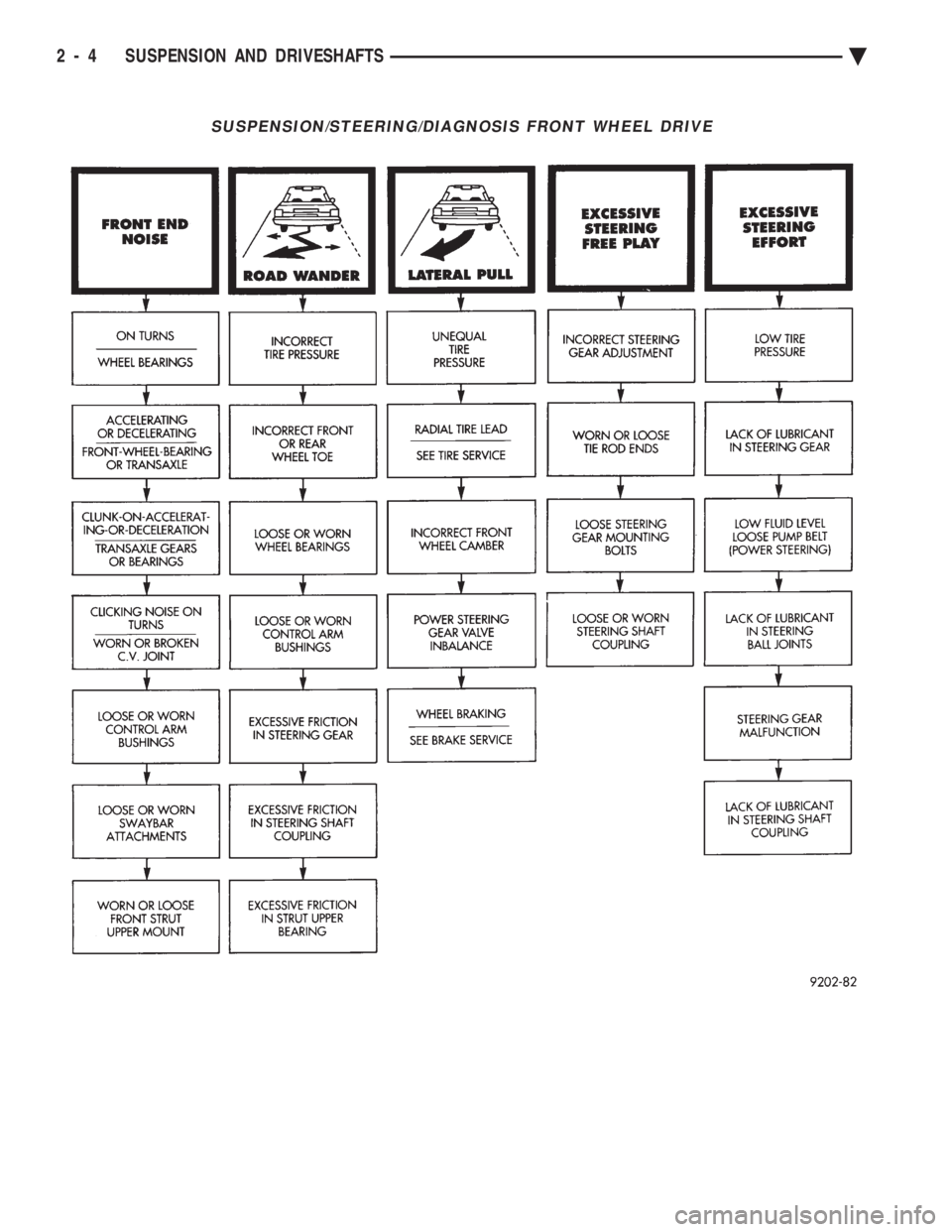

CHEVROLET DYNASTY 1993 Repair Manual SUSPENSION/STEERING/DIAGNOSIS FRONT WHEEL DRIVE
2 - 4 SUSPENSION AND DRIVESHAFTS Ä

Page 63 of 2438

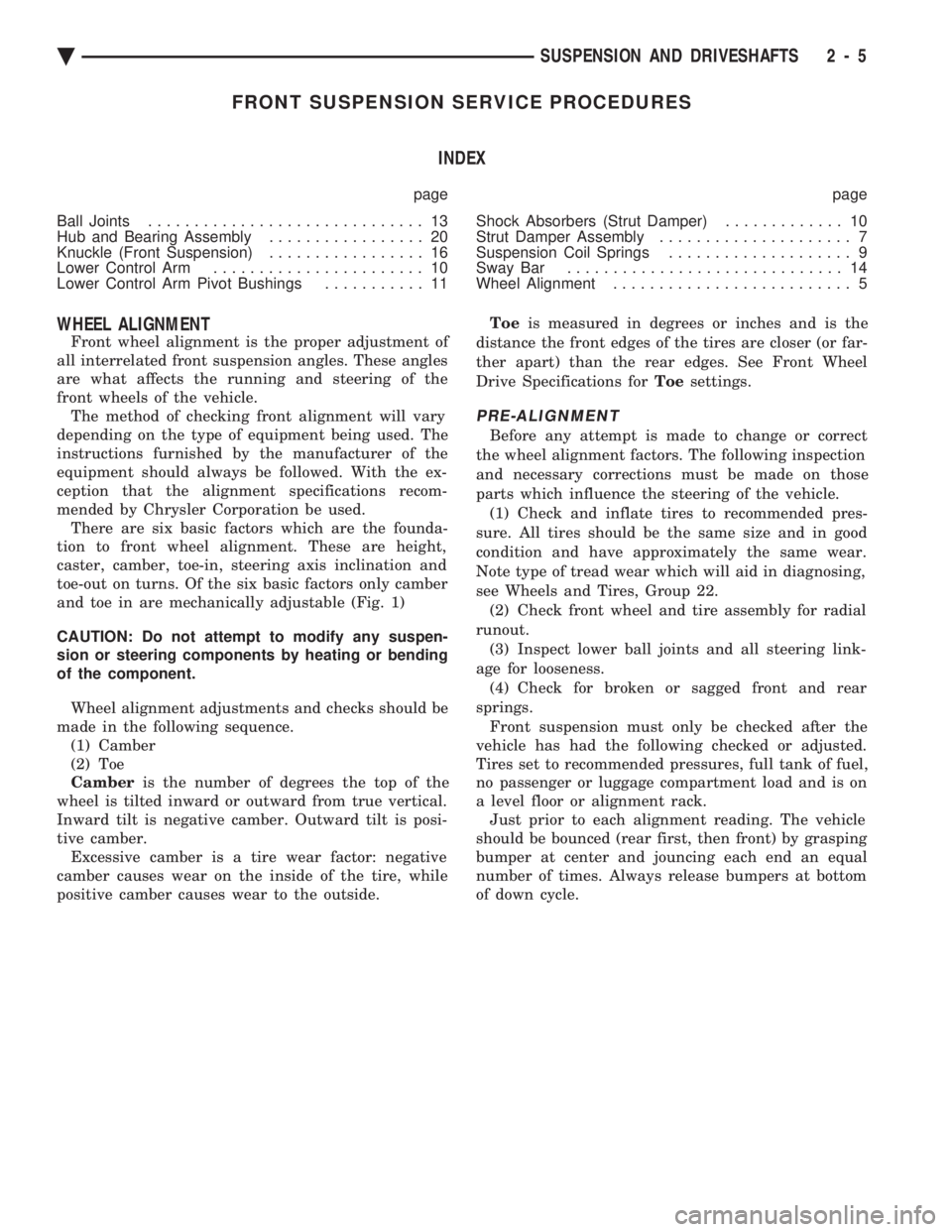

CHEVROLET DYNASTY 1993 Repair Manual FRONT SUSPENSION SERVICE PROCEDURES INDEX
page page
Ball Joints  .............................. 13
Hub and Bearing Assembly  ................. 20
Knuckle (Front Suspension)  ................. 16
L

Page 64 of 2438

CHEVROLET DYNASTY 1993 Repair Manual Fig. 1 Alignment Camber/Toe
2 - 6 SUSPENSION AND DRIVESHAFTS Ä

Page 65 of 2438

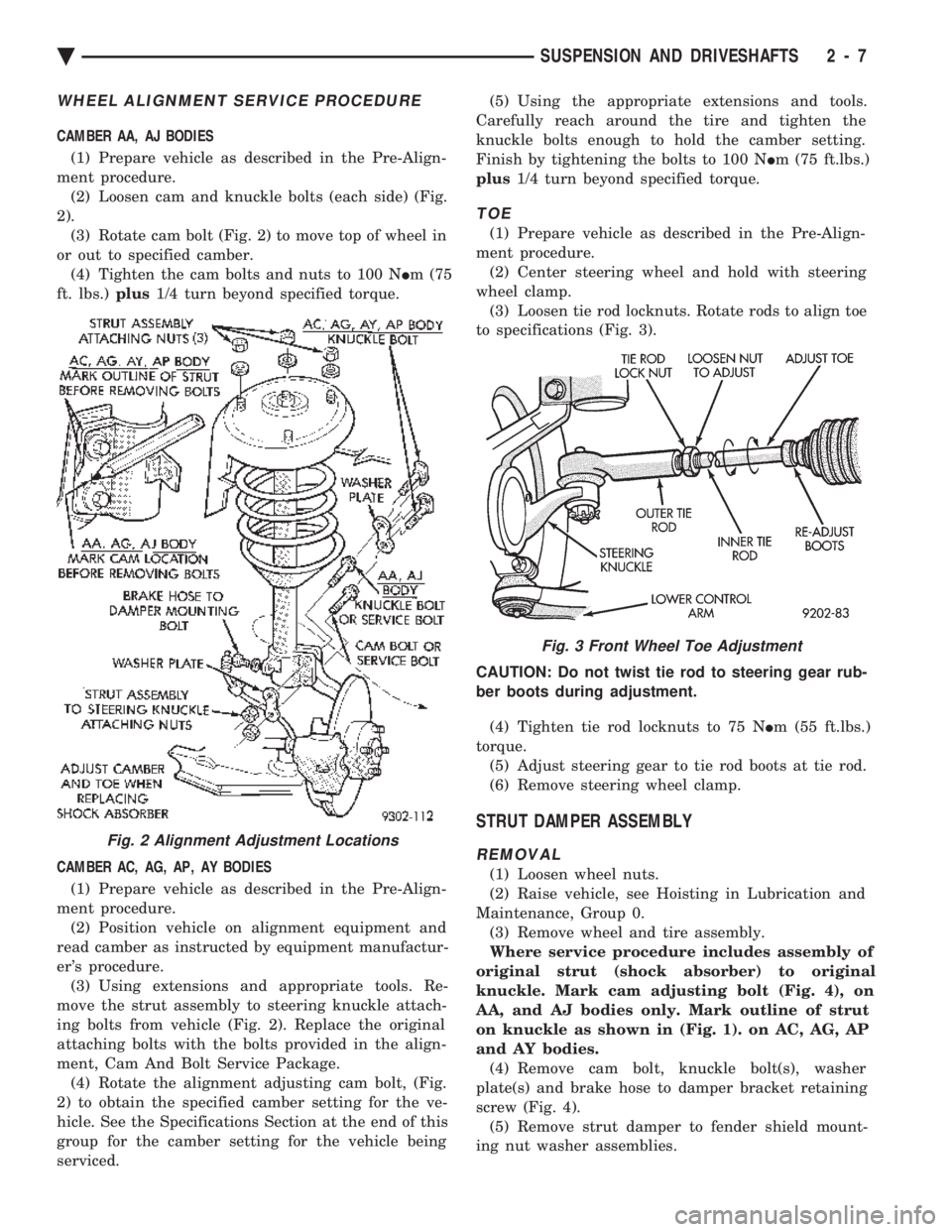

CHEVROLET DYNASTY 1993 Repair Manual WHEEL ALIGNMENT SERVICE PROCEDURE
CAMBER AA, AJ BODIES (1) Prepare vehicle as described in the Pre-Align-
ment procedure. (2) Loosen cam and knuckle bolts (each side) (Fig.
2). (3) Rotate cam bolt (F

Page 66 of 2438

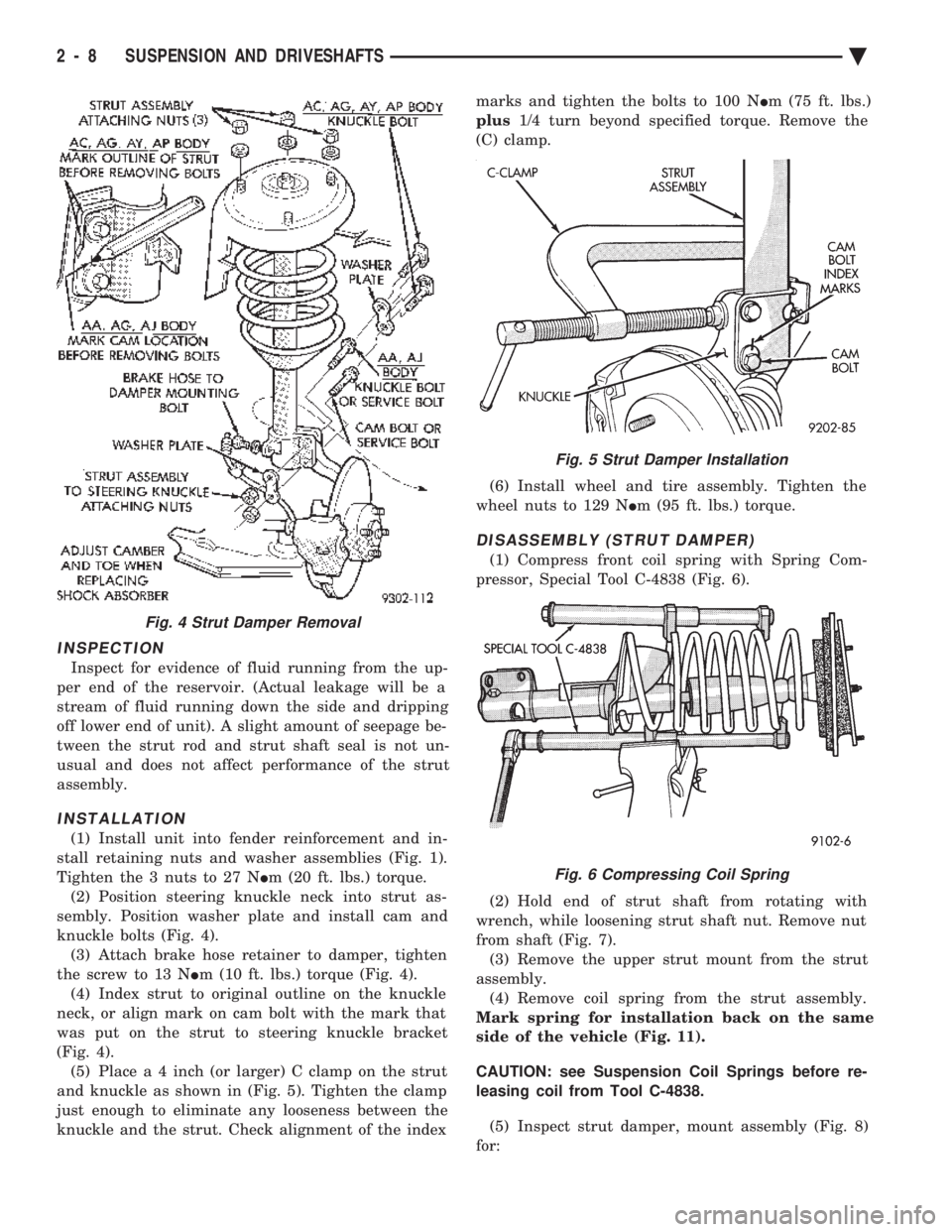

CHEVROLET DYNASTY 1993 Repair Manual INSPECTION
Inspect for evidence of fluid running from the up-
per end of the reservoir. (Actual leakage will be a
stream of fluid running down the side and dripping
off lower end of unit). A slight a

Page 67 of 2438

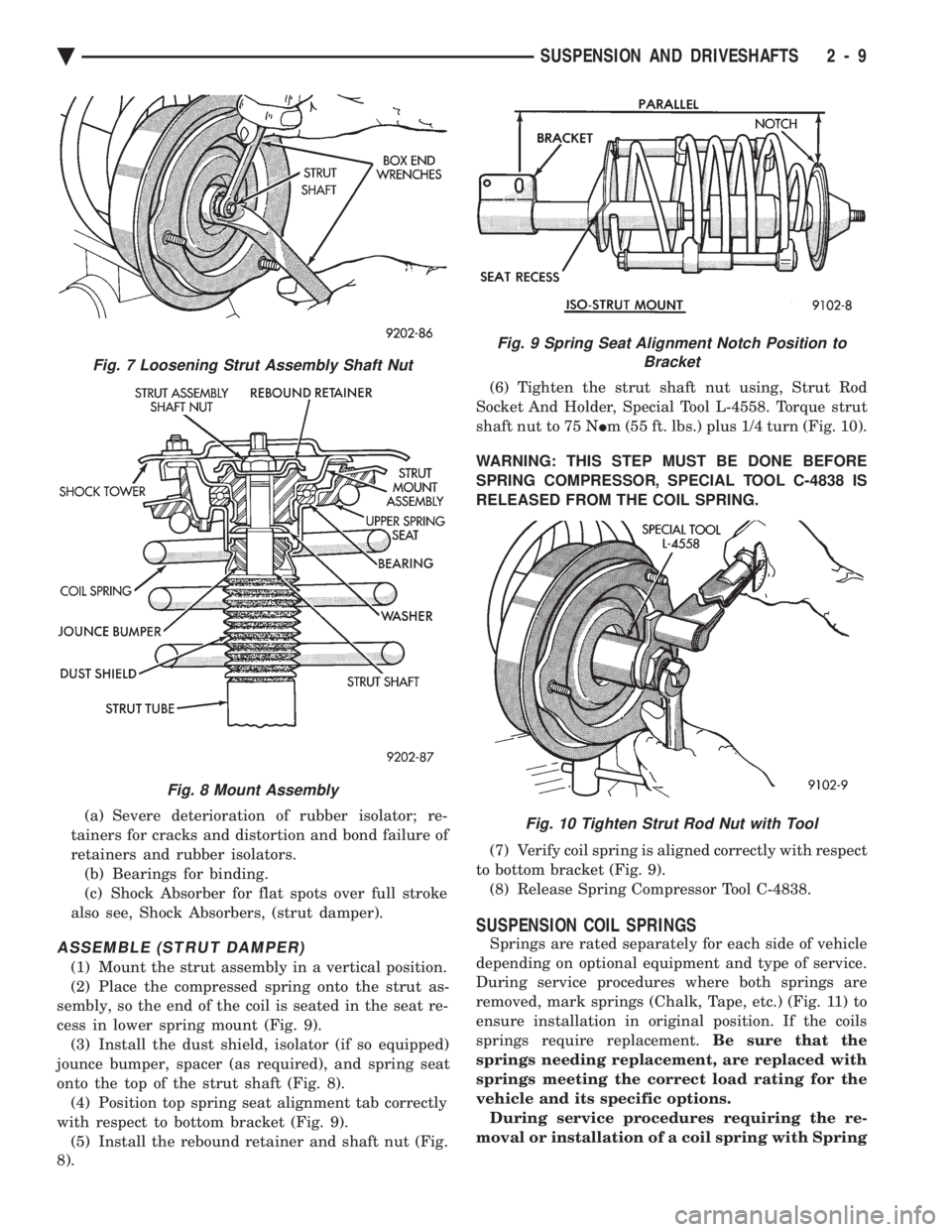

CHEVROLET DYNASTY 1993 Repair Manual (a) Severe deterioration of rubber isolator; re-
tainers for cracks and distortion and bond failure of
retainers and rubber isolators. (b) Bearings for binding.
(c) Shock Absorber for flat spots over

Page 68 of 2438

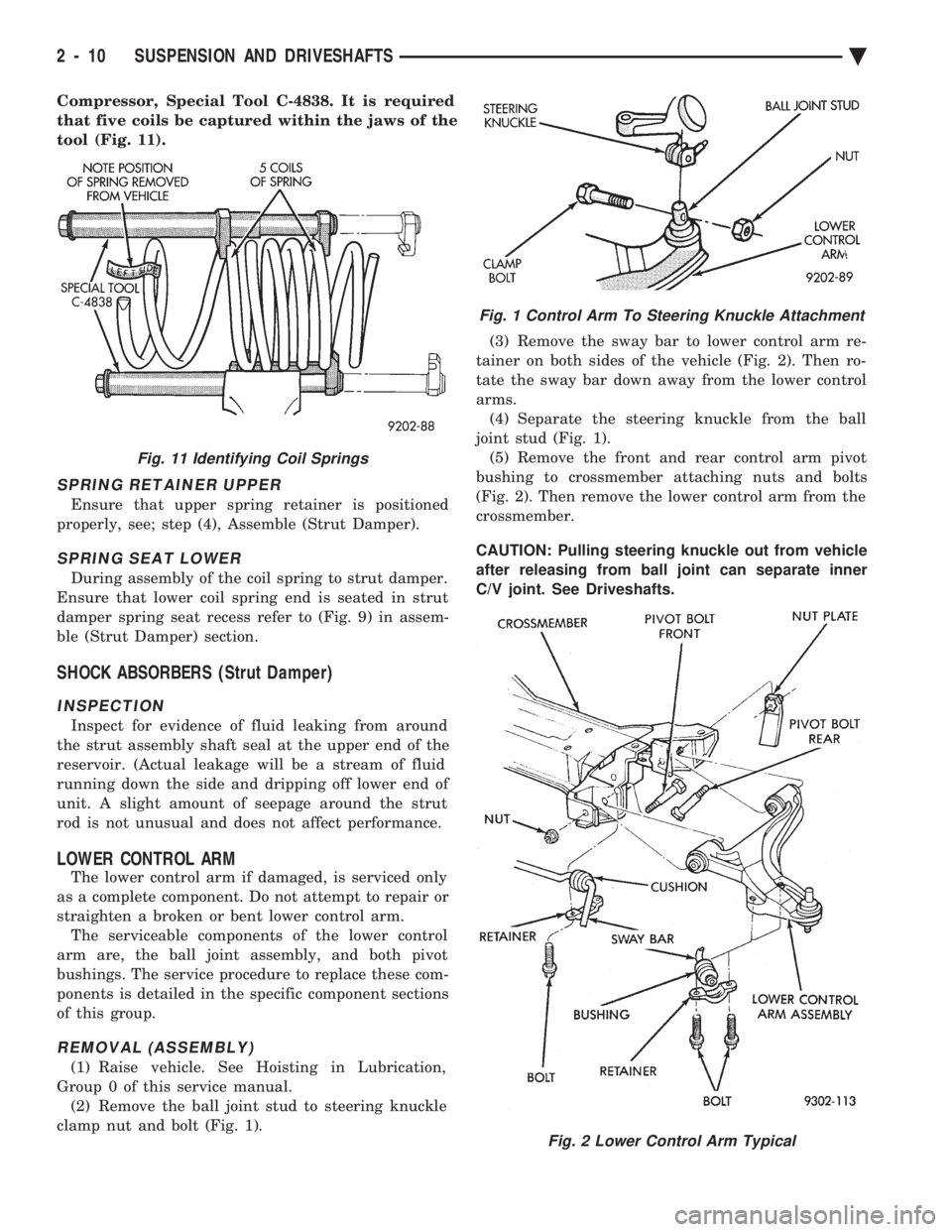

CHEVROLET DYNASTY 1993 Repair Manual Compressor, Special Tool C-4838. It is required
that five coils be captured within the jaws of the
tool (Fig. 11).
SPRING RETAINER UPPER
Ensure that upper spring retainer is positioned
properly, see;

Page 69 of 2438

CHEVROLET DYNASTY 1993 Repair Manual Inspect lower control arm for distortion. Check
bushings for severe deterioration.
INSTALLATION (ASSEMBLY)
(1) Position the lower control arm into the cross-
member. Install front and rear pivot bus

Page 70 of 2438

CHEVROLET DYNASTY 1993 Repair Manual (3) Install the tools assembled in step 2 above
through small lower control arm bushing and hole in
lower control arm where large bushing was removed
from (Fig. 6). Assemble the Cup, Special Tool 660
