Page 371 of 492

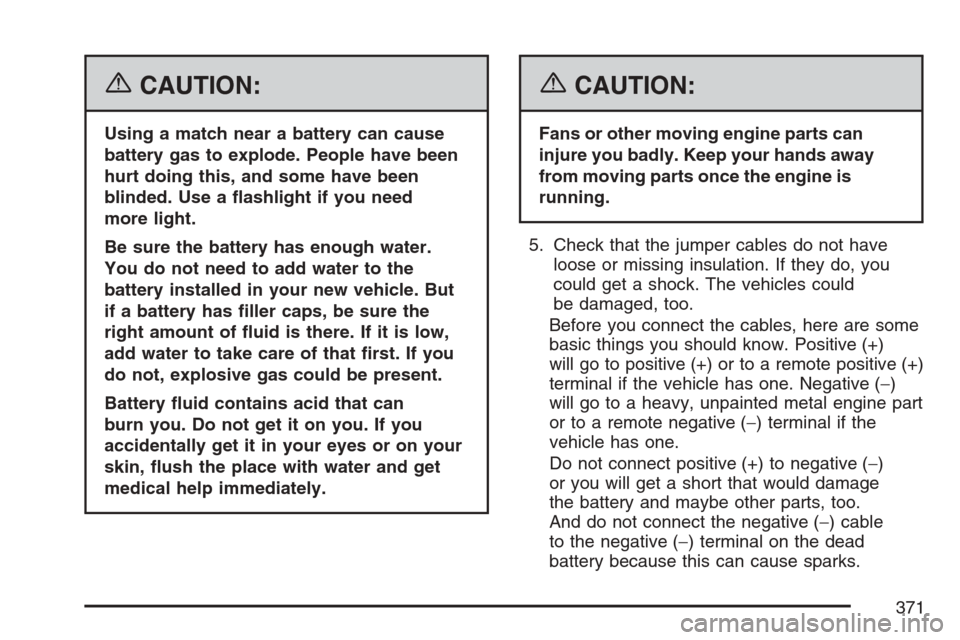

CHEVROLET EQUINOX 2007 1.G Owners Manual {CAUTION:
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a �ashlight if you need
more light.
Be sure the battery has e

Page 372 of 492

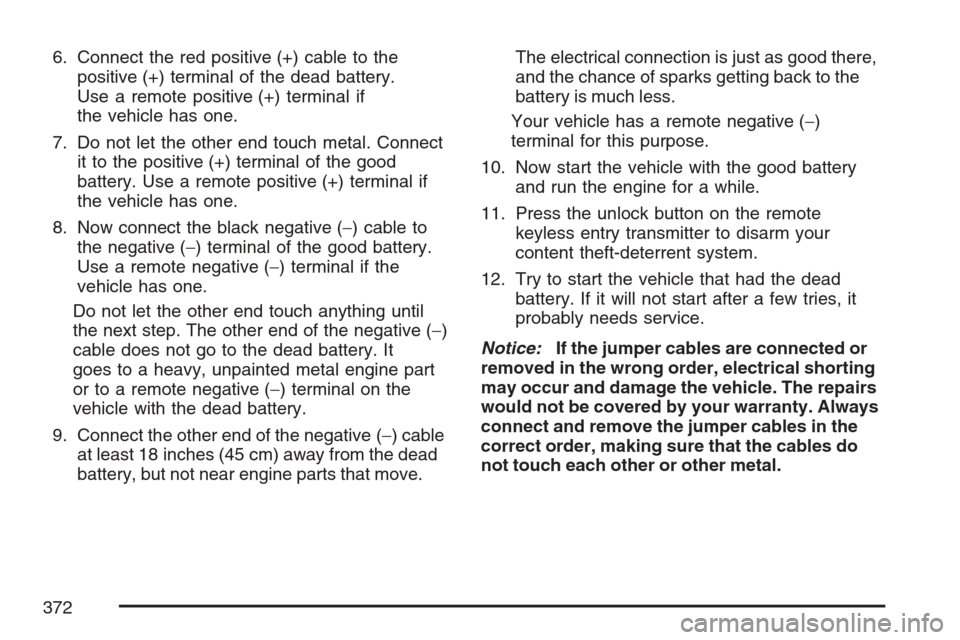

CHEVROLET EQUINOX 2007 1.G Owners Manual 6. Connect the red positive (+) cable to the
positive (+) terminal of the dead battery.
Use a remote positive (+) terminal if
the vehicle has one.
7. Do not let the other end touch metal. Connect
it t

Page 373 of 492

CHEVROLET EQUINOX 2007 1.G Owners Manual A. Heavy, Unpainted Metal Engine Part or
Remote Negative (−) Terminal
B. Good Battery or Remote Positive (+) and
Remote Negative (−) Terminals
C. Dead Battery or Remote Positive (+) TerminalTo dis

Page 374 of 492

CHEVROLET EQUINOX 2007 1.G Owners Manual All-Wheel Drive
If you have an all-wheel-drive vehicle, be sure to
perform the lubricant checks described in this
section. However, there are two additional systems
that need lubrication.
Transfer Cas

Page 375 of 492

CHEVROLET EQUINOX 2007 1.G Owners Manual Carrier Assembly-Differential
(Rear Drive Module)
When to Check and Change Lubricant
Refer to the Maintenance Schedule to determine
how often to check the lubricant and when to change
it. SeeScheduled

Page 376 of 492

CHEVROLET EQUINOX 2007 1.G Owners Manual Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb

Page 377 of 492

CHEVROLET EQUINOX 2007 1.G Owners Manual 4. Remove the three headlamp assembly
attachment screws.
5. Pull the radiator cover/front grill toward you
and pull the headlamp assembly up and out
from the vehicle.A. Parking Lamp
B. Sidemarker Lamp

Page 378 of 492

CHEVROLET EQUINOX 2007 1.G Owners Manual 6. Press the clip (A)
on the electrical
connector when
replacing the
low-beam or
high-beam bulb, then
pull it straight off.
Turn the bulb retaining ring (B)
counterclockwise to remove it and then
pull

Page 379 of 492

CHEVROLET EQUINOX 2007 1.G Owners Manual To replace one of these bulbs, do the following:
1. Open the liftgate. SeeLiftgate on page 107
for more information.
2. Remove the taillamp
screw covers and
then remove the
two screws.3. Carefully sli

Page 380 of 492

CHEVROLET EQUINOX 2007 1.G Owners Manual License Plate Lamp
To replace one of these bulbs, do the following:
1. Remove the two screws holding each of the
license plate lamps to the liftgate handle.
2. Turn and pull the license plate lamp dow
