CHEVROLET EQUINOX 2009 1.G Owners Manual

✍NOTES
3-3

Instrument Panel Overview
3-4

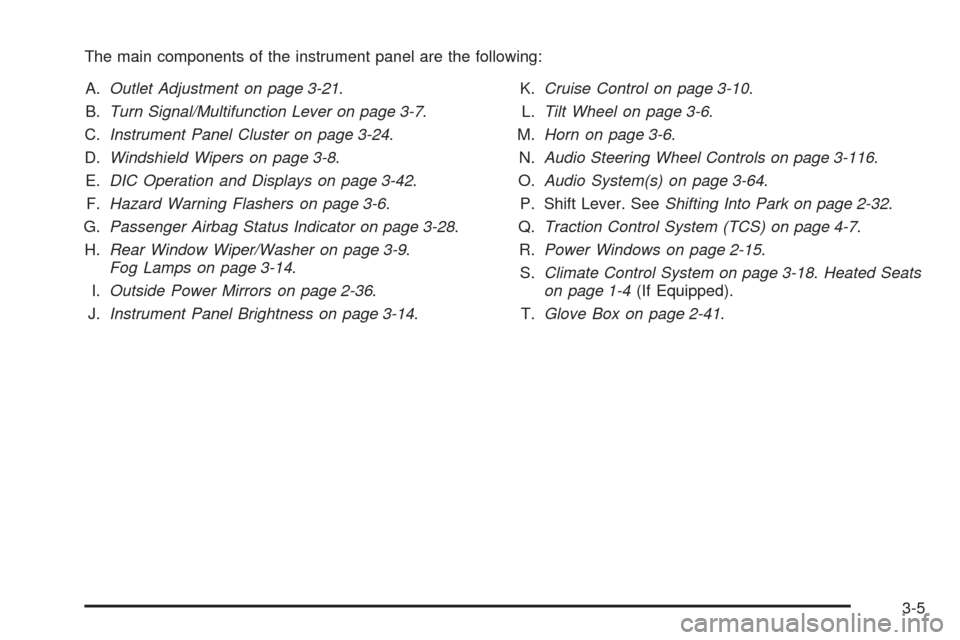

The main components of the instrument panel are the following:
A.Outlet Adjustment on page 3-21.
B.Turn Signal/Multifunction Lever on page 3-7.
C.Instrument Panel Cluster on page 3-24.
D.Windshield Wipers on page 3-8.
E.DIC Operation and Displays on page 3-42.
F.Hazard Warning Flashers on page 3-6.
G.Passenger Airbag Status Indicator on page 3-28.
H.Rear Window Wiper/Washer on page 3-9.
Fog Lamps on page 3-14.
I.Outside Power Mirrors on page 2-36.
J.Instrument Panel Brightness on page 3-14.K.Cruise Control on page 3-10.
L.Tilt Wheel on page 3-6.
M.Horn on page 3-6.
N.Audio Steering Wheel Controls on page 3-116.
O.Audio System(s) on page 3-64.
P. Shift Lever. SeeShifting Into Park on page 2-32.
Q.Traction Control System (TCS) on page 4-7.
R.Power Windows on page 2-15.
S.Climate Control System on page 3-18.Heated Seats
on page 1-4(If Equipped).
T.Glove Box on page 2-41.
3-5

Hazard Warning Flashers
|(Hazard Warning Flasher):Press this button
located on the instrument panel, to make the front and
rear turn signal lamps ash on and off. This warns
others that you are having trouble.
Press
|again to turn the ashers off.
Horn
Press near or on the horn symbols on the steering
wheel pad to sound the horn.
Tilt Wheel
The vehicle has a tilt wheel that lets the steering wheel
be adjusted.
The tilt lever is located on the left side of the steering
column.
To tilt the wheel, hold the steering wheel and push the
lever down. Then, move the steering wheel to a
comfortable position and pull the lever up rmly to lock
the column in place.
Do not adjust the steering wheel while driving.
3-6

Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
G:Turn and Lane-Change Signals
53:Headlamp High/Low-Beam Changer
O:Exterior Lamp Control
Flash-to-Pass.
Information for these features is on the pages following.
Turn and Lane-Change Signals
An arrow on the instrument
panel cluster ashes in the
direction of the turn or
lane change.
Move the lever all the way up or down to signal a turn.
When the turn is nished, the lever will return
automatically.
Raise or lower the lever until the indicator arrow on the
instrument panel starts to ash to signal a lane
change. Hold it there until the lane change is completed.
The lever will return by itself when it is released.
As you signal a turn or a lane change, if the arrows
ash rapidly, a signal bulb may be burned out and other
drivers will not see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when you
signal a turn, check the fuse, seeFuses and Circuit
Breakers on page 5-97and for burned-out bulbs.
3-7

Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high,
push the turn signal lever away from you. To change
from high beam to low beam, pull the turn signal
lever towards you. To ash the high beams from low
beam, pull the turn signal lever all the way towards you.
Then release it.
When the high beams are
on, this light on the
instrument panel cluster
will also be on.
Flash-to-Pass
This feature lets you use your high-beam headlamps to
signal a driver in front of you that you want to pass.
To ash the high beams from low beam, pull the turn
signal/multifunction lever all the way towards you.
Then release it.
Windshield Wipers
The windshield wiper lever is located on the right side of
the steering column.
Move the lever to the following positions:
1(High Speed):For steady wiping at high speed.
6(Low Speed):For steady wiping at low speed.
&(Delay):Sets a delay between wipes.
6(Delay Adjustment):Move the lever to the delay
position to choose a delayed wiping cycle. Turn
the intermittent adjust band down for a longer delay or
up for a shorter delay.
3-8

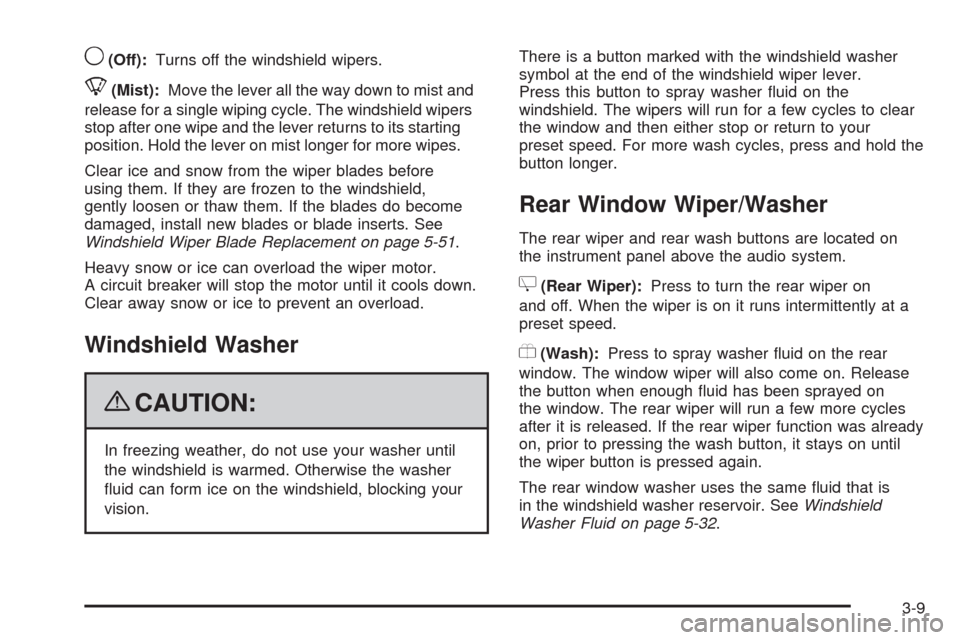

9(Off):Turns off the windshield wipers.
8(Mist):Move the lever all the way down to mist and
release for a single wiping cycle. The windshield wipers
stop after one wipe and the lever returns to its starting
position. Hold the lever on mist longer for more wipes.
Clear ice and snow from the wiper blades before
using them. If they are frozen to the windshield,
gently loosen or thaw them. If the blades do become
damaged, install new blades or blade inserts. See
Windshield Wiper Blade Replacement on page 5-51.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it cools down.
Clear away snow or ice to prevent an overload.
Windshield Washer
{CAUTION:
In freezing weather, do not use your washer until
the windshield is warmed. Otherwise the washer
uid can form ice on the windshield, blocking your
vision.There is a button marked with the windshield washer
symbol at the end of the windshield wiper lever.
Press this button to spray washer uid on the
windshield. The wipers will run for a few cycles to clear
the window and then either stop or return to your
preset speed. For more wash cycles, press and hold the
button longer.
Rear Window Wiper/Washer
The rear wiper and rear wash buttons are located on
the instrument panel above the audio system.
Z(Rear Wiper):Press to turn the rear wiper on
and off. When the wiper is on it runs intermittently at a
preset speed.
Y(Wash):Press to spray washer uid on the rear
window. The window wiper will also come on. Release
the button when enough uid has been sprayed on
the window. The rear wiper will run a few more cycles
after it is released. If the rear wiper function was already
on, prior to pressing the wash button, it stays on until
the wiper button is pressed again.
The rear window washer uses the same uid that is
in the windshield washer reservoir. SeeWindshield
Washer Fluid on page 5-32.
3-9

Cruise Control
Cruise control lets a speed of about 25 mph (40 km/h)
or more be maintained without keeping your foot on
the accelerator. Cruise control does not work at speeds
below 25 mph (40 km/h).
When the brakes are applied, the cruise control
shuts off.
If the vehicle is in cruise control and the Traction
Control System (TCS) begins to limit wheel spin, the
cruise control automatically disengages. SeeTraction
Control System (TCS) on page 4-7. When road
conditions allow, the cruise control can be used again.
{CAUTION:
Cruise control can be dangerous where you cannot
drive safely at a steady speed. So, do not use the
cruise control on winding roads or in heavy traffic.
Cruise control can be dangerous on slippery roads.
On such roads, fast changes in tire traction can
cause excessive wheel slip, and you could lose
control. Do not use cruise control on slippery roads.
{CAUTION:
If you leave your cruise control on when you are
not using cruise, you might hit a button and go into
cruise when you do not want to. You could be
startled and even lose control. Keep the cruise
control switch off until you want to use cruise
control.
The cruise control buttons
are located on the steering
wheel.
3-10

J(On/Off):Press to turn the cruise control system on
and off. The indicator light is on when cruise control
is on and turns off when cruise control is off.
+RES (Resume):Press to resume a set speed and to
accelerate the speed.
SET−(Set):Press to set a speed and to decrease the
speed.
[(Cancel):Press to cancel cruise control without
erasing the set speed from memory.
Setting Cruise Control
This instrument panel cluster lightJcomes on after
the cruise control has been set to the desired speed.
1. Press the on/off button to turn cruise control on.
2. Get up to the desired speed.
3. Press the SET−button and release it.
4. Take your foot off the accelerator pedal.
Resuming a Set Speed
If the cruise control is at a set speed and the brakes are
applied, this disengages the cruise control. The
instrument panel cluster light
Jalso goes out,
indicating cruise is no longer engaged. To return to the
previously set speed, it does not need to be reset.
Once the vehicle is going about 25 mph (40 km/h) or
more, press +RES. The vehicle goes back to the
previous set speed and stays there.
Increasing Speed While Using Cruise
Control
There are two ways to go to a higher speed.
Press and hold the +RES button until the desired
speed is reached, then release it.
To increase vehicle speed in small amounts, press
the +RES button. Each time this is done, the
vehicle goes about 1 mph (1.6 km/h) faster.
3-11

Reducing Speed While Using Cruise
Control
If the cruise control system is already engaged:
Press and hold the SET– button until the desired
lower speed is reached, then release it.
To slow down in small amounts, briey press SET−.
Each time this is done, the vehicle goes about
1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase the vehicle’s
speed. When you take your foot off the pedal, the
vehicle slows down to the cruise control speed that
was set earlier.
Using Cruise Control on Hills
How well the cruise control works on hills depends upon
the vehicle’s speed, load, and the steepness of the hills.
While going up steep hills, you might have to step on
the accelerator pedal to maintain the vehicle’s speed.While going downhill, you might have to brake or shift
to a lower gear to keep the vehicle at a lower speed.
However, when the brakes are applied the cruise control
turns off.
Ending Cruise Control
There are three ways to end cruise control:
Step lightly on the brake pedal.
Press theJbutton, to turn off the cruise control
system.
Press the[button.
When cruise control disengages, the cruise symbol
in the instrument panel cluster goes out.
Erasing Speed Memory
The cruise control set speed memory is erased when
the cruise control or the ignition is turned off.
3-12
