key CHEVROLET EXPRESS 1998 1.G Owner's Guide

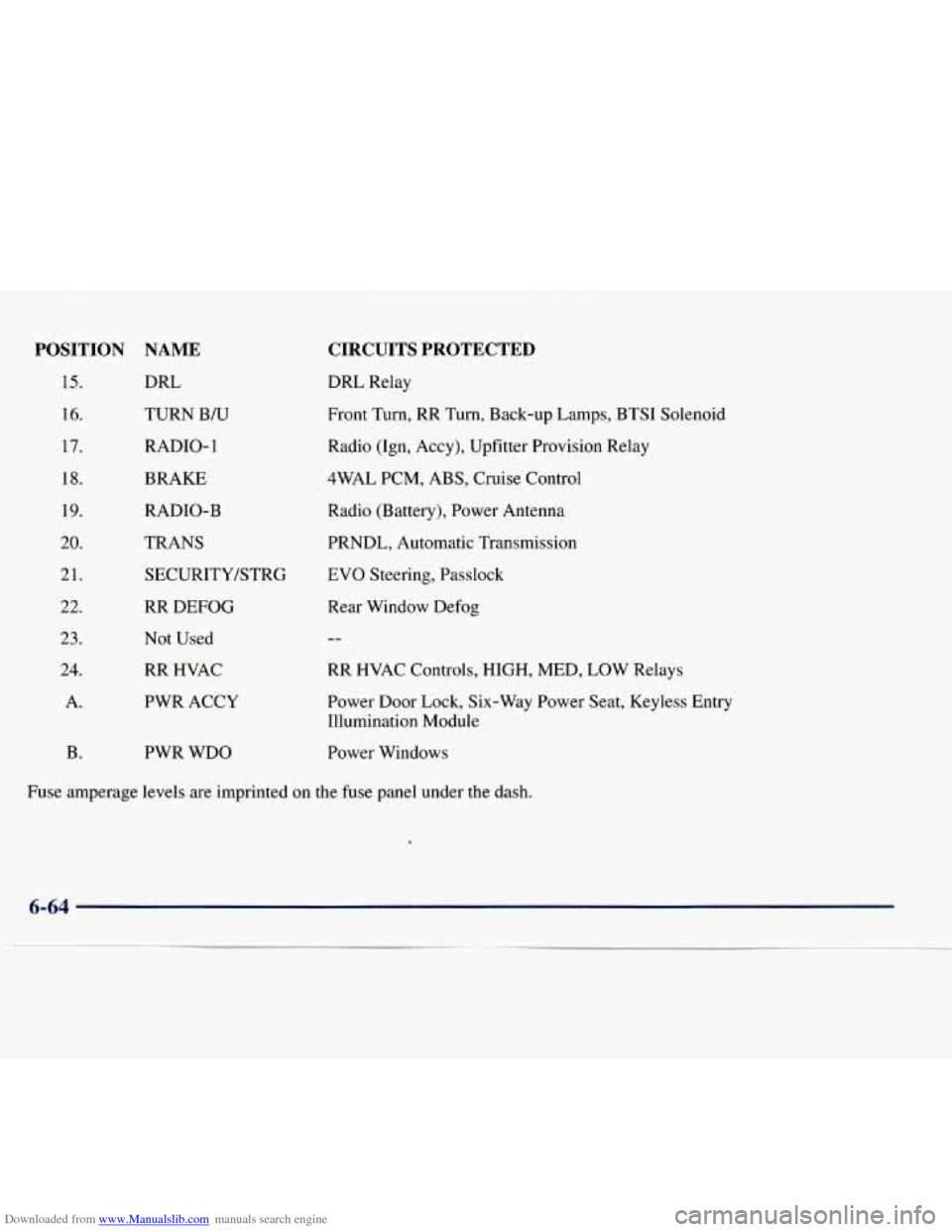

Downloaded from www.Manualslib.com manuals search engine POSITION
15.
16.
17.
18.
19.
20.
21.
22.
23.
24. A.
NAME
DRL
TURN B/U RADIO-
1
BRAKE
RADIO-B
TRANS SECURITYISTRG
RR
DEFOG
Not Used
FW HVAC
PWR ACCY
CIRCUITS PROTECTED
DRL Relay
Front Turn, RR Turn, Back-up Lamps,
BTSI Solenoid
Radio (Ign, Accy), Upfitter Provision Relav
4WAL PCM, ABS, Cruise Control
Radio (Battery), Power Antenna
PRNDL, Automatic Transmission
EVO Steering, Passlock
Rear Window Defog
RR HVAC Controls, HIGH, MED, LOW Relays Power Door Lock, Six-Way Power Seat, Keyless Entry
Illumination Module
B. PWR WDO Power Windows
Fuse amperage levels are imprinted
on the fuse panel under the dash.
6-64

Downloaded from www.Manualslib.com manuals search engine . .- . ,east Twice a Year Automatic Transmission Check

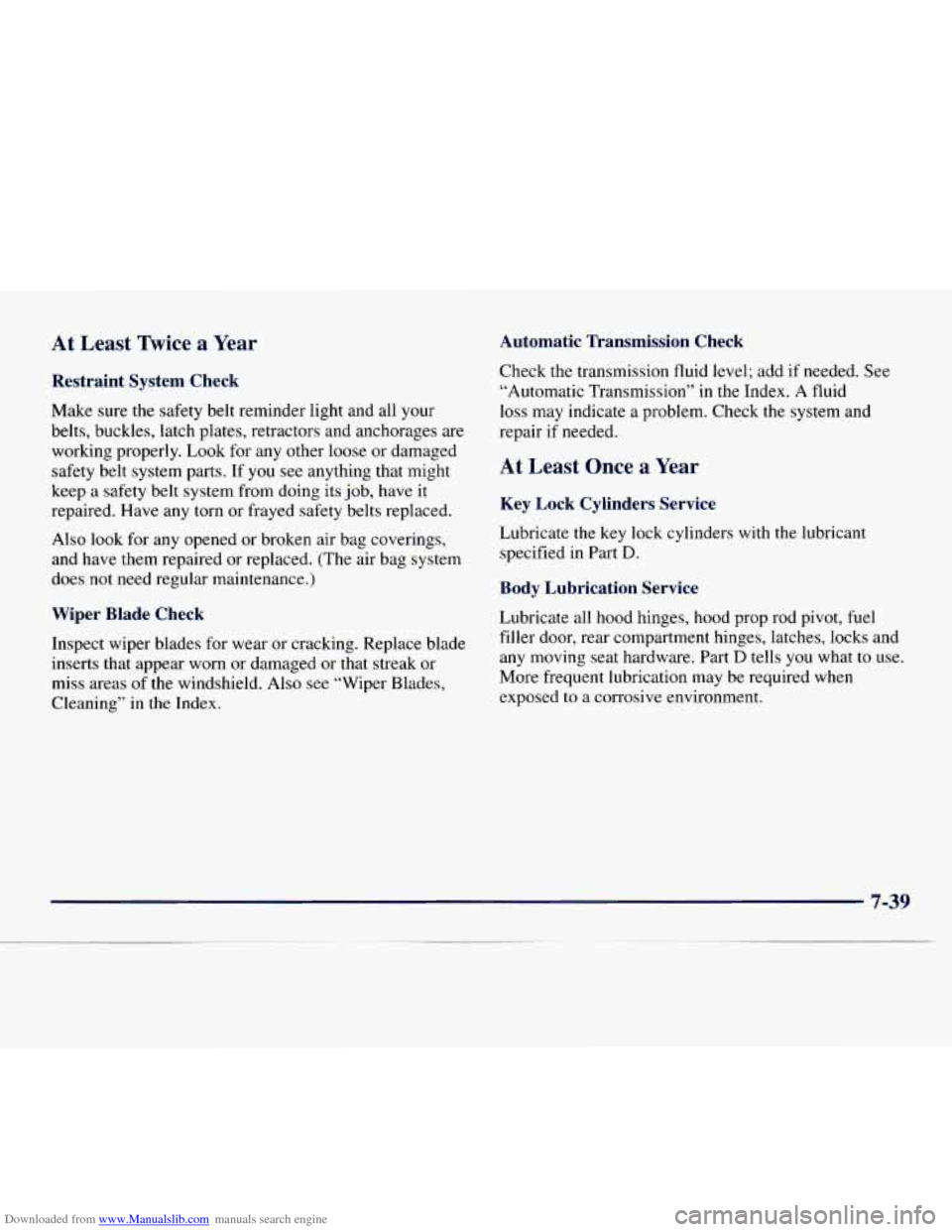

Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its
job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does
not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see “Wiper Blades,
Cleaning” in
the Index. Check the
transmission fluid level; add if needed. See
“Automatic Transmission” in the Index. A fluid
loss may indicate a problem. Check the system and
repair if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part
D.
Body Lubrication Service
Lubricate all hood hinges, hood prop rod pivot, fuel
filler door, rear compartment hinges, latches, locks and
any moving seat hardware. Part
D tells you what to use.
More frequent lubrication may be required when
exposed to a corrosive environment.

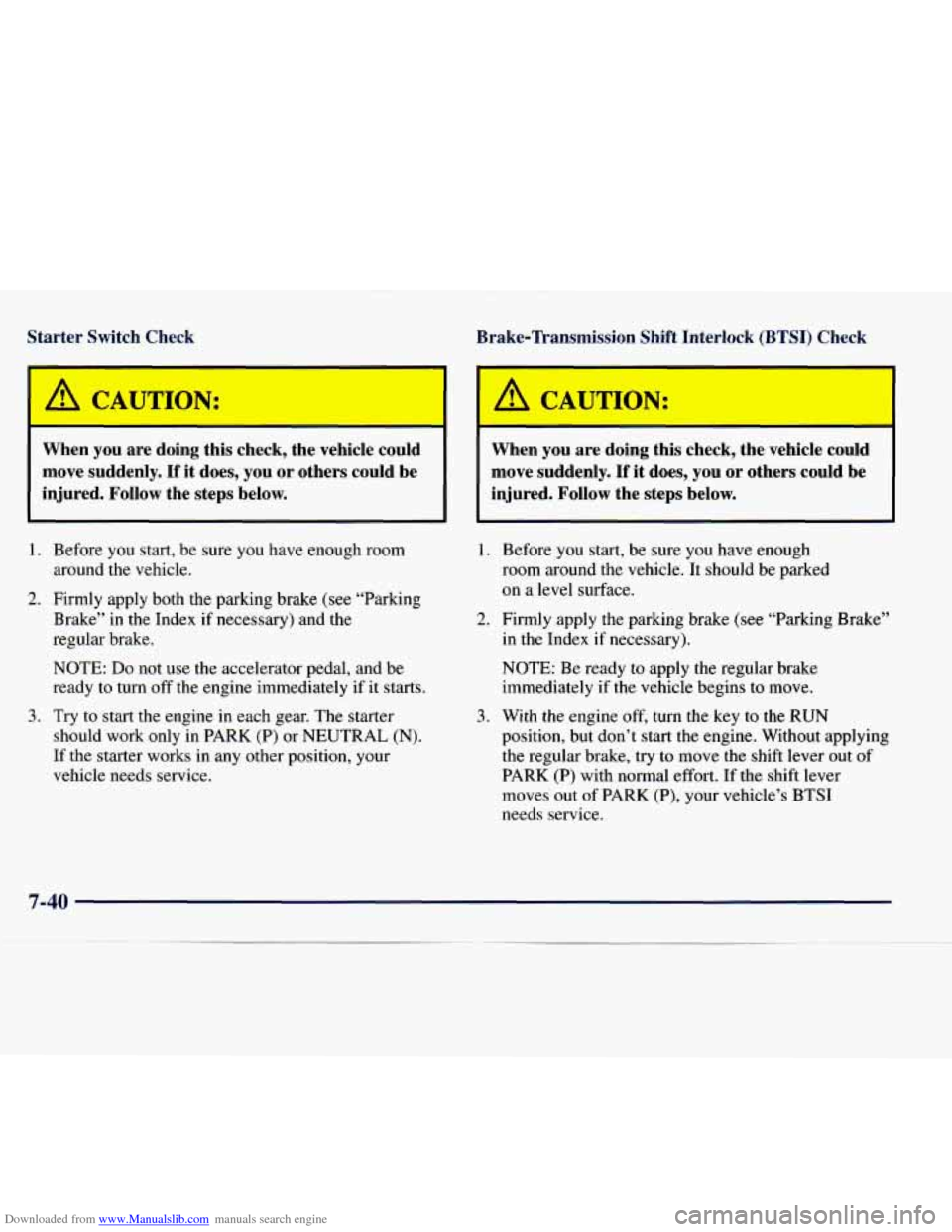

Downloaded from www.Manualslib.com manuals search engine Starter Switch Check Brake-Transmission Shift Interlock (BTSI) Check
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
2. Firmly apply both the parking brake (see “Parking
around the vehicle.
Brake” in the Index if necessary) and the
regular brake.
NOTE: Do not use the accelerator pedal, and be
ready to turn off the engine immediately if
it starts.
3. Try to start the engine in each gear. The starter
should work only in PARK (P) or
NEUTRAL (N).
If the starter works in any other position, your
vehicle needs service.
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be injured. Follow the steps below.
1 I
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on
a level surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try
to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle’s BTSI
needs service.
7-40

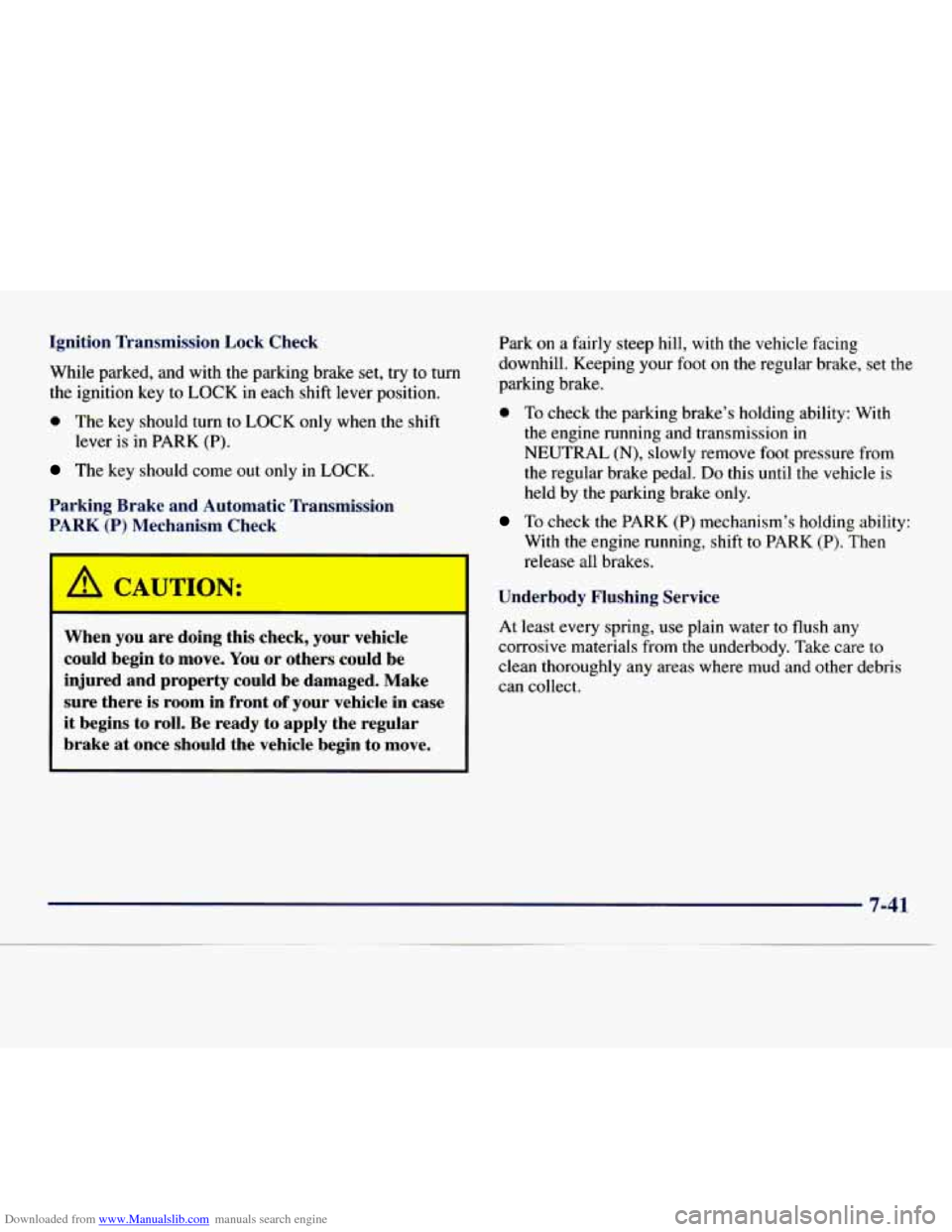

Downloaded from www.Manualslib.com manuals search engine Ignition Transmission Lock Check While parked, and with the parking brake
set, try to turn
the ignition key
to LOCK in each shift lever position,
0 The key should turn to LOCK only when the shift
lever
is in PARK (P).
The key should come out only in LOCK.
Parking Brake and Automatic Transmission
PARK (P) MerhslnicTn Vhmk
1 A CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there
is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move. Park
on a
fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
0 To check the parking brake’s holding ability: With
the engine running and transmission in
NEUTRAL
(N), slowly remove foot pressure from
the regular brake pedal.
Do this until the vehicle is
held by
the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift
to PARK (P). Then
release all brakes.
Underbody Flushing Service At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
7-4 1
__

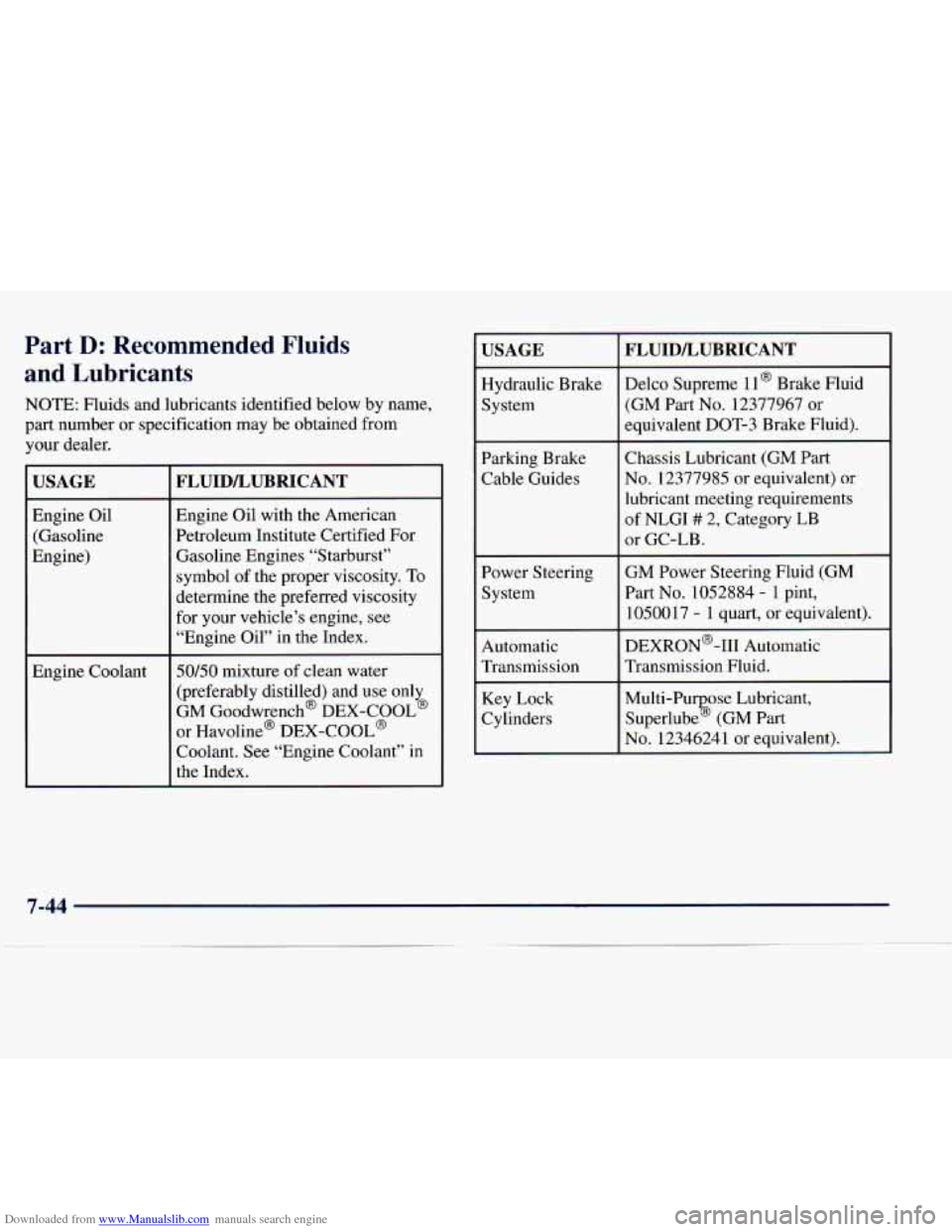

Downloaded from www.Manualslib.com manuals search engine Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
USAGE
Engine Oil
(Gasoline
Engine)
Engine Coolant
FLUIDLUBRICANT
Engine Oil with the American
Petroleum Institute Certified For Gasoline Engines “Starburst”
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL@
or Havoline@ DEX-COOL@
Coolant. See “Engine Coolant”
in
the Index.
USAGE FLUIDLUBRICANT
Hydraulic Brake Delco Supreme 11 @ Brake Fluid
System
(GM Part No. 12377967 or
equivalent DOT-3 Brake Fluid).
Parking Brake Chassis Lubricant (GM Part
Cable Guides
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI ## 2, Category LB
or GC-LB.
Power Steering GM
Power Steering Fluid
(GM
System Part No. 1052884 - 1 pint,
Automatic DEXRON@-I11
Automatic
Transmission Transmission
Fluid.
Key Lock Multi-Pu
ose Lubricant,
Cylinders Superlube
% (GM Part
1050017
- 1 quart, or equivalent).
No. 1234624 1 or equivalent).
7-44

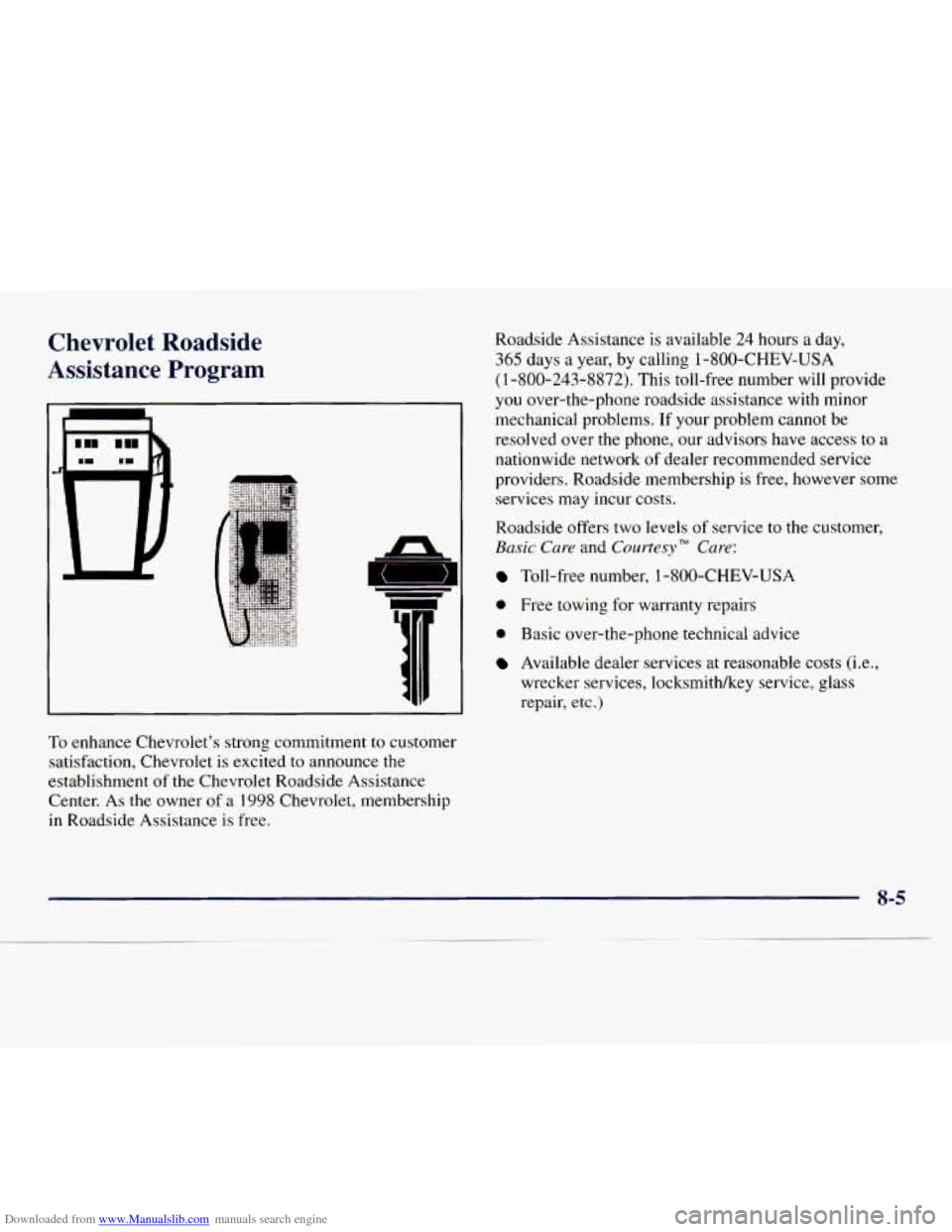

Downloaded from www.Manualslib.com manuals search engine Chevrolet Roadside
Assistance Program
To enhance Chevrolet’s strong commitment to customer
satisfaction, Chevrolet is excited
to announce the
establishment
of the Chevrolet Roadside Assistance
Center.
As the owner of a 1998 Chevrolet, membership
in Roadside Assistance is free. Roadside Assistance
is available
24 hours a day,
365 days a year, by calling 1-800-CHEV-USA
(1 -800-243-8872). This toll-free number will provide
you over-the-phone roadside assistance with minor
mechanical problems. If your problem cannot be
resolved over the phone, our advisors have access to
a
nationwide network of dealer recommended service
providers. Roadside membership is free, however some
services may incur costs.
Roadside offers two levels
of service to the customer,
Basic Care and Courtesy” Care:
Toll-free number, 1 -800-CHEV-USA
0 Free towing for warranty repairs
0 Basic over-the-phone technical advice
Available dealer services at reasonable costs (i.e,,
wrecker services, locksmithkey service, glass
repair, etc.)

Downloaded from www.Manualslib.com manuals search engine ROADSIDE Courtesy" Care PROVIDES:
a
a
a
a
a
a
Roadside Basic Care services (as outlined previously)
Plus:
FREE Non-Warranty Towing
(to the closest dealer
from
a legal roadway)
FREE LocksmithKey Service (when keys are lost
on the road or locked inside)
FREE Flat Tire Service (spare installed on the road)
FREE Jump Start (at home or on the road)
FREE Fuel Delivery
($5 of fuel delivered on
the road) Chevrolet
offers Courtesy Transportation for customers
needing warranty service. Courtesy Transportation will
be offered
in conjunction with the coverage provided by
the Bumper
to Bumper New Vehicle Limited Warranty
to eligible purchasers of 1998 Chevrolet passenger car
and light duty trucks. (Please see your selling dealer
for details.)
Note:
Courtesy Care is available to retail and retail lease
customers operating
1998 and newer Chevrolet vehicles
for a period of
3 years/36,000 miles (60 000 km),
whichever occurs first. All
Courtesy Care services must
be pre-arranged by Chevrolet Roadside or dealer
Service Management.
Basic Care and Courtesy Care are not part of or
included in the coverage provided
by the New Vehicle
Limited Warranty. Chevrolet reserves the right to
modify or discontinue
Basic Care and Courtesy Care
at any time.
8-6

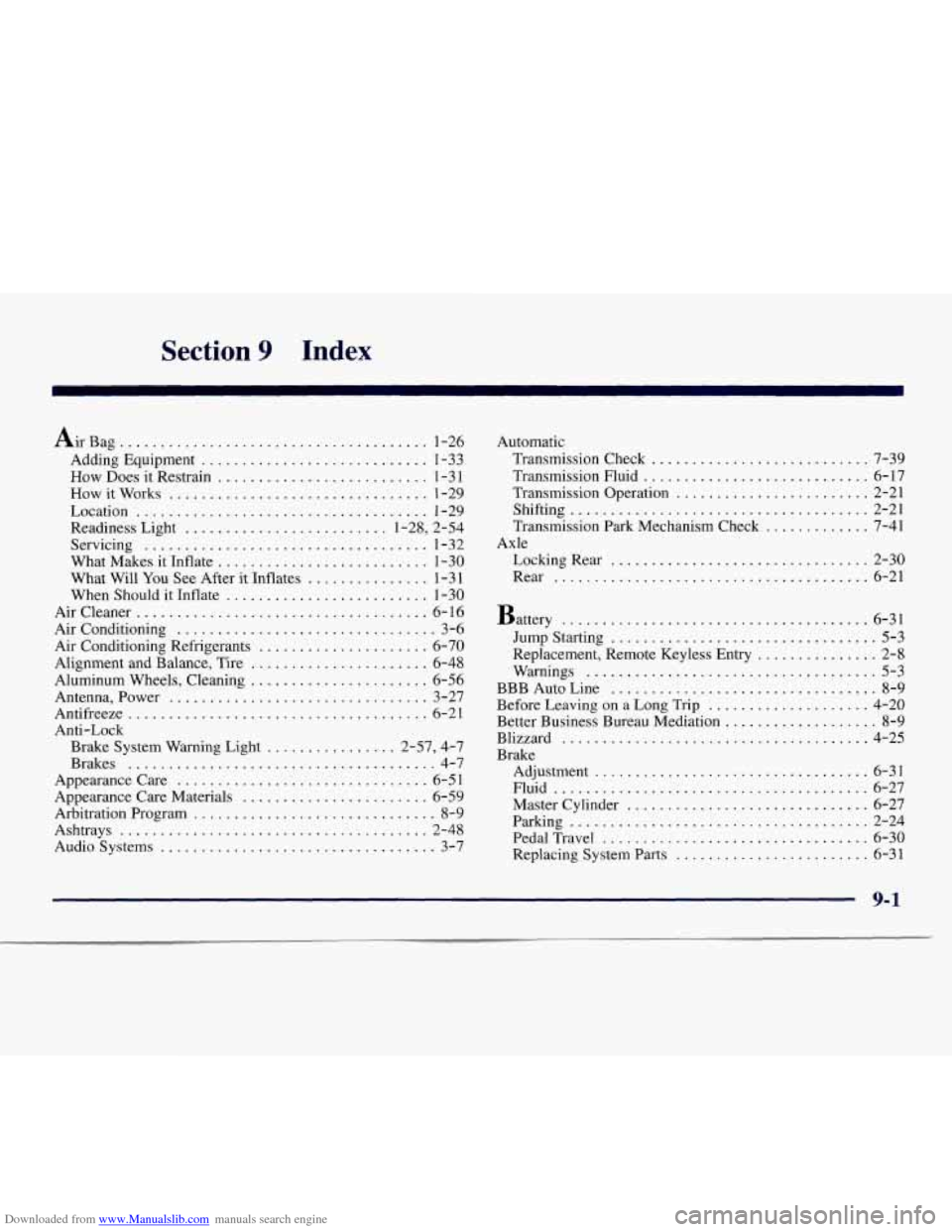

Downloaded from www.Manualslib.com manuals search engine Section 9 Index
Air Bag .......................
Adding Equipment .............
How Does it Restrain ...........
How it Works .................
Location .....................
Readiness Light ...............
Servicing ....................
What Makes it Inflate ...........
What Will You See After it Inflates
When Should it Inflate
..........
Aircleaner .....................
Air Conditioning ................
Air Conditioning Refrigerants ......
Alignment and Balance. Tire .......
Aluminum Wheels. Cleaning .......
Antenna. Power .................
Antifreeze ......................
Anti-Lock Brake System Warning Light
.....
Brakes ......................
Appearance Care ................
Appearance Care Materials ........
Arbitration Program ..............
Ashtrays .......................
Audio Systems ..................
............... 1-26
............... 1-33
............... 1-31
............... 1-29
............... 1-29
.......... 1.28. 2.54
............... 1-32
............... 1-30
............... 1-31
............... 1-30
............... 6-16
................ 3-6
............... 6-70
............... 6-48
............... 6-56
............... 3-27
............... 6-21
........... 2.57. 4.7
................ 4-7
............... 6-51
............... 6-59
................ 8-9
............... 2-48
................ 3-7 Automatic
Transmission Check
........................... 7-39
Transmission Fluid
............................ 6-17
Transmission Operation
........................ 2-21
Shifting
..................................... 2-21
Transmission Park Mechanism Check
............. 7-41
LockingRear
................................ 2-30
Rear
....................................... 6-21
Axle
Battery
...................................... 6-31
Jump Starting
................................. 5-3
Replacement. Remote Keyless Entry
............... 2-8
Warnings .................................... 5-3
BBB Auto Line
................................. 8-9
Before Leaving on a Long Trip
.................... 4-20
Better Business Bureau Mediation
................... 8-9
Blizzard ...................................... 4-25
Brake Adjustment
.................................. 6-31
Fluid
....................................... 6-27
Master Cylinder
.............................. 6-27
Parking
..................................... 2-24
PedalTravel
................................. 6-30
Replacing System Parts
........................ 6-31
9-1

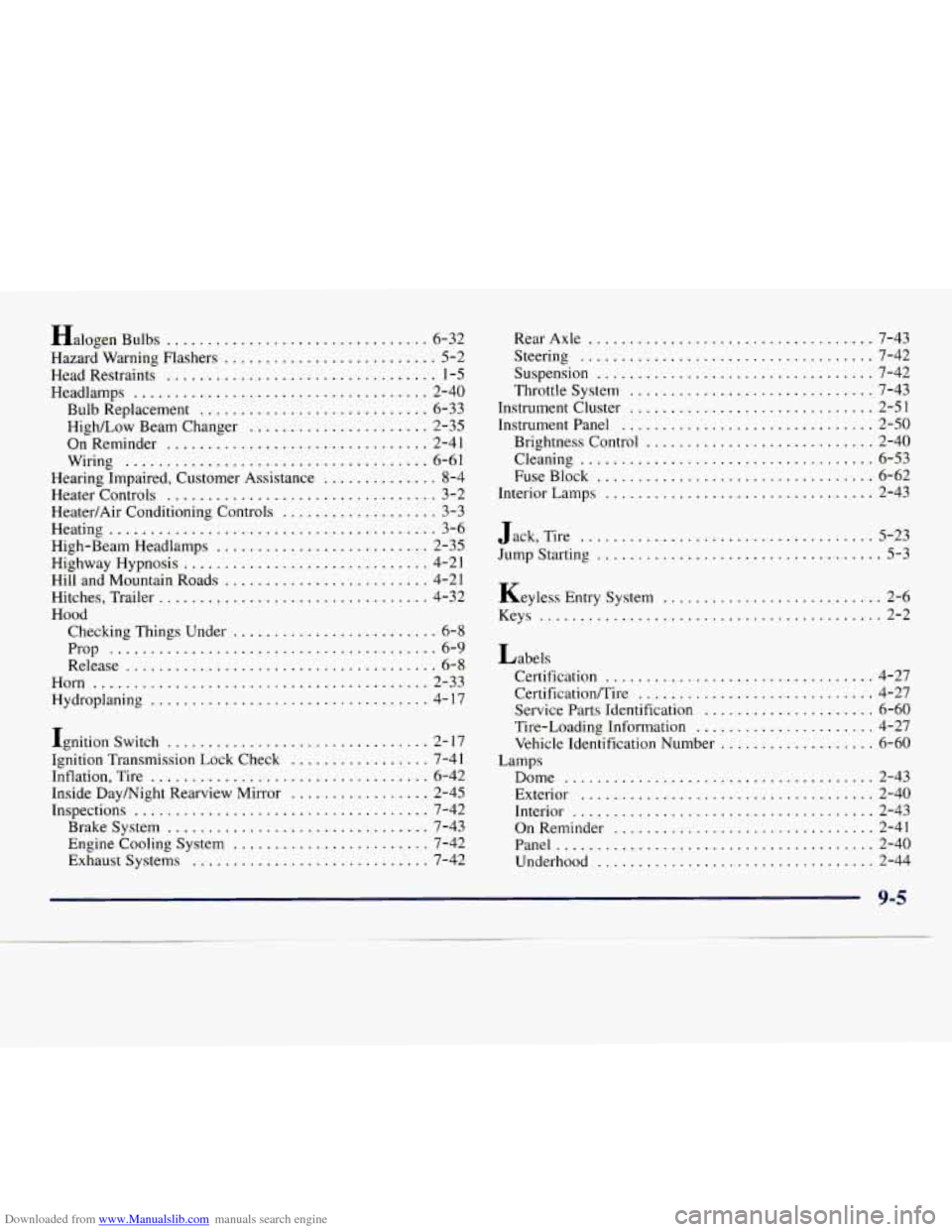

Downloaded from www.Manualslib.com manuals search engine Halogen Bulbs ................................ 6-32
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-5
Headlamps
.................................... 2-40
Bulb Replacement
............................ 6-33
High/Low Beam Changer
...................... 2-35
OnReminder
................................ 2-41
Wiring
..................................... 6-61
Hearing Impaired. Customer Assistance
.............. 8-4
Heater Controls
................................. 3-2
HeaterIAir Conditioning Controls
................... 3-3
Heating
........................................ 3-6
High-Beam Headlamps
.......................... 2-35
Highway Hypnosis
.............................. 4-2 I
Hill and Mountain Roads ......................... 4-21
Hitches. Trailer
................................. 4-32
Hood Checking Things Under
......................... (5-8
Prop ........................................ 6-9
Release
...................................... 6-8
Horn ......................................... 2-33
Hydroplaning
.................................. 4-17
Ignition Switch
................................ 2-17
Ignition Transmission Lock Check
................. 7-41
Inflation, Tire
.................................. 6-42
Inside Day/Night Rearview Mirror
................. 2-45
Inspections
.................................... 7- 42
Brakesystem
................................ 7-43
Engine Cooling System
........................ 7-42
Exhaust Systems
............................. 7-42 RearAxle
................................... 7-43
Steering
.................................... 7-42
Suspension
.................................. 7-42
Throttle System
.............................. 7-43
Instrument Cluster
.............................. 2-51
Instrument Panel
............................... 2-50
Brightness Control
............................ 2-40
FuseBlock
.................................. 6-62
Interior Lamps
................................. 2-43
Cleaning
.................................... 6-53
.................................... J ack.
Tire 5-23
Jump Starting
................................... 5-3
Keyless Entry System
........................... 2-6
Keys
.......................................... 2-2
Labels Certification
................................. 4-27
Certificationmire
............................. 4-27
Service
Parts Identification ..................... 6-60
Tire-Loading Information
...................... 4-27
Vehicle Identification Number
................... 6-60
Dome
...................................... 2-43
Exterior
.................................... 2-40
Interior
..................................... 2-43
OnReminder
................................ 2-41
Panel
....................................... 2-40
Underhood
.................................. 2-44
Lamps

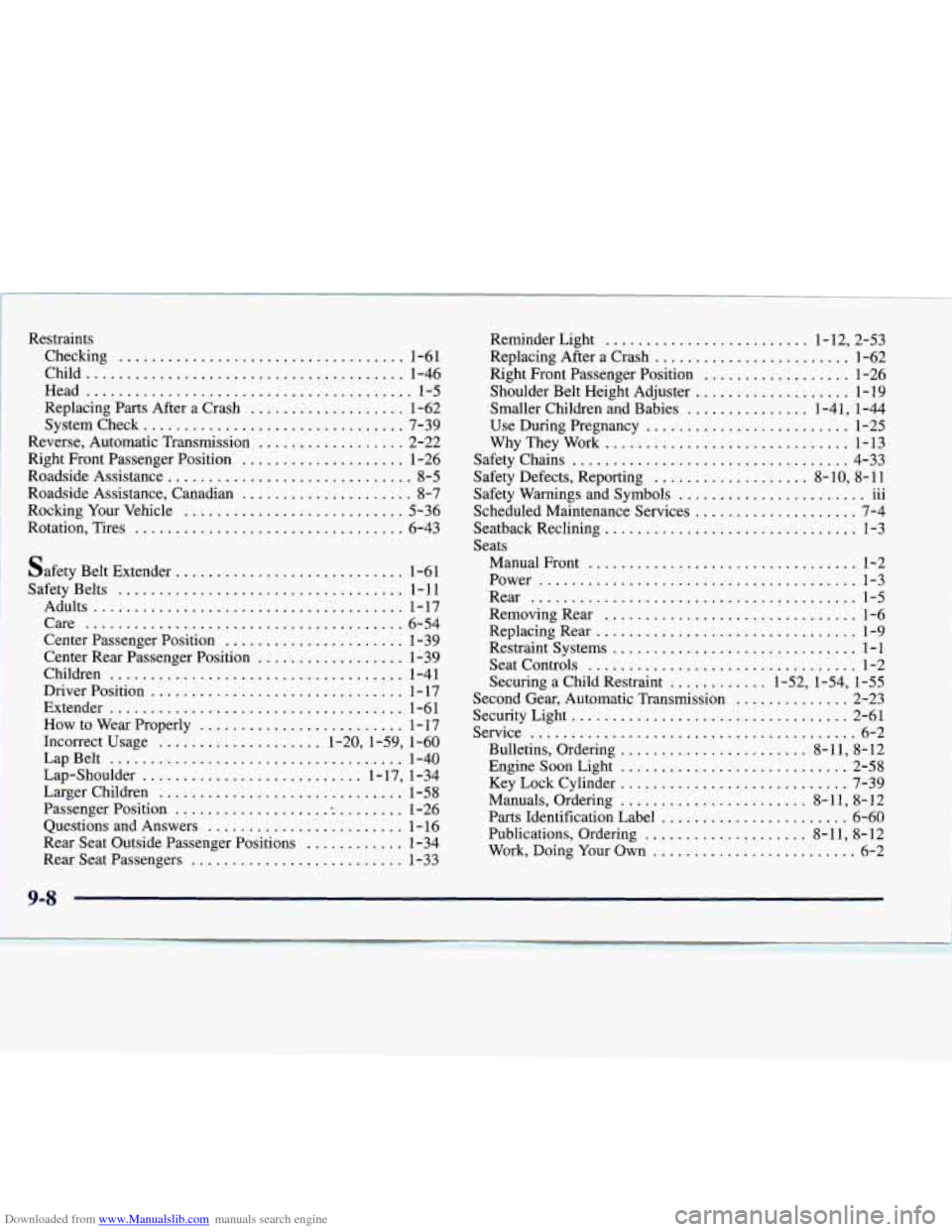

Downloaded from www.Manualslib.com manuals search engine Restraints Checking
................................... 1-6 1
Child
....................................... 1-46
Replacing Parts After a Crash
................... 1-62
System Check
................................ 7-39
Reverse. Automatic Transmission
.................. 2-22
Right Front Passenger Position
.................... 1-26
Roadside Assistance
.............................. 8-5
Roadside Assistance. Canadian
..................... 8-7
Rocking Your Vehicle
........................... 5-36
Rotation. Tires
................................. 6-43
Head
........................................ 1-5
Safety Belt Extender
............................ 1-61
Safety Belts
................................... 1-1 1
Adults
...................................... 1-17
Center Passenger Position
...................... 1-39
Center Rear Passenger Position
.................. 1-39
Driver Position
............................... 1-17
How to Wear Properly
......................... 1 - 17
Incorrect Usage
.................... 1-20, 1-59, 1-60
Lap-Shoulder
........................... 1-17, 1-34
Larger Children
.............................. 1-58
Questions and Answers
........................ 1 - 16
Rear Seat Outside Passenger Positions
............ 1-34
Rear Seat Passengers
.......................... 1-33
Care
....................................... 6-54
Children
.................................... l-41
Extender ..........,......................... l-61
LapBelt .................................... l-40
Passenger Position ............................. 1-26 Reminder Light
......................... 1 . 12.
2.53
Replacing After a Crash
........................ 1-62
Right Front Passenger Position
.................. 1-26
Shoulder Belt Height Adjuster
................... 1-19
Smaller Children and Babies
............... 1-41. 1-44
Use During Pregnancy
......................... 1-25
WhyTheyWork
.............................. 1-13
Safety Chains
.................................. 4-33
Safety Defects. Reporting
................... 8-10. 8-11
Safety Warnings and Symbols
....................... iii
Scheduled Maintenance Services .................... 7-4
Seatback Reclining
............................... 1-3
Seats ManualFront
................................. 1-2
Power
....................................... l-3
Rear ........................................ l-5
Removing Rear ............................... 1-6
Replacing Rear
................................ 1-9
Restraint Systems .............................. 1-1
Seat Controls ................................. 1-2
Securing a Child Restraint
............ 1-52, 1-54, 1-55
Second Gear, Automatic Transmission
.............. 2-23
Security Light
.................................. 2-61
Bulletins, Ordering
....................... 8-1 1, 8- 12
Engine
Soon Light ............................ 2-58
Key Lock Cylinder
............................ 7-39
Manuals, Ordering
....................... 8- 1 1, 8- 12
Parts Identification Label
....................... 6-60
Publications, Ordering
.................... 8- 11, 8- 12
Work, Doing Your Own
......................... 6-2
Service
........................................ 6-2
9-8
