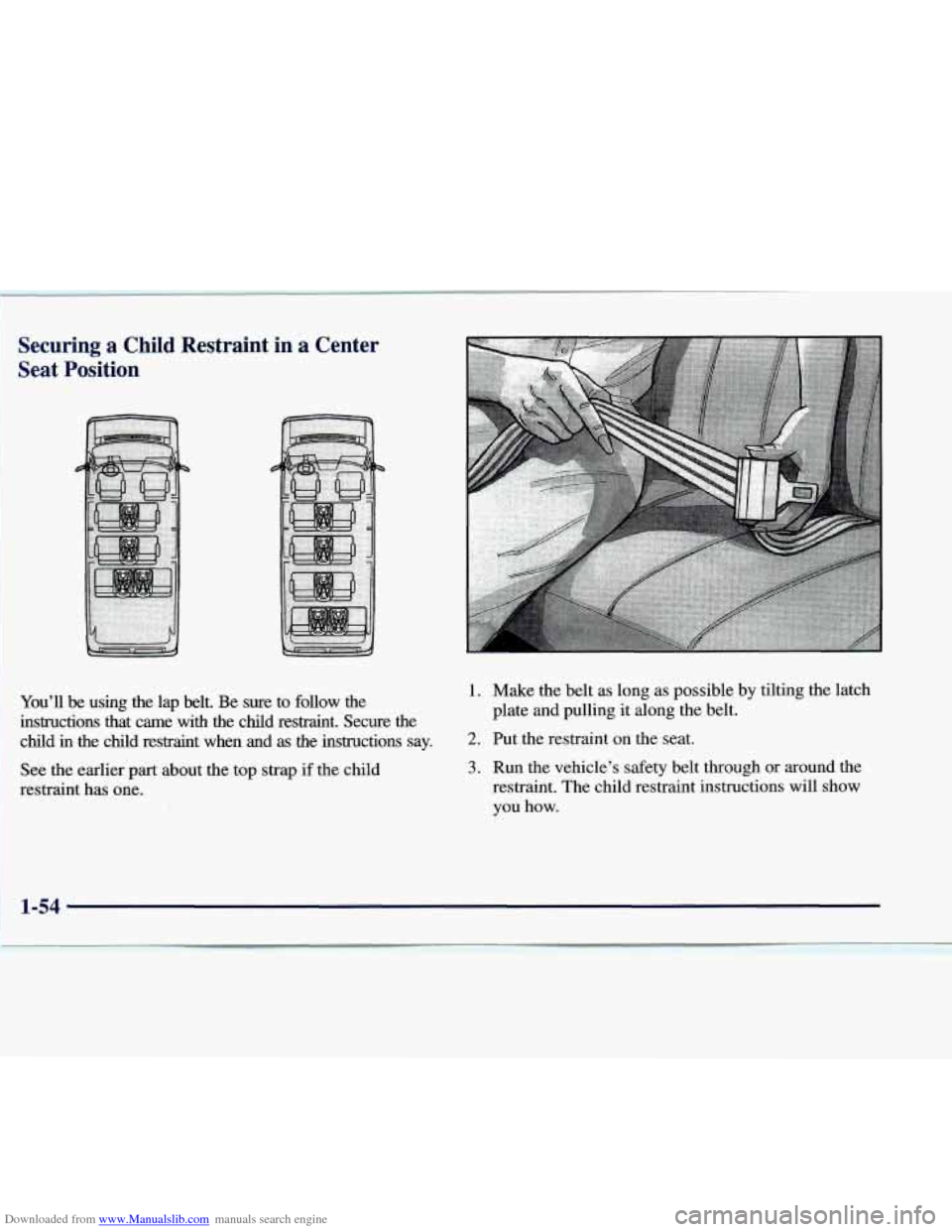

CHEVROLET EXPRESS 1998 1.G Repair Manual

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in a Center
Seat Position
You'll be using the lap belt. Be sure to follow the
instructions that came with the child restraint. Secure the
child
in the child restraint when and as the instructions say.
See the earlier part about the top strap if the child
restraint has one.
1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.
3. Run the vehicle's safety belt through or around the
restraint. The child restraint instructions will show
you how.
1-54

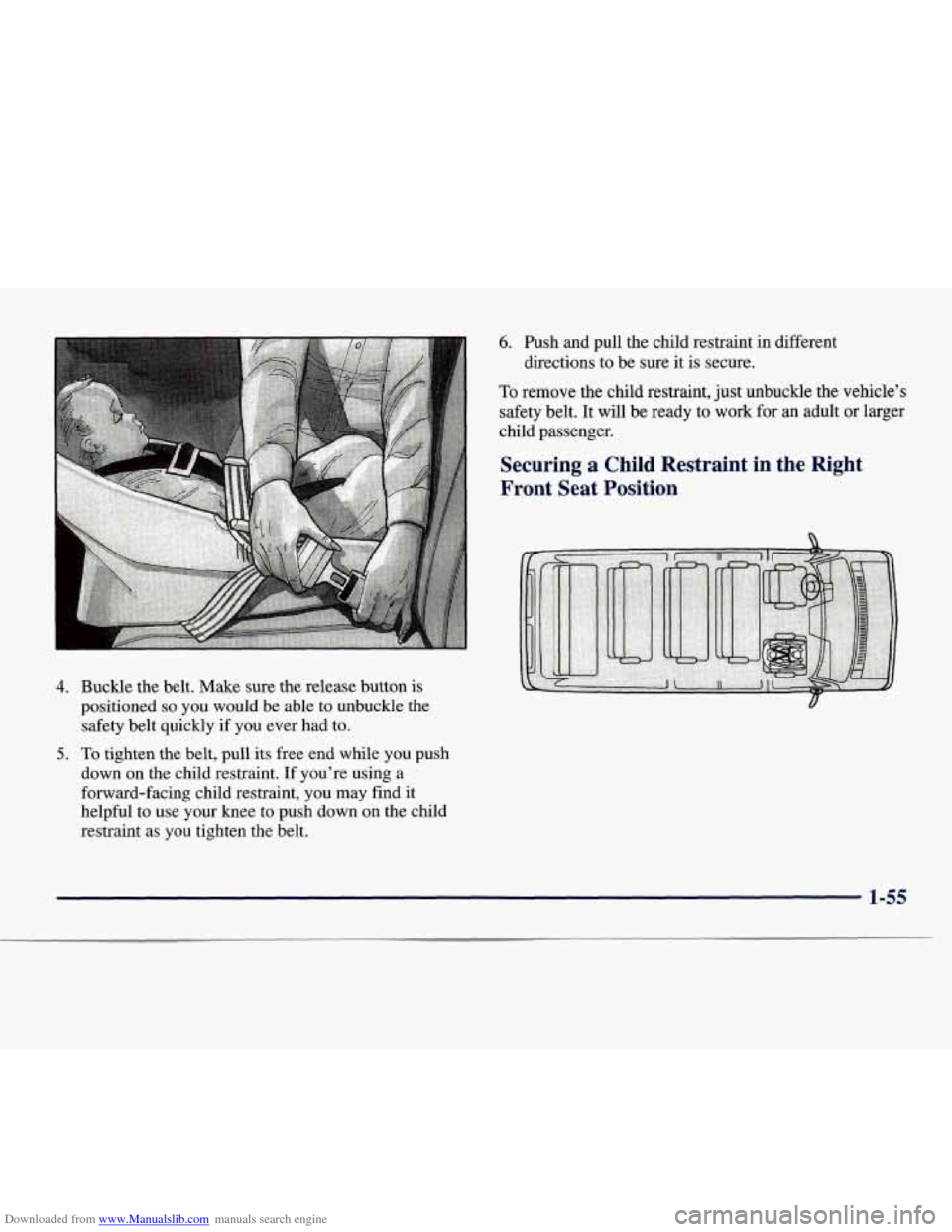

Downloaded from www.Manualslib.com manuals search engine 4.
5.
Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
To tighten the belt, pull its free end while you push
down on the child restraint. If you’re using a
forward-facing child restraint, you may find it
helpful to use your knee to push down on the child
restraint as you tighten the belt.
6. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It will be ready to work for
an adult or larger
child passenger.
Securing a Child Restraint in the Right
Front
Seat Position
directions to be sure it is secure.
1-55

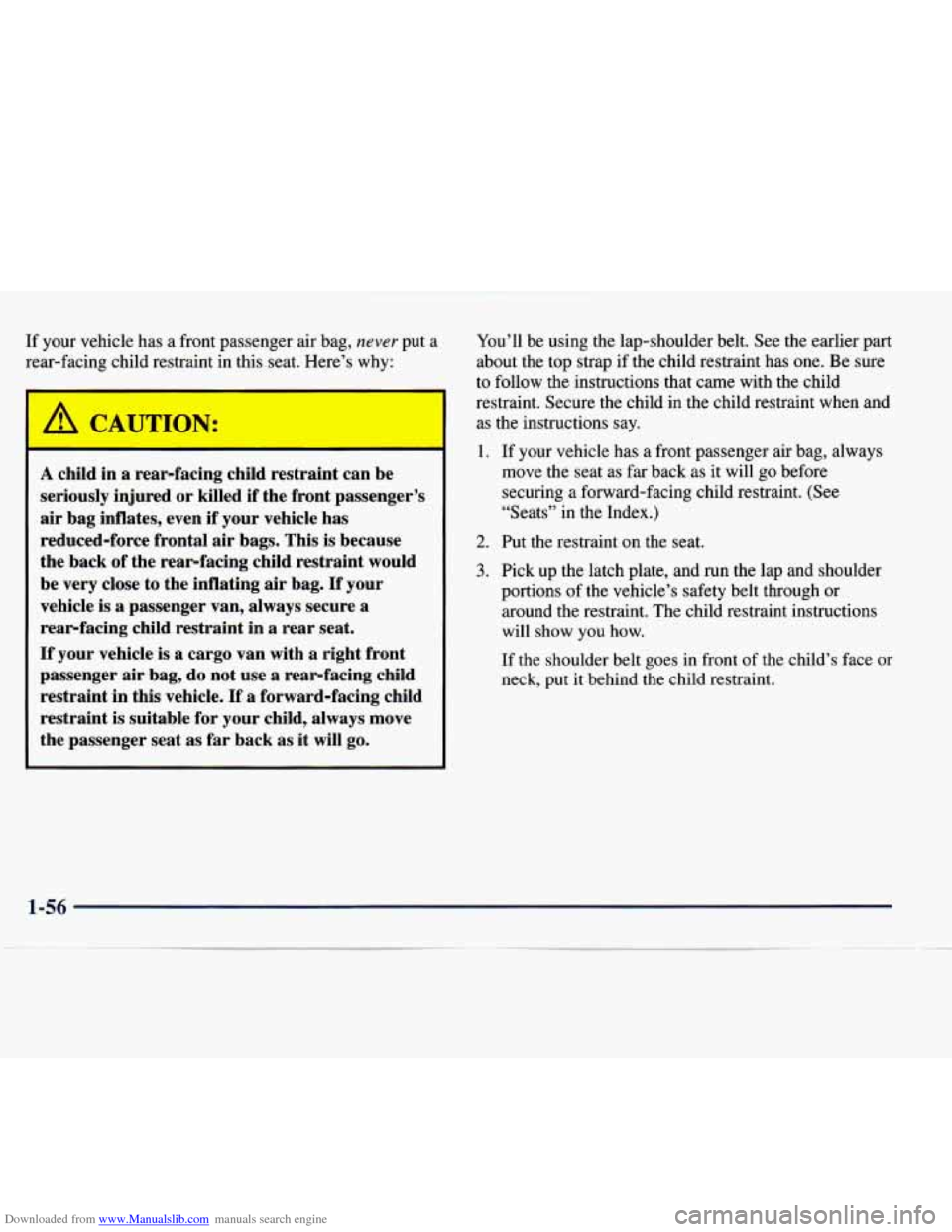

Downloaded from www.Manualslib.com manuals search engine If your vehicle has a front passenger air bag, never put a
rear-facing child restraint in this seat. Here’s
why:
A child in a rear-facing child restraint can be
seriously injured or killed if the front passenger’s
air bag inflates, even if your vehicle has
reduced-force frontal air bags. This is because
the back of the rear-facing child restraint would
be very close to the inflating air bag.
If your
vehicle
is a passenger van, always secure a
rearfacing child restraint in a rear seat.
If your vehicle is a cargo van with a right front
passenger
air bag, do not use a rear-facing child
restraint in this vehicle.
If a forward-facing child
restraint
is suitable for your child, always move
the passenger seat as
far back as it will go. You’ll be using the lap-shoulder belt. See
the earlier part
about the top strap
if the child restraint has one. Be sure
to follow the instructions that came with the child
restraint. Secure the child in the child restraint when and
as the instructions say.
1.
2.
3.
If your vehicle has a front passenger air bag, always
move the seat as
far back as it will go before
securing
a forward-facing child restraint. (See
“Seats” in the Index.)
Put the restraint on the seat.
Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint.
1-56

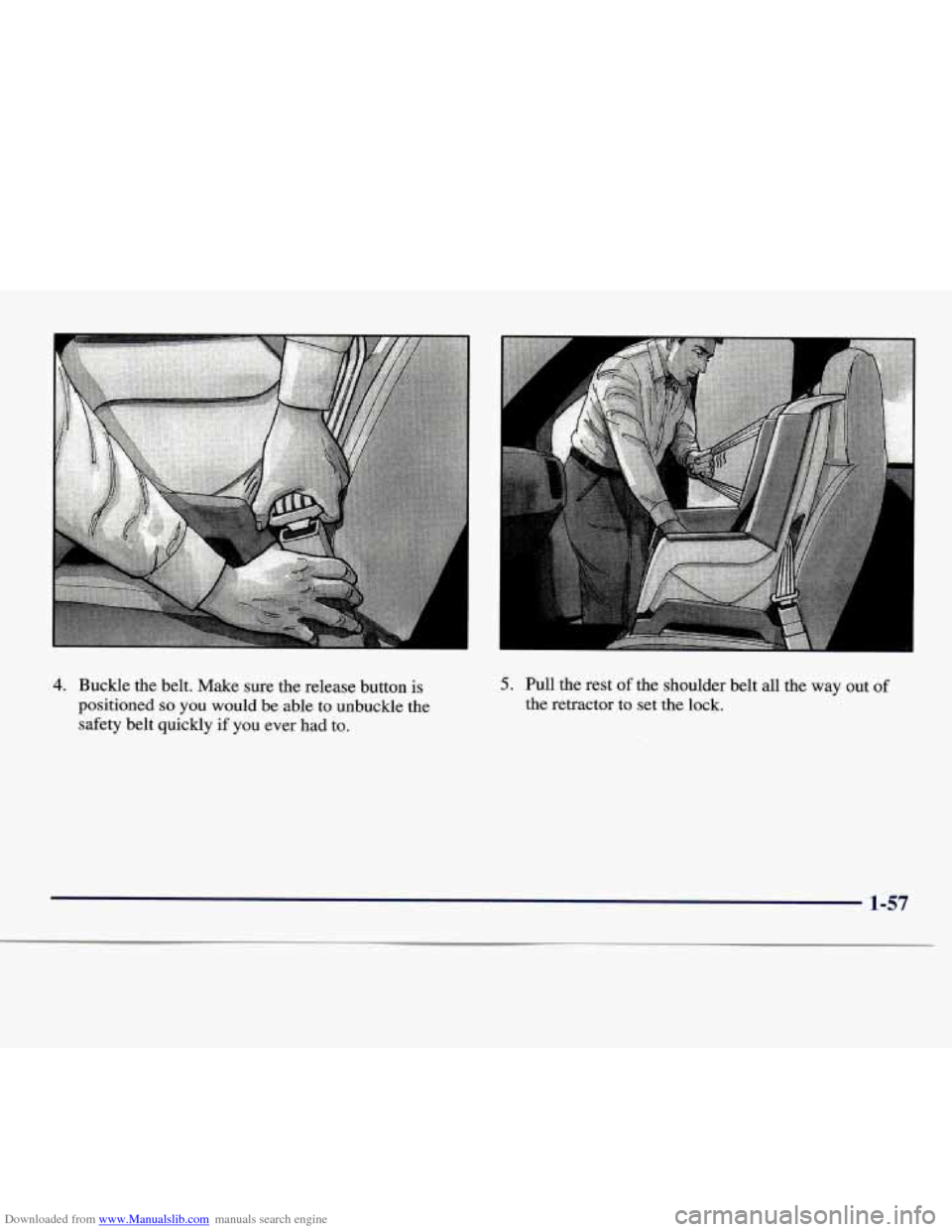

Downloaded from www.Manualslib.com manuals search engine 4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-57

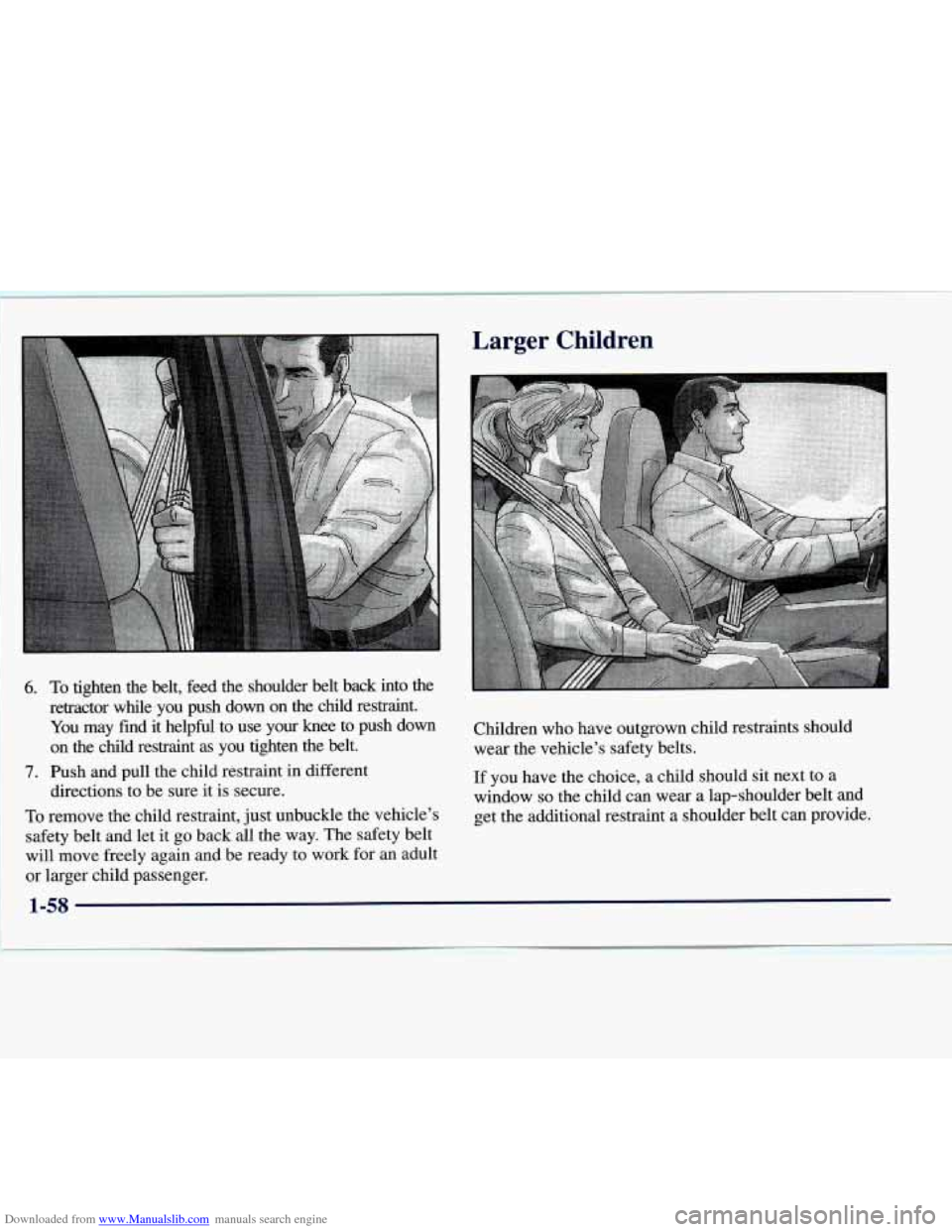

Downloaded from www.Manualslib.com manuals search engine Larger Children
6.
I I.
To tighten the belt, feed the shoulder belt back into the
retractor while you push down on the child restraint.
You may find it helpful to use your knee to push down
on the child restraint as you tighten the belt.
Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it
go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger. Children
who have outgrown child restraints should
wear the vehicle’s safety belts.
If you have the choice, a child should sit next to a
window
so the child can wear a lap-shoulder belt and
get the additional restraint
a shoulder belt can provide.
1-58

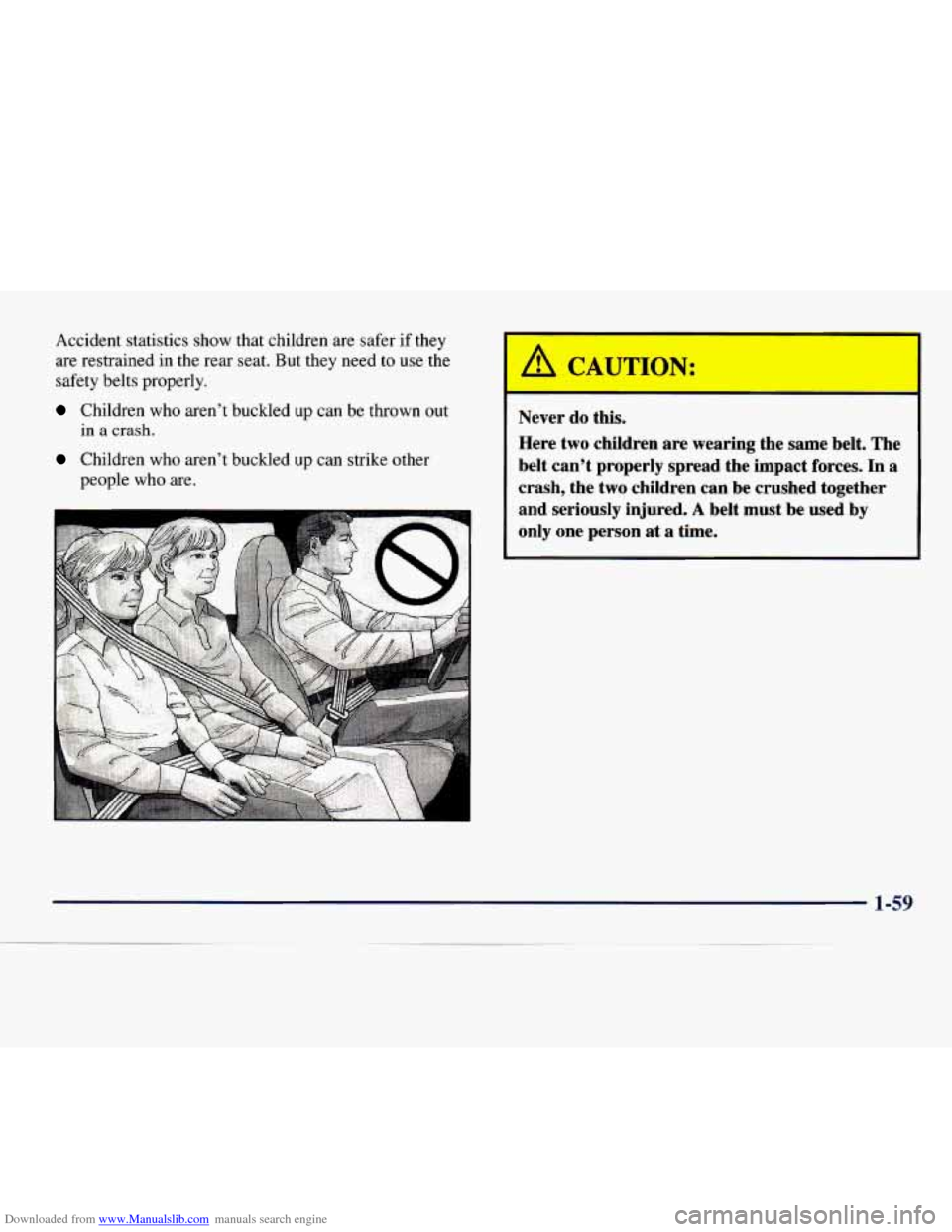

Downloaded from www.Manualslib.com manuals search engine Accident statistics show that children are safer if they
are restrained in the rear seat. But they need to use the
safety belts properly.
Children who aren’t buckled up can be thrown out
in a crash.
Children who aren’t buckled up can strike other
people who are.
1 A CAUTION: I
Never do this.
Here two children are wearing the same belt. The
belt can’t properly spread the impact forces. In
a
crash, the two children can be crushed together
and seriously injured.
A belt must be used by
only one person at a time.
1-59

Downloaded from www.Manualslib.com manuals search engine @ What if a child is wearing a lap-shoulder belt,
but the child is
so small that the shoulder belt is
very close to the child’s face or neck?
A: Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child’s
shoulder,
so that in a crash the child’s upper body
would have the restraint that belts provide. If the
child is sitting in
a rear seat outside position, see
“Rear Safety Belt Comfort Guides” in the Index. If
the child
is so small that the shoulder belt is still
very close to the child’s face
or neck, you might
want to place the child in a seat that has a lap belt,
if your vehicle has one.
1-60

Downloaded from www.Manualslib.com manuals search engine Never do this.
Here a child is sitting in a seat that has a
lap-shoulder belt, but the shoulder part is behind the child.
If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt’s force would then be applied right on the
child’s abdomen. That could cause serious or fatal injuries.
Wherever the child sits, the lap portion of the belt
should be worn low and snug on the hips, just touching
the child’s thighs. This applies belt force to the child’s
pelvic bones in
a crash.
Safety Belt Extender
If the vehicle’s safety belt will fasten around you, you
should use it. But
if a safety
belt isn’t long enough to fasten, your
dealer will order you an extender. It’s free. When you go
in to order it, take the heaviest coat you will wear,
so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don’t let someone else use it, and use it
only for the seat it is made
to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces.
If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
1-61

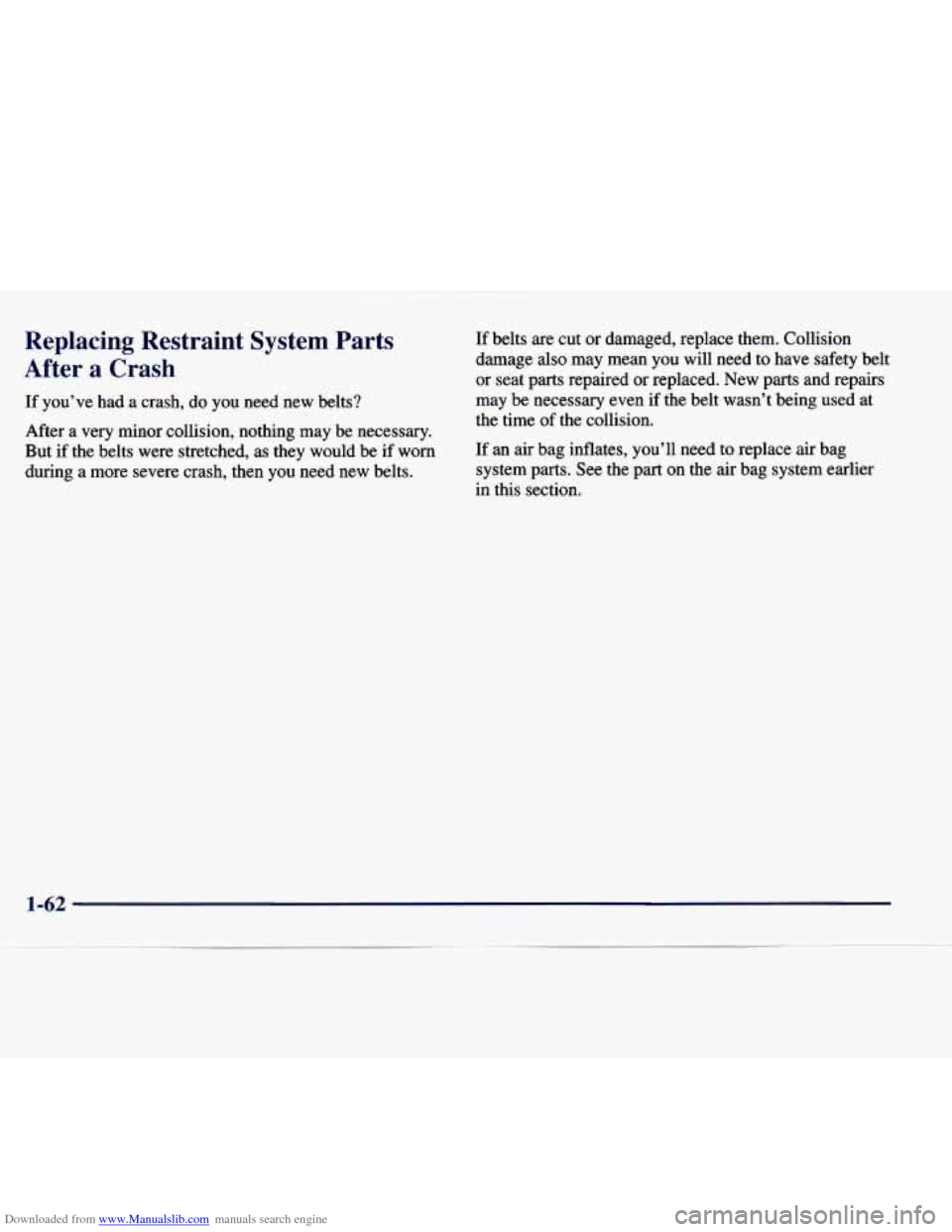

Downloaded from www.Manualslib.com manuals search engine Replacing Restraint System Parts
After a Crash
If you’ve had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during
a more severe crash, then you need new belts. Ifbelts
are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn’t being used at
the time
of the collision.
If an air bag inflates, you’ll need to replace air bag
system parts. See the part
on the air bag system earlier
in this section.
1-62

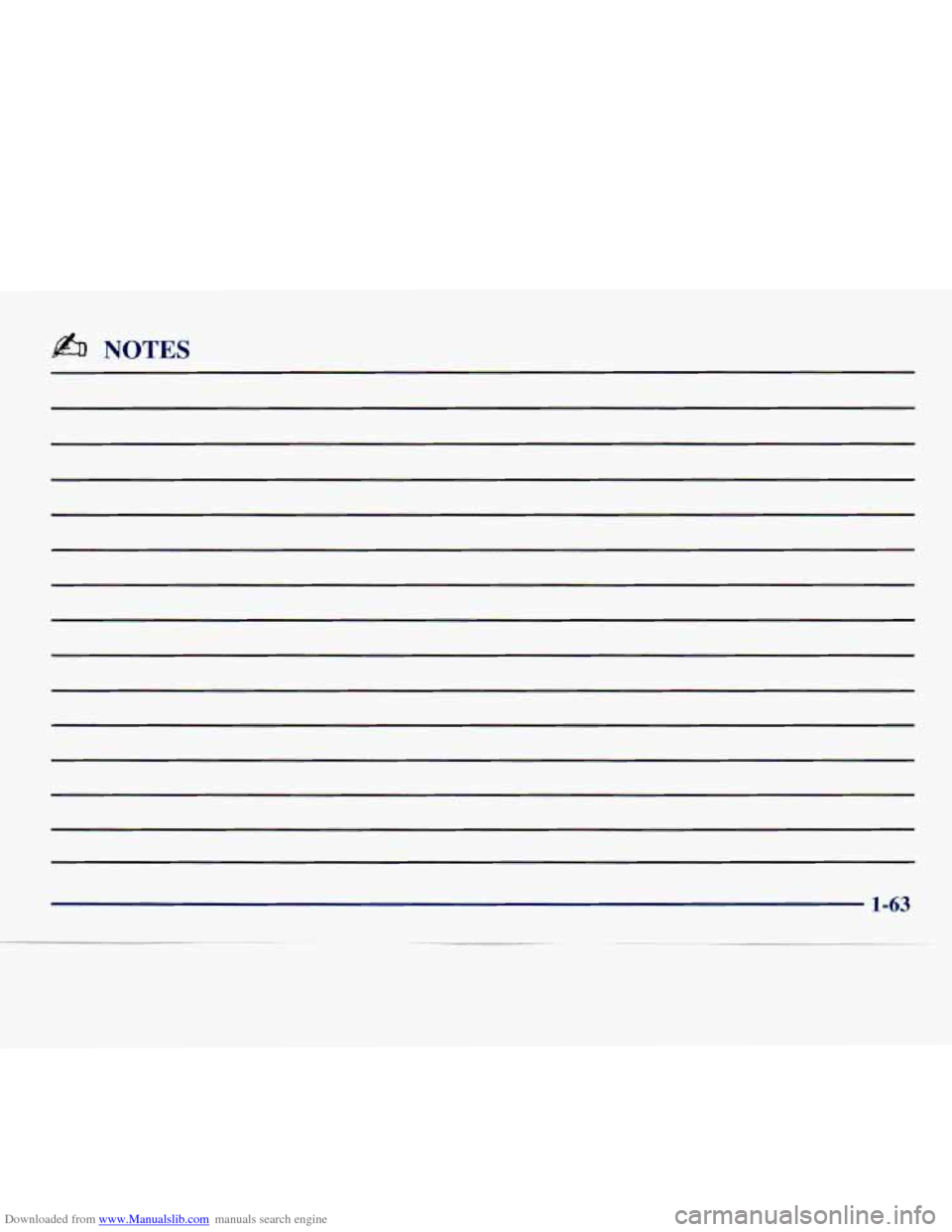

Downloaded from www.Manualslib.com manuals search engine fi NOTES
1-63
