Page 95 of 411

2-24
How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead of
trying to list everything here, we ask that you contact
your dealer in the area where you'll be parking your
vehicle. The dealer can give you the best advice for that
particular area.
Automatic Transmission Operation
There are several different positions for your shift lever.
Your vehicle is equipped with an automatic
transmission, and it features an electronic shift position
indicator within the instrument cluster. This display
must be powered anytime the shift lever is capable of
being moved out of the PARK (P) position. This means
that if your key is in OFF, but not locked, there will be
a small current drain on your battery which could
discharge your battery over a period of time.If you have a need to leave your key in the ignition in
OFF for an extended period for any reason, it is
recommended that you disconnect the battery cable from
the battery to prevent discharging your battery.
PARK (P): This position locks your rear wheels. It's the
best position to use when you start your engine because
your vehicle can't move easily.
CAUTION:
It is dangerous to get out of your vehicle if the
shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake and
move the shift lever to PARK (P).
See ªShifting Into PARK (P)º in the Index.
If you're pulling a trailer, see ªTowing a Trailerº
in the Index.
Page 114 of 411

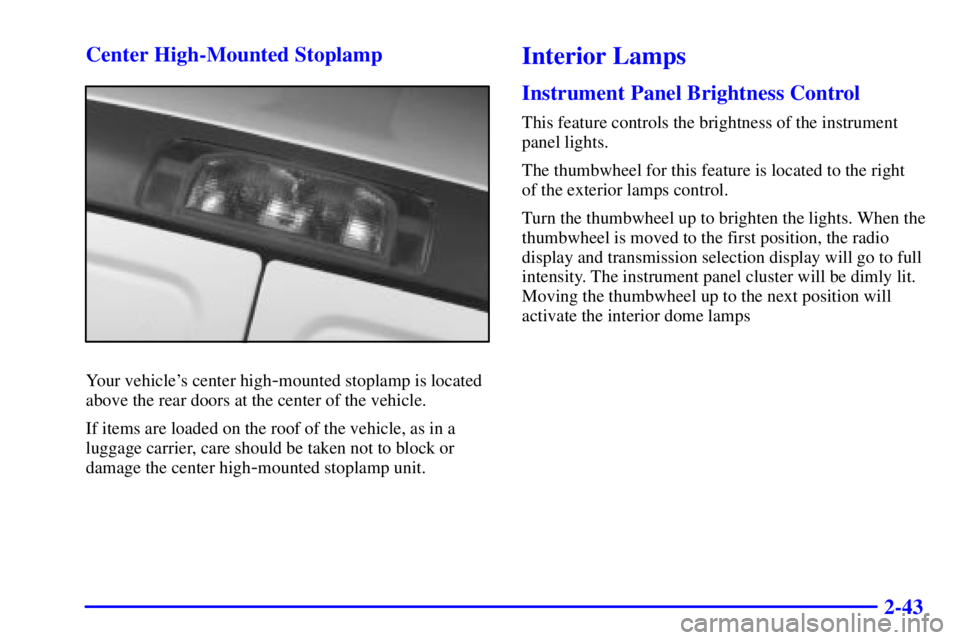

2-43 Center High-Mounted Stoplamp
Your vehicle's center high-mounted stoplamp is located
above the rear doors at the center of the vehicle.
If items are loaded on the roof of the vehicle, as in a
luggage carrier, care should be taken not to block or
damage the center high
-mounted stoplamp unit.
Interior Lamps
Instrument Panel Brightness Control
This feature controls the brightness of the instrument
panel lights.
The thumbwheel for this feature is located to the right
of the exterior lamps control.
Turn the thumbwheel up to brighten the lights. When the
thumbwheel is moved to the first position, the radio
display and transmission selection display will go to full
intensity. The instrument panel cluster will be dimly lit.
Moving the thumbwheel up to the next position will
activate the interior dome lamps
Page 150 of 411

3-11 Setting the Clock for Systems with Radio
Data System
Your radio may have a button marked with an H or
HR to represent hours and an M or MIN to
represent minutes.
Press and hold the hour button until the correct hour
appears. AM or PM will appear on the display for
morning or afternoon hours. Press and hold the minute
button until the correct minute appears. The clock may
be set with the ignition on or off.
To set the clock to the time of an FM station
broadcasting Radio Data System (RDS) information,
press and hold the hour and minute buttons at the same
time for two seconds until UPDATED and the clock
symbol appears on the display. If the time is not
available from the station, NO UPDAT will appear on
the display instead.
RDS clock time is broadcast once a minute. Once you
have tuned to an RDS broadcast station, it may take a
few minutes for your clock time to update.
AM-FM Stereo
Playing the Radio
PWR (Power): Press this knob to turn the system on
and off.
VOL (Volume): Turn the knob clockwise to increase
volume. Turn it counterclockwise to decrease volume.
RCL (Recall): Pressing this knob will display the
station being played or it will display the clock. Clock
display is available with the ignition turned off.
Page 151 of 411

3-12
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to tune in radio stations.
SEEK SEEK : Press the right or left arrow
to seek to the next or previous station and stay there.
The radio will seek to stations with a strong signal only.
To scan stations, press and hold one of the SEEK arrows
for two seconds until you hear a beep. The radio will go
to a station, play for a few seconds and flash the station
frequency, then go on to the next station. Press one of
the SEEK arrows again to stop scanning. The radio will
scan to stations with a strong signal only.
To scan preset stations, press and hold one of the SEEK
arrows for more than four seconds until you hear
two beeps. The radio will go to the first preset station
stored on your pushbuttons, play for a few seconds and
flash the station frequency, then go on to the next preset
station. This feature will only scan the six presets that
are in the selected band. Press one of the SEEK
arrows again to stop scanning presets. The channel
number (P1
-P6) will appear momentarily just before
the frequency is displayed. The radio will scan preset
stations with a strong signal only.Setting Preset Stations
The six numbered pushbuttons let you return to
your favorite stations. You can set up to 18 stations
(six AM, six FM1 and six FM2) by performing the
following steps:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the six numbered buttons until
you hear a beep. Whenever you press that numbered
pushbutton, the station you set will return.
5. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
AUDIO: To adjust the bass, press and release AUDIO
repeatedly until BAS appears on the display. Then press
and hold the up arrow to increase bass. B and a positive
number will appear on the display. Press and hold the
down arrow to decrease bass. B and a negative number
will appear on the display. B and a zero will appear on
the display when the bass level is adjusted to the middle
position. Release the up or down arrow when you find
the bass level you want or when the maximum or
minimum level is reached.
Page 152 of 411

3-13
To adjust the treble, Press and release AUDIO until TRE
appears on the display. Then press and hold the up arrow
to increase treble. T and a positive number will appear
on the display. Press and hold the down arrow to
decrease treble. T and a negative number will appear on
the display. T and a zero will appear on the display when
the treble level is adjusted to the middle position.
Release the up or down arrow when you find the treble
level you want or when the maximum or minimum level
is reached. If a station is weak or noisy, you may want to
decrease the treble.
To adjust bass or treble to the middle position, select
BAS or TRE. Then press and hold AUDIO for more
than two seconds until you hear a beep. B and a zero or
T and a zero will appear on the display. To adjust both
tone controls and both speaker controls to the middle
position, end out of audio mode by pressing the AUDIO
button until the display goes blank. Then press and hold
AUDIO for more than two seconds until you hear a
beep. CEN will appear on the display.Adjusting the Speakers (Balance/Fade)
AUDIO: To adjust the balance between the right and
left speakers, press and release AUDIO until BAL
appears on the display. Then press and hold the up arrow
to move the sound to the right speakers or the down
arrow to move the sound to the left speakers. R and a
number will appear on the display when the sound is
balanced toward the right speakers. L and a number
will appear on the display when the sound is balanced
toward the left speakers. L and a zero will appear on
the display when the sound is balanced between the
speakers. Release the up or down arrow when you find
the speaker balance you want or when the maximum or
minimum level is reached.
To adjust the fade between the front and rear speakers,
press and release AUDIO until FAD appears on the
display. Then press and hold the up arrow to move the
sound to the front speakers or the down arrow to move
the sound to the rear speakers. F and a number will
appear on the display when the sound is balanced
toward the front speakers. R and a number will appear
on the display when the sound is balanced toward the
rear speakers. F and a zero will appear on the display
when the sound is balanced between the speakers.
Release the up or down arrow when you find the speaker
balance you want or when the maximum or minimum
level is reached.
Page 153 of 411

3-14
To adjust balance or fade to the middle position, select
BAL or FAD. Then press and hold AUDIO for more
than two seconds until you hear a beep. L and a zero or
F and a zero will appear on the display. To adjust both
tone controls and both speaker controls to the middle
position, end out of audio mode by pressing the AUDIO
button until the display goes blank. Then press and hold
AUDIO for more than two seconds until you hear a
beep. CEN will appear on the display.
Radio Messages
CAL (Calibrated): Your audio system has been
calibrated for your vehicle from the factory. If CAL
appears on the display it means that your radio has not
been configured properly for your vehicle and must be
returned to the dealership for service.
LOC (Locked): This message is displayed when the
Theftlock
system has locked up. Your vehicle must
be returned to the dealership for service.
AM FM Stereo with Cassette Tape Player
(If Equipped)
Playing the Radio
PWR (Power): Press this knob to turn the system on
and off.
VOL (Volume): Turn this knob clockwise to increase
volume. Turn it counterclockwise to decrease volume.
RCL (Recall): Pressing this knob will display the
station being played or it will display the clock. Clock
display is available with the ignition turned off.
Page 154 of 411

3-15
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK SEEK : Press the right or left arrow
to seek to the next or previous station and stay there.
The radio will seek to stations with a strong signal only.
To scan stations, press and hold one of the SEEK arrows
for two seconds until you hear a beep. The radio will go
to a station, play for a few seconds and flash the station
frequency, then go on to the next station. Press one of
the SEEK arrows again to stop scanning. The radio will
scan to stations with a strong signal only.
To scan preset stations, press and hold one of the
SEEK arrows for more than four seconds until you hear
two beeps. The radio will go to the first preset station
stored on your pushbuttons, play for a few seconds
and flash the station frequency, then go on to the next
preset station. This feature will only scan the six presets
that are in the selected band. Press one of the SEEK
arrows again to stop scanning presets. The channel
number (P1
-P6) will appear momentarily just before
the frequency is displayed. The radio will scan preset
stations with a strong signal only.Setting Preset Stations
The six numbered pushbuttons let you return to
your favorite stations. You can set up to 18 stations
(six AM, six FM1 and six FM2) by performing the
following steps:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the six numbered pushbuttons
until you hear a beep. Whenever you press that
numbered pushbutton, the station you set will return.
5. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
AUDIO: To adjust the bass, press and release AUDIO
until BAS appears on the display. Then press and hold
the up arrow to increase bass. B and a positive number
will appear on the display. Press and hold the down
arrow to decrease bass. B and a negative number will
appear on the display. B and a zero will appear on the
display when the bass level is adjusted to the middle
position. Release the up or down arrow when you find
the bass level you want or when the maximum or
minimum level is reached.
Page 155 of 411

3-16
To adjust the treble, press and release AUDIO until TRE
appears on the display. Then press and hold the up arrow
to increase treble. T and a positive number will appear
on the display. Press and hold the down arrow to
decrease treble. T and a negative number will appear on
the display. T and a zero will appear on the display when
the treble level is adjusted to the middle position.
Release the up or down arrow when you find the treble
level you want or when the maximum or minimum level
is reached. If a station is weak or noisy, you may want to
decrease the treble.
To adjust bass or treble to the middle position, select
BAS or TRE. Then press and hold AUDIO for more
than two seconds until you hear a beep. B and a zero or
T and a zero will appear on the display. To adjust both
tone controls and both speaker controls to the middle
position, end out of audio mode by pressing the AUDIO
button until the display goes blank. Then press and hold
AUDIO for more than two seconds until you hear a
beep. CEN will appear on the display.Adjusting the Speakers (Balance/Fade)
AUDIO: To adjust the balance between the right and
left speakers, press and release AUDIO until BAL
appears on the display. Then press and hold the up arrow
to move the sound to the right speakers or the down
arrow to move the sound to the left speakers. R and a
number will appear on the display when the sound is
balanced toward the right speakers. L and a number
will appear on the display when the sound is balanced
toward the left speakers. L and a zero will appear on
the display when the sound is balanced between the
speakers. Release the up or down arrow when you find
the speaker balance you want or when the maximum or
minimum level is reached.
To adjust the fade between the front and rear speakers,
press and release AUDIO until FAD appears on the
display. Then press and hold the up arrow to move the
sound to the front speakers or the down arrow to move
the sound to the rear speakers. F and a number will
appear on the display when the sound is balanced
toward the front speakers. R and a number will appear
on the display when the sound is balanced toward the
rear speakers. F and a zero will appear on the display
when the sound is balanced between the speakers.
Release the up or down arrow when you find the speaker
balance you want or when the maximum or minimum
level is reached.
Page 156 of 411

3-17
To adjust balance or fade to the middle position, select
BAL or FAD. Then press and hold AUDIO for more
than two seconds until you hear a beep. L and a zero or
F and a zero will appear on the display. To adjust both
tone controls and both speaker controls to the middle
position, end out of audio mode by pressing the AUDIO
button until the display goes blank. Then press and hold
AUDIO for more than two seconds until you hear a
beep. CEN will appear on the display.
Radio Messages
CAL (Calibration): Your audio system has been
calibrated for your vehicle from the factory. If CAL
appears on the display it means that your radio has not
been configured properly for your vehicle and must be
returned to the dealership for service.
LOC (Locked): This message is displayed when the
Theftlock
system has locked up. Your vehicle must be
returned to the dealership for service.Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this
player. The longer side with the tape visible should face
to the right. If the ignition is on, but the radio is off, the
tape can be inserted and will begin playing. If you hear
nothing but a garbled sound, the tape may not be in
squarely. Press the eject button to remove the tape and
start over.
While the tape is playing, use the VOL, AUDIO and
SEEK controls just as you do for the radio. The radio
will display UP if the top side of the tape is playing.
DN (Down) will appear if the bottom side is playing.
If you want to insert a tape when the ignition is off,
first press the eject button or the RCL knob.
If an error appears on the display, see ªCassette Tape
Messagesº later in this section.
Page 157 of 411

3-18
1 PREV (Previous): Press this pushbutton to go to the
previous selection on the tape if the selection has been
playing for less than 3 seconds. If this pushbutton is
pressed and the current selection has been playing for
more than 13 seconds, it will go to the beginning of the
current selection. If this pushbutton is pressed and the
current selection has been playing from 3 to 13 seconds,
it will go to the beginning of the previous selection or
the beginning of the current selection, depending on the
position on the tape. A negative number will appear on
the display while the cassette player is in previous mode
indicating the number of selections of the tape that the
radio will search back. Pressing this pushbutton multiple
times in the previous mode will increase the number
of selections. Pressing the NEXT pushbutton will
cancel the selections. Your tape must have at least
three seconds of silence between each selection for
previous to work. The sound will mute while seeking.
2 NEXT: Press this pushbutton to go to the next
selection on the tape. A positive number will appear on
the display while the cassette player is in next mode
indicating the number of selections of the tape that the
radio will search forward. Pressing this pushbutton
multiple times in the next mode will increase the
number of selections. Pressing the PREV pushbuttonwill cancel the selections. Your tape must have at least
three seconds of silence between each selection for next
to work. The sound will mute while seeking.
3 REV (Reverse): Press this pushbutton to reverse the
tape rapidly. FR will appear on the display. Press it again
to return to playing the tape. The radio will play the last
selected station while the tape reverses. You may select
stations during reverse operation by using the TUNE
or SEEK controls or by using the scan or preset
scan features.
4 FWD (Forward): Press this pushbutton to advance
quickly to another part of the tape. FF will appear on the
display. Press this pushbutton again to return to playing
the tape. The radio will play the last selected station
while the tape advances. You may select stations during
forward operation by using the TUNE or SEEK controls
or by using the scan or preset scan features.
SEEK SEEK : The right arrow is the same as the
NEXT pushbutton, and the left arrow is the same as the
PREV pushbutton. If the arrows are held or pressed
more than once, the player will continue moving
forward or backward through the tape.
5 SIDE: Press this pushbutton to play the other side of
the tape.
