display CHEVROLET EXPRESS 2006 Repair Manual

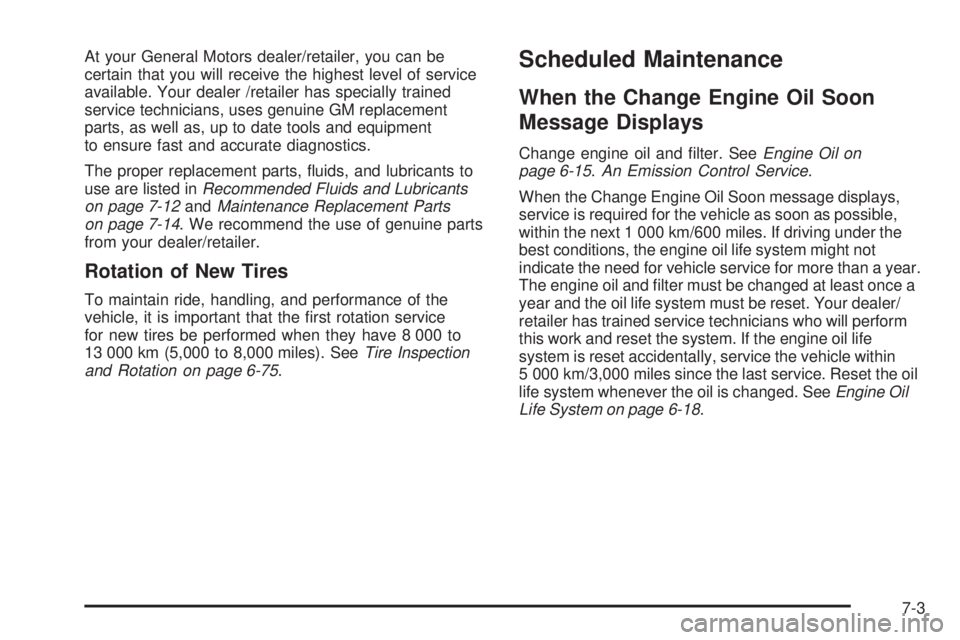

At your General Motors dealer/retailer, you can be
certain that you will receive the highest level of service
available. Your dealer /retailer has specially trained
service technicians, uses genuine GM replacement
parts, as well as, up to date tools and equipment
to ensure fast and accurate diagnostics.
The proper replacement parts, fluids, and lubricants to
use are listed inRecommended Fluids and Lubricants
on page 7-12andMaintenance Replacement Parts
on page 7-14. We recommend the use of genuine parts
from your dealer/retailer.
Rotation of New Tires
To maintain ride, handling, and performance of the
vehicle, it is important that the first rotation service
for new tires be performed when they have 8 000 to
13 000 km (5,000 to 8,000 miles). SeeTire Inspection
and Rotation on page 6-75.
Scheduled Maintenance
When the Change Engine Oil Soon
Message Displays
Change engine oil and filter. SeeEngine Oil on
page 6-15.An Emission Control Service.
When the Change Engine Oil Soon message displays,
service is required for the vehicle as soon as possible,
within the next 1 000 km/600 miles. If driving under the
best conditions, the engine oil life system might not
indicate the need for vehicle service for more than a year.
The engine oil and filter must be changed at least once a
year and the oil life system must be reset. Your dealer/
retailer has trained service technicians who will perform
this work and reset the system. If the engine oil life
system is reset accidentally, service the vehicle within
5 000 km/3,000 miles since the last service. Reset the oil
life system whenever the oil is changed. SeeEngine Oil
Life System on page 6-18.
7-3

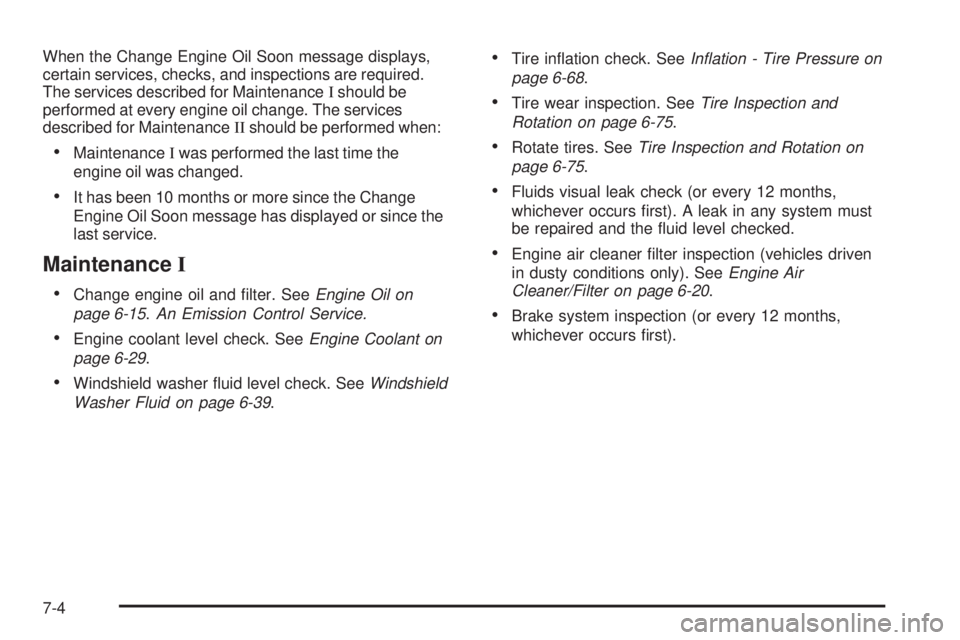

When the Change Engine Oil Soon message displays,
certain services, checks, and inspections are required.
The services described for MaintenanceIshould be
performed at every engine oil change. The services
described for MaintenanceIIshould be performed when:
•MaintenanceIwas performed the last time the
engine oil was changed.
•It has been 10 months or more since the Change
Engine Oil Soon message has displayed or since the
last service.
MaintenanceI
•Change engine oil and filter. SeeEngine Oil on
page 6-15.An Emission Control Service.
•Engine coolant level check. SeeEngine Coolant on
page 6-29.
•Windshield washer fluid level check. SeeWindshield
Washer Fluid on page 6-39.
•Tire inflation check. SeeInation - Tire Pressure on
page 6-68.
•Tire wear inspection. SeeTire Inspection and
Rotation on page 6-75.
•Rotate tires. SeeTire Inspection and Rotation on
page 6-75.
•Fluids visual leak check (or every 12 months,
whichever occurs first). A leak in any system must
be repaired and the fluid level checked.
•Engine air cleaner filter inspection (vehicles driven
in dusty conditions only). SeeEngine Air
Cleaner/Filter on page 6-20.
•Brake system inspection (or every 12 months,
whichever occurs first).
7-4

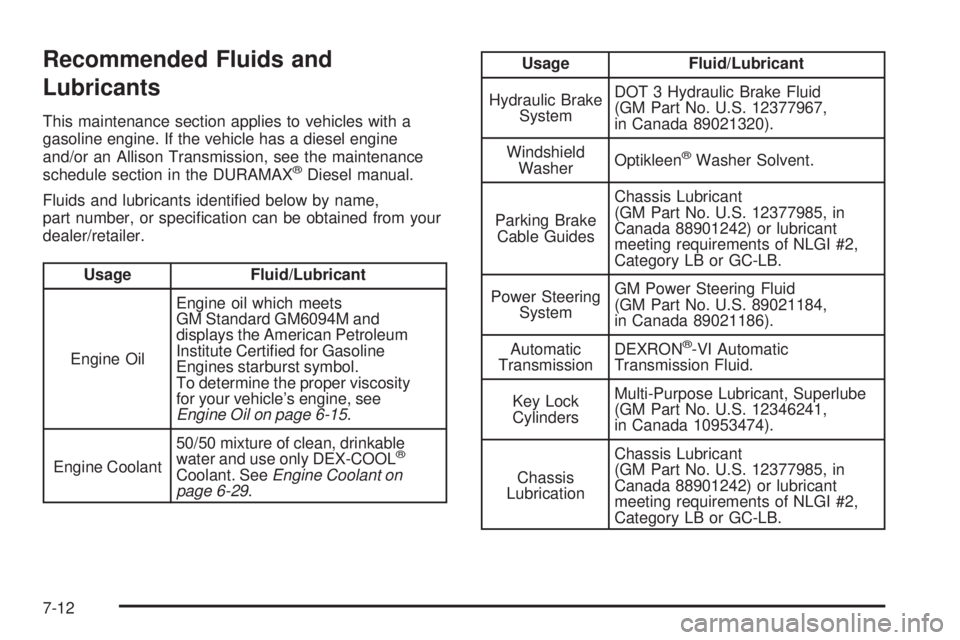

Recommended Fluids and
Lubricants
This maintenance section applies to vehicles with a
gasoline engine. If the vehicle has a diesel engine
and/or an Allison Transmission, see the maintenance
schedule section in the DURAMAX
®Diesel manual.
Fluids and lubricants identified below by name,
part number, or specification can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets
GM Standard GM6094M and
displays the American Petroleum
Institute Certified for Gasoline
Engines starburst symbol.
To determine the proper viscosity
for your vehicle’s engine, see
Engine Oil on page 6-15.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 6-29.
Usage Fluid/Lubricant
Hydraulic Brake
SystemDOT 3 Hydraulic Brake Fluid
(GM Part No. U.S. 12377967,
in Canada 89021320).
Windshield
WasherOptikleen
®Washer Solvent.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
7-12

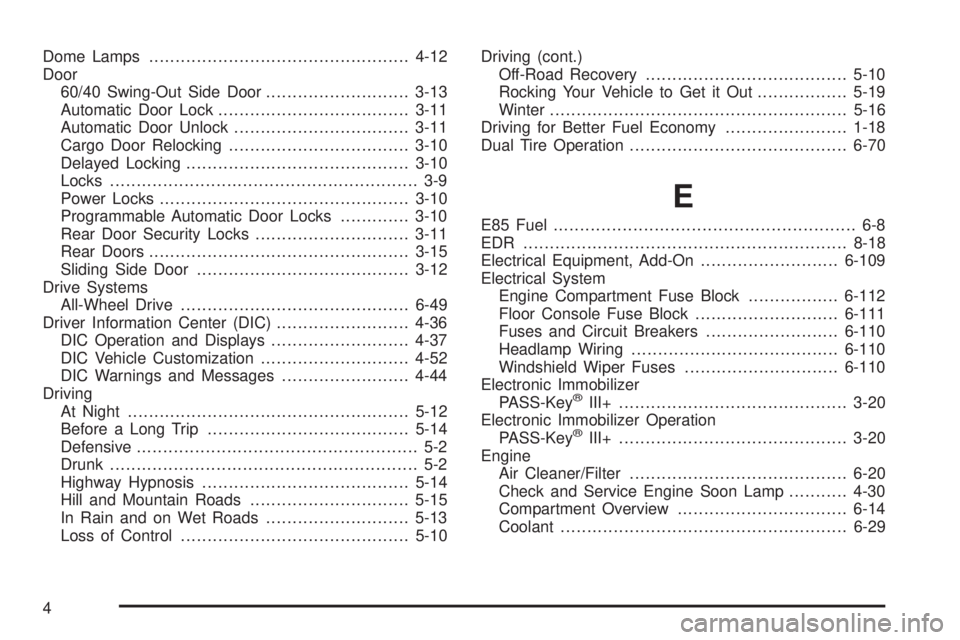

Dome Lamps .................................................4-12
Door
60/40 Swing-Out Side Door...........................3-13
Automatic Door Lock....................................3-11
Automatic Door Unlock.................................3-11
Cargo Door Relocking..................................3-10
Delayed Locking..........................................3-10
Locks.......................................................... 3-9
Power Locks...............................................3-10
Programmable Automatic Door Locks.............3-10
Rear Door Security Locks.............................3-11
Rear Doors.................................................3-15
Sliding Side Door........................................3-12
Drive Systems
All-Wheel Drive...........................................6-49
Driver Information Center (DIC).........................4-36
DIC Operation and Displays..........................4-37
DIC Vehicle Customization............................4-52
DIC Warnings and Messages........................4-44
Driving
At Night.....................................................5-12
Before a Long Trip......................................5-14
Defensive..................................................... 5-2
Drunk.......................................................... 5-2
Highway Hypnosis.......................................5-14
Hill and Mountain Roads..............................5-15
In Rain and on Wet Roads...........................5-13
Loss of Control...........................................5-10Driving (cont.)
Off-Road Recovery......................................5-10
Rocking Your Vehicle to Get it Out.................5-19
Winter........................................................5-16
Driving for Better Fuel Economy.......................1-18
Dual Tire Operation.........................................6-70
E
E85 Fuel......................................................... 6-8
EDR .............................................................8-18
Electrical Equipment, Add-On..........................6-109
Electrical System
Engine Compartment Fuse Block.................6-112
Floor Console Fuse Block...........................6-111
Fuses and Circuit Breakers.........................6-110
Headlamp Wiring.......................................6-110
Windshield Wiper Fuses.............................6-110
Electronic Immobilizer
PASS-Key
®III+...........................................3-20
Electronic Immobilizer Operation
PASS-Key
®III+...........................................3-20
Engine
Air Cleaner/Filter.........................................6-20
Check and Service Engine Soon Lamp...........4-30
Compartment Overview................................6-14
Coolant......................................................6-29
4
