headlamp CHEVROLET EXPRESS 2009 Owner's Manual

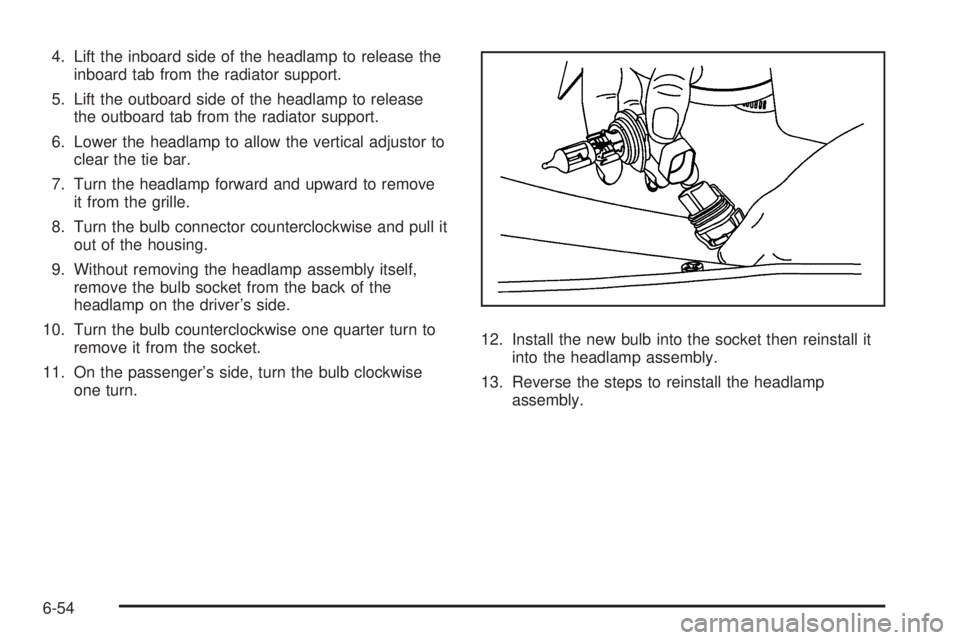

4. Lift the inboard side of the headlamp to release the
inboard tab from the radiator support.
5. Lift the outboard side of the headlamp to release
the outboard tab from the radiator support.
6. Lower the headlamp to allow the vertical adjustor to
clear the tie bar.
7. Turn the headlamp forward and upward to remove
it from the grille.
8. Turn the bulb connector counterclockwise and pull it
out of the housing.
9. Without removing the headlamp assembly itself,
remove the bulb socket from the back of the
headlamp on the driver’s side.
10. Turn the bulb counterclockwise one quarter turn to
remove it from the socket.
11. On the passenger’s side, turn the bulb clockwise
one turn.12. Install the new bulb into the socket then reinstall it
into the headlamp assembly.
13. Reverse the steps to reinstall the headlamp
assembly.
6-54

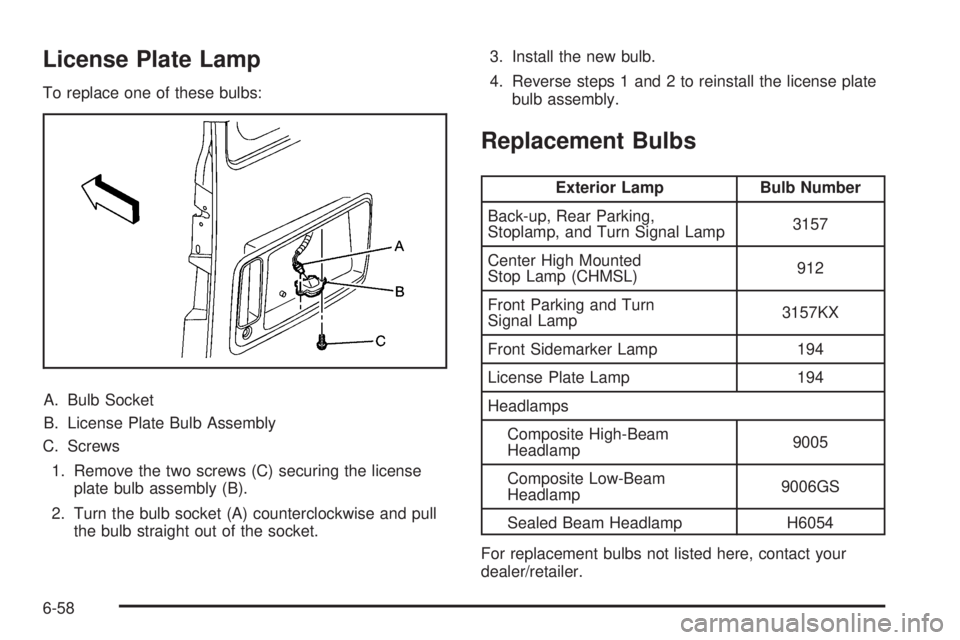

License Plate Lamp
To replace one of these bulbs:
A. Bulb Socket
B. License Plate Bulb Assembly
C. Screws
1. Remove the two screws (C) securing the license
plate bulb assembly (B).
2. Turn the bulb socket (A) counterclockwise and pull
the bulb straight out of the socket.3. Install the new bulb.
4. Reverse steps 1 and 2 to reinstall the license plate
bulb assembly.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-up, Rear Parking,
Stoplamp, and Turn Signal Lamp3157
Center High Mounted
Stop Lamp (CHMSL)912
Front Parking and Turn
Signal Lamp3157KX
Front Sidemarker Lamp 194
License Plate Lamp 194
Headlamps
Composite High-Beam
Headlamp9005
Composite Low-Beam
Headlamp9006GS
Sealed Beam Headlamp H6054
For replacement bulbs not listed here, contact your
dealer/retailer.
6-58

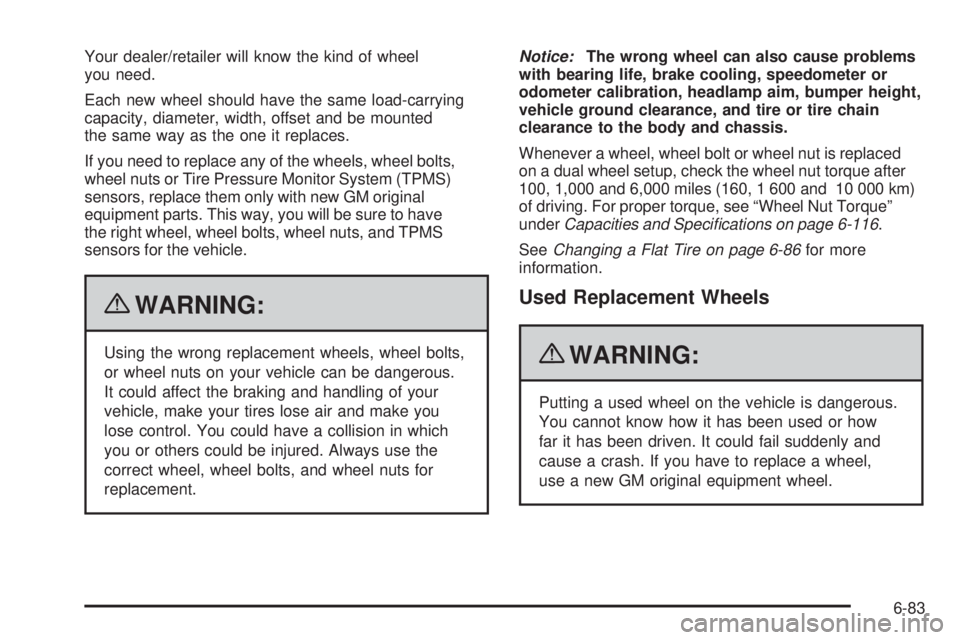

Your dealer/retailer will know the kind of wheel
you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.
If you need to replace any of the wheels, wheel bolts,
wheel nuts or Tire Pressure Monitor System (TPMS)
sensors, replace them only with new GM original
equipment parts. This way, you will be sure to have
the right wheel, wheel bolts, wheel nuts, and TPMS
sensors for the vehicle.
{WARNING:
Using the wrong replacement wheels, wheel bolts,
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts, and wheel nuts for
replacement.Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance, and tire or tire chain
clearance to the body and chassis.
Whenever a wheel, wheel bolt or wheel nut is replaced
on a dual wheel setup, check the wheel nut torque after
100, 1,000 and 6,000 miles (160, 1 600 and 10 000 km)
of driving. For proper torque, see “Wheel Nut Torque”
underCapacities and Specications on page 6-116.
SeeChanging a Flat Tire on page 6-86for more
information.
Used Replacement Wheels
{WARNING:
Putting a used wheel on the vehicle is dangerous.
You cannot know how it has been used or how
far it has been driven. It could fail suddenly and
cause a crash. If you have to replace a wheel,
use a new GM original equipment wheel.
6-83

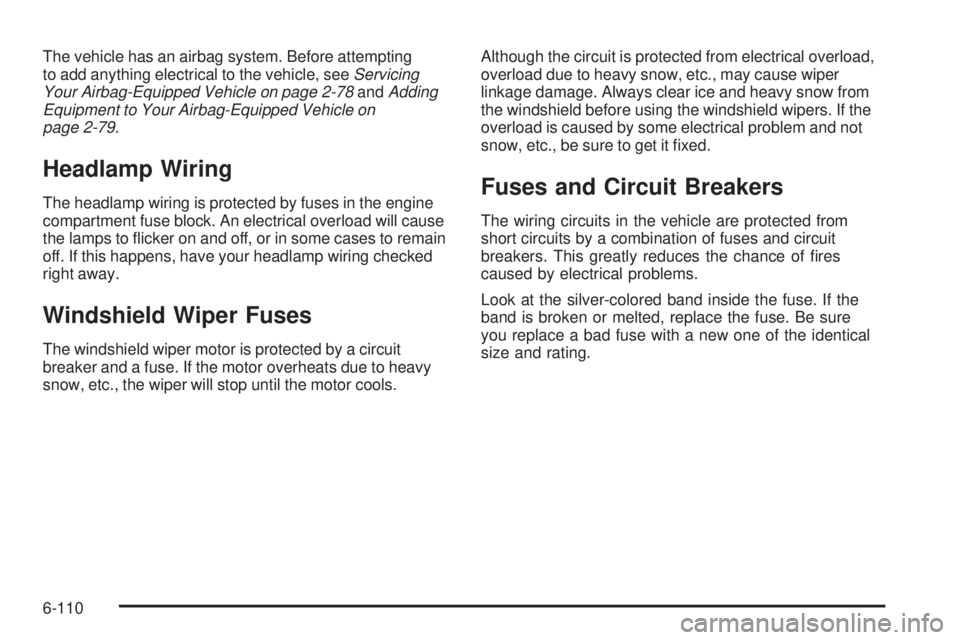

The vehicle has an airbag system. Before attempting
to add anything electrical to the vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 2-78andAdding
Equipment to Your Airbag-Equipped Vehicle on
page 2-79.
Headlamp Wiring
The headlamp wiring is protected by fuses in the engine
compartment fuse block. An electrical overload will cause
the lamps to flicker on and off, or in some cases to remain
off. If this happens, have your headlamp wiring checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.Although the circuit is protected from electrical overload,
overload due to heavy snow, etc., may cause wiper
linkage damage. Always clear ice and heavy snow from
the windshield before using the windshield wipers. If the
overload is caused by some electrical problem and not
snow, etc., be sure to get it fixed.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires
caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure
you replace a bad fuse with a new one of the identical
size and rating.
6-110

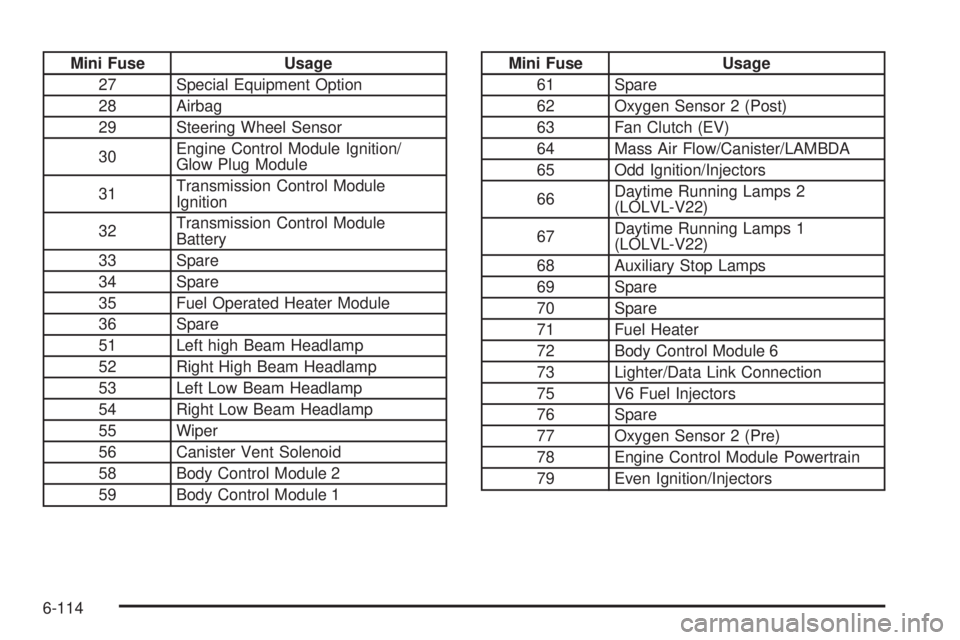

Mini Fuse Usage
27 Special Equipment Option
28 Airbag
29 Steering Wheel Sensor
30Engine Control Module Ignition/
Glow Plug Module
31Transmission Control Module
Ignition
32Transmission Control Module
Battery
33 Spare
34 Spare
35 Fuel Operated Heater Module
36 Spare
51 Left high Beam Headlamp
52 Right High Beam Headlamp
53 Left Low Beam Headlamp
54 Right Low Beam Headlamp
55 Wiper
56 Canister Vent Solenoid
58 Body Control Module 2
59 Body Control Module 1Mini Fuse Usage
61 Spare
62 Oxygen Sensor 2 (Post)
63 Fan Clutch (EV)
64 Mass Air Flow/Canister/LAMBDA
65 Odd Ignition/Injectors
66Daytime Running Lamps 2
(LOLVL-V22)
67Daytime Running Lamps 1
(LOLVL-V22)
68 Auxiliary Stop Lamps
69 Spare
70 Spare
71 Fuel Heater
72 Body Control Module 6
73 Lighter/Data Link Connection
75 V6 Fuel Injectors
76 Spare
77 Oxygen Sensor 2 (Pre)
78 Engine Control Module Powertrain
79 Even Ignition/Injectors
6-114

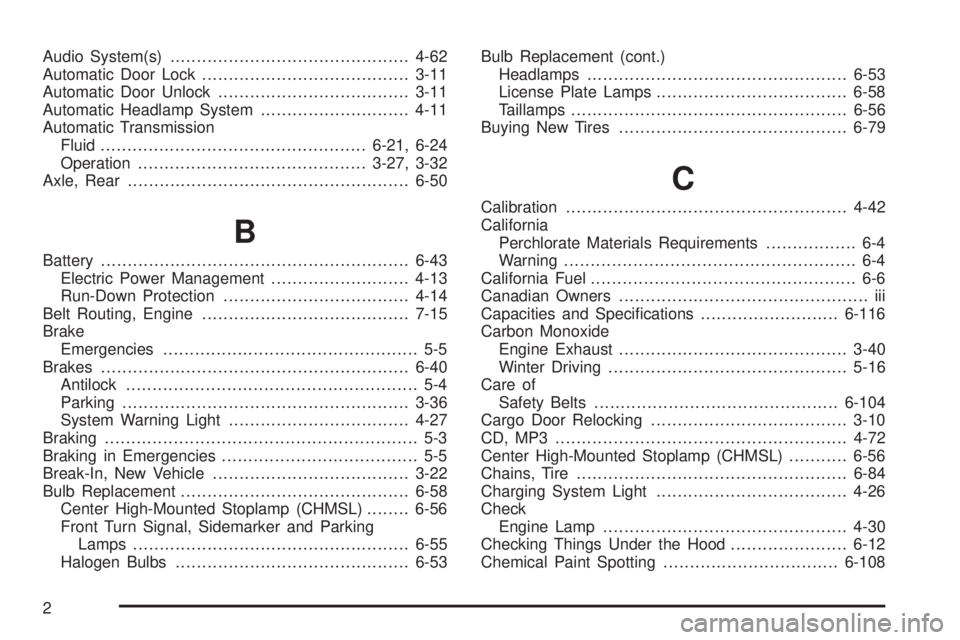

Audio System(s).............................................4-62
Automatic Door Lock.......................................3-11
Automatic Door Unlock....................................3-11
Automatic Headlamp System............................4-11
Automatic Transmission
Fluid..................................................6-21, 6-24
Operation...........................................3-27, 3-32
Axle, Rear.....................................................6-50
B
Battery..........................................................6-43
Electric Power Management..........................4-13
Run-Down Protection...................................4-14
Belt Routing, Engine.......................................7-15
Brake
Emergencies................................................ 5-5
Brakes..........................................................6-40
Antilock....................................................... 5-4
Parking......................................................3-36
System Warning Light..................................4-27
Braking........................................................... 5-3
Braking in Emergencies..................................... 5-5
Break-In, New Vehicle.....................................3-22
Bulb Replacement...........................................6-58
Center High-Mounted Stoplamp (CHMSL)........6-56
Front Turn Signal, Sidemarker and Parking
Lamps ....................................................6-55
Halogen Bulbs............................................6-53Bulb Replacement (cont.)
Headlamps.................................................6-53
License Plate Lamps....................................6-58
Taillamps....................................................6-56
Buying New Tires...........................................6-79
C
Calibration.....................................................4-42
California
Perchlorate Materials Requirements................. 6-4
Warning....................................................... 6-4
California Fuel.................................................. 6-6
Canadian Owners............................................... iii
Capacities and Specifications..........................6-116
Carbon Monoxide
Engine Exhaust...........................................3-40
Winter Driving.............................................5-16
Care of
Safety Belts..............................................6-104
Cargo Door Relocking.....................................3-10
CD, MP3 .......................................................4-72
Center High-Mounted Stoplamp (CHMSL)...........6-56
Chains, Tire...................................................6-84
Charging System Light....................................4-26
Check
Engine Lamp..............................................4-30
Checking Things Under the Hood......................6-12
Chemical Paint Spotting.................................6-108
2

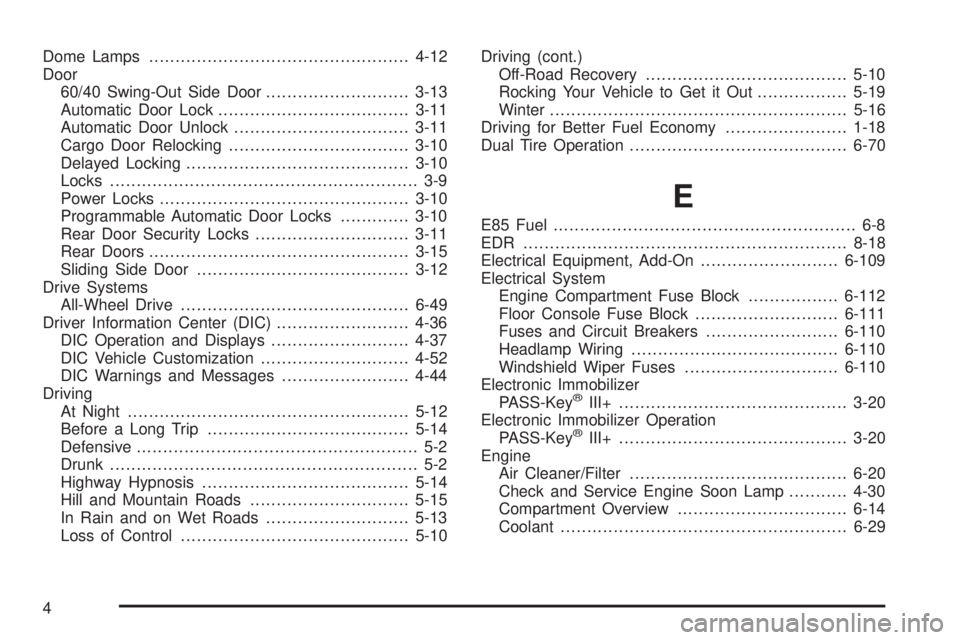

Dome Lamps .................................................4-12
Door
60/40 Swing-Out Side Door...........................3-13
Automatic Door Lock....................................3-11
Automatic Door Unlock.................................3-11
Cargo Door Relocking..................................3-10
Delayed Locking..........................................3-10
Locks.......................................................... 3-9
Power Locks...............................................3-10
Programmable Automatic Door Locks.............3-10
Rear Door Security Locks.............................3-11
Rear Doors.................................................3-15
Sliding Side Door........................................3-12
Drive Systems
All-Wheel Drive...........................................6-49
Driver Information Center (DIC).........................4-36
DIC Operation and Displays..........................4-37
DIC Vehicle Customization............................4-52
DIC Warnings and Messages........................4-44
Driving
At Night.....................................................5-12
Before a Long Trip......................................5-14
Defensive..................................................... 5-2
Drunk.......................................................... 5-2
Highway Hypnosis.......................................5-14
Hill and Mountain Roads..............................5-15
In Rain and on Wet Roads...........................5-13
Loss of Control...........................................5-10Driving (cont.)
Off-Road Recovery......................................5-10
Rocking Your Vehicle to Get it Out.................5-19
Winter........................................................5-16
Driving for Better Fuel Economy.......................1-18
Dual Tire Operation.........................................6-70
E
E85 Fuel......................................................... 6-8
EDR .............................................................8-18
Electrical Equipment, Add-On..........................6-109
Electrical System
Engine Compartment Fuse Block.................6-112
Floor Console Fuse Block...........................6-111
Fuses and Circuit Breakers.........................6-110
Headlamp Wiring.......................................6-110
Windshield Wiper Fuses.............................6-110
Electronic Immobilizer
PASS-Key
®III+...........................................3-20
Electronic Immobilizer Operation
PASS-Key
®III+...........................................3-20
Engine
Air Cleaner/Filter.........................................6-20
Check and Service Engine Soon Lamp...........4-30
Compartment Overview................................6-14
Coolant......................................................6-29
4

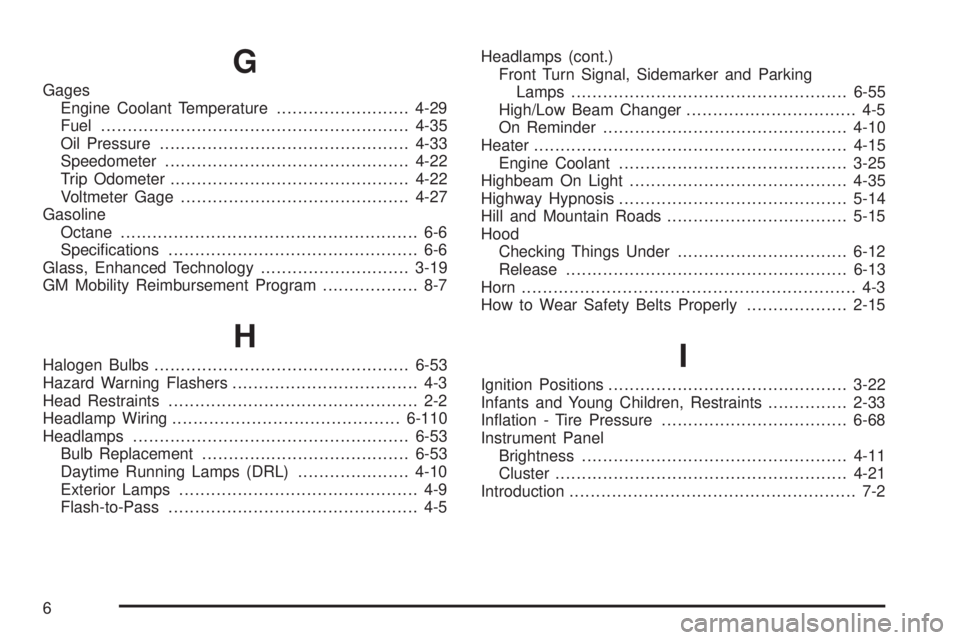

G
Gages
Engine Coolant Temperature.........................4-29
Fuel..........................................................4-35
Oil Pressure...............................................4-33
Speedometer..............................................4-22
Trip Odometer.............................................4-22
Voltmeter Gage...........................................4-27
Gasoline
Octane........................................................ 6-6
Specifications............................................... 6-6
Glass, Enhanced Technology............................3-19
GM Mobility Reimbursement Program.................. 8-7
H
Halogen Bulbs................................................6-53
Hazard Warning Flashers................................... 4-3
Head Restraints............................................... 2-2
Headlamp Wiring...........................................6-110
Headlamps....................................................6-53
Bulb Replacement.......................................6-53
Daytime Running Lamps (DRL).....................4-10
Exterior Lamps............................................. 4-9
Flash-to-Pass............................................... 4-5Headlamps (cont.)
Front Turn Signal, Sidemarker and Parking
Lamps ....................................................6-55
High/Low Beam Changer................................ 4-5
On Reminder..............................................4-10
Heater...........................................................4-15
Engine Coolant...........................................3-25
Highbeam On Light.........................................4-35
Highway Hypnosis...........................................5-14
Hill and Mountain Roads..................................5-15
Hood
Checking Things Under................................6-12
Release.....................................................6-13
Horn ............................................................... 4-3
How to Wear Safety Belts Properly...................2-15I
Ignition Positions.............................................3-22
Infants and Young Children, Restraints...............2-33
Inflation - Tire Pressure...................................6-68
Instrument Panel
Brightness..................................................4-11
Cluster.......................................................4-21
Introduction...................................................... 7-2
6
