Page 7 of 458
Front Seats..................................................... 9
Manual Seats................................................ 9
Power Seat................................................. 10
Reclining Seatbacks.................................... 10
Rear Seats.................................................... 13
Rear Seat Operation................................... 13
Safety Belts.................................................. 17
Safety Belts: They Are for Everyone........... 17
Questions and Answers About
Safety Belts............................................. 21
How to Wear Safety Belts Properly............. 22
Driver Position............................................. 23
Shoulder Belt Height Adjustment................. 31
Safety Belt Use During Pregnancy.............. 32
Right Front Passenger Position................... 32
Center Passenger Position
(3rd, 4th and 5th Row)............................ 33
Center Passenger Position
(2nd Row)................................................ 34
Rear Outside Passenger Positions.............. 34
Rear Safety Belt Comfort Guides................ 37Safety Belt Pretensioners............................ 40
Safety Belt Extender................................... 40
Child Restraints............................................ 41
Older Children............................................. 41
Infants and Young Children......................... 44
Child Restraint Systems.............................. 47
Where to Put the Restraint.......................... 52
Lower Anchors and Tethers for
Children (LATCH).................................... 54
Securing a Child Restraint in a
Rear Outside Seat Position or the
Second Row Center Seat Position........... 63
Securing a Child Restraint
in a Center Seat Position
(3rd, 4th, and 5th Row)........................... 66
Securing a Child Restraint in
the Right Front Seat Position
(With Passenger Sensing System)........... 68
Securing a Child Restraint in
the Right Front Seat Position
(With Airbag Off Switch).......................... 72
Section 1 Seats and Restraint Systems
7
Page 23 of 458
Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how
to wear it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight.
To see how, see “Seats” in the Index.
3. Pick up the latch plate and pull the belt across
you. Do not let it get twisted.The lap-shoulder belt may lock if you pull the
belt across you very quickly. If this happens,
let the belt go back slightly to unlock it.
Then pull the belt across you more slowly.
4. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is
secure. If the belt is not long enough,
seeSafety Belt Extender on page 40.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
5. Move the shoulder belt height adjuster to the
height that is right for you. Improper shoulder
belt height adjustment could reduce the
effectiveness of the safety belt in a crash. See
Shoulder Belt Height Adjustment on page 31.
23

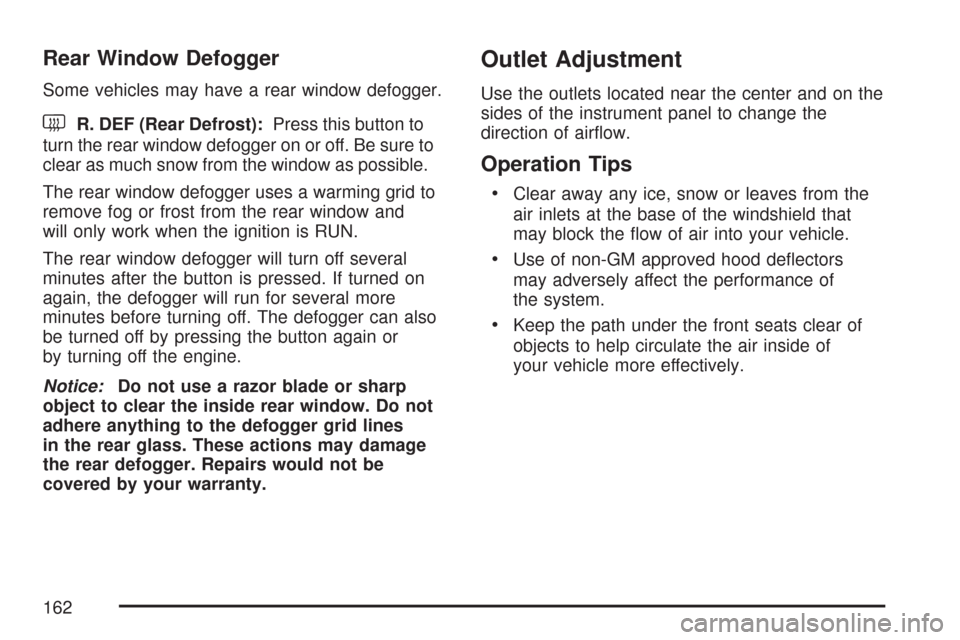

Page 162 of 458
Rear Window Defogger
Some vehicles may have a rear window defogger.
clear as much snow from the window as possible.
The rear window defogger uses a warming grid to
remove fog or frost from the rear window and
will only work when the ignition is RUN.
The rear window defogger will turn off several
minutes after the button is pressed. If turned on
again, the defogger will run for several more
minutes before turning off. The defogger can also
be turned off by pressing the button again or
by turning off the engine.
Notice:Do not use a razor blade or sharp
object to clear the inside rear window. Do not
adhere anything to the defogger grid lines
in the rear glass. These actions may damage
the rear defogger. Repairs would not be
covered by your warranty.
Outlet Adjustment
Use the outlets located near the center and on the
sides of the instrument panel to change the
direction of airflow.
Operation Tips
•Clear away any ice, snow or leaves from the
air inlets at the base of the windshield that
may block the flow of air into your vehicle.
•Use of non-GM approved hood deflectors
may adversely affect the performance of
the system.
•Keep the path under the front seats clear of
objects to help circulate the air inside of
your vehicle more effectively.
162

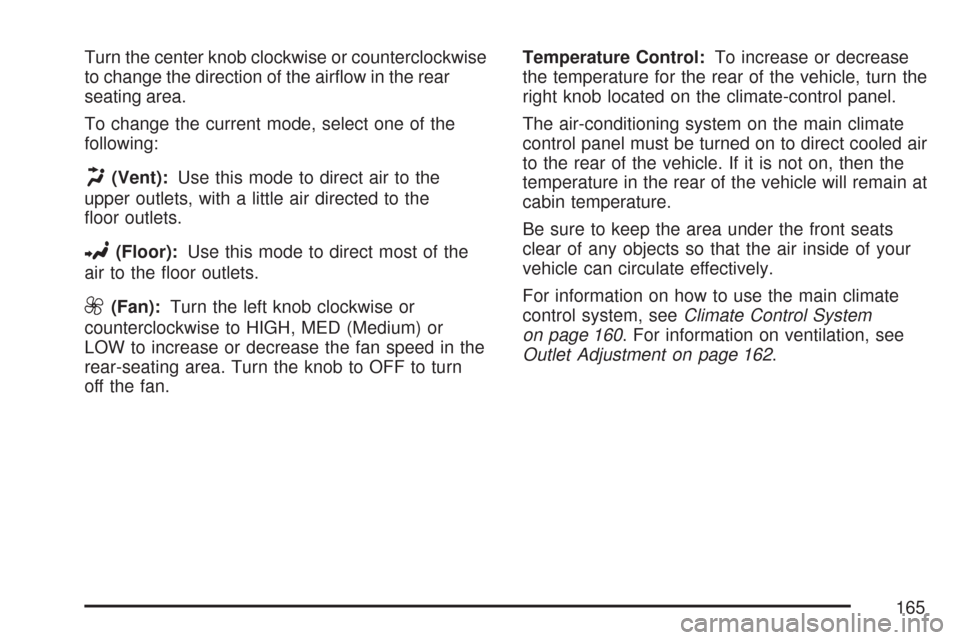

Page 165 of 458
Turn the center knob clockwise or counterclockwise
to change the direction of the airflow in the rear
seating area.
To change the current mode, select one of the
following:
H(Vent):Use this mode to direct air to the
upper outlets, with a little air directed to the
floor outlets.
2(Floor):Use this mode to direct most of the
air to the floor outlets.
9(Fan):Turn the left knob clockwise or
counterclockwise to HIGH, MED (Medium) or
LOW to increase or decrease the fan speed in the
rear-seating area. Turn the knob to OFF to turn
off the fan.Temperature Control:To increase or decrease
the temperature for the rear of the vehicle, turn the
right knob located on the climate-control panel.
The air-conditioning system on the main climate
control panel must be turned on to direct cooled air
to the rear of the vehicle. If it is not on, then the
temperature in the rear of the vehicle will remain at
cabin temperature.
Be sure to keep the area under the front seats
clear of any objects so that the air inside of your
vehicle can circulate effectively.
For information on how to use the main climate
control system, seeClimate Control System
on page 160. For information on ventilation, see
Outlet Adjustment on page 162.
165

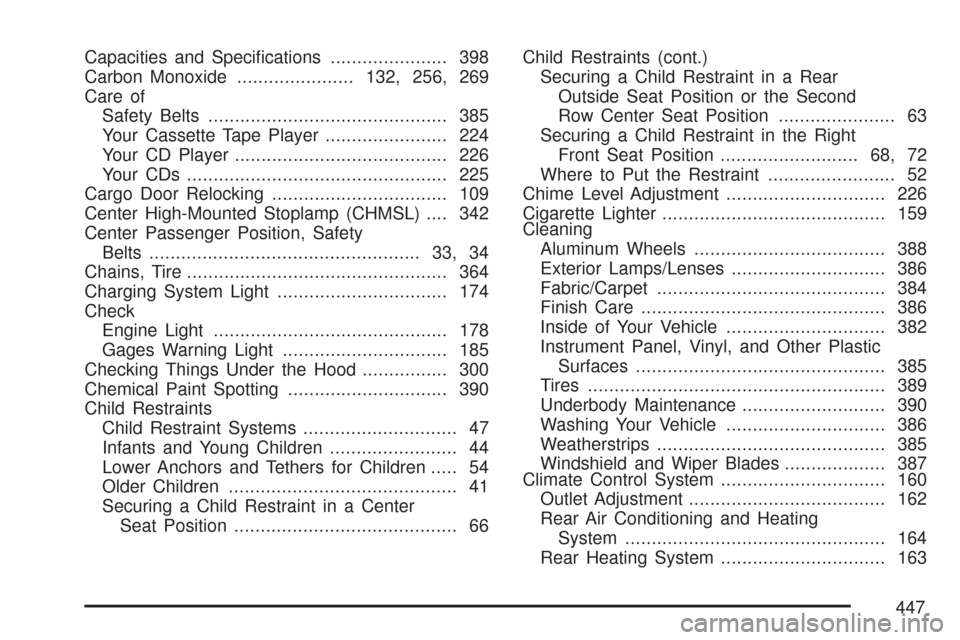

Page 447 of 458
Capacities and Specifications...................... 398
Carbon Monoxide......................132, 256, 269
Care of
Safety Belts............................................. 385
Your Cassette Tape Player....................... 224
Your CD Player........................................ 226
Your CDs ................................................. 225
Cargo Door Relocking................................. 109
Center High-Mounted Stoplamp (CHMSL).... 342
Center Passenger Position, Safety
Belts................................................... 33, 34
Chains, Tire................................................. 364
Charging System Light................................ 174
Check
Engine Light............................................ 178
Gages Warning Light............................... 185
Checking Things Under the Hood................ 300
Chemical Paint Spotting.............................. 390
Child Restraints
Child Restraint Systems............................. 47
Infants and Young Children........................ 44
Lower Anchors and Tethers for Children..... 54
Older Children........................................... 41
Securing a Child Restraint in a Center
Seat Position.......................................... 66Child Restraints (cont.)
Securing a Child Restraint in a Rear
Outside Seat Position or the Second
Row Center Seat Position...................... 63
Securing a Child Restraint in the Right
Front Seat Position.......................... 68, 72
Where to Put the Restraint........................ 52
Chime Level Adjustment.............................. 226
Cigarette Lighter.......................................... 159
Cleaning
Aluminum Wheels.................................... 388
Exterior Lamps/Lenses............................. 386
Fabric/Carpet........................................... 384
Finish Care.............................................. 386
Inside of Your Vehicle.............................. 382
Instrument Panel, Vinyl, and Other Plastic
Surfaces............................................... 385
Tires........................................................ 389
Underbody Maintenance........................... 390
Washing Your Vehicle.............................. 386
Weatherstrips........................................... 385
Windshield and Wiper Blades................... 387
Climate Control System............................... 160
Outlet Adjustment..................................... 162
Rear Air Conditioning and Heating
System................................................. 164
Rear Heating System............................... 163
447
