CHEVROLET HHR 2008 1.G User Guide

Head Restraints
Adjust the head restraint so that the top of the restraint
is at the same height as the occupant’s head. This
position reduces the chance of a neck injury in a crash.Pull the head restraint up
to raise it. To lower the
head restraint, press
the button, located on the
top of the seatback,
and push the restraint
down. Only the front head
restraints are adjustable.
Both the front and rear head restraints can be removed.
Press the button, located on the top of the seatback,
and pull the restraint out from the seatback. Do
not remove the head restraint if someone will be sitting
in that seat while the vehicle is moving.
1-7

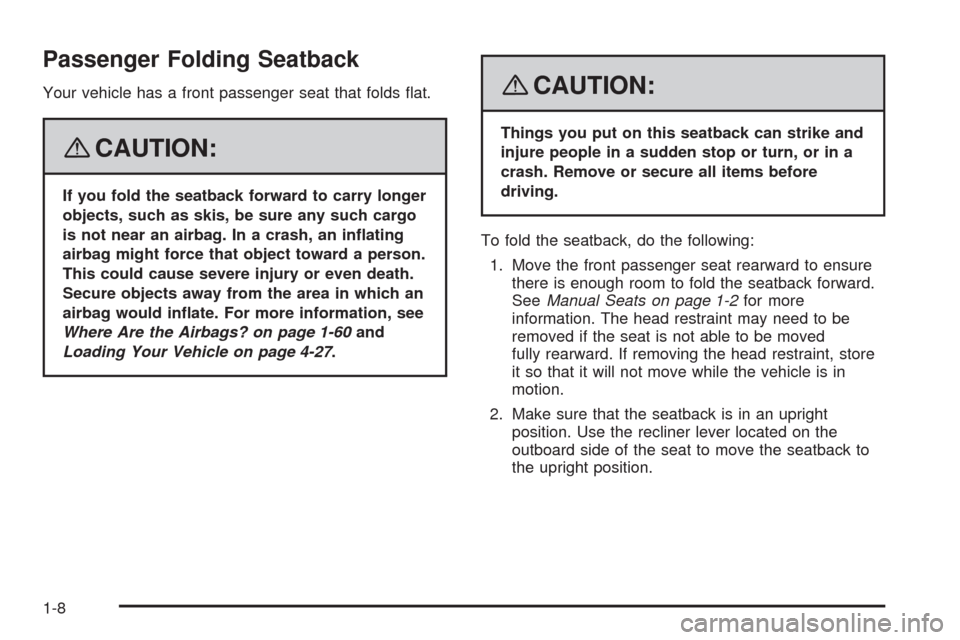

Passenger Folding Seatback
Your vehicle has a front passenger seat that folds at.
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo
is not near an airbag. In a crash, an inating
airbag might force that object toward a person.
This could cause severe injury or even death.
Secure objects away from the area in which an
airbag would inate. For more information, see
Where Are the Airbags? on page 1-60and
Loading Your Vehicle on page 4-27.
{CAUTION:
Things you put on this seatback can strike and
injure people in a sudden stop or turn, or in a
crash. Remove or secure all items before
driving.
To fold the seatback, do the following:
1. Move the front passenger seat rearward to ensure
there is enough room to fold the seatback forward.
SeeManual Seats on page 1-2for more
information. The head restraint may need to be
removed if the seat is not able to be moved
fully rearward. If removing the head restraint, store
it so that it will not move while the vehicle is in
motion.
2. Make sure that the seatback is in an upright
position. Use the recliner lever located on the
outboard side of the seat to move the seatback to
the upright position.
1-8

3. To fold the seat at, pull up on either lever located
toward the rear of the seatback. Fold the seat
forward until the seatback disengages.
4. Continue to fold the seat forward until it locks in the
folded position. Pull up on the seatback to be sure
it is locked.To raise the seatback to an upright position:
1. Pull up on either lever.
2. Push the seatback up until it is in a locked position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
3. Push and pull on the seatback to make sure it is
locked.
1-9

Rear Seats
Split Folding Rear Seat
The seatbacks can be folded at.
To lower the rear seatback(s):
1. Move the front seat forward and/or put the front
seatback in an upright position so it does not
interfere with folding the rear seatback forward.
2. Open the rear door while the vehicle is parked.
3. The rear head restraint may need to be removed if
it interferes with the front seat when the front seat
is moved back in place. If removed, store the
head restraint where it cannot move while the
vehicle is in motion.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.4. Move the safety belt out of the way before lowering
the seatback. Do not let the safety belt get caught
between the seatback and seat cushion as the
seatback is folded.
1-10

5. Pull up on the knob
located on the top of
the seatback on
the outboard side to
release the seatback.To raise the rear seatback(s):
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
1. Lift the seatback up and push rearward until you
hear a click. Keep the safety belt clear of the seat
and not twisted.
The release knob on the top of the seatback has a
red ring. If the seatback is not fully latched this
ring will be visible. Push on the seatback until the
ring is not visible.
1-11

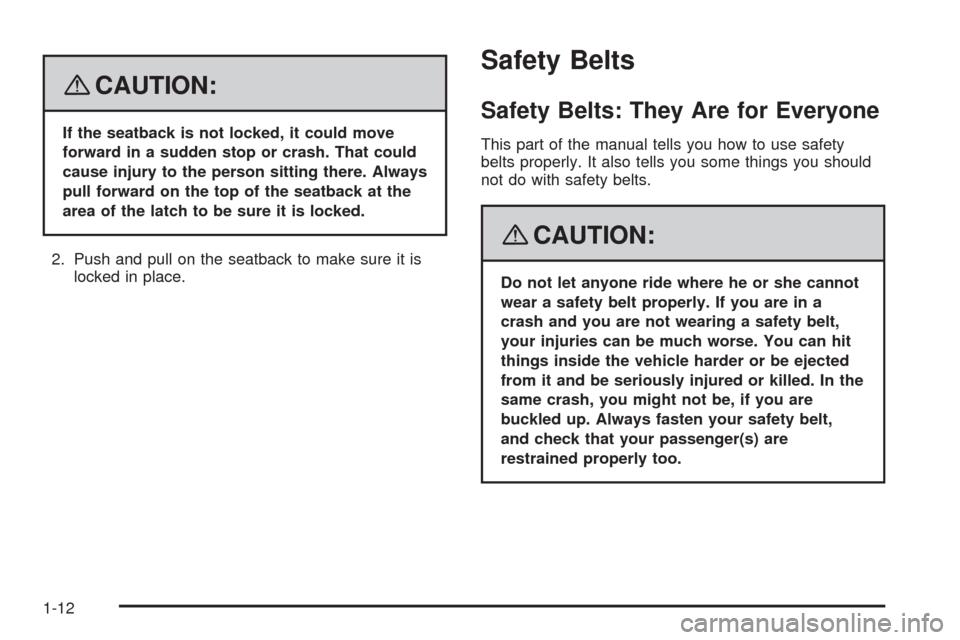

{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
pull forward on the top of the seatback at the
area of the latch to be sure it is locked.
2. Push and pull on the seatback to make sure it is
locked in place.
Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle harder or be ejected
from it and be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passenger(s) are
restrained properly too.
1-12

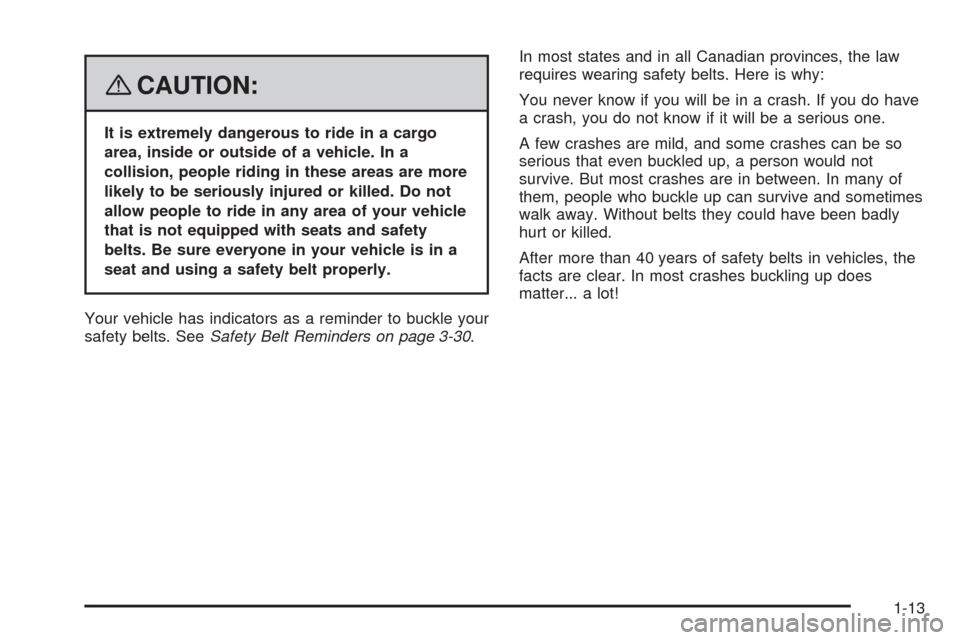

{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has indicators as a reminder to buckle your
safety belts. SeeSafety Belt Reminders on page 3-30.In most states and in all Canadian provinces, the law
requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 40 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter... a lot!
1-13

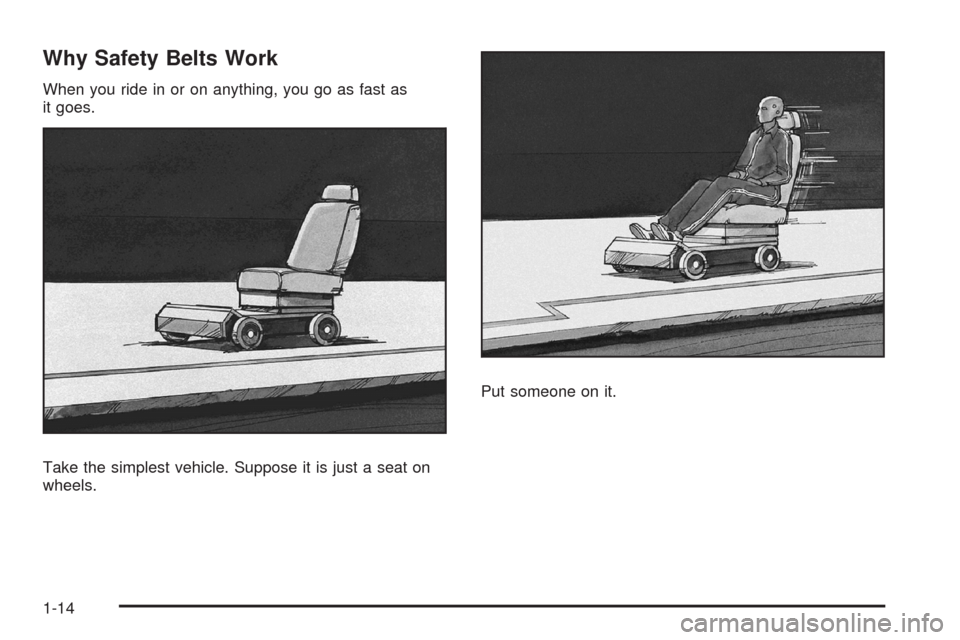

Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.Put someone on it.
1-14

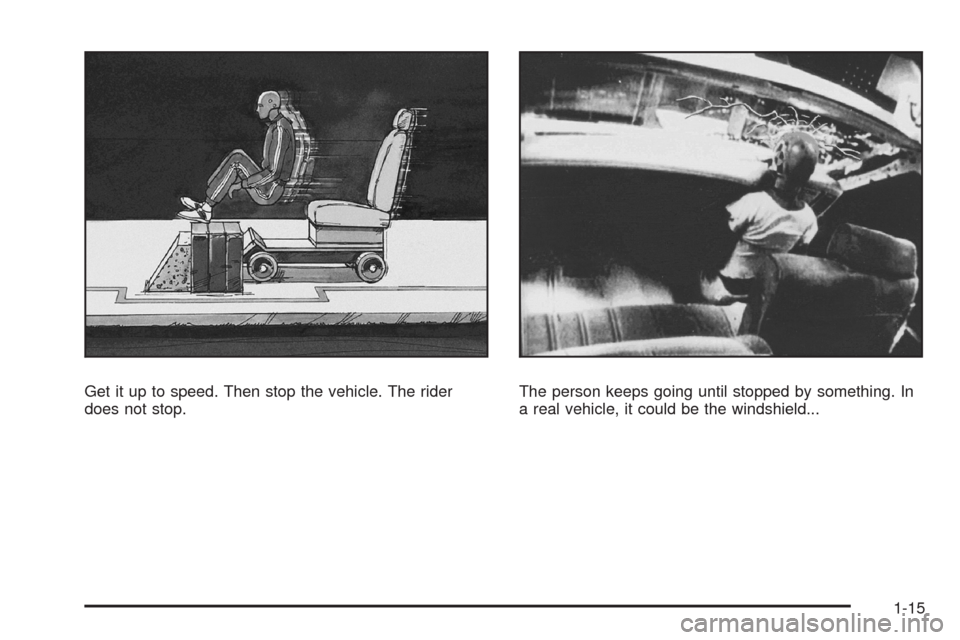

Get it up to speed. Then stop the vehicle. The rider
does not stop.The person keeps going until stopped by something. In
a real vehicle, it could be the windshield...
1-15

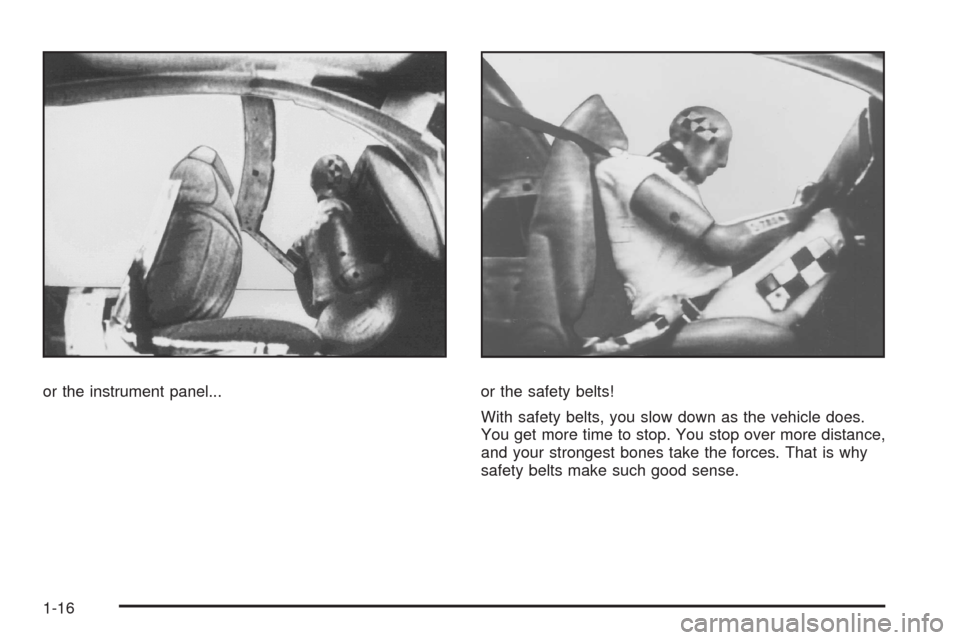

or the instrument panel... or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
1-16
