Black plate (9,1)Chevrolet HHR Owner Manual - 2011
{WARNING:
Sitting in a reclined position when the vehicle is in
motion can be dangerous. Even when buckled up,
the safety belts cannot do their job when reclined
like this.
The shoulder belt cannot do its job because it will
not be against your body. Instead, it will be in front
of you. In a crash, you could go into it, receiving
neck or other injuries.
The lap belt cannot do its job either. In a crash,
the belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear the safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
2-9
Page 42 of 430

Black plate (10,1)Chevrolet HHR Owner Manual - 2011
Passenger Folding Seatback
Your vehicle has a front passenger seat that folds flat.
{WARNING:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo is
not near an airbag. In a crash, an inflating airbag
might force that object toward a person. This
could cause severe injury or even death. Secure
objects away from the area in which an airbag
would inflate. For more information, seeWhere
Are the Airbags?
on page 2‑61and Loading the
Vehicle on page 5‑22.
{WARNING:
Things you put on this seatback can strike and
injure people in a sudden stop or turn, or in a
crash. Remove or secure all items before driving.
To fold the seatback, do the following: 1. Move the front passenger seat rearward to ensure there is enough room to fold the seatback forward.
See Manual Seats
on page 2‑4for more
information. The head restraint may need to be
removed if the seat is not able to be moved fully
rearward. If removing the head restraint, store it so
that it will not move while the vehicle is in motion.
2. Make sure that the seatback is in an upright position. Use the recliner lever located on the
outboard side of the seat to move the seatback to
the upright position.
2-10
Page 43 of 430

Black plate (11,1)Chevrolet HHR Owner Manual - 2011
3. To fold the seat flat, pull up on either lever locatedtoward the rear of the seatback. Fold the seat
forward until the seatback disengages.
4. Continue to fold the seat forward until it locks in the folded position. Pull up on the seatback to be
sure it is locked. To raise the seatback to an upright position:
1. Pull up on either lever.
2. Push the seatback up until it is in a locked position.
{WARNING:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
3. Push and pull on the seatback to make sure it is locked.
2-11
Page 44 of 430

Black plate (12,1)Chevrolet HHR Owner Manual - 2011
Rear Seats
Split Folding Rear Seat
The seatbacks can be folded flat.
To lower the rear seatback(s):1. Move the front seat forward and/or put the front seatback in an upright position so it does not
interfere with folding the rear seatback forward.
2. Open the rear door while the vehicle is parked.
3. The rear head restraint may need to be removed if it interferes with the front seat when the front seat
is moved back in place. If removed, store the head
restraint where it cannot move while the vehicle is
in motion.
Notice: Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts and
return them to their normal stowed position before
folding a rear seat.
4. Move the safety belt out of the way before lowering the seatback. Do not let the safety belt get caught
between the seatback and seat cushion as the
seatback is folded.
2-12
Page 45 of 430

Black plate (13,1)Chevrolet HHR Owner Manual - 2011
5. Pull up on the knoblocated on the top of
the seatback on the
outboard side to
release the seatback.To raise the rear seatback(s):
{WARNING:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After raising
the rear seatback, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
1. Lift the seatback up and push rearward until you hear a click. Keep the safety belt clear of the seat
and not twisted.
The release knob on the top of the seatback has a
red ring. If the seatback is not fully latched this ring
will be visible. Push on the seatback until the ring
is not visible.
2-13
Page 46 of 430

Black plate (14,1)Chevrolet HHR Owner Manual - 2011
{WARNING:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
pull forward on the top of the seatback at the area
of the latch to be sure it is locked.
2. Push and pull on the seatback to make sure it is locked in place.
Safety Belts
Safety Belts: They Are for Everyone
This section of the manual describes how to use safety
belts properly. It also describes some things not to do
with safety belts.
{WARNING:
Do not let anyone ride where a safety belt cannot
be worn properly. In a crash, if you or your
passenger(s) are not wearing safety belts, the
injuries can be much worse. You can hit things
inside the vehicle harder or be ejected from the
vehicle. You and your passenger(s) can be
seriously injured or killed. In the same crash, you
might not be, if you are buckled up. Always fasten
your safety belt, and check that your passenger(s)
are restrained properly too.
2-14
Page 47 of 430

Black plate (15,1)Chevrolet HHR Owner Manual - 2011
{WARNING:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
This vehicle has indicators as a reminder to buckle the
safety belts. See Safety Belt Reminders
on page 4‑25for additional information. In most states and in all Canadian provinces, the law
requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without safety belts, they could have been
badly hurt or killed.
After more than 40 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter ... a lot!
2-15
Page 48 of 430

Black plate (16,1)Chevrolet HHR Owner Manual - 2011
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.
Put someone on it.
2-16
Page 49 of 430

Black plate (17,1)Chevrolet HHR Owner Manual - 2011

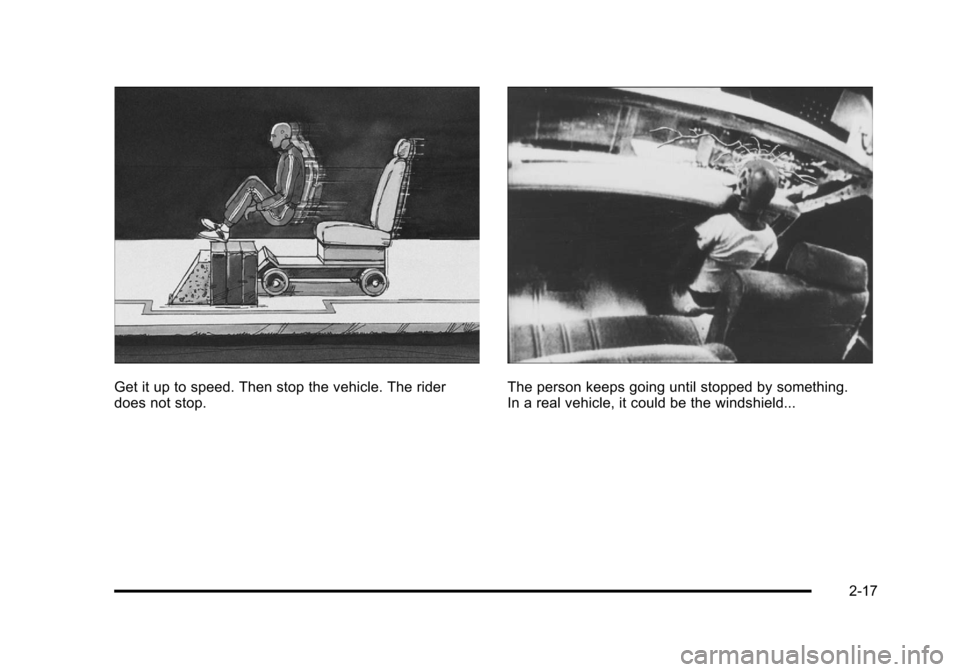

Get it up to speed. Then stop the vehicle. The rider
does not stop.The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...
2-17
Page 50 of 430

Black plate (18,1)Chevrolet HHR Owner Manual - 2011

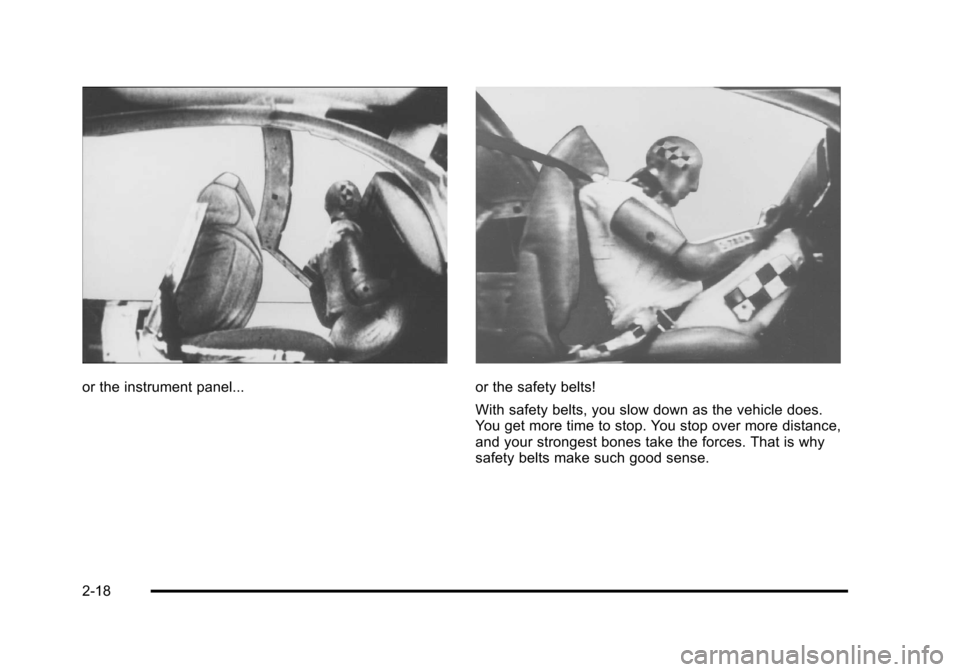

or the instrument panel...or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
