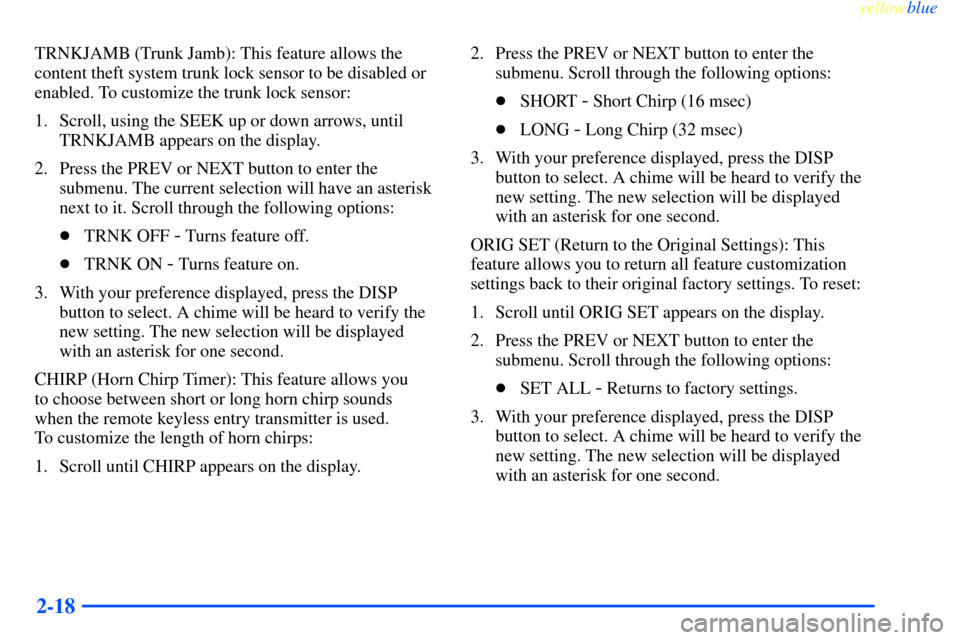

2-18
TRNKJAMB (Trunk Jamb): This feature allows the
content theft system trunk lock sensor to be disabled or
enabled. To customize the trunk lock sensor:
1. Scroll, using the SEEK up or down arrows, until
TRNKJAMB appears on the display.
2. Press the PREV or NEXT button to enter the
submenu. The current selection will have an asterisk
next to it. Scroll through the following options:

TRNK OFF
- Turns feature off.

TRNK ON
- Turns feature on.
3. With your preference displayed, press the DISP
button to select. A chime will be heard to verify the
new setting. The new selection will be displayed
with an asterisk for one second.
CHIRP (Horn Chirp Timer): This feature allows you
to choose between short or long horn chirp sounds
when the remote keyless entry transmitter is used.
To customize the length of horn chirps:
1. Scroll until CHIRP appears on the display.2. Press the PREV or NEXT button to enter the
submenu. Scroll through the following options:

SHORT
- Short Chirp (16 msec)

LONG
- Long Chirp (32 msec)
3. With your preference displayed, press the DISP
button to select. A chime will be heard to verify the
new setting. The new selection will be displayed
with an asterisk for one second.
ORIG SET (Return to the Original Settings): This
feature allows you to return all feature customization
settings back to their original factory settings. To reset:
1. Scroll until ORIG SET appears on the display.
2. Press the PREV or NEXT button to enter the
submenu. Scroll through the following options:

SET ALL
- Returns to factory settings.
3. With your preference displayed, press the DISP
button to select. A chime will be heard to verify the
new setting. The new selection will be displayed
with an asterisk for one second.

yellowblue

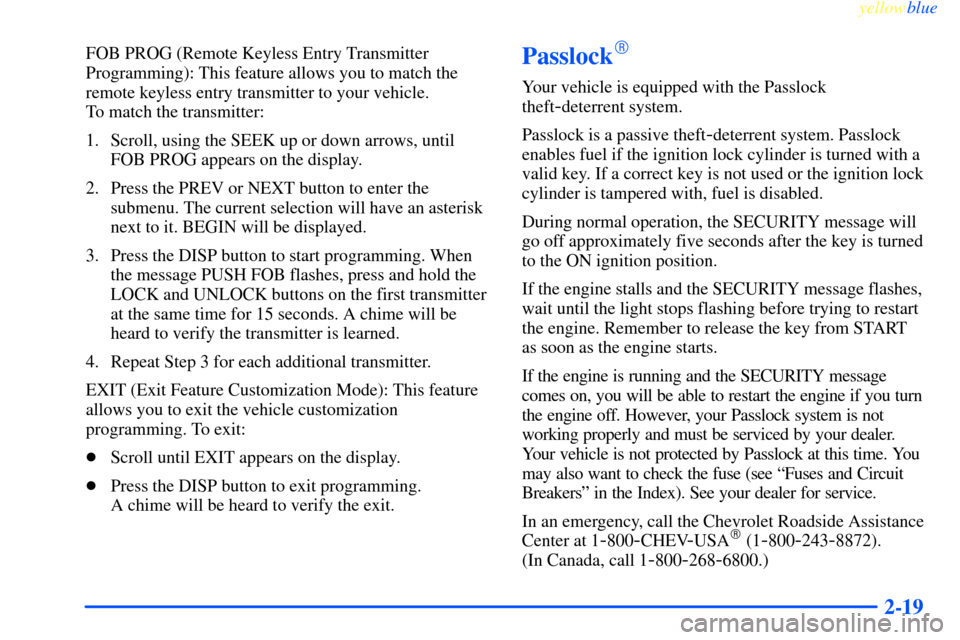

2-19
FOB PROG (Remote Keyless Entry Transmitter
Programming): This feature allows you to match the
remote keyless entry transmitter to your vehicle.
To match the transmitter:
1. Scroll, using the SEEK up or down arrows, until
FOB PROG appears on the display.
2. Press the PREV or NEXT button to enter the
submenu. The current selection will have an asterisk
next to it. BEGIN will be displayed.
3. Press the DISP button to start programming. When
the message PUSH FOB flashes, press and hold the
LOCK and UNLOCK buttons on the first transmitter
at the same time for 15 seconds. A chime will be
heard to verify the transmitter is learned.
4. Repeat Step 3 for each additional transmitter.
EXIT (Exit Feature Customization Mode): This feature
allows you to exit the vehicle customization
programming. To exit:

Scroll until EXIT appears on the display.

Press the DISP button to exit programming.
A chime will be heard to verify the exit.Passlock
Your vehicle is equipped with the Passlock
theft
-deterrent system.
Passlock is a passive theft
-deterrent system. Passlock
enables fuel if the ignition lock cylinder is turned with a
valid key. If a correct key is not used or the ignition lock
cylinder is tampered with, fuel is disabled.
During normal operation, the SECURITY message will
go off approximately five seconds after the key is turned
to the ON ignition position.
If the engine stalls and the SECURITY message flashes,
wait until the light stops flashing before trying to restart
the engine. Remember to release the key from START
as soon as the engine starts.
If the engine is running and the SECURITY message
comes on, you will be able to restart the engine if you turn
the engine off. However, your Passlock system is not
working properly and must be serviced by your dealer.
Your vehicle is not protected by Passlock at this time. You
may also want to check the fuse (see ªFuses and Circuit
Breakersº in the Index). See your dealer for service.
In an emergency, call the Chevrolet Roadside Assistance
Center at 1
-800-CHEV-USA (1-800-243-8872).
(In Canada, call 1
-800-268-6800.)

yellowblue

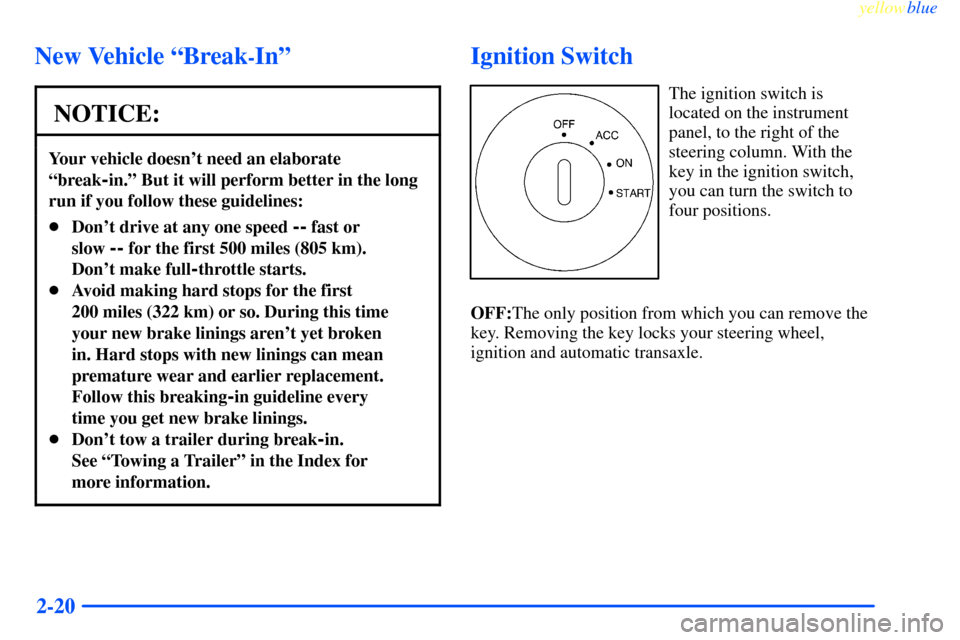

2-20
New Vehicle ªBreak-Inº
NOTICE:
Your vehicle doesn't need an elaborate
ªbreak
-in.º But it will perform better in the long
run if you follow these guidelines:

Don't drive at any one speed -- fast or
slow
-- for the first 500 miles (805 km).
Don't make full
-throttle starts.

Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren't yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking
-in guideline every
time you get new brake linings.

Don't tow a trailer during break
-in.
See ªTowing a Trailerº in the Index for
more information.
Ignition Switch
The ignition switch is
located on the instrument
panel, to the right of the
steering column. With the
key in the ignition switch,
you can turn the switch to
four positions.
OFF:The only position from which you can remove the
key. Removing the key locks your steering wheel,
ignition and automatic transaxle.

yellowblue
2-21
NOTICE:
If your key seems stuck in OFF and you can't
turn it, be sure you are using the correct key; if
so, is it all the way in? If it is, then turn the
steering wheel left and right while you turn the
key hard. But turn the key only with your hand.
Using a tool to force it could break the key or the
ignition switch. If none of this works, then your
vehicle needs service.
ACC (ACCESSORY): This is an operation in which
you can operate your electrical power accessories. With
the key in this position., the automatic transaxle and
steering column will unlock.
ON: This is the position to which the switch returns
after you start the engine and release the switch. The
switch stays in ON when the engine is running. But even
when the engine is not running, you can use ON to
operate your electrical power accessories and to display
some instrument panel messages and warning lights.START: This position starts the engine. When the
engine starts, release the key. The ignition switch will
return to ON for normal driving.
When the engine is not running, ACC and ON allow you
to operate your electrical accessories, such as the radio.
A warning tone will sound if you open the driver's door when
the ignition is in OFF or ACC and the key is in the ignition.
Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won't start in any other position
-- that's a
safety feature. To restart when you're already moving,
use NEUTRAL (N) only.
NOTICE:
Don't try to shift to PARK (P) if your vehicle is
moving. If you do, you could damage the
transaxle. Shift to PARK (P) only when your
vehicle is stopped.

yellowblue

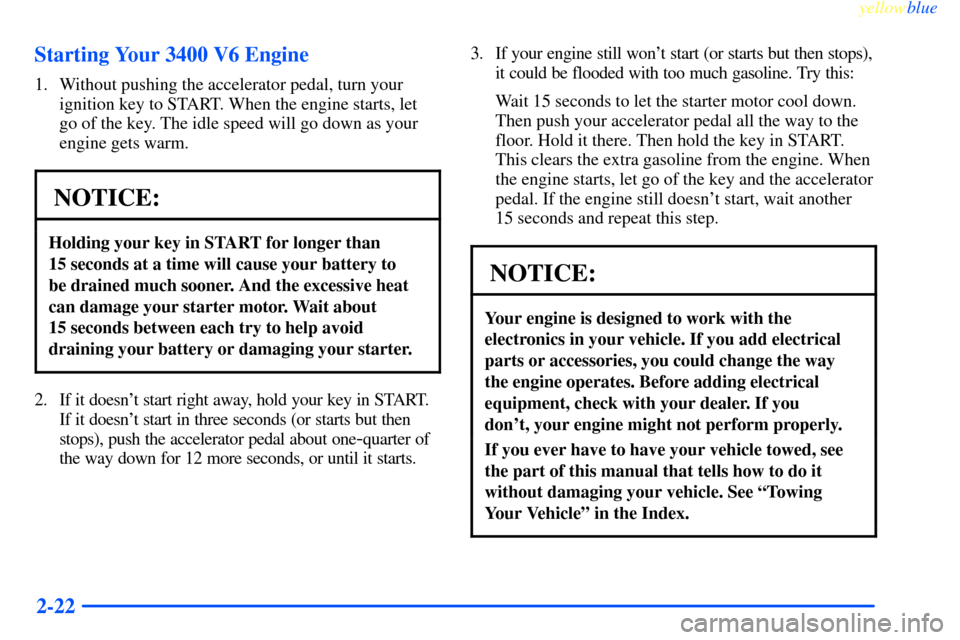

2-22 Starting Your 3400 V6 Engine
1. Without pushing the accelerator pedal, turn your
ignition key to START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to
be drained much sooner. And the excessive heat
can damage your starter motor. Wait about
15 seconds between each try to help avoid
draining your battery or damaging your starter.
2. If it doesn't start right away, hold your key in START.
If it doesn't start in three seconds (or starts but then
stops), push the accelerator pedal about one
-quarter of
the way down for 12 more seconds, or until it starts.3. If your engine still won't start (or starts but then stops),
it could be flooded with too much gasoline. Try this:
Wait 15 seconds to let the starter motor cool down.
Then push your accelerator pedal all the way to the
floor. Hold it there. Then hold the key in START.
This clears the extra gasoline from the engine. When
the engine starts, let go of the key and the accelerator
pedal. If the engine still doesn't start, wait another
15 seconds and repeat this step.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check with your dealer. If you
don't, your engine might not perform properly.
If you ever have to have your vehicle towed, see
the part of this manual that tells how to do it
without damaging your vehicle. See ªTowing
Your Vehicleº in the Index.

yellowblue

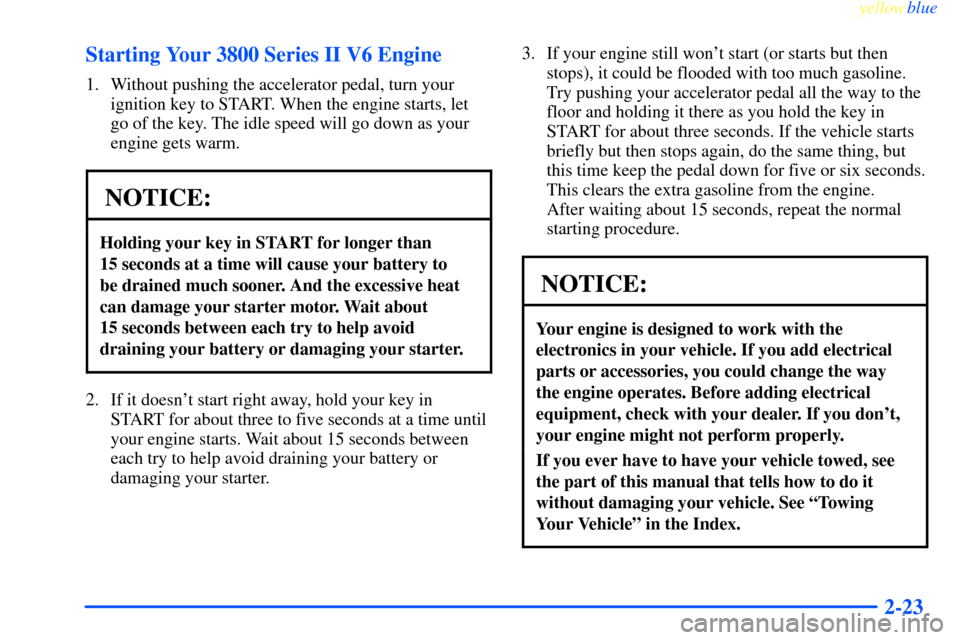

2-23 Starting Your 3800 Series II V6 Engine
1. Without pushing the accelerator pedal, turn your
ignition key to START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to
be drained much sooner. And the excessive heat
can damage your starter motor. Wait about
15 seconds between each try to help avoid
draining your battery or damaging your starter.
2. If it doesn't start right away, hold your key in
START for about three to five seconds at a time until
your engine starts. Wait about 15 seconds between
each try to help avoid draining your battery or
damaging your starter.3. If your engine still won't start (or starts but then
stops), it could be flooded with too much gasoline.
Try pushing your accelerator pedal all the way to the
floor and holding it there as you hold the key in
START for about three seconds. If the vehicle starts
briefly but then stops again, do the same thing, but
this time keep the pedal down for five or six seconds.
This clears the extra gasoline from the engine.
After waiting about 15 seconds, repeat the normal
starting procedure.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check with your dealer. If you don't,
your engine might not perform properly.
If you ever have to have your vehicle towed, see
the part of this manual that tells how to do it
without damaging your vehicle. See ªTowing
Your Vehicleº in the Index.

yellowblue
2-24

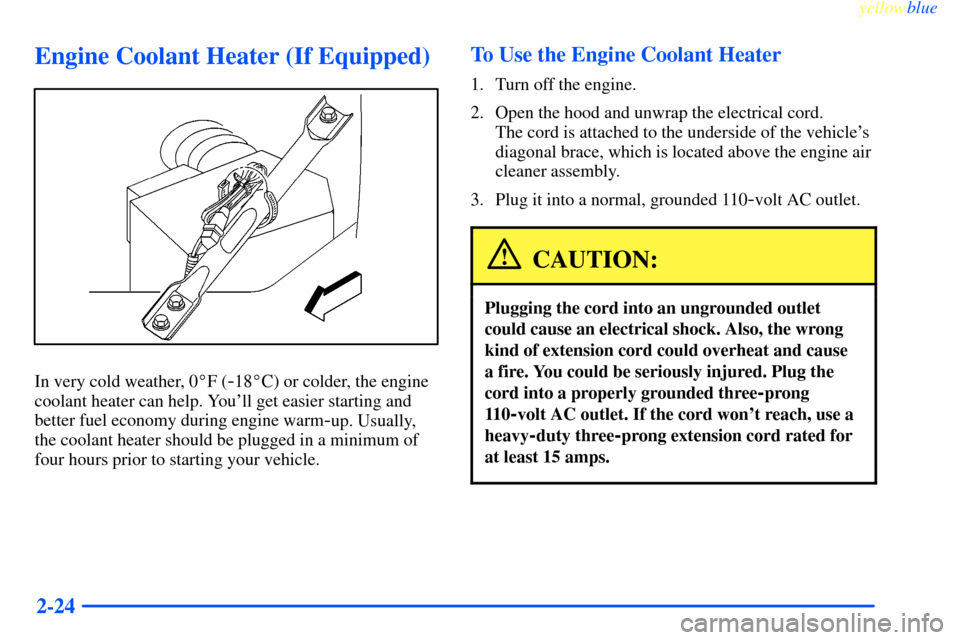

Engine Coolant Heater (If Equipped)
In very cold weather, 0
F (-18
C) or colder, the engine
coolant heater can help. You'll get easier starting and
better fuel economy during engine warm
-up. Usually,
the coolant heater should be plugged in a minimum of
four hours prior to starting your vehicle.
To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
The cord is attached to the underside of the vehicle's
diagonal brace, which is located above the engine air
cleaner assembly.
3. Plug it into a normal, grounded 110
-volt AC outlet.
CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the wrong
kind of extension cord could overheat and cause
a fire. You could be seriously injured. Plug the
cord into a properly grounded three
-prong
11 0
-volt AC outlet. If the cord won't reach, use a
heavy
-duty three-prong extension cord rated for
at least 15 amps.

yellowblue

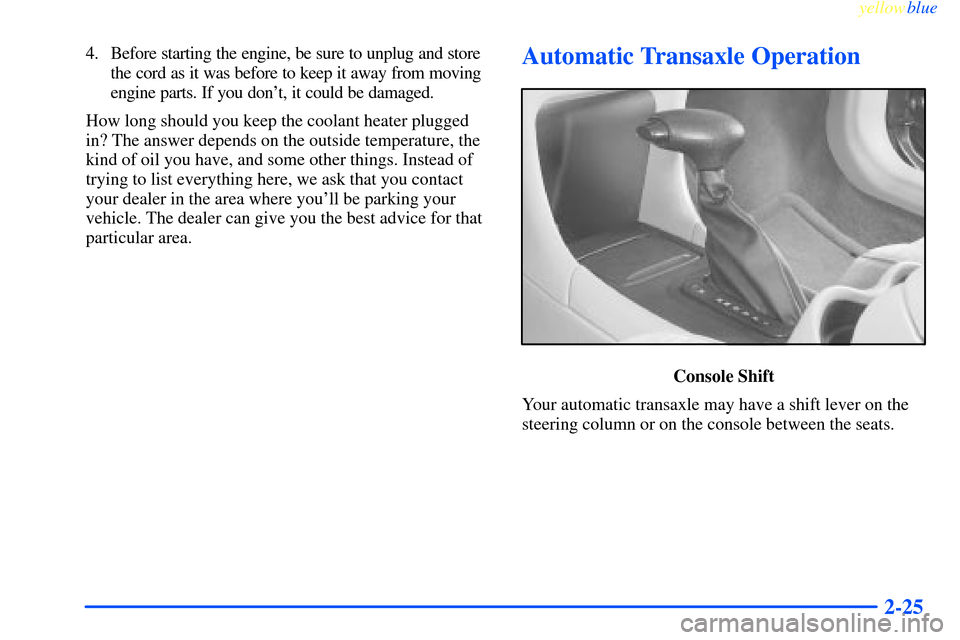

2-25
4. Before starting the engine, be sure to unplug and store
the cord as it was before to keep it away from moving
engine parts. If you don't, it could be damaged.
How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead of
trying to list everything here, we ask that you contact
your dealer in the area where you'll be parking your
vehicle. The dealer can give you the best advice for that
particular area.Automatic Transaxle Operation
Console Shift
Your automatic transaxle may have a shift lever on the
steering column or on the console between the seats.

yellowblue
2-26

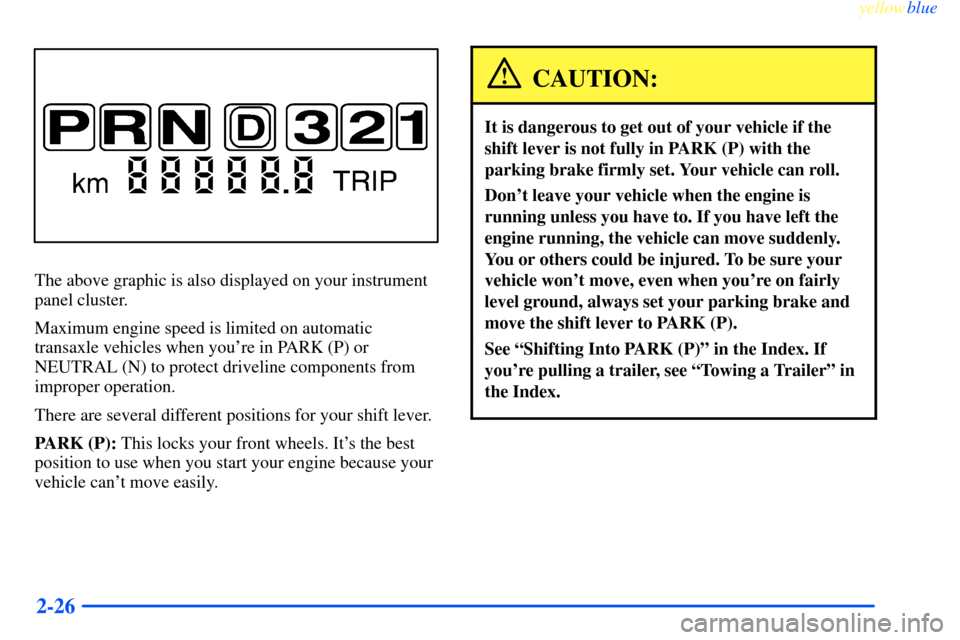

The above graphic is also displayed on your instrument
panel cluster.
Maximum engine speed is limited on automatic
transaxle vehicles when you're in PARK (P) or
NEUTRAL (N) to protect driveline components from
improper operation.
There are several different positions for your shift lever.
PARK (P): This locks your front wheels. It's the best
position to use when you start your engine because your
vehicle can't move easily.
CAUTION:
It is dangerous to get out of your vehicle if the
shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake and
move the shift lever to PARK (P).
See ªShifting Into PARK (P)º in the Index. If
you're pulling a trailer, see ªTowing a Trailerº in
the Index.

yellowblue
2-27

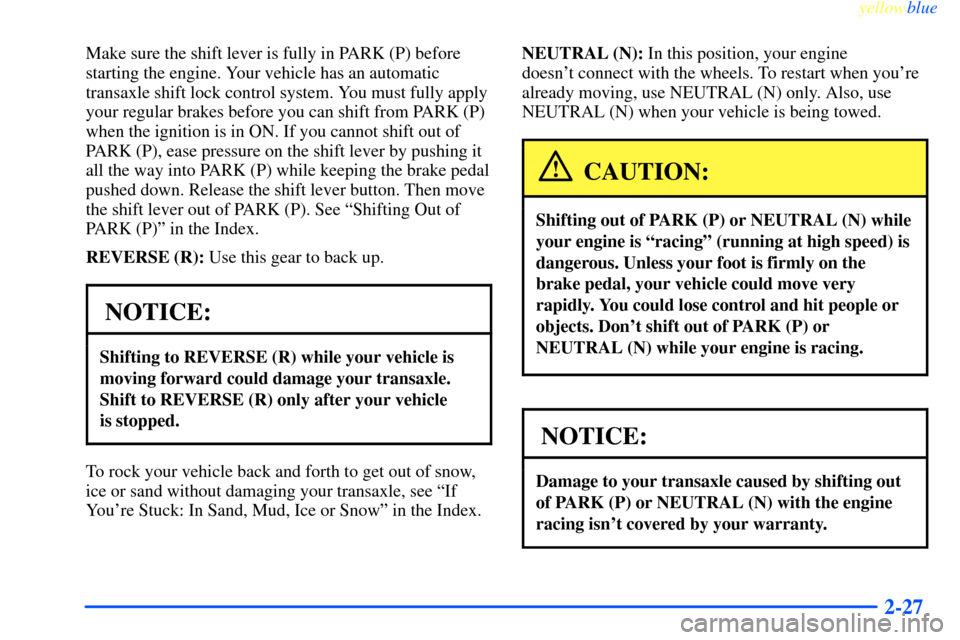

Make sure the shift lever is fully in PARK (P) before
starting the engine. Your vehicle has an automatic
transaxle shift lock control system. You must fully apply
your regular brakes before you can shift from PARK (P)
when the ignition is in ON. If you cannot shift out of
PARK (P), ease pressure on the shift lever by pushing it
all the way into PARK (P) while keeping the brake pedal
pushed down. Release the shift lever button. Then move
the shift lever out of PARK (P). See ªShifting Out of
PARK (P)º in the Index.
REVERSE (R): Use this gear to back up.
NOTICE:
Shifting to REVERSE (R) while your vehicle is
moving forward could damage your transaxle.
Shift to REVERSE (R) only after your vehicle
is stopped.
To rock your vehicle back and forth to get out of snow,
ice or sand without damaging your transaxle, see ªIf
You're Stuck: In Sand, Mud, Ice or Snowº in the Index.NEUTRAL (N): In this position, your engine
doesn't connect with the wheels. To restart when you're
already moving, use NEUTRAL (N) only. Also, use
NEUTRAL (N) when your vehicle is being towed.
CAUTION:
Shifting out of PARK (P) or NEUTRAL (N) while
your engine is ªracingº (running at high speed) is
dangerous. Unless your foot is firmly on the
brake pedal, your vehicle could move very
rapidly. You could lose control and hit people or
objects. Don't shift out of PARK (P) or
NEUTRAL (N) while your engine is racing.
NOTICE:
Damage to your transaxle caused by shifting out
of PARK (P) or NEUTRAL (N) with the engine
racing isn't covered by your warranty.
