CHEVROLET IMPALA 2007 9.G Owners Manual

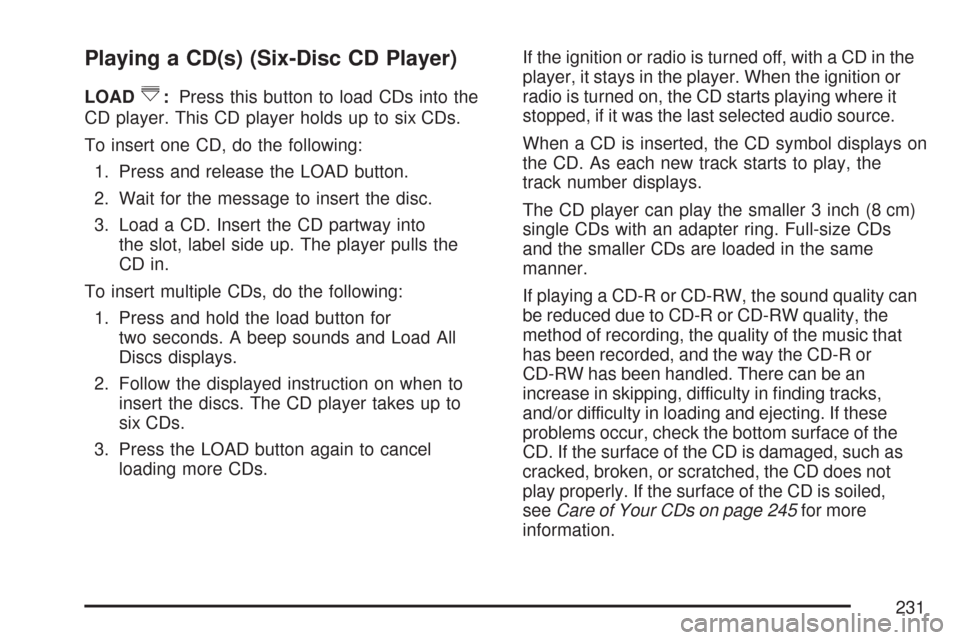

Playing a CD(s) (Six-Disc CD Player)
LOAD^:Press this button to load CDs into the
CD player. This CD player holds up to six CDs.
To insert one CD, do the following:
1. Press and release the LOAD button.
2. Wait for the message to insert the disc.
3. Load a CD. Insert the CD partway into
the slot, label side up. The player pulls the
CD in.
To insert multiple CDs, do the following:
1. Press and hold the load button for
two seconds. A beep sounds and Load All
Discs displays.
2. Follow the displayed instruction on when to
insert the discs. The CD player takes up to
six CDs.
3. Press the LOAD button again to cancel
loading more CDs.If the ignition or radio is turned off, with a CD in the
player, it stays in the player. When the ignition or
radio is turned on, the CD starts playing where it
stopped, if it was the last selected audio source.
When a CD is inserted, the CD symbol displays on
the CD. As each new track starts to play, the
track number displays.
The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs
and the smaller CDs are loaded in the same
manner.
If playing a CD-R or CD-RW, the sound quality can
be reduced due to CD-R or CD-RW quality, the
method of recording, the quality of the music that
has been recorded, and the way the CD-R or
CD-RW has been handled. There can be an
increase in skipping, difficulty in nding tracks,
and/or difficulty in loading and ejecting. If these
problems occur, check the bottom surface of the
CD. If the surface of the CD is damaged, such as
cracked, broken, or scratched, the CD does not
play properly. If the surface of the CD is soiled,
seeCare of Your CDs on page 245for more
information.
231

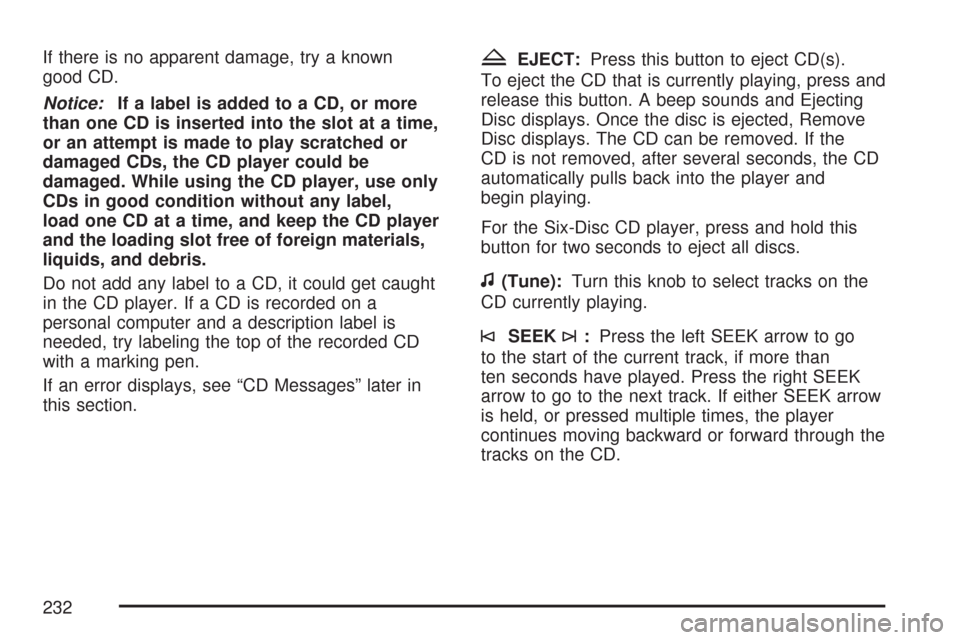

If there is no apparent damage, try a known
good CD.
Notice:If a label is added to a CD, or more
than one CD is inserted into the slot at a time,
or an attempt is made to play scratched or
damaged CDs, the CD player could be
damaged. While using the CD player, use only
CDs in good condition without any label,
load one CD at a time, and keep the CD player
and the loading slot free of foreign materials,
liquids, and debris.
Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen.
If an error displays, see “CD Messages” later in
this section.ZEJECT:Press this button to eject CD(s).
To eject the CD that is currently playing, press and
release this button. A beep sounds and Ejecting
Disc displays. Once the disc is ejected, Remove
Disc displays. The CD can be removed. If the
CD is not removed, after several seconds, the CD
automatically pulls back into the player and
begin playing.
For the Six-Disc CD player, press and hold this
button for two seconds to eject all discs.
f(Tune):Turn this knob to select tracks on the
CD currently playing.
©SEEK¨:Press the left SEEK arrow to go
to the start of the current track, if more than
ten seconds have played. Press the right SEEK
arrow to go to the next track. If either SEEK arrow
is held, or pressed multiple times, the player
continues moving backward or forward through the
tracks on the CD.
232

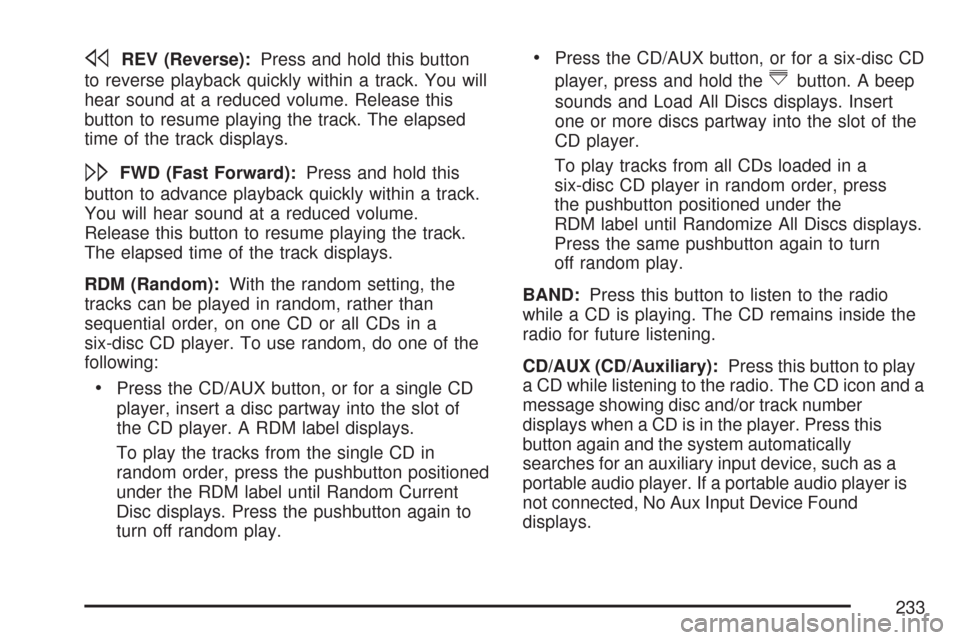

sREV (Reverse):Press and hold this button
to reverse playback quickly within a track. You will
hear sound at a reduced volume. Release this
button to resume playing the track. The elapsed
time of the track displays.
\FWD (Fast Forward):Press and hold this
button to advance playback quickly within a track.
You will hear sound at a reduced volume.
Release this button to resume playing the track.
The elapsed time of the track displays.
RDM (Random):With the random setting, the
tracks can be played in random, rather than
sequential order, on one CD or all CDs in a
six-disc CD player. To use random, do one of the
following:
Press the CD/AUX button, or for a single CD
player, insert a disc partway into the slot of
the CD player. A RDM label displays.
To play the tracks from the single CD in
random order, press the pushbutton positioned
under the RDM label until Random Current
Disc displays. Press the pushbutton again to
turn off random play.
Press the CD/AUX button, or for a six-disc CD
player, press and hold the
^button. A beep
sounds and Load All Discs displays. Insert
one or more discs partway into the slot of the
CD player.
To play tracks from all CDs loaded in a
six-disc CD player in random order, press
the pushbutton positioned under the
RDM label until Randomize All Discs displays.
Press the same pushbutton again to turn
off random play.
BAND:Press this button to listen to the radio
while a CD is playing. The CD remains inside the
radio for future listening.
CD/AUX (CD/Auxiliary):Press this button to play
a CD while listening to the radio. The CD icon and a
message showing disc and/or track number
displays when a CD is in the player. Press this
button again and the system automatically
searches for an auxiliary input device, such as a
portable audio player. If a portable audio player is
not connected, No Aux Input Device Found
displays.
233

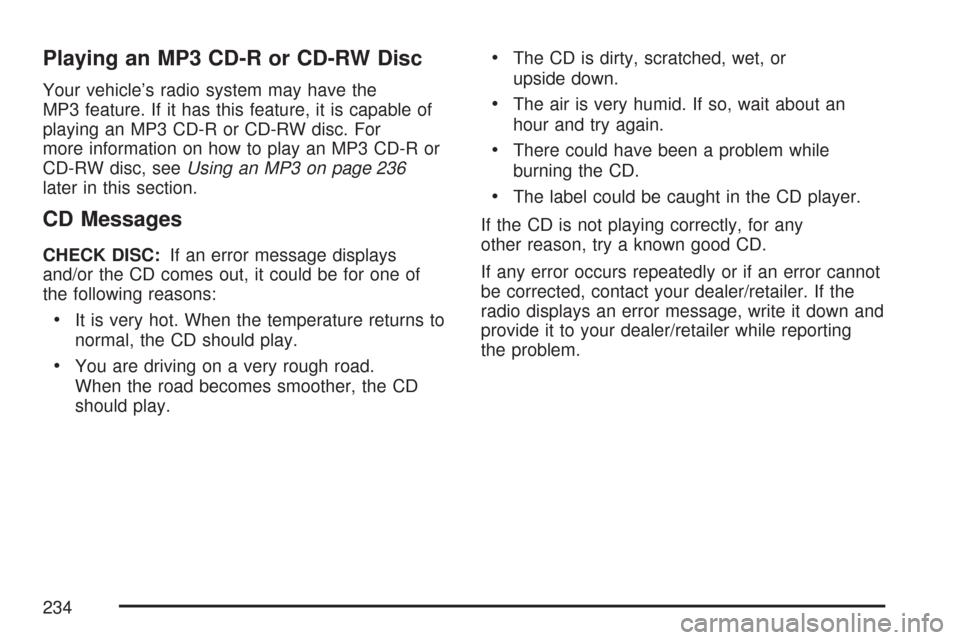

Playing an MP3 CD-R or CD-RW Disc
Your vehicle’s radio system may have the
MP3 feature. If it has this feature, it is capable of
playing an MP3 CD-R or CD-RW disc. For
more information on how to play an MP3 CD-R or
CD-RW disc, seeUsing an MP3 on page 236
later in this section.
CD Messages
CHECK DISC:If an error message displays
and/or the CD comes out, it could be for one of
the following reasons:
It is very hot. When the temperature returns to
normal, the CD should play.
You are driving on a very rough road.
When the road becomes smoother, the CD
should play.
The CD is dirty, scratched, wet, or
upside down.
The air is very humid. If so, wait about an
hour and try again.
There could have been a problem while
burning the CD.
The label could be caught in the CD player.
If the CD is not playing correctly, for any
other reason, try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer/retailer. If the
radio displays an error message, write it down and
provide it to your dealer/retailer while reporting
the problem.
234

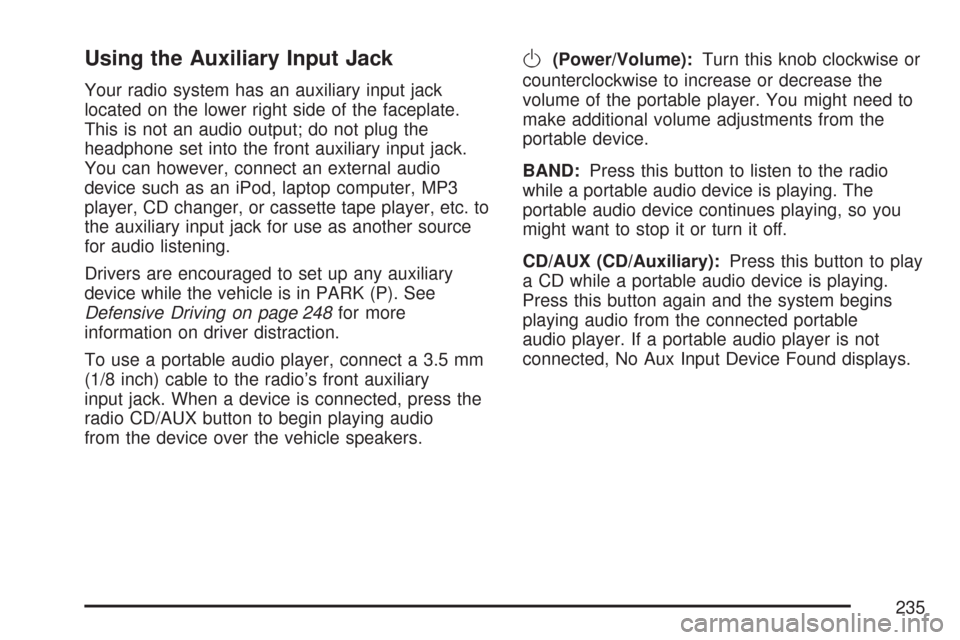

Using the Auxiliary Input Jack
Your radio system has an auxiliary input jack
located on the lower right side of the faceplate.
This is not an audio output; do not plug the
headphone set into the front auxiliary input jack.
You can however, connect an external audio
device such as an iPod, laptop computer, MP3
player, CD changer, or cassette tape player, etc. to
the auxiliary input jack for use as another source
for audio listening.
Drivers are encouraged to set up any auxiliary
device while the vehicle is in PARK (P). See
Defensive Driving on page 248for more
information on driver distraction.
To use a portable audio player, connect a 3.5 mm
(1/8 inch) cable to the radio’s front auxiliary
input jack. When a device is connected, press the
radio CD/AUX button to begin playing audio
from the device over the vehicle speakers.
O(Power/Volume):Turn this knob clockwise or
counterclockwise to increase or decrease the
volume of the portable player. You might need to
make additional volume adjustments from the
portable device.
BAND:Press this button to listen to the radio
while a portable audio device is playing. The
portable audio device continues playing, so you
might want to stop it or turn it off.
CD/AUX (CD/Auxiliary):Press this button to play
a CD while a portable audio device is playing.
Press this button again and the system begins
playing audio from the connected portable
audio player. If a portable audio player is not
connected, No Aux Input Device Found displays.
235

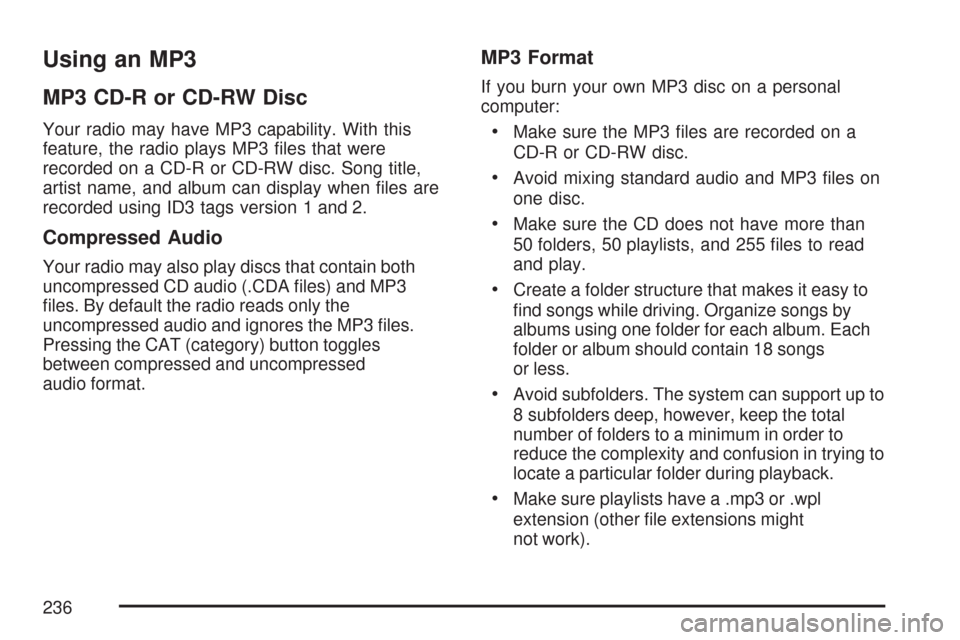

Using an MP3
MP3 CD-R or CD-RW Disc
Your radio may have MP3 capability. With this
feature, the radio plays MP3 les that were
recorded on a CD-R or CD-RW disc. Song title,
artist name, and album can display when les are
recorded using ID3 tags version 1 and 2.
Compressed Audio
Your radio may also play discs that contain both
uncompressed CD audio (.CDA les) and MP3
les. By default the radio reads only the
uncompressed audio and ignores the MP3 les.
Pressing the CAT (category) button toggles
between compressed and uncompressed
audio format.
MP3 Format
If you burn your own MP3 disc on a personal
computer:
Make sure the MP3 les are recorded on a
CD-R or CD-RW disc.
Avoid mixing standard audio and MP3 les on
one disc.
Make sure the CD does not have more than
50 folders, 50 playlists, and 255 les to read
and play.
Create a folder structure that makes it easy to
nd songs while driving. Organize songs by
albums using one folder for each album. Each
folder or album should contain 18 songs
or less.
Avoid subfolders. The system can support up to
8 subfolders deep, however, keep the total
number of folders to a minimum in order to
reduce the complexity and confusion in trying to
locate a particular folder during playback.
Make sure playlists have a .mp3 or .wpl
extension (other le extensions might
not work).
236

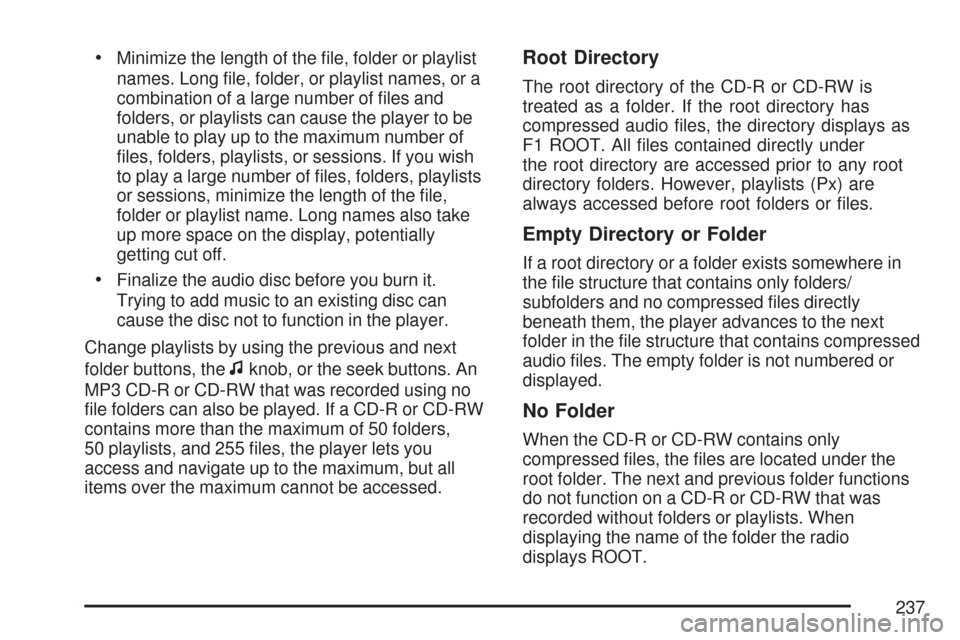

Minimize the length of the le, folder or playlist
names. Long le, folder, or playlist names, or a
combination of a large number of les and
folders, or playlists can cause the player to be
unable to play up to the maximum number of
les, folders, playlists, or sessions. If you wish
to play a large number of les, folders, playlists
or sessions, minimize the length of the le,
folder or playlist name. Long names also take
up more space on the display, potentially
getting cut off.
Finalize the audio disc before you burn it.
Trying to add music to an existing disc can
cause the disc not to function in the player.
Change playlists by using the previous and next
folder buttons, the
fknob, or the seek buttons. An
MP3 CD-R or CD-RW that was recorded using no
le folders can also be played. If a CD-R or CD-RW
contains more than the maximum of 50 folders,
50 playlists, and 255 les, the player lets you
access and navigate up to the maximum, but all
items over the maximum cannot be accessed.
Root Directory
The root directory of the CD-R or CD-RW is
treated as a folder. If the root directory has
compressed audio les, the directory displays as
F1 ROOT. All les contained directly under
the root directory are accessed prior to any root
directory folders. However, playlists (Px) are
always accessed before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere in
the le structure that contains only folders/
subfolders and no compressed les directly
beneath them, the player advances to the next
folder in the le structure that contains compressed
audio les. The empty folder is not numbered or
displayed.
No Folder
When the CD-R or CD-RW contains only
compressed les, the les are located under the
root folder. The next and previous folder functions
do not function on a CD-R or CD-RW that was
recorded without folders or playlists. When
displaying the name of the folder the radio
displays ROOT.
237

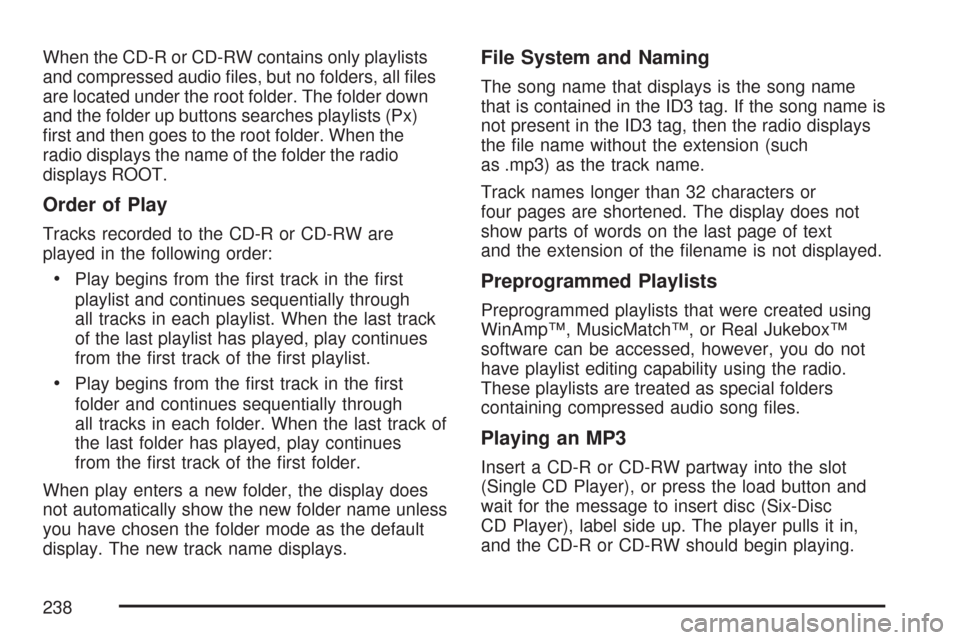

When the CD-R or CD-RW contains only playlists
and compressed audio les, but no folders, all les
are located under the root folder. The folder down
and the folder up buttons searches playlists (Px)
rst and then goes to the root folder. When the
radio displays the name of the folder the radio
displays ROOT.
Order of Play
Tracks recorded to the CD-R or CD-RW are
played in the following order:
Play begins from the rst track in the rst
playlist and continues sequentially through
all tracks in each playlist. When the last track
of the last playlist has played, play continues
from the rst track of the rst playlist.
Play begins from the rst track in the rst
folder and continues sequentially through
all tracks in each folder. When the last track of
the last folder has played, play continues
from the rst track of the rst folder.
When play enters a new folder, the display does
not automatically show the new folder name unless
you have chosen the folder mode as the default
display. The new track name displays.
File System and Naming
The song name that displays is the song name
that is contained in the ID3 tag. If the song name is
not present in the ID3 tag, then the radio displays
the le name without the extension (such
as .mp3) as the track name.
Track names longer than 32 characters or
four pages are shortened. The display does not
show parts of words on the last page of text
and the extension of the lename is not displayed.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™
software can be accessed, however, you do not
have playlist editing capability using the radio.
These playlists are treated as special folders
containing compressed audio song les.
Playing an MP3
Insert a CD-R or CD-RW partway into the slot
(Single CD Player), or press the load button and
wait for the message to insert disc (Six-Disc
CD Player), label side up. The player pulls it in,
and the CD-R or CD-RW should begin playing.
238

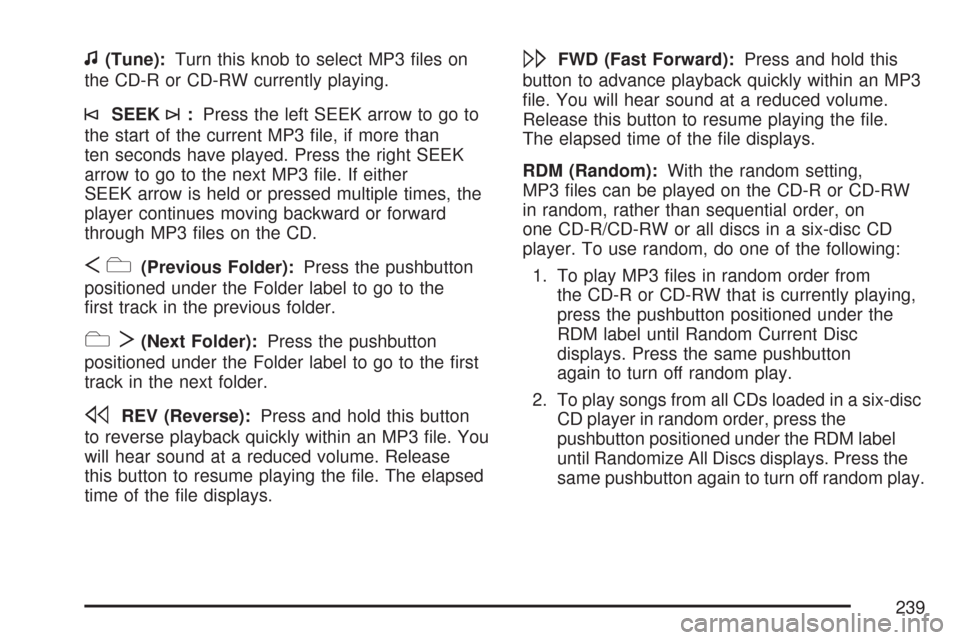

f(Tune):Turn this knob to select MP3 les on
the CD-R or CD-RW currently playing.
©SEEK¨:Press the left SEEK arrow to go to
the start of the current MP3 le, if more than
ten seconds have played. Press the right SEEK
arrow to go to the next MP3 le. If either
SEEK arrow is held or pressed multiple times, the
player continues moving backward or forward
through MP3 les on the CD.
Sc(Previous Folder):Press the pushbutton
positioned under the Folder label to go to the
rst track in the previous folder.
cT(Next Folder):Press the pushbutton
positioned under the Folder label to go to the rst
track in the next folder.
sREV (Reverse):Press and hold this button
to reverse playback quickly within an MP3 le. You
will hear sound at a reduced volume. Release
this button to resume playing the le. The elapsed
time of the le displays.
\FWD (Fast Forward):Press and hold this
button to advance playback quickly within an MP3
le. You will hear sound at a reduced volume.
Release this button to resume playing the le.
The elapsed time of the le displays.
RDM (Random):With the random setting,
MP3 les can be played on the CD-R or CD-RW
in random, rather than sequential order, on
one CD-R/CD-RW or all discs in a six-disc CD
player. To use random, do one of the following:
1. To play MP3 les in random order from
the CD-R or CD-RW that is currently playing,
press the pushbutton positioned under the
RDM label until Random Current Disc
displays. Press the same pushbutton
again to turn off random play.
2. To play songs from all CDs loaded in a six-disc
CD player in random order, press the
pushbutton positioned under the RDM label
until Randomize All Discs displays. Press the
same pushbutton again to turn off random play.
239

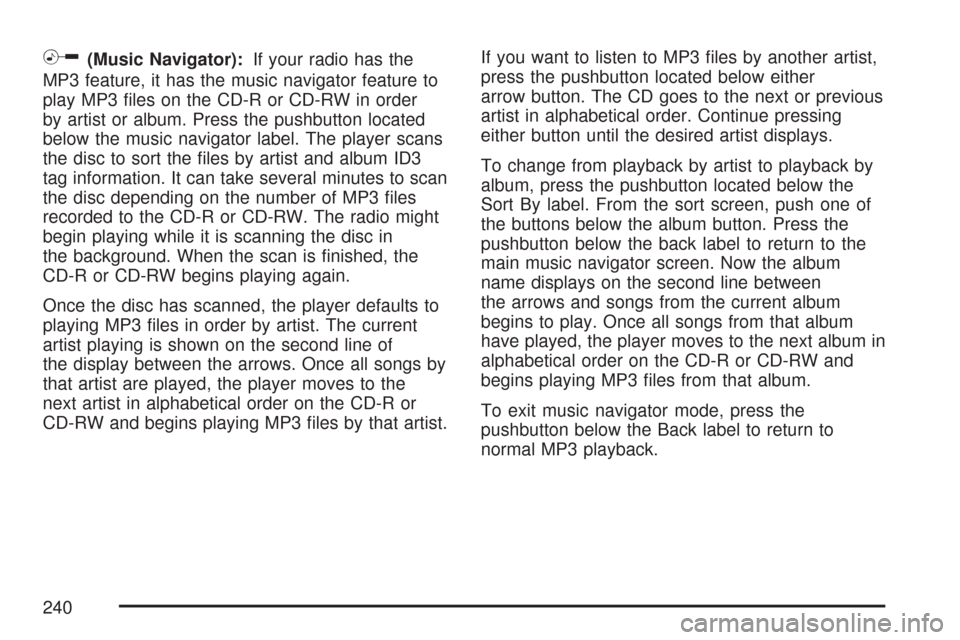

h(Music Navigator):If your radio has the
MP3 feature, it has the music navigator feature to
play MP3 les on the CD-R or CD-RW in order
by artist or album. Press the pushbutton located
below the music navigator label. The player scans
the disc to sort the les by artist and album ID3
tag information. It can take several minutes to scan
the disc depending on the number of MP3 les
recorded to the CD-R or CD-RW. The radio might
begin playing while it is scanning the disc in
the background. When the scan is nished, the
CD-R or CD-RW begins playing again.
Once the disc has scanned, the player defaults to
playing MP3 les in order by artist. The current
artist playing is shown on the second line of
the display between the arrows. Once all songs by
that artist are played, the player moves to the
next artist in alphabetical order on the CD-R or
CD-RW and begins playing MP3 les by that artist.If you want to listen to MP3 les by another artist,
press the pushbutton located below either
arrow button. The CD goes to the next or previous
artist in alphabetical order. Continue pressing
either button until the desired artist displays.
To change from playback by artist to playback by
album, press the pushbutton located below the
Sort By label. From the sort screen, push one of
the buttons below the album button. Press the
pushbutton below the back label to return to the
main music navigator screen. Now the album
name displays on the second line between
the arrows and songs from the current album
begins to play. Once all songs from that album
have played, the player moves to the next album in
alphabetical order on the CD-R or CD-RW and
begins playing MP3 les from that album.
To exit music navigator mode, press the
pushbutton below the Back label to return to
normal MP3 playback.
240
