CHEVROLET IMPALA 2016 10.G Bifuel Manual

Chevrolet Impala Bi-Fuel (Gasoline/CNG) Supplement (GMNA-Localizing-U.
S/Canada-9087624) - 2016 - CRC - 8/17/15

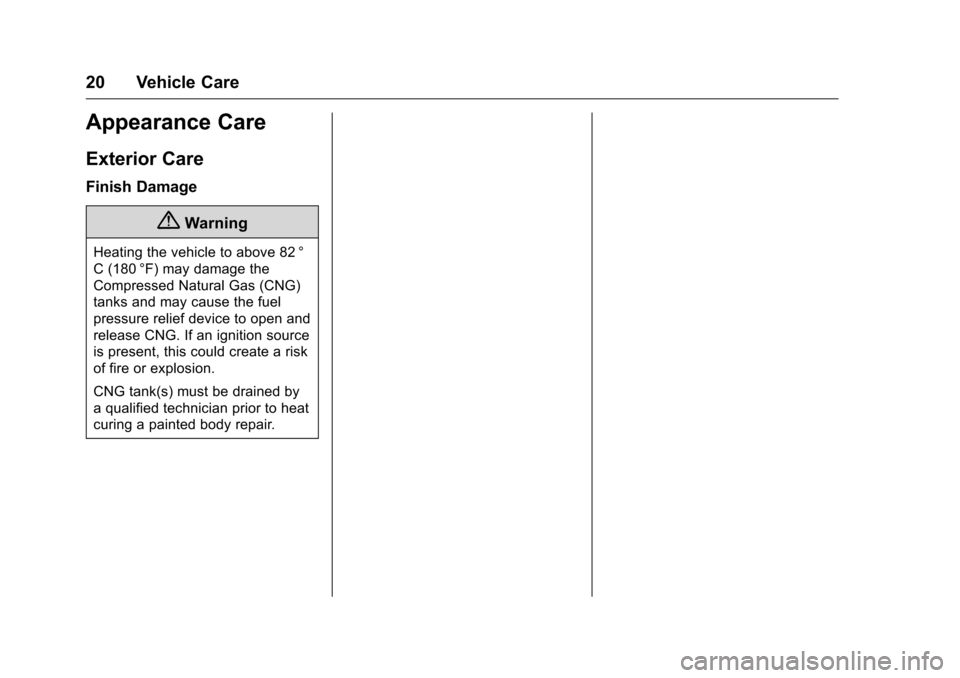

20 Vehicle Care
Appearance Care
Exterior Care
Finish Damage
{Warning
Heating the vehicle to above 82 °
C (180 °F) may damage the
Compressed Natural Gas (CNG)
tanks and may cause the fuel
pressure relief device to open and
release CNG. If an ignition source
is present, this could create a risk
of fire or explosion.
CNG tank(s) must be drained by
a qualified technician prior to heat
curing a painted body repair.

Chevrolet Impala Bi-Fuel (Gasoline/CNG) Supplement (GMNA-Localizing-U.
S/Canada-9087624) - 2016 - CRC - 8/17/15

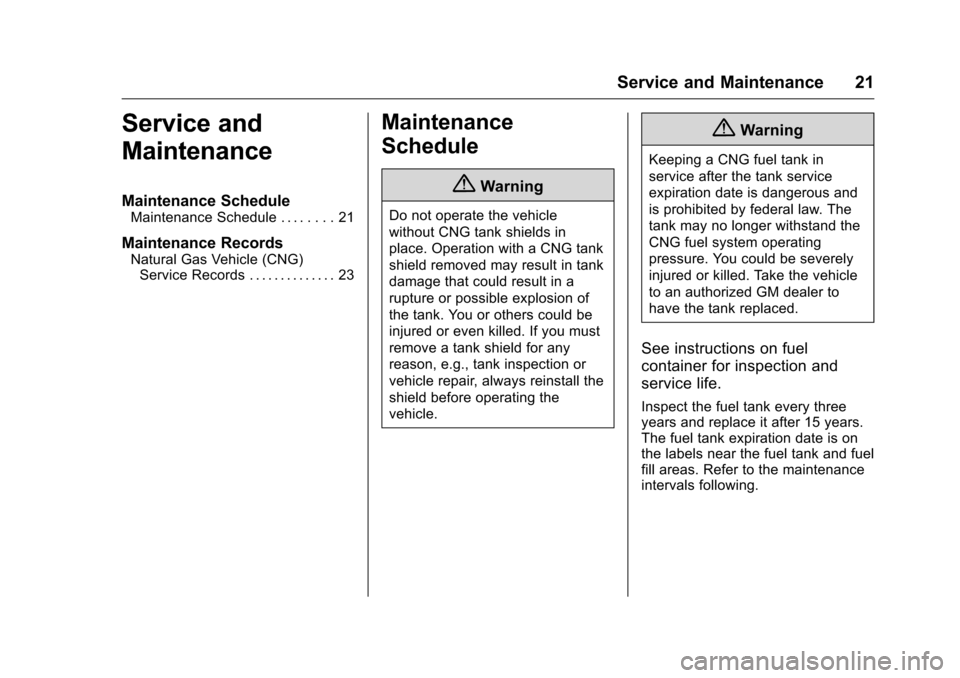

Service and Maintenance 21
Service and
Maintenance
Maintenance Schedule
Maintenance Schedule . . . . . . . . 21
Maintenance Records
Natural Gas Vehicle (CNG)Service Records . . . . . . . . . . . . . . 23
Maintenance
Schedule
{Warning
Do not operate the vehicle
without CNG tank shields in
place. Operation with a CNG tank
shield removed may result in tank
damage that could result in a
rupture or possible explosion of
the tank. You or others could be
injured or even killed. If you must
remove a tank shield for any
reason, e.g., tank inspection or
vehicle repair, always reinstall the
shield before operating the
vehicle.
{Warning
Keeping a CNG fuel tank in
service after the tank service
expiration date is dangerous and
is prohibited by federal law. The
tank may no longer withstand the
CNG fuel system operating
pressure. You could be severely
injured or killed. Take the vehicle
to an authorized GM dealer to
have the tank replaced.
See instructions on fuel
container for inspection and
service life.
Inspect the fuel tank every three
years and replace it after 15 years.
The fuel tank expiration date is on
the labels near the fuel tank and fuel
fill areas. Refer to the maintenance
intervals following.

Chevrolet Impala Bi-Fuel (Gasoline/CNG) Supplement (GMNA-Localizing-U.
S/Canada-9087624) - 2016 - CRC - 8/17/15

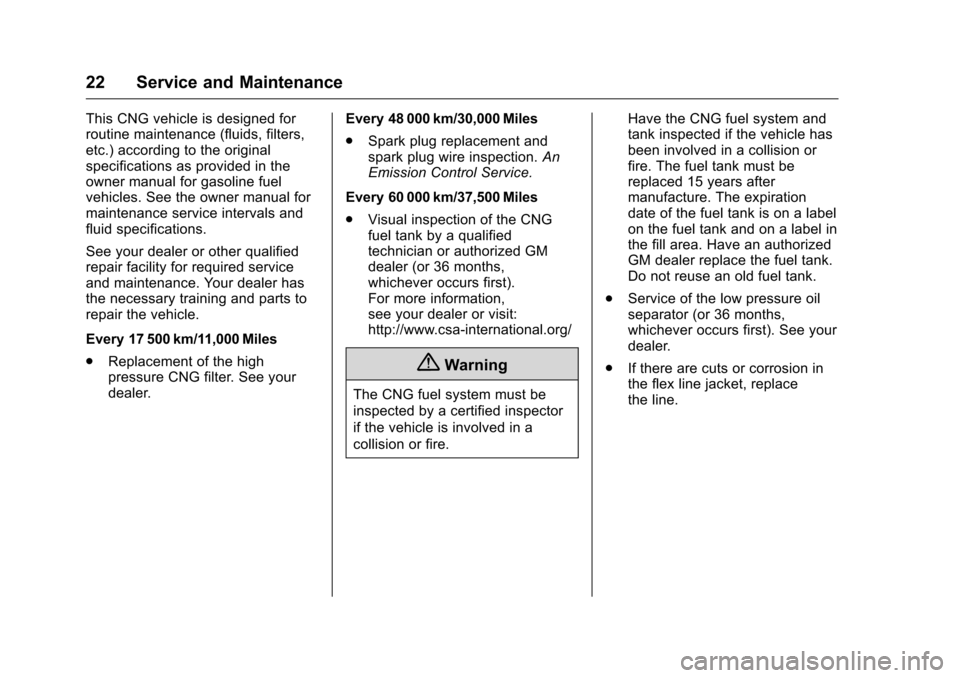

22 Service and Maintenance
This CNG vehicle is designed for
routine maintenance (fluids, filters,
etc.) according to the original
specifications as provided in the
owner manual for gasoline fuel
vehicles. See the owner manual for
maintenance service intervals and
fluid specifications.
See your dealer or other qualified
repair facility for required service
and maintenance. Your dealer has
the necessary training and parts to
repair the vehicle.
Every 17 500 km/11,000 Miles
.Replacement of the high
pressure CNG filter. See your
dealer. Every 48 000 km/30,000 Miles
.
Spark plug replacement and
spark plug wire inspection. An
Emission Control Service.
Every 60 000 km/37,500 Miles
. Visual inspection of the CNG
fuel tank by a qualified
technician or authorized GM
dealer (or 36 months,
whichever occurs first).
For more information,
see your dealer or visit:
http://www.csa-international.org/
{Warning
The CNG fuel system must be
inspected by a certified inspector
if the vehicle is involved in a
collision or fire. Have the CNG fuel system and
tank inspected if the vehicle has
been involved in a collision or
fire. The fuel tank must be
replaced 15 years after
manufacture. The expiration
date of the fuel tank is on a label
on the fuel tank and on a label in
the fill area. Have an authorized
GM dealer replace the fuel tank.
Do not reuse an old fuel tank.
. Service of the low pressure oil
separator (or 36 months,
whichever occurs first). See your
dealer.
. If there are cuts or corrosion in
the flex line jacket, replace
the line.

Chevrolet Impala Bi-Fuel (Gasoline/CNG) Supplement (GMNA-Localizing-U.
S/Canada-9087624) - 2016 - CRC - 8/17/15
Service and Maintenance 23
Maintenance Records
Natural Gas Vehicle (CNG) Service Records
Vehicle Identification Number (VIN)CNG Tank Information
Size Capacity* Serial #Exp. Date
* Total Container Water Volume

Chevrolet Impala Bi-Fuel (Gasoline/CNG) Supplement (GMNA-Localizing-U.
S/Canada-9087624) - 2016 - CRC - 8/17/15

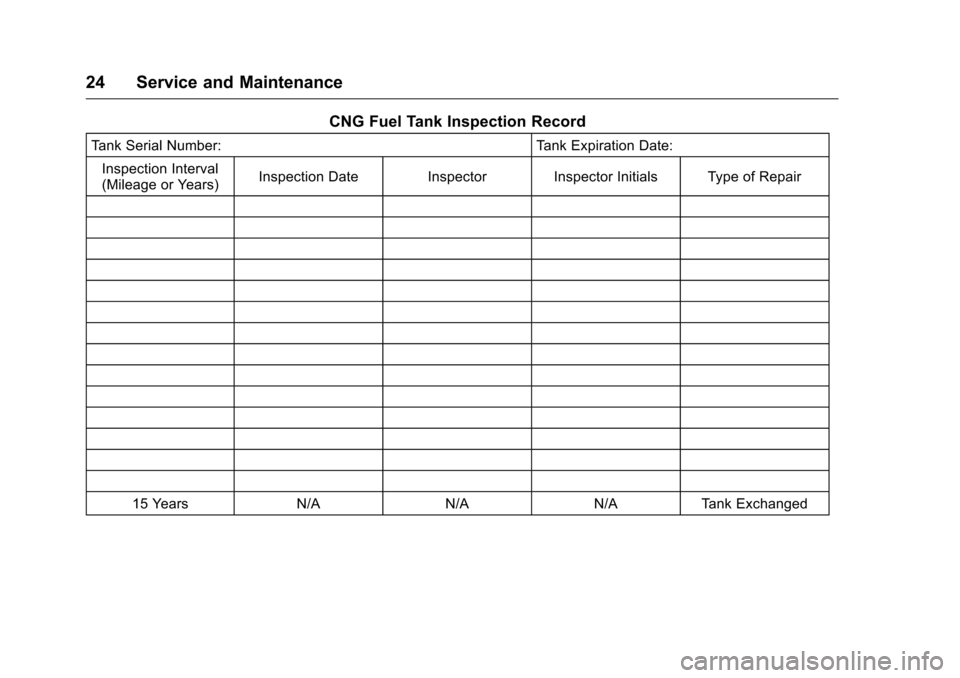

24 Service and Maintenance
CNG Fuel Tank Inspection Record
Tank Serial Number:Tank Expiration Date:
Inspection Interval
(Mileage or Years) Inspection Date Inspector Inspector Initials Type of Repair
15 Years N/AN/AN/ATank Exchanged

Chevrolet Impala Bi-Fuel (Gasoline/CNG) Supplement (GMNA-Localizing-U.
S/Canada-9087624) - 2016 - CRC - 8/17/15

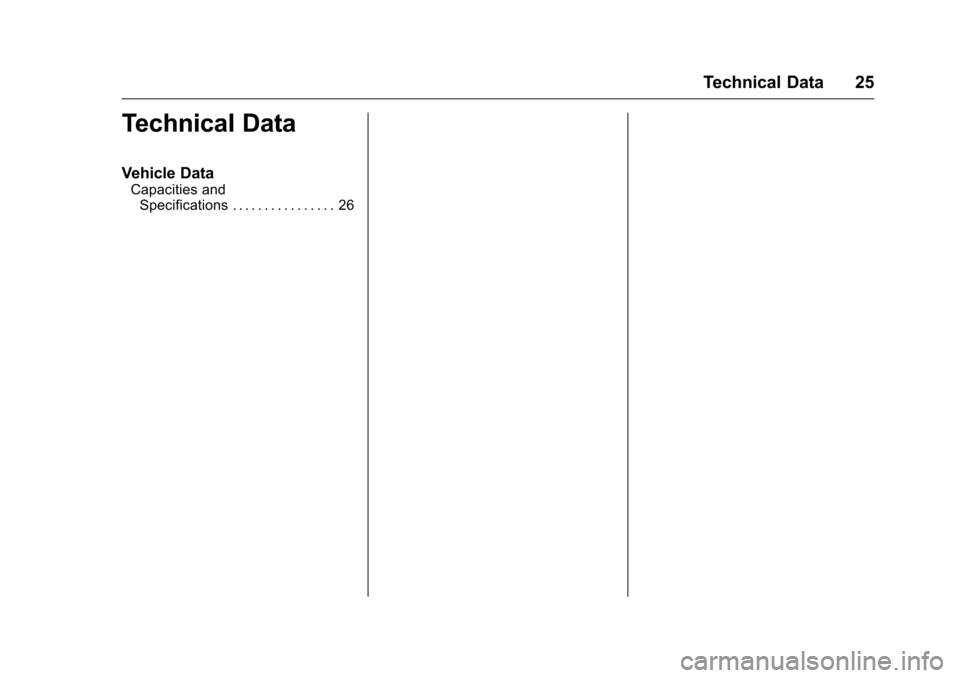

Technical Data 25
Technical Data
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . . 26

Chevrolet Impala Bi-Fuel (Gasoline/CNG) Supplement (GMNA-Localizing-U.
S/Canada-9087624) - 2016 - CRC - 8/17/15
26 Technical Data
Vehicle Data
Capacities and Specifications
ApplicationTotal Capacities
Canada
200 Bar @ 15°C U.S.
3,600 psig @ 70°F
CNG Fuel Tank Capacity ¹ 7.0 GGE7.8 GGE
¹ GGE (Gasoline Gallon Equivalent)

Chevrolet Impala Bi-Fuel (Gasoline/CNG) Supplement (GMNA-Localizing-U.
S/Canada-9087624) - 2016 - CRC - 8/17/15

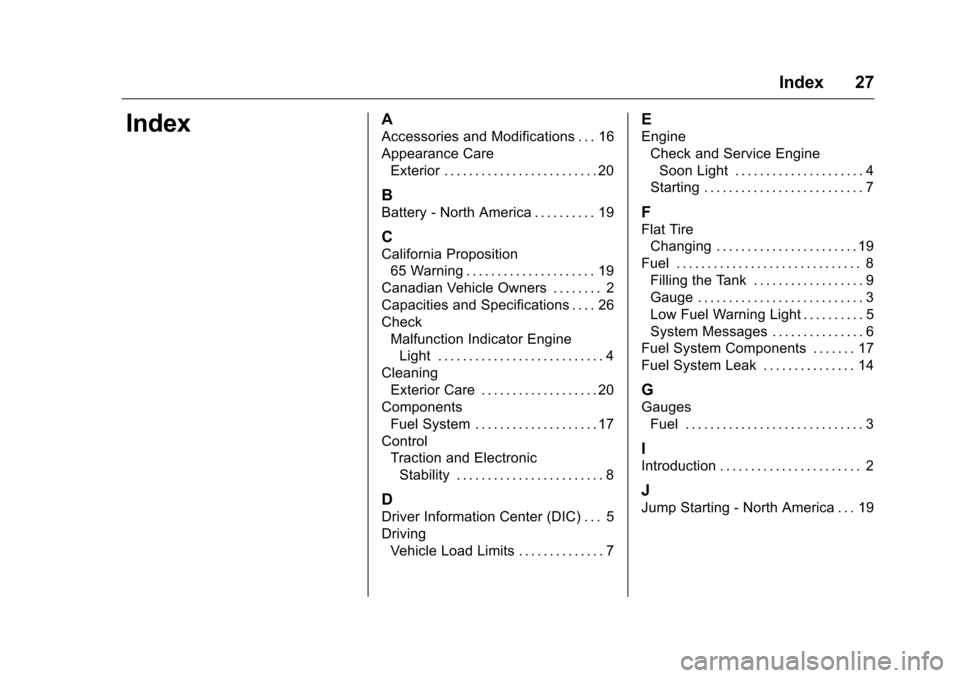

Index 27
IndexA
Accessories and Modifications . . . 16
Appearance CareExterior . . . . . . . . . . . . . . . . . . . . . . . . . 20
B
Battery - North America . . . . . . . . . . 19
C
California Proposition65 Warning . . . . . . . . . . . . . . . . . . . . . 19
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . 26
Check Malfunction Indicator EngineLight . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cleaning Exterior Care . . . . . . . . . . . . . . . . . . . 20
Components Fuel System . . . . . . . . . . . . . . . . . . . . 17
Control
Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . . . . 8
D
Driver Information Center (DIC) . . . 5
DrivingVehicle Load Limits . . . . . . . . . . . . . . 7
E
EngineCheck and Service EngineSoon Light . . . . . . . . . . . . . . . . . . . . . 4
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . 7
F
Flat Tire
Changing . . . . . . . . . . . . . . . . . . . . . . . 19
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Filling the Tank . . . . . . . . . . . . . . . . . . 9
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Low Fuel Warning Light . . . . . . . . . . 5
System Messages . . . . . . . . . . . . . . . 6
Fuel System Components . . . . . . . 17
Fuel System Leak . . . . . . . . . . . . . . . 14
G
Gauges
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
I
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . 19

Chevrolet Impala Bi-Fuel (Gasoline/CNG) Supplement (GMNA-Localizing-U.
S/Canada-9087624) - 2016 - CRC - 8/17/15

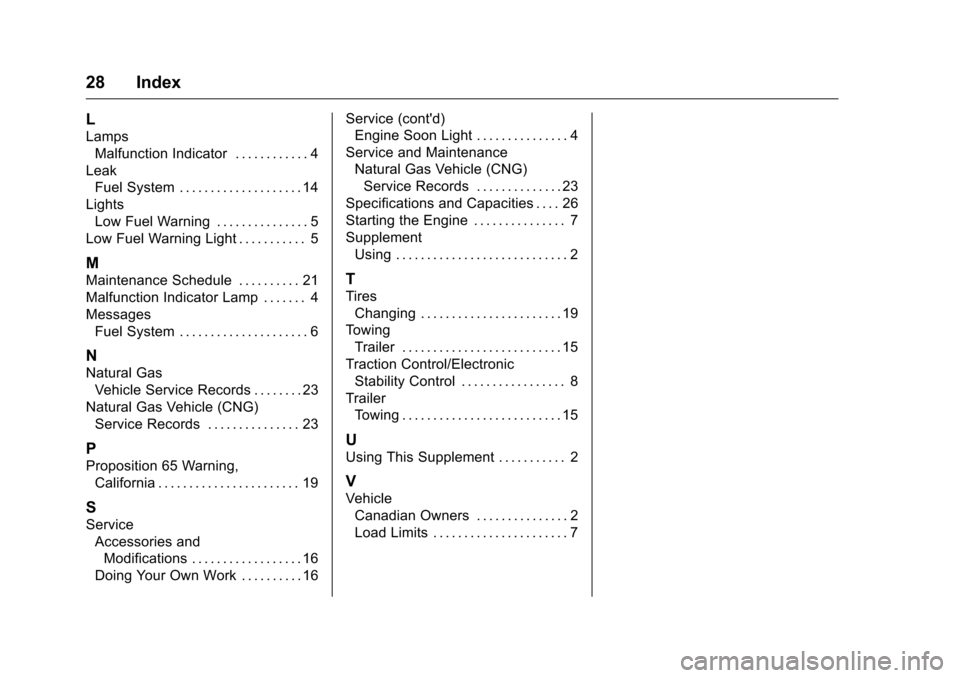

28 Index
L
LampsMalfunction Indicator . . . . . . . . . . . . 4
Leak Fuel System . . . . . . . . . . . . . . . . . . . . 14
Lights Low Fuel Warning . . . . . . . . . . . . . . . 5
Low Fuel Warning Light . . . . . . . . . . . 5
M
Maintenance Schedule . . . . . . . . . . 21
Malfunction Indicator Lamp . . . . . . . 4
Messages Fuel System . . . . . . . . . . . . . . . . . . . . . 6
N
Natural GasVehicle Service Records . . . . . . . . 23
Natural Gas Vehicle (CNG) Service Records . . . . . . . . . . . . . . . 23
P
Proposition 65 Warning,California . . . . . . . . . . . . . . . . . . . . . . . 19
S
ServiceAccessories andModifications . . . . . . . . . . . . . . . . . . 16
Doing Your Own Work . . . . . . . . . . 16 Service (cont'd)
Engine Soon Light . . . . . . . . . . . . . . . 4
Service and Maintenance Natural Gas Vehicle (CNG)
Service Records . . . . . . . . . . . . . . 23
Specifications and Capacities . . . . 26
Starting the Engine . . . . . . . . . . . . . . . 7
Supplement Using . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
T
Tires
Changing . . . . . . . . . . . . . . . . . . . . . . . 19
Towing
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . 8
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . 15
U
Using This Supplement . . . . . . . . . . . 2
V
Vehicle
Canadian Owners . . . . . . . . . . . . . . . 2
Load Limits . . . . . . . . . . . . . . . . . . . . . . 7
