Vehicle Care 229
FusesUsage
38 Left high-beam headlamp
41 Vacuum pump
42 Cooling fan high speed
44 Starter control
45 Cooling fan low speed
46 Cooling fan control
47 Pre catalytic converter O2 sensors/Canister
purge solenoid
49 Right HID headlamp
50 Left HID headlamp
51 Horn
52 Display/Ignition
53 Inside rearview mirror/ Rear vision camera
54 Instrument panel/ Ignition
55 Exterior rearview mirror
56 Front washer Fuses
Usage
60 Heated mirror
62 Obstacle detection
64 Rain sensor/Rear seat audio
66 Trunk release
67 Chassis control module
69 Battery voltage sensor
71 Memory seat
Relays Usage
1 A/C clutch
2 Starter pinion
4 Front wiper speed
5 Front wiper control
6 Cabin Coolant pump/ Air solenoid
7 Powertrain
8 Transmission auxiliary pump
9 Cooling fan high speed Relays
Usage
10 Cooling fan low speed 11 Starter
13 Cooling fan control
14 Low-beam HID headlamp
15 Run/Crank
17 Rear window defogger
Instrument Panel Fuse
Block
The instrument panel fuse block is
in the instrument panel, on the
driver side of the vehicle.

Chevrolet Impala Owner Manual (GMNA-Localizing-U.S./Canada-13688912) -
2020 - CRC - 6/5/19
Vehicle Care 231
FusesUsage
9 Trunk lamp/Right low-beam headlamp/
DRL/Right front turn
lamp/Right rear
parking lamp/
Stoplamp
10 Door unlock 11 Front HVAC blower
12 Passenger power seat
13 Driver power seat
14 Diagnostic link connector
15 Airbag/SDM
16 Right rear heated seat
17 HVAC Controller
18 Logistics
19 Left rear heated seat
20 Ignition switch
21 Telematics Fuses
Usage
22 Steering wheel controls
23 Left low-beam headlamp/DRL/Left
front turnlamp/Left
rear parking lamp/
Stoplamp/Safety
lock relay
24 Theft deterrent LED/ Key capture
solenoid/Run relay
25 Tilt/Telescoping steering column
26 110V AC
Relays Usage
K1 –
K2 Logistic
K3 Power outlet relayWheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer. See
the warranty manual for
information regarding the tire
warranty and where to get
service. For additional
information refer to the tire
manufacturer.
{Warning
.Poorly maintained and
improperly used tires are
dangerous.
.Overloading the tires can
cause overheating as a
result of too much
flexing. There could be a
blowout and a serious
crash. See Vehicle Load
Limits 0147.
(Continued)

Chevrolet Impala Owner Manual (GMNA-Localizing-U.S./Canada-13688912) -
2020 - CRC - 6/5/19

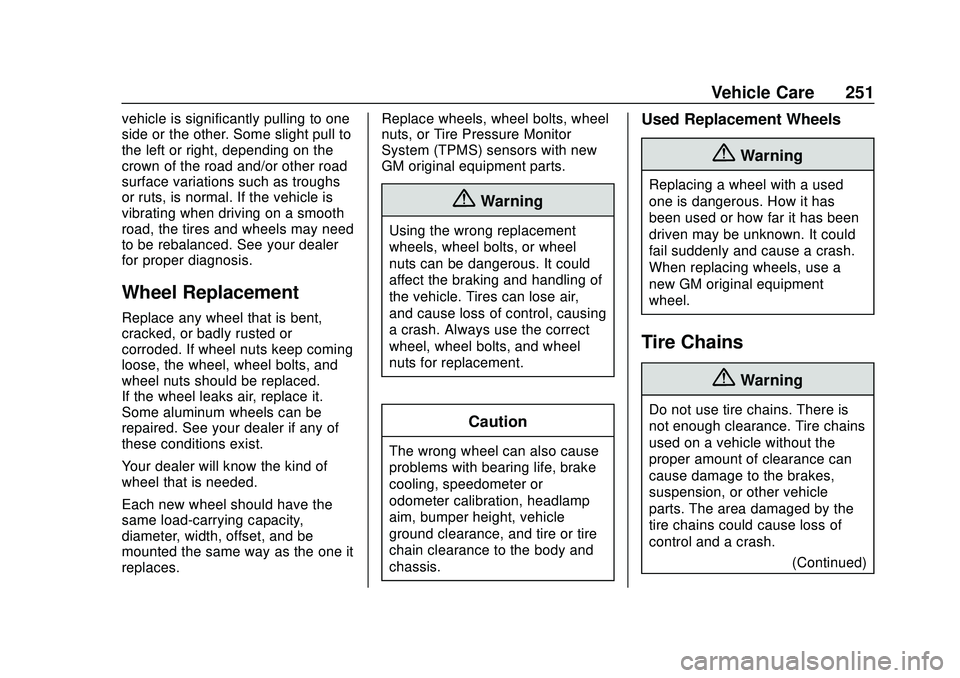

Vehicle Care 251
vehicle is significantly pulling to one
side or the other. Some slight pull to
the left or right, depending on the
crown of the road and/or other road
surface variations such as troughs
or ruts, is normal. If the vehicle is
vibrating when driving on a smooth
road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or
corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts, and
wheel nuts should be replaced.
If the wheel leaks air, replace it.
Some aluminum wheels can be
repaired. See your dealer if any of
these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset, and be
mounted the same way as the one it
replaces.Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.
Tire Chains
{Warning
Do not use tire chains. There is
not enough clearance. Tire chains
used on a vehicle without the
proper amount of clearance can
cause damage to the brakes,
suspension, or other vehicle
parts. The area damaged by the
tire chains could cause loss of
control and a crash.
(Continued)

Chevrolet Impala Owner Manual (GMNA-Localizing-U.S./Canada-13688912) -
2020 - CRC - 6/5/19

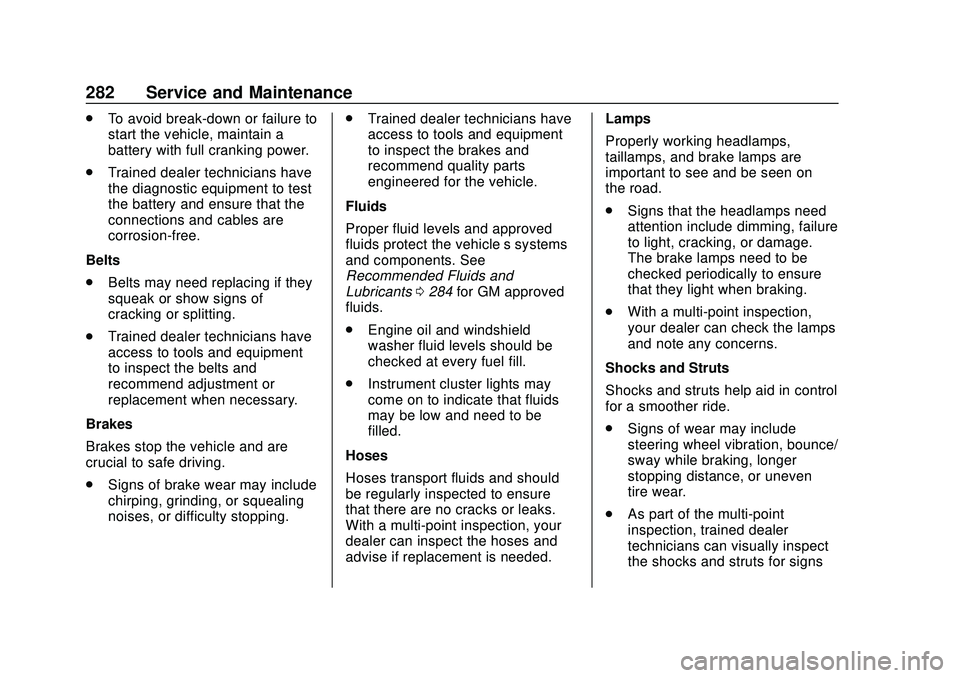

282 Service and Maintenance
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0284 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed. Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs

Chevrolet Impala Owner Manual (GMNA-Localizing-U.S./Canada-13688912) -
2020 - CRC - 6/5/19
Index 317

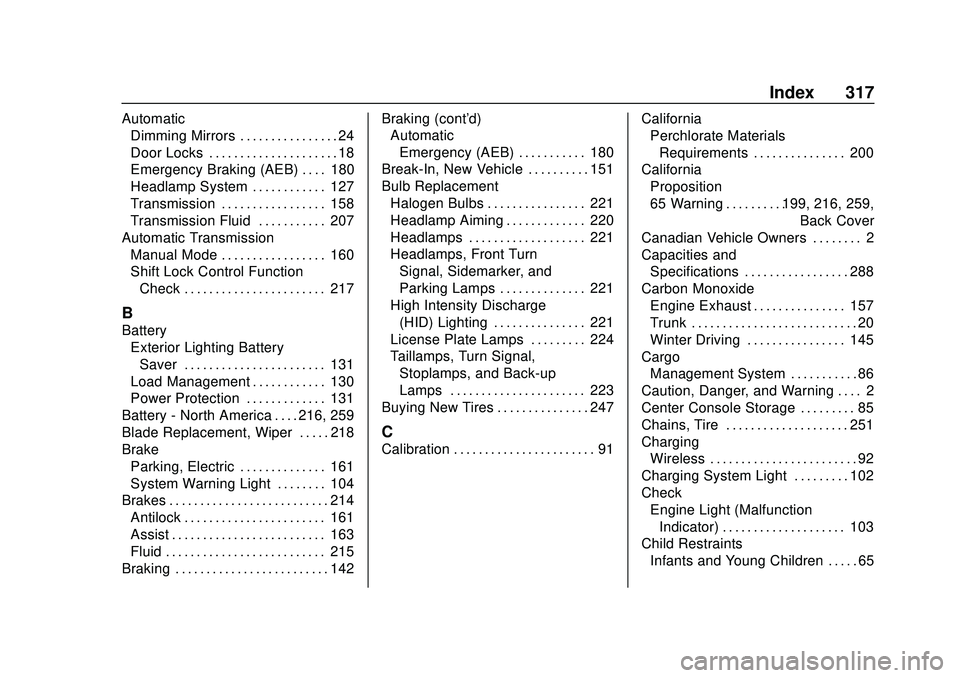

AutomaticDimming Mirrors . . . . . . . . . . . . . . . . 24
Door Locks . . . . . . . . . . . . . . . . . . . . . 18
Emergency Braking (AEB) . . . . 180
Headlamp System . . . . . . . . . . . . 127
Transmission . . . . . . . . . . . . . . . . . 158
Transmission Fluid . . . . . . . . . . . 207
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 160
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 217
B
Battery
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 131
Load Management . . . . . . . . . . . . 130
Power Protection . . . . . . . . . . . . . 131
Battery - North America . . . . 216, 259
Blade Replacement, Wiper . . . . . 218
Brake Parking, Electric . . . . . . . . . . . . . . 161
System Warning Light . . . . . . . . 104
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 214 Antilock . . . . . . . . . . . . . . . . . . . . . . . 161
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 163
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 142 Braking (cont'd)
Automatic
Emergency (AEB) . . . . . . . . . . . 180
Break-In, New Vehicle . . . . . . . . . . 151
Bulb Replacement
Halogen Bulbs . . . . . . . . . . . . . . . . 221
Headlamp Aiming . . . . . . . . . . . . . 220
Headlamps . . . . . . . . . . . . . . . . . . . 221
Headlamps, Front TurnSignal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 221
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 221
License Plate Lamps . . . . . . . . . 224
Taillamps, Turn Signal,
Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 223
Buying New Tires . . . . . . . . . . . . . . . 247
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . 91 California
Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 200
California Proposition
65 Warning . . . . . . . . . .199, 216, 259, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 288
Carbon Monoxide
Engine Exhaust . . . . . . . . . . . . . . . 157
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Winter Driving . . . . . . . . . . . . . . . . 145
Cargo Management System . . . . . . . . . . . 86
Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . . 85
Chains, Tire . . . . . . . . . . . . . . . . . . . . 251
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . 92
Charging System Light . . . . . . . . . 102
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 103
Child Restraints Infants and Young Children . . . . . 65

Chevrolet Impala Owner Manual (GMNA-Localizing-U.S./Canada-13688912) -
2020 - CRC - 6/5/19

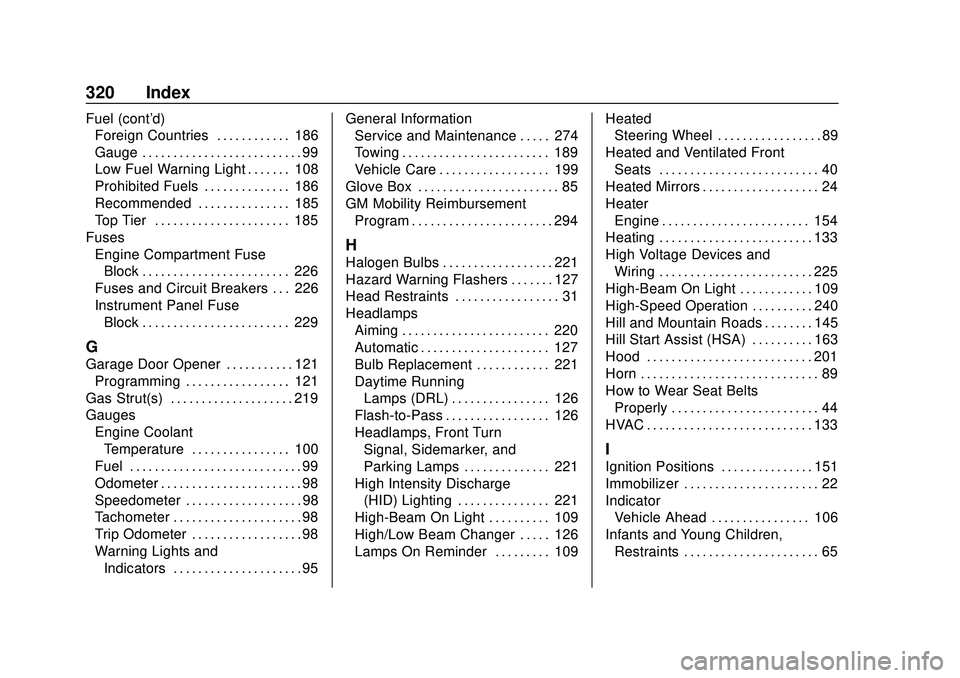

320 Index
Fuel (cont'd)Foreign Countries . . . . . . . . . . . . 186
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Low Fuel Warning Light . . . . . . . 108
Prohibited Fuels . . . . . . . . . . . . . . 186
Recommended . . . . . . . . . . . . . . . 185
Top Tier . . . . . . . . . . . . . . . . . . . . . . 185
Fuses Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 226
Fuses and Circuit Breakers . . . 226
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 229
G
Garage Door Opener . . . . . . . . . . . 121Programming . . . . . . . . . . . . . . . . . 121
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 219
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 100
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Odometer . . . . . . . . . . . . . . . . . . . . . . . 98
Speedometer . . . . . . . . . . . . . . . . . . . 98
Tachometer . . . . . . . . . . . . . . . . . . . . . 98
Trip Odometer . . . . . . . . . . . . . . . . . . 98
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . . . 95 General Information
Service and Maintenance . . . . . 274
Towing . . . . . . . . . . . . . . . . . . . . . . . . 189
Vehicle Care . . . . . . . . . . . . . . . . . . 199
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 85
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 294
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 221
Hazard Warning Flashers . . . . . . . 127
Head Restraints . . . . . . . . . . . . . . . . . 31
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 220
Automatic . . . . . . . . . . . . . . . . . . . . . 127
Bulb Replacement . . . . . . . . . . . . 221
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 126
Flash-to-Pass . . . . . . . . . . . . . . . . . 126
Headlamps, Front Turn Signal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 221
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 221
High-Beam On Light . . . . . . . . . . 109
High/Low Beam Changer . . . . . 126
Lamps On Reminder . . . . . . . . . 109 Heated
Steering Wheel . . . . . . . . . . . . . . . . . 89
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Heated Mirrors . . . . . . . . . . . . . . . . . . . 24
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 154
Heating . . . . . . . . . . . . . . . . . . . . . . . . . 133
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 225
High-Beam On Light . . . . . . . . . . . . 109
High-Speed Operation . . . . . . . . . . 240
Hill and Mountain Roads . . . . . . . . 145
Hill Start Assist (HSA) . . . . . . . . . . 163
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 44
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
I
Ignition Positions . . . . . . . . . . . . . . . 151
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 22
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . 106
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 65
