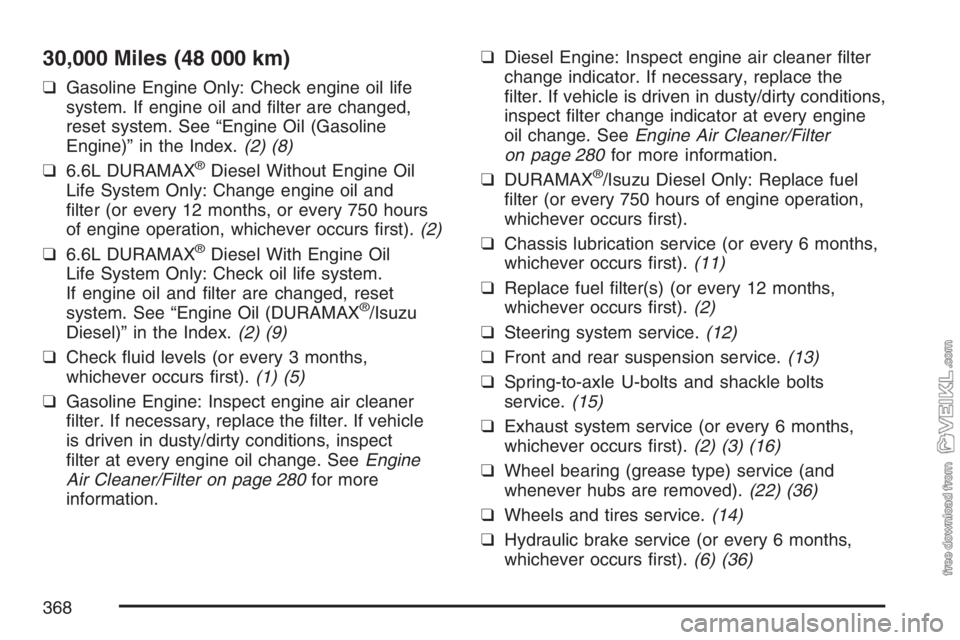

30,000 Miles (48 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil
Life System Only: Change engine oil and
filter (or every 12 months, or every 750 hours
of engine operation, whichever occurs first).(2)
❑6.6L DURAMAX
®Diesel With Engine Oil
Life System Only: Check oil life system.
If engine oil and filter are changed, reset
system. See “Engine Oil (DURAMAX
®/Isuzu
Diesel)” in the Index.(2) (9)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Gasoline Engine: Inspect engine air cleaner
filter. If necessary, replace the filter. If vehicle
is driven in dusty/dirty conditions, inspect
filter at every engine oil change. SeeEngine
Air Cleaner/Filter on page 280for more
information.❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the
filter. If vehicle is driven in dusty/dirty conditions,
inspect filter change indicator at every engine
oil change. SeeEngine Air Cleaner/Filter
on page 280for more information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel
filter (or every 750 hours of engine operation,
whichever occurs first).
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Replace fuel filter(s) (or every 12 months,
whichever occurs first).(2)
❑Steering system service.(12)
❑Front and rear suspension service.(13)
❑Spring-to-axle U-bolts and shackle bolts
service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheel bearing (grease type) service (and
whenever hubs are removed).(22) (36)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
368

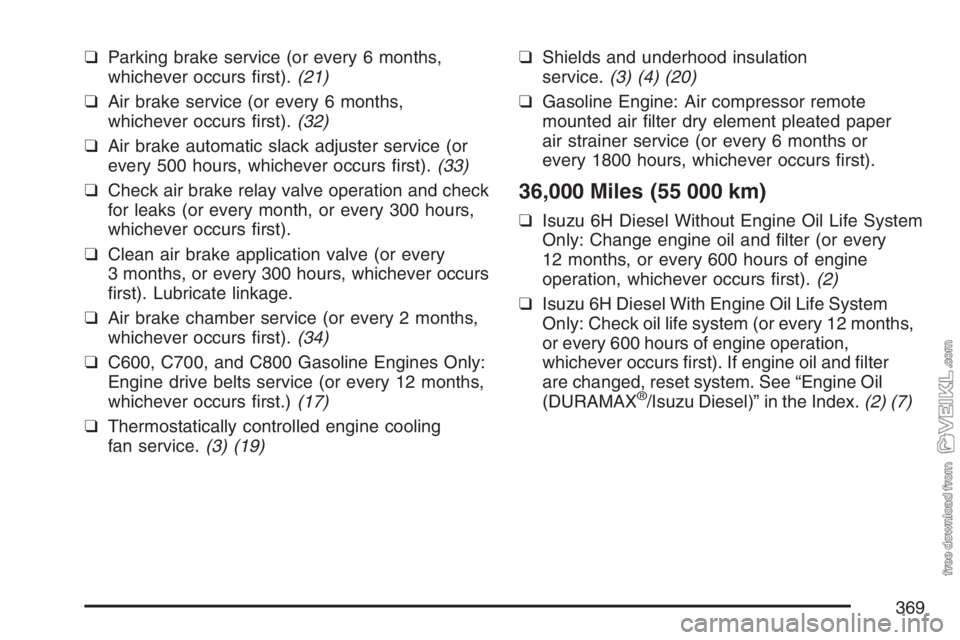

❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months,
whichever occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever occurs
first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑C600, C700, and C800 Gasoline Engines Only:
Engine drive belts service (or every 12 months,
whichever occurs first.)(17)
❑Thermostatically controlled engine cooling
fan service.(3) (19)❑Shields and underhood insulation
service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote
mounted air filter dry element pleated paper
air strainer service (or every 6 months or
every 1800 hours, whichever occurs first).
36,000 Miles (55 000 km)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
369

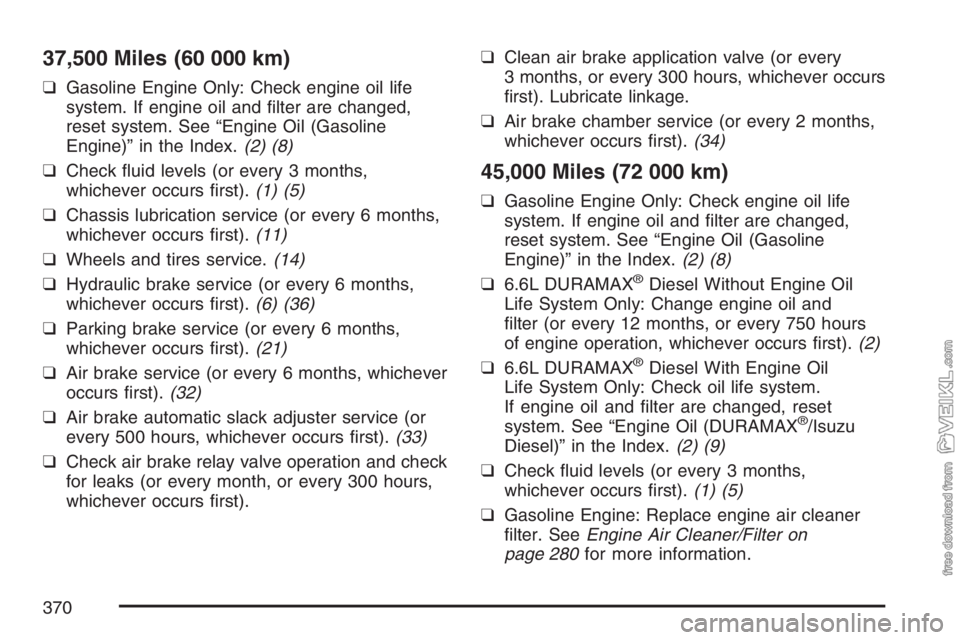

37,500 Miles (60 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever occurs
first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
45,000 Miles (72 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil
Life System Only: Change engine oil and
filter (or every 12 months, or every 750 hours
of engine operation, whichever occurs first).(2)
❑6.6L DURAMAX
®Diesel With Engine Oil
Life System Only: Check oil life system.
If engine oil and filter are changed, reset
system. See “Engine Oil (DURAMAX
®/Isuzu
Diesel)” in the Index.(2) (9)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Gasoline Engine: Replace engine air cleaner
filter. SeeEngine Air Cleaner/Filter on
page 280for more information.
370

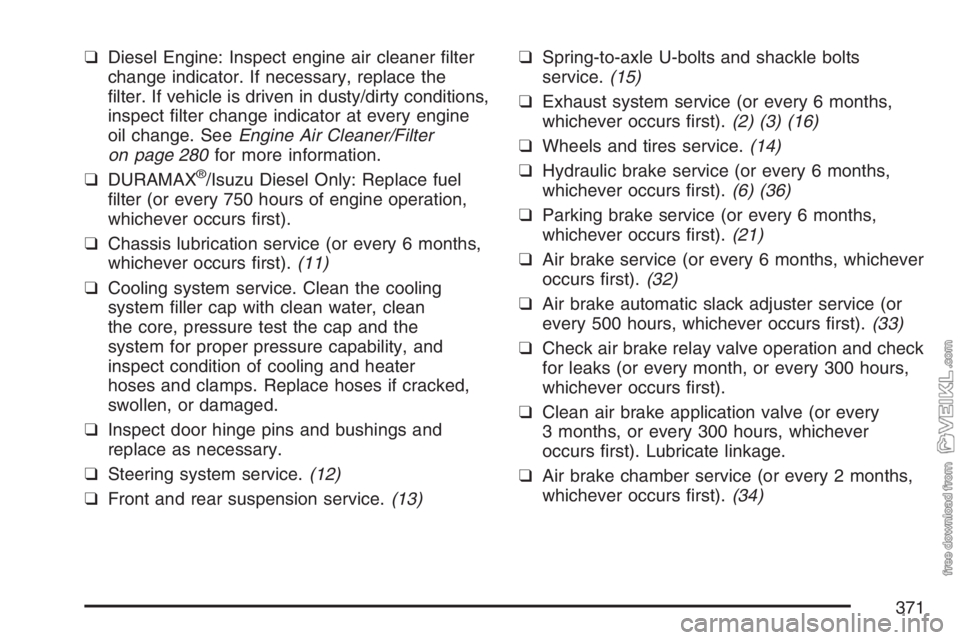

❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the
filter. If vehicle is driven in dusty/dirty conditions,
inspect filter change indicator at every engine
oil change. SeeEngine Air Cleaner/Filter
on page 280for more information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel
filter (or every 750 hours of engine operation,
whichever occurs first).
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Cooling system service. Clean the cooling
system filler cap with clean water, clean
the core, pressure test the cap and the
system for proper pressure capability, and
inspect condition of cooling and heater
hoses and clamps. Replace hoses if cracked,
swollen, or damaged.
❑Inspect door hinge pins and bushings and
replace as necessary.
❑Steering system service.(12)
❑Front and rear suspension service.(13)❑Spring-to-axle U-bolts and shackle bolts
service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
371

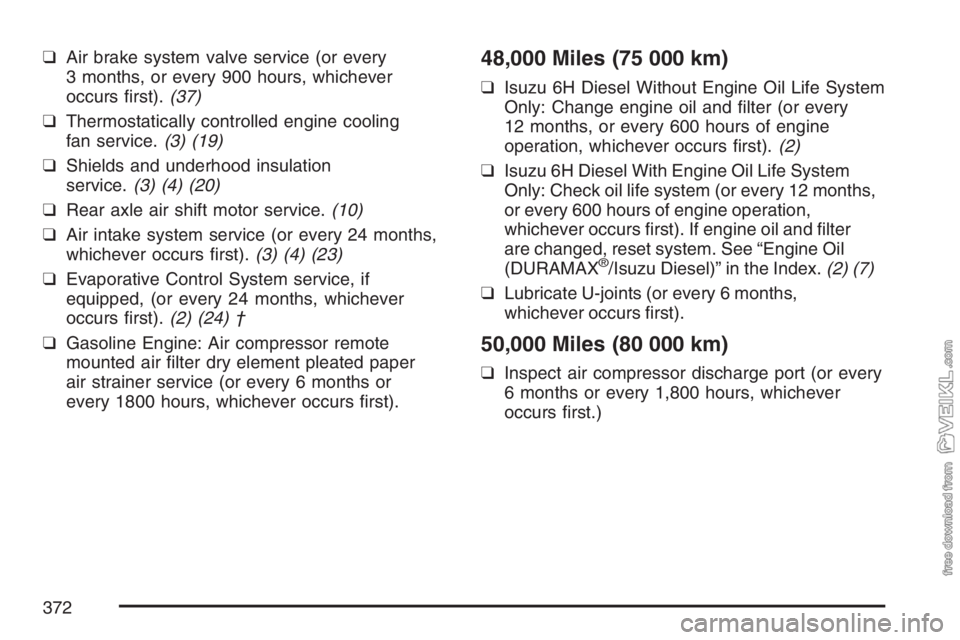

❑Air brake system valve service (or every
3 months, or every 900 hours, whichever
occurs first).(37)
❑Thermostatically controlled engine cooling
fan service.(3) (19)
❑Shields and underhood insulation
service.(3) (4) (20)
❑Rear axle air shift motor service.(10)
❑Air intake system service (or every 24 months,
whichever occurs first).(3) (4) (23)
❑Evaporative Control System service, if
equipped, (or every 24 months, whichever
occurs first).(2) (24) †
❑Gasoline Engine: Air compressor remote
mounted air filter dry element pleated paper
air strainer service (or every 6 months or
every 1800 hours, whichever occurs first).48,000 Miles (75 000 km)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
❑Lubricate U-joints (or every 6 months,
whichever occurs first).
50,000 Miles (80 000 km)
❑Inspect air compressor discharge port (or every
6 months or every 1,800 hours, whichever
occurs first.)
372

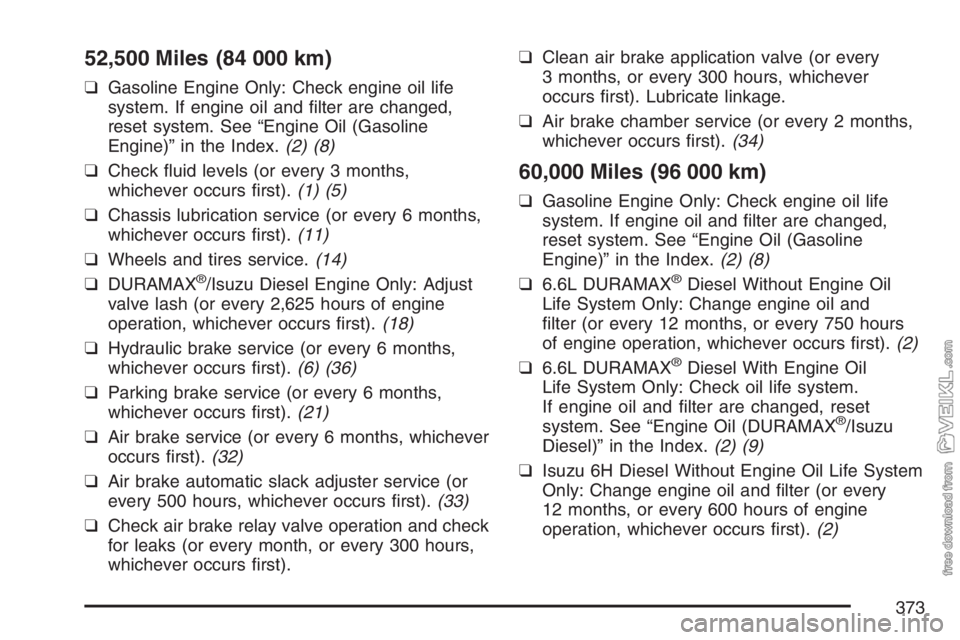

52,500 Miles (84 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Wheels and tires service.(14)
❑DURAMAX
®/Isuzu Diesel Engine Only: Adjust
valve lash (or every 2,625 hours of engine
operation, whichever occurs first).(18)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
60,000 Miles (96 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil
Life System Only: Change engine oil and
filter (or every 12 months, or every 750 hours
of engine operation, whichever occurs first).(2)
❑6.6L DURAMAX
®Diesel With Engine Oil
Life System Only: Check oil life system.
If engine oil and filter are changed, reset
system. See “Engine Oil (DURAMAX
®/Isuzu
Diesel)” in the Index.(2) (9)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
373

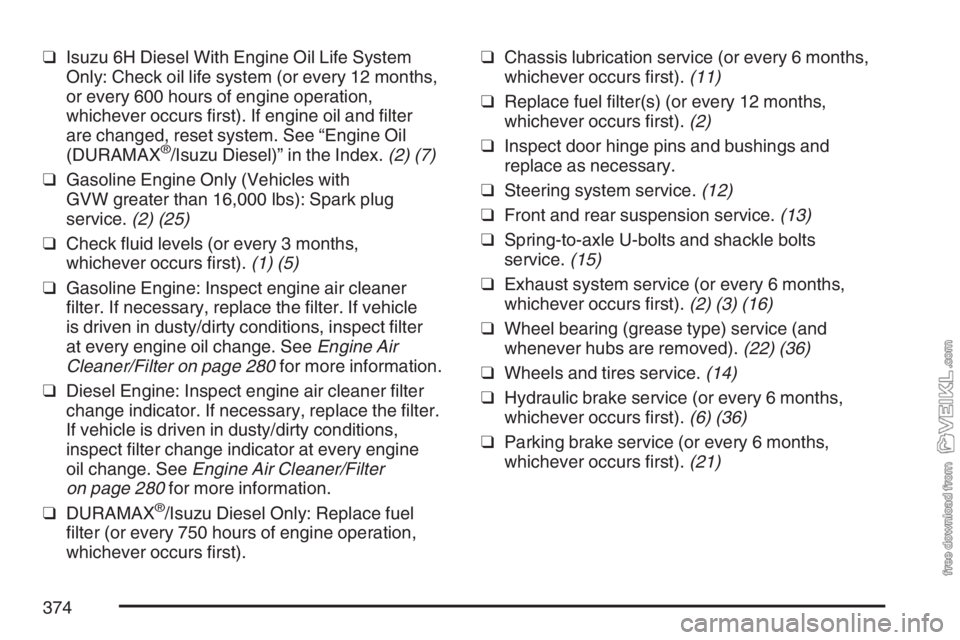

❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
❑Gasoline Engine Only (Vehicles with
GVW greater than 16,000 lbs): Spark plug
service.(2) (25)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Gasoline Engine: Inspect engine air cleaner
filter. If necessary, replace the filter. If vehicle
is driven in dusty/dirty conditions, inspect filter
at every engine oil change. SeeEngine Air
Cleaner/Filter on page 280for more information.
❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the filter.
If vehicle is driven in dusty/dirty conditions,
inspect filter change indicator at every engine
oil change. SeeEngine Air Cleaner/Filter
on page 280for more information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel
filter (or every 750 hours of engine operation,
whichever occurs first).❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Replace fuel filter(s) (or every 12 months,
whichever occurs first).(2)
❑Inspect door hinge pins and bushings and
replace as necessary.
❑Steering system service.(12)
❑Front and rear suspension service.(13)
❑Spring-to-axle U-bolts and shackle bolts
service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheel bearing (grease type) service (and
whenever hubs are removed).(22) (36)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
374

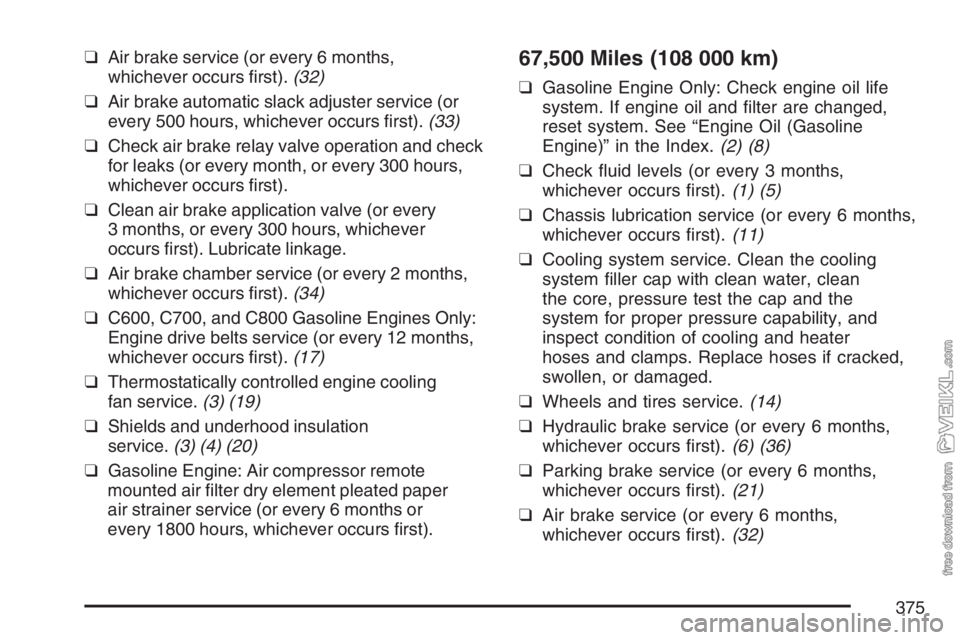

❑Air brake service (or every 6 months,
whichever occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑C600, C700, and C800 Gasoline Engines Only:
Engine drive belts service (or every 12 months,
whichever occurs first).(17)
❑Thermostatically controlled engine cooling
fan service.(3) (19)
❑Shields and underhood insulation
service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote
mounted air filter dry element pleated paper
air strainer service (or every 6 months or
every 1800 hours, whichever occurs first).67,500 Miles (108 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Cooling system service. Clean the cooling
system filler cap with clean water, clean
the core, pressure test the cap and the
system for proper pressure capability, and
inspect condition of cooling and heater
hoses and clamps. Replace hoses if cracked,
swollen, or damaged.
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months,
whichever occurs first).(32)
375

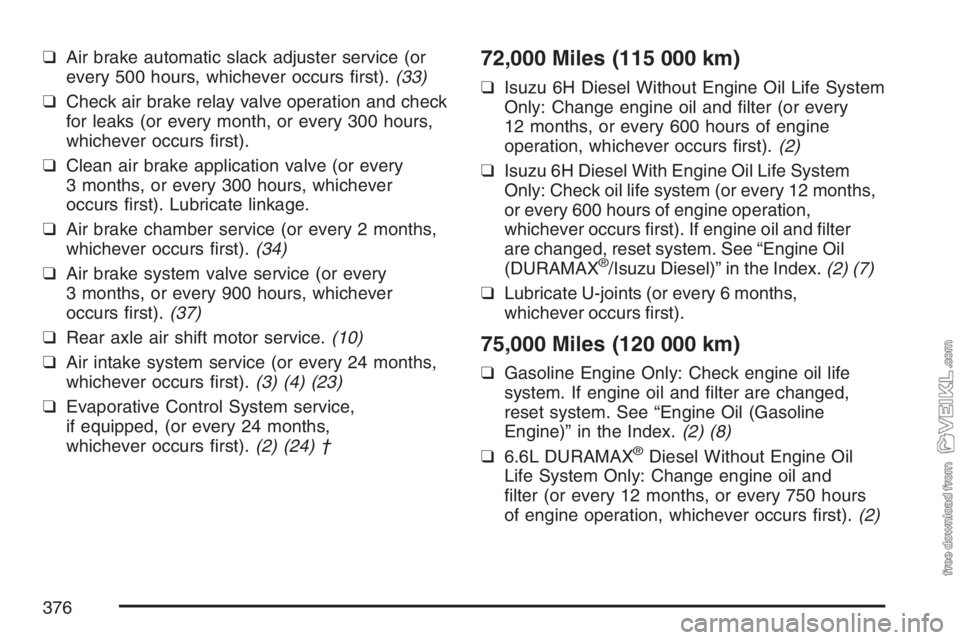

❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air brake system valve service (or every
3 months, or every 900 hours, whichever
occurs first).(37)
❑Rear axle air shift motor service.(10)
❑Air intake system service (or every 24 months,
whichever occurs first).(3) (4) (23)
❑Evaporative Control System service,
if equipped, (or every 24 months,
whichever occurs first).(2) (24) †72,000 Miles (115 000 km)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
❑Lubricate U-joints (or every 6 months,
whichever occurs first).
75,000 Miles (120 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil
Life System Only: Change engine oil and
filter (or every 12 months, or every 750 hours
of engine operation, whichever occurs first).(2)
376

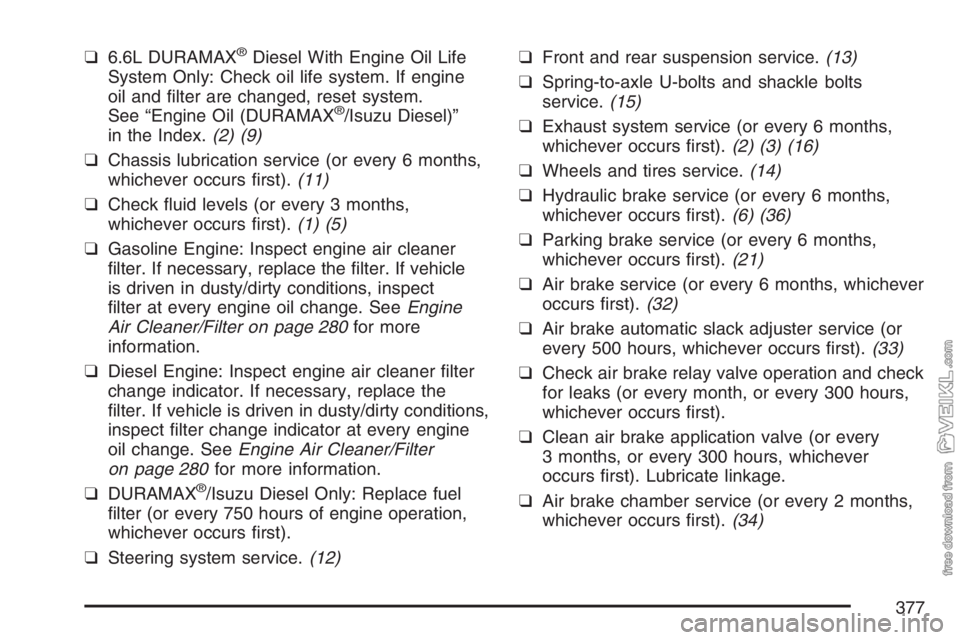

❑6.6L DURAMAX®Diesel With Engine Oil Life
System Only: Check oil life system. If engine
oil and filter are changed, reset system.
See “Engine Oil (DURAMAX
®/Isuzu Diesel)”
in the Index.(2) (9)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Gasoline Engine: Inspect engine air cleaner
filter. If necessary, replace the filter. If vehicle
is driven in dusty/dirty conditions, inspect
filter at every engine oil change. SeeEngine
Air Cleaner/Filter on page 280for more
information.
❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the
filter. If vehicle is driven in dusty/dirty conditions,
inspect filter change indicator at every engine
oil change. SeeEngine Air Cleaner/Filter
on page 280for more information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel
filter (or every 750 hours of engine operation,
whichever occurs first).
❑Steering system service.(12)❑Front and rear suspension service.(13)
❑Spring-to-axle U-bolts and shackle bolts
service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
377
