Activating High Idle Mode
Follow the below procedure to
activate the high idle mode:1. Set the parking brake.
2. Set the selector lever in P (Park) or N (Neutral) position.
3. Do not press the brake pedal. 4. Press the cruise control main
switch to set it to ON. At this
time, the operation indicating
light will turn to green.
5. Turn and hold the cruise control set switch in the SET
position. After approximately
3 seconds the cruise control
set indicator light will begin to
flash slowly and the engine idle
will increase to 1,200 r/min.
Canceling High Idle Mode
Any of the following actions will
cancel high idle mode.
. The cruise control main switch is
set to OFF.
. The brake pedal is pressed.
. The parking brake is released.
. The selector lever is moved from
P (Park) or N (Neutral) position.
. The accelerator pedal is
pressed, accelerating the engine
beyond the engine speed
threshold.
The cruise set indicator light will
stop flashing and the engine speed
will return to normal.
Engine Checks Before
Operating
Checks Before Operating
Allow the engine to warm up before
placing the engine under heavy load
driving. While the engine is warming
up under light load, the following
checks should be made:
1. Observe the red engine oil pressure warning light. The
light should go out when the
engine is running. If it stays on,
shut the engine off and find the
cause.
2. Look at the engine coolant temperature gauge. If the
gauge reaches the H (HOT)
area, stop the engine and find
the cause of the overheating.
3. Check that the battery warning light has gone out. The light
should go off and stay off at
normal idle speeds. If the light
does not go out or comes on
during normal operation, have
the charging system checked.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
224 Driving and Operating
Cruise Control
Cruise Control (Diesel)
The cruise control function allows
you to drive the vehicle at a
constant speed without operating
the accelerator pedal. Use this
function when the vehicle speed is
between 48 and 121 km/h (30 and
75 MPH) for vehicles with 3.0L
disesel engine, and 40 to 160 km/h
(25 to 100 MPH) for vehicles with
the 5.2L diesel engine. This function
should only be used when driving
without frequent starts and stops.
{Warning
Cruise control can be dangerous
where you cannot drive safely at
a steady speed. Do not use
cruise control on winding roads or
in heavy traffic. You and others
could be seriously injured.
Cruise control can be dangerous
on slippery roads. On such roads,
fast changes in tire traction can(Continued)
Warning (Continued)
cause needless wheel spinning,
and you could lose control. Do
not use cruise control on slippery
roads. You and others could be
seriously injured.
1. Press the cruise control mainswitch to turn it on.
At this time, the cruise main
indicator light comes on
simultaneously.
2. Use the accelerator pedal toadjust the vehicle to the
desired speed. Upon reaching
the desired speed, turn the
cruise control set switch. The
vehicle speed at the moment
you operate the switch is set in
the system, enabling you to

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 225
drive with the set speed
automatically maintained
without using the accelerator
pedal.
At the same time the cruise set
indicator light comes on.
Accelerating during Cruise
Control Driving
If you want to accelerate temporarily
to pass another vehicle while driving
using the cruise control, press the
accelerator pedal. When you
release the accelerator pedal, the
speed returns to the original set
vehicle speed. When Increasing Vehicle Speed
When the cruise control resume
switch is operated, the speed
increases while the switch is held.
After the speed is increased to the
desired vehicle speed, and the
switch is released, the speed is set
at the increased vehicle speed.
If you want to increase the speed
quickly, press the accelerator pedal
and accelerate to the desired
vehicle speed. Then, operate the
cruise control set switch.When Increasing Vehicle Speed
Slightly
If the cruise control resume switch is
operated and released immediately,
the set vehicle speed increases
1.6 km/h (1MPH) per operation. This
operation can be performed 6 times
(3.0L diesel) or 10 times (5.2L
diesel) consecutively.
When Decreasing Vehicle Speed
When the cruise control set switch
is operated, the speed decreases
while the switch is held.
After the speed is decreased to the
desired vehicle speed, and the
switch is released, the speed is set

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
226 Driving and Operating
at the decreased vehicle speed.
If you want to decrease the speed
quickly, press the brake pedal to
cancel cruise control and decelerate
to the desired vehicle speed. Then,
operate the cruise control set switch
When Decreasing Vehicle Speed
Slightly
If the cruise control set switch is
operated and released immediately,
the set vehicle speed decreases
1.6 km/h (1 MPH) per operation.
This operation can be performed 6
times (3.0L diesel) or 10 times (5.2L

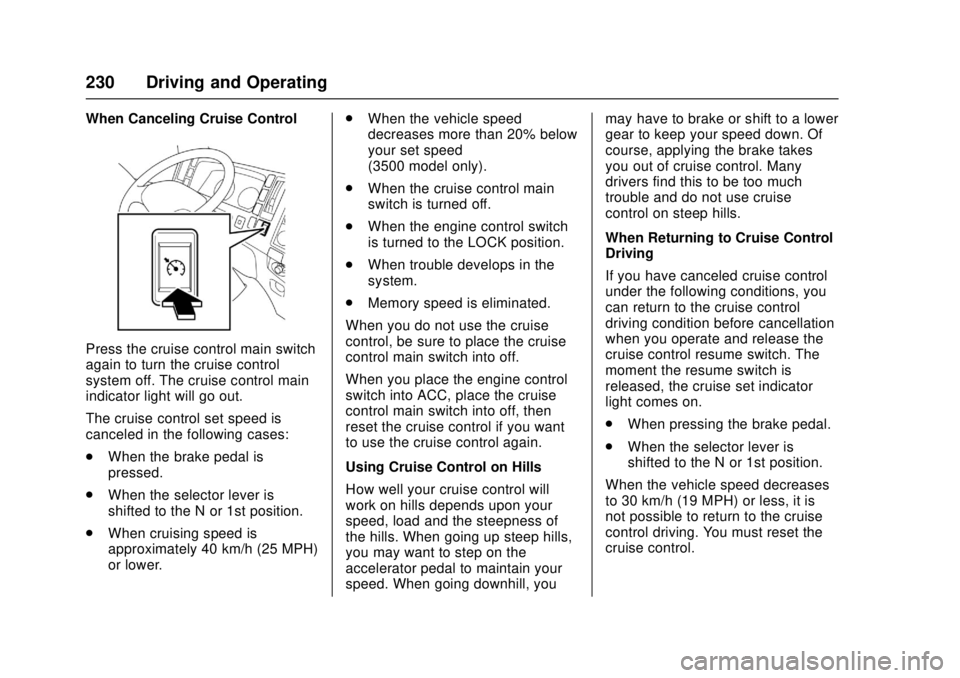

diesel) consecutively.When Canceling Cruise Control
Press the cruise control main switch
again to turn the cruise control
system off. The cruise control main
indicator light will go out.
The cruise control set speed is
canceled in the following cases:
.
When the brake pedal is
pressed.
. When the selector lever is
shifted to the N position. .
When cruising speed is
approximately 40 km/h (25 MPH)
or lower for 3.0L diesel , and
27 km/h (17 MPH) for the 5.2L
diesel. *
. When the vehicle speed
decreases more than 20% below
your set speed.
. When the cruise control main
switch is turned off. *
. When the engine control switch
is turned to the LOCK position. *
. When trouble develops in the
system. *
Memory speed is eliminated. *
When you do not use the cruise
control, be sure to place the cruise
control main switch into off.
When you place the engine control
switch into ACC, place the cruise
control main switch into off, then
reset the cruise control if you want
to use the cruise control again.
Using Cruise Control on Hills
How well your cruise control will
work on hills depends upon your
speed, load and the steepness of

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16

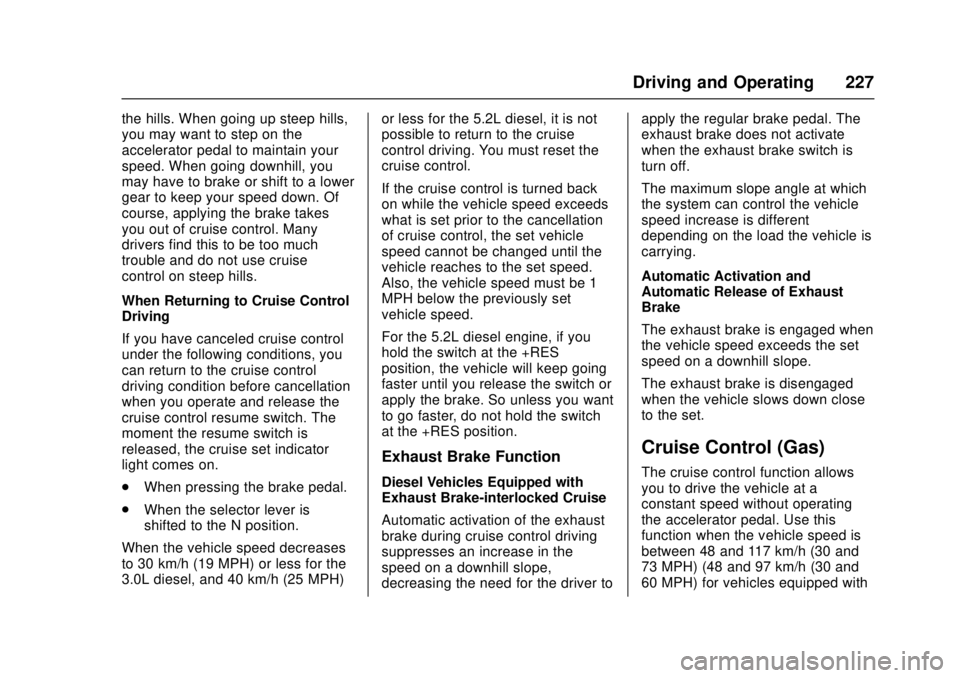

Driving and Operating 227
the hills. When going up steep hills,
you may want to step on the
accelerator pedal to maintain your
speed. When going downhill, you
may have to brake or shift to a lower
gear to keep your speed down. Of
course, applying the brake takes
you out of cruise control. Many
drivers find this to be too much
trouble and do not use cruise
control on steep hills.
When Returning to Cruise Control
Driving
If you have canceled cruise control
under the following conditions, you
can return to the cruise control
driving condition before cancellation
when you operate and release the
cruise control resume switch. The
moment the resume switch is
released, the cruise set indicator
light comes on.
.When pressing the brake pedal.
. When the selector lever is
shifted to the N position.
When the vehicle speed decreases
to 30 km/h (19 MPH) or less for the
3.0L diesel, and 40 km/h (25 MPH) or less for the 5.2L diesel, it is not
possible to return to the cruise
control driving. You must reset the
cruise control.
If the cruise control is turned back
on while the vehicle speed exceeds
what is set prior to the cancellation
of cruise control, the set vehicle
speed cannot be changed until the
vehicle reaches to the set speed.
Also, the vehicle speed must be 1
MPH below the previously set
vehicle speed.
For the 5.2L diesel engine, if you
hold the switch at the +RES
position, the vehicle will keep going
faster until you release the switch or
apply the brake. So unless you want
to go faster, do not hold the switch
at the +RES position.
Exhaust Brake Function
Diesel Vehicles Equipped with
Exhaust Brake-interlocked Cruise
Automatic activation of the exhaust
brake during cruise control driving
suppresses an increase in the
speed on a downhill slope,
decreasing the need for the driver toapply the regular brake pedal. The
exhaust brake does not activate
when the exhaust brake switch is
turn off.
The maximum slope angle at which
the system can control the vehicle
speed increase is different
depending on the load the vehicle is
carrying.
Automatic Activation and
Automatic Release of Exhaust
Brake
The exhaust brake is engaged when
the vehicle speed exceeds the set
speed on a downhill slope.
The exhaust brake is disengaged
when the vehicle slows down close
to the set.
Cruise Control (Gas)
The cruise control function allows
you to drive the vehicle at a
constant speed without operating
the accelerator pedal. Use this
function when the vehicle speed is
between 48 and 117 km/h (30 and
73 MPH) (48 and 97 km/h (30 and
60 MPH) for vehicles equipped with

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
228 Driving and Operating
105 km/h (65 MPH) speed limiting
option code EEQ). This function
should only be used when driving
without frequent starts and stops.
{Warning
Cruise control can be dangerous
where you cannot drive safely at
a steady speed. Do not use
cruise control on winding roads or
in heavy traffic. You and others
could be seriously injured.
Cruise control can be dangerous
on slippery roads. On such roads,
fast changes in tire traction can
cause needless wheel spinning,
and you could lose control. Do
not use cruise control on slippery
roads. You and others could be
seriously injured.
1. Press the cruise control mainswitch to set it to on. At this
time, the operation indicating
light will turn to green.
2. Use the accelerator pedal toadjust the vehicle to the
desired speed. Upon reaching
the desired speed, turn the
cruise control set switch. The
vehicle speed at the moment
you operate the switch is set in
the system, enabling you to
drive with the set speed
automatically maintained
without using the accelerator
pedal.
At the same time the cruise set
indicator light comes on.
Accelerating during Cruise
Control Driving
If you want to accelerate temporarily
to pass another vehicle while driving
using the cruise control, press the
accelerator pedal. When you

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 229
release the accelerator pedal, the
speed returns to the original set
vehicle speed.
When Increasing Vehicle Speed
When the cruise control resume
switch is operated, the speed
increases while the switch is held.
After the speed is increased to the
desired vehicle speed, and the
switch is released, the speed is set
at the increased vehicle speed.
If you want to increase the speed
quickly, press the accelerator pedal
and accelerate to the desired
vehicle speed. Then, operate the
cruise control set switch.When Increasing Vehicle Speed
Slightly
If the cruise control resume switch is
operated and released immediately,
the set vehicle speed increases
1.6 km/h (1 MPH) per operation.
This operation can be performed 6
times (3500 model) or 10 times
(4500 model) consecutively.
When Decreasing Vehicle Speed
When the cruise control set switch
is operated, the speed decreases
while the switch is held.
After the speed is decreased to the
desired vehicle speed, and the
switch is released, the speed is setat the decreased vehicle speed.
If you want to decrease the speed
quickly, press the brake pedal to
cancel cruise control and decelerate
to the desired vehicle speed. Then,
operate the cruise control set switch
When Decreasing Vehicle Speed
Slightly
If the cruise control set switch is
operated and released immediately,
the set vehicle speed decreases
1.6 km/h (1 MPH) per operation.
This operation can be performed 6
times (3500 model) or 10 times
(4500 model) consecutively.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
230 Driving and Operating
When Canceling Cruise Control
Press the cruise control main switch
again to turn the cruise control
system off. The cruise control main
indicator light will go out.
The cruise control set speed is
canceled in the following cases:
.When the brake pedal is
pressed.
. When the selector lever is
shifted to the N or 1st position.
. When cruising speed is
approximately 40 km/h (25 MPH)
or lower. .
When the vehicle speed
decreases more than 20% below
your set speed
(3500 model only).
. When the cruise control main
switch is turned off.
. When the engine control switch
is turned to the LOCK position.
. When trouble develops in the
system.
. Memory speed is eliminated.
When you do not use the cruise
control, be sure to place the cruise
control main switch into off.
When you place the engine control
switch into ACC, place the cruise
control main switch into off, then
reset the cruise control if you want
to use the cruise control again.
Using Cruise Control on Hills
How well your cruise control will
work on hills depends upon your
speed, load and the steepness of
the hills. When going up steep hills,
you may want to step on the
accelerator pedal to maintain your
speed. When going downhill, you may have to brake or shift to a lower
gear to keep your speed down. Of
course, applying the brake takes
you out of cruise control. Many
drivers find this to be too much
trouble and do not use cruise
control on steep hills.
When Returning to Cruise Control
Driving
If you have canceled cruise control
under the following conditions, you
can return to the cruise control
driving condition before cancellation
when you operate and release the
cruise control resume switch. The
moment the resume switch is
released, the cruise set indicator
light comes on.
.
When pressing the brake pedal.
. When the selector lever is
shifted to the N or 1st position.
When the vehicle speed decreases
to 30 km/h (19 MPH) or less, it is
not possible to return to the cruise
control driving. You must reset the
cruise control.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16

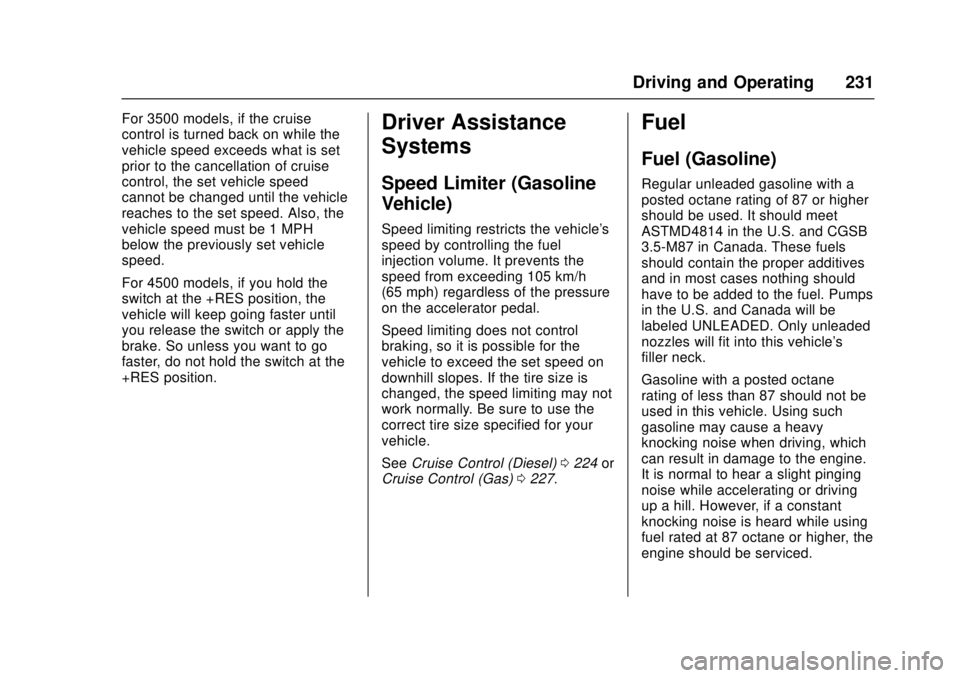

Driving and Operating 231
For 3500 models, if the cruise
control is turned back on while the
vehicle speed exceeds what is set
prior to the cancellation of cruise
control, the set vehicle speed
cannot be changed until the vehicle
reaches to the set speed. Also, the
vehicle speed must be 1 MPH
below the previously set vehicle
speed.
For 4500 models, if you hold the
switch at the +RES position, the
vehicle will keep going faster until
you release the switch or apply the
brake. So unless you want to go
faster, do not hold the switch at the
+RES position.Driver Assistance
Systems
Speed Limiter (Gasoline
Vehicle)
Speed limiting restricts the vehicle's
speed by controlling the fuel
injection volume. It prevents the
speed from exceeding 105 km/h
(65 mph) regardless of the pressure
on the accelerator pedal.
Speed limiting does not control
braking, so it is possible for the
vehicle to exceed the set speed on
downhill slopes. If the tire size is
changed, the speed limiting may not
work normally. Be sure to use the
correct tire size specified for your
vehicle.
SeeCruise Control (Diesel) 0224 or
Cruise Control (Gas) 0227.
Fuel
Fuel (Gasoline)
Regular unleaded gasoline with a
posted octane rating of 87 or higher
should be used. It should meet
ASTMD4814 in the U.S. and CGSB
3.5-M87 in Canada. These fuels
should contain the proper additives
and in most cases nothing should
have to be added to the fuel. Pumps
in the U.S. and Canada will be
labeled UNLEADED. Only unleaded
nozzles will fit into this vehicle's
filler neck.
Gasoline with a posted octane
rating of less than 87 should not be
used in this vehicle. Using such
gasoline may cause a heavy
knocking noise when driving, which
can result in damage to the engine.
It is normal to hear a slight pinging
noise while accelerating or driving
up a hill. However, if a constant
knocking noise is heard while using
fuel rated at 87 octane or higher, the
engine should be serviced.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
242 Driving and Operating
and other systems, resulting in a
vehicle breakdown or in a
malfunction of electronic equipment.
Consult your dealer if you wish to
install radio equipment.
Power Take-Off (PTO)
If equipped, the PTO is a device
that is used to provide engine power
to special equipment directly from
the engine or through the
transmission. For details about the
PTO operation, refer to the separate
instruction manual provided by its
maker.
If the optional PTO function is used
for long periods of time, make sure
to regularly check the diesel
particulate filter (DPF) indicator.
Automatic DPF regeneration will not
take place while the PTO function is
active.
1. Engine Speed ControlSwitch
2. Main Switch
{Warning
In PTO mode, Cruise Set/Resume
Switch can be used exactly the
same as PTO Engine Speed
Control Switch. Improper
operation of these switches may
cause personal injury or damage.
When Operating the PTO
For operation of special equipment,
see the manufacturer ’s instructions.Installations, or alterations to the
original equipment vehicle or
chassis, as manufactured and
assembled by General Motors, are
not covered by this warranty. The
body company, assembler,
or equipment installer is solely
responsible for warranties on the
body or equipment and any
alterations to any of the parts,
components, systems,
or assemblies installed by GM.
Examples include, but are not
limited to, special body installation,
such as recreational vehicles, the
installation of any non-GM part,
cutting, welding, or the
disconnecting of original equipment
vehicle or chassis parts and
components, extension of the
wheelbase, suspension, and
driveline modifications, and axle
additions.
The engine control module (ECM)
has the ability to accommodate one
of three different PTO modes. Each
mode can be programmed to
accommodate many PTO devices.
