200 Driving and Operating
Incorrect DEF/SCR System Malfunction (Type A) Warnings (cont'd)
Stage Stage 1Stage 2Stage 3Stage 4
Indicator light(s)
orororor
Warning buzzer 1 short beep 3 short beeps *1 3 quick beeps *2 Continuous beeping
Restriction Vehicle speed:
89 km/h (55 MPH) Vehicle speed:
56 km/h (35 MPH)Vehicle speed:
56 km/h (35 MPH)Vehicle speed:
8 km/h (5 MPH)
Remarks:
*1 –The warning buzzer continues
to sound every 5 minutes. *2
–The warning buzzer continues
to sound every 5 minutes and when
driving 8 km (5 miles) or more, the
buzzer changes its sound to
continuous beeping. When the exhaust system warning
light comes on DIC, promptly have
the vehicle inspected and serviced
at a dealer.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 201
Stage 1 :When incorrect DEF or an
SCR system malfunction (Type A) is
detected, the warning and indicator
lights will come on as shown in the
table and engine power will be
reduced so the vehicle speed will
not exceed 89 km/h (55 MPH).
Stage 2 : If driving is continued for
another approximately
160 km (100 miles), the warning and
indicator lights will begin blinking.
Again, engine power will be reduced
so the vehicle speed will not exceed
56 km/h (35 MPH).
Stage 3 : If driving is continued for
approximately
105 more km (65 miles), the warning
and indicator lights will begin to
blink faster. Engine power will still
be reduced so the vehicle speed will
not exceed 56 km/h (35 MPH). The
vehicle speed will be limited to
8 km/h (5 MPH) either when the
vehicle is stopped after driving
further on (approximately
8 km (5 miles)) or when the engine
is restarted. Stage 4 :
DEF indicator light is
blinking quickly, the other warning
lights are on and the buzzer is
beeping continuously indicates the
vehicle speed is limited to 8 km/h (5
MPH). See Vehicle Messages
(Diesel Only) 097, Malfunction
Indicator Lamp (Check Engine
Light) 084, Diesel Exhaust Fluid
(DEF) Warning Light 090, and
Reduced Engine Power Light 091.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
202 Driving and Operating
SCR System Malfunction (Type B) Warning
StageStage 1
Trigger SCR system malfunction detected
DIC main display
DEF gauge (DIC sub display 2) Various

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 203

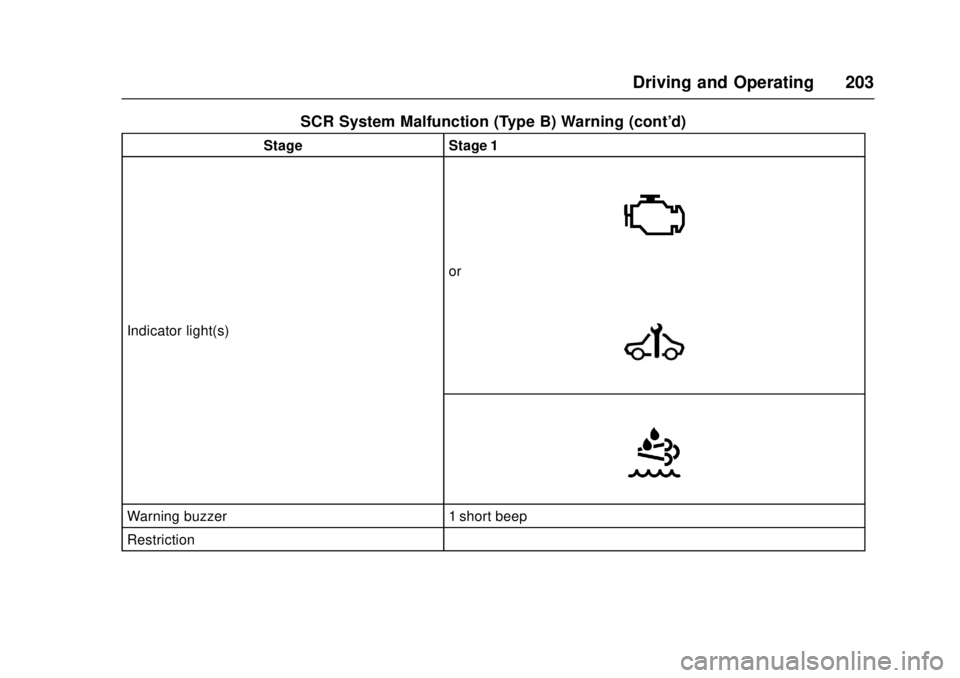

SCR System Malfunction (Type B) Warning (cont'd)
StageStage 1
Indicator light(s)
or
Warning buzzer 1 short beep
Restriction –

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
204 Driving and Operating
When the exhaust system warning
light comes on, promptly have the
vehicle inspected and serviced at a
dealer.
When a malfunction is detected in
the SCR system, the warning and
the indicator lights shown in the
table come on. SeeVehicle
Messages (Diesel Only) 097,
Malfunction Indicator Lamp (Check
Engine Light) 084, and Diesel
Exhaust Fluid (DEF) Warning Light
0 90.
When the Diesel Exhaust Fluid
(DEF) Tank is Empty
If the DEF tank is empty and
warning and indicator lights are on,
you must follow below procedure to
cancel the vehicle restriction: 1. Turn the engine control switch to the LOCK or ACC position,
and add DEF.
2. After adding DEF, turn the engine control switch to ON
position.
3. Wait until buzzer stops, warnings and indicators are
turned off. 4. If the buzzer does not stop,
return the engine control switch
back to the LOCK position and
add more DEF, and then start
over from step 2 above.
5. Restart the engine.
It may take a while until the warning
lights and indicators turn off and the
buzzer stops after turning the
engine control switch to the ON
position.
It is desirable to fill up the tank with
DEF to avoid DEF remaining level
warning indication from reappearing.
When the outside temperature is
low, refer to Adding DEF in Cold
Weather. See Driver Information
Center (DIC) (Diesel Only) 093,
Brake System Warning Light
(Parking Brake Light) 084, Warning
Buzzers 0101, and Winter Driving
0 145.Automatic
Transmission
On an automatic transmission
vehicle, the driver does not use a
clutch pedal when pulling away,
changing gears, or stopping. Only
the selector lever, accelerator pedal,
and brake pedal are used.
Practice learning the characteristics
of the automatic transmission
vehicle and how to correctly operate
it. When the vehicle is stationary,
remember to keep the brake pedal
firmly pressed, and if necessary,
move the selector lever in the P or
N position and apply the parking
brake.
Creep : With the engine running
and a gear position other than P or
N selected with the selector lever,
power reaches the wheels even
when the accelerator pedal is not
pressed, causing the vehicle to tend
to move.
Furthermore, the higher the engine
speed, the stronger the creep and
the greater the vehicle's tendency
to move.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 205
Starting
Start the engine in either the P or
the N position. The engine should
not start in any other selector
position. If it does, something is
wrong. Have your truck checked by
your dealer as soon as possible.
Always apply either the foot brake
or the parking brake before shifting
into any driving position. This will
prevent creeping.
The engine should be running at
idle when shifting from P or N to one
of the driving positions. See
Selector Lever0214.
Caution
Do not apply water from a
high-pressure washer nozzle
directly to the electric connectors.
Failure to observe this precaution
can lead to faulty operation of the
electrical system.
Caution
Never move the selector into the
P position when the vehicle is in
motion. This will damage the
automatic transmission.
Firmly press the brake pedal to
prevent the vehicle from moving
even if it is stopped on a level road,
and move the selector lever into P
and firmly apply the parking brake
as needed.
The engine speed rises and
creeping will be stronger than usual
during the conditions noted below.
Keep the brake pedal firmly
pressed:
. Immediately after engine
start up.
. While the air conditioner is
running.
. For diesel vehicles, during the
diesel particulate filter (DPF)
regeneration. How to Use the Automatic
Transmission{Warning
Before starting the engine, move
the selector lever into P or N (P is
preferred), make sure the shift
indicator indicates P or N, pull up
the parking brake lever and firmly
press the brake pedal.
When moving the selector lever to
any position other than P, be sure
to press the brake pedal.
Never leave the driver's seat with
the selector lever placed in D, 2,
1 or R (diesel engine), or D6, D4,
2, 1, or R (gasoline engine). The
vehicle may start moving. When
leaving the driver's seat, be sure
to move the selector lever into P
and securely set the parking
brake.
(Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
206 Driving and Operating
Warning (Continued)
When you move the selector lever
into D, 2, 1 or R (diesel engine),
or D6, D4, 2, 1, or R (gasoline
engine), creep will cause the
vehicle to move.
When pulling away from a
standstill, you must control the
speed using only the accelerator
pedal. Operate the accelerator
pedal carefully.
Do not operate the selector lever
while pressing the accelerator
pedal. The vehicle may make a
sudden start, possibly causing an
accident.
For gasoline vehicles, do not
drive the vehicle with the
transmission in neutral. Not only
will the engine brake not function,
but the transmission will also be
damaged.
You and others could be seriously
injured.When pulling away, visually check
the position of the selector lever.
If you always press the push button
while operating the selector lever,
the lever may occasionally move to
the other gear position against your
intentions.
Practice operating the selector lever
between the N and D (diesel engine)
or D6/D4 (gasoline engine) without
pressing the push button.
Do not operate the selector lever
while pressing the accelerator
pedal. Doing so is dangerous
because the vehicle would
suddenly move.
Do not operate the automatic
transmission at or near stall
condition for more than
five seconds. Stall condition is when
the transmission is in one of the
driving ranges, the engine is running
at high speed, but the drive wheels
are unable to move. This condition
might occur if the vehicle is stuck in
deep sand or is pushing against a
fixed barrier. Operating the
transmission at stall condition will
result in overheating and damage. Do not hold your vehicle on an
upgrade with the accelerator pedal.
Doing so will result in automatic
transmission overheating and
damage. Use the parking brake or
foot brake to hold the vehicle on an
upgrade.
Even if you plan to move only a
short distance, sit in the correct
driving position and make sure you
can firmly press the brake and
accelerator pedals.
When you reverse, you twist to look
rearward so pedal operation
becomes difficult. Firmly press the
brake pedal. Also, practice returning
the selector lever immediately to the
N position after reversing. When
pulling away, visually check the
selector lever position and the shift
indicator.
When the vehicle is stopped, do not
keep pressing the accelerator pedal
with the selector lever in a forward
gear or R position while pressing
the brake pedal. Doing so may
cause a breakdown.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 207
Sit in the correct driving position,
and use your right foot to operate
the brake and accelerator pedals.
To avoid accidentally pressing the
wrong pedal, check the pedal
positions and practice putting your
foot on the desired pedal.
To start your vehicle:1. Firmly press the brake pedal. After making sure the selector
lever is placed into P or N, that
P or N is shown in the shift
indicator and that the parking
brake lever is fully pulled up,
place the engine control switch
into the ON position.
2. Start the engine and move the selector lever into D (diesel
engine) or D6/D4 (gasoline
engine) for forward movement,
or R for backward movement
while firmly pressing the brake
pedal with your right foot.
3. Make sure that the shift indicator indicates the correct
gear (D (diesel engine) or D6/
D4 (gasoline engine) for
forward movement, or R for
backward movement), release the parking brake, release the
brake pedal, and then
gradually press the accelerator
pedal. The vehicles starts
moving as you press the
accelerator pedal further.
On a steep slope:
Make sure that the shift indicator
indicates the correct gear (D (diesel
engine) or D6/D4 (gasoline engine)
for forward movement, or R for
backward movement), check the
area around the vehicle is clear,
release the brake pedal with your
right foot, and then slowly press the
accelerator pedal.
After you feel the vehicle start
moving, gradually release the
parking brake lever and start driving
the vehicle.
When the brake pedal is not
pressed, the shift lock system
operates and the selector lever
cannot be shifted from P to any
other position. See
Driver Information Center (DIC)
(Diesel Only) 093, Starting and
Stopping the Vehicle (Gasoline
Only) 0165 orStarting and
Stopping the Vehicle (Diesel Only)
0 168, Selector Lever 0214, and
Automatic Transmission Shift Lock
Control Function Check (Diesel
Only) 0285.
Normal Driving
When you move the selector lever
from P into D (diesel engine) or
D6 (gasoline engine), shifting takes
place in the automatic mode. Check
that D (diesel engine) or
D6 (gasoline engine) is displayed in
the shift indicator.
If the automatic transmission fluid
temperature is too low, the
transmission may not initially make
automatic shift to the 4th, 5th, and
6th gear. This condition is normal
and will be resolved as the fluid
temperature rises.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
208 Driving and Operating
To Accelerate
To accelerate when the accelerator
pedal is pressed further, kickdown
operates and the speed increases.
The transmission will downshift at
speeds below 88 km/h (55 MPH) for
diesel vehicles, and below
112 km/h (70 MPH) for gasoline
vehicles, to provide greater
acceleration.
Kickdown
If you press the accelerator pedal
fully while driving, in accordance
with the current speed the gear
automatically shifts down and the
engine speed rises, enabling
sufficient acceleration. This is called
kickdown.
You can easily accelerate to the
required speed when overtaking
other vehicles or when joining traffic
on a highway. In order to maintain
speed when driving on an uphill
road, as you gradually press the
accelerator pedal the engine may
automatically shift down in
accordance to the current speed(shifts to a lower speed gear),
increasing the engine speed and
increasing vehicle speed.
Driving Uphill or Downhill
Uphill driving:
With the selector lever in D (diesel
engine) or D6/D4 (gasoline engine),
if you press down on the accelerator
pedal, kickdown (change to a low
speed gear) may operate causing
the engine revolutions to suddenly
increase (increasing the speed).
Driving for a prolonged duration on
an uphill road with the selector lever
in D (diesel engine) or D6/
D4 (gasoline engine) may cause the
automatic transmission fluid to
overheat.
For vehicles with a diesel engine,
drive with the overdrive off switch
ON to keep the engine revolutions
constant to enable smoother driving
with fewer changes in engine
revolutions.
For vehicles with a gasoline engine,
drive with the selector lever in the
D4 position to keep the engine
revolutions constant to enable
smoother driving with fewer
changes in engine revolutions.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 209
Driving conditionsSelector lever position
Normal uphill road Diesel engine
–D (overdrive off
switch ON)
Gasoline engine –D4
Steep uphill, steep slope, mountain
road with many sharp curves 2 or 1
Long uphill road 2
Downhill driving:
Do not overuse the foot brake. This
will cause the brakes to overheat,
reducing their effectiveness. On
long downward slopes or sharp
downhill sections of road, use the
engine brake together with the foot
brakes to control the speed.
On vehicles with a diesel engine,
when the selector lever is in the D
position, you can drive with the
overdrive off switch ON to allow a
gentle engine brake to be applied.
On vehicles with a 3.0L diesel
engine, push the overdrive off
switch to the ON position at speeds below 135 km/h (84 MPH) to
increase engine braking action
when traveling downgrade.
On vehicles with a 5.2L diesel
engine, push the overdrive off
switch to the ON position at speeds
below 101 km/h (63 MPH) to
increase engine braking action
when traveling downgrade.
On vehicles with a gasoline engine,
with the selector lever in the D4
position at speeds below
121 km/h (75 MPH) to increase
engine braking action when
traveling downgrade.
You can increase engine braking by
driving with the selector lever in the
2 position.To apply a stronger engine brake on
sharp downhill sections, shift the
selector lever to the 1 position when
required.
See
Control of a Vehicle 0133.
Driving at Low Speeds for
Sustained Periods
On vehicles with a 3.0L diesel
engine, any low speed applications
such as sweeper, road marking
machinery, trash collectors, highway
striping or moving, etc. require the
following treatment to prevent the
automatic transmission fluid (ATF)
from overheating:
Select 1 position during low speed
operation under 28 km/h (17 MPH).
Select 2 position during low speed
operation under 53 km/h (33 MPH).
On vehicles with a 5.2L diesel
engine, any low speed applications
such as sweeper, road marking
machinery, trash collectors, highway
striping or moving, etc. require the
following treatment to prevent the
automatic transmission fluid (ATF)
from overheating:
