In addition, when trucks are driven
continuously on high-crown roads,
an increase in air pressure of
35 kPa (5 psi) in the outer tire of a
dual tire operation will prolong outer
tire life. Be sure not to exceed the
inflation pressure limits shown on
the“VIN and Weight Rating Plate”
for the 3.0L diesel engine, on the
“VIN, Weight Rating, and
Greenhouse Gas (GHG) Emissions
Plate” for the 5.2L diesel engine,
or the “Vehicle Certification and
Greenhouse Gas (GHG) Emissions
Plate” for gas engines. See Vehicle
Identification Number (VIN) 0383.
Wheel and Tire Balancing
Proper tire balancing provides the
best riding comfort and helps to
reduce tire tread wear.
Out-of-balance tires can cause
annoying vehicle vibration and
uneven tire wear, such as cupping
and flat spots. See your authorized
dealer for wheel balancing.
Front End Alignment
Proper front end alignment improves
tire tread mileage. Your vehicle's
front end suspension parts should be inspected often and aligned
when needed. (See the
Maintenance Schedule for more
information.) Improper alignment will
not cause the vehicle to vibrate;
however, improper toe-in alignment
will cause front tires to roll at an
angle that will result in faster tire
wear. Incorrect caster or camber
alignment will cause your front tires
to wear unevenly, and may cause
the vehicle to "pull" to the left or
right.
Tire Traction
A decrease in driving, cornering and
braking traction occurs when water,
snow, ice, gravel or other material is
on the road surface. Driving
practices and vehicle speed should
be adjusted to the road conditions.
When driving on wet or slushy
roads, it is possible for a wedge of
water to build up between the tire
and road surface. This is known as
hydroplaning, and may cause partial
or complete loss of traction, vehicle
control and stopping ability; this
condition is also more likely with
worn tires.
To reduce the chance of traction
loss, follow these tips:
.
Slow down during rainstorms or
when roads are slushy.
. Slow down if the road has
standing water or puddles.
. Replace tires when front tread
depth is 3.2 mm (4/32 in.) and
rear tread depth is 1.6 mm
(2/32 in.).
. Keep tires properly inflated.
Tire Replacement
Recommendations
{Warning
Do not mix different construction
types of tires on your vehicle such
as radial, bias and bias-belted
tires except in emergencies,
because vehicle handling could
be affected and may result in loss
of vehicle control, or personal
injury or death. (Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 311
Warning (Continued)
Consult your dealer before
replacing wheels. Never use
wheels that are not designed for
the vehicle. Doing so would
impede safe vehicle operation.
You should replace your tires when:
. Your tires are worn to a point
where 3.2 mm (4/32 in.) (front)
and 1.6 mm (2/32 in.) (rear) or
the cord or fabric is exposed.
. Your tire tread or sidewall is
cracked, cut or snagged deeply
enough to expose the core,
fabric or steel components.
. Your tire has a hump, bulge or
split.
. Your tire sustains a puncture, cut
or other damage that cannot be
correctly repaired because of the
size or location of the damage.
When replacing tires, you should
use the same size, load range and
construction type (bias or radial) as
the original tires on your vehicle. Use of any other size or type tire
may affect load carrying capacity,
ride, handling, speedometer/
odometer calibration, vehicle ground
clearance and tire clearance to the
chassis. If replacing only a single
tire, it should be put on the same
axle with other tires of equal
diameter.
When replacing or rotating tires, all
tires on an axle should be of the
same tread design and should have
the same outside diameter within
certain limitations, particularly on
LSD models. Consult your
authorized dealer or tire dealer.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
312 Vehicle Care
Recommended replacement tire for Greenhouse Gas (GHG) emissions—3.0L Diesel Engine
Tire size Tire maker Tire name Rolling Resistance
LT215/85R16E BRIDGESTONE CORPORATION
Duravis R250LRRA
THE YOKOHAMA RUBBER CO., LTD. TY213A MC2 LRRA
Recommended replacement tire for Greenhouse Gas (GHG) emissions—5.2L Diesel Engine
Tire size Tire makerTire name Rolling
resistance
LT215/85R16E BRIDGESTONE CORPORATION
Duravis R250 LRRA
THE YOKOHAMA RUBBER CO., LTD. TY213A MC2 LRRA
225/70R19.5F BRIDGESTONE CORPORATION
M895Z LRRA
THE YOKOHAMA RUBBER CO., LTD. TY287 MC2 LRRA
Recommended replacement tire for Greenhouse Gas (GHG) emissions —Gas Engine
Tire size Tire makerTire name Rolling
Resistance
LT215/85R16E THE YOKOHAMA RUBBER CO., LTD. TY213A MC2 LRRA
225/70R19.5F THE YOKOHAMA RUBBER CO., LTD. TY213A MC2 LRRA
225/70R19.5G CONTINENTAL CORPORATION HSR LRRA

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 313
If the original equipment tires are
low rolling tires, it is recommended
to use the LRRA tires shown in the
above table.
For gas engines, please refer to the
emission control identifiers on
Greenhouse Gas (GHG) emission
plate for your original equipment
tires. Also, please refer to“Vehicle
Certification and Greenhouse Gas
(GHG) Emissions Plate” for the
location of the Greenhouse Gas
(GHG) emission plate. See Vehicle
Identification Number (VIN) 0383.
For the 5.2L diesel engine, please
refer to the emission control
identifiers on Greenhouse Gas
(GHG) emission plate for your
original equipment tires. Also,
please refer to “VIN, Weight Rating,
and Greenhouse Gas (GHG)
Emissions Plate” for the location of
the Greenhouse Gas (GHG)
emission plate. See Vehicle
Identification Number (VIN) 0383. Wheel Replacement
Recommendations
Wheels must be replaced if they
become damaged (for example:
bent, heavily rusted, leak air) or if
wheel nuts often become loose. Do
not use bent wheels that have been
straightened and do not use inner
tubes in leaking wheels which are
designed for tubeless tires. Such
wheels may have structural damage
and could fail without warning.
When replacing wheels for any
reason, the new wheels should be
equal in load capacity, diameter,
width, offset and mounting types to
those originally installed in your
vehicle.
A wheel of the wrong size or type
may adversely affect wheel and
bearing life, brake cooling,
speedometer/odometer calibration,
stopping ability, headlight aim,
bumper height, vehicle ground
clearance and tire or tire chain
clearance on the body and chassis. Replacement with "used" wheels is
not advised. They may have been
subjected to harsh treatment or very
high mileage and could fail without
warning.
{Warning
Consult your dealer before
replacing wheels. Never use
wheels that are not designed for
the vehicle. Doing so would
impede safe vehicle operation.
The use of wheels and/or tires with
higher load carrying limits than
originally equipped on your vehicle
does not in itself increase the
GAWR or the GVWR of the vehicle.
Replacement wheels can be
obtained from the authorized dealer
or tire dealer.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
314 Vehicle Care
Checking Tires
Air Pressure
Too low or too high a tire air
pressure not only affects the ride or
causes damage to the cargo but
also causes abnormal heat buildup,
premature wear, a tire puncture,
or may even cause the tire to burst.
Use an appropriate tire air pressure
gauge when measuring the air
pressure of a tire. Tire air pressure
should be measured when the tire is
cold, or before the vehicle is driven.
(After driving, tire air pressure
increases by about 10%.)As the tire air pressure varies
depending on the vehicle model and
tire size, refer to the VIN and weight
rating plate for the 3.0L diesel
engine, the
“VIN, Weight Rating,
and Greenhouse Gas (GHG)
Emissions Plate,” for the 5.2L diesel
engine, or the “Vehicle Certification
and Greenhouse Gas (GHG)
Emissions Plate” for gas engines on
the driver's door opening frame or
the tire air pressure information on
the following table.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 315
3.0L Diesel Engine
Tire sizeTire air pressure
kPa (psi) GVW
kg (lb.)
Front RearFront Rear
LT215/85R16E LT215/85R16E 550 (80)550 (80) 5 897
(13,000)
5.2L Diesel Engine
Tire size Tire air pressure
kPa (psi) GVW
kg (lb.)
Front RearFront Rear
LT215/85R16E LT215/85R16E 550 (80)550 (80) 6 577
(14,500)
225/70R19.5F 225/70R19.5F 590 (85)590 (85) 7 258
(16,000)
225/70R19.5F 225/70R19.5F 620 (90)620 (90) 8 142
(17,950)
225/70R19.5F 225/70R19.5F 660 (95)660 (95) 8 845
(19,500)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
316 Vehicle Care
Gas Engines
Tire sizeTire air pressure kPa (psi)
LT215/85R16E 480 (70)
225/70R19.5F 590 (85)
225/70R19.5G 590 (85)
For the 3.0L diesel engine, see “VIN
and Weight Rating Plate” under
Vehicle Identification Number (VIN)
0 383.
For the 5.2L diesel engine, see
“VIN, Weight Rating, and
Greenhouse Gas (GHG) Emissions
Plate” underVehicle Identification
Number (VIN) 0383.
For gas engines, see “Vehicle
Certification and Greenhouse Gas
(GHG) Emissions Plate” under
Vehicle Identification Number (VIN)
0 383.
See “Tire Load and Inflation Table”
under Tire Pressure 0322.
{Warning
Insufficiently inflated or worn-out
tires are highly dangerous as they
easily skid and can even burst.
Should they burst, the tires may
burn and this could cause a fire in
the vehicle.
If you drive on under-inflated or
flat tires, the wheel studs will be
placed under excessive stress.
Under such conditions, the bolts
may break and the wheel may
detach from the vehicle, possibly
causing an accident.
(Continued)
Warning (Continued)
Over-inflated tires result in a
harsh ride and are likely to cause
damage to the cargo.
Under-inflated tires build up heat
and could burst. Always keep the
tires of your vehicle adjusted at
the standard air pressures.
You and others could be seriously
injured.
There should not be a difference
tires on a dual-tire wheel.
It is not easy to visually identify an
under-inflated dual-wheel tire or low
aspect ratio tire (aspect ratio at

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 317
70%). Always use an appropriate
tire air pressure gauge to check the
air pressure of any tire.
If your vehicle is equipped with
aluminum wheels, use an extension
attached to the inner tire valve
together with a standard tire air
pressure gauge or use a special air
pressure gauge when checking the
air pressure of a dual-wheel's
inner tire.

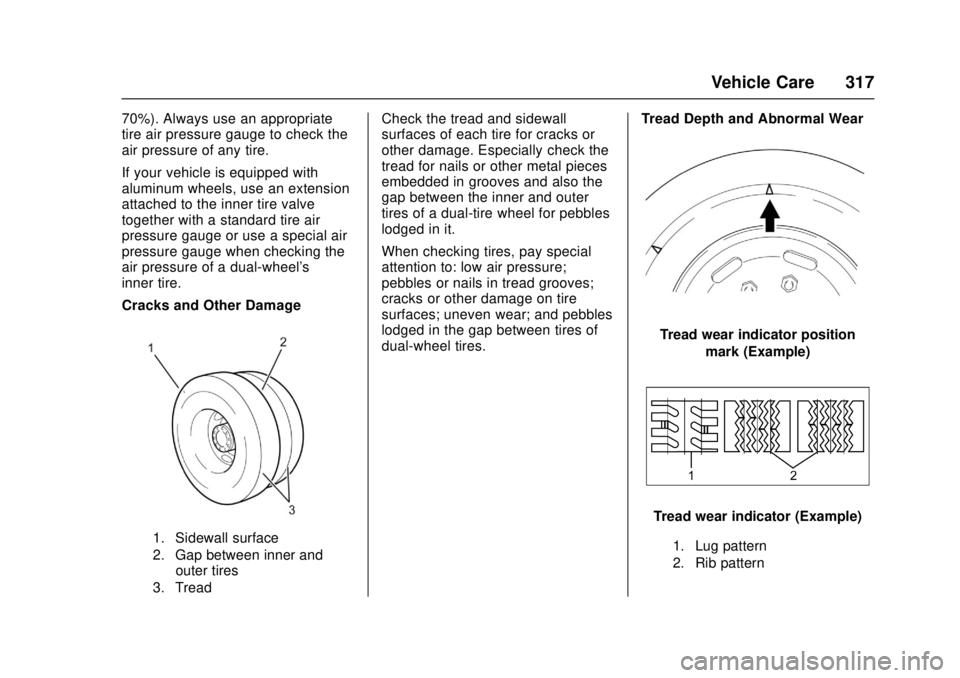

Cracks and Other Damage
1. Sidewall surface
2. Gap between inner andouter tires
3. Tread
Check the tread and sidewall
surfaces of each tire for cracks or
other damage. Especially check the
tread for nails or other metal pieces
embedded in grooves and also the
gap between the inner and outer
tires of a dual-tire wheel for pebbles
lodged in it.
When checking tires, pay special
attention to: low air pressure;
pebbles or nails in tread grooves;
cracks or other damage on tire
surfaces; uneven wear; and pebbles
lodged in the gap between tires of
dual-wheel tires. Tread Depth and Abnormal Wear
Tread wear indicator position
mark (Example)
Tread wear indicator (Example)
1. Lug pattern
2. Rib pattern

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
318 Vehicle Care
Using worn-out tires is dangerous
because they might have an
increased chance of getting
punctured or bursting while driving.
Check all tires to see if tread wear
indicators appear on their treads
and also check their entire tread for
its depth with a depth gauge to
make sure that the grooves are
deeper than the specified depth.
A tire with tread wear indicators
appearing must be changed. Also,
check the tires for uneven or
otherwise abnormal wear.
{Warning
Tires with excessively shallow
tread grooves will increase the
chance of skidding and, when
driving at high speeds,
hydroplaning. You and others
could be seriously injured.
Hydroplaning occurs when a vehicle
is running at high speeds on a wet
road and a layer of water forms
between the road surface and tires
causing the tires to float on it.
Hydroplaning prevents the driver from steering correctly and from
slowing down the vehicle with the
brake pedal.
Use of Low Aspect Ratio Tires
1. Standard tire
2. Low aspect ratio tire
Low aspect ratio tires for truck
applications (aspect ratio at 70%)
have an air volume 20% to 30%
smaller than that of standard tires.
When air begins to leak, therefore,
low aspect ratio tires adversely
affect vehicle operation much faster
than standard tires. Check air
pressure of low aspect ratio tires
more often than standard tires using
a tire air pressure gauge.
Damaged Tires
{Warning
It is dangerous to mount the
wrong size tire on a wheel. If you
do so, the tire/wheel can explode
as air is being added. This
explosion may result in severe
personal injury or death. For the
3.0L diesel engine, to learn which
wheels and tires are correct, look
at the "VIN and Weight Rating
Plate" on the left side rear pillar
panel below the striker. For the
5.2L diesel engine, to learn which
wheels and tires are correct, look
at the "VIN, Weight Rating, and
Greenhouse Gas (GHG)
Emissions Plate" on the left side
rear pillar panel below the striker
(single cab) or on the left center
pillar panel beside the shoulder
seat belt anchor (crew cab).For
(Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 319
Warning (Continued)
gas engines, to learn which
wheels and tires are correct, look
at the "Vehicle Certification and
Greenhouse Gas (GHG)
Emissions Plate" on the left side
rear pillar panel below the striker
(single cab) or on the left center
pillar panel beside the shoulder
seat belt anchor (crew cab).
Wheel size is also stamped on
the side of each wheel.
To help avoid personal injury and
property damage if a wheel must
be changed, seek expert tire
services if you can. If you must
remove the wheel without any
such help, do the following:. If the tire looks as if it may
be underinflated, stand to
the side and check whether
the wheel assembly
appears normal by
comparing it to another
wheel assembly on the
vehicle.
(Continued)
Warning (Continued)
.Let the air out of the tire by
taking out the valve core.
If you have a way to put air
back in a tire, note that it is
good safety practice to let
the air out of both tires of a
dual assembly before taking
off the damaged tire and rim
assembly from the vehicle.
After letting out the air, take
off the tire and rim assembly
and install a spare tire and
rim assembly.
If your vehicle is equipped
with a differential lock
system or limited slip
differential (LSD), it might
start moving when the
engine power is transmitted
to the rear axle even when
one of the wheels on the
axle is raised clear of the
ground. Do not start the
engine with any rear wheel
in contact with the ground.
(Continued)
Warning (Continued)
If you are not fully
experienced on the
procedures to follow, and/or
are not equipped with the
proper tools and equipment,
again, do not attempt to
raise the vehicle, or remove
or install the tire and wheel
assembly—seek expert tire
services.
. Do not put air back in a tire
that has been run flat, or is
seriously low on air, without
first having the tire taken off
the wheel and the tire
checked for damage.
. Note that taking off and
mounting tires on wheels
requires proper tools, safety
equipment and special
training. A person can be
severely injured or killed
and damage can result from
using the wrong service
methods. Truck tires and
(Continued)
