220 Driving and Operating
Parking Brake
Parking Brake Lever
When parking or stopping your
vehicle, engage the parking brake
and make sure that the vehicle does
not start moving. Avoid parking your
vehicle on a slope as much as
possible and choose a level and flat
place. If parking on a slope is
unavoidable, be sure to set the
parking brake, make sure that the
vehicle does not move, and block
the wheels with chocks for added
safety.
Illumination of the parking brake
warning light does not mean that the
parking brake is fully applied. The
parking brake lever must be fully
engaged.
When you engage the parking brake
lever, air pressure is reduced and all
four wheel brakes are applied.
{Warning
Although the parking brake
indicator light will come on if the
parking brake is engaged while
the engine control switch is in the
ON position, this does not mean
the parking brake is fully
engaged, so always make sure
the lever is fully pulled up.
Never drive the vehicle with the
parking brake set as this will
cause excessive wear, reduce
parking brake effectiveness and
increase fuel consumption.
Choose a flat place where
stopping and parking are
permitted and where the vehicle
will not obstruct traffic.
Remove all dirt from the vehicle's
light lenses and reflectors to
ensure that the vehicle can be
seen from other vehicles. You and
others could be seriously injured.
Avoid parking for long periods with
cargo on the vehicle.
{Warning
Do not use the parking brake
while the vehicle is in motion
except in an emergency. Applying
the parking brake before the
vehicle has stopped can cause
the tires to lock or the vehicle to
spin, possibly causing an
accident. Unless the parking
brake is fully released during
driving, a fault and/or a fire may
result.
If it was necessary to use the
parking brake during driving, be
sure to check afterwards to
determine if any fault or failure
has resulted.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Driving and Operating 221
Operation of Parking Brake
The parking brake lever is located to
the right of the driver's seat.
To set the parking brake, completely
stop the vehicle. Then, without
pressing the release button (1), hold
the brake pedal down while pulling
the parking brake lever (2) all the
way up.The parking brake indicator light in
the instrument panel will come on
when the lever is pulled up. Before
you leave the driver's seat, follow
the steps under
“Parking, or Leaving
Driver's Seat”. See Braking0143.
To release the parking brake, hold
the brake pedal down while pushing
the release button of the parking
brake lever and lower the lever. The
parking brake indicator light in the
instrument panel will go out.
The parking brake indicator light is
designed to remind you if the
parking brake is not released when
the engine control switch is on.
If the parking brake warning light
remains on when the parking brake
lever is lowered, a brake failure or a
drop in air pressure may be the
cause.
Check the brake air pressure for
correct level. If the brake air
pressure is low, contact your local
Isuzu Dealer for service.
If you notice the parking brake lever
travel has increased over time, this
means the cable adjustment must be checked by a qualified
technician. Adjustment may be
required due to parking brake shoe
wear. See
Control of a Vehicle
0 139.
Inspection
Pull the parking brake lever slowly
from the fully released position while
counting the clicks produced as the
lever engages ratchet plate notches
to check that it can be raised the
proper amount and the lever is held
firmly.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
222 Driving and Operating
If the number of notches is not
within the standard value range
below, adjust it to the standard
value. Lever stroke is 6 to 8
notches.
Number of notches before parking
brake is set when lever is pulled
slowly from released position with
pull force of about 147 N (15 kgf/
33 lbs).
SeeMaintenance Schedule 0327
and Additional Maintenance and
Care 0346.
Exhaust Brake
Exhaust Brake Switch
When turned on, the system
increases the amount of power
absorbed by the engine while
coasting in gear. Whenever slowing
down the vehicle, such as on down
grades, in city traffic or approaching
stop signals, this brake system may
be used.
To turn on the exhaust brake system
while driving, pull the lever
backward. The exhaust brake
indicator light comes on. The
exhaust brake will engage
automatically when the accelerator
pedal is released and vehicle speed
is above 10 km/h (6.5 MPH). The exhaust brake will disengage
when the accelerator pedal or brake
pedal is pressed. Releasing the
pedal reengages the exhaust brake.
Push the lever forward to turn the
exhaust brake off during idling.
{Warning
It is extremely dangerous to apply
the exhaust brake on slippery
roads as the tires can skid.
You and others could be seriously
injured.
Even if the selector lever is placed
in the N position, the exhaust brake
does not disengage until the engine
is warmed up if the warm-up system
is on.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Driving and Operating 223
Conditions for Inoperable Exhaust
Brake
Under the following conditions, the
exhaust brake does not engage
even if the exhaust brake indicator
light comes on:
.The accelerator pedal is
pressed.
. The selector lever is in the N
position.
. The vehicle is traveling at
5 km/h (3 MPH) or lower speeds.
If your vehicle is equipped with an
anti-lock brake system (ABS), the
exhaust brake may disengage
during ABS operation even when
the exhaust brake switch is in the
ON position and the exhaust brake
indicator light is on. The exhaust
brake may disengage temporarily as
the vehicle passes over a bump
even when the brake pedal is not
pressed. It is advisable to operate the
exhaust brake when descending a
slope or when stop and go driving is
involved.
The selection of transmission gears
and engine speed when operating
the brake system is important. The
exhaust brake is more effective in
the lower gears and at the higher
engine speeds. See
Exhaust Brake
Light 077.Cruise Control
The cruise control function allows
you to drive the vehicle at a
constant speed without operating
the accelerator pedal. Use this
function when the vehicle speed is
between 40 to 160 km/h (25 to 100
MPH). This function should only be
used when driving without frequent
starts and stops.
{Warning
Cruise control can be dangerous
where you cannot drive safely at
a steady speed. Do not use
cruise control on winding roads or
in heavy traffic. You and others
could be seriously injured.
Cruise control can be dangerous
on slippery roads. On such roads,
fast changes in tire traction can
cause needless wheel spinning,
and you could lose control. Do
not use cruise control on slippery
roads. You and others could be
seriously injured.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
224 Driving and Operating

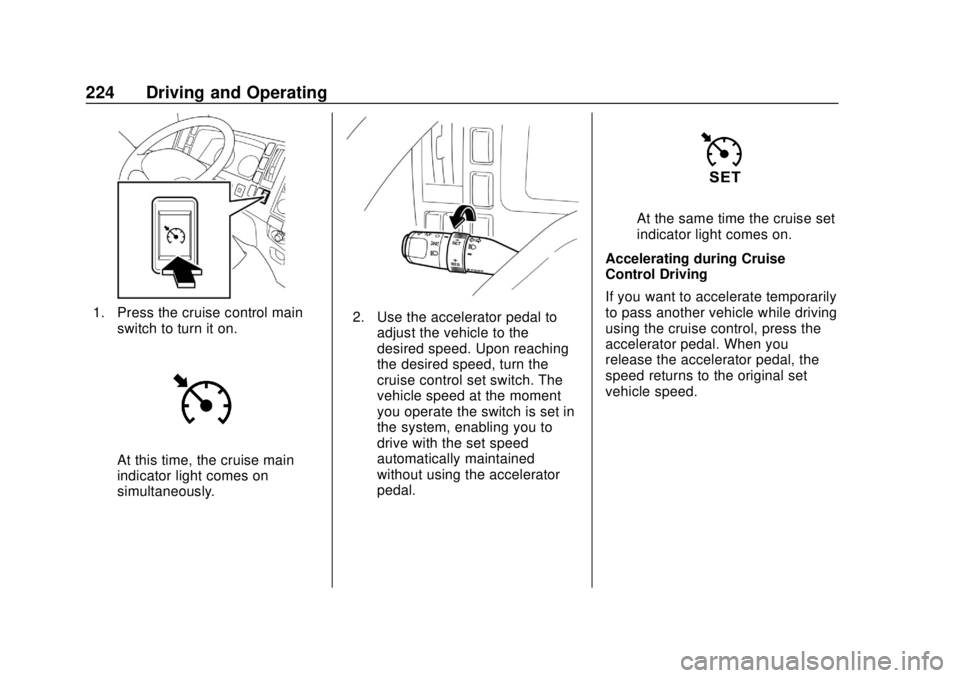

1. Press the cruise control mainswitch to turn it on.
At this time, the cruise main
indicator light comes on
simultaneously.
2. Use the accelerator pedal toadjust the vehicle to the
desired speed. Upon reaching
the desired speed, turn the
cruise control set switch. The
vehicle speed at the moment
you operate the switch is set in
the system, enabling you to
drive with the set speed
automatically maintained
without using the accelerator
pedal.
At the same time the cruise set
indicator light comes on.
Accelerating during Cruise
Control Driving
If you want to accelerate temporarily
to pass another vehicle while driving
using the cruise control, press the
accelerator pedal. When you
release the accelerator pedal, the
speed returns to the original set
vehicle speed.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Driving and Operating 225

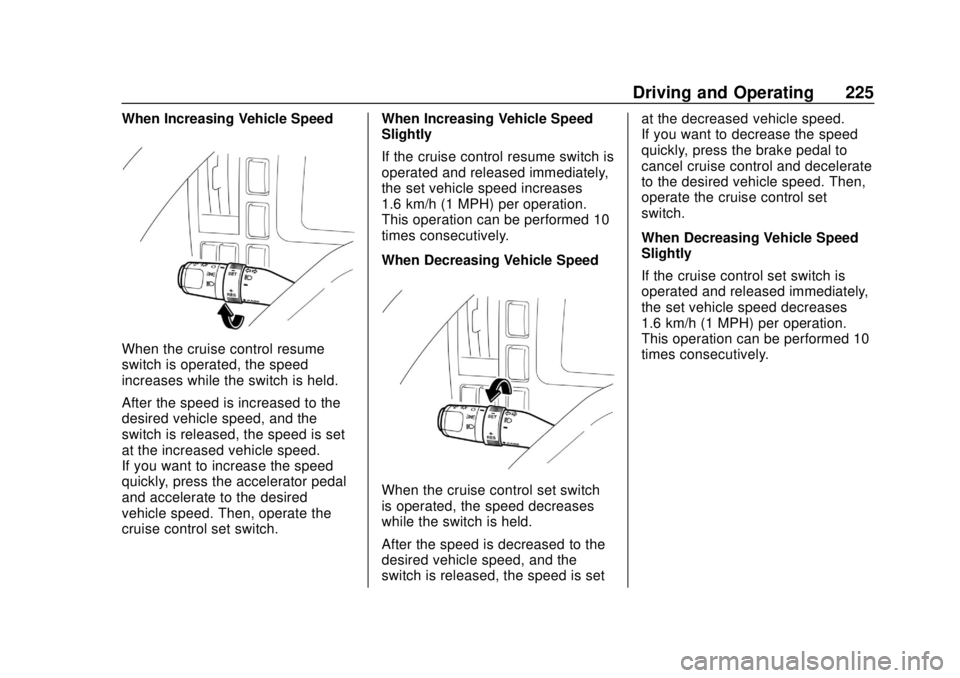

When Increasing Vehicle Speed
When the cruise control resume
switch is operated, the speed
increases while the switch is held.
After the speed is increased to the
desired vehicle speed, and the
switch is released, the speed is set
at the increased vehicle speed.
If you want to increase the speed
quickly, press the accelerator pedal
and accelerate to the desired
vehicle speed. Then, operate the
cruise control set switch.When Increasing Vehicle Speed
Slightly
If the cruise control resume switch is
operated and released immediately,
the set vehicle speed increases
1.6 km/h (1 MPH) per operation.
This operation can be performed 10
times consecutively.
When Decreasing Vehicle Speed
When the cruise control set switch
is operated, the speed decreases
while the switch is held.
After the speed is decreased to the
desired vehicle speed, and the
switch is released, the speed is setat the decreased vehicle speed.
If you want to decrease the speed
quickly, press the brake pedal to
cancel cruise control and decelerate
to the desired vehicle speed. Then,
operate the cruise control set
switch.
When Decreasing Vehicle Speed
Slightly
If the cruise control set switch is
operated and released immediately,
the set vehicle speed decreases
1.6 km/h (1 MPH) per operation.
This operation can be performed 10
times consecutively.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
226 Driving and Operating
When Canceling Cruise Control
Press the cruise control main switch
again to turn the cruise control
system off. The cruise control main
indicator light will go out.
The cruise control set speed is
canceled in the following cases:
.When the brake pedal is
pressed.
. When the selector lever is
shifted to the N position.
. When cruising speed is
approximately 27 km/h (17
MPH). * .
When the vehicle speed
decreases more than 20% below
your set speed.
. When the cruise control main
switch is turned off. *
. When the engine control switch
is turned to the LOCK position. *
. When trouble develops in the
system. *
Memory speed is eliminated. *
When you do not use the cruise
control, be sure to place the cruise
control main switch into off.
When you place the engine control
switch into ACC, place the cruise
control main switch into off, then
reset the cruise control if you want
to use the cruise control again.
Using Cruise Control on Hills
How well your cruise control will
work on hills depends upon your
speed, load and the steepness of
the hills. When going up steep hills,
you may want to step on the
accelerator pedal to maintain your
speed. When going downhill, you may have to brake or shift to a lower
gear to keep your speed down. Of
course, applying the brake takes
you out of cruise control. Many
drivers find this to be too much
trouble and do not use cruise
control on steep hills.
When Returning to Cruise Control
Driving
If you have canceled cruise control
under the following conditions, you
can return to the cruise control
driving condition before cancellation
when you operate and release the
cruise control resume switch. The
moment the resume switch is
released, the cruise set indicator
light comes on.
.
When pressing the brake pedal.
. When the selector lever is
shifted to the N position.
When the vehicle speed decreases
to 40 km/h (25 MPH) or less, it is
not possible to return to the cruise
control driving. You must reset the
cruise control.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17

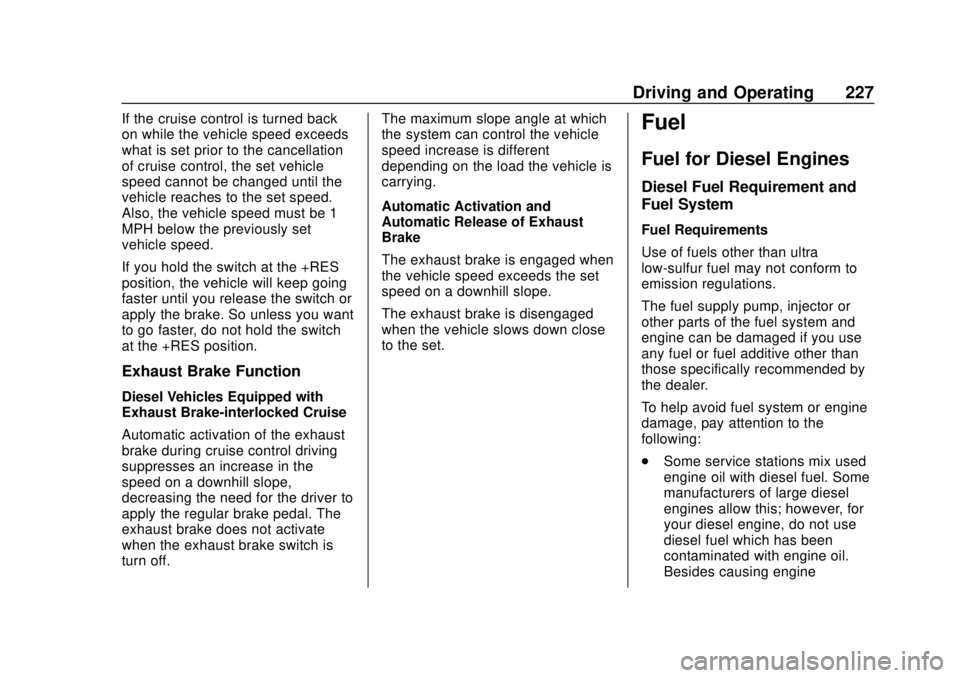

Driving and Operating 227
If the cruise control is turned back
on while the vehicle speed exceeds
what is set prior to the cancellation
of cruise control, the set vehicle
speed cannot be changed until the
vehicle reaches to the set speed.
Also, the vehicle speed must be 1
MPH below the previously set
vehicle speed.
If you hold the switch at the +RES
position, the vehicle will keep going
faster until you release the switch or
apply the brake. So unless you want
to go faster, do not hold the switch
at the +RES position.
Exhaust Brake Function
Diesel Vehicles Equipped with
Exhaust Brake-interlocked Cruise
Automatic activation of the exhaust
brake during cruise control driving
suppresses an increase in the
speed on a downhill slope,
decreasing the need for the driver to
apply the regular brake pedal. The
exhaust brake does not activate
when the exhaust brake switch is
turn off.The maximum slope angle at which
the system can control the vehicle
speed increase is different
depending on the load the vehicle is
carrying.
Automatic Activation and
Automatic Release of Exhaust
Brake
The exhaust brake is engaged when
the vehicle speed exceeds the set
speed on a downhill slope.
The exhaust brake is disengaged
when the vehicle slows down close
to the set.
Fuel
Fuel for Diesel Engines
Diesel Fuel Requirement and
Fuel System
Fuel Requirements
Use of fuels other than ultra
low-sulfur fuel may not conform to
emission regulations.
The fuel supply pump, injector or
other parts of the fuel system and
engine can be damaged if you use
any fuel or fuel additive other than
those specifically recommended by
the dealer.
To help avoid fuel system or engine
damage, pay attention to the
following:
.
Some service stations mix used
engine oil with diesel fuel. Some
manufacturers of large diesel
engines allow this; however, for
your diesel engine, do not use
diesel fuel which has been
contaminated with engine oil.
Besides causing engine

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
228 Driving and Operating
damage, such fuel can also
affect emission control. Before
using any diesel fuel, check with
the service station operator to
see if the fuel has been mixed
with engine oil.
. Do not use any fuel additive
(other than as recommended
under "Biocides" in Water in
Fuel 0231). At the time this
manual was printed, no other
fuel additive was recommended.
(See your authorized dealer to
find out if this has changed.)
. Take care not to run out of diesel
fuel. If you do run out of fuel,
you may need to bleed air out of
the supply pump to re-start the
engine after fuel has been filled.
Your vehicle is designed to use
either Number 1-D or Number 2-D
diesel fuel. However, for better fuel
economy, use Number 2-D diesel
fuel whenever possible. At
temperatures below -7 °C (20 °F),
Number 2-D fuel may pose
operating problems (see "Cold
Weather Operation" which follows).
At colder temperatures, use Number 1-D fuel (if available) or use a
"winterized" Number 2-D (a blend of
Number 1-D and Number 2-D). This
blended fuel is usually called
Number 2-D also, but can be used
in colder temperatures than Number
2-D fuel which has not been
"winterized". Check with the service
station operator to be sure you get
the properly blended fuel.
Do not use fuels other than those
recommended in this manual. Doing
so may adversely affect the engine.
DIESEL FUEL/APPLICABLE
STANDARD (Sulfur content below 15ppm)
ASTM
(AMERICAN
SOCIETY FOR
TESTING and
MATERIALS) Based on D975
Number 1–D
S15 or Number
2-D S15 (below
15 ppm)Biodiesel
Biodiesel, may also be referred to
as FAME blended (Fatty-acid methyl
ester) fuel is a renewable fuel
produced from vegetable oils or
animal fats that have been
chemically modified to make it
compatible with diesel fuel.
Caution
Do not use home-made biodiesel
or home test kits because the
quality cannot be verified by
approved scientific methods. Do
not use raw vegetable oil or other
unmodified bio-oils, fats,
or blends of vegetable oil with
diesel. They could damage the
fuel system and engine, and
damages would not be covered
by the vehicle warranty.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Driving and Operating 229
Caution
Do not use blends containing
more than 20% biodiesel. Any
engine, fuel system, or exhaust
after-treatment system damage
would not be covered by the
vehicle warranty.
As a renewable fuel, biodiesel
provides some environmental
benefits. However, biodiesel has
unique properties and needs to be
handled differently than diesel fuel.
Its use presents additional risks and
may not be appropriate in all
situations. Certain vehicle operating
modes increase these risks and
should be avoided. Read further to
determine if your driving habits are
compatible with the use of biodiesel.
Biodiesel fuel quality degrades with
time and exposure to high
temperature quicker than Ultra Low
Sulfur Diesel fuel. More frequent
refueling provides the best
opportunity to have a supply of fresh fuel. Storage at hot ambient
temperatures will accelerate
biodiesel degradation.
Owners who use very little fuel,
or who have vehicles or fuel stored
for extended periods of time, should
avoid the use of biodiesel blended
fuels above 5% by volume. When
vehicles are stored for longer than
one month, they should be run out
of biodiesel to below one-quarter
tank, refueled with Ultra Low Sulfur
Diesel fuel, and driven several miles
before storage.
At temperatures below 0 °C (32 °F),
it is recommended to switch to Ultra
Low Sulfur Diesel fuel with no
biodiesel content, or to blends with
biodiesel containing less than 5% by
volume. At these extreme cold
temperatures, biodiesel blends
higher than 5% by volume may
cause fuel filter plugging and
system gelling, which can lead to
vehicle operability problems.
Fuels improperly blended for cold
temperature operation may result in
restricted fuel filters and degraded
vehicle performance. The vehicle is
equipped with a fuel heating system
to provide a level of protection
against filter plugging from gelling or
waxing of conventional diesel fuel
and biodiesel blends. If the
operating temperature is far below
the temperature at which gelling or
waxing of the fuel occurs, the
system will not prevent all cases of
filter plugging.
If the vehicle experiences a fuel
filter restriction, the on-board
monitoring system will alert the
driver that the fuel filter requires
service. The fuel filter, however, will
not prevent all damage caused by
poor quality biodiesel.
Biodiesel Blends
Use biodiesel blends that meet the
ASTM specification D6751.
Retail pumps dispensing blends
containing up to 5% biodiesel (B5)
are not required to be labeled with
the concentration of biodiesel.
