Lighting 81
Headlamp High/
Low-Beam Changer
With the headlights on, move the
lever forward and backward to
switch between the high beam and
low beam.
Moving the lever forward selects
high beam; moving the lever
backward selects low beam.While the headlights are on high
beam, the headlights high beam
indicator light on the instrument
panel remains on.
This indicator light comes on when
high beam is selected or the
headlights are cycled between high
and low beams.
Use low beam whenever there are
vehicles ahead in the same lane or
oncoming vehicles in the
opposite lane.
See
Bulb Replacement 0267.
Flash-to-Pass
By lightly pulling the light control
switch lever and releasing it, the
high beam comes on and off. At the
same time, the headlights high
beam indicator light on the
instrument panel comes on and off.
Use this function as a signal for
flash-to-pass a vehicle or other
purposes.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
Lighting 83
lever is held up or down. The lever
moves back to neutral as soon as it
is released.
A green light on the instrument
panel is designed to flash to tell you
that the front and rear turn signal
lights are working. If the light stays
on, but does not flash, check for a
burned-out turn signal bulb. If the
green light does not come on when
you move the lever, check the fuse
and indicator bulb.
Either of these indicator lights
flashes when the turn signal switch
is operated with the engine control
switch in the ON position.
Cornering Lamps
The cornering light illuminates the
area to which the vehicle is turning.
With the headlights or marker lights
on, the cornering lights come on in
coordination with the turn signal
lights.
SeeExterior Lamp Controls 080
and
Bulb Replacement 0267.
Interior Lighting
Instrument Panel
Illumination Control
The control will change the light
level of the instrument panel.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
Vehicle Care 267
2. Continue pushing in the wiperrubber insert until the wiper
blade's hook engages with the
hole in it, and then confirm that
the rubber insert is securely
held in place.
3. Attach the wiper blade to the wiper arm.Headlamp Aiming
For vertical aiming, turn the two
screws indicated by arrows in the
diagram.
1. Remove the rubber beneath the headlight.
2. Two screws should be turned in the same direction at the
same time to adjust aiming.
3. When the headlamp aiming is out of position, contact your
dealer.
Bulb Replacement
Caution
Do not replace incandescent
bulbs with aftermarket LED
replacement bulbs. This can
cause damage to the vehicle
electrical system.
Bulbs
1. Check each bulb for blowout.
2. If a bulb has blown out, replaceit. Always place the engine
control switch in the “LOCK”
position and place all the other
switches in the “OFF”position
before replacing the blown
bulbs.
3. If you need assistance replacing any bulbs, contact
your dealer.
Turn Signals
The flasher unit activates both the
turn signal circuits and the hazard
circuit. Should a lamp burn out, the

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
Vehicle Care 269

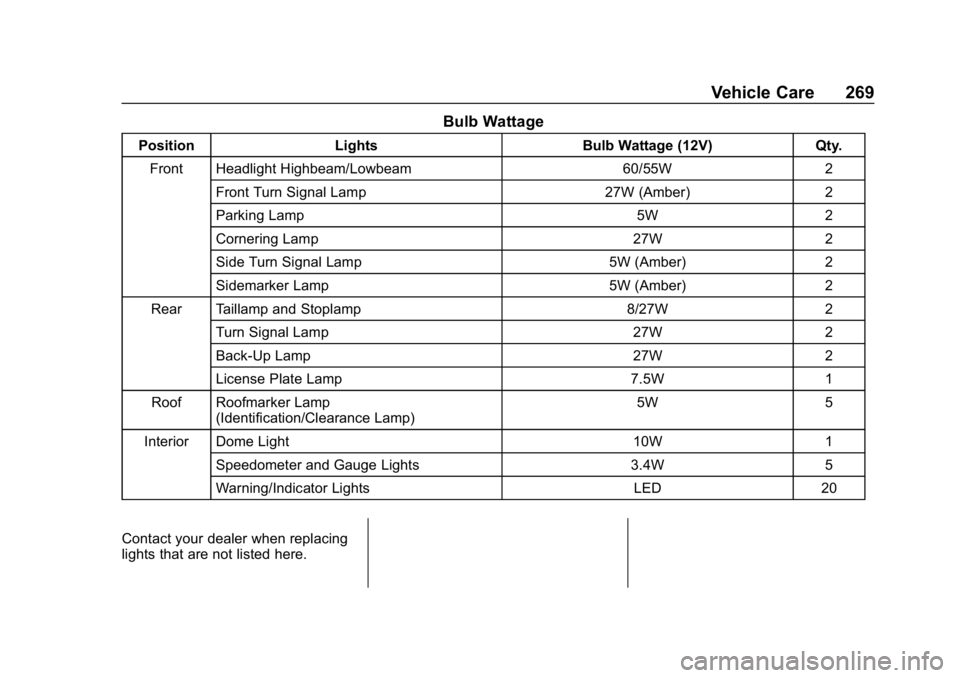

Bulb Wattage
PositionLights Bulb Wattage (12V)Qty.
Front Headlight Highbeam/Lowbeam 60/55W2
Front Turn Signal Lamp 27W (Amber)2
Parking Lamp 5W2
Cornering Lamp 27W2
Side Turn Signal Lamp 5W (Amber)2
Sidemarker Lamp 5W (Amber)2
Rear Taillamp and Stoplamp 8/27W2
Turn Signal Lamp 27W2
Back-Up Lamp 27W2
License Plate Lamp 7.5W1
Roof Roofmarker Lamp (Identification/Clearance Lamp) 5W
5
Interior Dome Light 10W1
Speedometer and Gauge Lights 3.4W5
Warning/Indicator Lights LED20
Contact your dealer when replacing
lights that are not listed here.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
Vehicle Care 273
3. To install the lamps, performthe same sequence of
operations in reverse, taking
care to turn the connector
clockwise to lock it securely.
If the socket is not locked securely,
water could get inside the lamp and
lead to a breakdown.
Replacing a Front Turn
Signal Lamp
Do not replace a bulb with other
than the specified wattage. This will
cause abnormal flashing,
particularly for turn signal lamps.
When replacing a bulb, make sure
the light switch is OFF.
1. While referring to “Replacing
the Headlights”, tilt the turn
signal lamp assembly down
toward the front of the vehicle
and remove it.
2. Disconnect the connector for the turn signal light and then
remove the socket.
