CHEVROLET MALIBU 1997 5.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine 3. Some models are equipped with aluminum wneels.
Remove the cover plate
to find the wheel nuts.
Carefully use the wedge end
of the wheel wrench to
pry it
off.
4. Then use the wheel wrench to loosen all the wheel
nuts. Don’t remove them yet.
5-24

Downloaded from www.Manualslib.com manuals search engine -

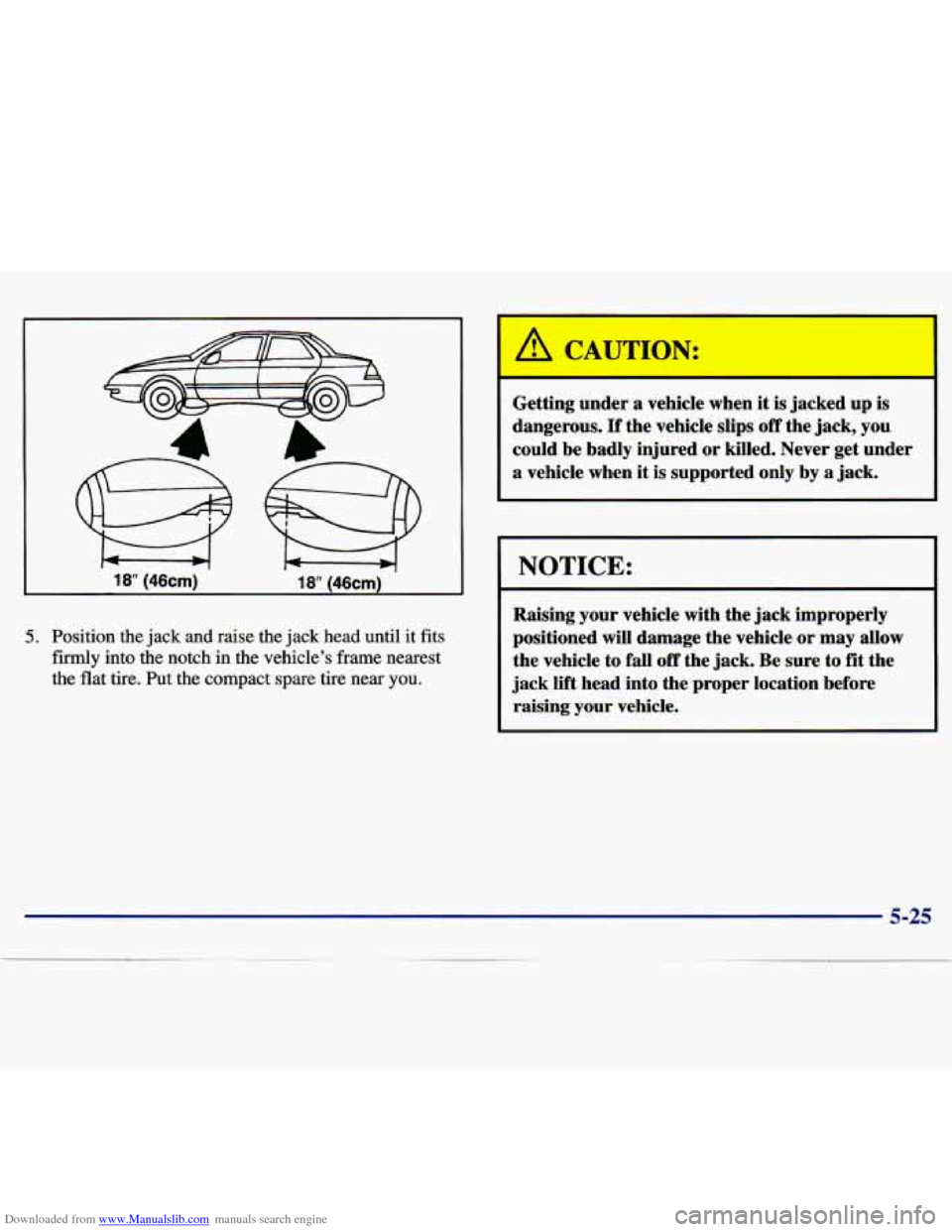

18 (46cm)
w
18 146cm)
5. Position the jack and raise the jack head until it fits
firmly into the notch in the vehicle’s frame nearest
the flat tire.
Put the compact spare tire near you.
A CAUTION:
Getting under a vehicle when it is jacked up is
dangerous.
If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
NOTICE:
Raising your vehicle with the jack improperly
positioned will damage the vehicle or may allow
the vehicle to fall
off the jack. Be sure to fit the
jack lift head into the proper location before
raising your vehicle.

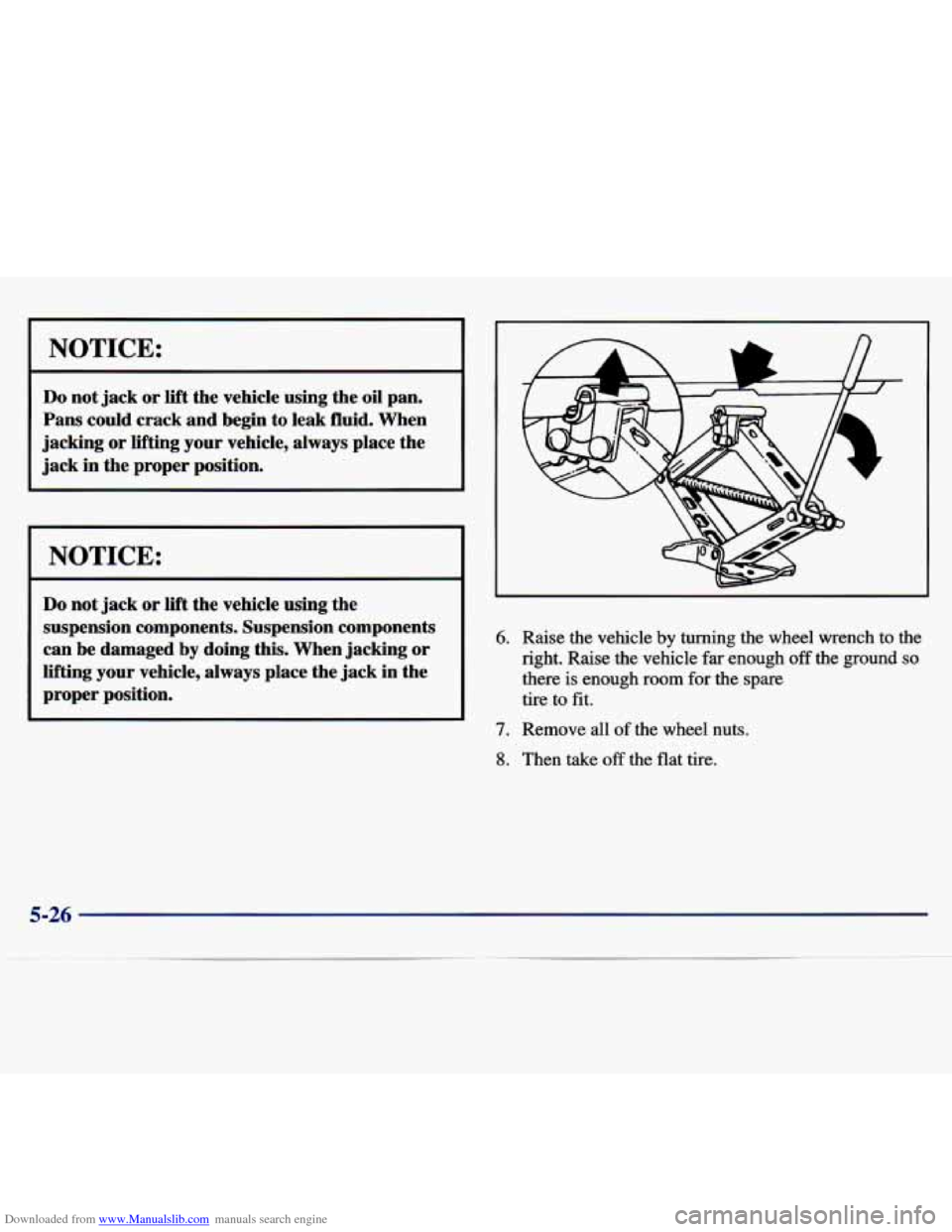

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Do not jack or lift the vehicle using the oil pan.
Pans could crack and begin to leak fluid. When
jacking
or lifting your vehicle, always place the
jack in the proper position.
NOTICE:
Do not jack or lift the vehicle using the
suspension components. Suspension components
can be damaged
by doing this. When jacking or
lifting your vehicle, always place the jack in the
proper position.
L
6. Raise the vehicle by turning the wheel wrench to the
right. Raise the vehicle
far enough off the ground so
there is enough room for the spare
tire to fit.
7. Remove all of the wheel nuts.
8. Then take off the flat tire.
5-26

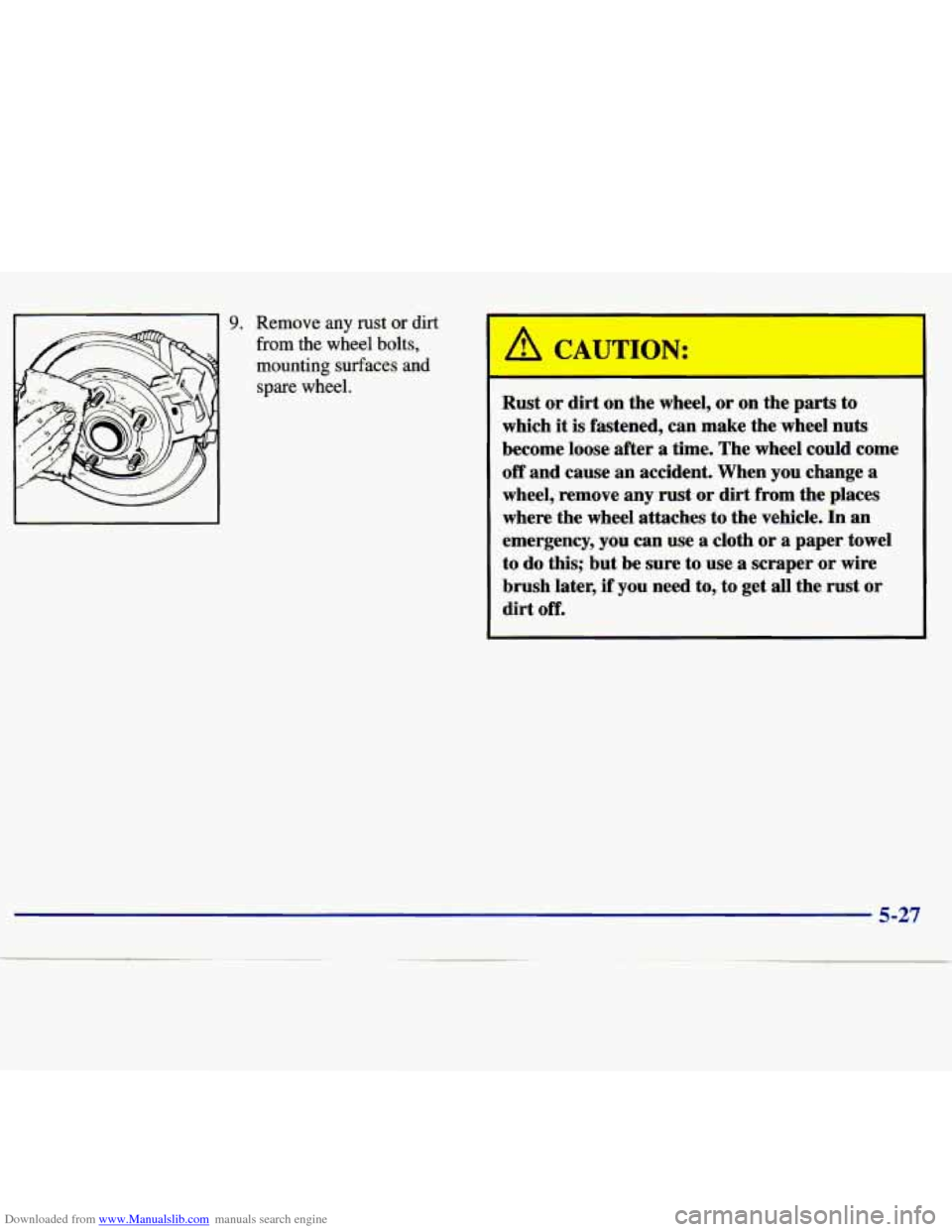

Downloaded from www.Manualslib.com manuals search engine 9. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
/! CAUTION:
Rust or dirt on the wheel, or on the parts to
which
it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or
a paper towel
to do this; but be sure to use a scraper
or wire
brush later, if you need to, to get all the rust or
dirt
off.
5-27

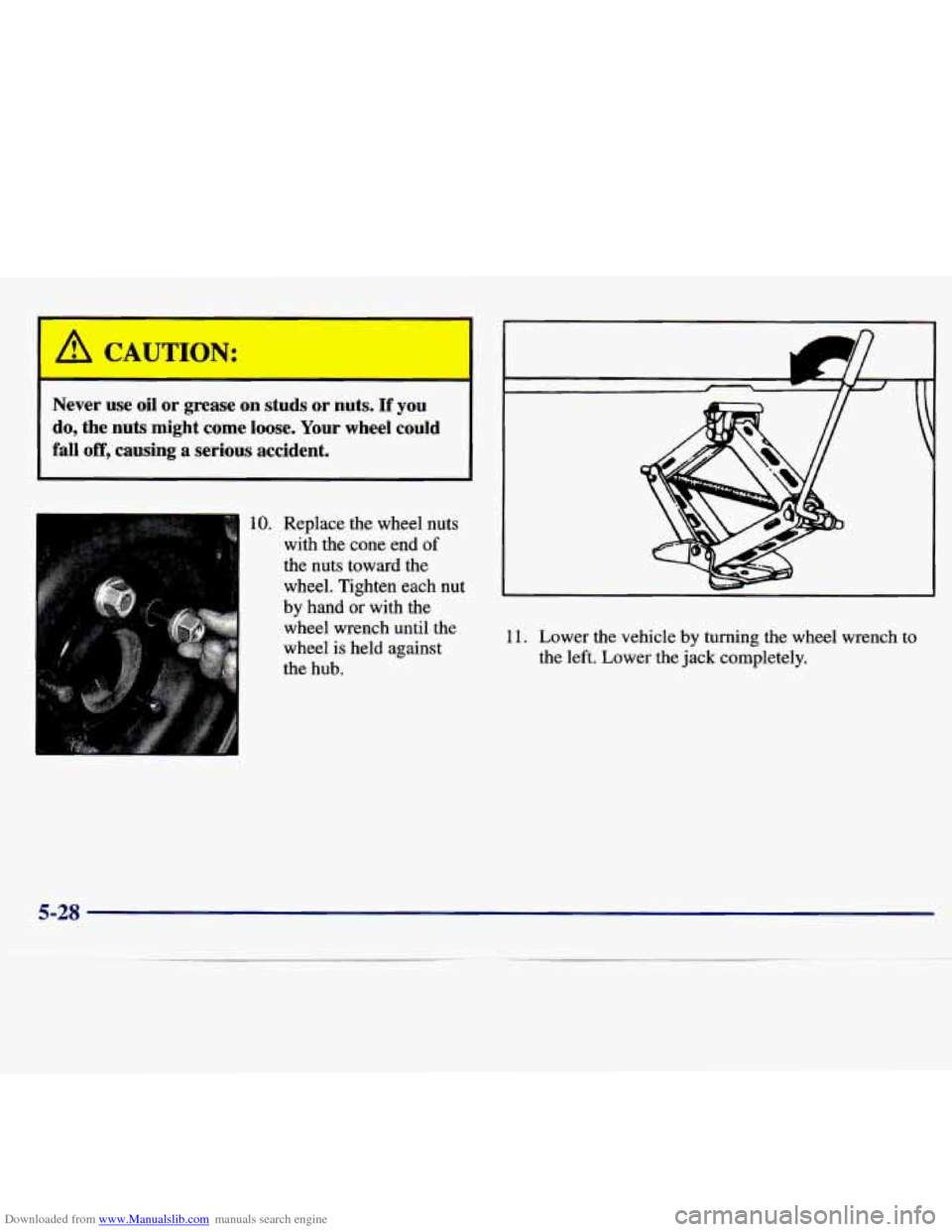

Downloaded from www.Manualslib.com manuals search engine I A CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
,, "
10. Replace the wheel nuts with the cone end
of
the nuts toward the
wheel. Tighten each nut
by hand or with the
wheel wrench until the
wheel is held against
the hub.
II
c
11. Lower the vehicle by turning the wheel wrench to
the left. Lower the jack completely.
5-28

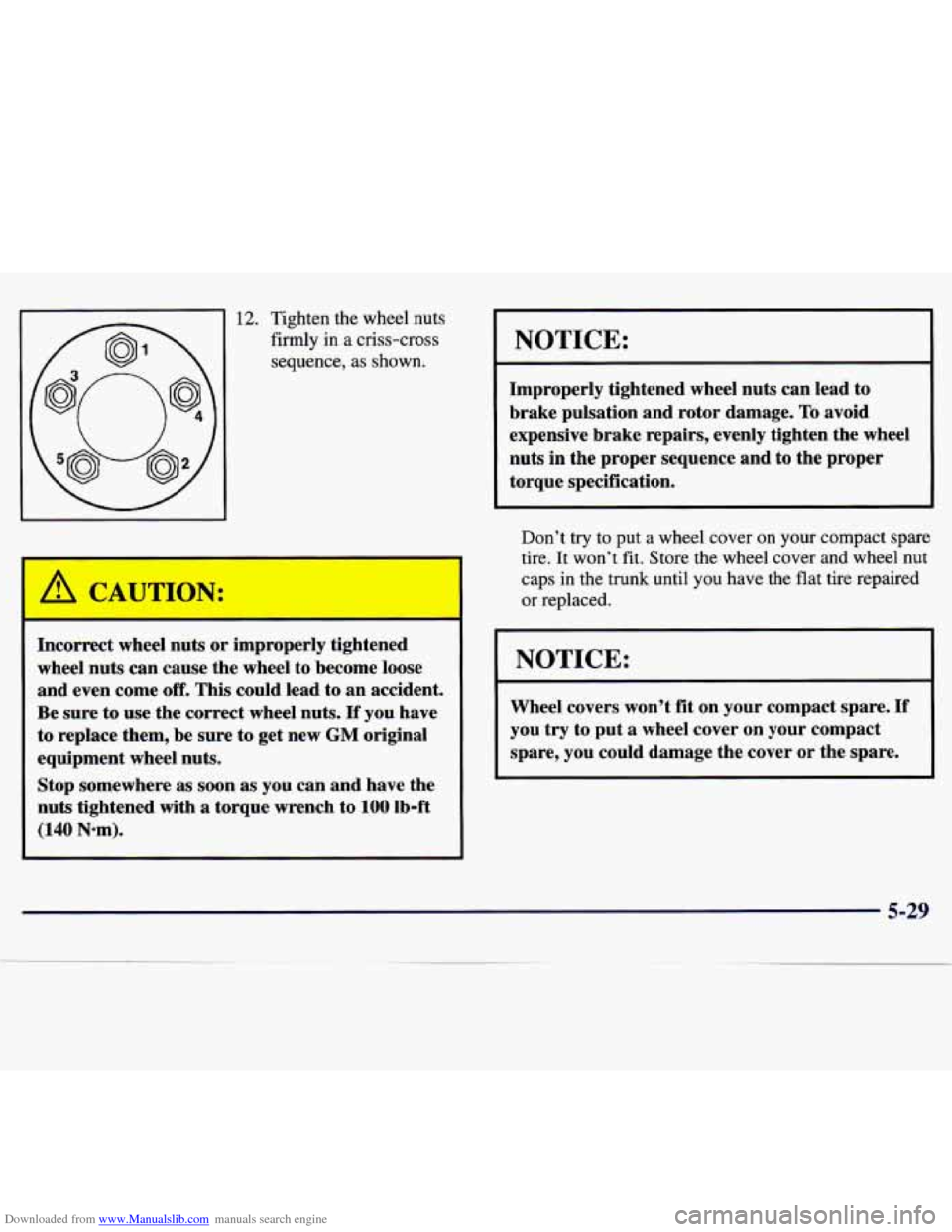

Downloaded from www.Manualslib.com manuals search engine 12. Tighten the wheel nuts
firmly in a criss-cross
sequence, as shown.
A C’ uTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure
to use the correct wheel nuts, If you have
to replace them, be sure to get new
GM original
equipment wheel nuts.
Stop somewhere as soon as you can and have the
nuts tightened with
a torque wrench to 100 lb-ft
(140 Nom).
NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage.
To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification,
Don’t try to put a wheel cover on your compact spare
tire. It won’t fit. Store the wheel cover and wheel nut
caps in the trunk until you have the flat tire repaired
or replaced.
NOTICE:
Wheel covers won’t fit on your compact spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.
5-29

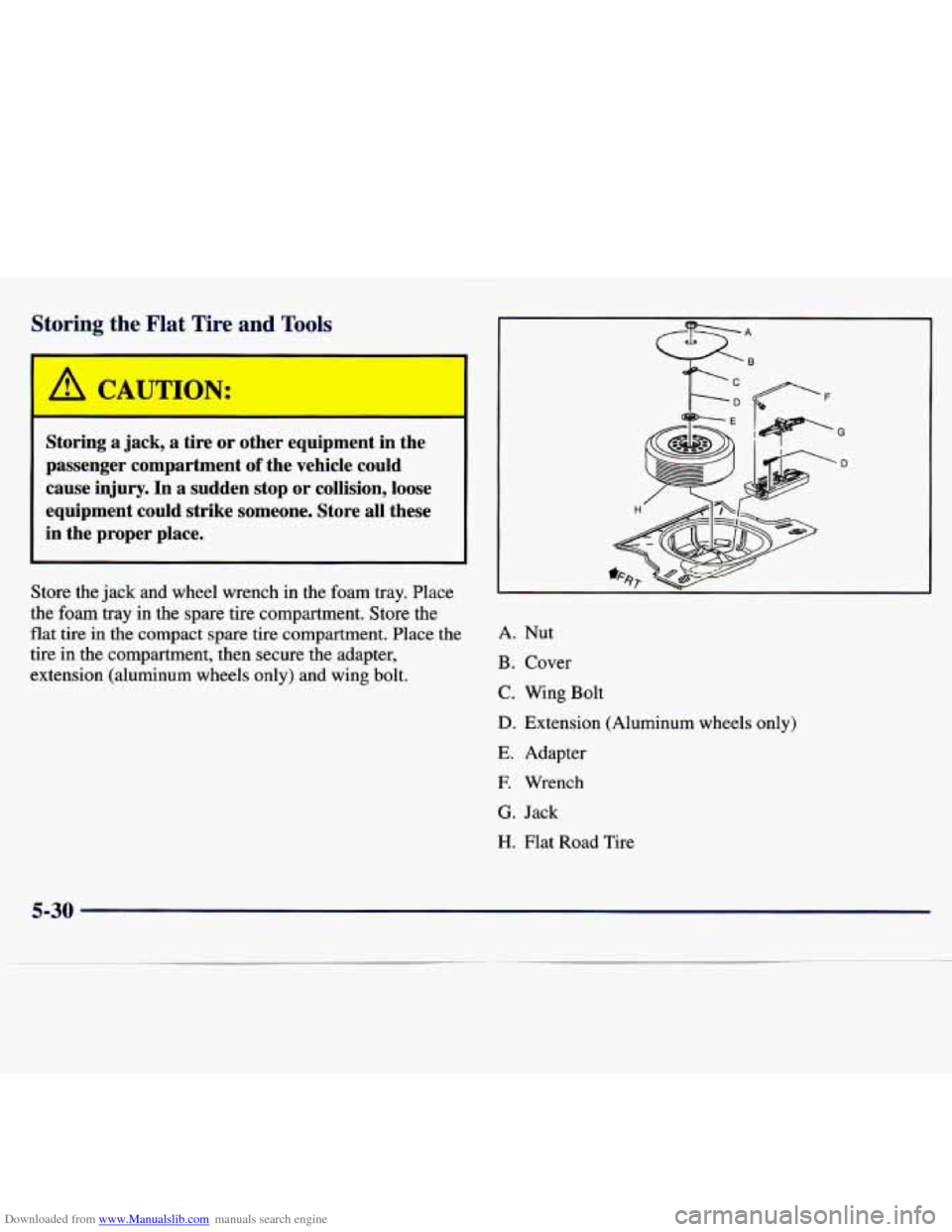

Downloaded from www.Manualslib.com manuals search engine Storing t' : F ' -ire and
I A -AUTION: I
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
Store the jack and wheel wrench in the foam tray. Place
the
foam tray in the spare tire compartment. Store the
flat tire
in the compact spare tire compartment. Place the
tire in the compartment, then secure the adapter,
extension (aluminum wheels only) and wing bolt.
A. Nut
B. Cover
C. Wing Bolt
D. Extension (Aluminum wheels only)
E. Adapter
E Wrench
G. Jack
H. Flat Road Tire
5-30

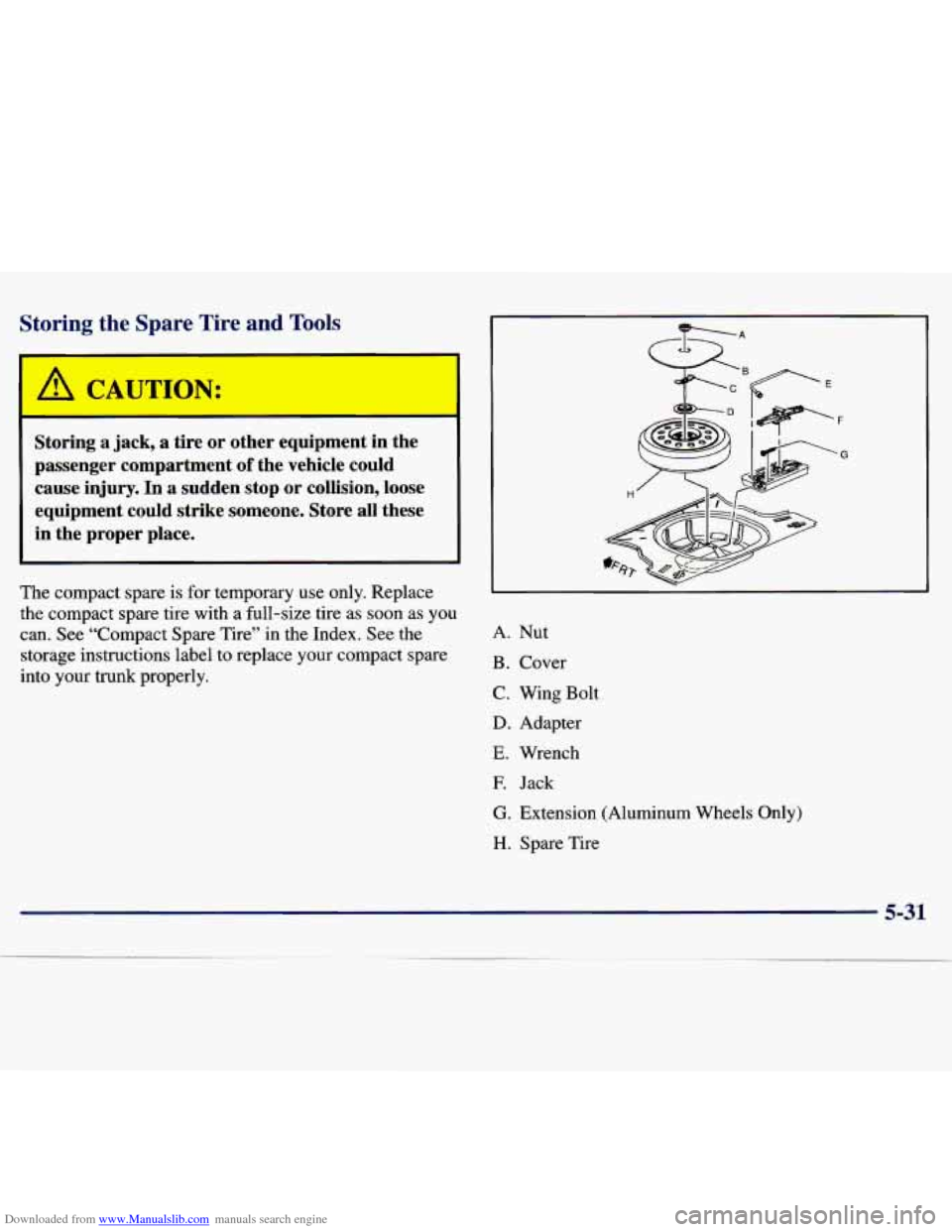

Downloaded from www.Manualslib.com manuals search engine Storing the Spare Tire and Tools
equipment in the
passenger compartment
of the vehicle could
cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these
in the proper place.
__
The compact spare is for temporary use only. Replace
the compact spare tire with a full-size tire as soon as you
can. See “Compact Spare Tire” in the Index. See the
storage instructions label to replace your compact spare
into your trunk properly.
F
G
A. Nut
B. Cover
C. Wing Bolt
D. Adapter
E. Wrench
E Jack
G. Extension (Aluminum Wheels Only)
H. Spare Tire
5-31

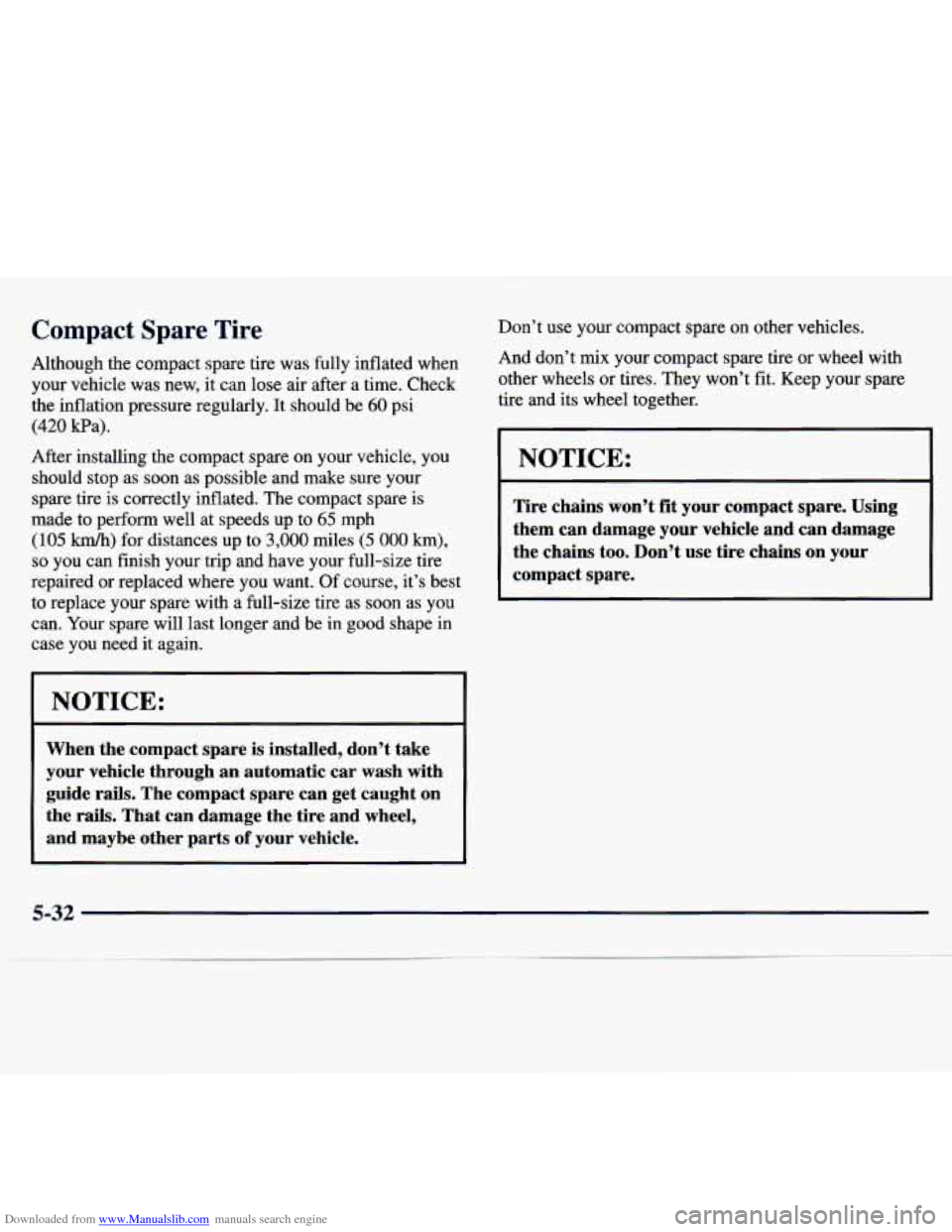

Downloaded from www.Manualslib.com manuals search engine Compact Spare Tire
Although the compact spare tire was fully inflated when
your vehicle was new, it can lose air after a time. Check
the inflation pressure regularly. It should be
60 psi
(420 Wa).
After installing the compact spare on your vehicle, you
should stop as soon as possible and make sure your
spare tire
is correctly inflated. The compact spare is
made to perform well at speeds up to
65 mph
(105 km/h) for distances up to 3,000 miles (5 000 km),
so you can finish your trip and have your full-size tire
repaired or replaced where you want. Of course, it’s best
to replace your spare with a full-size tire as soon as you
can. Your spare will last longer and be in good shape in
case you need it again.
NOTICE:
When the compact spare is installed, don’t take
your vehicle through an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage the tire and wheel,
and maybe other parts
of your vehicle. Don’t use your compact spare on other vehicles.
And don’t
mix your compact spare tire or wheel with
other wheels or tires. They won’t fit. Keep your spare
tire and its wheel together.
I NOTICE:
Tire chains won’t fit your compact spare. Using
them can damage your vehicle
and can damage
the chains too. Don’t use tire chains on your
compact spare.
5-32

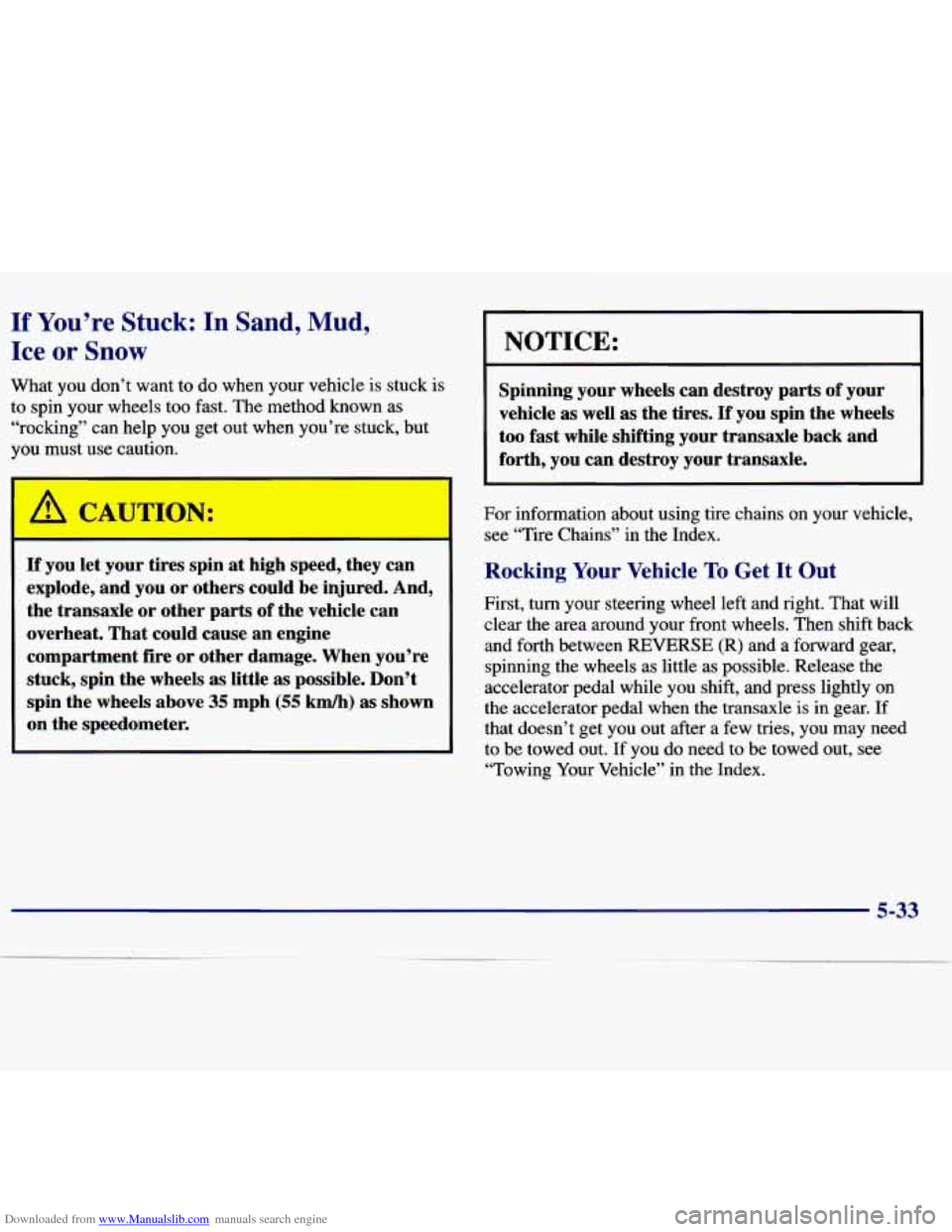

Downloaded from www.Manualslib.com manuals search engine If You’re Stuck: In Sand, Mud,
Ice OF Snow
What you don’t want to do when your vehicle is stuck is
to spin your wheels too fast. The method known as
“rocking” can help you get out when you’re stuck, but
you must use caution.
If you let your tires spin at high speed, they can
explode, and you or others could be injured. And,
the transaxle or other parts of the vehicle can
overheat. That could cause an engine
compartment fire or other damage. When you’re
stuck, spin the wheels as little as possible. Don’t
spin the wheels above
35 mph (55 km/h) as shown
on the speedometer.
I NOTICE:
Spinning your wheels can destroy parts of your
vehicle as well as the tires.
If you spin the wheels
too fast while shifting your transaxle back and
forth, you can destroy your transaxle.
For information about using tire chains on your vehicle,
see “Tire Chains” in the Index.
Rocking Your Vehicle To Get It Out
First, turn your steering wheel left and right. That will
clear the area around your front wheels. Then shift back
and forth between
REVERSE (R) and a forward gear,
spinning the wheels as little as possible. Release the
accelerator pedal while you shift, and press lightly on
the accelerator pedal when the transaxle is in gear.
If
that doesn’t get you out after a few tries, you may need
to be towed out. If you do need
to be towed out, see
“Towing Your Vehicle”
in the Index.
5-33
