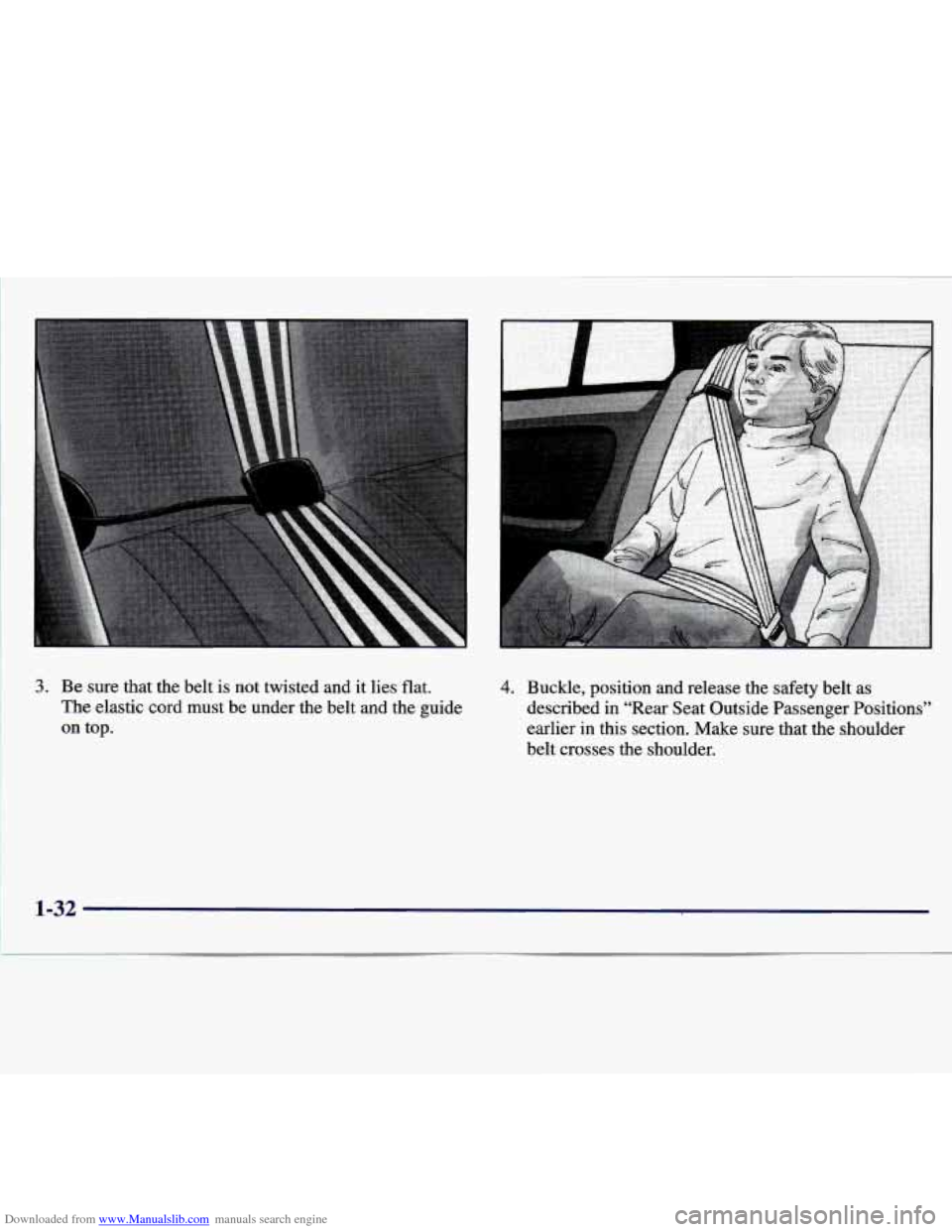

3. Be sure that the belt is not twisted and it lies flat.
The elastic cord must be under the belt and the guide
on top. 4. Buckle, position and release the safety belt as
described in “Rear Seat Outside Passenger Positions”
earlier in this section. Make sure that the shoulder
belt crosses the shoulder.
1-32
Page 42 of 354
Downloaded from www.Manualslib.com manuals search engine To remove and store the comfort guides, squeeze the
belt edges together
so that you can take them out from
the guides. Pull the guide upward to expose its storage
clip, and then slide the guide onto the clip. Rotate the
guide and clip inward and in between the seatback and
the interior body, leaving only the loop of elastic
cord exposed.
Center Passenger Position
Lap Belt

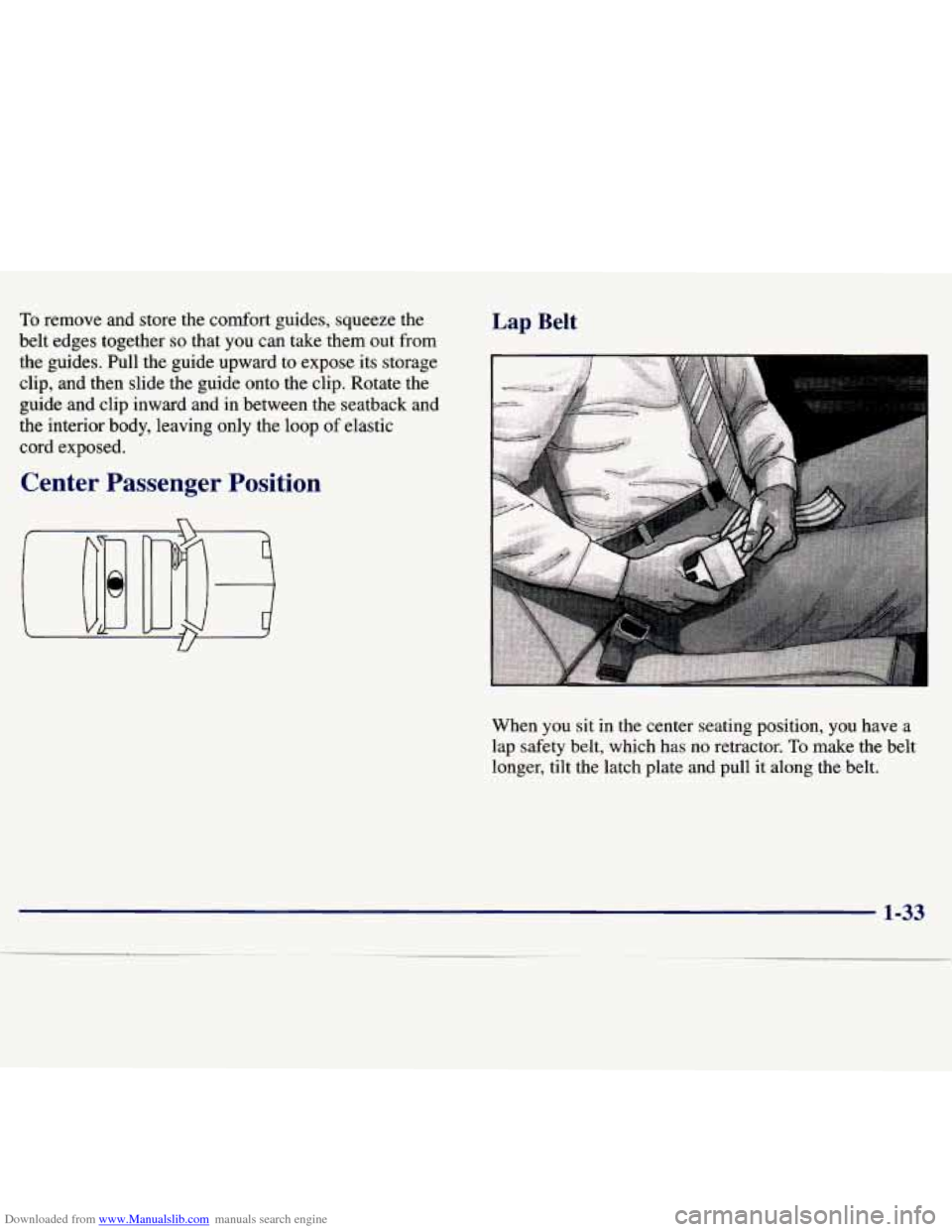

When you sit in the center seating position, you have a
lap safety belt, which has no retractor.
To make the belt
longer,
tilt the latch plate and pull it along the belt.
1-33
Page 43 of 354

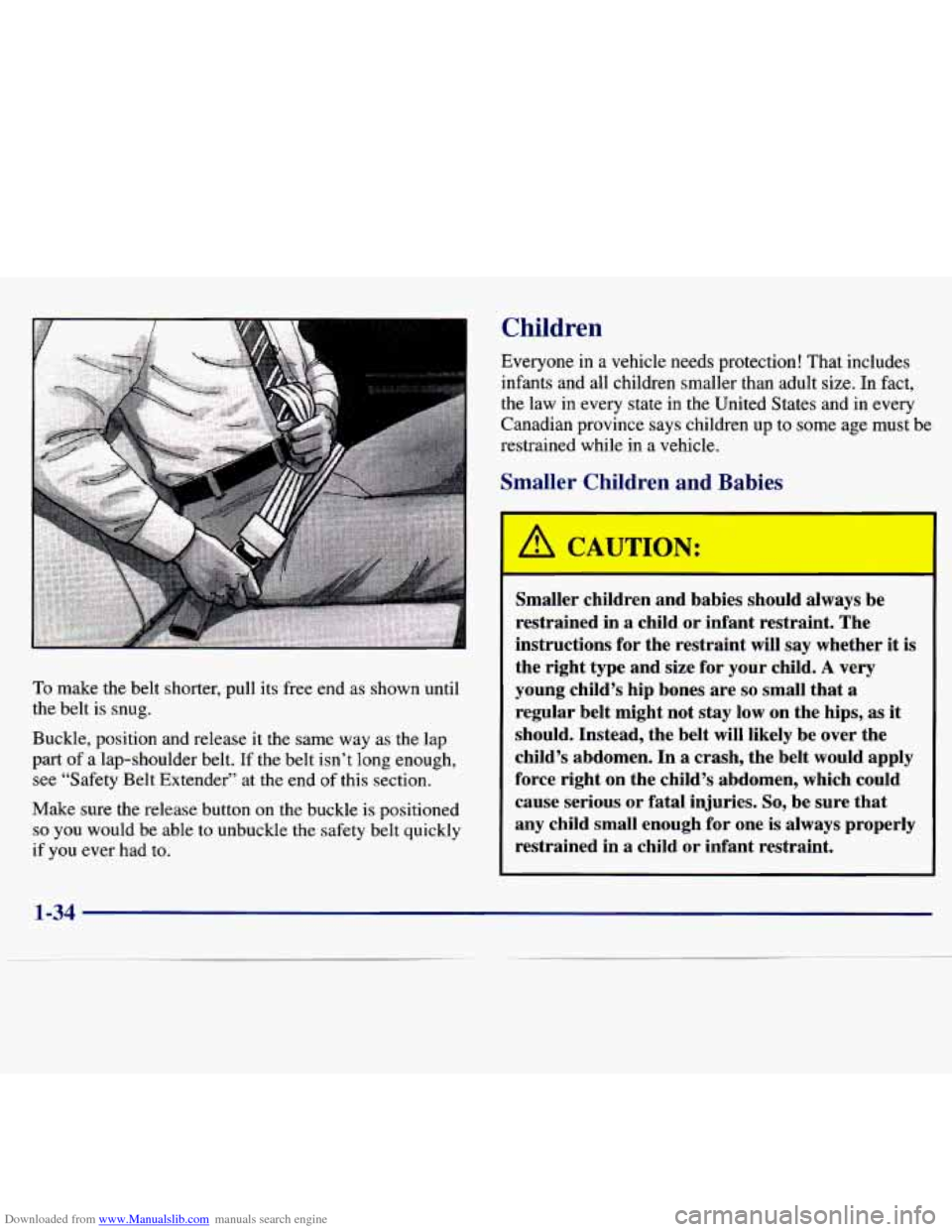

Downloaded from www.Manualslib.com manuals search engine To make the belt shorter, pull its free end as shown until
the belt
is snug.
Buckle, position and release it the
‘SMe way as the lap
part
of a lap-shoulder belt. If the belt isn’t long enough,
see “Safety Belt Extender” at the end of this section.
Make sure the release button on the buckle
is positioned
so you would be able to unbuckle the safety belt quickly
if you ever had to.
Children
Everyone in a vehicle needs protection! That includes
infants and all children smaller than adult size. In fact,
the law in every state in the United States and
in every
Canadian province says children up to some age must be
restrained while in a vehicle.
Smaller Childran snd Pa.bies
I
A CAUTION:
Smaller children and babies should always be
restrained in
a child or infant restraint. The
instructions for the restraint will
say whether it is
the right type and size for your child.
A very
young child’s hip bones are so small that a
regular belt might not stay low on the hips,
as it
should. Instead, the belt will likely be over the
child’s abdomen. In a crash, the belt would apply
force right on the child’s abdomen, which could
cause serious or fatal injuries.
So, be sure that
any child small enough for one
is always properly
restrained in a child or infant restraint.
1-34
Page 44 of 354
Downloaded from www.Manualslib.com manuals search engine /11 CAUTION:
Never hold a baby in your arms while riding in a
vehicle. A baby doesn't weigh much -- until a
crash. During
a crash a baby will become so
heavy you can't hold it. For example, in a crash
CAUTION: (Continued)
CAr'"'3N: (Continued)
at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby
will suddenly become a 240-1b.
(110 kg) force on
your arms. The baby would be almost impossible
to hold.
Secure the baby in an infant restraint.
1
1-35
Page 45 of 354
Downloaded from www.Manualslib.com manuals search engine Child Restraints r
Be sure the child restraint is designed to be used in a
vehicle.
If it is, it will have a label saying that it meets
Federal Motor Vehicle Safety Standards.
Then follow the instructions for the restraint.
You may
find these instructions
on the restraint itself or in a
booklet,
or both. These restraints use the belt system in
your vehicle, but the child also has to be secured within
the restraint to help reduce the chance of personal injury.
The instructions that come with the infant or child
restraint will show you how to do that.
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat. We at
General Motors therefore recommend that you put your
child restraint in the rear seat.
Never put a rear-facing
child restraint in the front passenger seat. Here’s why:
A child in a rear-facing child restraint can be
seriously injured if the right front passenger’s air
bag inflates. This is because the back of a
rearfacing child restraint would be very close to
the inflating air bag. Always secure a rear-facing
child restraint in the rear seat.
You may, however, secure a forward-facing child
restraint in the right front seat. Before you secure
a forward-facing child restraint, always move the
front passenger seat as far back as
it will go. Or,
secure the child restraint in the rear seat.
Wherever you install it, be sure to secure the child
restraint properly.
Keep in mind that an unsecured child restraint
can move
around in a collision or sudden stop and injure people in
the vehicle. Be sure to properly secure
any child
restraint in your vehicle
-- even when no child is in it.
1-36
Page 46 of 354
Downloaded from www.Manualslib.com manuals search engine Top Strap
6
E

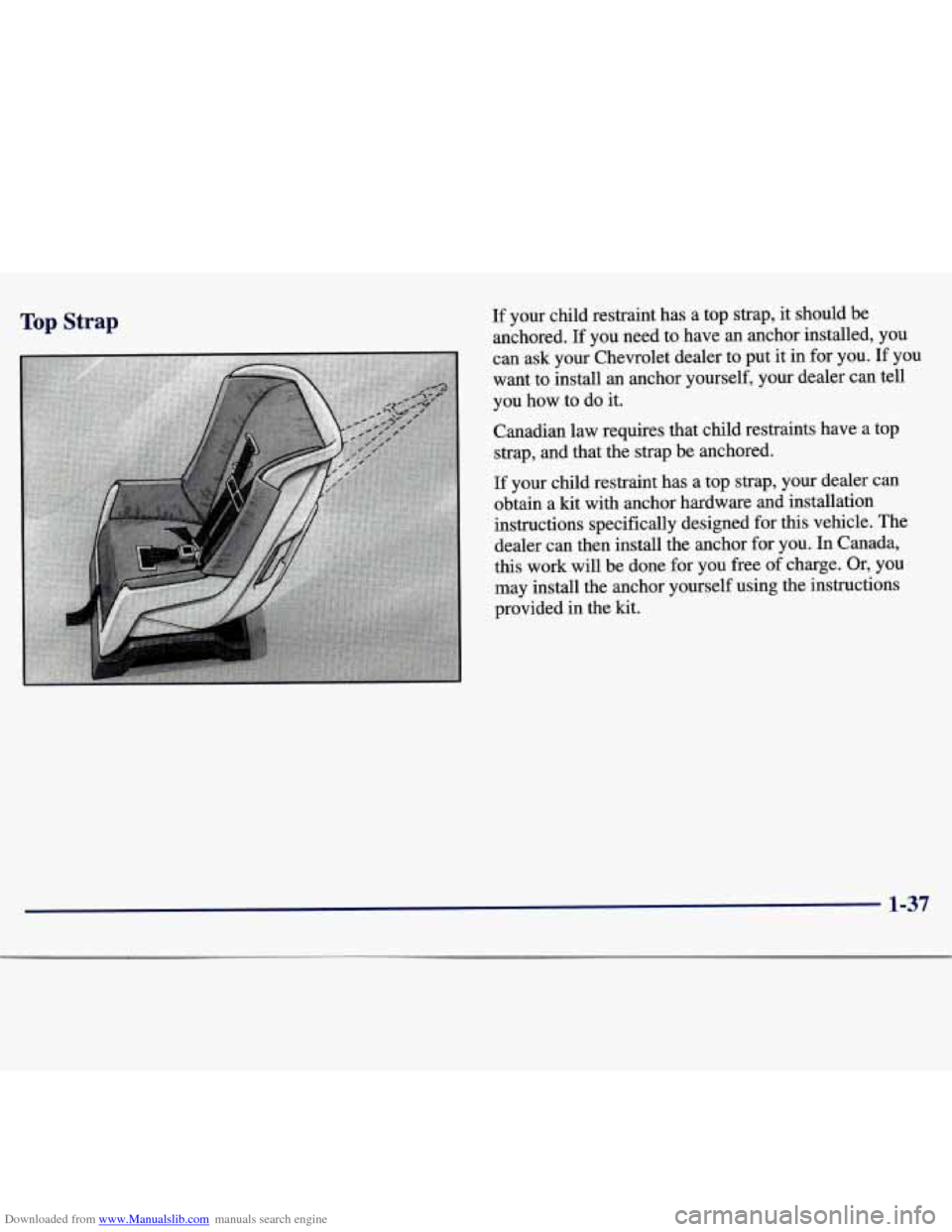

If your child restraint has a top strap, it should be
anchored.
If you need to have an anchor installed, you
can ask your Chevrolet dealer to put it in for you.
If you
want to install an anchor yourself, your dealer can tell
you how to do it.
Canadian law requires that child restraints have a top strap, and that the strap be anchored.
If your child restraint has a top strap, your dealer can
obtain a kit with anchor hardware and installation
instructions specifically designed for this vehicle. The
dealer can then install the anchor for you. In Canada,
this work will be done for you free of charge.
Or, you
may install the anchor yourself using the instructions
provided in the kit.
1-37
Page 47 of 354
Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in a Rear Outside Seat Position
l You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
2. Secure the child in the child restraint as the
instructions say.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how. Tilt the latch plate to adjust the belt
if needed. If the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint.
1-38
Page 48 of 354
Downloaded from www.Manualslib.com manuals search engine 4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if vou ever had to.
5. To tighten the belt, pull up on the shoulder belt while
6. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it
go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger. you push down on the child restraint.
directions to be sure it is secure.
1-39
Page 49 of 354
Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in the Center
Rear Seat Position
U
You’ll be using the lap belt.
See the earlier part about the top strap if the child
restraint has one.
1.
2.
3.
4.
Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
Put the restraint on the seat.
Follow the instructions
for the child restraint.
Secure the child in the child restraint as the
instructions say.
Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.
1-40
Page 50 of 354
Downloaded from www.Manualslib.com manuals search engine 5. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
6. To tighten the belt, pull its free end while you push
down on the child restraint.
7. Push and pull the child restraint in different
directions to be sure it is secure.
If it isn’t, secure the
restraint
in a different place in the vehicle and
contact the child restraint maker for their advice
about how to attach the child restraint properly.
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It
will be ready to work for an adult or larger
child passenger.
