As you signal a turn or a lane change, if the arrows flash
rapidly, a signal bulb may be burned out and other
drivers won't see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check for burned
-out bulbs and then check
the fuse. See ªFuses and Circuit Breakersº in the Index.
Headlamps
The headlamp control is on the turn
signal/multifunction lever.
Turn the headlamp control to this symbol to turn
on the following:

Parking Lamps

Sidemarker Lamps

Taillamps

License Plate Lamps

Instrument Panel Lights
Turn the headlamp control to this symbol to turn on
the following:

Headlamps

Parking Lamps

Sidemarker Lamps

Taillamps

License Plate Lamps

Instrument Panel Lights
Turning the headlamp control to AUTO will provide for
automatic operation of the headlamps, taillamps and
parking lamps. For more information see ªAutomatic
Light Controlº later in this section.

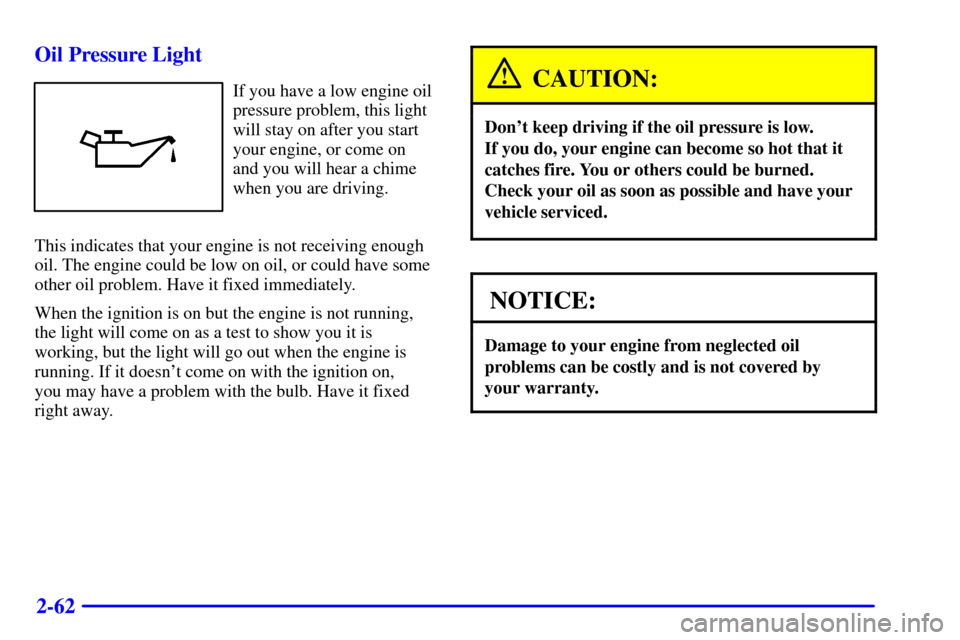

2-62 Oil Pressure Light
If you have a low engine oil
pressure problem, this light
will stay on after you start
your engine, or come on
and you will hear a chime
when you are driving.
This indicates that your engine is not receiving enough
oil. The engine could be low on oil, or could have some
other oil problem. Have it fixed immediately.
When the ignition is on but the engine is not running,
the light will come on as a test to show you it is
working, but the light will go out when the engine is
running. If it doesn't come on with the ignition on,
you may have a problem with the bulb. Have it fixed
right away.CAUTION:
Don't keep driving if the oil pressure is low.
If you do, your engine can become so hot that it
catches fire. You or others could be burned.
Check your oil as soon as possible and have your
vehicle serviced.
NOTICE:
Damage to your engine from neglected oil
problems can be costly and is not covered by
your warranty.

4-37 Making Turns
NOTICE:
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you're turning with a trailer, make wider turns
than normal. Do this so your trailer won't strike
soft shoulders, curbs, road signs, trees or other
objects. Avoid jerky or sudden maneuvers. Signal well
in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need
additional wiring. Check with your dealer. The arrows
on your instrument panel will flash whenever you signal
a turn or lane change. Properly hooked up, the trailer
lamps will also flash, telling other drivers you're about
to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when they are not. It's important
to check occasionally to be sure the trailer bulbs are
still working.

6-
6-1
Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted to its appearance care.
6
-2 Service
6
-3 Fuel
6
-5 Fuels in Foreign Countries
6
-6 Filling Your Tank
6
-8 Filling a Portable Fuel Container
6
-8 Checking Things Under the Hood
6
-12 Engine Oil
6
-16 Engine Air Cleaner/Filter
6
-18 Automatic Transaxle Fluid
6
-19 Engine Coolant
6
-22 Surge Tank Pressure Cap
6
-22 Power Steering Fluid
6
-23 Windshield Washer Fluid
6
-24 Brakes
6
-29 Battery6
-30 Bulb Replacement
6
-36 Windshield Wiper Blade Replacement
6
-37 Tires
6
-46 Appearance Care
6
-46 Cleaning the Inside of Your Vehicle
6
-48 Care of Safety Belts
6
-49 Cleaning the Outside of Your Vehicle
6
-51 Cleaning Aluminum Wheels (If Equipped)
6
-52 Finish Damage
6
-53 GM Vehicle Care/Appearance Materials
6
-54 Vehicle Identification Number (VIN)
6
-55 Electrical System
6
-61 Replacement Bulbs
6
-62 Capacities and Specifications
6
-63 Normal Maintenance Replacement Parts

6-30
Bulb Replacement
This section describes bulb changing procedures for
some of your interior and exterior lamps. For bulb sizes,
see ªReplacement Bulbsº in the Index. For any bulbs
not listed in this section, contact your dealer's
service department.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.

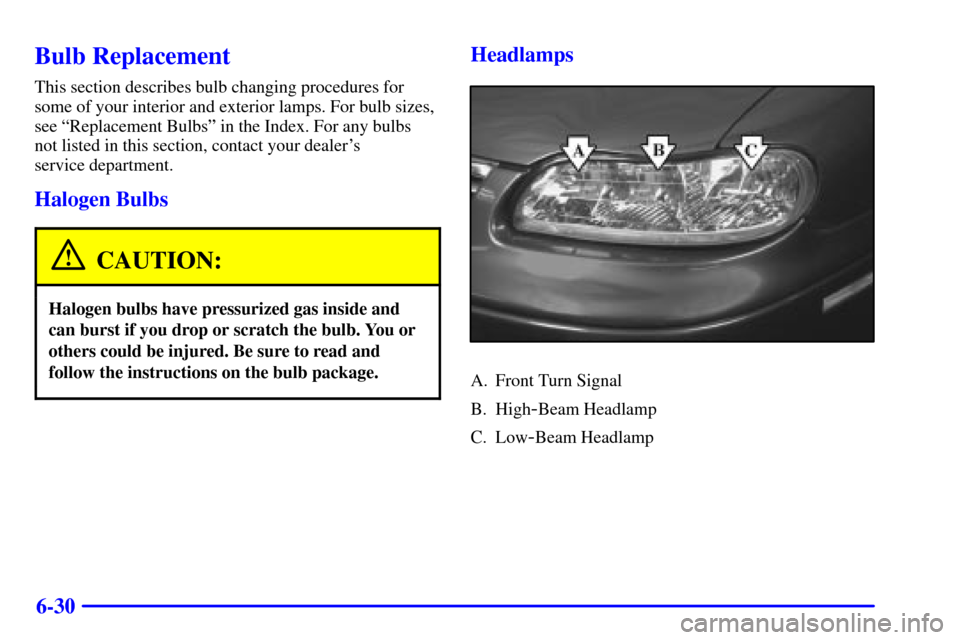

Headlamps
A. Front Turn Signal
B. High
-Beam Headlamp
C. Low
-Beam Headlamp

6-31

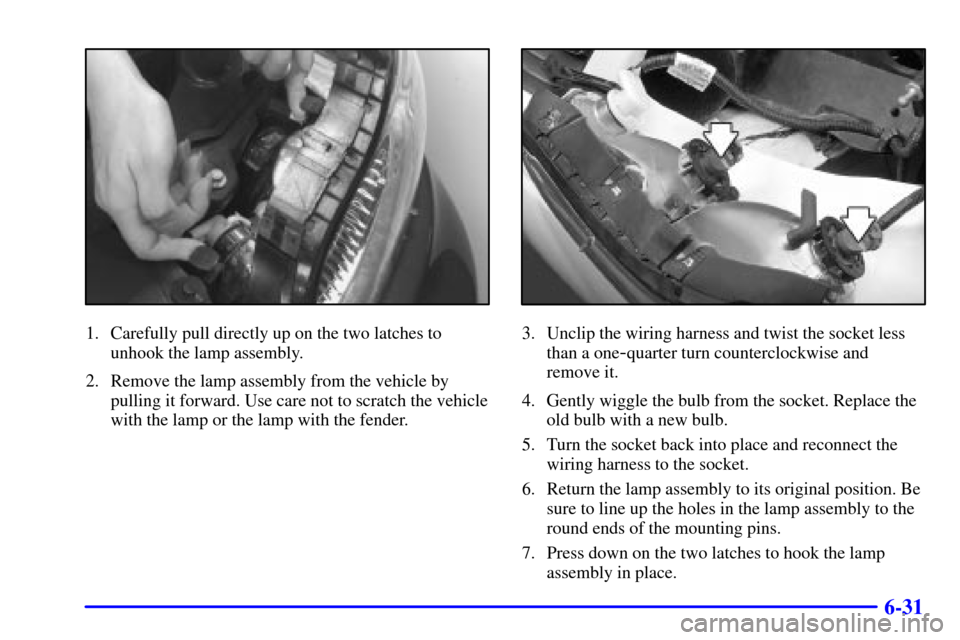

1. Carefully pull directly up on the two latches to
unhook the lamp assembly.
2. Remove the lamp assembly from the vehicle by
pulling it forward. Use care not to scratch the vehicle
with the lamp or the lamp with the fender.3. Unclip the wiring harness and twist the socket less
than a one
-quarter turn counterclockwise and
remove it.
4. Gently wiggle the bulb from the socket. Replace the
old bulb with a new bulb.
5. Turn the socket back into place and reconnect the
wiring harness to the socket.
6. Return the lamp assembly to its original position. Be
sure to line up the holes in the lamp assembly to the
round ends of the mounting pins.
7. Press down on the two latches to hook the lamp
assembly in place.

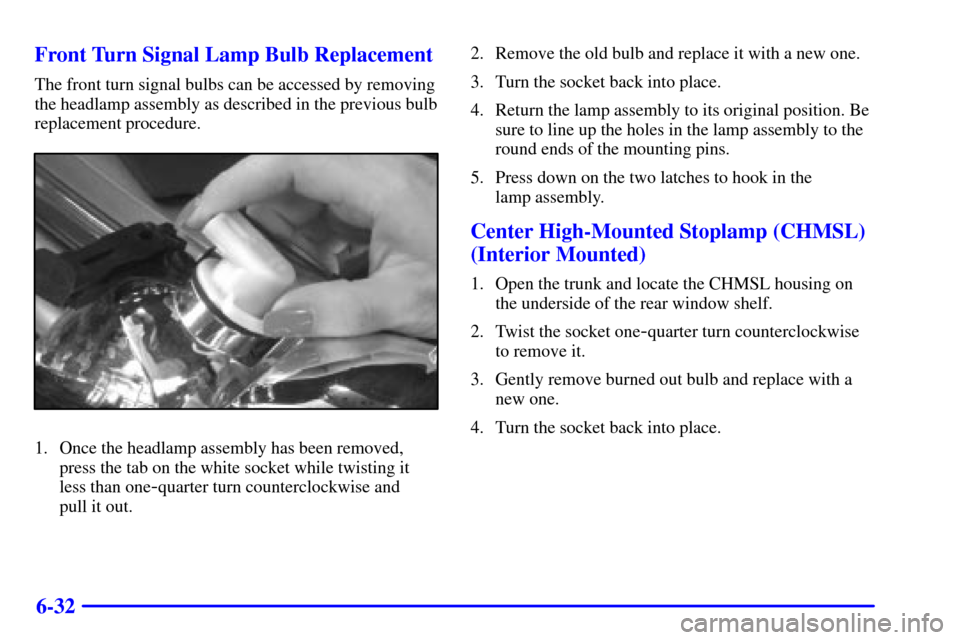

6-32 Front Turn Signal Lamp Bulb Replacement
The front turn signal bulbs can be accessed by removing
the headlamp assembly as described in the previous bulb
replacement procedure.
1. Once the headlamp assembly has been removed,
press the tab on the white socket while twisting it
less than one
-quarter turn counterclockwise and
pull it out.2. Remove the old bulb and replace it with a new one.
3. Turn the socket back into place.
4. Return the lamp assembly to its original position. Be
sure to line up the holes in the lamp assembly to the
round ends of the mounting pins.
5. Press down on the two latches to hook in the
lamp assembly.
Center High-Mounted Stoplamp (CHMSL)
(Interior Mounted)
1. Open the trunk and locate the CHMSL housing on
the underside of the rear window shelf.
2. Twist the socket one
-quarter turn counterclockwise
to remove it.
3. Gently remove burned out bulb and replace with a
new one.
4. Turn the socket back into place.

6-35
5. Carefully remove the backplate by gently pulling up
on the two upper and two lower tabs.
6. Gently wiggle the bulb to remove it from the socket.
Replace the bulb.7. Reverse the steps to reassemble the backplate and
attach the taillamp assembly to the vehicle.
Make sure that all four tabs of the backplate are
securely fastened to the taillamp assembly before
installing it on the vehicle.
8. When securing the lamp assembly back into place,
align the assembly so that the trunk lid doesn't
contact it.

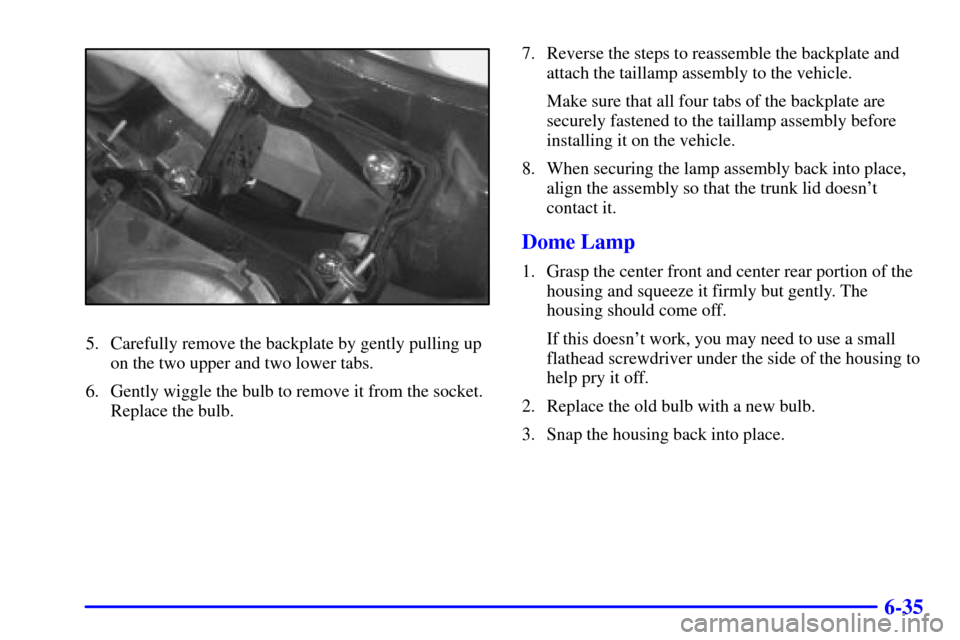

Dome Lamp
1. Grasp the center front and center rear portion of the
housing and squeeze it firmly but gently. The
housing should come off.
If this doesn't work, you may need to use a small
flathead screwdriver under the side of the housing to
help pry it off.
2. Replace the old bulb with a new bulb.
3. Snap the housing back into place.

6-61
Minifuse Usage
42 Back
-Up Lamps, Brake Transaxle
Shift Interlock Control
43 Horn
44 Powertrain Control Module
45 Parking Lamps
46 Climate Control System
47 Canister Purge Valve, Powertrain
Control Module, Exhaust Gas
Recirculation, Heated O
2 Sensor
48 Fuel Pump Injectors
49 Not Used
50 Right Headlamp
51 Left Headlamp
52 Cooling Fan
53 HVAC Blower (Climate Control)
54 Not Used
55 Cooling Fan #2 Ground
56 Fuse Puller
57 Not Used
Replacement Bulbs
Exterior Lamp Bulb
High
-Beam Headlamp 9005. . . . . . . . . . . . . . . . . . . .
Low
-Beam Headlamp 9006. . . . . . . . . . . . . . . . . . . .
Front Parking/Turn 3157A or 3157NA. . . . . . . . . . . .
Front Sidemarker 24. . . . . . . . . . . . . . . . . . . . . . . . . .
Back
-Up/Rear Turn 3156. . . . . . . . . . . . . . . . . . . . . .
Center High
-Mounted Stoplamp
(Interior Mounted) 912. . . . . . . . . . . . . . . . . . . . . .
Tail/Stoplamp 3057. . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Lamps Bulb
Dome 561. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For service information on other bulbs, contact your
dealer's service department.
