2-8
Customizing the Automatic Door Locks
One of four operating modes may be selected and
programmed by the driver:

Mode 1: All doors automatically lock when the
transaxle is shifted out of PARK (P). The doors will
remain locked unless manually unlocked or the lock
button is pressed. All doors will unlock when the
transaxle is shifted into PARK (P) and the key is
turned to OFF.

Mode 2: This mode is only available with the remote
keyless entry system (if equipped). All doors
automatically lock when the transaxle is shifted out
of PARK (P). Automatic driver's door only unlock
when the transaxle is shifted into PARK(P) and the
key is turned to OFF.

Mode 3: All doors automatically lock when the
transaxle is shifted out of PARK (P). No automatic
door unlock.

Mode 4: No automatic door lock or unlock.Before your vehicle was shipped from the factory it was
programmed in Mode 1. To determine the current
mode of the vehicle or to change to a different mode,
do the following:
1. Ensure the shift lever is in PARK (P) and all doors
are fully closed throughout this procedure. Turn the
ignition to ON.
2. Press and hold LOCK on either power door lock
switch for 10 seconds. Release the switch when you
hear the chime.
3. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is in.
You can change the mode by pressing and holding
LOCK on the power door lock switch (two chimes
for Mode 2, three chimes for Mode 3 and four
chimes for Mode 4).
4. Repeat Step 2 until you hear the number of chimes
that matches the mode you want.
The mode you selected is now set.

2-9 Delayed Locking
This feature will allow the driver to delay the actual
locking of the vehicle. This feature will not operate if
the key is left in the ignition. See ªAnti
-Lockout
Protectionº later in this section.
When LOCK on the driver's power door lock switch
is pressed, with the key removed from the ignition
and the driver's door open, three chimes will be heard.
The doors will not lock. Seven seconds after the driver's
door has been closed, all of the doors will lock and the
parking lamps will flash twice. The horn will also chirp
if the horn chirp feature is enabled. See ªProgrammable
Horn Chirpº in the Index for more information.
If the driver opens another door before the seven
seconds, the doors will not lock until seven seconds
after the last door is closed.
If the power door lock switch is pressed to LOCK twice
when leaving the vehicle, or the lock symbol button on
the remote keyless entry transmitter is pressed, the doors
will lock immediately.
If the power door lock switch is pressed to unlock,
the doors will unlock immediately and not lock
automatically after the doors are closed.
Rear Door Security Locks
Your vehicle is equipped with rear door security locks
that help prevent passengers from opening the rear doors
of your vehicle from the inside.
The switch for this
feature is located on the
inside of the rear door.
To use the security locks, do the following:
1. Move the switch up.
2. Close the door.
3. Do the same thing to the other rear door.

2-10
The rear doors on your vehicle cannot be opened
from the inside when this feature is in use. If you
want to open a rear door while the security lock is on,
do the following:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you do not cancel the security lock feature, adults or
older children who ride in the rear won't be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how to cancel the locks.
To cancel a rear door lock, do the following:
1. Unlock the door from the inside and open it from
the outside.
2. Move the switch down.
3. Do the same to the other rear door.
The rear doors will now work normally.Anti-Lockout Protection
Anti-lockout protection is intended to provide enhanced
security and convenience. This feature prevents a driver
who has left the keys in the ignition from locking the
doors, by using the power door lock while any door
is open.
To override this feature, when the key is in the ignition
and any door is open, press down and hold the power
door lock switch for three seconds.
This feature cannot guarantee that you will never be
locked out of your vehicle. If you don't leave the keys
in the ignition, or if you use the manual door lock or
the remote keyless entry transmitter, you could still lock
your keys inside your vehicle. Always remember to take
your keys with you.
Leaving Your Vehicle
If you are leaving your vehicle, open your door and
set the locks from the inside, then get out and close
the door.

2-11
Remote Keyless Entry System
(If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your remote keyless entry transmitter operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or
a qualified technician for service.

2-12 Operation
The following functions
are available with the
keyless entry system:
(Lock): All doors will automatically lock when this
button on the transmitter is pressed. The interior lamps
will turn off after all of the doors are closed. If all of
the doors are closed when the transmitter lock button
is pressed, the parking lamps will flash twice and the
horn will chirp (if the horn chirp feature is enabled) to
indicate locking has occurred.
(Unlock): The driver's door will unlock
automatically when this button on the transmitter is
pressed. If the button is pressed again within five
seconds, all remaining doors will unlock. The interior
lamps will stay on for 10 seconds or until the ignition is
turned on. The parking lamps will flash twice to indicate
unlocking has occurred.
(Remote Trunk Release): The trunk will unlock
when the vehicle symbol on the transmitter is pressed, as
long as the trunk lockout is not engaged. See ªRemote
Trunk Release Lockoutº in the Index. You can open the
trunk with the transmitter when ignition is on with the
shift lever in PARK (P), or when the ignition is off.
The interior lamps will come on for 10 seconds or
until the ignition switch is turned to ON.
(Horn): The horn will sound and the headlamps
and the parking lamps will flash for up to two minutes
when the horn symbol on the transmitter is pressed.
The interior lamps will come on and remain on while
the horn is sounding and the lamps are flashing. The
horn and lamps can be turned off by pressing the horn
symbol button again or by turning the ignition to ON.

2-13
Programmable Horn Chirp
When you use the remote keyless entry transmitter to
lock the doors or use the delayed locking feature, the
parking lamps will flash twice. The horn can also chirp
to indicate locking by enabling the horn chirp feature.
The programmable horn chirp can be disabled by
pressing and holding either of the door lock switches
in the unlock position for 10 seconds, with the ignition
ON and all of the doors closed. When you hear the
horn chirp, programming is complete.
To reactivate the horn chirp feature, repeat the
above procedure.Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of
four transmitters matched to it.

2-14 Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to
touch any of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.
To replace the battery in the keyless entry system,
do the following:
1. Use a coin or similar object to separate the bottom
half from the top half of the transmitter.
2. Remove the battery and replace it with the new one.
Make sure the positive side of the battery faces up.
Use one three
-volt, CR2032, or equivalent,
type battery.
3. Put the two halves back together. Make sure the
cover is on tightly, so water won't get in.

2-15

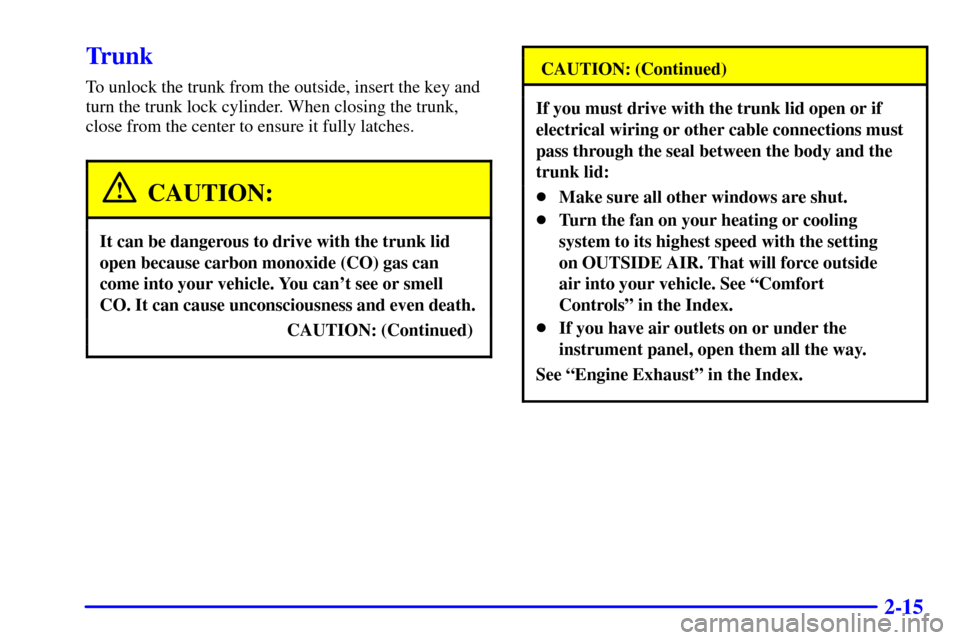

Trunk
To unlock the trunk from the outside, insert the key and
turn the trunk lock cylinder. When closing the trunk,
close from the center to ensure it fully latches.
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
CAUTION: (Continued)
CAUTION: (Continued)
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on OUTSIDE AIR. That will force outside
air into your vehicle. See ªComfort
Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.

2-16 Remote Trunk Release
Press the remote trunk
release button, located on
the lower left side of the
instrument panel, to release
the trunk lid.
Make sure the remote trunk release lockout feature is
not activated. Also, the remote trunk release will only
work when either the ignition is off, or with the ignition
ON while either the parking brake is engaged or the
vehicle speed is less than 2 mph (3 km/h).
Remote Trunk Release Lockout
Your remote trunk release has a lockout feature. The
switch is located on the inside of the trunk lid, mounted
on the trunk lid latch.
To turn the lockout on, slide the switch all the way to
the left (ON). To turn the lockout off, slide the switch
all the way to the right (OFF).
When the lockout is on, the remote trunk release switch
on the instrument panel will not release the trunk lid.
However, the trunk lid can still be opened with the key,
but not with the remote keyless entry transmitter.

2-17 Trunk Release Handle
NOTICE:
The trunk release handle was not designed to be
used to tie down the trunk lid or as an anchor
point when securing items in the trunk. Improper
use of the trunk release handle could damage it.
There is a glow-in-the-dark trunk release handle located
inside the trunk on the trunk latch. This handle will glow
following exposure to light. Pull the release handle up to
open the trunk from the inside.
Trap-Resistant Trunk Kit
To help prevent a child from becoming trapped in your
trunk, you can order a trap
-resistant trunk kit from
your dealer. This kit includes:

a modified trunk latch,

a lighted release handle, and

seatback tethers (for vehicles with folding
rear seatbacks).
See your dealer for additional information.
