5. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
6. If your child restraint has a top tether, attach and
tighten the top tether to the top tether anchor.
Refer to the instructions that came with the child
restraint and to step 5 underLower Anchors
and Tethers for Children (LATCH) on page 1-45.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-55

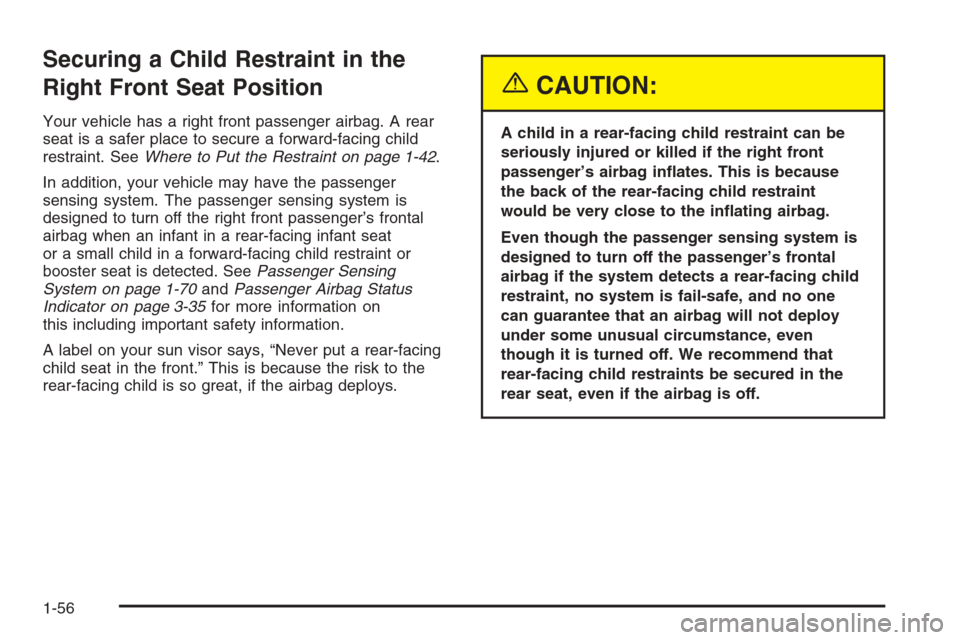

Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger airbag. A rear
seat is a safer place to secure a forward-facing child
restraint. SeeWhere to Put the Restraint on page 1-42.
In addition, your vehicle may have the passenger
sensing system. The passenger sensing system is
designed to turn off the right front passenger’s frontal
airbag when an infant in a rear-facing infant seat
or a small child in a forward-facing child restraint or
booster seat is detected. SeePassenger Sensing
System on page 1-70andPassenger Airbag Status
Indicator on page 3-35for more information on
this including important safety information.
A label on your sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating airbag.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag if the system detects a rear-facing child
restraint, no system is fail-safe, and no one
can guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend that
rear-facing child restraints be secured in the
rear seat, even if the airbag is off.
1-56

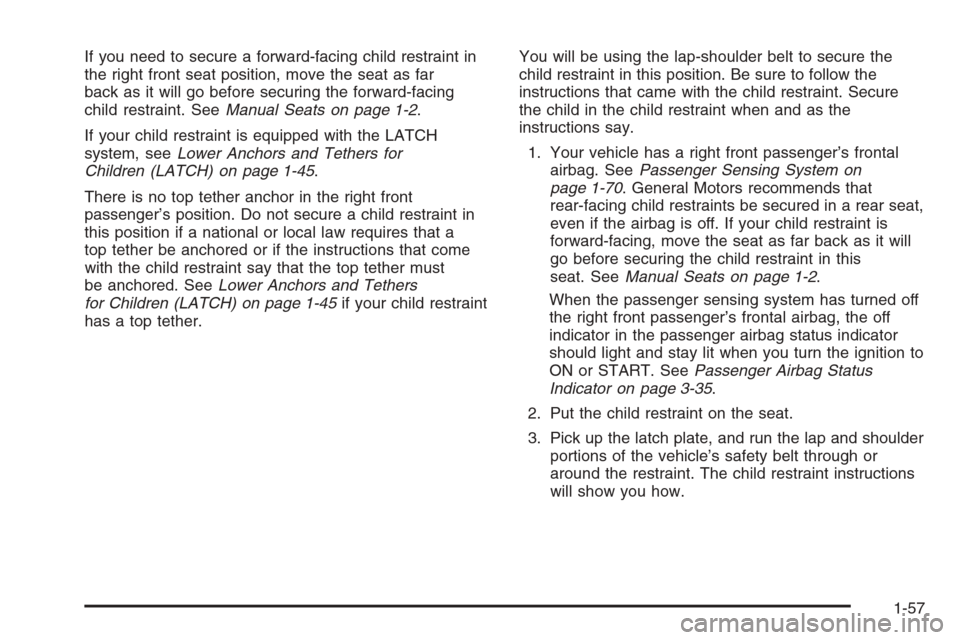

If you need to secure a forward-facing child restraint in
the right front seat position, move the seat as far
back as it will go before securing the forward-facing
child restraint. SeeManual Seats on page 1-2.
If your child restraint is equipped with the LATCH
system, seeLower Anchors and Tethers for
Children (LATCH) on page 1-45.
There is no top tether anchor in the right front
passenger’s position. Do not secure a child restraint in
this position if a national or local law requires that a
top tether be anchored or if the instructions that come
with the child restraint say that the top tether must
be anchored. SeeLower Anchors and Tethers
for Children (LATCH) on page 1-45if your child restraint
has a top tether.You will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Your vehicle has a right front passenger’s frontal
airbag. SeePassenger Sensing System on
page 1-70. General Motors recommends that
rear-facing child restraints be secured in a rear seat,
even if the airbag is off. If your child restraint is
forward-facing, move the seat as far back as it will
go before securing the child restraint in this
seat. SeeManual Seats on page 1-2.
When the passenger sensing system has turned off
the right front passenger’s frontal airbag, the off
indicator in the passenger airbag status indicator
should light and stay lit when you turn the ignition to
ON or START. SeePassenger Airbag Status
Indicator on page 3-35.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-57

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-58

6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt. You should not be
able to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.8. If your vehicle has the passenger sensing system,
and the airbag is off, the off indicator on the
instrument panel will be lit and stay lit when the key
is turned to ON or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint.
If after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle and
check with your dealer.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-59

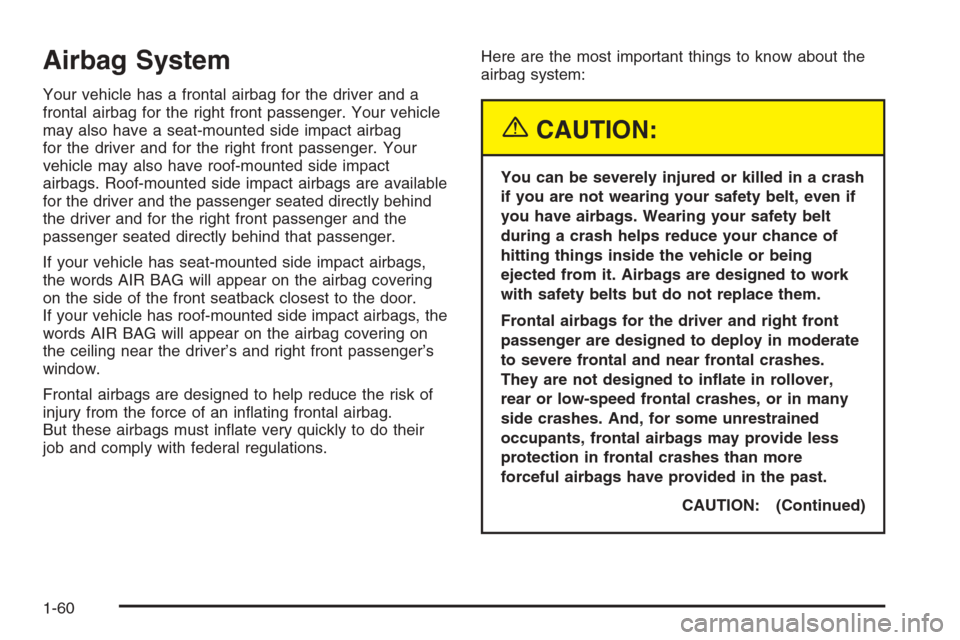

Airbag System
Your vehicle has a frontal airbag for the driver and a
frontal airbag for the right front passenger. Your vehicle
may also have a seat-mounted side impact airbag
for the driver and for the right front passenger. Your
vehicle may also have roof-mounted side impact
airbags. Roof-mounted side impact airbags are available
for the driver and the passenger seated directly behind
the driver and for the right front passenger and the
passenger seated directly behind that passenger.
If your vehicle has seat-mounted side impact airbags,
the words AIR BAG will appear on the airbag covering
on the side of the front seatback closest to the door.
If your vehicle has roof-mounted side impact airbags, the
words AIR BAG will appear on the airbag covering on
the ceiling near the driver’s and right front passenger’s
window.
Frontal airbags are designed to help reduce the risk of
injury from the force of an inating frontal airbag.
But these airbags must inate very quickly to do their
job and comply with federal regulations.Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt, even if
you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are designed to work
with safety belts but do not replace them.
Frontal airbags for the driver and right front
passenger are designed to deploy in moderate
to severe frontal and near frontal crashes.
They are not designed to inate in rollover,
rear or low-speed frontal crashes, or in many
side crashes. And, for some unrestrained
occupants, frontal airbags may provide less
protection in frontal crashes than more
forceful airbags have provided in the past.
CAUTION: (Continued)
1-60

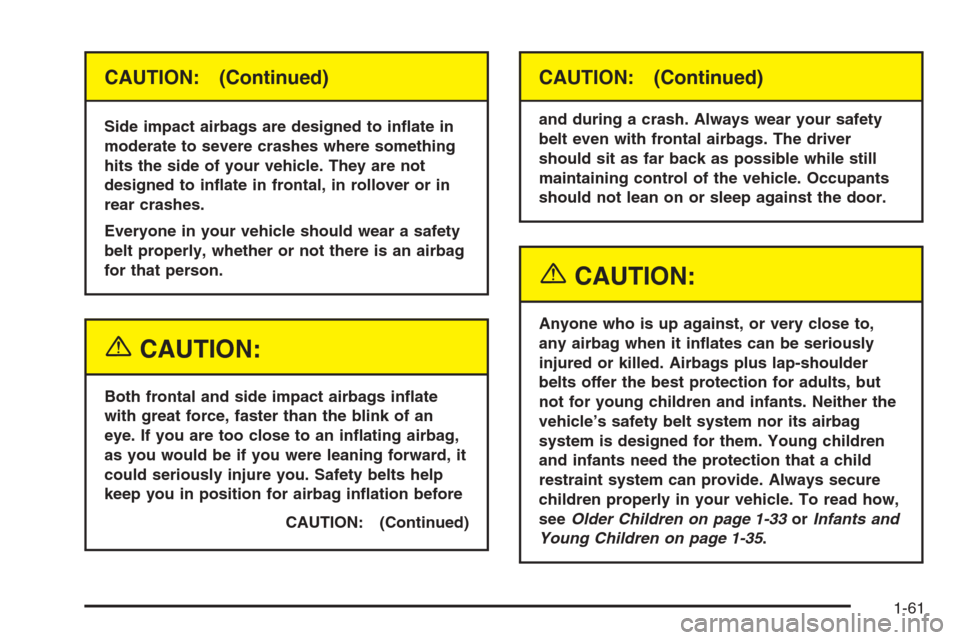

CAUTION: (Continued)
Side impact airbags are designed to inate in
moderate to severe crashes where something
hits the side of your vehicle. They are not
designed to inate in frontal, in rollover or in
rear crashes.
Everyone in your vehicle should wear a safety
belt properly, whether or not there is an airbag
for that person.
{CAUTION:
Both frontal and side impact airbags inate
with great force, faster than the blink of an
eye. If you are too close to an inating airbag,
as you would be if you were leaning forward, it
could seriously injure you. Safety belts help
keep you in position for airbag ination before
CAUTION: (Continued)
CAUTION: (Continued)
and during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
seeOlder Children on page 1-33orInfants and
Young Children on page 1-35.
1-61

There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-34
for more information.Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
1-62

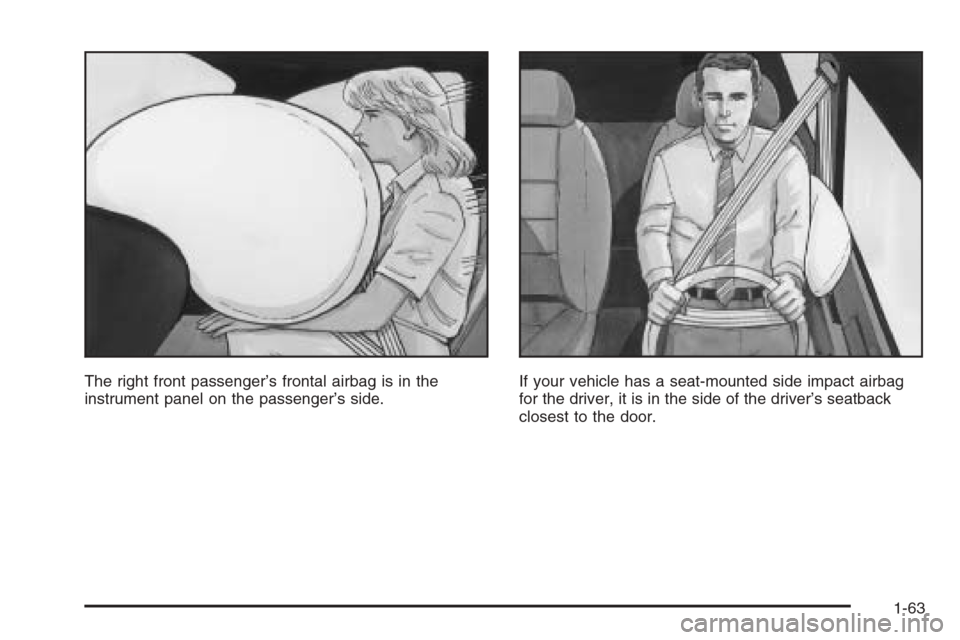

The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.If your vehicle has a seat-mounted side impact airbag
for the driver, it is in the side of the driver’s seatback
closest to the door.
1-63

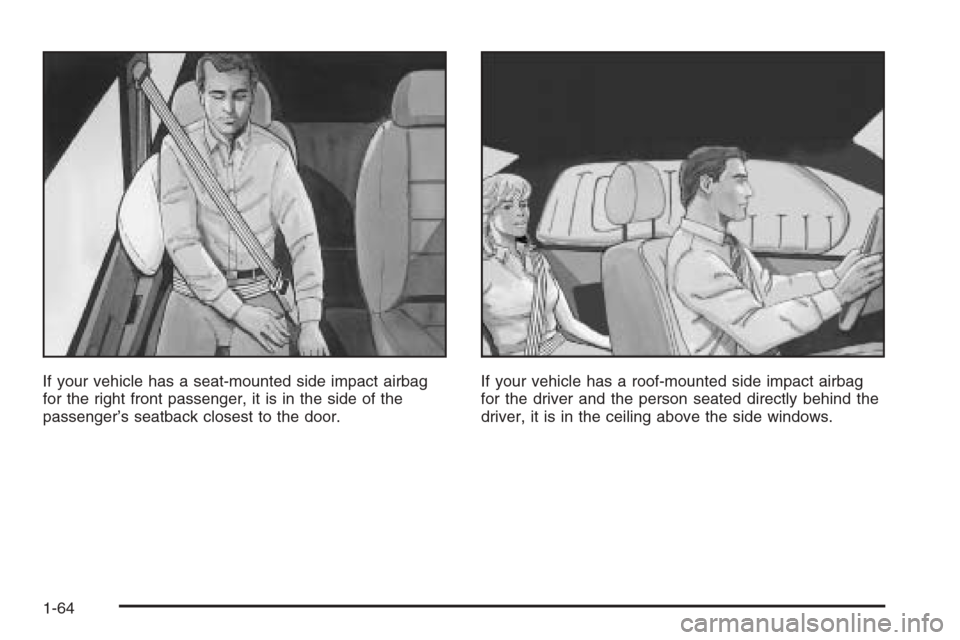

If your vehicle has a seat-mounted side impact airbag
for the right front passenger, it is in the side of the
passenger’s seatback closest to the door.If your vehicle has a roof-mounted side impact airbag
for the driver and the person seated directly behind the
driver, it is in the ceiling above the side windows.
1-64
