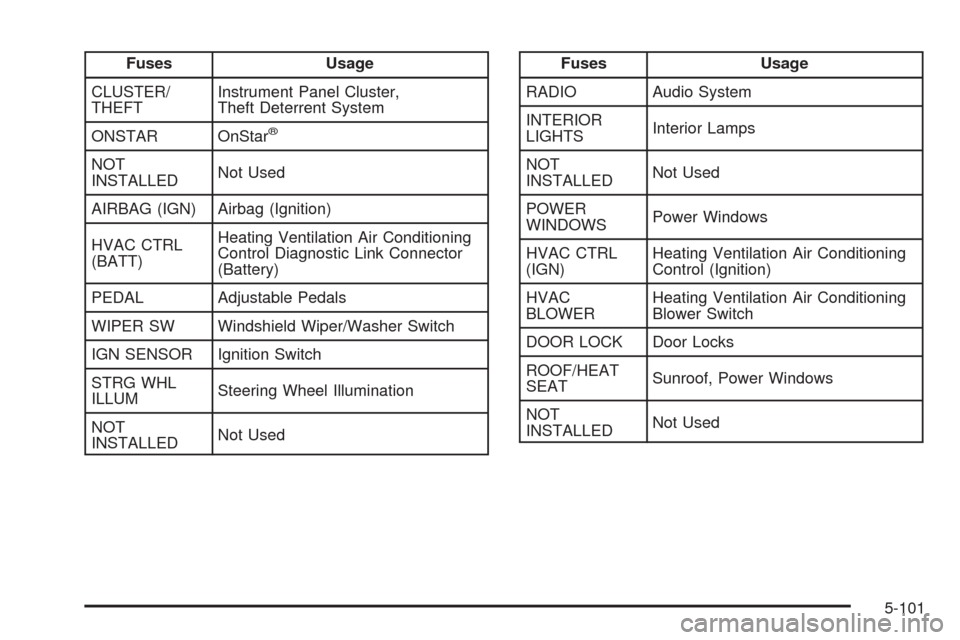

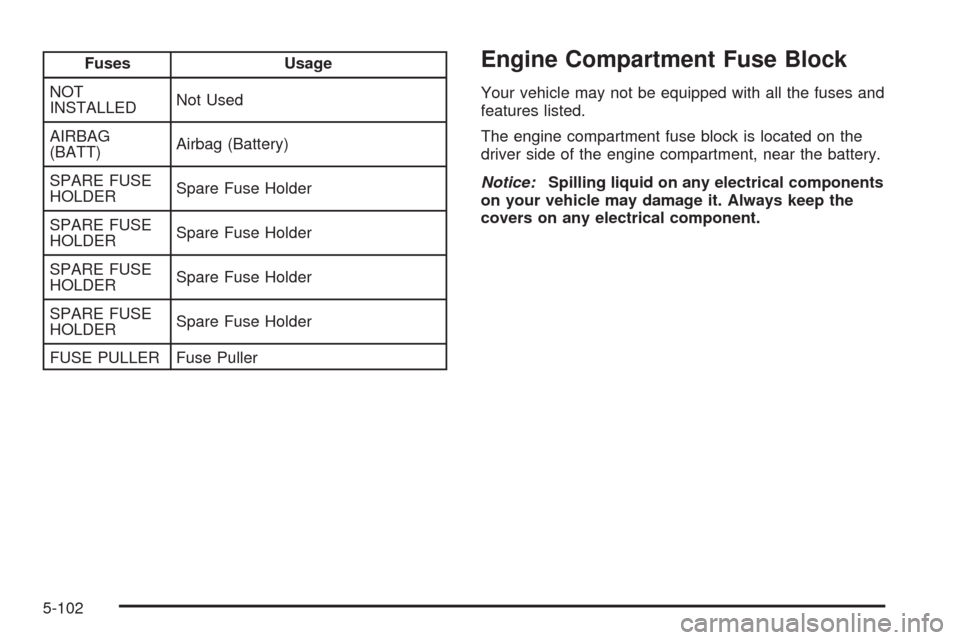

CHEVROLET MALIBU 2008 6.G Owners Manual Fuses Usage
CLUSTER/
THEFTInstrument Panel Cluster,
Theft Deterrent System
ONSTAR OnStar
®
NOT
INSTALLEDNot Used
AIRBAG (IGN) Airbag (Ignition)
HVAC CTRL
(BATT)Heating Ventilation Air Conditioning
Co

Page 352 of 412

CHEVROLET MALIBU 2008 6.G Owners Manual Fuses Usage
NOT
INSTALLEDNot Used
AIRBAG
(BATT)Airbag (Battery)
SPARE FUSE
HOLDERSpare Fuse Holder
SPARE FUSE
HOLDERSpare Fuse Holder
SPARE FUSE
HOLDERSpare Fuse Holder
SPARE FUSE
HOLDERSpare Fuse Hol

Page 353 of 412

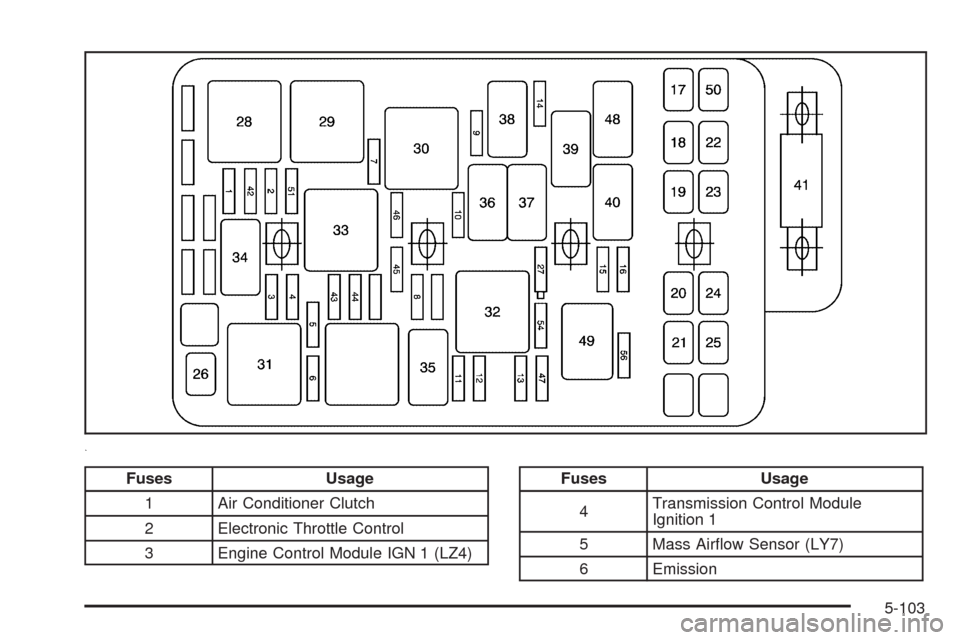

CHEVROLET MALIBU 2008 6.G Owners Manual Fuses Usage
1 Air Conditioner Clutch
2 Electronic Throttle Control
3 Engine Control Module IGN 1 (LZ4)Fuses Usage
4Transmission Control Module
Ignition 1
5 Mass Air�ow Sensor (LY7)
6 Emission
5-103

Page 354 of 412

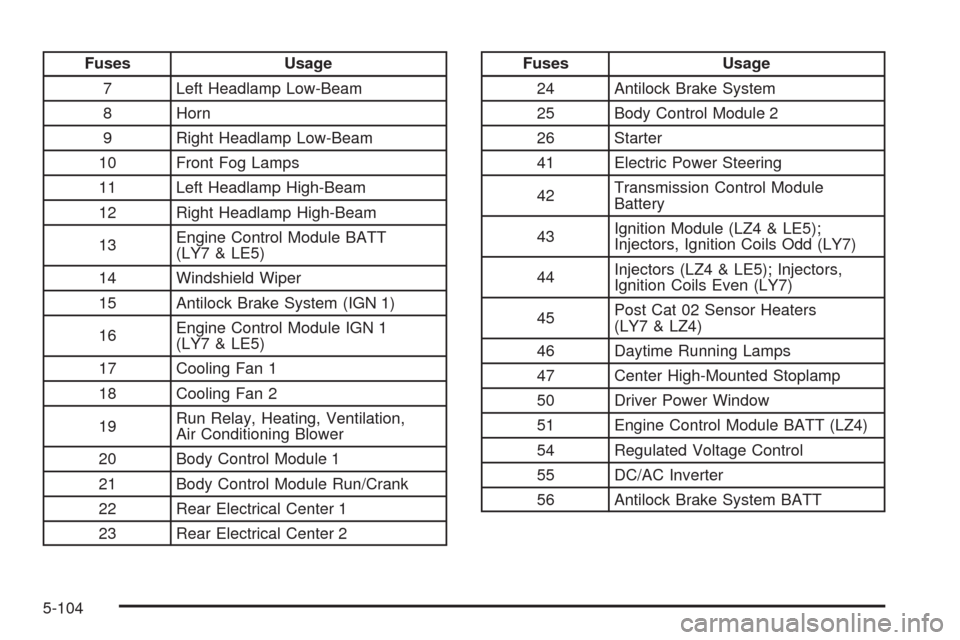

CHEVROLET MALIBU 2008 6.G Owners Manual Fuses Usage
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
10 Front Fog Lamps
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13Engine Control Module BATT
(LY7 & LE5)
14 Windshield W

Page 355 of 412

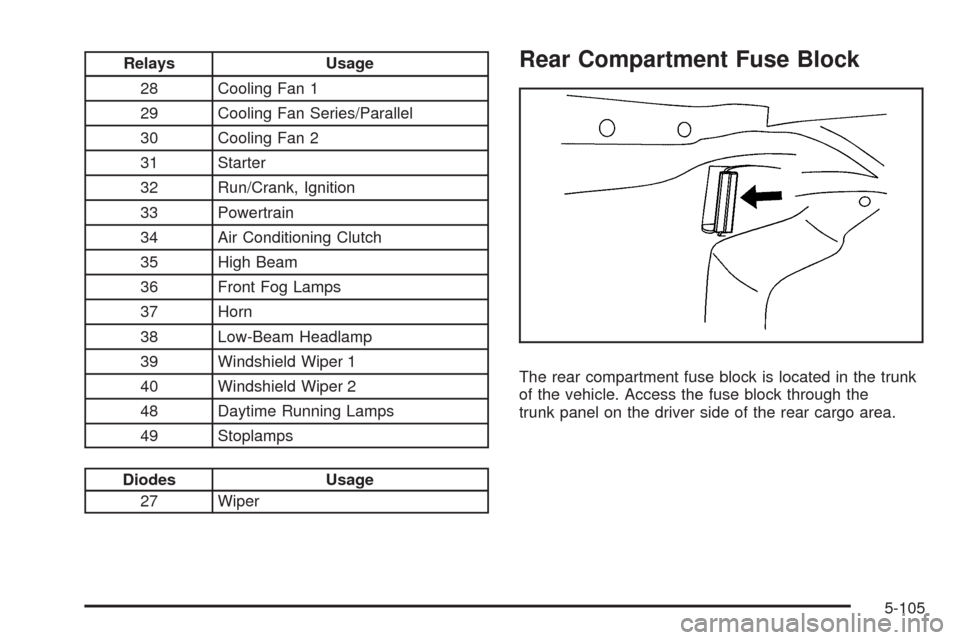

CHEVROLET MALIBU 2008 6.G Owners Manual Relays Usage
28 Cooling Fan 1
29 Cooling Fan Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High Beam
36 Front Fog Lamps
37 Horn
38 Low-

Page 356 of 412

CHEVROLET MALIBU 2008 6.G Owners Manual Fuses Usage
1 Passenger Seat Controls
2 Driver Seat Controls
3 Not UsedFuses Usage
4 Not Used
5 Emission 2, Canister Vent Solenoid
6Park Lamps, Instrument Panel
Dimming
5-106

Page 357 of 412

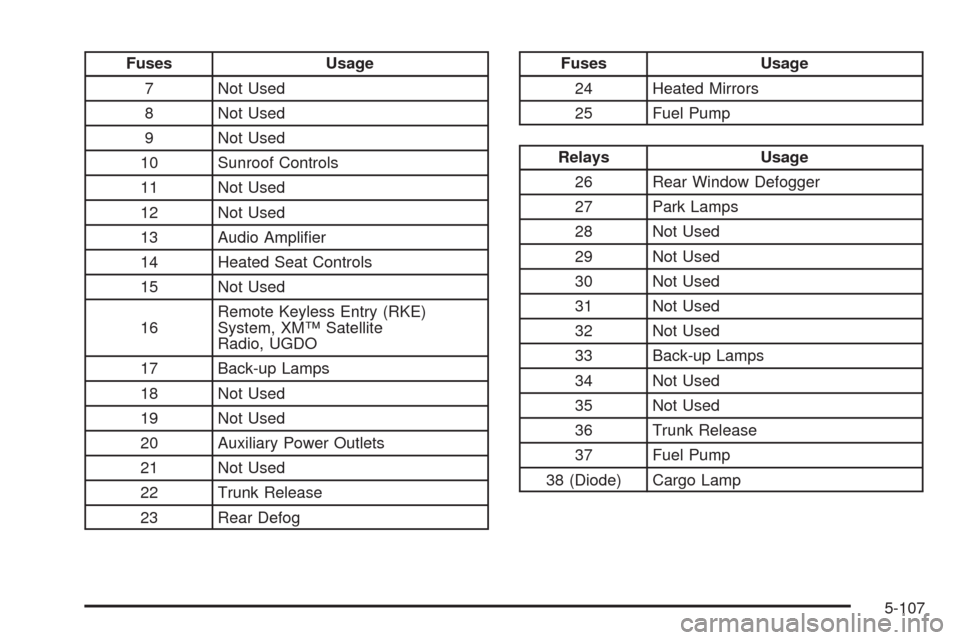

CHEVROLET MALIBU 2008 6.G Owners Manual Fuses Usage
7 Not Used
8 Not Used
9 Not Used
10 Sunroof Controls
11 Not Used
12 Not Used
13 Audio Ampli�er
14 Heated Seat Controls
15 Not Used
16Remote Keyless Entry (RKE)
System, XM™ Satellite
Radi

Page 358 of 412

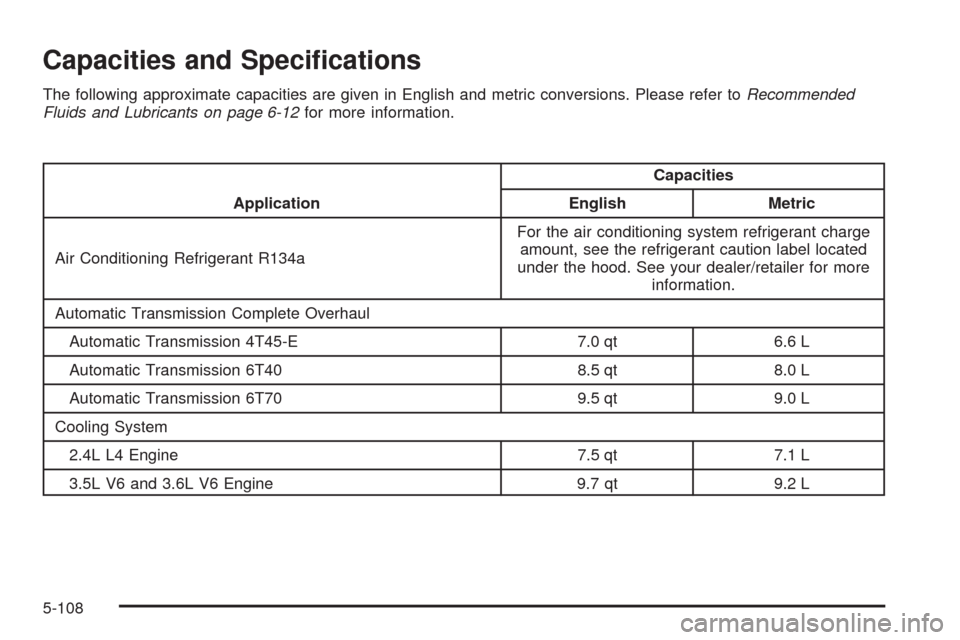

CHEVROLET MALIBU 2008 6.G Owners Manual Capacities and Speci�cations
The following approximate capacities are given in English and metric conversions. Please refer toRecommended
Fluids and Lubricants on page 6-12for more information.
Applic

Page 359 of 412

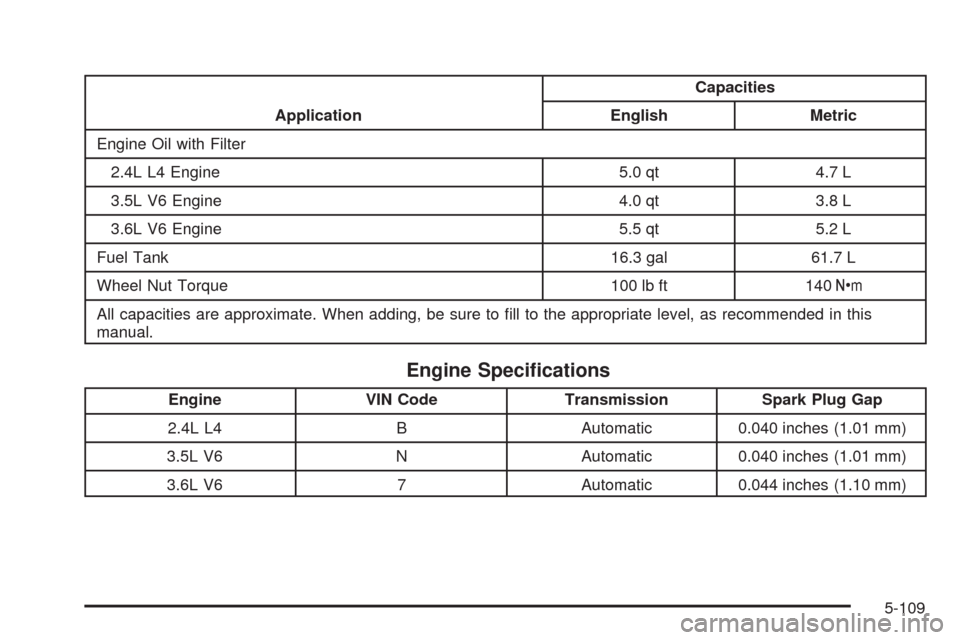

CHEVROLET MALIBU 2008 6.G Owners Manual ApplicationCapacities
English Metric
Engine Oil with Filter
2.4L L4 Engine 5.0 qt 4.7 L
3.5L V6 Engine 4.0 qt 3.8 L
3.6L V6 Engine 5.5 qt 5.2 L
Fuel Tank 16.3 gal 61.7 L
Wheel Nut Torque 100 lb ft 140

Page 360 of 412

CHEVROLET MALIBU 2008 6.G Owners Manual ✍NOTES
5-110
