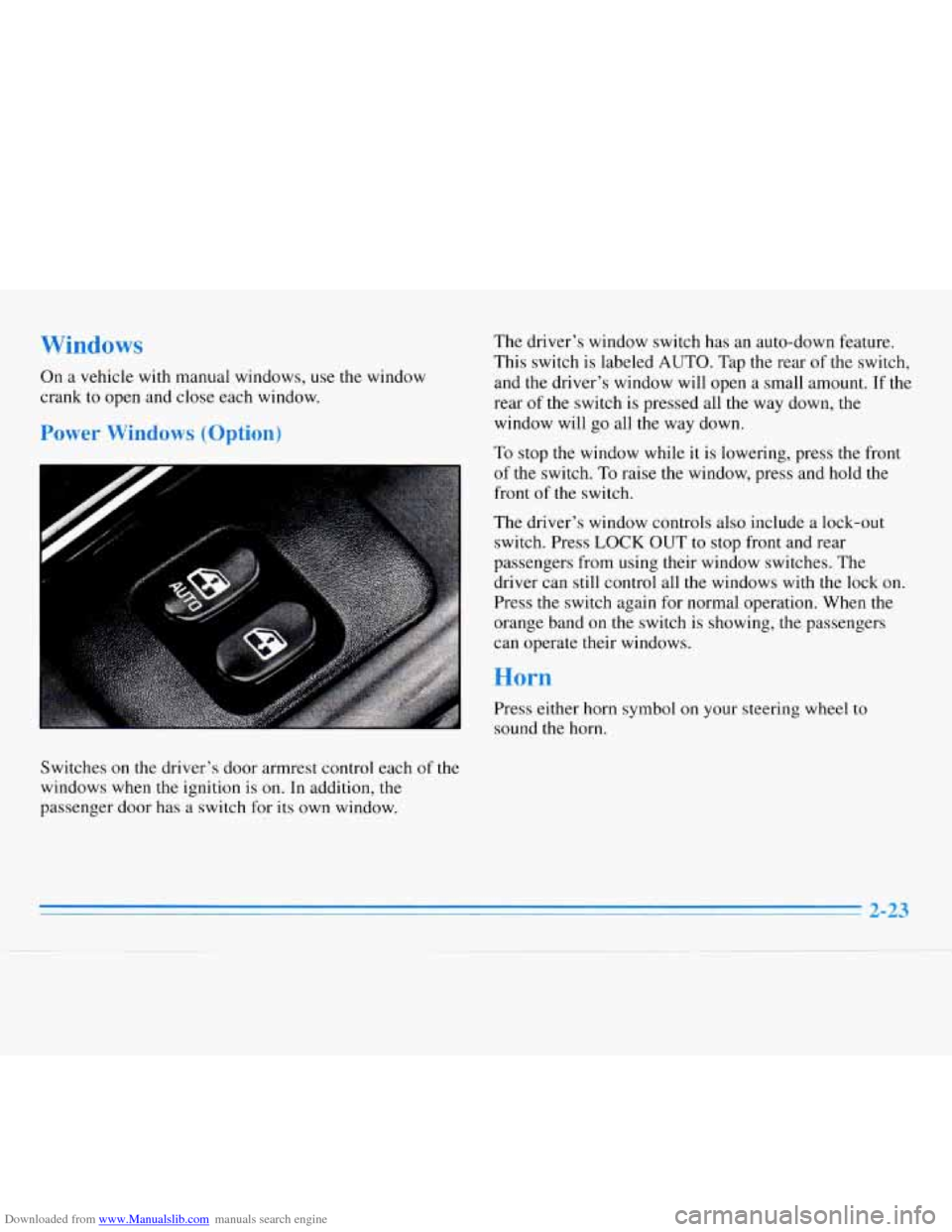

Downloaded from www.Manualslib.com manuals search engine On a vehicle with manual windows, use the window
crank
to open and close each window.
Switches
on the driver’s door armrest control each of the
windows when the ignition is on. In addition,
the
passenger door has a switch for its own window. The
driver’s window switch has an auto-down feature.
This switch
is labeled AUTO. Tap the rear of the switch,
and the driver’s window will open a small amount. If the
rear of the switch
is pressed all the way down, the
window will go all the way down.
To stop the window while it is lowering, press the front
of the switch. To raise the window, press and hold the
front of the switch.
The driver’s window controls also include a lock-out
switch. Press
LOCK OUT to stop front and rear
passengers from using their window switches. The
driver can still control all
the windows with the lock on.
Press the switch again for normal operation. When the
orange band on
the switch is showing, the passengers
can operate their windows.
’Torn
Press either horn symbol on your steering wheel to
sound the horn.

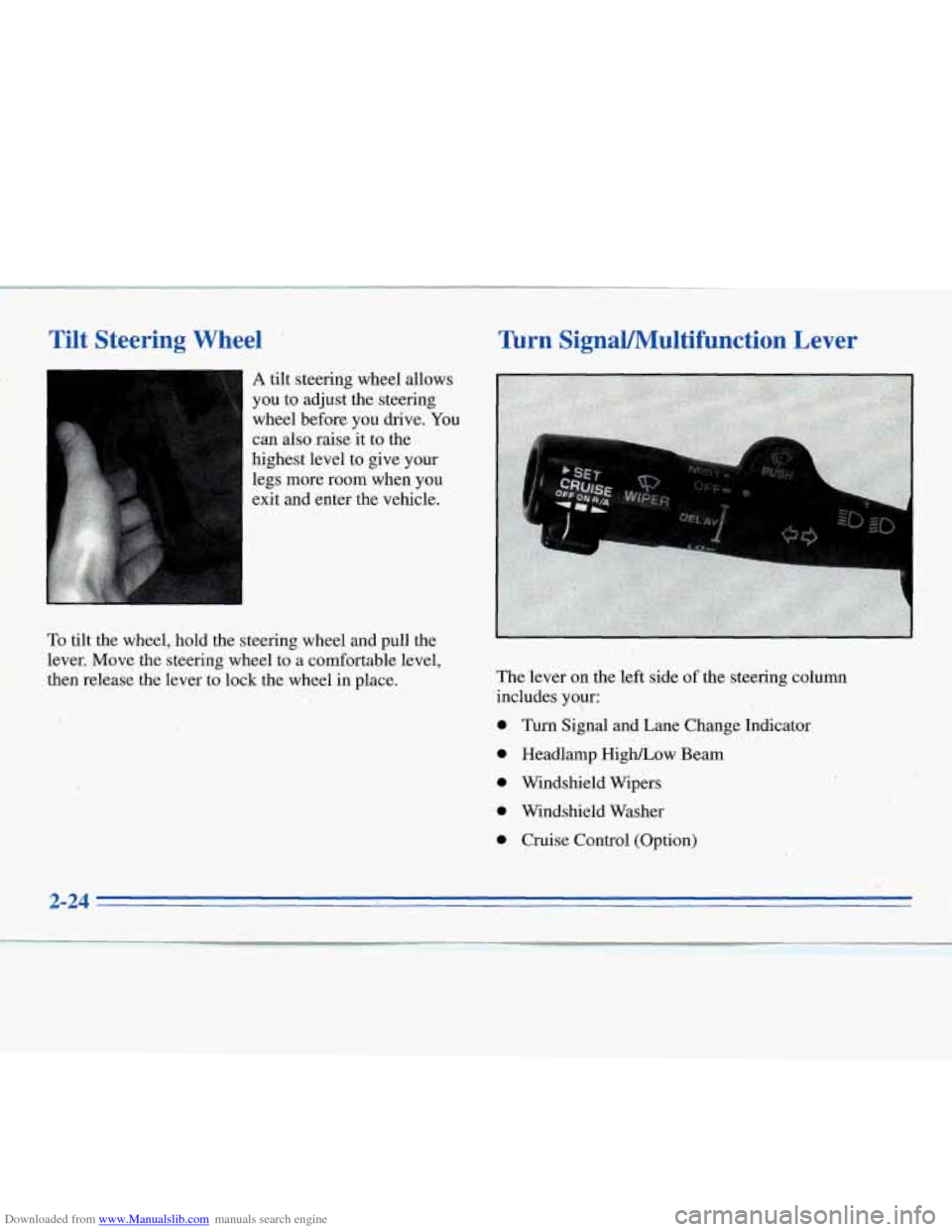

Downloaded from www.Manualslib.com manuals search engine Tilt Steering Wheel Turn SignaVMultifunction Lever
A tilt steering wheel allows
you to adjust the steering
wheel before you drive. You
can also raise it to the
highest level to give your
legs more room when you
exit and enter the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever.,
Movg the steering wheel to a comfortable level,
then release the lever to lock the wheel
in place.
.L I
The 'lever on the left side of the steering column
includes
yoyr:,
6
0
0
0
0
Turn Signal and Lane Change Indicator
Headlamp HigWLow
Beam
Windshield Wipers
Windshield Washer
Cruise Control (Option)

Downloaded from www.Manualslib.com manuals search engine Turn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is finished,
the lever will retum automatically.
A
An arrow on the instrument
panel will flash
in the
direction of the
turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrow
flashes fdster than
normal, a signal bulb may be burned
out and other’drivers won’t see your turn signal.
If a bulb is burned out, replace
it to help avoid an
accident. If the arrows don’t go on at all when
you
signal a turn, check for burned-out bulbs and check the
fuse (see “Fuses and Circuit Breakers” in the Index).
Headlamp HighLow Beam
To change your headlamps
from low beam to high
beam, or high to low, pull
the multifunction lever all
the way toward you. Then
release
it. When the high
beams are on, a light on
the instrument panel also
will be on.

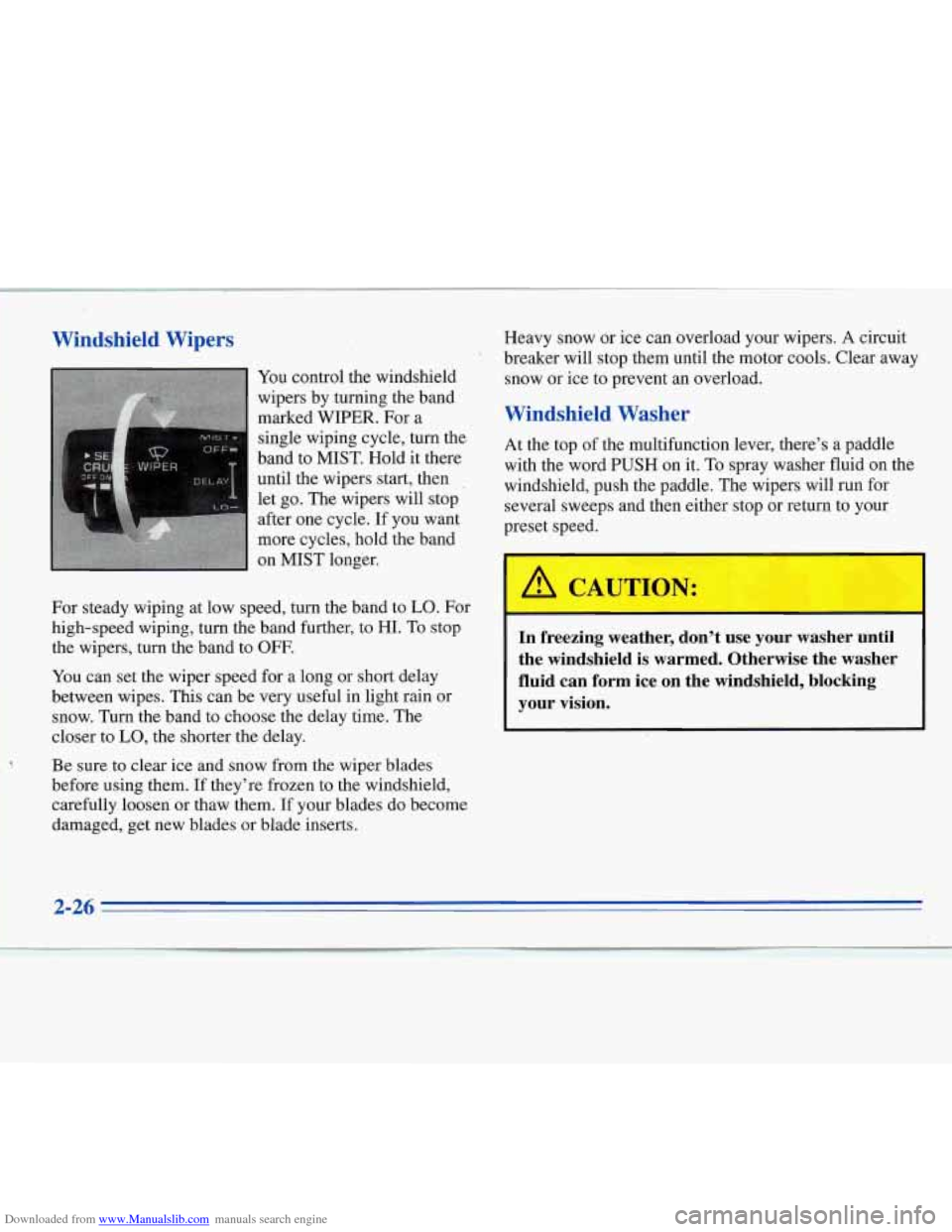

Downloaded from www.Manualslib.com manuals search engine Windshield WiDers
You control the windshield
wipers by turning the band
marked
WIPER. For a
single wiping cycle, turn the
band to MIST. Hold it there
until the wipers start, then
.
let go. The wipers will stop
For steady wiping at low speed, turn the band to
LO. For
high-speed wiping, turn the band further, to
HI. To stop
the wipers, turn the band to
OFF.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain or
snow. Turn the band to choose the delay time. The
closer to
LO, the shorter the delay.
Be sure to clear ice and snow from the wiper blades
before using’them. If they’re frozen to the windshield,
carefully loosen or thaw them. If your blades do become
damaged, get new blades or blade inserts. Heavy snow
or ice can overload your wipers. A circuit
snow or ice to prevent an overload.
Windshield Washer
At the top of the multifunction lever, there’s a paddle
with the word,PUSH on it. To spray washer fluid on the
windshield, push the paddle. The wipers will
run for
several sweeps
and then either stop or return to your
meset speed.
‘ breaker will stop them until the motor cools. Clear away
I
I
In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
2-26

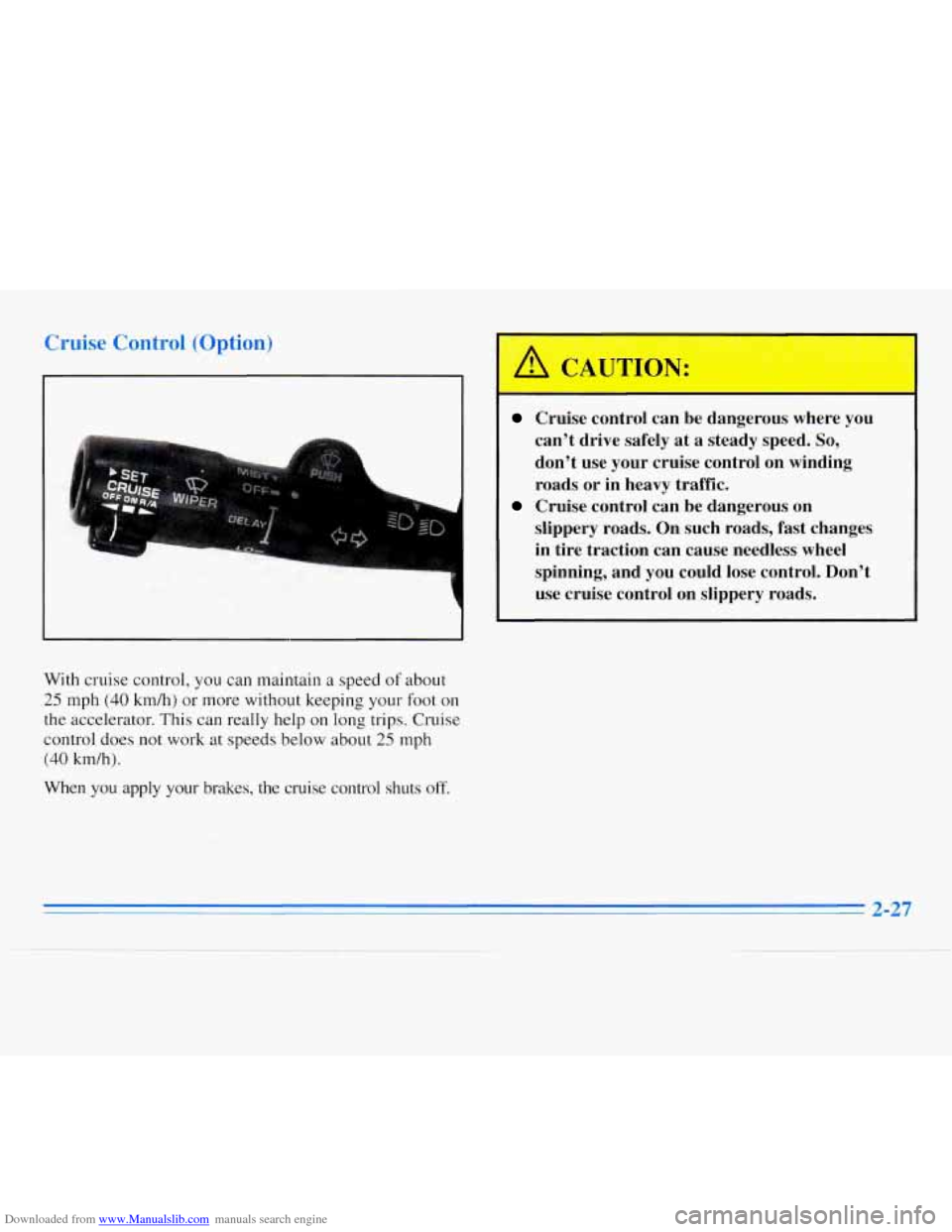

Downloaded from www.Manualslib.com manuals search engine Cruise Control (Option)
Cruise control can be dangerous where you
can’t drive safely at a steady speed.
So,
don’t use your cruise control on winding
roads or in heavy traffic.
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spiming, and you could lose control. Don’t
use cruise control
on slippery roads.
Cruise control can be dangerous on
With cruise control, you can maintain a speed of about
25 mph (40 kmdh) or more without keeping your foot on
the accelerator. This can really help on long trips. Cruise
control does not work at speeds below about
25 mph
(40 kmh).
When you apply your brakes, the cruise control shuts
off.
2-27

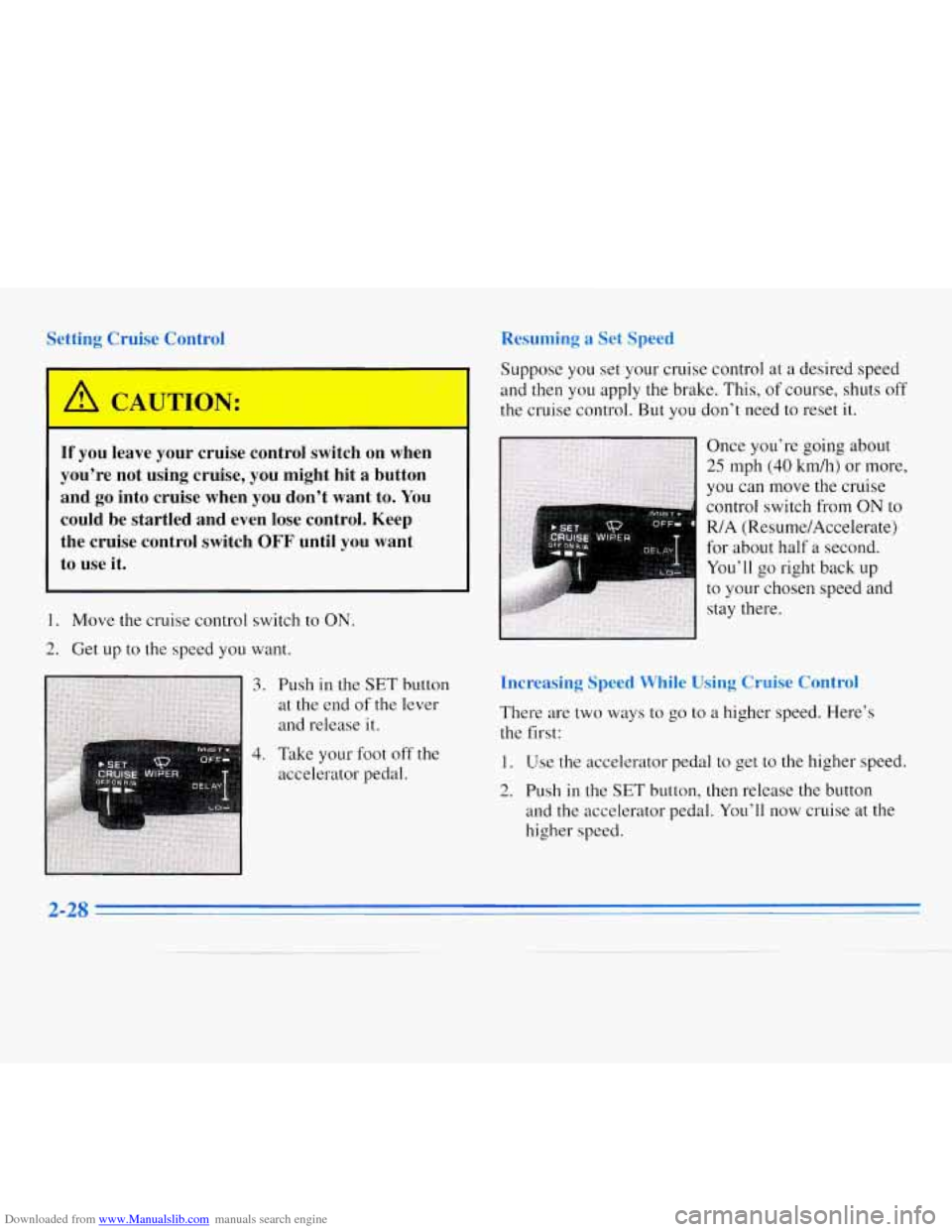

Downloaded from www.Manualslib.com manuals search engine Setting Cruise Control Resuming a Set Speed
-
11 you leave
your cruise control switch
you’re not using cruise, you might hit a button
and
go into cruise when you don’t want to. You
could be startled and even lose control. Keep
the cruise control switch
OFF until you want
to use it.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
I
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course, shuts off
the cruise control. But you don’t need to reset it.
Once you’re going about
25 mph (40 krdh) or more,
you can move the cruise
control switch from
ON to
R/A (Resume/Accelerate)
for about half a second.
You’ll go right back up
to your chosen speed and
stay there.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed. Here’s
the first:
1. Use the accelerator pedal to get to the higher speed.
2. Push in the SET button, then release the button
and the accelerator pedal. You’ll
now cruise at the
higher speed.
2-28

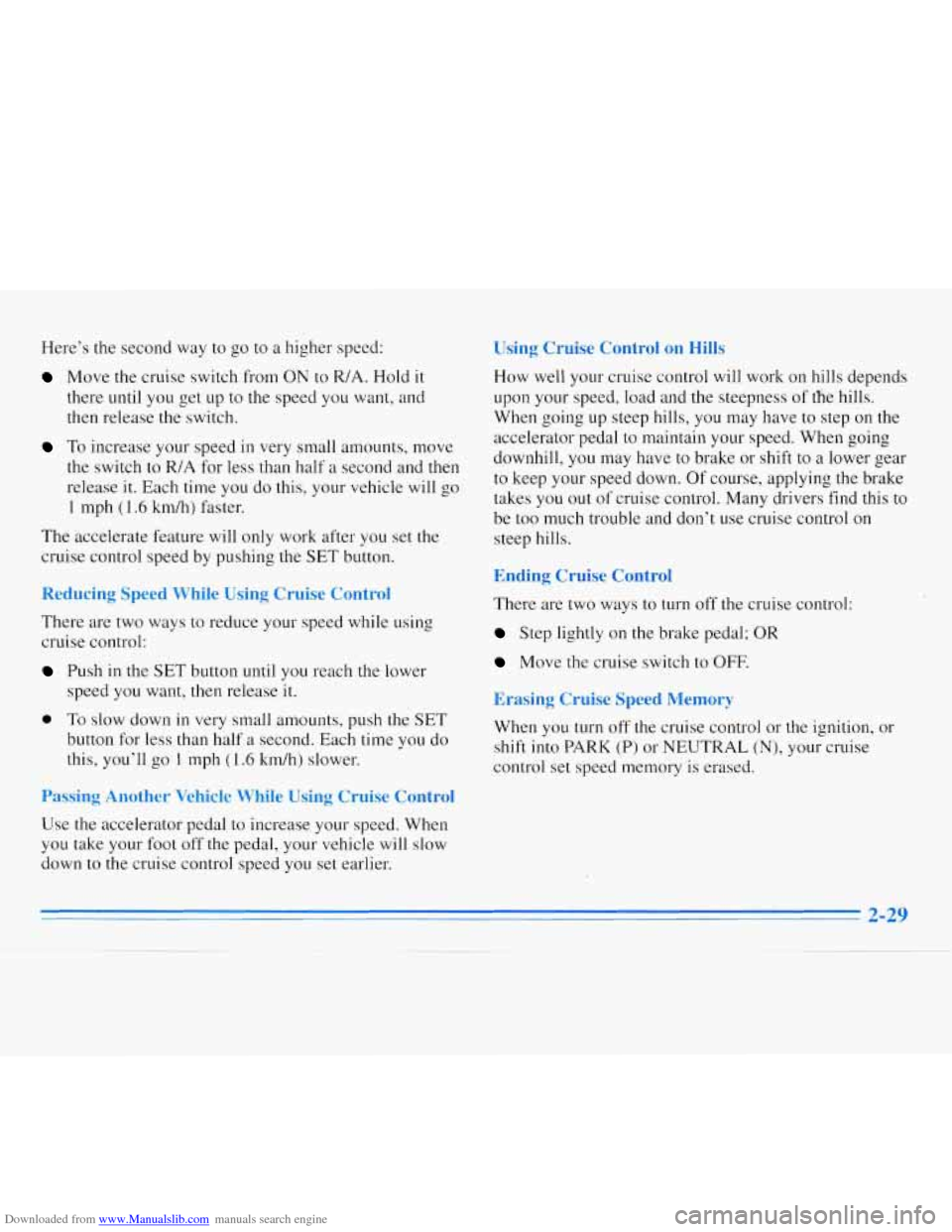

Downloaded from www.Manualslib.com manuals search engine Here’s the second way to go to a higher speed:
Move the cruise switch from ON to R/A. Hold it
there until
you get up to the speed you want, and
then release the switch.
To increase your speed in very small amounts, move
the switch to
R/A for less than half a second and then
release it. Each time you do this, your vehicle will go
1 mph (1.6 km/h) faster.
The accelerate feature will only work after you set
the
cruise control speed by pushing the SET button.
Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:
Push in the SET button until you reach the lower
speed you want,
then release it.
0 To slow down in very small amounts, push the SET
button for less than half a second. Each time you do
this, you’ll go 1 mph (1.6 km/h) slower.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of tfie hills.
When going up steep hills, you may have to step on the
accelerator pedal
to maintain your speed. When going
downhill, you may have to brake or shift
to a lower gear
to keep your speed down. Of course, applying the brake
takes you out of cruise control. Many drivers find this to
be too much trouble and don’t use cruise control
on
steep hills.
Ending Cruise Control
There are two ways to turn off the cruise control:
Step lightly on the brake pedal; OR
Move the cruise switch to OFF.
Erasing Cruise Speed Memory
When you turn off the cruise control or the ignition, or
shift
into PARK (P) or NEUTRAL (N), your cruise
control set speed memory is erased.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot
off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
2-29

Downloaded from www.Manualslib.com manuals search engine Lamps
The lamp controls are on the instrument panel. They
control these systems:
Headlamps
Taillamps
0 Parking Lamps
License Lamps
0 Sidemarker Lamps
0 Instrument Panel Lamps
0 Courtesy Lamps
-g- Turn the knob to this symbol (C) to turn on the
headlamps and other operating lamps.
pf Turn the knob to this symbol (B) to turn on the
parking and other operating lamps without the
headlamps.
Turn the knob to
OFF to turn off the lamps.
A warning chime will sound when you turn
the ignition
switch to
OFF, LOCK or ACC with the lamps on.
"time Ru: ling Lamps (Canada Only)
mytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during the
day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful
in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes the
DRL work,
so be sure it isn't covered.
The DRL system will make your low-beam headlamps
come on
at a reduced brightness when:
0 The ignition is on,
0 The headlamp switch is off, and
0 The parking brake is released.
2-30

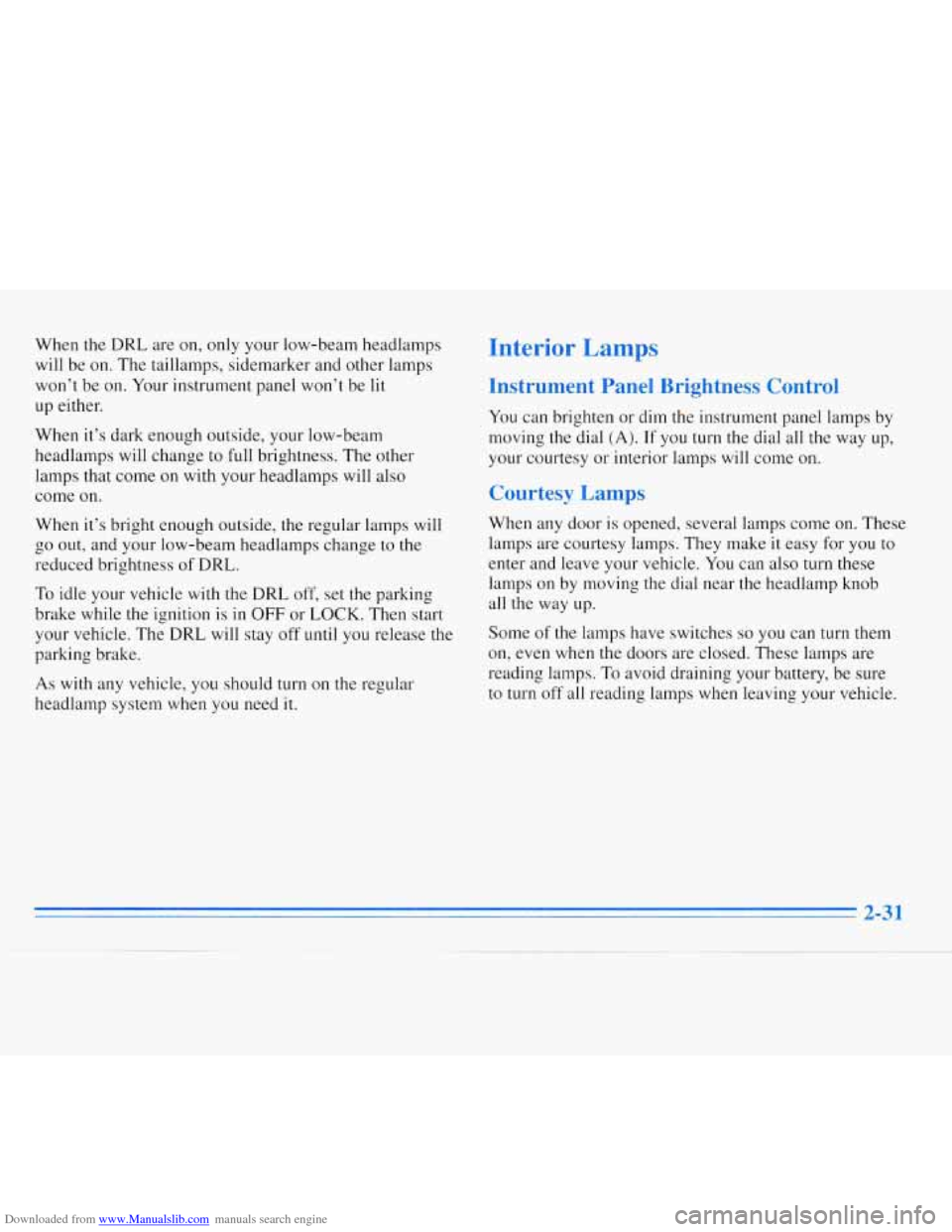

Downloaded from www.Manualslib.com manuals search engine When the DRL are on, only your low-beam headlamps
will be on. The taillamps, sidemarker and other lamps
won’t be on. Your instrument panel won’t be lit
up either.
When it’s dark enough outside, your low-beam
headlamps will change to
full brightness. The other
lamps that come
on with your headlamps will also
come on.
When it’s bright enough outside, the regular lamps will
go out, and your low-beam headlamps change to the
reduced brightness of DRL.
To idle your vehicle with the DRL off, set the parking
brake while the ignition is
in OFF or LOCK. Then start
your vehicle. The DRL will stay off
until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need
it.
Interior Lamps
Instrument Panel Brightness Control
You can brighten or dim the instrument panel lamps by
moving the dial
(A). If you turn the dial all the way up,
your courtesy or interior lamps will come on.
Courtesy Lamps
When any door is opened, several lamps come on. These
lamps are courtesy lamps. They make
it easy for you to
enter and leave your vehicle. You can also turn these
lamps on by moving the dial near the headlamp knob
all the way up.
Some of the lamps have switches so you can turn them
on,
even when the doors are closed. These lamps are
reading lamps. To avoid draining your battery, be sure
to turn off all reading lamps when leaving your vehicle.
2-31
._

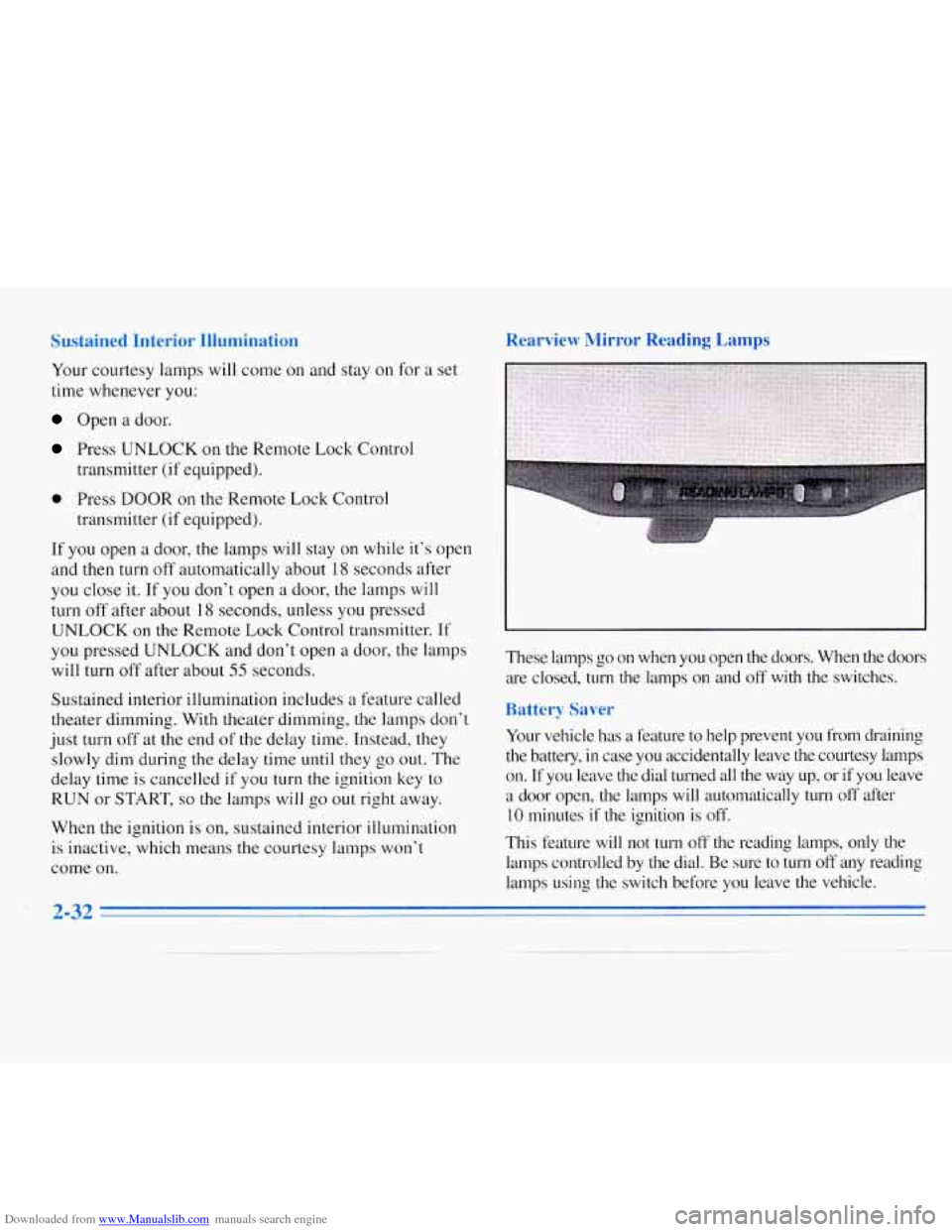

Downloaded from www.Manualslib.com manuals search engine Sustained Interior Illumination
Your courtesy lamps will come on and stay on for a set
time whenever you:
Open a door.
Press UNLOCK on the Remote Lock Control
transmitter (if equipped).
0 Press DOOR on the Remote Lock Control
transmitter (if equipped).
If you open
a door, the lamps will stay on while it’s open
and
then turn off automatically about 18 seconds after
you close it. If you don’t open
a door, the lamps will
turn off after about 18 seconds, unless you pressed
UNLOCK on the Remote Lock Control transmitter. If
you pressed UNLOCK and don’t open a door, the lamps
will turn off after about
55 seconds.
Sustained interior illumination includes a feature called
theater dimming. With theater dimming,
the lamps don’t
just turn off at the end
of the delay time. Instead, they
slowly dim during the delay time until they go out. The
delay time
is cancelled if you turn the ignition key to
RUN or START, so the lamps will go out right away.
When the ignition is on, sustained interior illumination
is inactive, which means the courtesy lamps won’t
come on.
Rearview Mirror Reading Lamps
These lamps go on when you open the doors. When the doors
are closed,
turn the lamps on and off with the switches.
Battery Saver
Your vehicle has a feature to help prevent you fiom draining
the battery,
in case you accidentally leave the courtesy lamps
on. If you leave the dial turned all the way up, or if you leav\
e
a door open, the lamps will automatically turn
off after
10 minutes if the ignition is off.
This feature will not turn off the reading lamps, only the
lamps controlled by the dial. Be sure to turn
off any reading
lamps using the switch before you leave the vehicle.
2-32
