CHEVROLET MONTE CARLO 1997 5.G Owners Manual

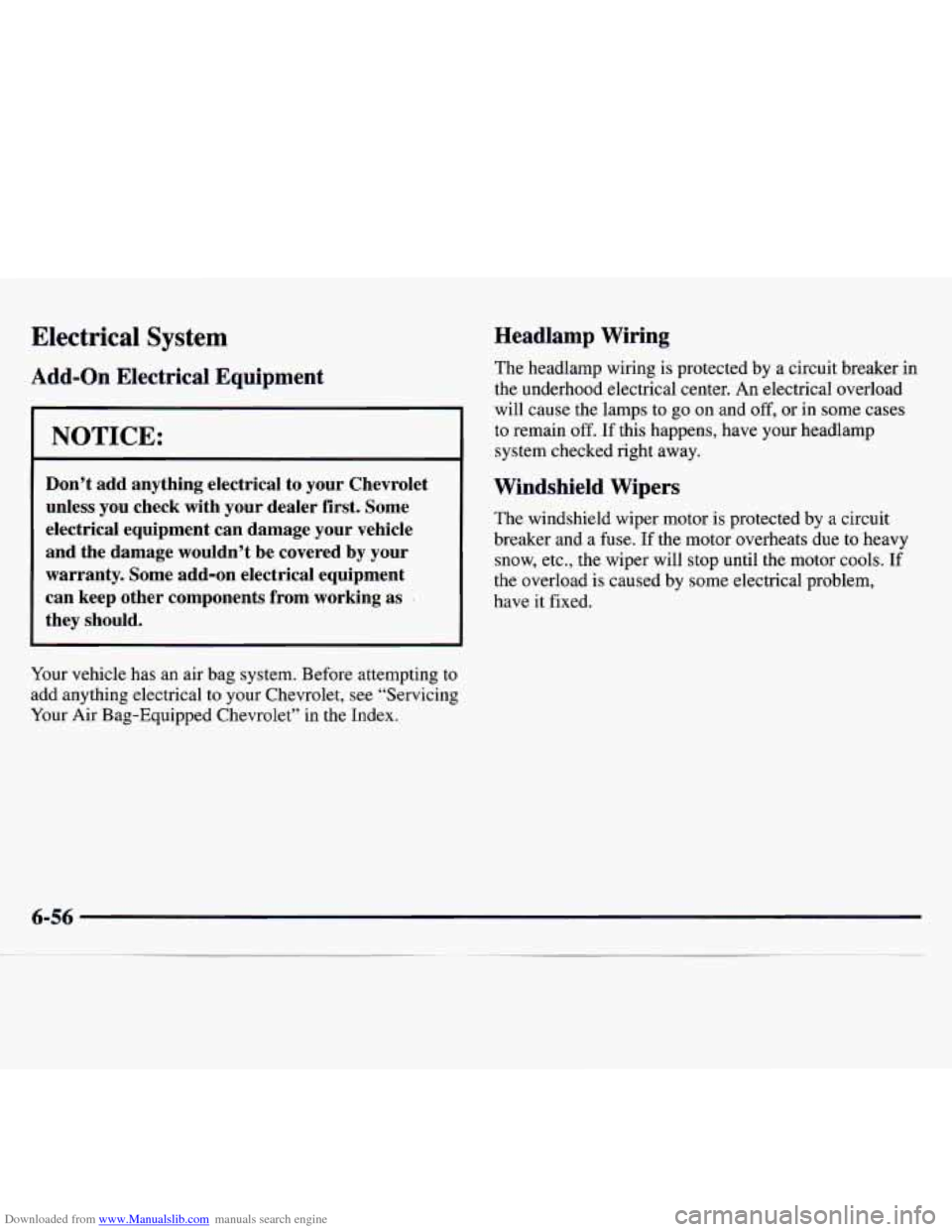

Downloaded from www.Manualslib.com manuals search engine Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Chevrolet
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical
to your Chevrolet, see “Servicing
Your Air Bag-Equipped Chevrolet” in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center. An electrical overload
will cause the lamps
to go on and off, or in some cases
to remain off. If this happens, have your headlamp
system checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrica
have it fixed. 1 problem.

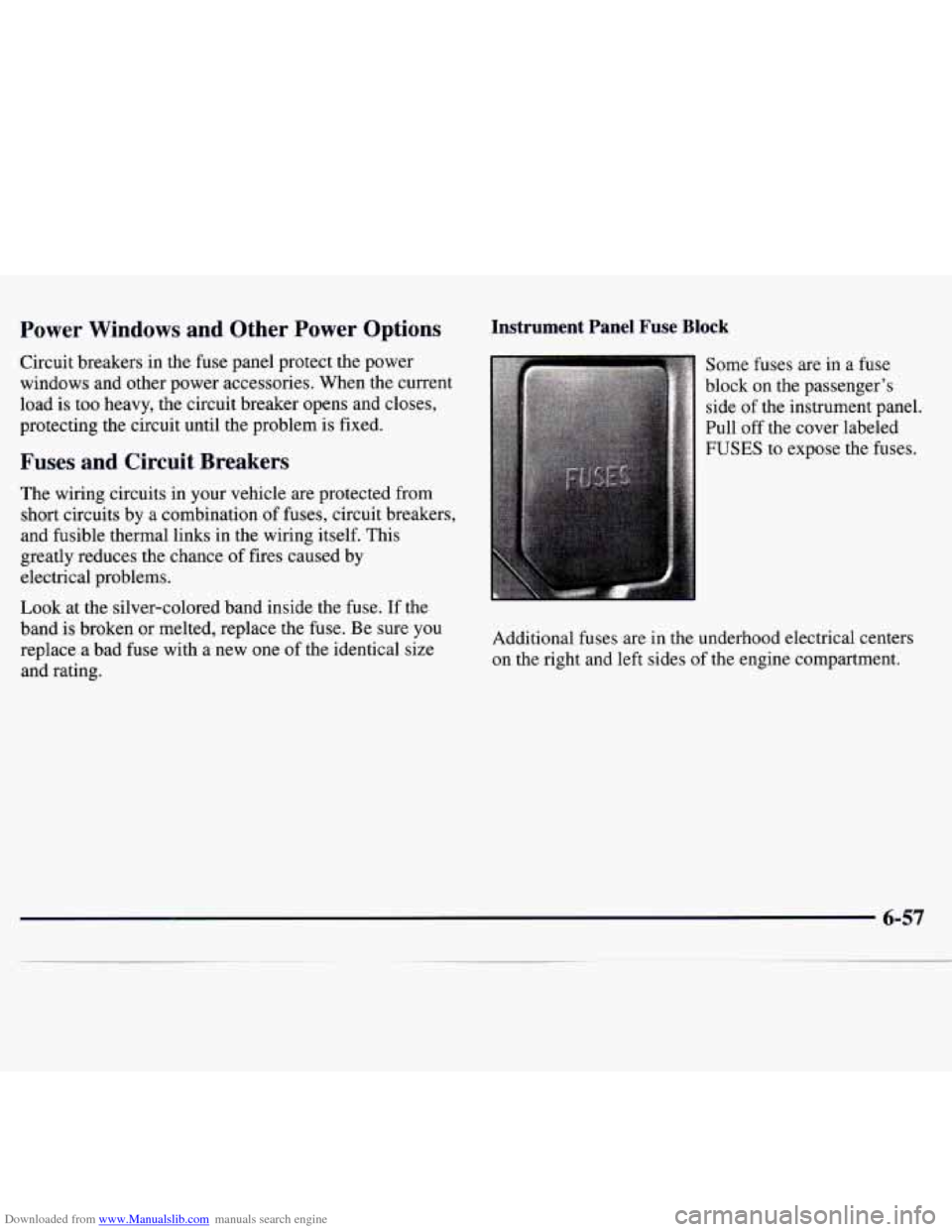

Downloaded from www.Manualslib.com manuals search engine Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem
is fixed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers,
and fusible thermal links in the wiring itself. This
greatly reduces the chance of fires caused by
electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
Instrument Panel Fuse Block
Some fuses are in a fuse
block on the passenger’s
i side of the instrument panel.
Pull off the cover labeled
FUSES to expose the fuses.
Additional fuses are in the underhood electrical centers
on the right and left sides of the engine compartment.

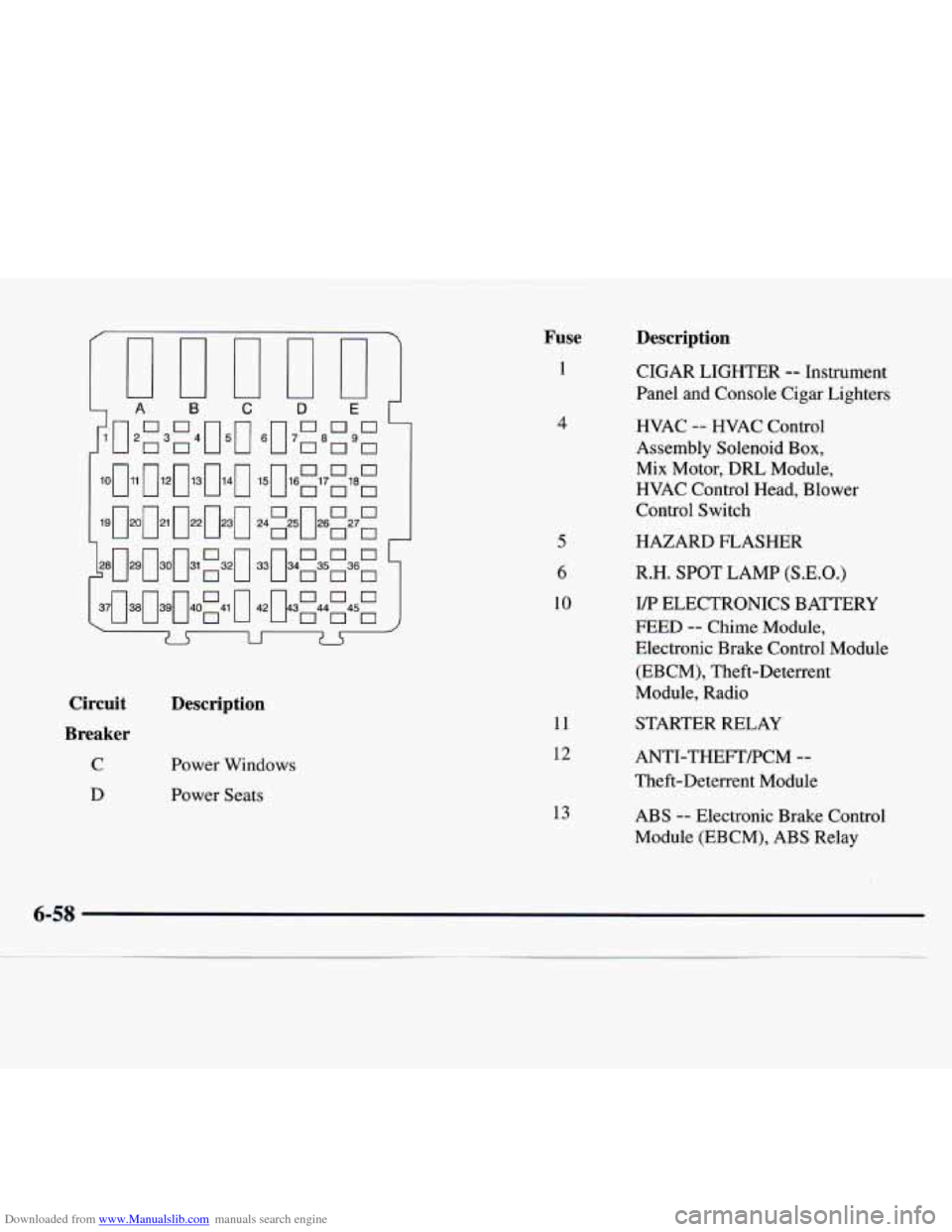

Downloaded from www.Manualslib.com manuals search engine Fuse
1
4
5
6
10
Circuit
Breaker
C
D
Description
11
12 Power Windows
Power Seats
13
Description
CIGAR LIGHTER -- Instrument
Panel and Console Cigar Lighters
HVAC
-- WAC Control
Assembly Solenoid Box,
Mix Motor, DRL Module,
HVAC Control Head, Blower
Control Switch
HAZARD FLASHER
R.H.
SPOT LAMP (S.E.O.)
I/P ELECTRONICS BATTERY
FEED
-- Chime Module,
Electronic Brake Control Module
(EBCM), Theft-Deterrent
Module, Radio
STARTER RELAY
ANTI-THEFTPCM
--
Theft-Deterrent Module
ABS
-- Electronic Brake Control
Module (EBCM), ABS Relay

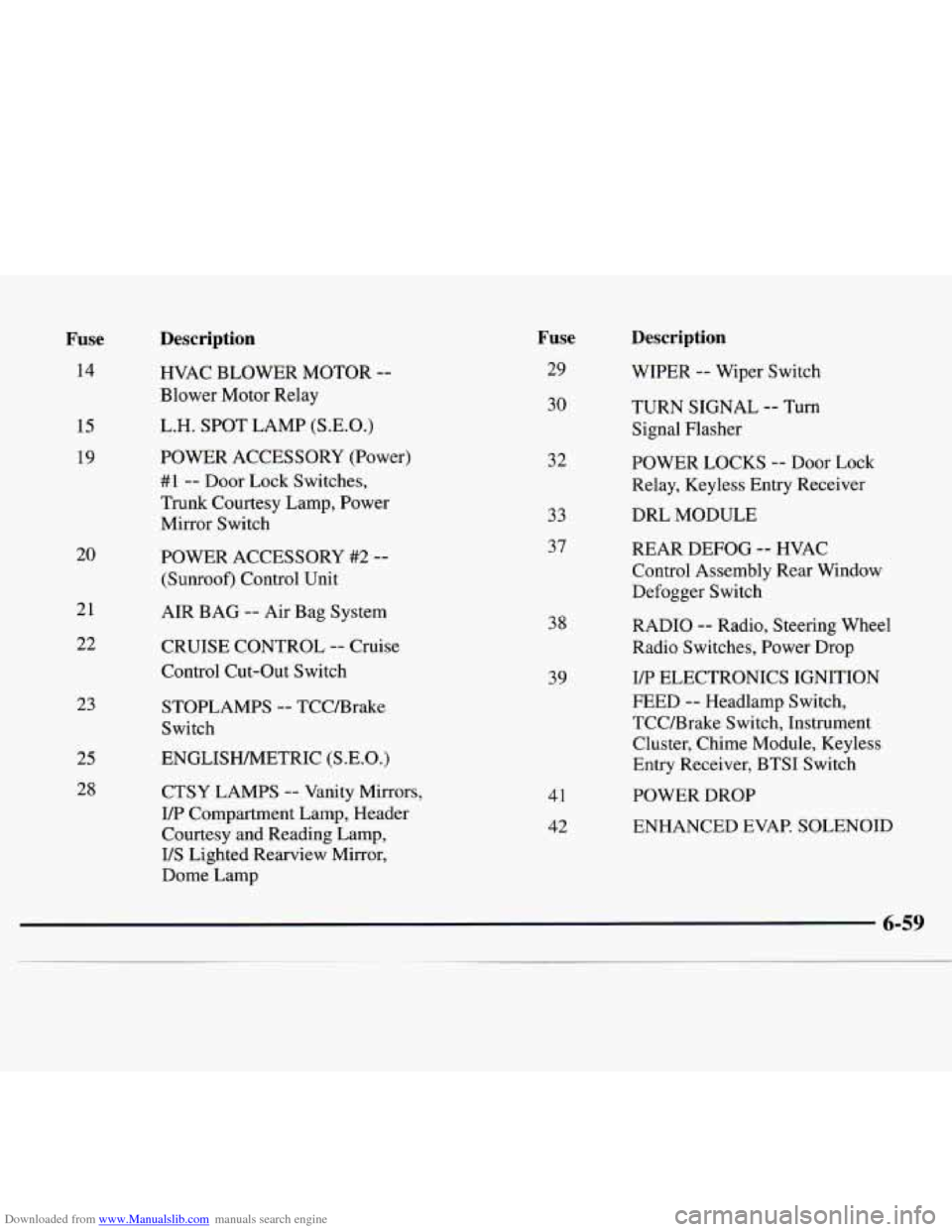

Downloaded from www.Manualslib.com manuals search engine Fuse
14
15
19
20 21 22
23
25 28
Description
HVAC BLOWER MOTOR --
Blower Motor Relay
L.H. SPOT LAMP
(S.E.O.)
Fuse
29
30
Description
WIPER -- Wiper Switch
TURN SIGNAL
-- TU^
Signal Flasher
POWER ACCESSORY (Power)
#I -- Door Lock Switches,
Trunk Courtesy Lamp, Power
Mirror Switch
POWER ACCESSORY #2
--
(Sunroof) Control Unit
AIR BAG
-- Air Bag System
CRUISE CONTROL
-- Cruise
Control Cut-Out Switch
STOPLAMPS
-- TCCBrake
Switch
ENGLISWMETRIC
(S.E.O.)
CTSY LAMPS -- Vanity Mirrors,
IR Compartment Lamp, Header
Courtesy and Reading Lamp,
US Lighted Rearview Mirror,
Dome
Lamp
32
33
37 POWER
LOCKS
-- Door Lock
Relay, Keyless Entry Receiver
DRL MODULE
REAR DEFOG
-- HVAC
Control Assembly Rear Window
Defogger Switch
38
39
41
42 RADIO
-- Radio, Steering
Wheel
Radio Switches, Power Drop
I/P ELECTRONICS IGNITION
FEED
-- Headlamp Switch,
TCCPBrake Switch, Instrument
Cluster, Chime Module, Keyless
Entry Receiver, BTSI Switch
POWER DROP
ENHANCED EVAP. SOLENOID

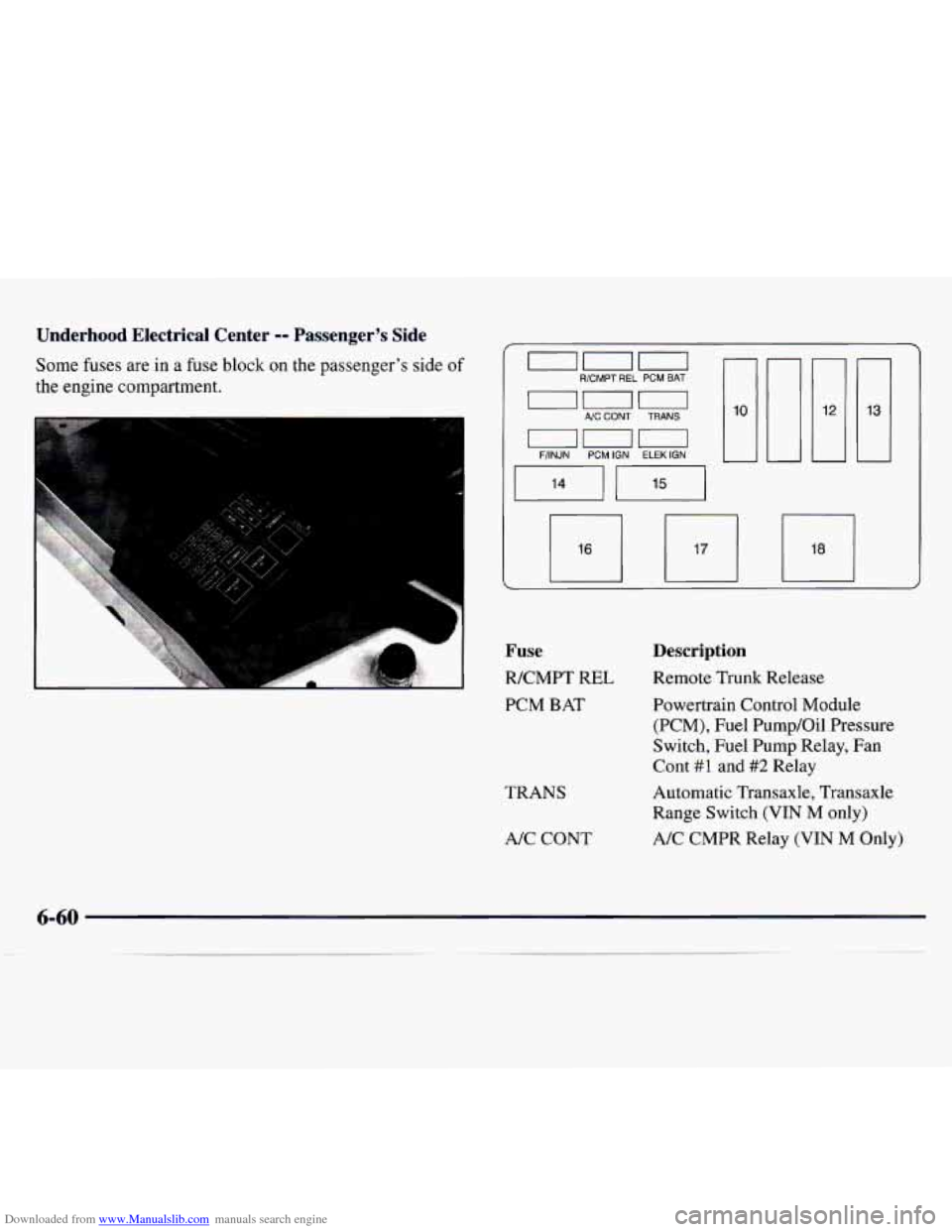

Downloaded from www.Manualslib.com manuals search engine Underhood Electrical Center -- Passenger’s Side
Some fuses are in a fuse block on the passenger’s side of
the engine compartment. uuu R/CMPT REL PCM BAT
000 A/C CONT TRANS
FANJN PCM IGN ELEK IGN
--
I 14 11 15 I
1.I 1 1 11
000
000
A/C CONT TRANS
FANJN PCM IGN ELEK IGN
1
Fuse
R/CMPT REL
PCM BAT
TRANS NC CONT
Description
Remote Trunk Release
Powertrain Control Module
(PCM), Fuel Pump/Oil Pressure
Switch,
Fuel Pump Relay, Fan
Cont
#I and #2 Relay
Automatic Transaxle, Transaxle
Range Switch (VIN
M only)
A/C CMPR Relay (VIN
M Only)

Downloaded from www.Manualslib.com manuals search engine Fuse
F/INJN PCM IGN
ELEK IGN
10
12
13
Relay
14
15
16
17
18
Description
Fuel Injectors
Powertrain Control Module
(PCM),
Mass Air Flow (MAF) Sensor (VIN
X only), EGR, CCP, Oxygen Sensor,
Vacuum Canister Switch
Electronic Ignition
(EI)
Control Module
I/P Fuse Block
Passenger’s Side Underhood
Electrical Center, FRMP Relay,
Cooling Fans
#1 and #2, Ignition
Relay, P/N Switch
FAN CONT
#1 Relay, Circuit
Breaker
D
Description
FUEL PUMP
A/C CMPR
FAN CONT
#2 -- Secondary
Cooling Fan (Passenger’s Side)
FAN CONT
#1 -- Primary
Cooling Fan (Driver’s Side)
Ignition Relay
Underhood Electrical Center -9 Driver’s Side
Additional fuses are in a fuse block on the driver’s side
of the engine compartment.

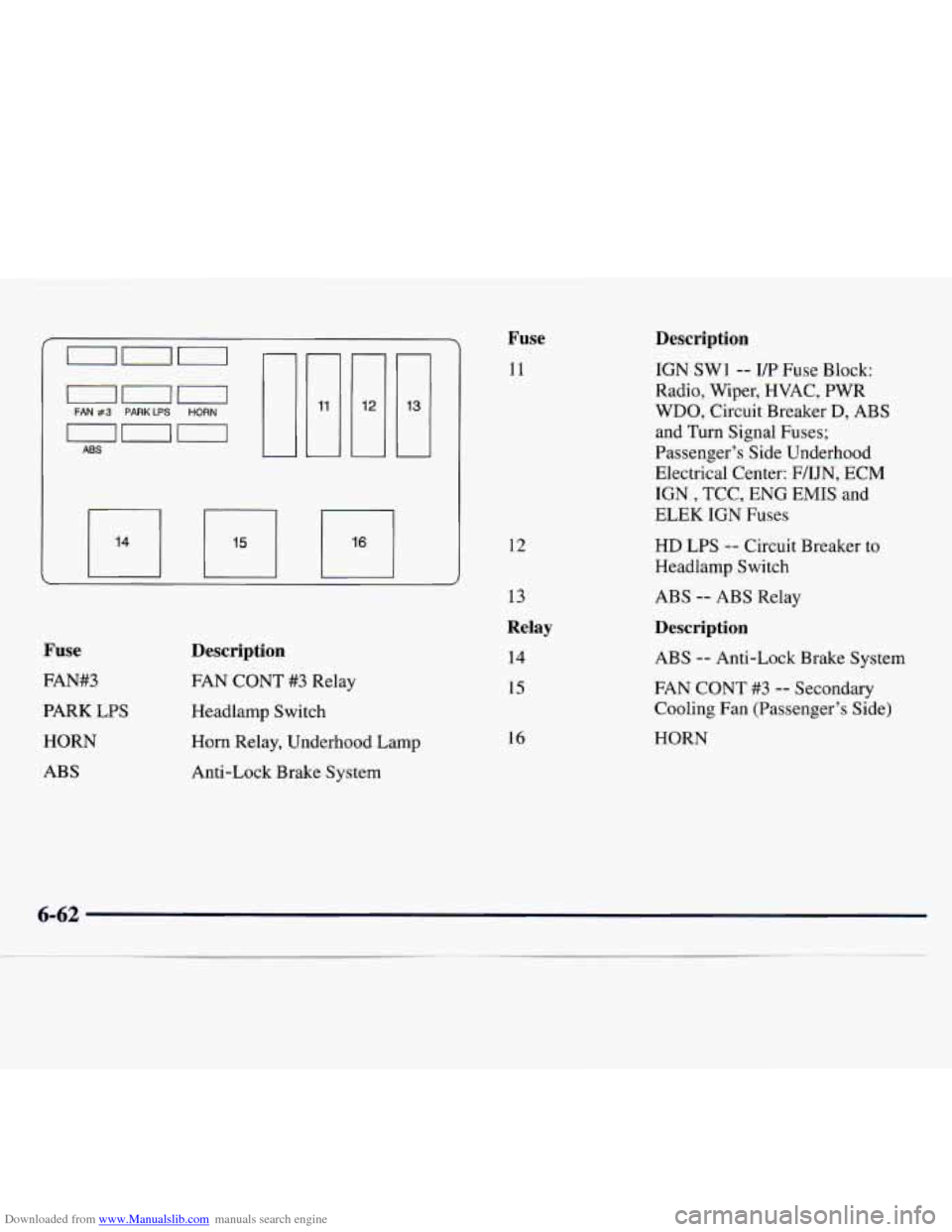

Downloaded from www.Manualslib.com manuals search engine uuu I[
FAN #3 PARKLPS HORN
on0 ABS 1 i
Fuse
11
12
Fuse
FAN#3
PARK LPS
HORN
ABS
Description
FAN CONT #3 Relay
Headlamp Switch
Horn Relay, Underhood
Lamp
Anti-Lock Brake System
13
Relay
14
15
16
Description
IGN SWl -- I/P Fuse Block:
Radio, Wiper, HVAC, PWR
WDO, Circuit Breaker D, ABS
and Turn Signal Fuses;
Passenger’s Side Underhood
Electrical Center: F/IJN, ECM
IGN
, TCC, ENG EMIS and
ELEK IGN Fuses
HD LPS -- Circuit Breaker to
Headlamp Switch
ABS
-- ABS Relay
Description
ABS -- Anti-Lock Brake System
FAN CONT
#3 -- Secondary
Cooling Fan (Passenger’s Side)
HORN

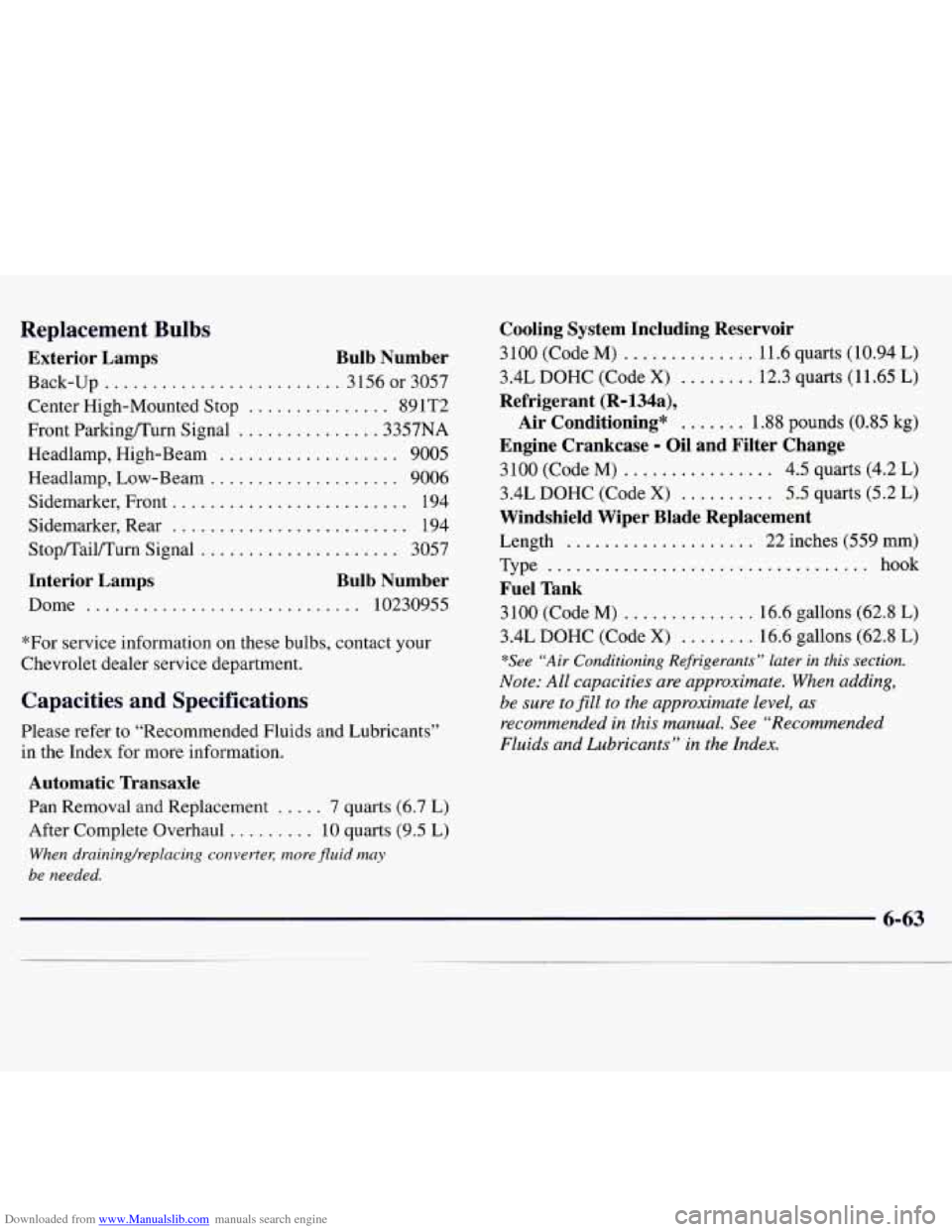

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Exterior Lamps Bulb Number
Back-up ......................... 3 156 or 3057
Center High-Mounted Stop
............... 891T2
Front ParkingiTurn Signal
............... 3357NA
Headlamp, High-Beam
................... 9005
Headlamp, Low-Beam
.................... 9006
Sidemarker, Front
......................... 194
Sidemarker, Rear
......................... 194
Stop/Tail/Turn Signal
..................... 3057
Interior Lamps Bulb Number
Dome ............................. 10230955
*For service information
on these bulbs, contact your
Chevrolet dealer service department.
Capacities and Specifications
Please refer to “Recommended Fluids and Lubricants”
in
the Index for more information.
Automatic Transaxle
Pan Removal and Replacement ..... 7 quarts (6.7 L)
After Complete Overhaul
......... 10 quarts (9.5 L)
When drainingh-eplucing convertel; more fluid muy
be needed.
Cooling System Including Reservoir
3100 (Code M) .............. 11.6 quarts (10.94 L)
3.4L DOHC (Code
X) ........ 12.3 quarts (1 1.65 L)
Refrigerant (R-l34a),
Air Conditioning* ....... 1.88 pounds (0.85 kg)
Engine Crankcase - Oil and Filter Change
3100 (Code M) ................ 4.5 quarts (4.2 L)
3.4L DOHC (Code
X) .......... 5.5 quarts (5.2 L)
Windshield Wiper Blade Replacement
Length .................... 22 inches (559 mm)
Type
.................................. hook
Fuel Tank
3100 (Code M) .............. 16.6 gallons (62.8 L)
3.4L DOHC (Code
X) ........ 16.6 gallons (62.8 L)
*See “Air Conditioning Refrigerants” later in this section.
Note: All capacities are approximate. When adding,
be sure to
Jill to the approximate level, as
recommended in this manual. See “Recommended
Fluids and Lubricants” in the Index.

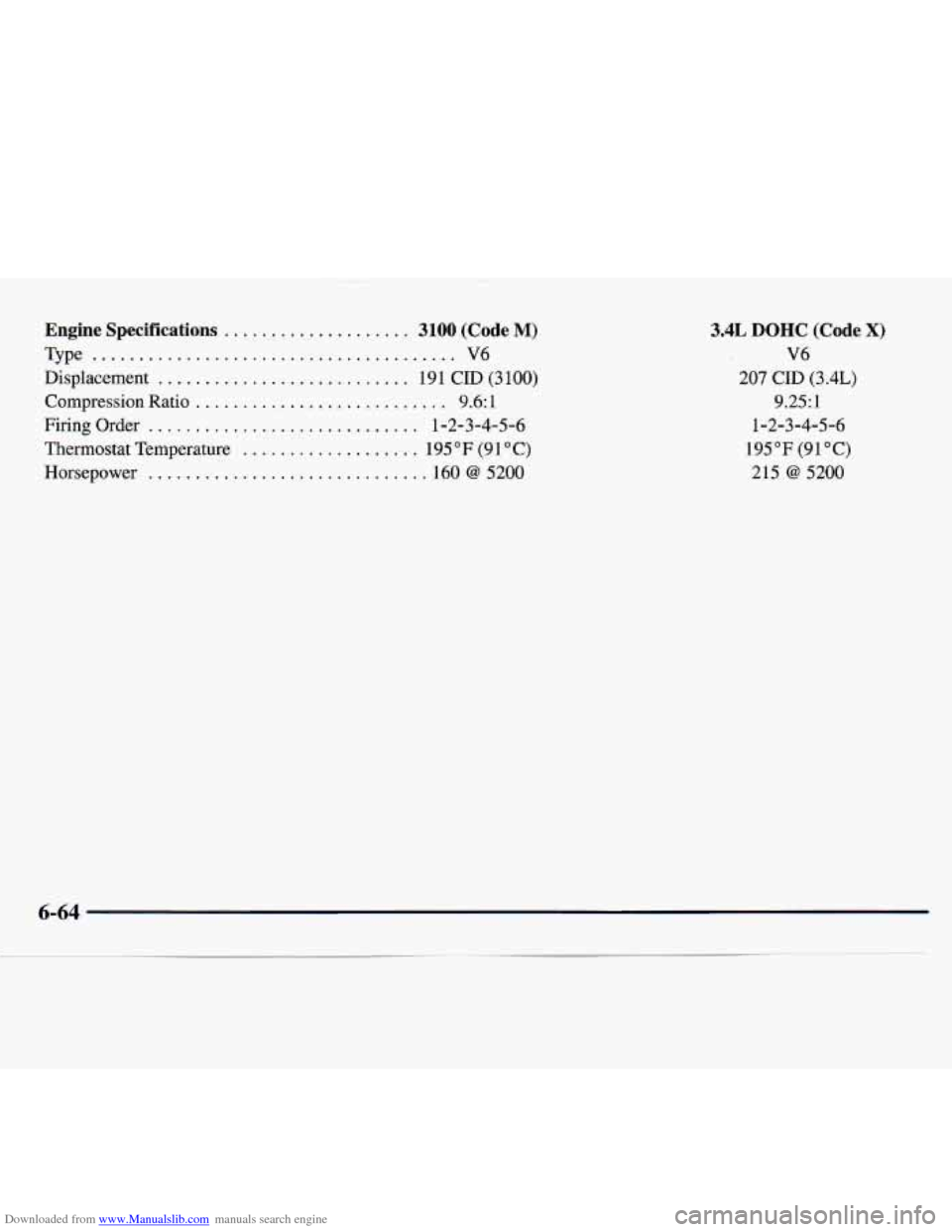

Downloaded from www.Manualslib.com manuals search engine Engine Specifications .................... 3100 (Code M)
Type ....................................... V6
Displacement
........................... 191 CID (3100)
Compression Ratio
........................... 9.6: 1
Firing Order ............................. 1-2-3-4-5-6
Thermostat Temperature
................... 195 OF (9 1 "C)
Horsepower .............................. 160 0 5200
3.4L DOHC (Code X)
V6
207 CID (3.4L)
9.25: 1
1-2-3-4-5-6
195°F (91°C)
215
@ 5200
6-64

Downloaded from www.Manualslib.com manuals search engine Normal Maintenance Replacement PC.?-
Air Cleaner Filter
Battery
3100 (Code M) ....................... 600 CCA
3.4L DOHC (Code
X) ................. 690 CCA
Engine Oil Filter
3100(CodeM) .......................... PF47
3.4L DOHC (Code
X) .................... PF51
PCV Valve
3100 (Code M) ....................... CV892C
3.4L DOHC (Code
X) ................. CV895C
Radiator Cap
All Engines ............................. RC27
Spark Plugs
3100 (Code M) ........................ .41-940
Gap: 0.060”
(. 152 cm)
3.4L DOHC (Code
X) .................. .41-919
Gap:
0.045” (. 1 14 cm)
All
Engines
........................... A1208C
Vehicle Dimensions
Wheelbase .............. 107.5 inches (273 .O cm)
Tread Width (Front)
........ 59.5 inches (15 1.2 cm)
Tread Width (Rear)
........ 59.0 inches ( 150.0 cm)
Length
................. 200.7 inches (509.9 cm)
Width
................... 72.5 inches ( 184.2 cm)
Height..
................. 53.8 inches (136.8 cm)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not sure, ask your Chevrolet dealer.
