CHEVROLET MONTE CARLO 2000 6.G User Guide

ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important
for you and
your passengers
whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
SPEAKER
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle.

For
a More
Detailed Look at
What's Under the Hood
See Section 6
Tire Pressure
See Section 6
Service Station Guide
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6Fuel
Use unleaded gas only,
87 Octane or higher.
See Section 6
Cooling System
See Section 5
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Spare Tire Pressure
See Section 5
Battery
See Section 6

1-
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-8 Safety Belts: They're for Everyone
1
-13 Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
1
-14 How to Wear Safety Belts Properly
1
-14 Driver Position
1
-21 Safety Belt Use During Pregnancy
1
-22 Right Front Passenger Position
1
-23 Air Bag System
1
-29 Rear Seat Passengers1
-33 Rear Safety Belt Comfort Guides for Children
and Small Adults
1
-35 Center Passenger Position
1
-37 Children
1
-39 Child Restraints
1
-51 Larger Children
1
-54 Safety Belt Extender
1
-54 Checking Your Restraint Systems
1
-54 Replacing Restraint System Parts After
a Crash

1-2
Seats and Seat Controls
This section tells you how to adjust the seats and
explains reclining seatbacks and head restraints.
Manual Front Seat
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
Lift the bar under the front of the seat to unlock it. Slide
the seat to where you want it and release the bar. Try to
move the seat with your body to be sure the seat is
locked in place.

1-3 6-Way Power Driver's Seat (If Equipped)
This switch is designed to control the movements of
your seat cushion. It is located on the left side of the
driver's seat cushion. To move the seat forward or
rearward, push the switch forward or rearward. To raise
or lower the seat, push the switch up or down. To raise
or lower the front portion of your seat, push the front of
the switch up or down. To raise or lower the rear portion
of your seat, push the rear of the switch up or down.
Manual Lumbar (If Equipped)
The knob that controls this feature is located on the left
side of the driver's seat. Turn the knob toward the front
of the vehicle to increase lumbar support. Turn the
knob toward the rear of the vehicle to decrease
lumbar support.

1-4 Heated Front Seat (If Equipped)
If your vehicle is equipped
with this feature, both the
driver's and passenger's
heated seat switches are on
the center console.
Press LO to warm the seat to a lower temperature. Press
HI to warm the seat to a higher temperature. To turn this
feature off, place the switch in the center position.
Reclining Front Seatbacks
Lift the lever to release the seatback, then move the
seatback to where you want it. Release the lever to lock
the seatback in place. Pull up on the lever without
pushing on the seatback, and the seatback will
move forward.

1-5
But don't have a seatback reclined if your vehicle
is moving.

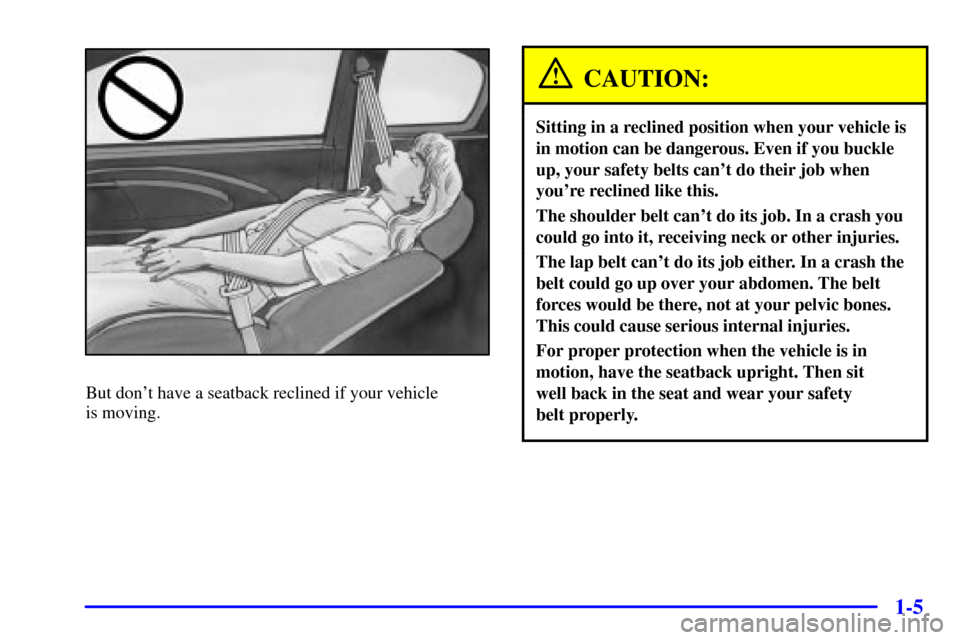

CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job. In a crash you
could go into it, receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.

1-6 Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
Seatback Latches
There is a latch on the back
of the front seat.
The latch releases the seat from the locked position.
The front seat folds forward to let people get into
the rear seat.Your seatback will move back and forth freely, unless
you come to a sudden stop. Then it will lock into place.
If your vehicle is parked facing down a steep hill, the
seatback may not fold without some help from you.
To fold the locked seatback forward, push the seatback
toward the rear and lift the latch. Then the seatback will
fold forward. The latch must be down for the seat to
work properly.
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.

1-7 Easy Entry Manual Seat
The right front passenger seat is designed to make it
easy to get in and out of the rear seat.1. Fold the right front seatback forward by lifting the
seatback latch fully.
The seat will slide forward to allow someone to get
into the rear seat area.
2. Push the seatback upright to lock and slide the seat
fully rearward to lock into its original position.
3. The front passenger should try to move the seat back
and forth to make sure the seat is locked into place.
CAUTION:
If an easy entry right front seat isn't locked, it
can move. In a sudden stop or crash, the person
sitting there could be injured. After you've used
it, be sure to push rearward on an easy entry seat
to be sure it is locked.

1-8 Split Folding Rear Seat
You can fold either side of the seatback (or both sides)
down in your vehicle for more cargo space. Make sure
the front seat isn't reclined. If it is, the rear seatback
may not fold down all the way.
There is a tab located on the
outboard sides of the seat.
To lower the rear seatback, follow these steps:
1. Pull forward on the seat tab to fold the seat cushion
down. This will allow you direct access to the trunk.
2. Fold the seatback down.
To raise the rear seatback, lift the seatback up and push
it back into place. Make sure it latches. Push and pull on
the seatback to be sure it is locked into position.
Safety Belts: They're for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the air bag system.
CAUTION:
Don't let anyone ride where he or she can't wear
a safety belt properly. If you are in a crash and
you're not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers' belts
are fastened properly too.
