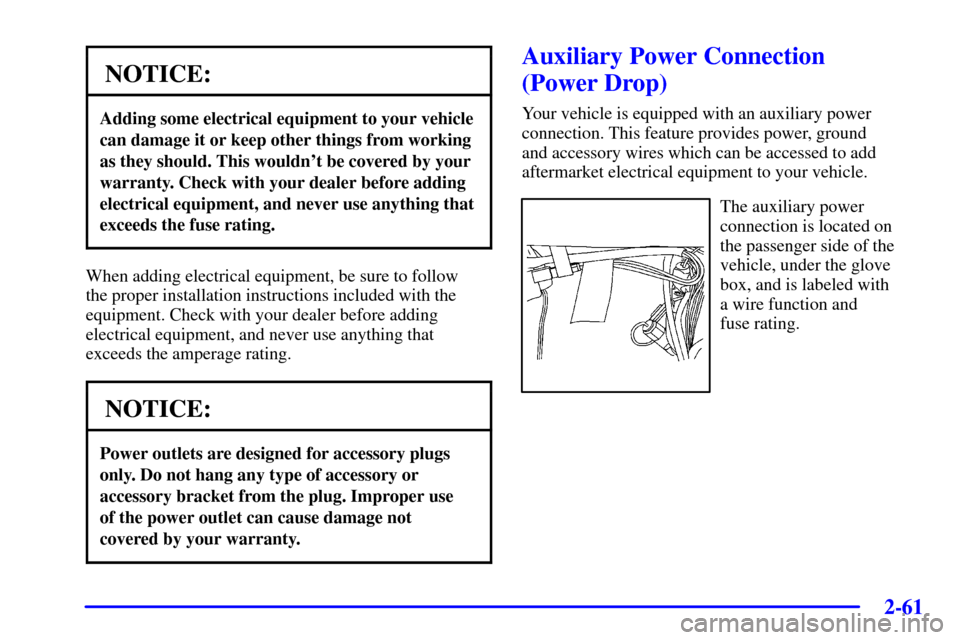

2-61
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the fuse rating.
When adding electrical equipment, be sure to follow
the proper installation instructions included with the
equipment. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the amperage rating.
NOTICE:
Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or
accessory bracket from the plug. Improper use
of the power outlet can cause damage not
covered by your warranty.
Auxiliary Power Connection
(Power Drop)
Your vehicle is equipped with an auxiliary power
connection. This feature provides power, ground
and accessory wires which can be accessed to add
aftermarket electrical equipment to your vehicle.
The auxiliary power
connection is located on
the passenger side of the
vehicle, under the glove
box, and is labeled with
a wire function and
fuse rating.

2-71
The main components of your instrument panel are listed here:
A. Instrument Panel Fuse Block
B. Turn Signal/Multifunction Lever
(behind steering wheel)
C. Audio Steering Wheel Controls (If Equipped)
D. Instrument Panel Cluster
E. Hazard Warning Flasher Button
F. Audio System
G. Air Vent
H. Exterior Lamps ControlI. Remote Trunk Release
J. Tilt Steering Wheel Lever
K. Hood Release
L. Cruising Steering Wheel Controls (If Equipped)
M. Ignition Switch
N. Automatic Transaxle Shift Lever
O. Climate Controls
P. Glove Box

6-67
Mini Fuses Description
TRK/ROOF BRP Trunk Lamps, Headliner Lamps
HVAC BLO HVAC Blower Relay
I/P BRP Instrument Panel Footwell
Lamps, Glovebox Lamps
HTD MIR Heated Mirrors
BRK SW Brake Switch
HAZ SW Hazard Switch
REAR PRK LP Rear Parking Lamps
AUX PWR Accessory Power
Outlet (Battery)
C/LTR Cigarette Lighter
RADIO Radio, Radio Amplifier
FRT PARK LP Front Parking Lamps,
Instrumentation LightingCircuit Relay Description
PARK LP RELAY Parking Lamp Relay
BACKUP
LP RELAYBack
-up Lamps Relay
BATT RUN
DOWN
PROTECTION
RELAYBattery Run Down
Protection Relay
REAR
DEFOG RELAYRear Defogger Relay, Heated
Mirror Relay
Circuit Breaker Description
PWR
SEATS BRKRPower Seat Circuit Breaker
REAR
DEFOG BRKRRear Defogger Breaker
