keyless CHEVROLET MONTE CARLO 2002 6.G Owners Manual

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-8 Remote Keyless Entry (If Equipped)
2
-12 Trunk
2
-16 Theft
2
-17 Content Theft-Deterrent (Option)
2
-18 Vehicle Customization Settings
2
-27 Passlock

2-27 New Vehicle ªBreak-Inº
2
-28 Ignition Positions
2
-29 Starting Your Engine
2
-32 Engine Coolant Heater (Option)
2
-33 Automatic Transaxle Operation
2
-37 Parking Brake
2
-38 Shifting Into PARK (P)
2
-40 Shifting Out of PARK (P)
2
-40 Parking Over Things That Burn2
-41 Engine Exhaust
2
-42 Running Your Engine While You're Parked
2
-43 Tilt Wheel
2
-43 Turn Signal/Multifunction Lever
2
-49 Exterior Lamps
2
-52 Interior Lamps
2
-54 Mirrors
2
-60 Accessory Power Outlet
2
-61 Auxiliary Power Connection (Power Drop)
2
-62 OnStar
System (If Equipped)
2
-66 Power Sunroof (Option)
2
-67 HomeLink
Transmitter (Option)
2
-70 The Instrument Panel -- Your
Information System
2
-72 Instrument Panel Cluster
2
-75 Warning Lights, Gages and Indicators
2
-87 Message Center
2
-95 Driver Information Center (DIC) (Option)

2-6

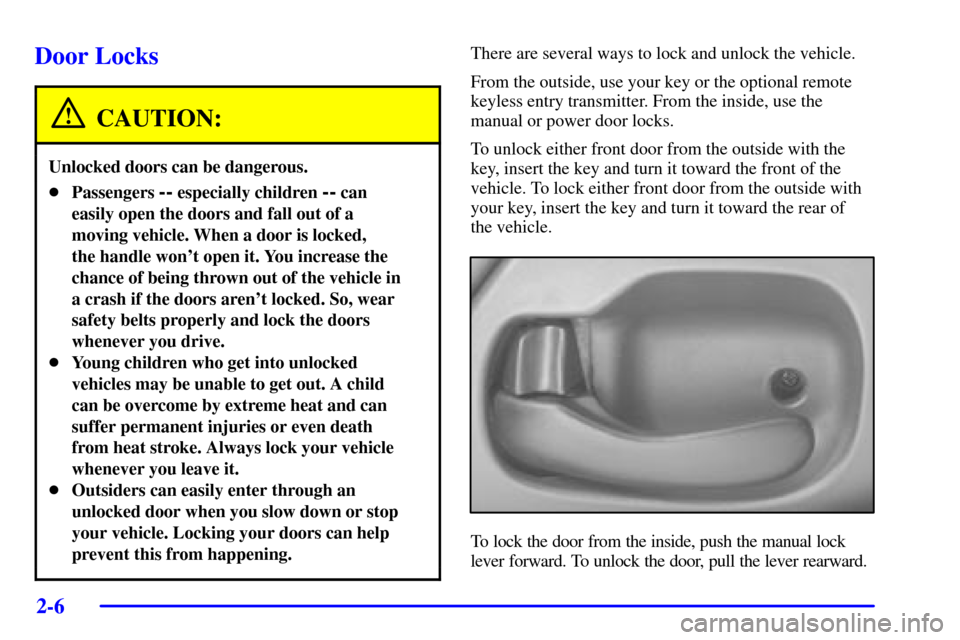

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock the vehicle.
From the outside, use your key or the optional remote
keyless entry transmitter. From the inside, use the
manual or power door locks.
To unlock either front door from the outside with the
key, insert the key and turn it toward the front of the
vehicle. To lock either front door from the outside with
your key, insert the key and turn it toward the rear of
the vehicle.
To lock the door from the inside, push the manual lock
lever forward. To unlock the door, pull the lever rearward.

2-7
Power Door Locks
A power door lock switch is
located on each front door
above the armrest.
Press the top part of the switch to unlock both doors, or
press the bottom part of the switch to lock both doors.
If your vehicle has the optional content theft
-deterrent
system and it is armed, the power door lock switches
will be disabled. You must use your remote keyless
entry transmitter (if equipped) or your key to unlock the
doors when the system is armed.
Programmable Automatic Power Door Locks
Programmable automatic power door locks are a standard
feature that is intended to provide enhanced security and
convenience by automatically locking and unlocking doors.
Programmable Modes
Mode 1: No automatic door lock or unlock.
Mode 2: Automatic all
-door lock when the transaxle is
shifted out of PARK (P); no automatic door unlock.
Mode 3: Automatic all
-door lock when the transaxle is
shifted out of PARK (P); automatic unlock for the driver's
door only when the transaxle is shifted into PARK (P).
Mode 4: Automatic all
-door lock when the transaxle
is shifted out of PARK (P); automatic all
-door unlock
when the transaxle is shifted into PARK (P).
Before your vehicle was shipped from the factory, it was
programmed to Mode 4. The mode to which the vehicle
was programmed may have been changed since it left
the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, see ªVehicle Customization Settingsº
in the Index.
Disconnecting the vehicle's battery for up to a year will
not change any previously programmed modes.

2-8 Lockout Protection Feature
To protect you from locking your key in the vehicle,
this feature stops the power door locks from locking
when the key is in the ignition and a door is open.
If a power lock switch is pressed when a door is open
and the key is in the ignition, both doors will lock and
then the driver's door will unlock. A chime will sound
continuously until both doors are closed.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Remote Keyless Entry (If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation
of the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-9
Operation
Use the remote keyless
entry transmitter to
open or lock your
vehicle's doors or your
trunk from a distance.
Remote Keyless
Entry Transmitter
LOCK: Press the LOCK button to lock all doors.
UNLOCK: Press the UNLOCK button on the remote
keyless transmitter once to unlock the driver's door and
turn on the interior lamps. See ªIllumination and
Remote Activationº in the Index for more details. Pause
for about one second, then press UNLOCK again within
five seconds to unlock the passenger door.
(Panic Alarm): Press the button with the horn
symbol to activate an alarm on the remote keyless entry
transmitter. The ignition must be in OFF or ACC for the
panic alarm to work. When you press the panic button
on the remote keyless entry transmitter, the headlamps
will flash, the horn will honk repeatedly and your
interior lamps will illuminate attracting attention if you
need it. The alarm will continue until one of the
following occurs:

The panic alarm button on the remote keyless entry
transmitter is pressed a second time,

the vehicle's ignition is turned to ON or

an alarm period of about 110 seconds has elapsed.
(Trunk Release): Press the button on the remote
keyless transmitter with the vehicle symbol on it to
release the trunk.
Operating the remote keyless entry transmitter may
interact with the content theft
-deterrent system (if your
vehicle this option). See ªContent Theft
-Deterrent
Systemº in the Index.

2-10
Transmitter Verification (If Equipped)
This feature provides feedback to the holder of the remote
keyless entry transmitter that a command has been
received by the keyless entry receiver. The headlamps and
back
-up lamps will flash on every lock and the first unlock
command, and the horn will sound once for every lock
and twice for the first unlock command. Silent operation
and other options may be selected for this feature. See
ªVehicle Customization Settingsº in the Index.
If your vehicle has the optional content theft
-deterrent
system, the first time the remote unlock is received, three
flashes will be seen and three horn chirps heard to indicate
an alarm condition has occurred since last arming. See
ªContent Theft
-Deterrent Systemº in the Index.
Illumination on Remote Activation
This feature provides interior illumination when a
remote keyless entry door unlock command is received
and executed, the trunk release button is pressed or
when the panic alarm is activated. The interior lamps
will illuminate until the ignition is turned to ON or until
an illumination period of 40 seconds has elapsed or the
doors are locked with the power door lock switch or the
remote keyless entry transmitter. If a door is opened
during the illumination period, the timed illumination
will be canceled, and the interior lamps will remain on.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
If you prefer, you can complete this procedure yourself.
See ªVehicle Customization Settingsº in the Index for
more information.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.

2-12

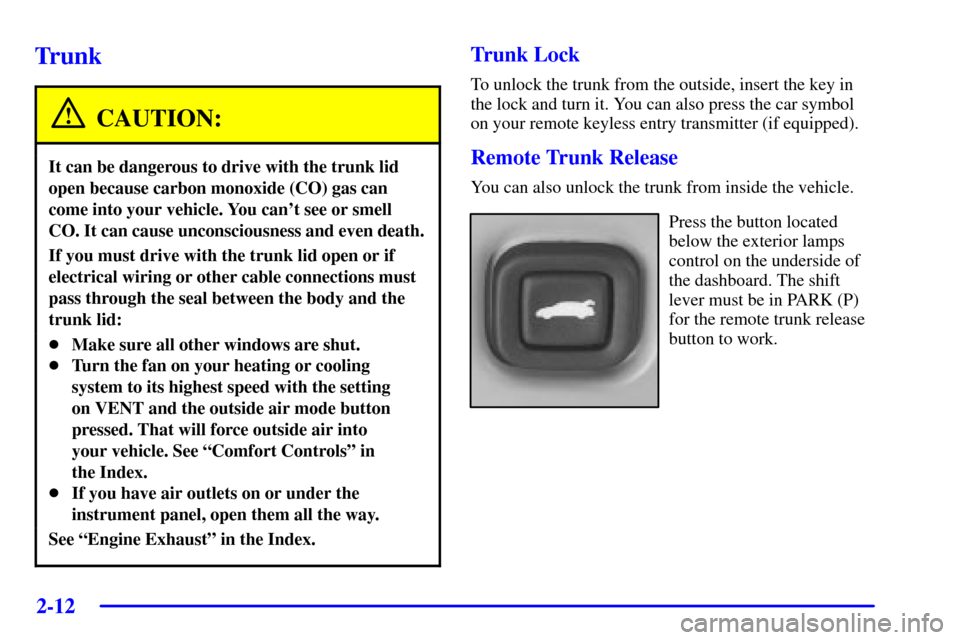

Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on VENT and the outside air mode button
pressed. That will force outside air into
your vehicle. See ªComfort Controlsº in
the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Trunk Lock
To unlock the trunk from the outside, insert the key in
the lock and turn it. You can also press the car symbol
on your remote keyless entry transmitter (if equipped).
Remote Trunk Release
You can also unlock the trunk from inside the vehicle.
Press the button located
below the exterior lamps
control on the underside of
the dashboard. The shift
lever must be in PARK (P)
for the remote trunk release
button to work.

2-16
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's
door, you'll hear a chime reminding you to remove
your key from the ignition and take it with you.
Always do this. Your ignition and transaxle will be
locked. And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up and
take your keys. But what if you have to leave your
ignition key?

If possible, park in a busy, well
-lit area.

Put your valuables in a storage area, like your trunk
or glove box.

Be sure to close and lock the storage area.

Close all windows.

Lock the glove box.

Lock all the doors except the driver's.

Then take the door key and remote keyless entry
transmitter with you.

2-17
Content Theft-Deterrent (Option)
Your vehicle may have the optional content
theft
-deterrent alarm system.
With this system, a light on the radio will flash.
This light reminds you to activate the theft
-deterrent
system. Here's how to do it:
1. Open the door.
2. Lock the door with the power door lock switch or the
remote keyless entry transmitter. The light on the
radio should come on and stay on. If you are using
the remote keyless entry transmitter, the door does
not need to be open.
3. Close all doors. The light on the radio will slowly
flash once the system is armed.
Once armed, the alarm will go off if someone tries to
enter the vehicle (without using the remote keyless entry
transmitter or a key) or turns the ignition on with an
incorrect key. The horn will sound and the headlamps
and back
-up lamps will flash for approximately
two minutes.When the alarm is armed, the trunk may be opened with
the remote keyless entry transmitter. If you use the key
to open the trunk, the alarm will sound. Also, the power
door lock switches are disabled. You must use your
remote keyless entry transmitter or your key to unlock
the doors when the system is armed.
Arming with the Power Lock Switch
Your alarm system will arm when you use either power
lock switch to lock the doors while any door or the trunk
is open and the key is removed from the ignition.
The light on the radio flashes quickly to let you know
when the system is ready to arm with the power door
lock switches. The light on the radio will stop flashing
and stay on when you press the bottom of the power
lock switch, to let you know the system is arming.
After all doors and the trunk are closed and locked, the
light on the radio will flash slowly to let you know the
system is armed.

2-18 Arming with the Remote Keyless
Entry Transmitter
Your alarm system will arm when you use your remote
keyless entry transmitter to lock the doors, if the key is
not in the ignition. The light on the radio will turn on to
let you know the system is arming. After all doors and
the trunk are closed and locked, the light on the radio
will begin flashing at a very slow rate to let you know
the system is armed.
Disarming with the Remote Keyless
Entry Transmitter
Your alarm system will disarm when you use your
remote keyless entry transmitter to unlock the doors.
The light on the radio will go off to let you know the
system is no longer armed.
The first time a remote UNLOCK command is
received, three flashes will be seen and three horn chirps
heard to indicate an alarm condition has occurred since
last arming.
Disarming with Your Key
Your alarm system will disarm when you use your key
to unlock the doors. The light on the radio will go off
to let you know the system is no longer armed.
Vehicle Customization Settings
Some of the convenience features can be reset or
customized to perform according to your preference.
The features you can program depend upon the options
that came with your vehicle. The following list shows
features that can be reset or customized along with those
options.

Settings (Available for All)

Oil Life Reset (Available for All)

Low Tire Pressure Reset

Delayed Headlamp Illumination (Available for All)

Automatic Door Lock and Unlock
(Available for All)

Remote Visual Verification (Available with Remote
Keyless Entry)

Remote Audible Verification (Available with Remote
Keyless Entry)

Content Theft Operation (Available with Content
Theft System)

Trunk Jamb (Available with Content Theft System)

Horn Chirp On Timer (Available with Remote
Keyless Entry)
