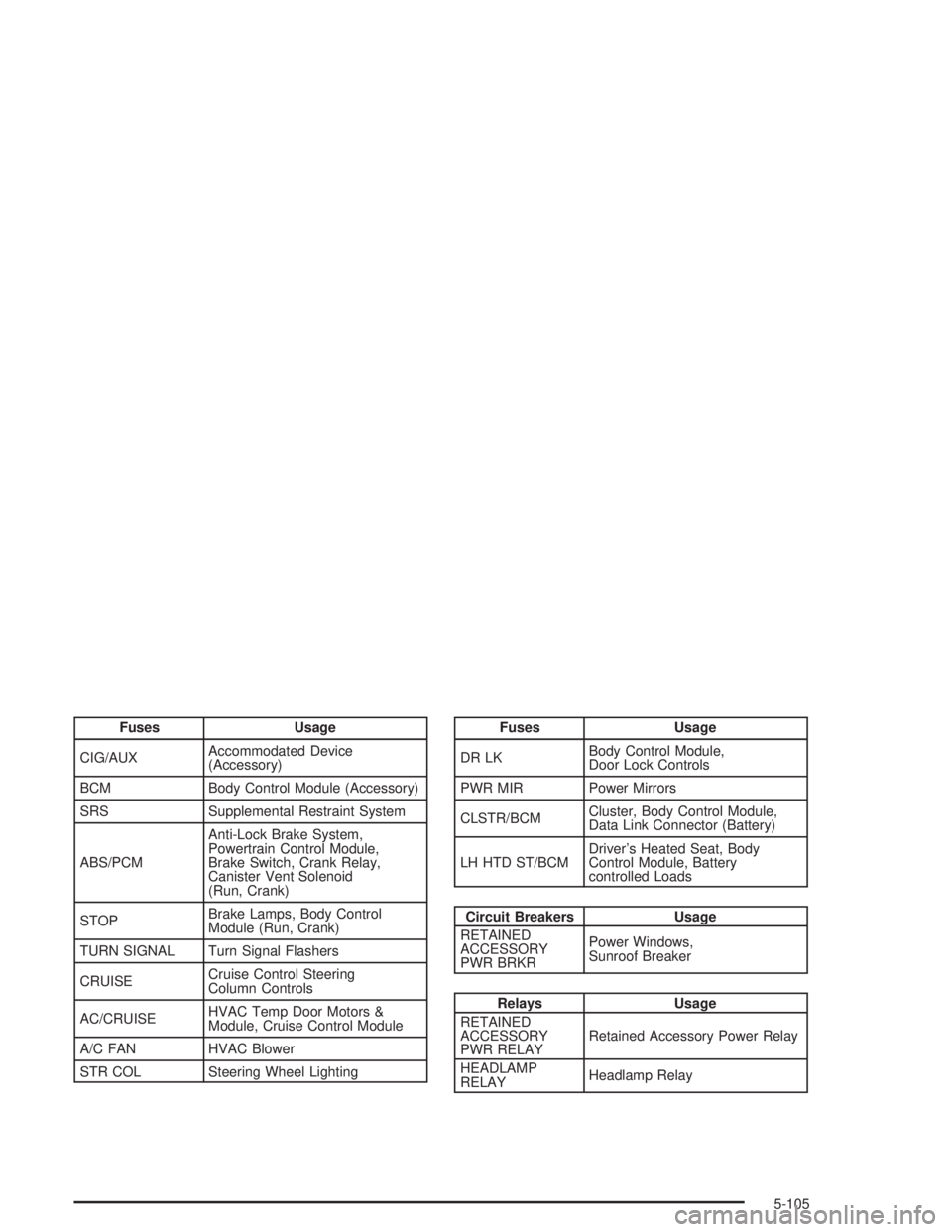

Fuses Usage
CIG/AUXAccommodated Device
(Accessory)
BCM Body Control Module (Accessory)
SRS Supplemental Restraint System
ABS/PCMAnti-Lock Brake System,
Powertrain Control Module,
Brake Switch, Crank Relay,
Canister Vent Solenoid
(Run, Crank)
STOPBrake Lamps, Body Control
Module (Run, Crank)
TURN SIGNAL Turn Signal Flashers
CRUISECruise Control Steering
Column Controls
AC/CRUISEHVAC Temp Door Motors &
Module, Cruise Control Module
A/C FAN HVAC Blower
STR COL Steering Wheel LightingFuses Usage
DR LKBody Control Module,
Door Lock Controls
PWR MIR Power Mirrors
CLSTR/BCMCluster, Body Control Module,
Data Link Connector (Battery)
LH HTD ST/BCMDriver’s Heated Seat, Body
Control Module, Battery
controlled Loads
Circuit Breakers Usage
RETAINED
ACCESSORY
PWR BRKRPower Windows,
Sunroof Breaker
Relays Usage
RETAINED
ACCESSORY
PWR RELAYRetained Accessory Power Relay
HEADLAMP
RELAYHeadlamp Relay
5-105

Fuses Usage
TRK/ROOF BRP Trunk Lamps, Headliner Lamps
HVAC BLO HVAC Blower Relay
I/P BRPInstrument Panel Footwell
Lamps, Glovebox Lamps
HTD MIR Heated Mirrors
BRK SW Brake Switch
HAZ SW Hazard Switch
REAR PRK LP Rear Parking Lamps
AUX PWR Accessory Power Outlet (Battery)
C/LTR Cigarette Lighter
RADIORadio, Radio Amplier,
Remote Digital Radio Receiver
FRT PARK LPFront Parking Lamps,
Instrumentation LightingRelays Usage
PARK LP RELAY Parking Lamp Relay
BACKUP LP
RELAYBack-up Lamps Relay
BATT RUN
DOWN
PROTECTION
RELAYBattery Run Down
Protection Relay
REAR DEFOG
RELAYRear Defogger Relay,
Heated Mirror Relay
Breakers Usage
PWR SEATS
BRKRPower Seat Circuit Breaker
REAR DEFOG
BRKRRear Defogger Breaker
5-107

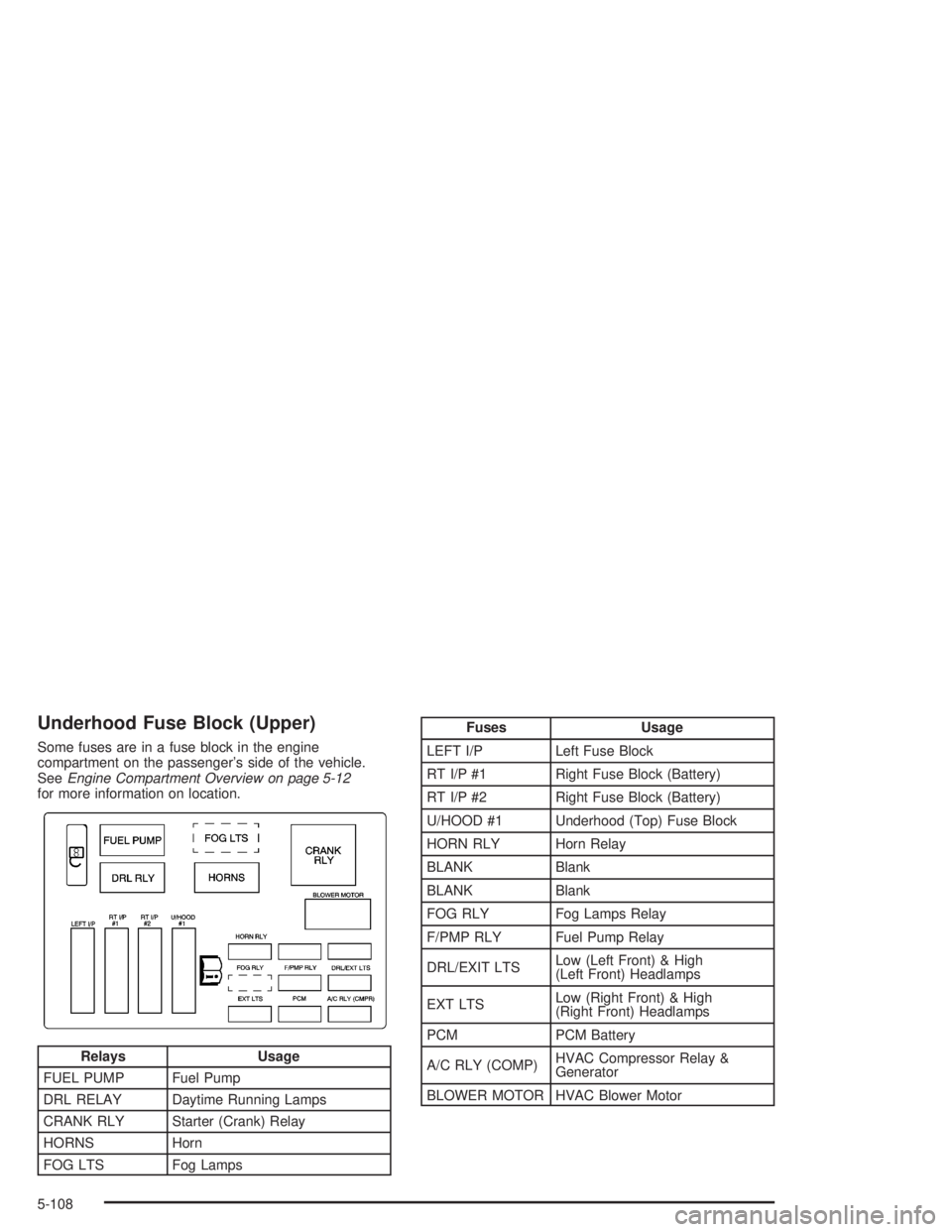

Underhood Fuse Block (Upper)
Some fuses are in a fuse block in the engine
compartment on the passenger’s side of the vehicle.
SeeEngine Compartment Overview on page 5-12
for more information on location.
Relays Usage
FUEL PUMP Fuel Pump
DRL RELAY Daytime Running Lamps
CRANK RLY Starter (Crank) Relay
HORNS Horn
FOG LTS Fog Lamps
Fuses Usage
LEFT I/P Left Fuse Block
RT I/P #1 Right Fuse Block (Battery)
RT I/P #2 Right Fuse Block (Battery)
U/HOOD #1 Underhood (Top) Fuse Block
HORN RLY Horn Relay
BLANK Blank
BLANK Blank
FOG RLY Fog Lamps Relay
F/PMP RLY Fuel Pump Relay
DRL/EXIT LTSLow (Left Front) & High
(Left Front) Headlamps
EXT LTSLow (Right Front) & High
(Right Front) Headlamps
PCM PCM Battery
A/C RLY (COMP)HVAC Compressor Relay &
Generator
BLOWER MOTOR HVAC Blower Motor
5-108

Underhood Fuse Block (Lower)
Some fuses are in a fuse block in the engine
compartment on the passenger’s side of the vehicle.
SeeEngine Compartment Overview on page 5-12
for more information on location.
Relays Usage
FAN CONT #3Secondary Cooling Fan
(Passenger’s Side)
FAN CONT #2 Cooling Fan Control Relay
FANT CONT #1Primary Cooling Fan
(Driver’s Side)
Relays Usage
IGN RELAY Ignition Relay
A/C CMPR HVAC Compressor
Fuses Usage
IGN SW Ignition Switch
RT I/P #3 Rear Defogger, Audio System
U/HOOD #2 Ignition Relay, AIR Pump
COOLING FANS Cooling fans (Battery)
FAN CONT #2
Relays #2 & #3
FAN CON #1 Cooling Fan Control Relays #1
FUEL INJ Fuel Injectors
TRANS SOL Transmission Solenoids
A/C RLY (COIL) HVAC Control Relay
ENG DEVICESCanister Purge Solenoid,
Mass Air Flow Sensor (MAF),
AIR Pump Relay & Valve Control
DFI MDL Direct Fire Ignition Module
OXY SENOxygen Sensors
(Pre and Post Converter)
